Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire)

Export reference
From $6,361
MSRP ¥4.58M CNY
Horsepower: 109
Emission: China V
Fuel: gasoline
Engine: Xin Guanghua Chen1.5L
Curb Weight:: 1.345ton
Wheelbase:: 3400mm
seating capacity: 2Personnel
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Xinyuan Jinbei Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire) is a mini truck featuring 3.4m cargo length, stake body cargo body, 2Personnel volume and 1.995t payload. On the powertrain side, it comes with a Xin Guanghua Chen1.5L engine, 109 hp, 4X2 (6 wheels) drive and China V emissions.

China V 109 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SY1031YC6AT
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3400mm
Box length class: 3.4m
engine: Xin Guanghua ChenDLCG14
transmission: 5-speed transmission
Cab length: 5.588m
Cab width: 1.88m
Cab height: 2.12m
Front track width: 1460mm
rear track: 1420mm
Curb Weight: 1.345ton
Rated payload: 1.995ton
GVWR: 3.47ton
Max. speed: 120km/h
Origin: Shenyang, Liaoning
tonnage class: mini truck
Approach angle: 38°
departure angle: 22°
Front/rear suspension: 0.68/1.508m
Energy Type: gasoline
Engine parameters
Engine Brand: Xin Guanghua Chen
Engine Model: Xin Guanghua ChenDLCG14
Engine info: Xin Guanghua Chen1.5L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.499L
Emission standard: China V
Max output power: 80kW
Max hp: 109Horsepower
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.4m
Cargo box width: 1.68m
Cargo box height: 0.38m
*Cargo box interior width: 1.6799999475479
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1735kg
rear axle allowable load: 1735kg
Leaf spring count: 5/8
Suspension (front/rear): /leaf spring

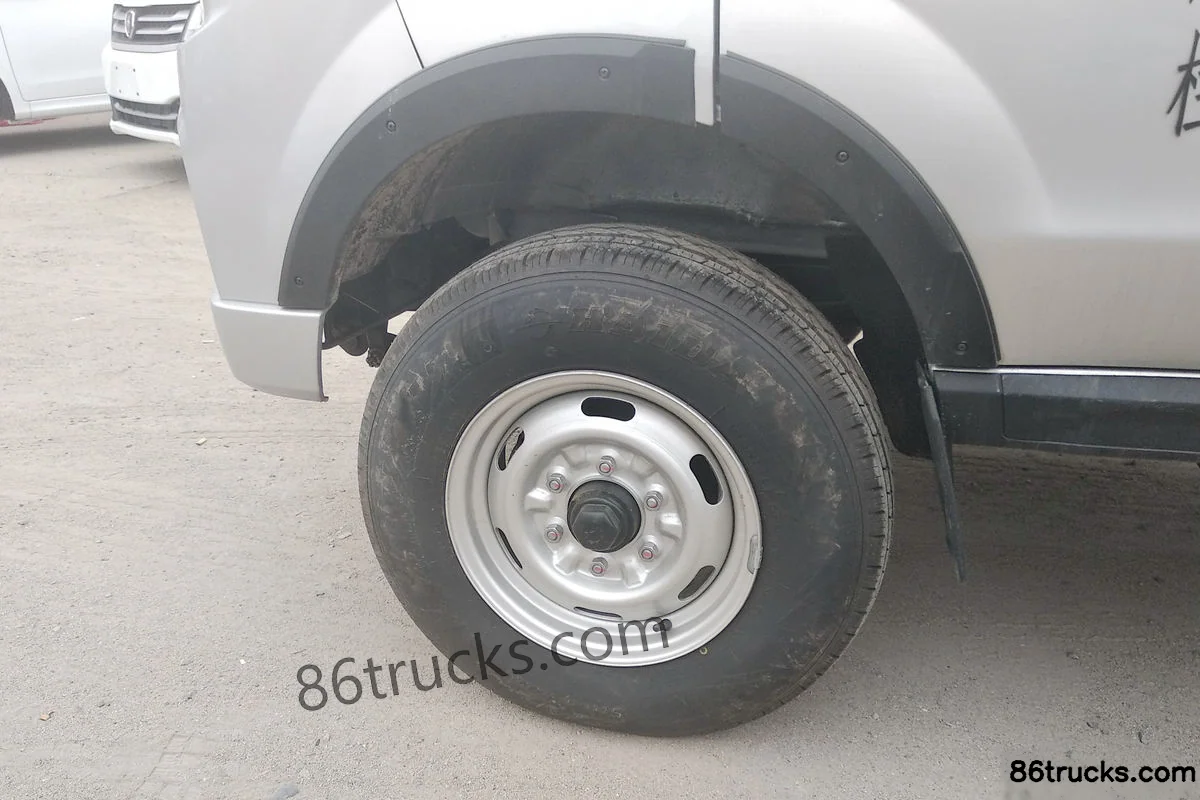

Tire
Tire Size: 195R14LT
Number of tires: 4pcs
lighting configuration
Headlight height adjustment:

Photos

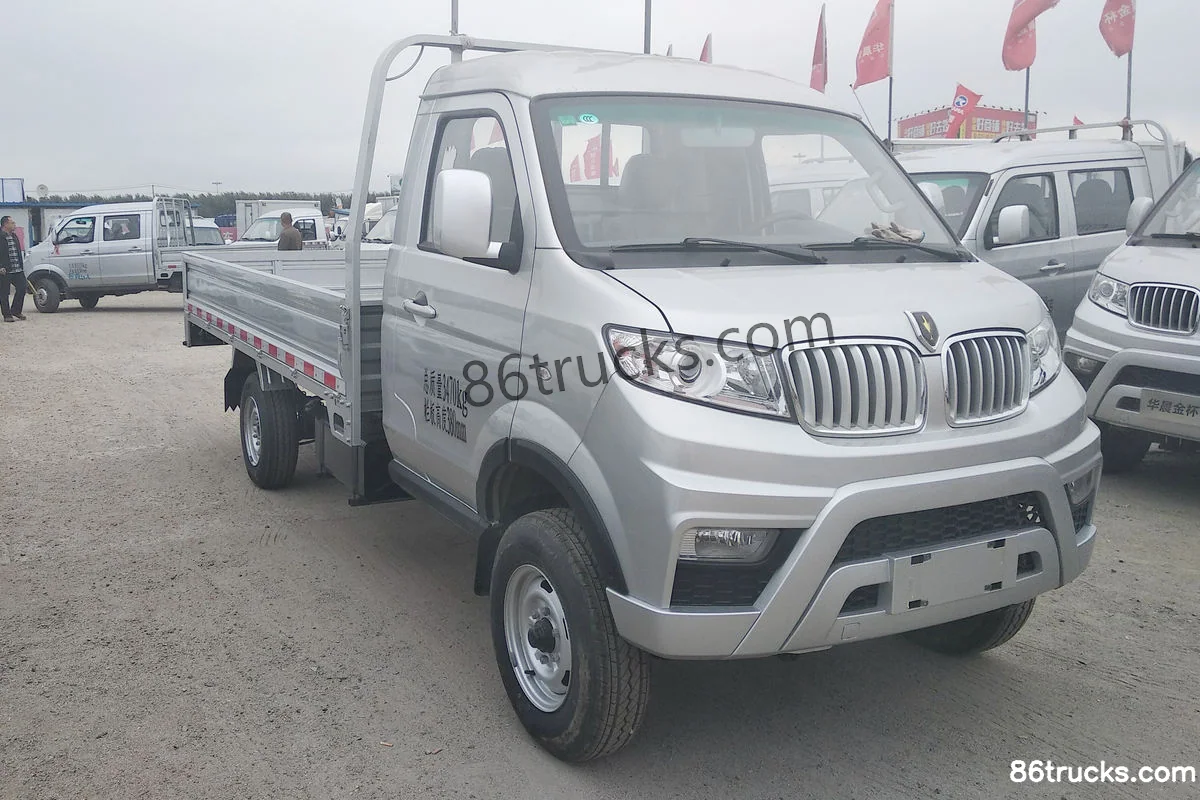

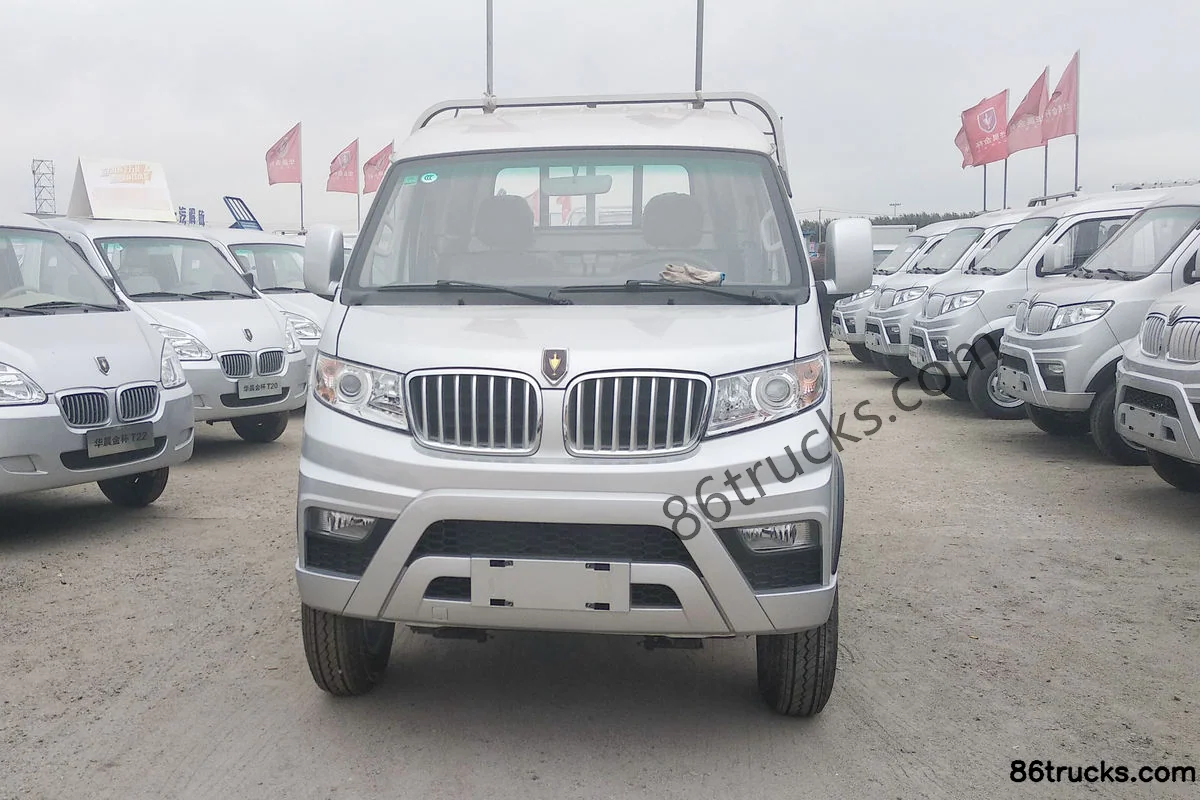

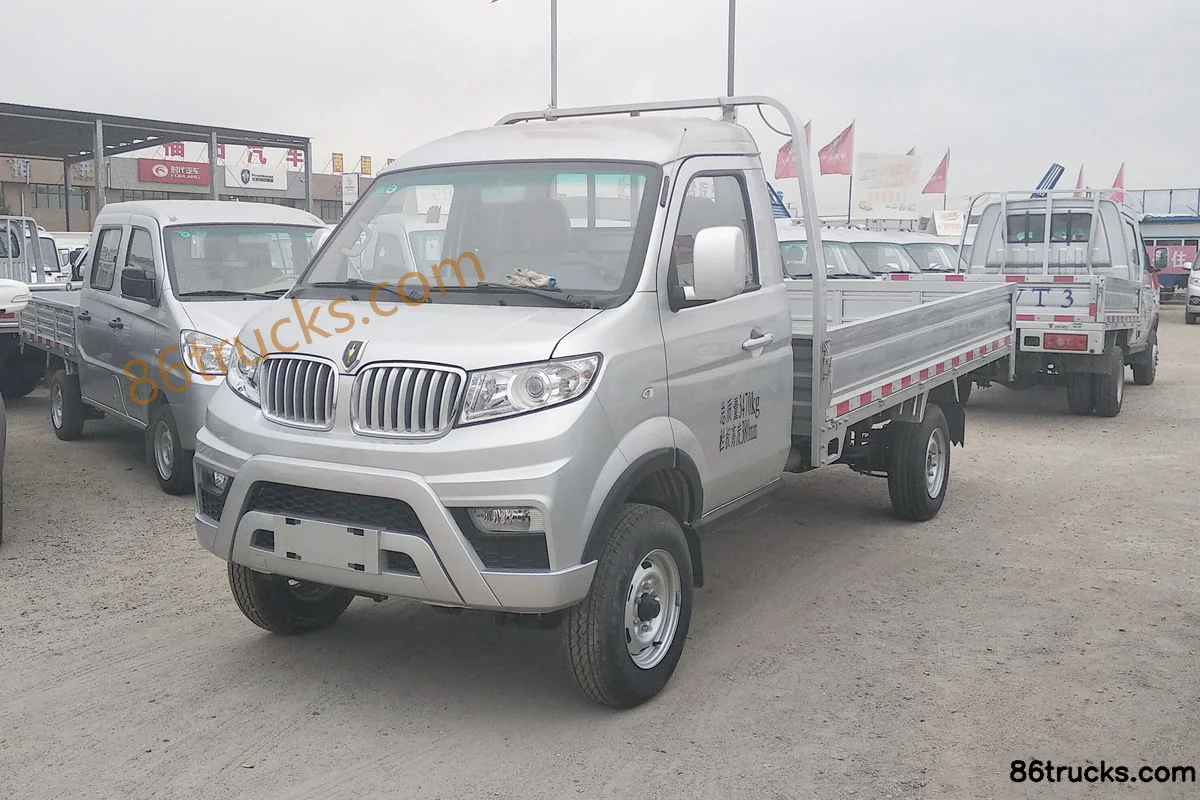

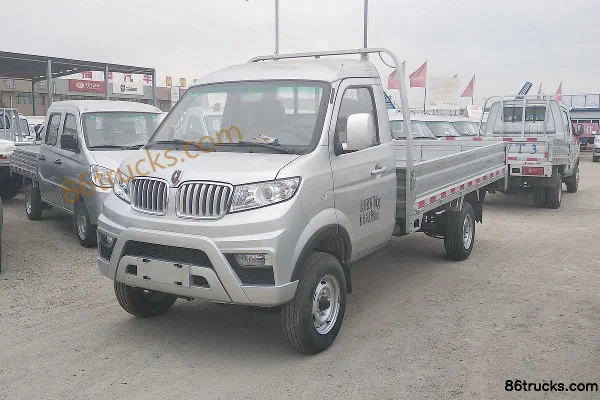

Exterior3

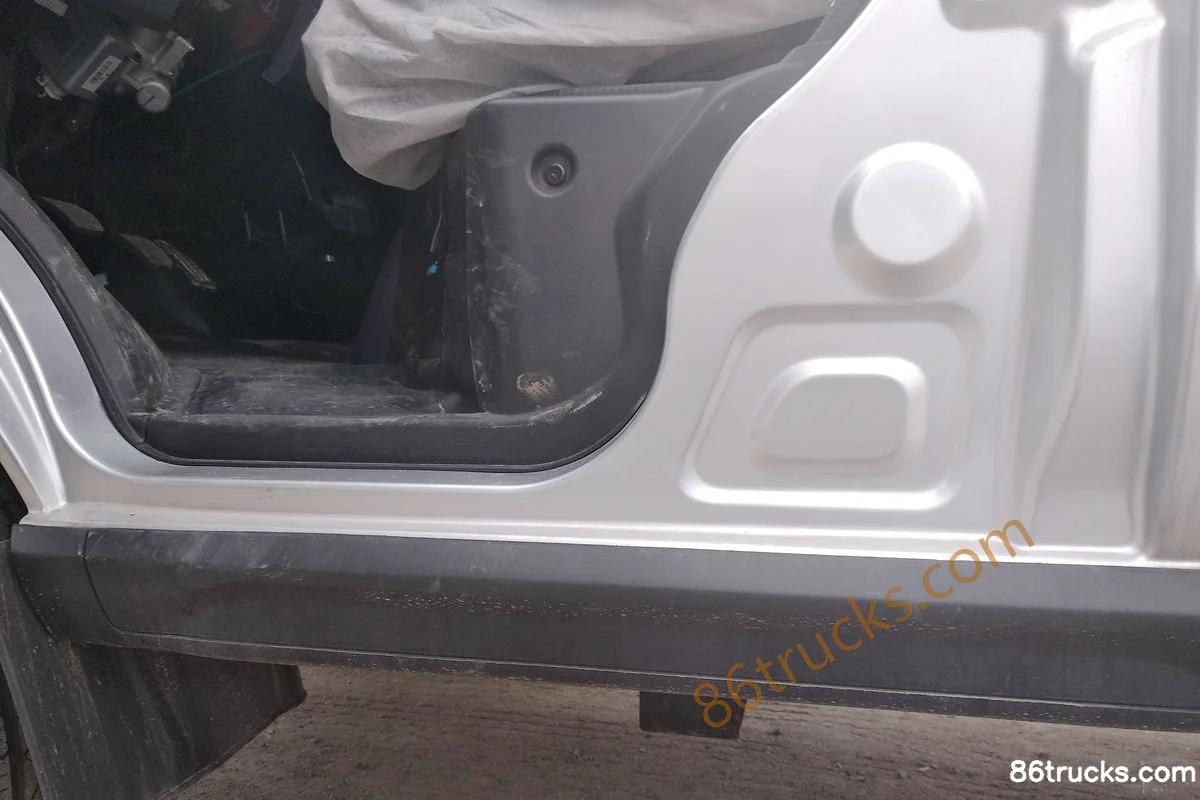

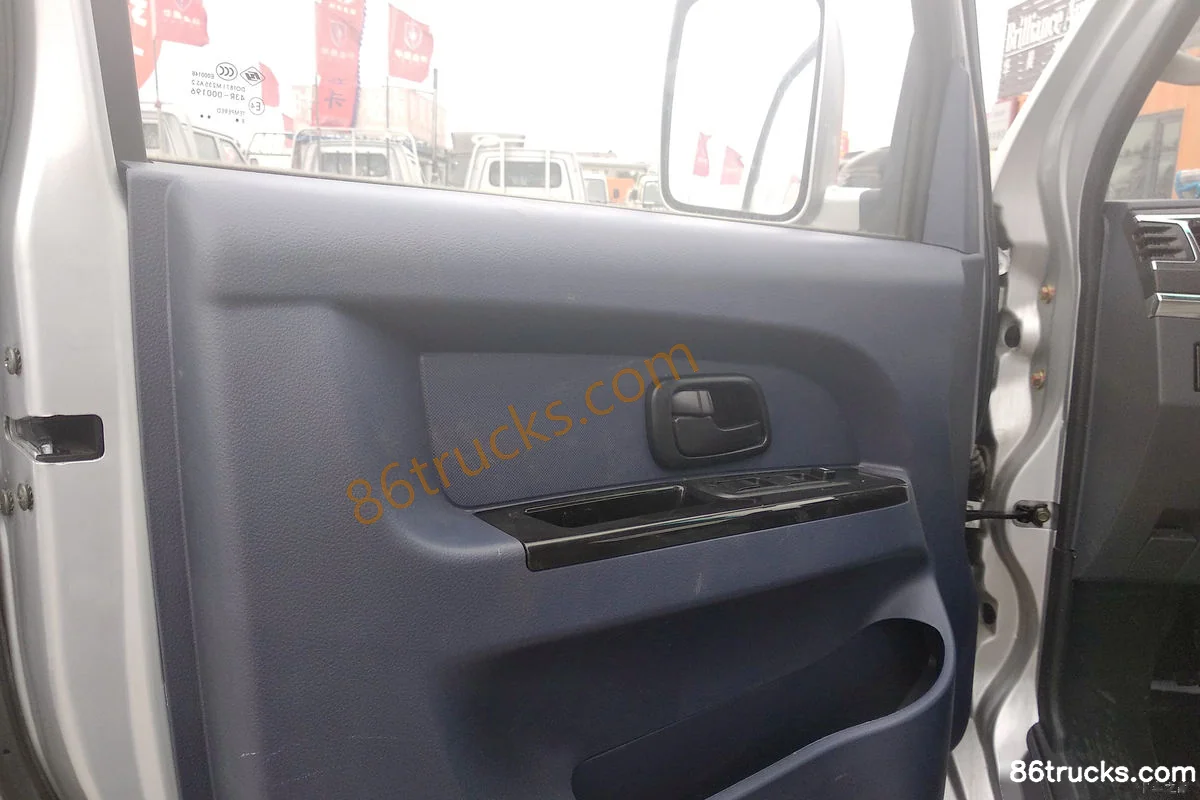

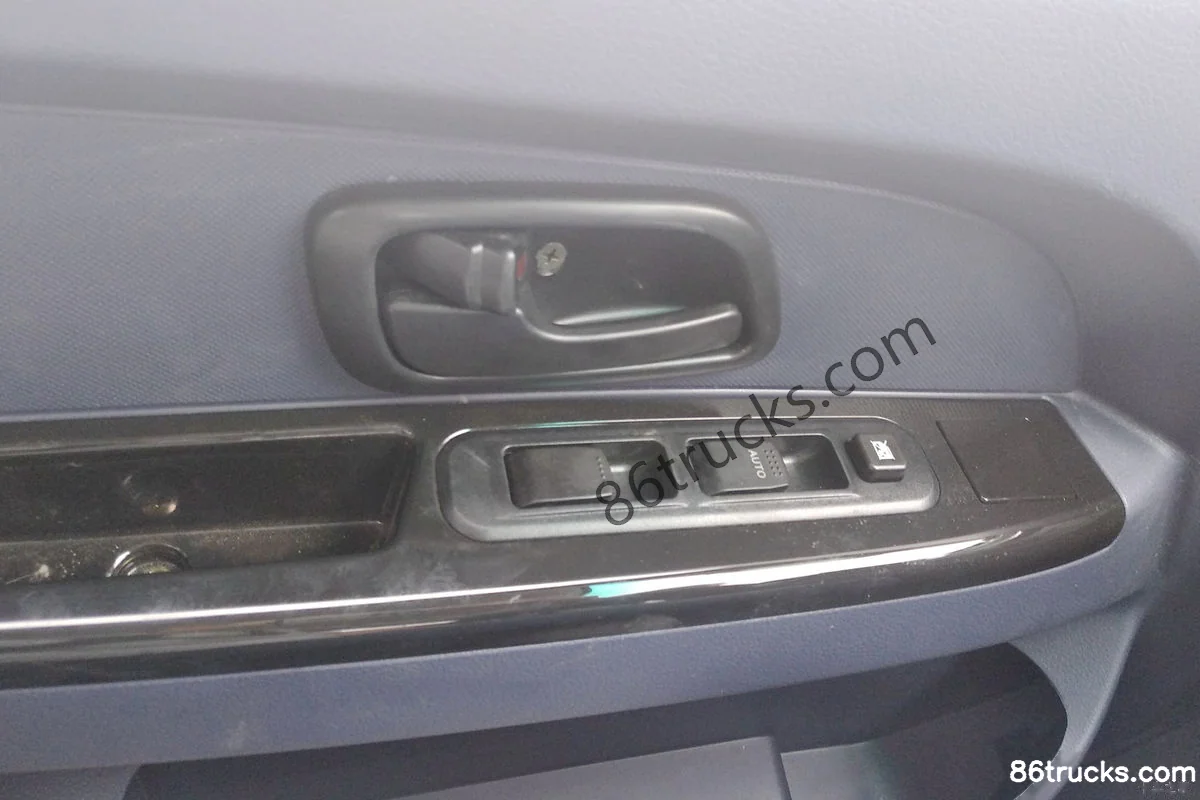

Cab3

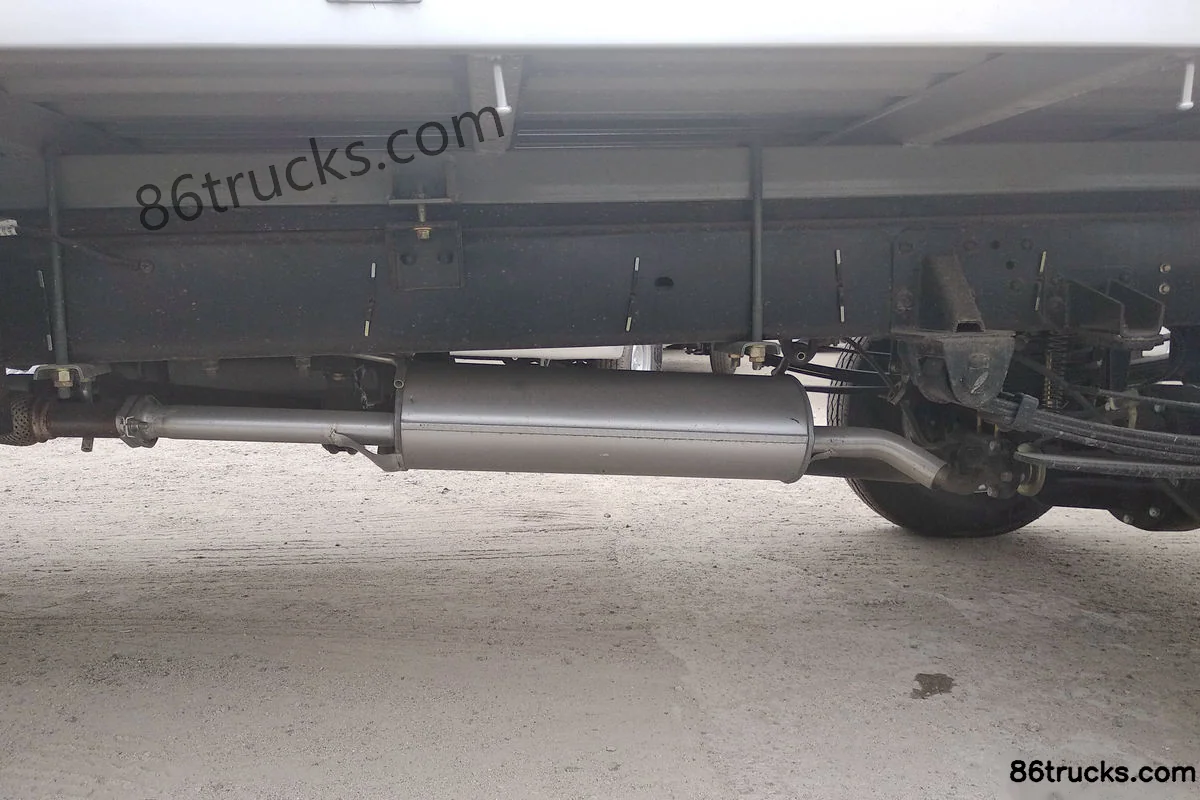

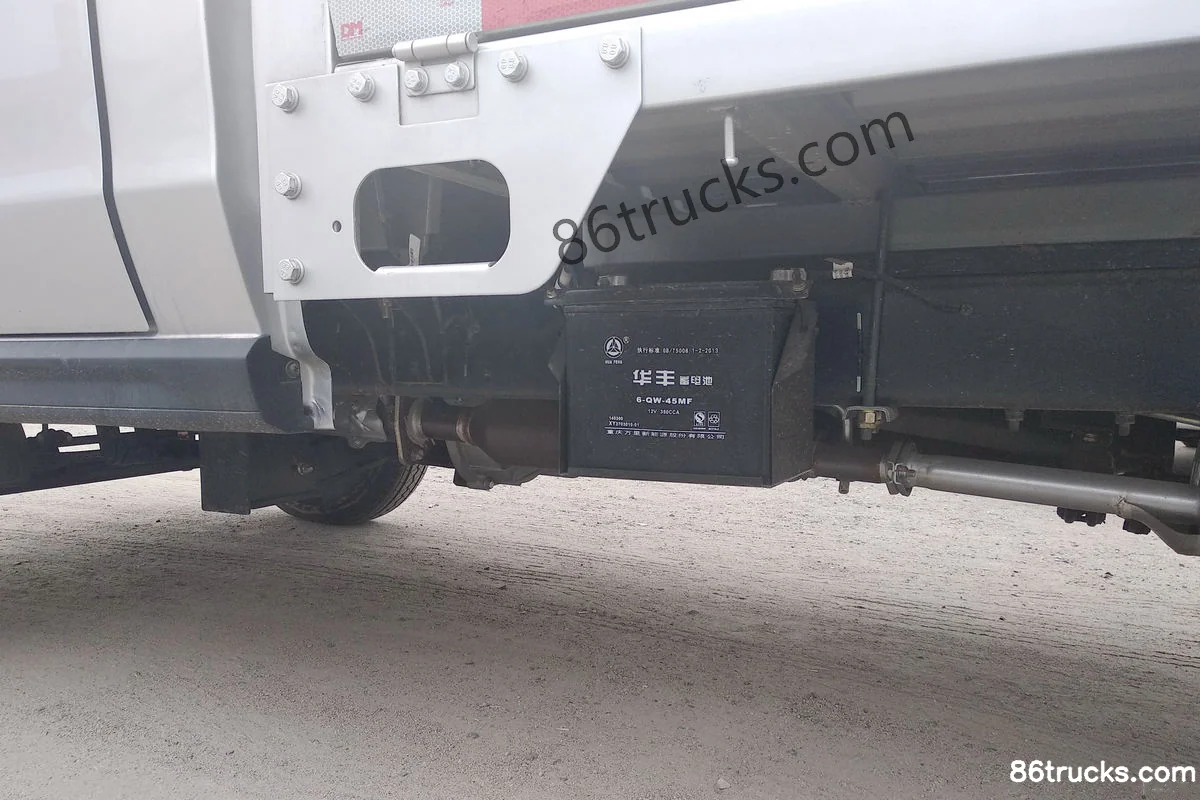

Chassis3

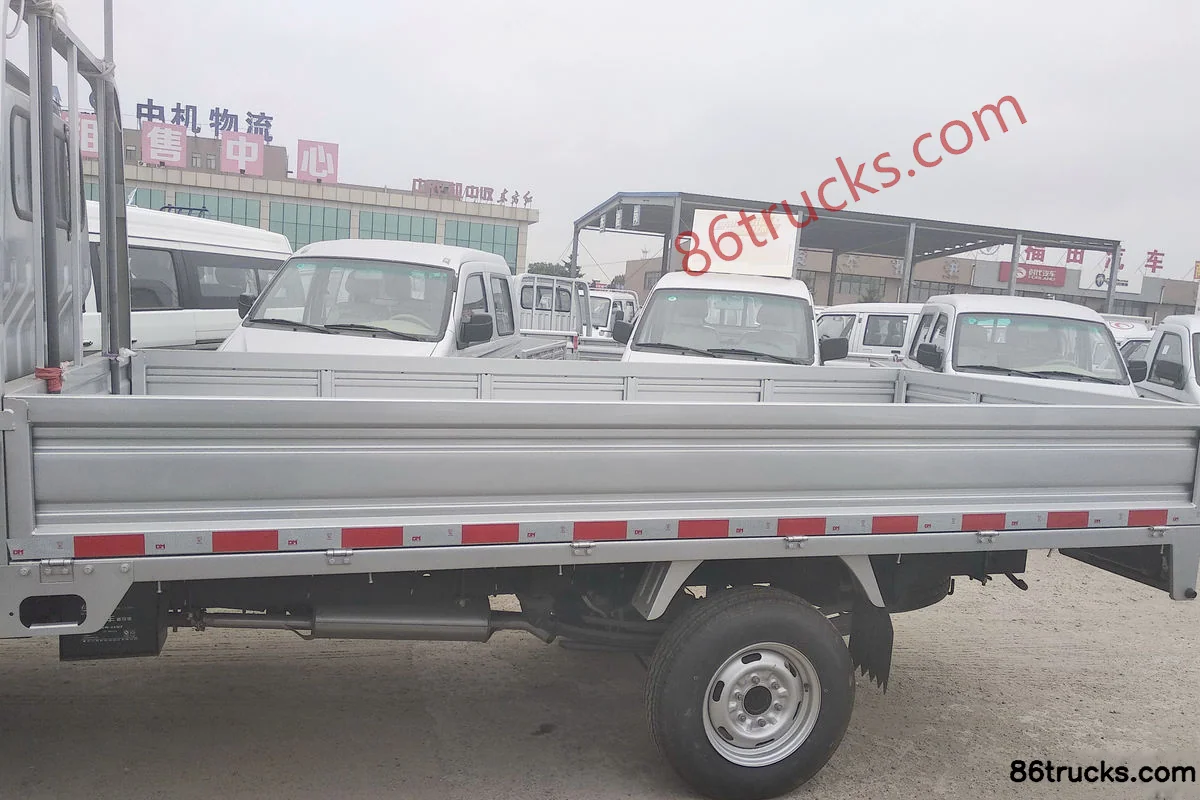

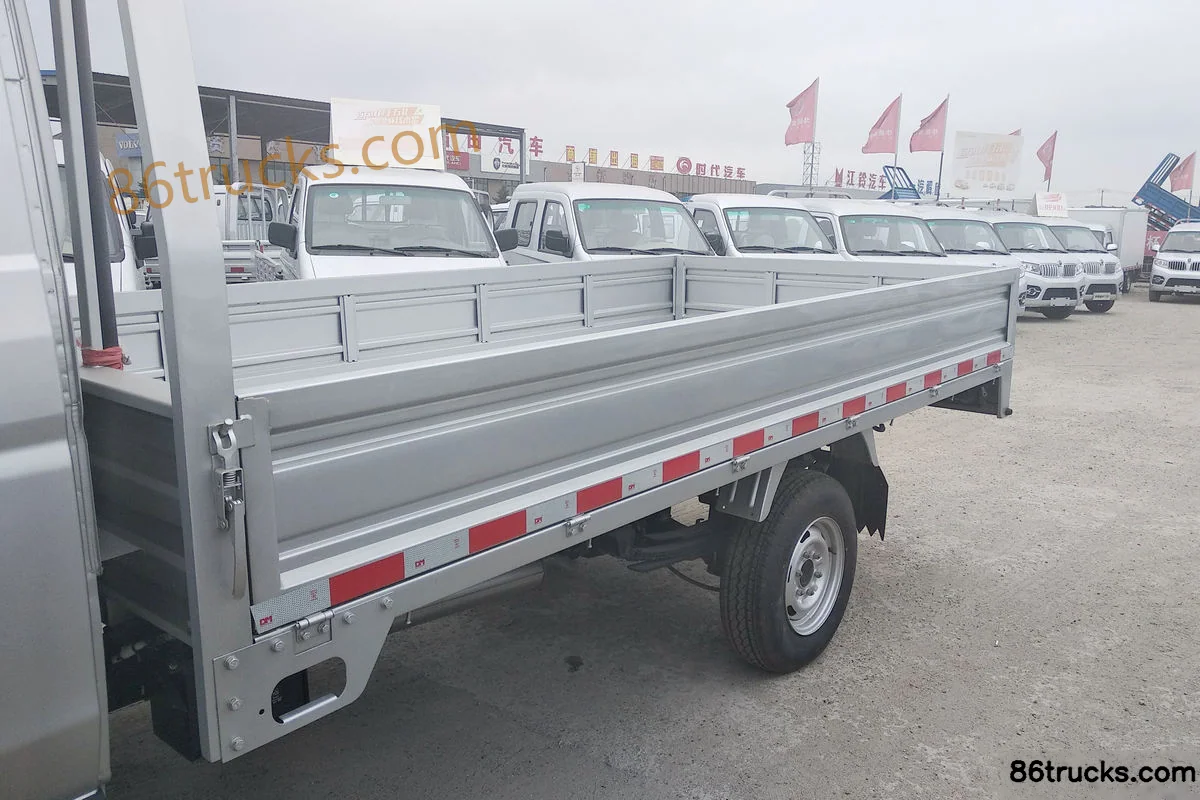

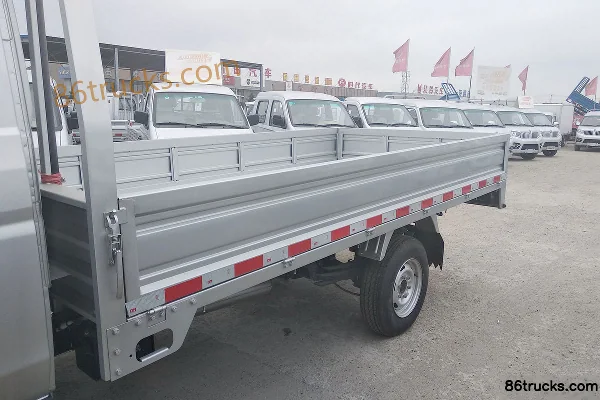

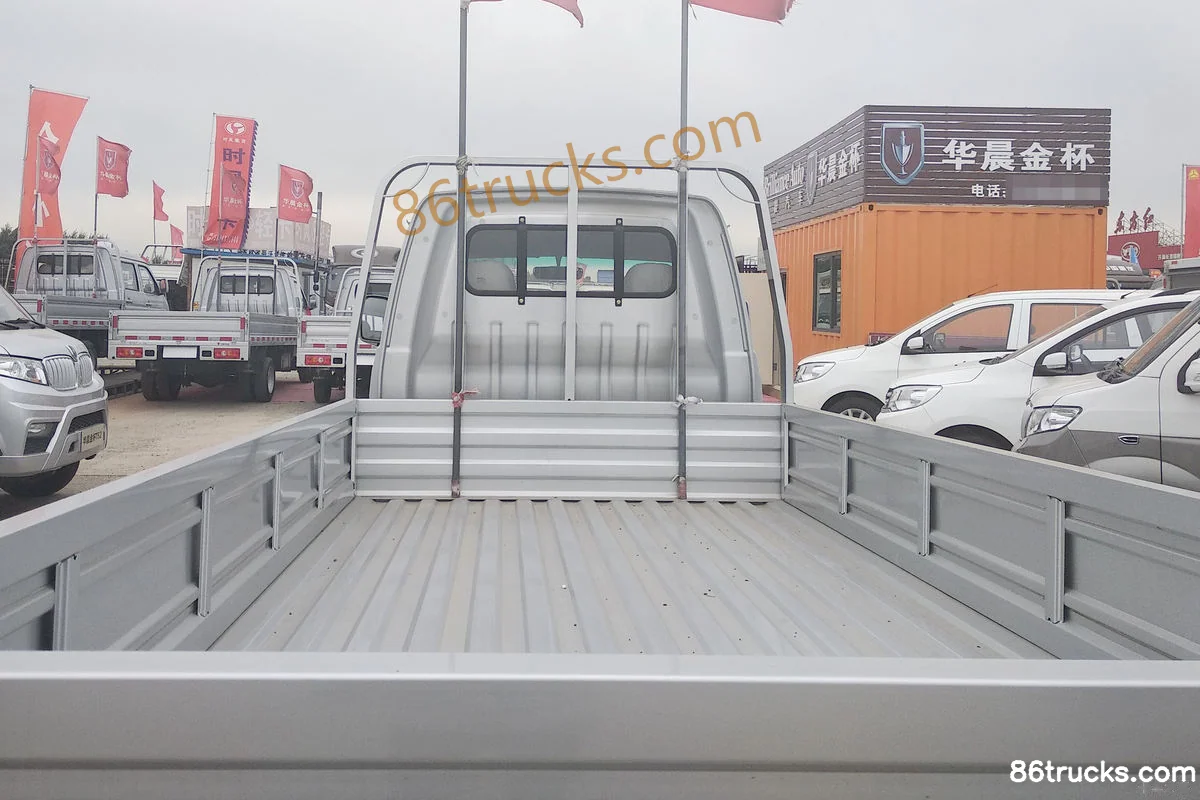

Body3

12 photos

FAQ

What is the export price of Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire), and what does it include?

Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire) export reference is about From $6,361; MSRP is ¥4.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire)?

Key specs of Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire): Drive: 4x2; Horsepower: 109 hp; Emission: China V; Fuel: gasoline; Engine: Xin Guanghua Chen1.5L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire) suited for?

Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire) differ from other variants in the same series?

Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire) belongs to Jinbei T5 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jinbei T50 1.5L 109hp 4X2(6 wheels) Gasoline 3.4m Single Row Flatbed Mini Truck (Single Rear Tire)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
