Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels)

Export reference
MSRP N/A
Wheelbase:: 3360mm
Cargo box volume:: 18.3m³
Type:: enclosed cargo truck
Box length class:: 4.2m
Cab length:: 5.995m
GVWR:: 6ton
Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) exterior
View more photos (10)
Drive 4X2 (6 wheels)
CLTC range: 220km
Curb Weight: 2.935ton
Rated payload: 1.5ton

Overview

The Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) is a Light Truck featuring 220km battery/range, 4X2 (6 wheels) drive, 1.5t payload and 4.185m cargo length.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.18m
Cab height: 3.22m
CLTC range: 220km
Curb Weight: 2.935ton
Rated payload: 1.5ton
GVWR: 6ton
Max. speed: 95km/h
tonnage class: Light Truck
Energy Type: Electric
electric motor
Fuel Type: Electric
total rated power: 65kW
Peak power: 130kW
Battery/Charging
Charging method: DC DC fast charge
Battery type: LFP
Battery capacity: 85.4kWh
fast charge time: 0.8h
Energy Density: 140
Cargo box parameters
Cargo box volume: 18.3m³
Cargo box type: Van body
Cargo box length: 4.185m
Cargo box width: 2.18m
Cargo box height: 2.325m
Cab parameters
Cab: Medium-body Cab
Cab width: 1880mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 2200kg
rear axle allowable load: 3800kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Reverse Camera: -/●
Remote key:
Electronic Central Lock:
Exterior features
side skirt:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder: Yes
lighting configuration
Front fog lamp:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Tire Pressure Monitoring System (TPMS):

Photos

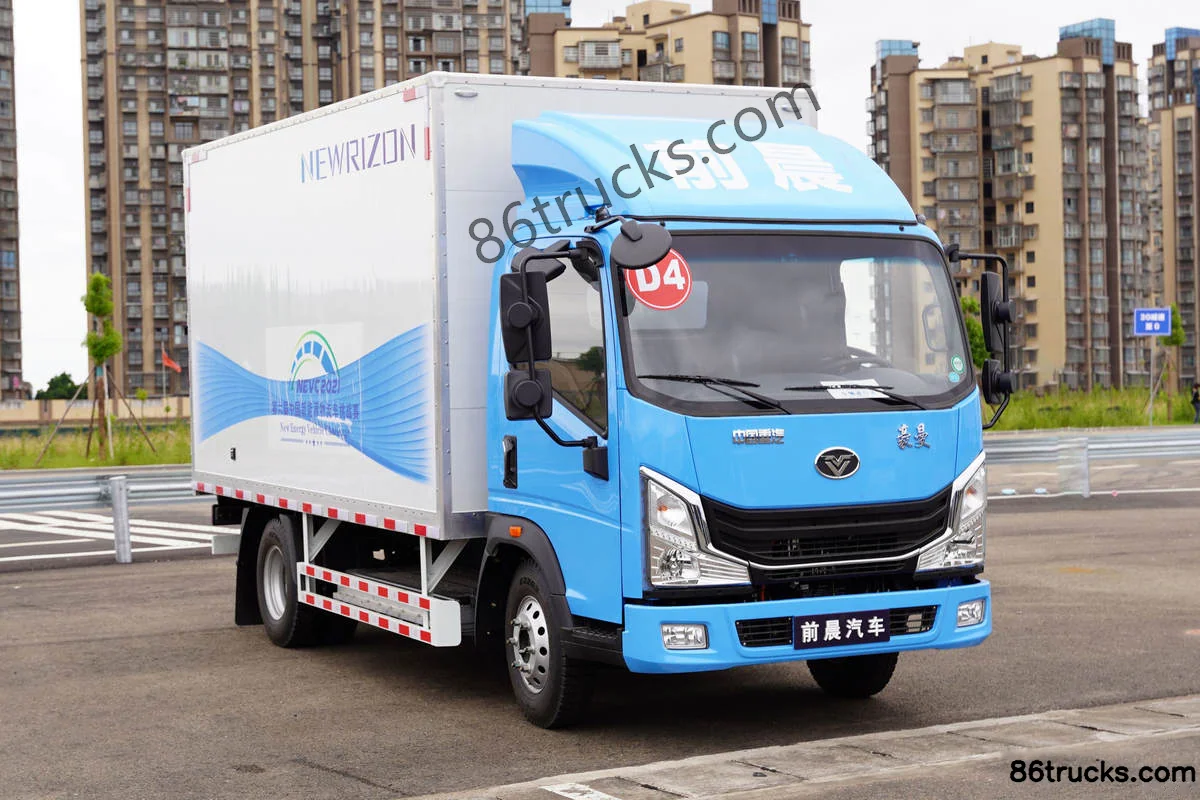

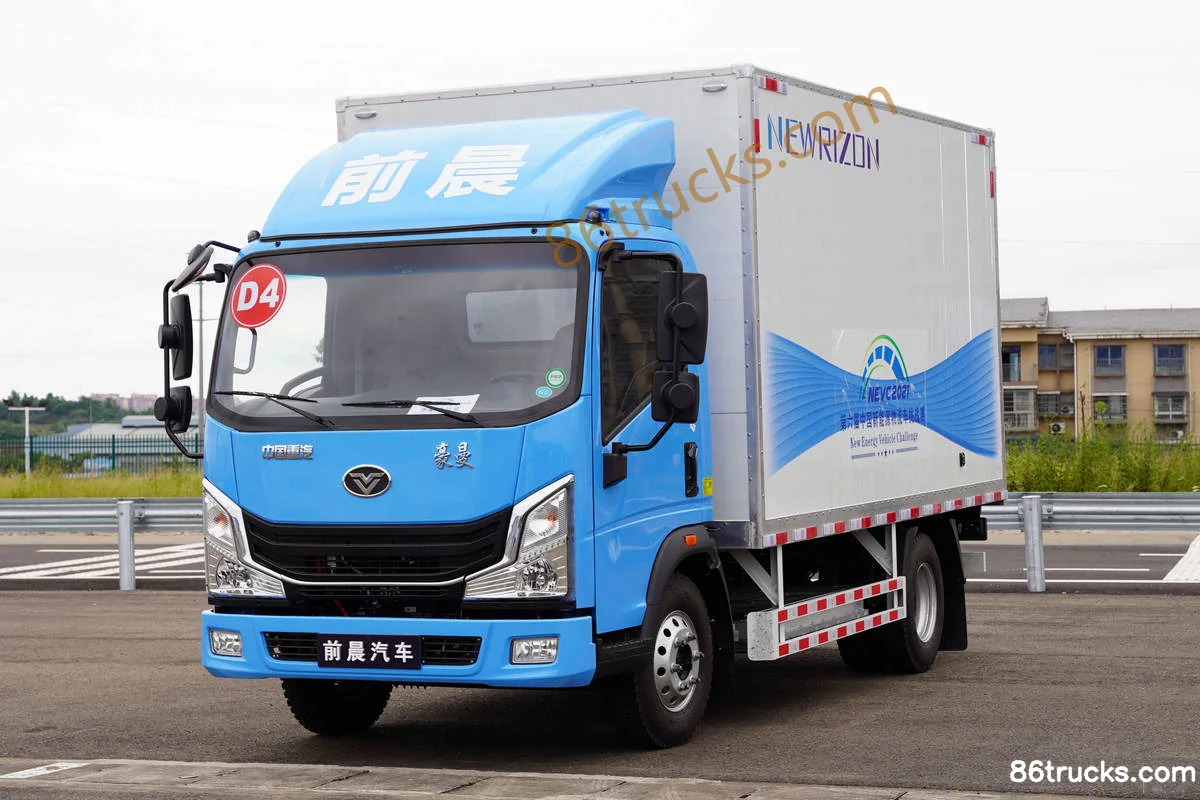

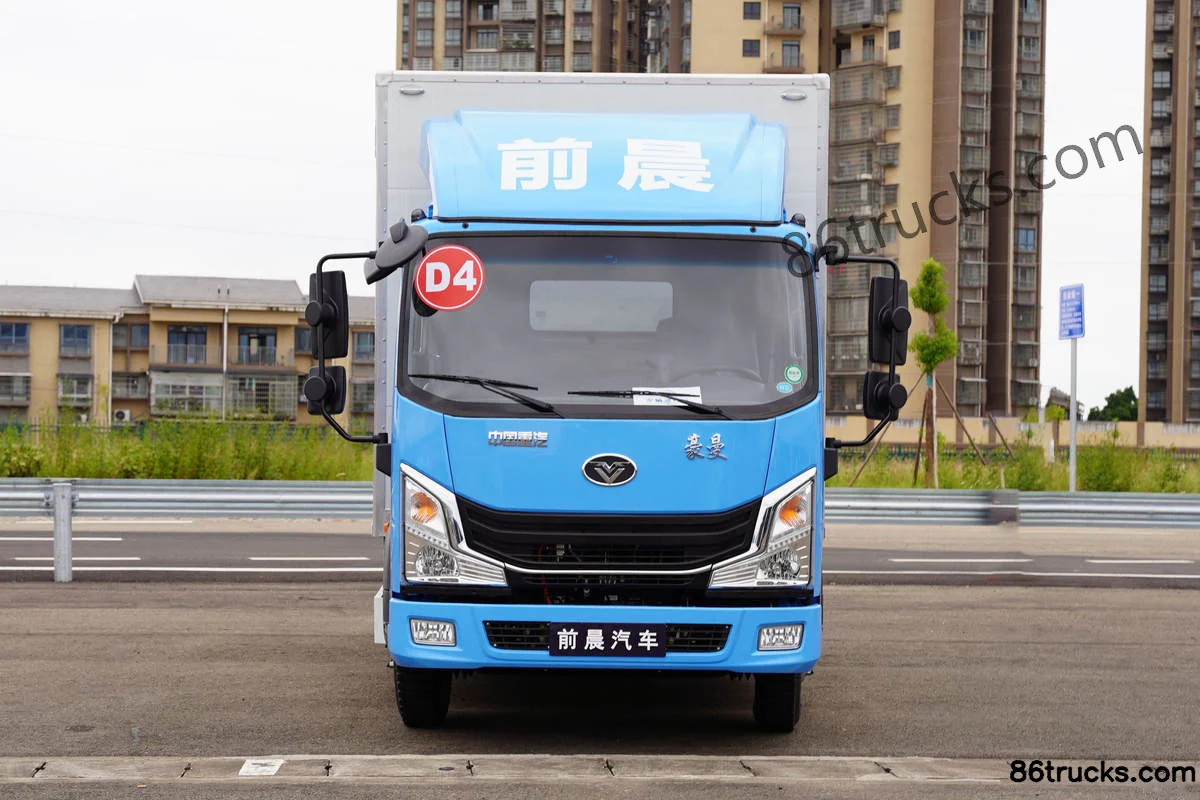

Exterior3

Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) Exterior (1) | 86Trucks Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) Exterior (2) | 86Trucks Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) Exterior (3) | 86Trucks

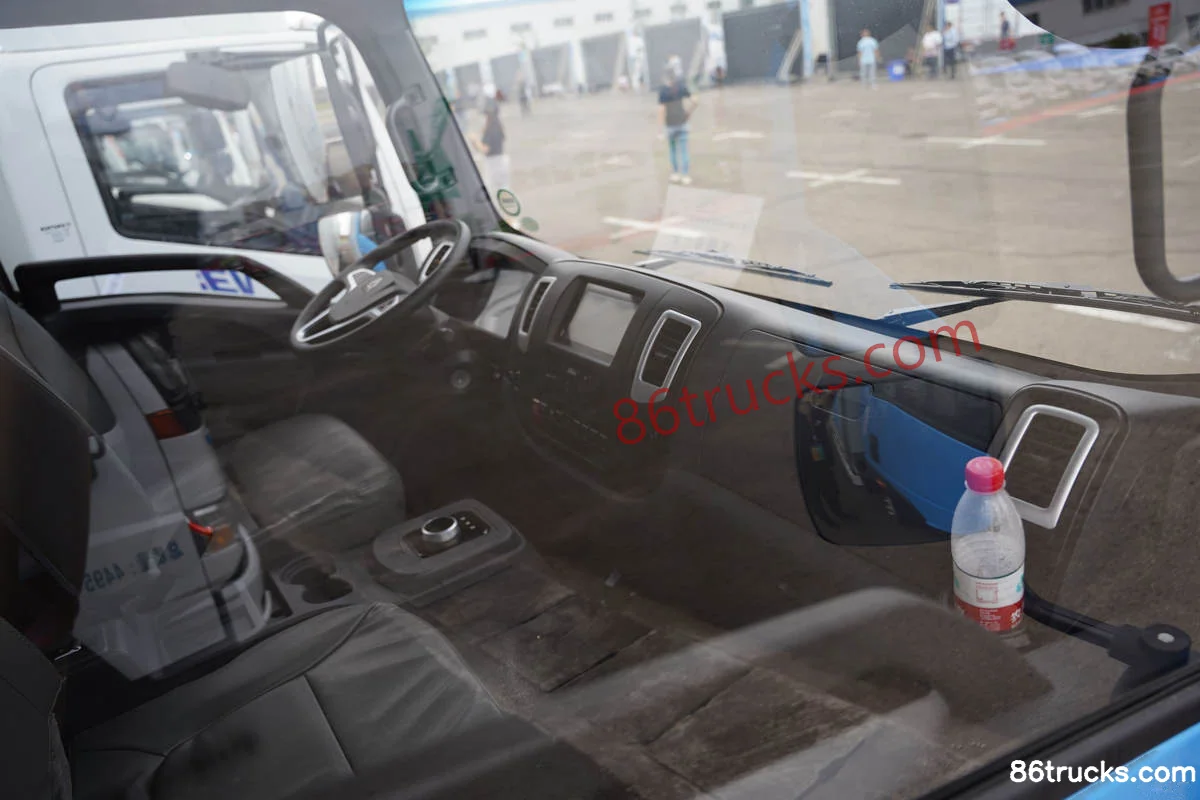

Cab1

Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) Cab (1) | 86Trucks

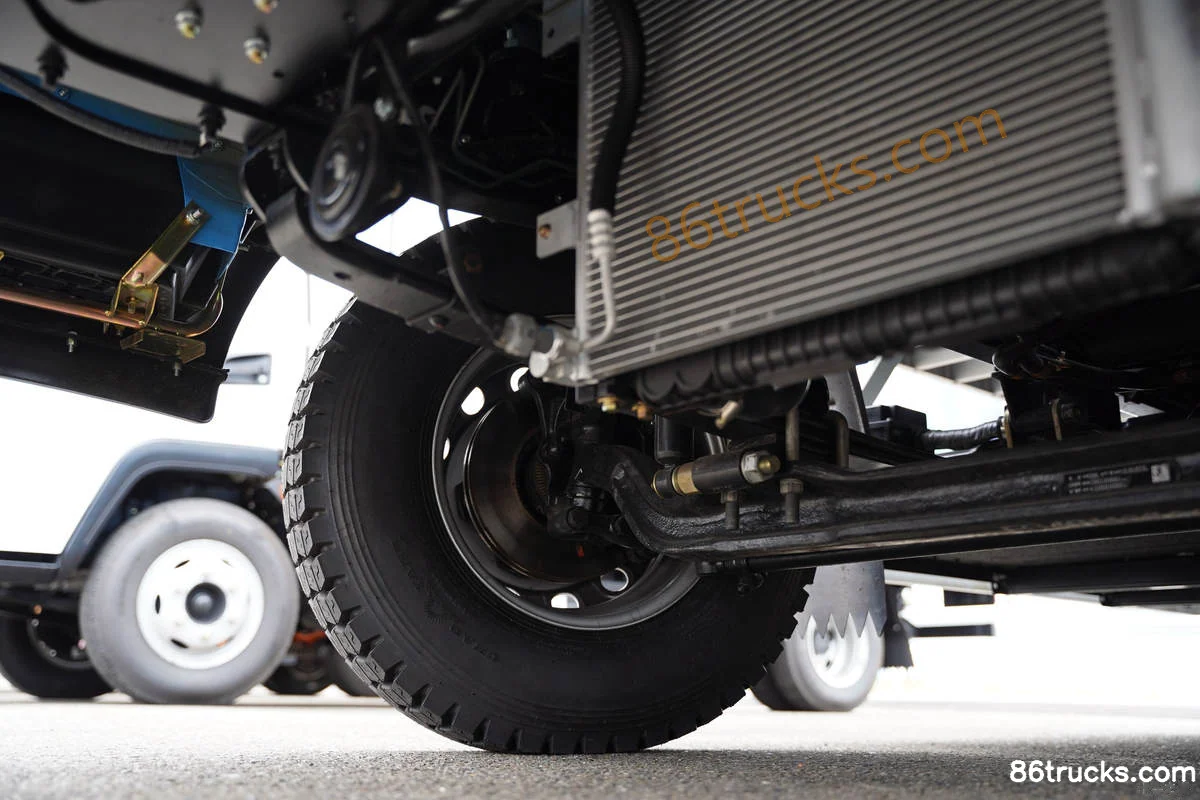

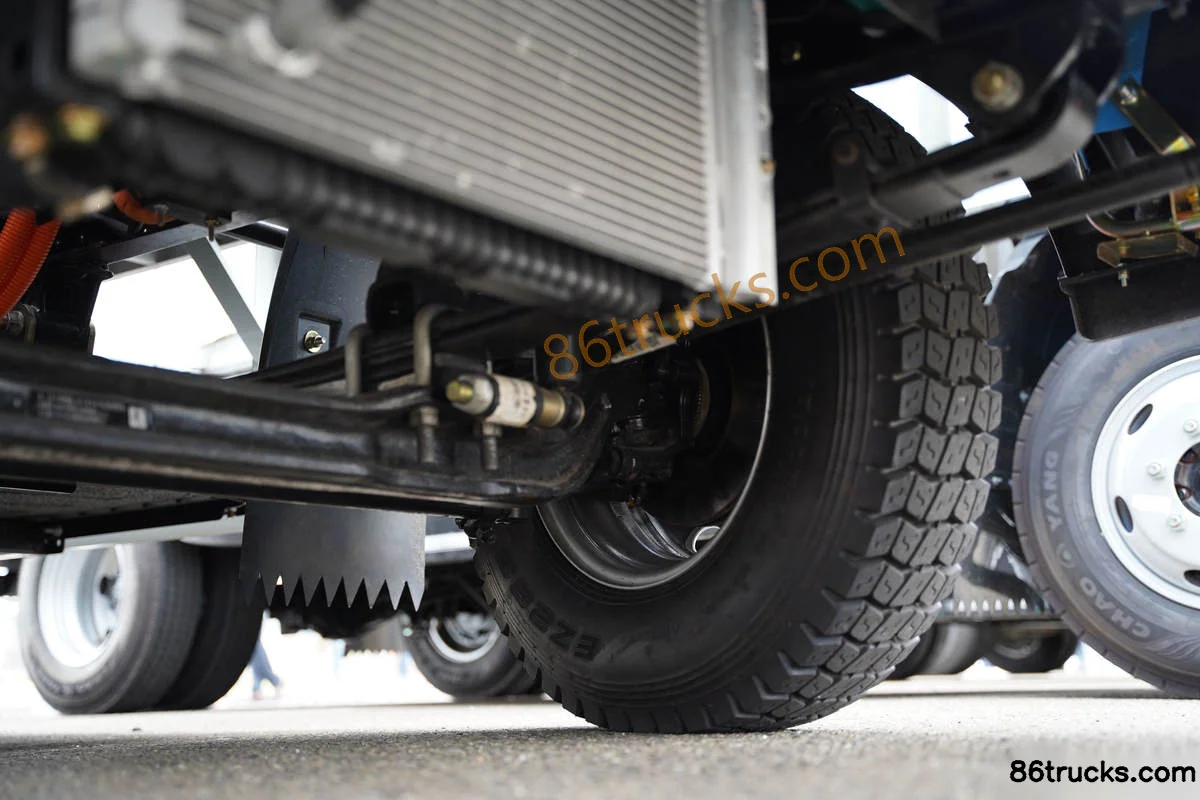

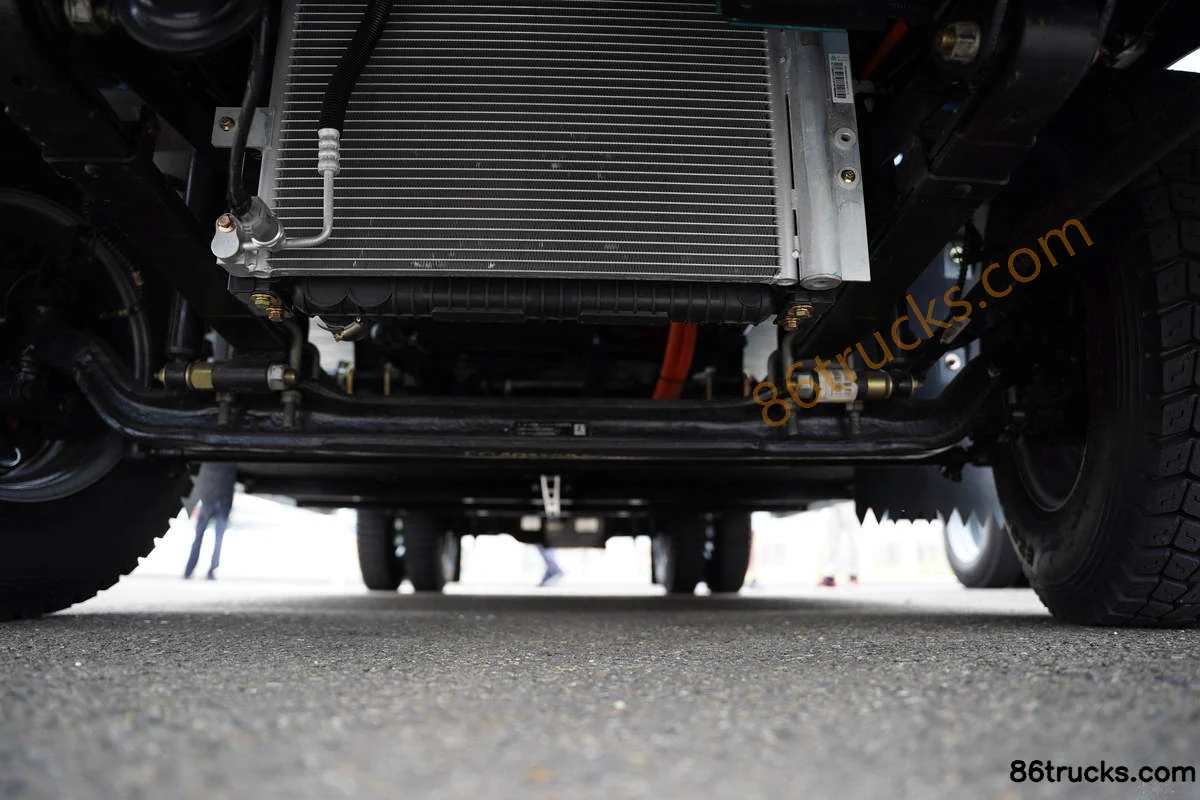

Chassis3

Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) Chassis (1) | 86Trucks Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) Chassis (2) | 86Trucks Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) Chassis (3) | 86Trucks

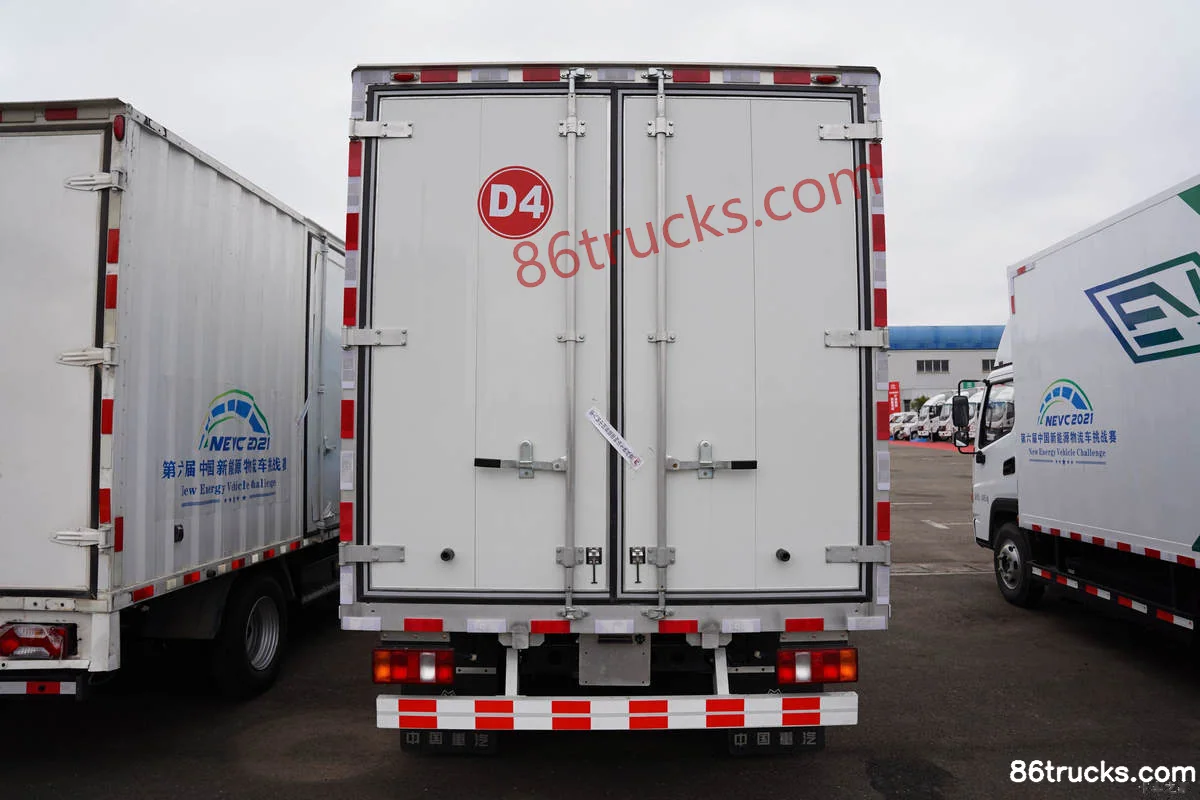

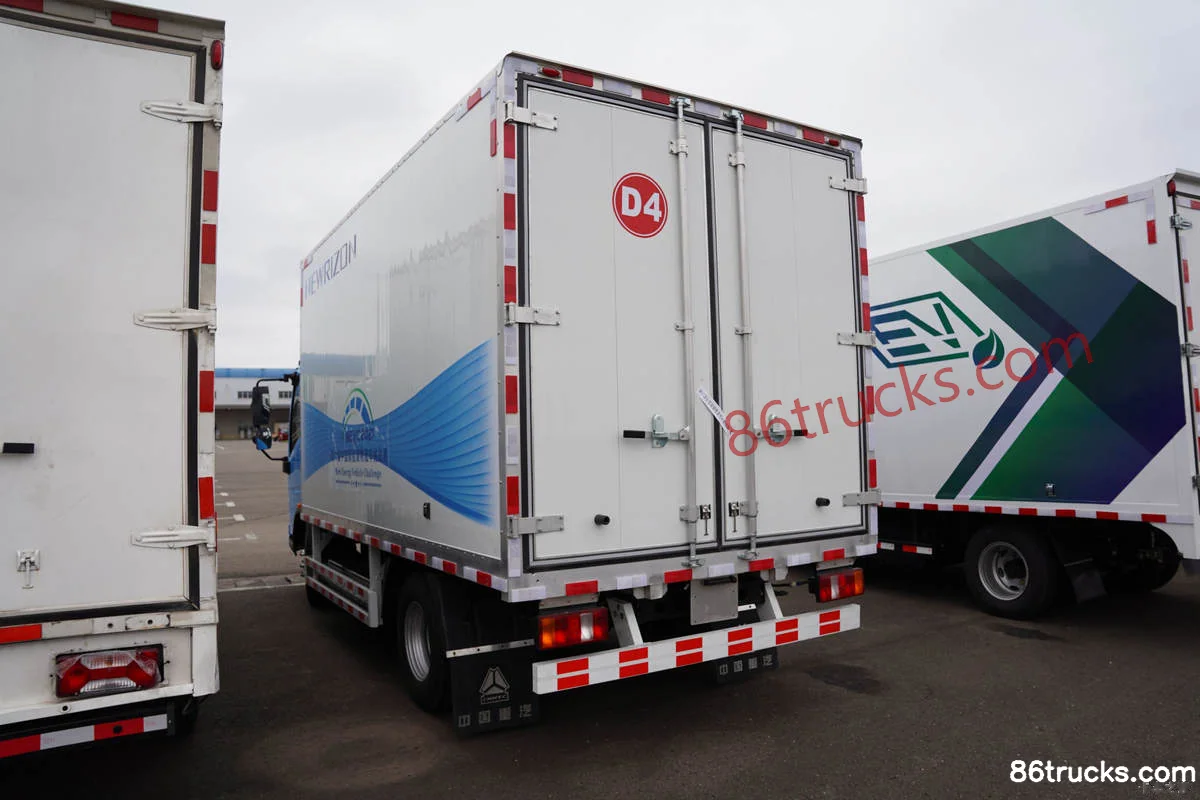

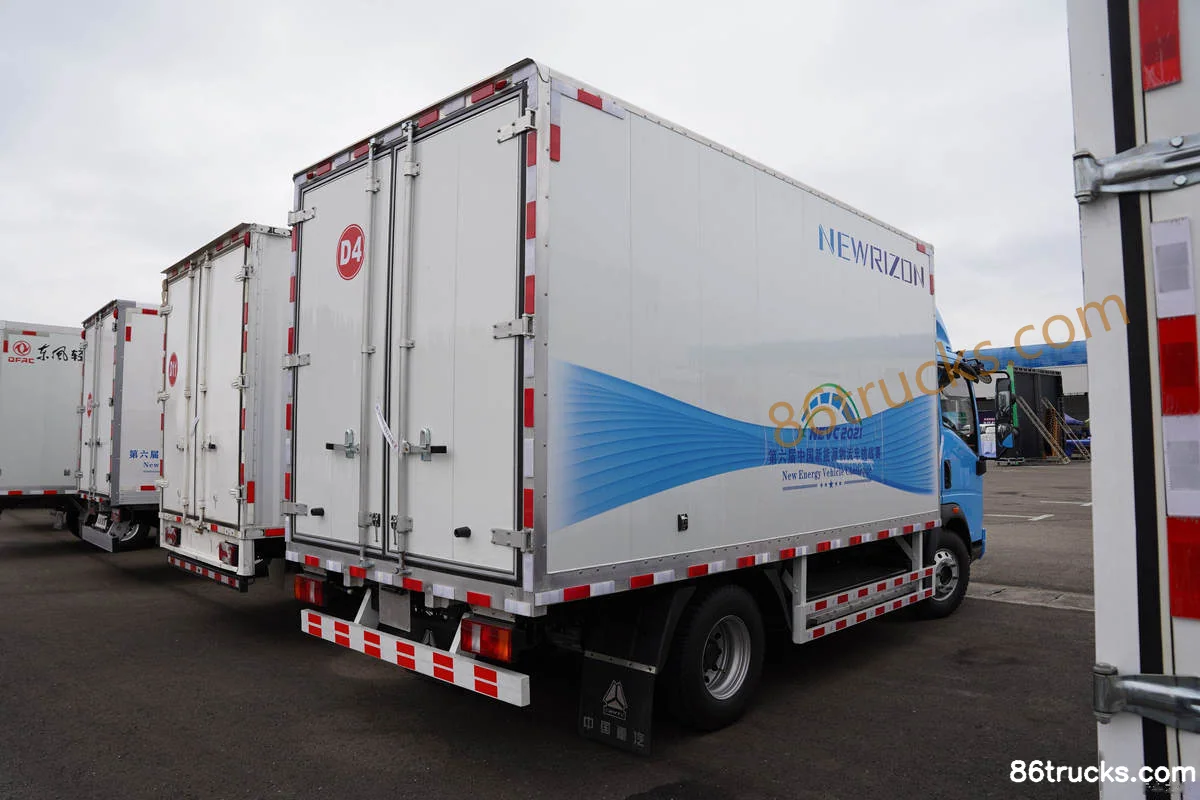

Body3

Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) Body (1) | 86Trucks Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) Body (2) | 86Trucks Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) Body (3) | 86Trucks

10 photos

FAQ

What are the key specs of Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels)?

Key specs of Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) suited for?

Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) differ from other variants in the same series?

Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels) belongs to Sinotruk Pioneer Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haoman H3 4.185m Single Row Pure Electric Van Light Truck 85.4kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
