Foton Extreme Electric Standard Top 4.2m Single Row Pure Electric Cage Cargo Light Truck CATL 140.41kWh 4X2(6 wheels)

Export reference
From $30,014
MSRP ¥21.61M CNY
Rated payload:: 1.01ton
Wheelbase:: 3390mm
Cargo box type:: Stake type
Model code (announced):: BJ5049CCYEVB
Type:: stake truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 480km
Motor 1 Brand: Foton
Curb Weight: 3.29ton

Overview

The Foton Extreme Electric Standard Top 4.2m Single Row Pure Electric Cage Cargo Light Truck CATL 140.41kWh 4X2(6 wheels) is a Light Truck featuring 480km battery/range, Foton motor, 4X2 (6 wheels) drive and 1.01t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5049CCYEVB
Type: stake truck
Drive type: 4X2
Wheelbase: 3390mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.095m
CLTC range: 480km
Curb Weight: 3.29ton
Rated payload: 1.01ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Shangqiu, Henan
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTBP140A
Motor Type: Permanent magnet synchronous motor
total rated power: 110kW
Peak power: 140kW
total rated torque: 390N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 140.41kWh
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.2m
Cargo box width: 2.1m
Cab parameters
Cab: Standard top
Cab width: 2120mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1850kg
rear axle allowable load: 2645kg
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
lighting configuration
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

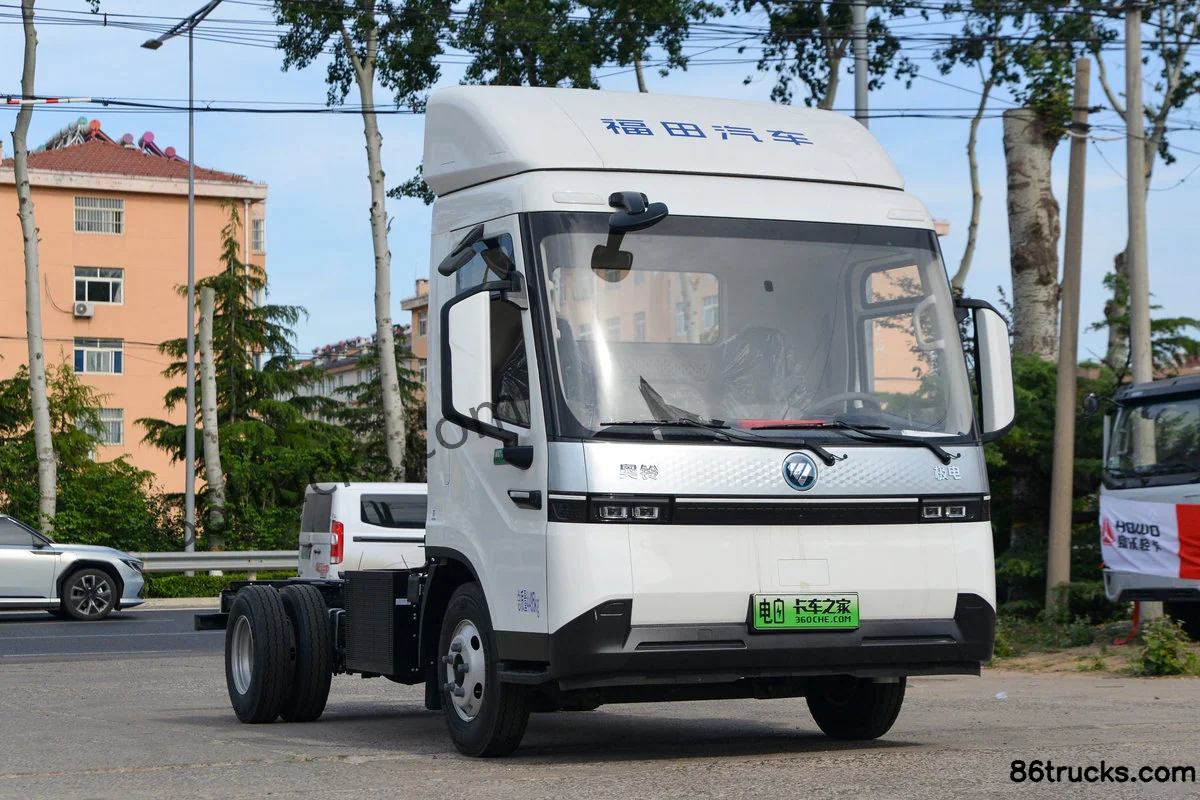

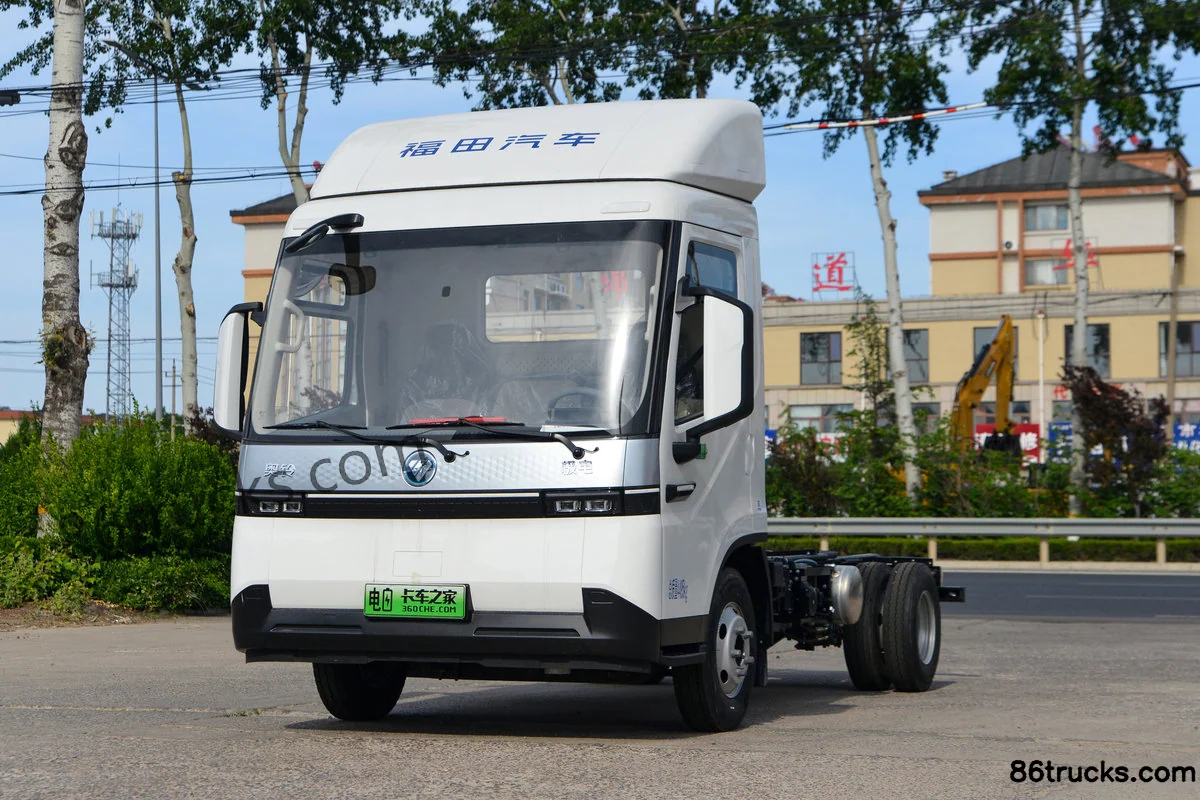

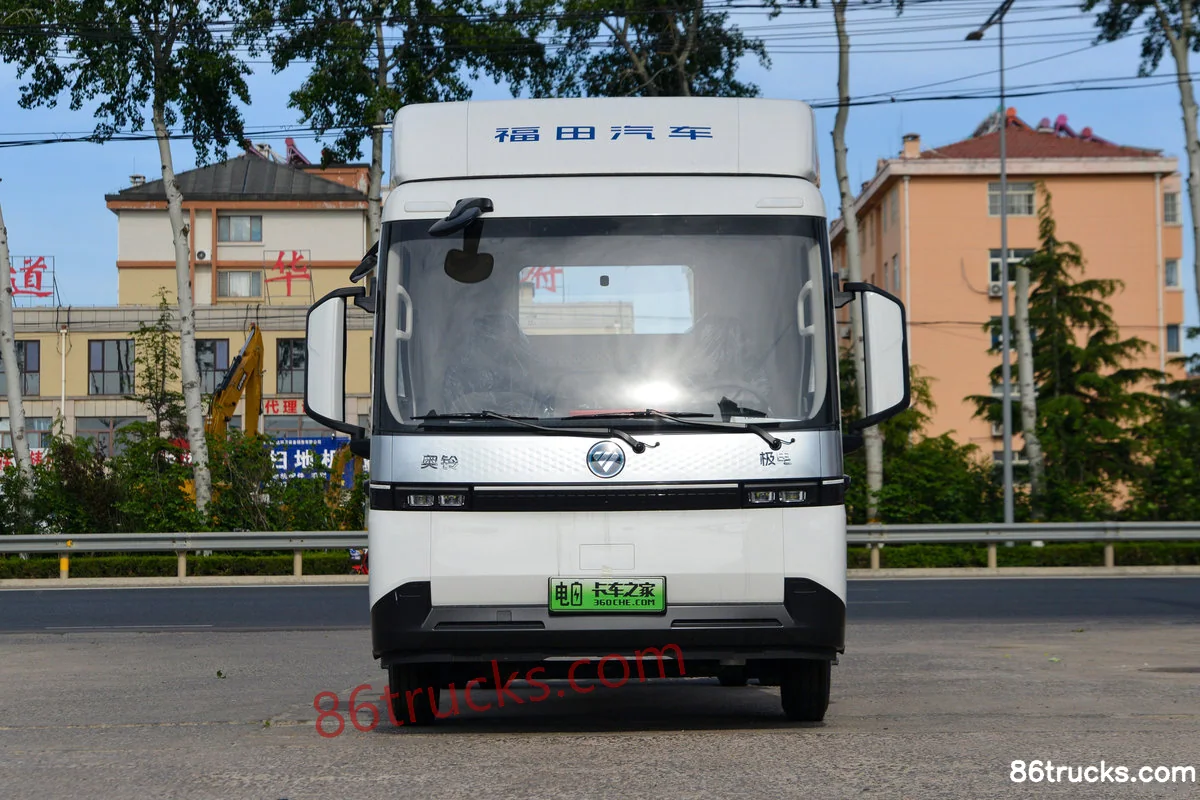

Exterior3

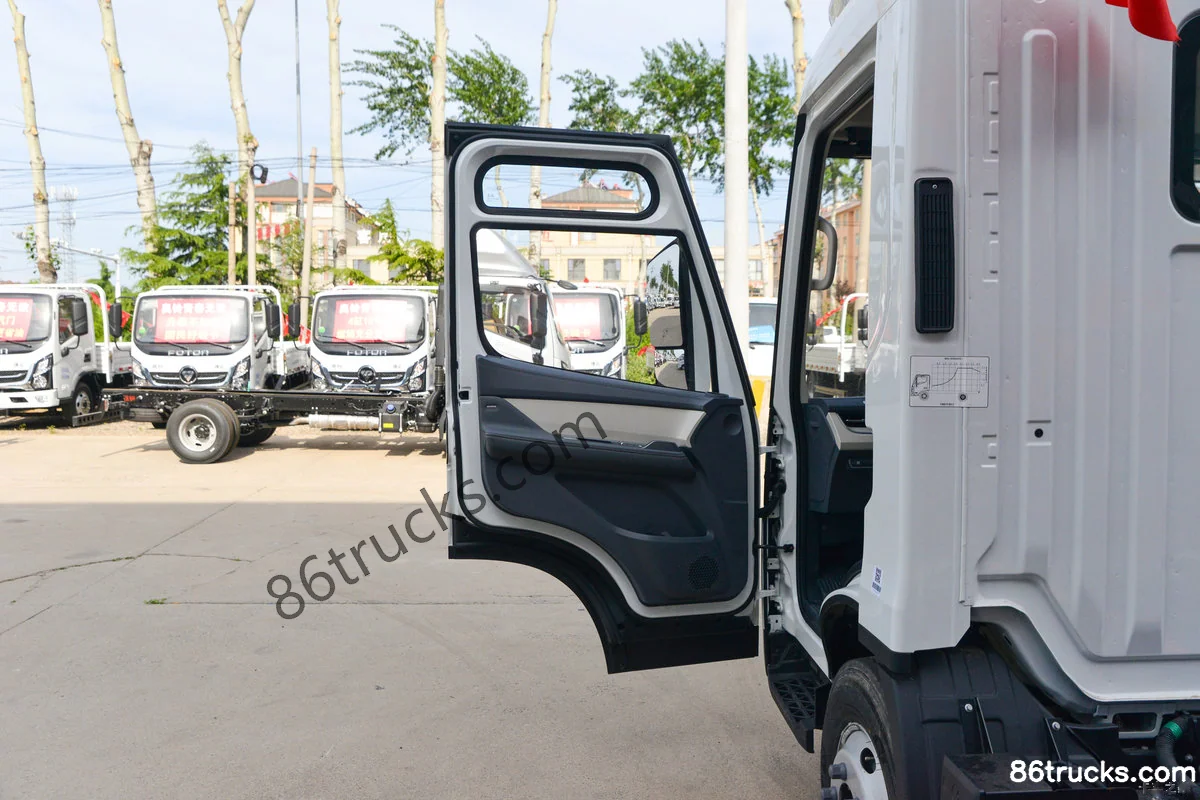

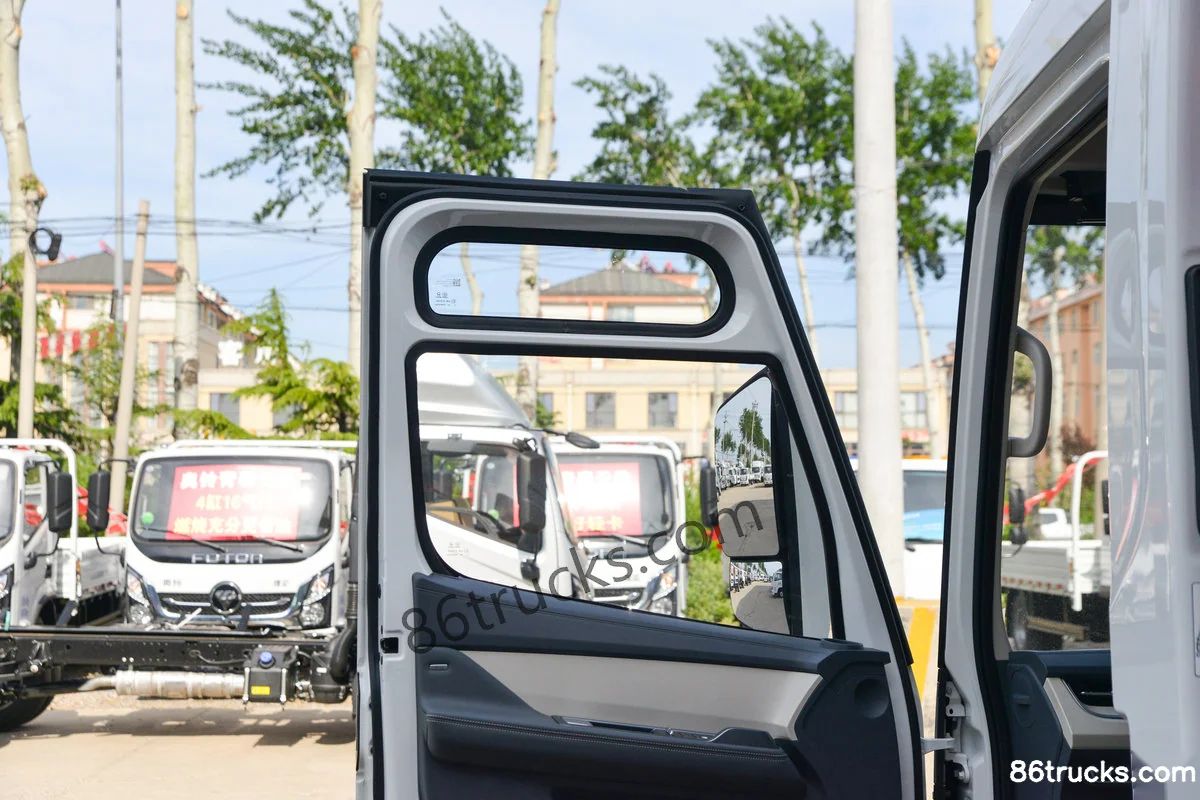

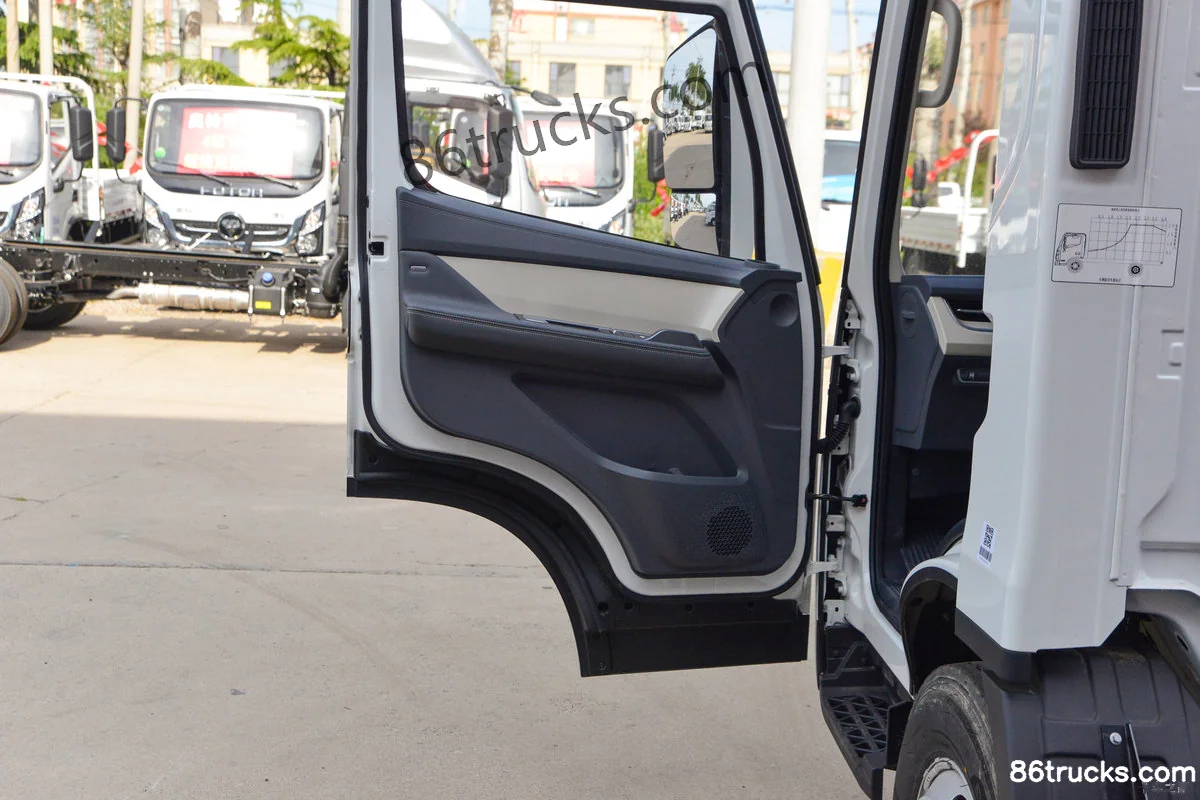

Cab3

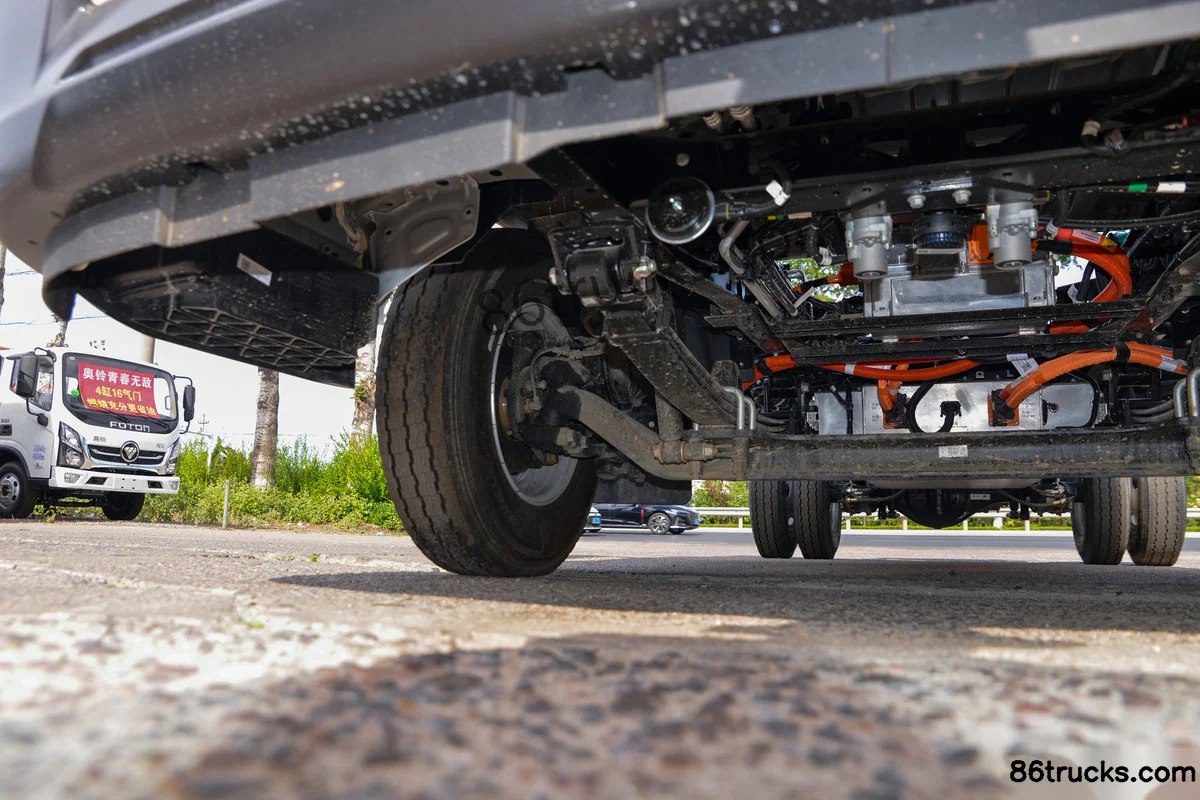

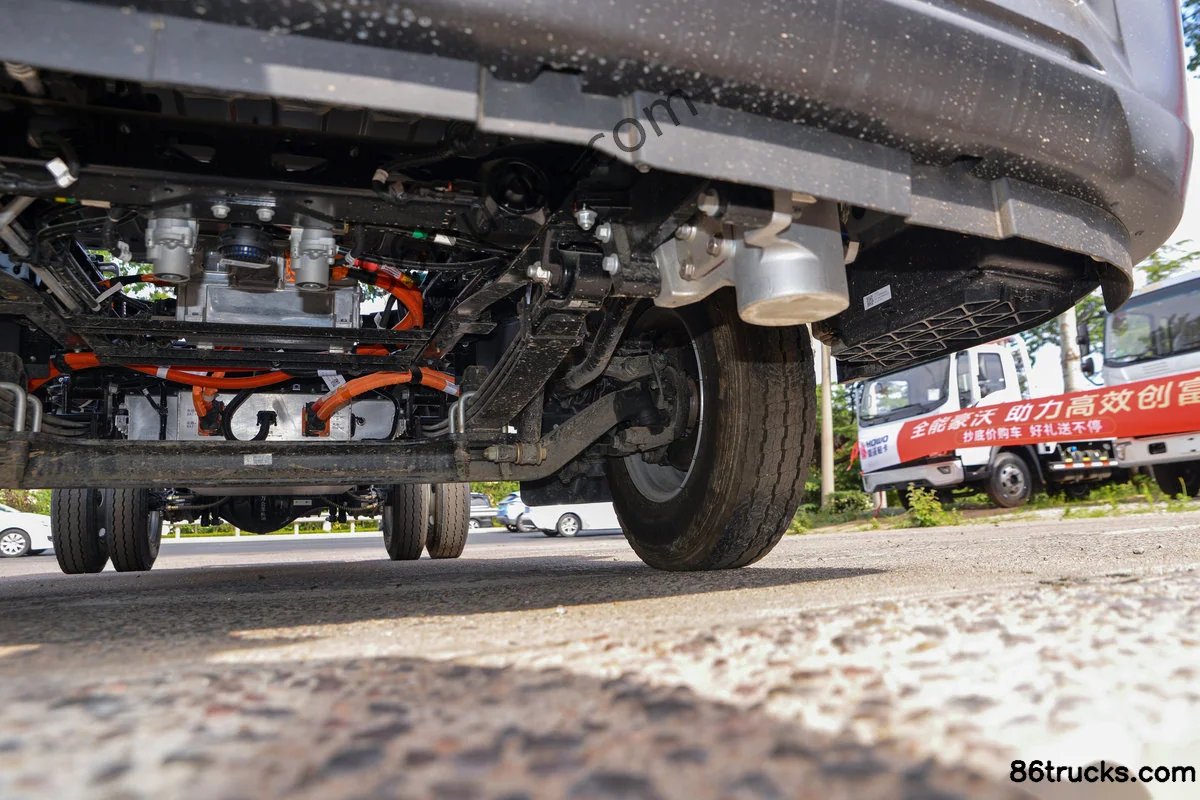

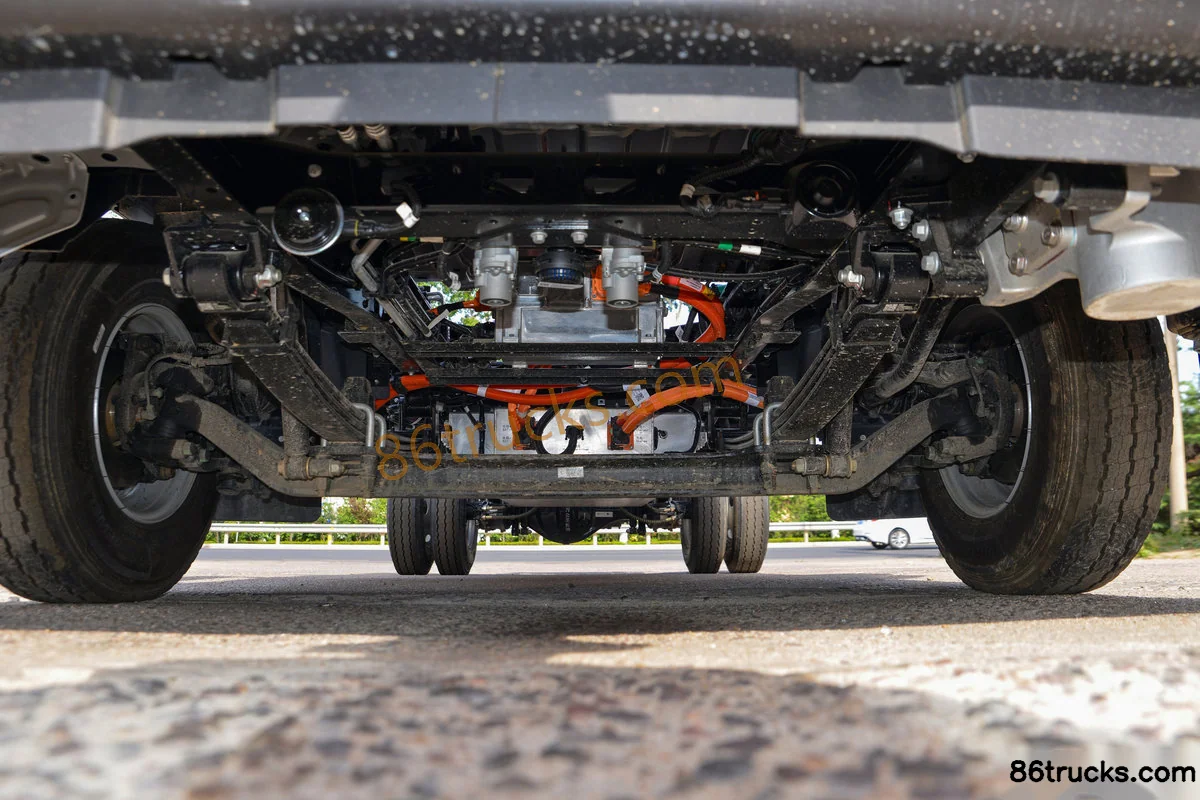

Chassis3

9 photos

FAQ

What is the export price of Foton Extreme Electric Standard Top 4.2m Single Row Pure Electric Cage Cargo Light Truck CATL 140.41kWh 4X2(6 wheels), and what does it include?

Foton Extreme Electric Standard Top 4.2m Single Row Pure Electric Cage Cargo Light Truck CATL 140.41kWh 4X2(6 wheels) export reference is about From $30,014; MSRP is ¥21.61M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Foton Extreme Electric Standard Top 4.2m Single Row Pure Electric Cage Cargo Light Truck CATL 140.41kWh 4X2(6 wheels)?

Key specs of Foton Extreme Electric Standard Top 4.2m Single Row Pure Electric Cage Cargo Light Truck CATL 140.41kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Extreme Electric Standard Top 4.2m Single Row Pure Electric Cage Cargo Light Truck CATL 140.41kWh 4X2(6 wheels) suited for?

Foton Extreme Electric Standard Top 4.2m Single Row Pure Electric Cage Cargo Light Truck CATL 140.41kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Foton Extreme Electric Standard Top 4.2m Single Row Pure Electric Cage Cargo Light Truck CATL 140.41kWh 4X2(6 wheels) differ from other variants in the same series?

Foton Extreme Electric Standard Top 4.2m Single Row Pure Electric Cage Cargo Light Truck CATL 140.41kWh 4X2(6 wheels) belongs to Foton Jidian Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Extreme Electric Standard Top 4.2m Single Row Pure Electric Cage Cargo Light Truck CATL 140.41kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Extreme Electric Standard Top 4.2m Single Row Pure Electric Cage Cargo Light Truck CATL 140.41kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
