Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck

Export reference
From $31,667
MSRP ¥22.8M CNY
Horsepower: 245
Emission: China V
Fuel: Diesel
Engine: SDEC6.4L
Transmission: Fast Gear
Curb Weight:: 9.2ton
seating capacity: 2Personnel
Rated payload: 8.67ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck is a Heavy truck featuring 9.6m cargo length, Van body cargo body, 2Personnel volume and 8.67t payload. Its segment focus covers Express parcel and LTL, matching those duty cycles. On the powertrain side, it comes with a SDEC6.4L engine, 245 hp, 4X2 (6 wheels) drive and China V emissions.

China V 245 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN5180XXYH27F1M5
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7100mm
Box length class: 9.6m
engine: SDECSC7H245Q5
transmission: Fast Gear9JS119TA
Rear Axle Ratio: 4.44
Cab length: 11.98m
Cab width: 2.55m
Cab height: 4m
Front track width: 2065mm
rear track: 1860mm
Curb Weight: 9.2ton
Rated payload: 8.67ton
GVWR: 18ton
Max. speed: 98km/h
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 11°
market segment: Express parcel, LTL
Front/rear suspension: 1.425/3.455m
Energy Type: Diesel
Engine parameters
Engine Brand: SDEC
Engine Model: SDECSC7H245Q5
Engine info: SDEC6.4L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.44L
Emission standard: China V
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 960N·m
Max torque speed: 1400rpm
Rated speed: 2300rpm
Engine Type: Inline, electronic common rail, 4-valve, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear9JS119TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.6m
Cargo box width: 2.42m
Cargo box height: 2.65m
*Cargo box interior width: 2.4200000762939
Cab parameters
Cab: Hanma H6 flat roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 380L
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 153
rear axle allowable load: 11500kg
Axle ratio: 4.44
Leaf spring count: 9/9+6
Tire
Tire Size: 10.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

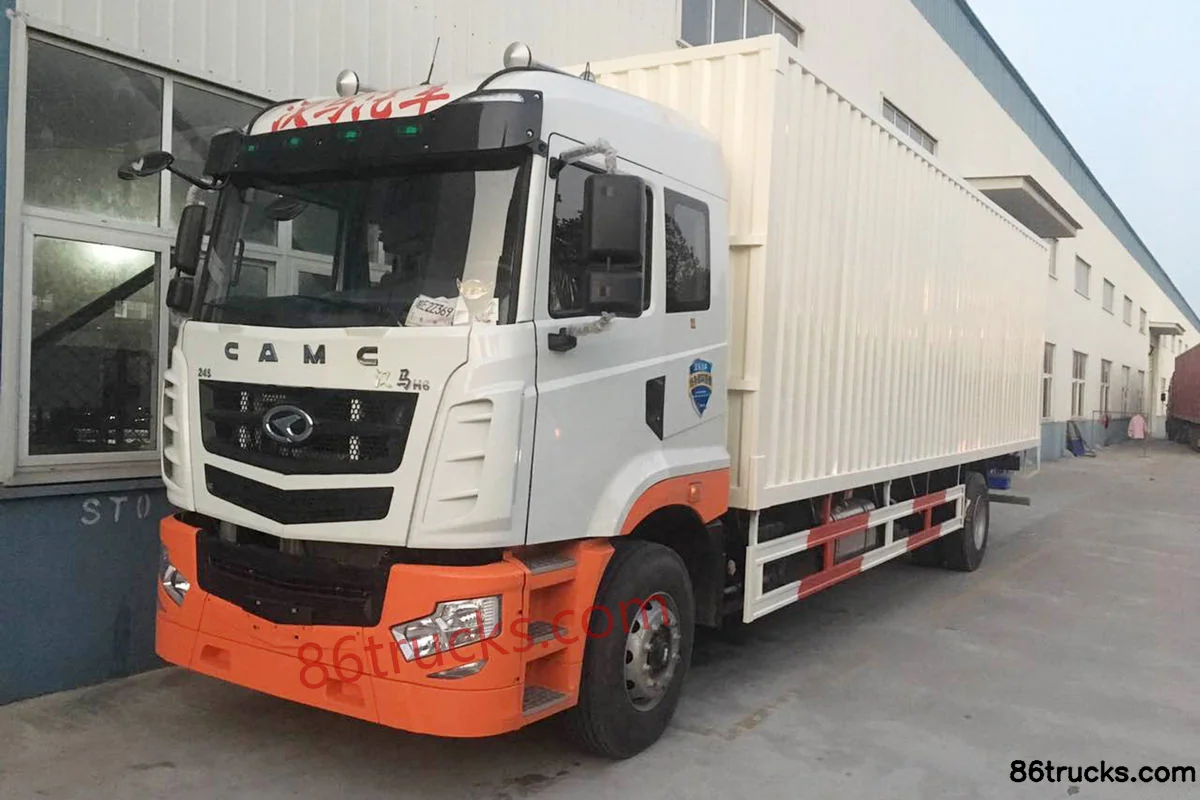

Exterior1

1 photos

FAQ

What is the export price of Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck, and what does it include?

Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck export reference is about From $31,667; MSRP is ¥22.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck?

Key specs of Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck: Drive: 4x2; Horsepower: 245 hp; Emission: China V; Fuel: Diesel; Engine: SDEC6.4L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck suited for?

Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck differ from other variants in the same series?

Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck belongs to Hualing Hanma H6 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Hanma H6 245hp 4X2(6 wheels) 9.6m Box Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
