FAW Jiefang New Zhaocaihu Pro 2.5L Diesel 150hp 4X2(6 wheels) WLY 5-speed 4.16m Single Row Van Truck

Export reference
MSRP N/A
Horsepower: 150
Emission: China VI
Fuel: Diesel
Engine: Quanchai2.5L
Transmission: WLY
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang New Zhaocaihu Pro 2.5L Diesel 150hp 4X2(6 wheels) WLY 5-speed 4.16m Single Row Van Truck is a Light Truck featuring 4.16m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. On the powertrain side, it comes with a Quanchai2.5L engine, 150 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5049XXYP40K59L2E6A84
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: QuanchaiQ25A-150E60
transmission: WLYWLY5G32B
Rear Axle Ratio: 4.333
Cab length: 5.985m
Cab width: 2.2m
Cab height: 3.12m
Front track width: 1662mm
rear track: 1604mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 20°
departure angle: 13°
Front/rear suspension: 1.115/1.57m
Version: Pro
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ25A-150E60
Engine info: Quanchai2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.496L
Emission standard: China VI
Max output power: 110kW
Max hp: 150Horsepower
Max torque: 330N·m
Max torque speed: 1200-3000rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Model: WLY5G32B
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.16m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab: mid-body
Cab width: 1895mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1950kg
rear axle allowable load: 2545kg
Axle ratio: 4.333
Leaf spring count: 3/7+9
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic

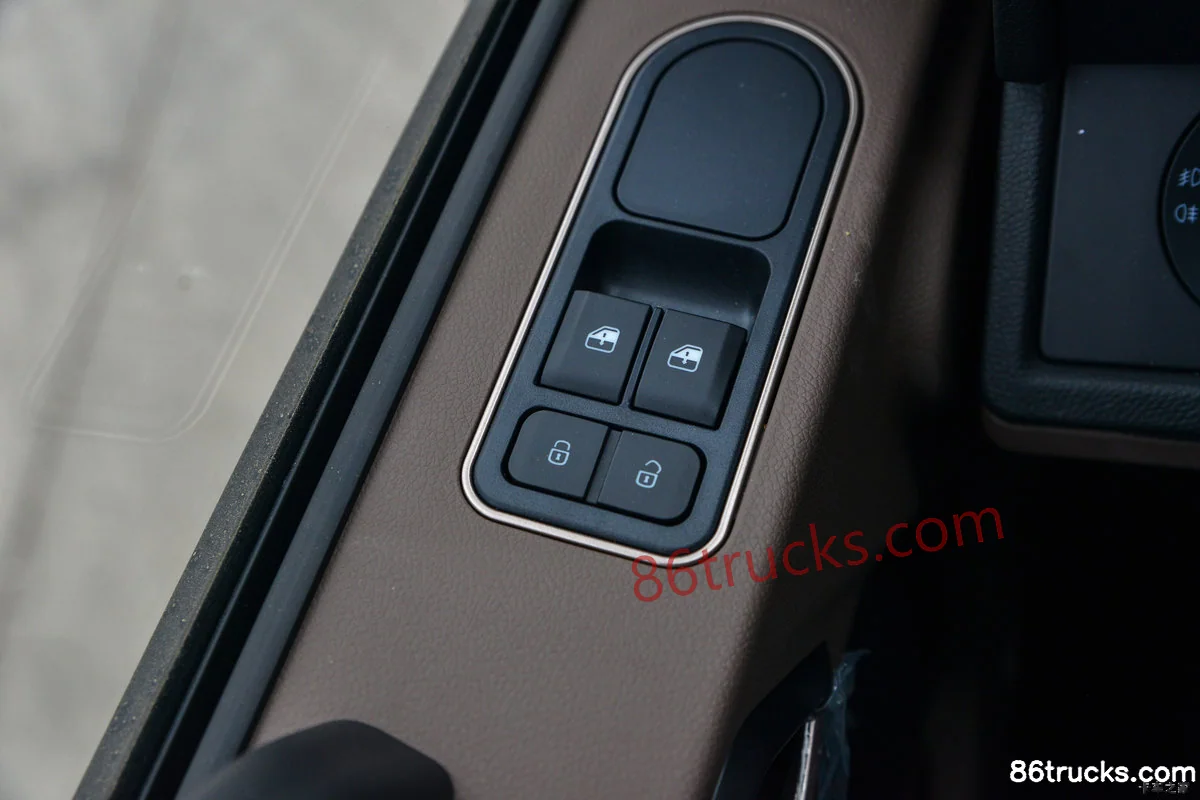

Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Bluetooth / hands-free calling:
Radio:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

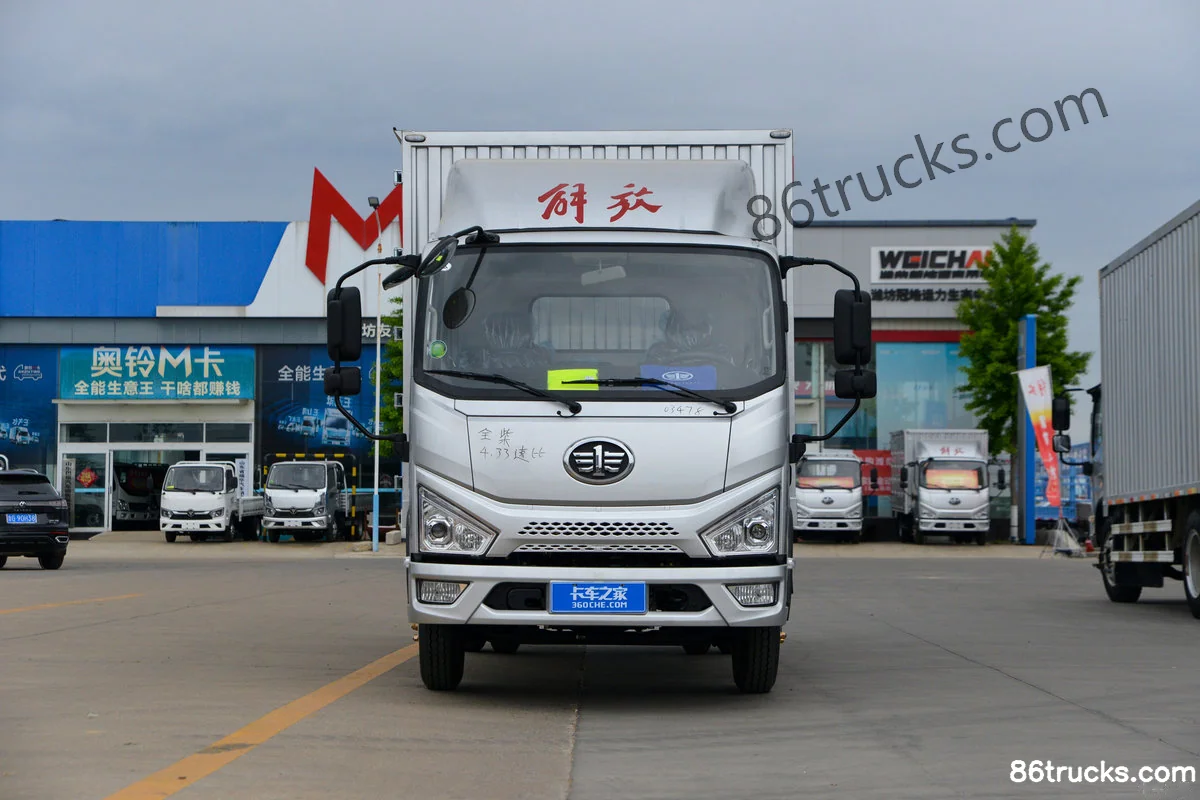

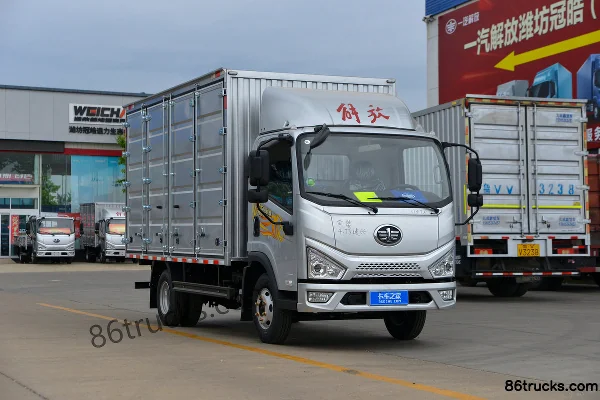

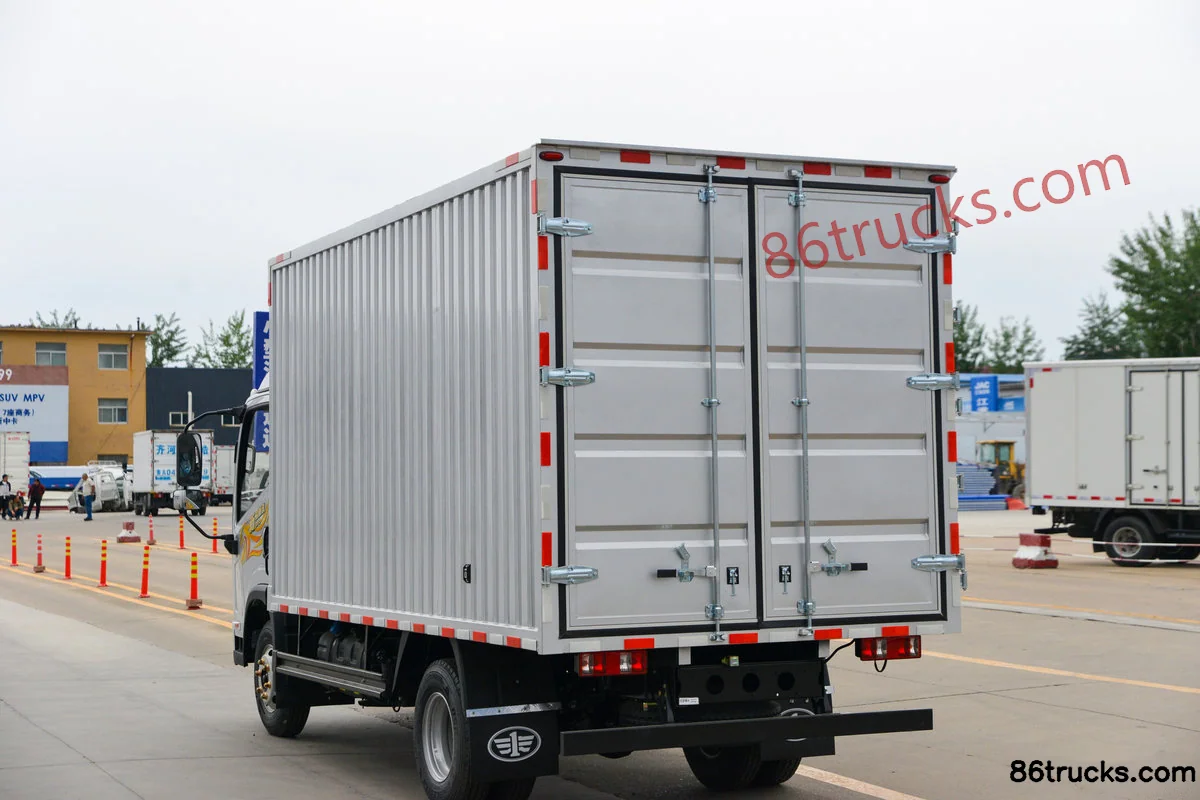

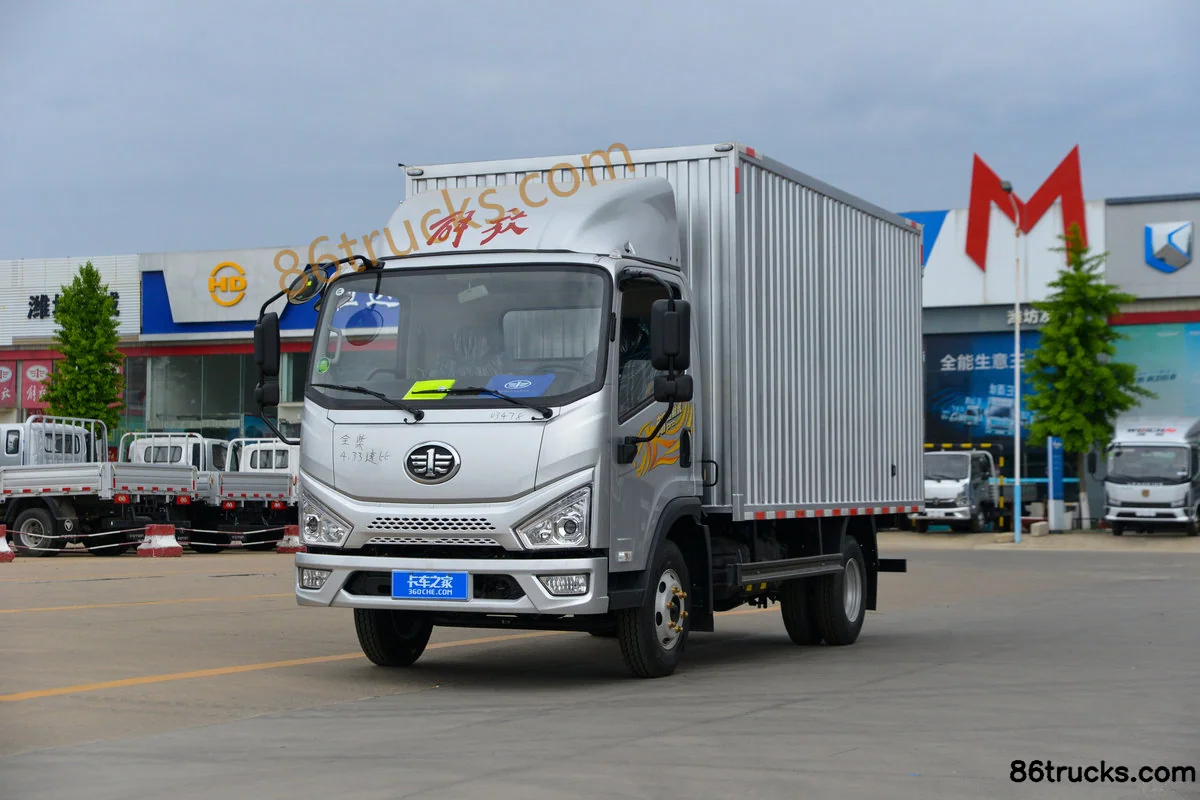

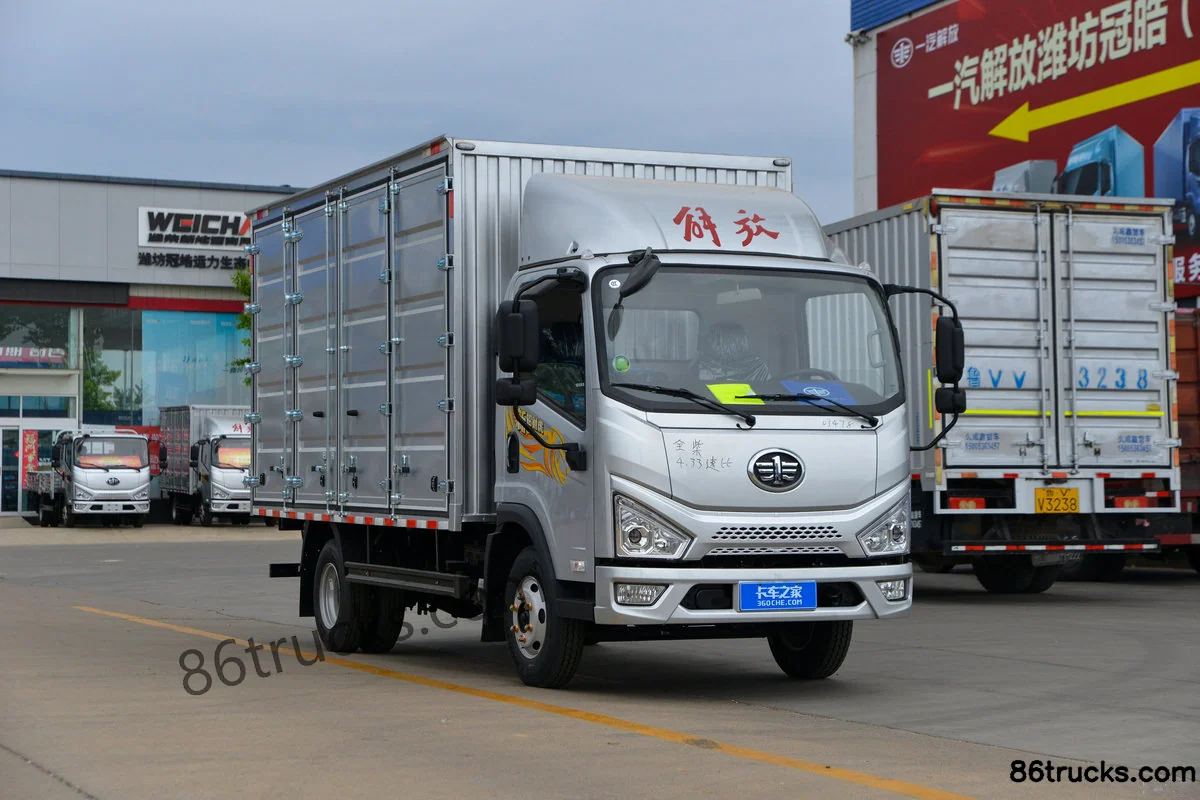

Exterior3

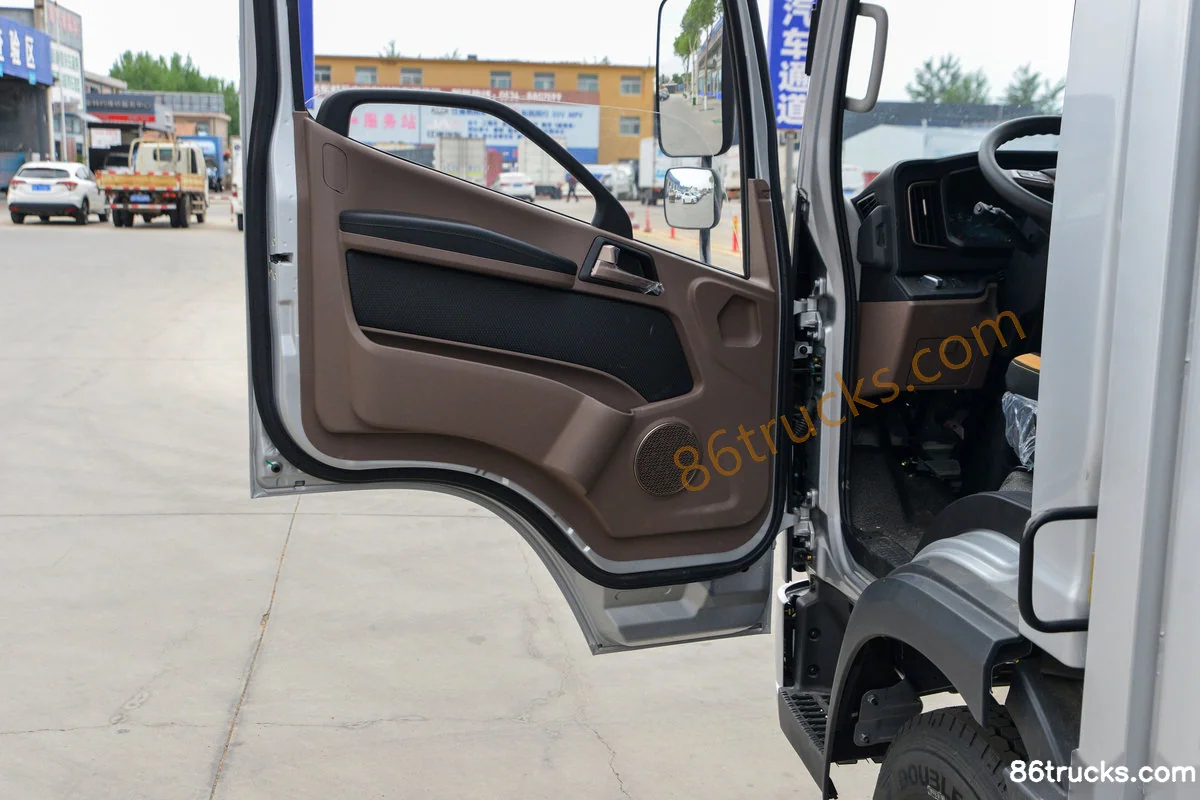

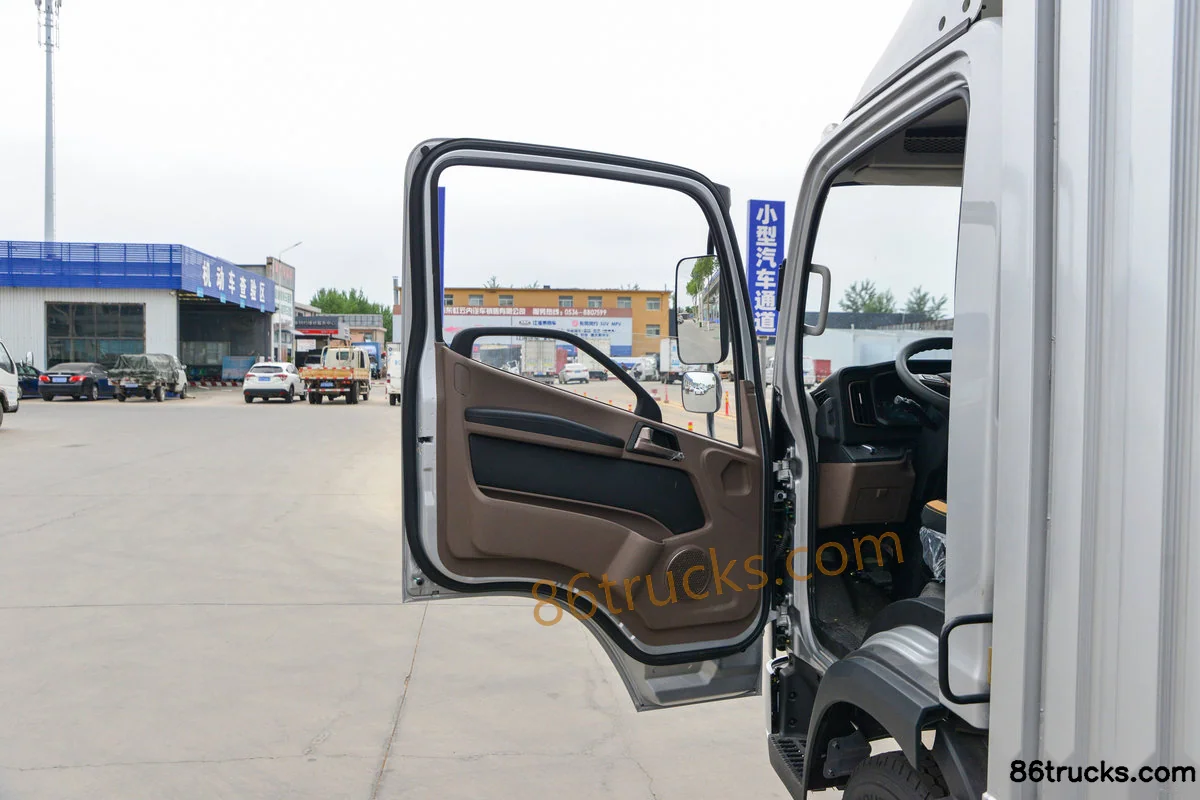

Cab3

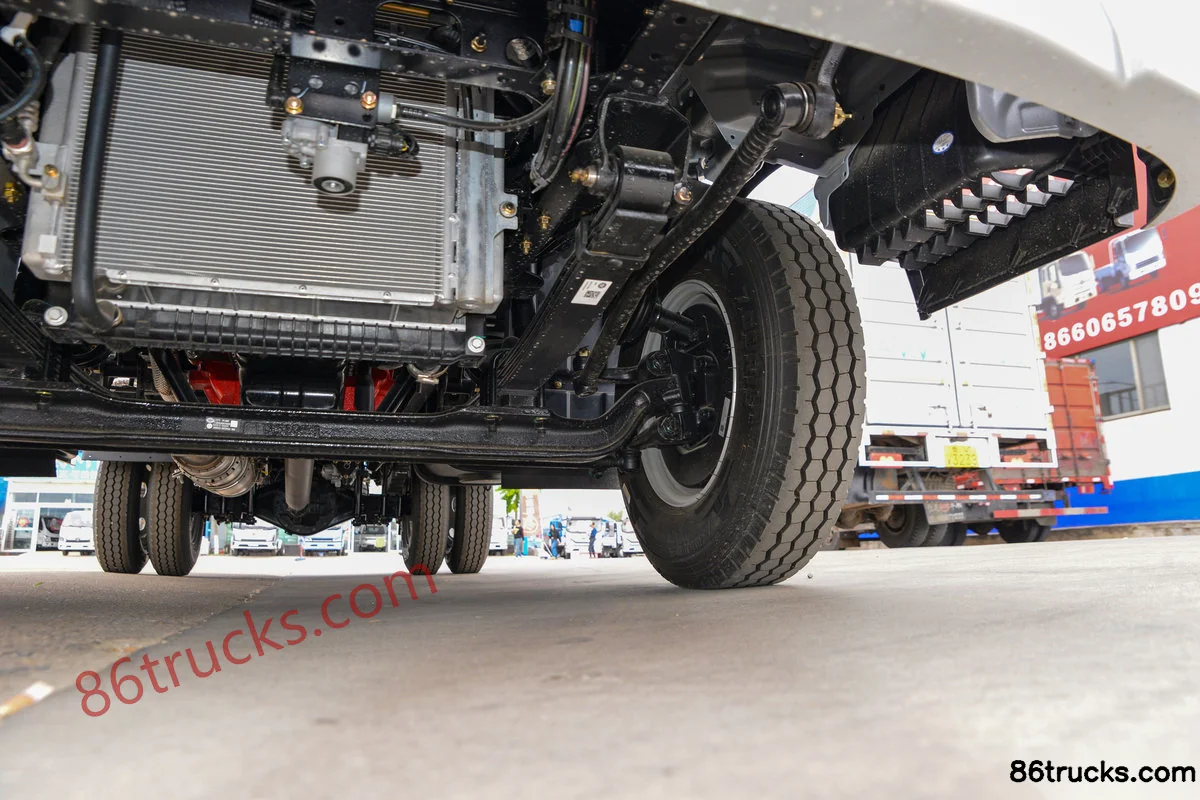

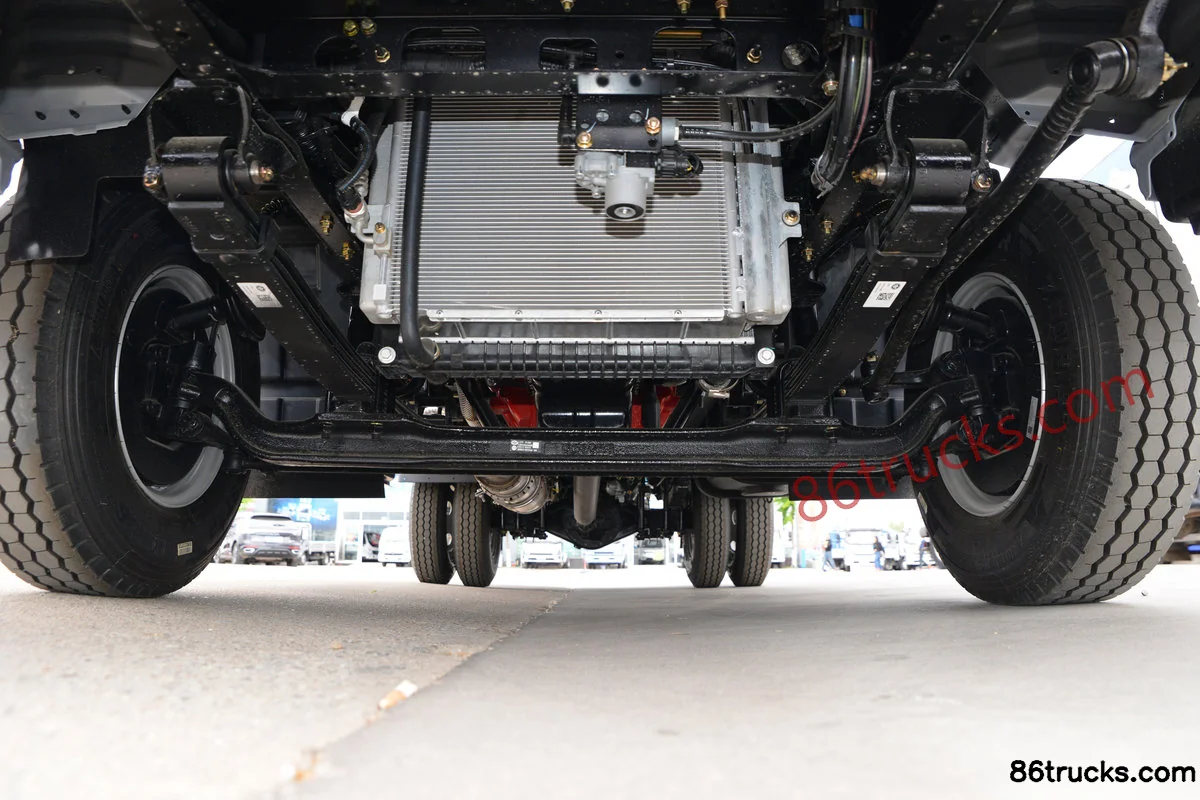

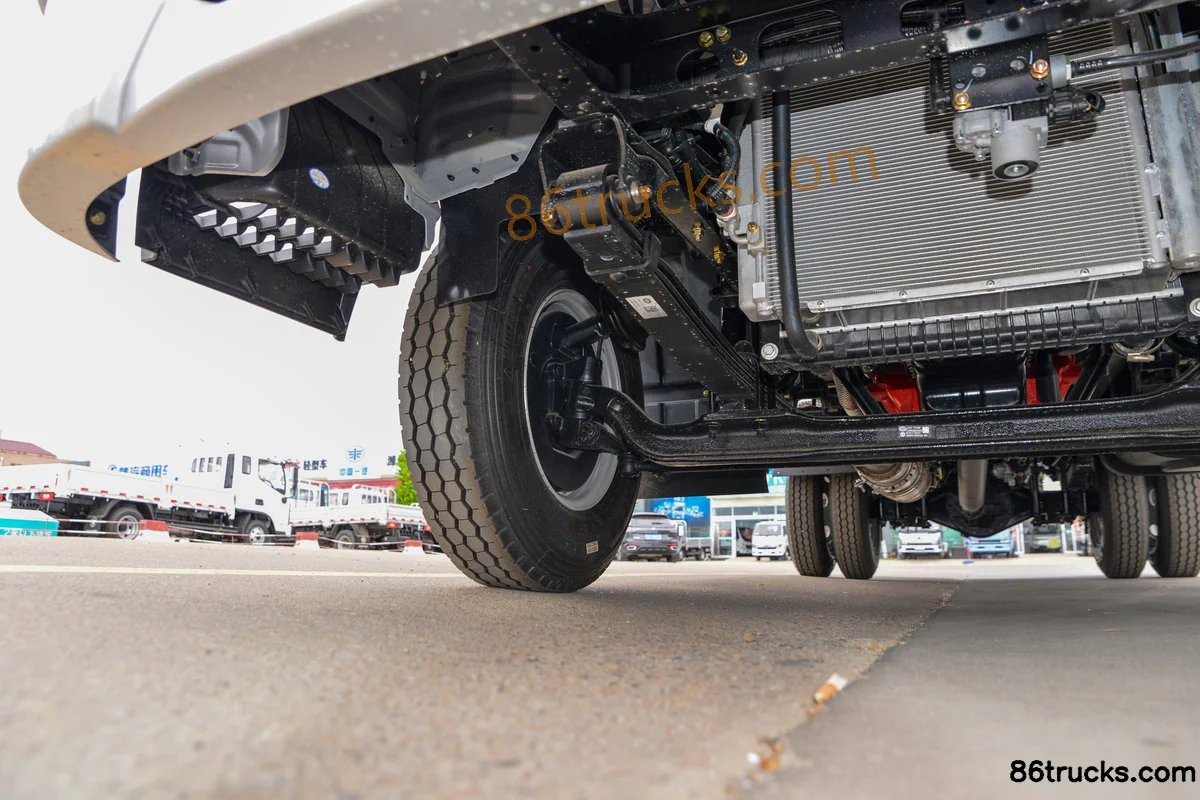

Chassis3

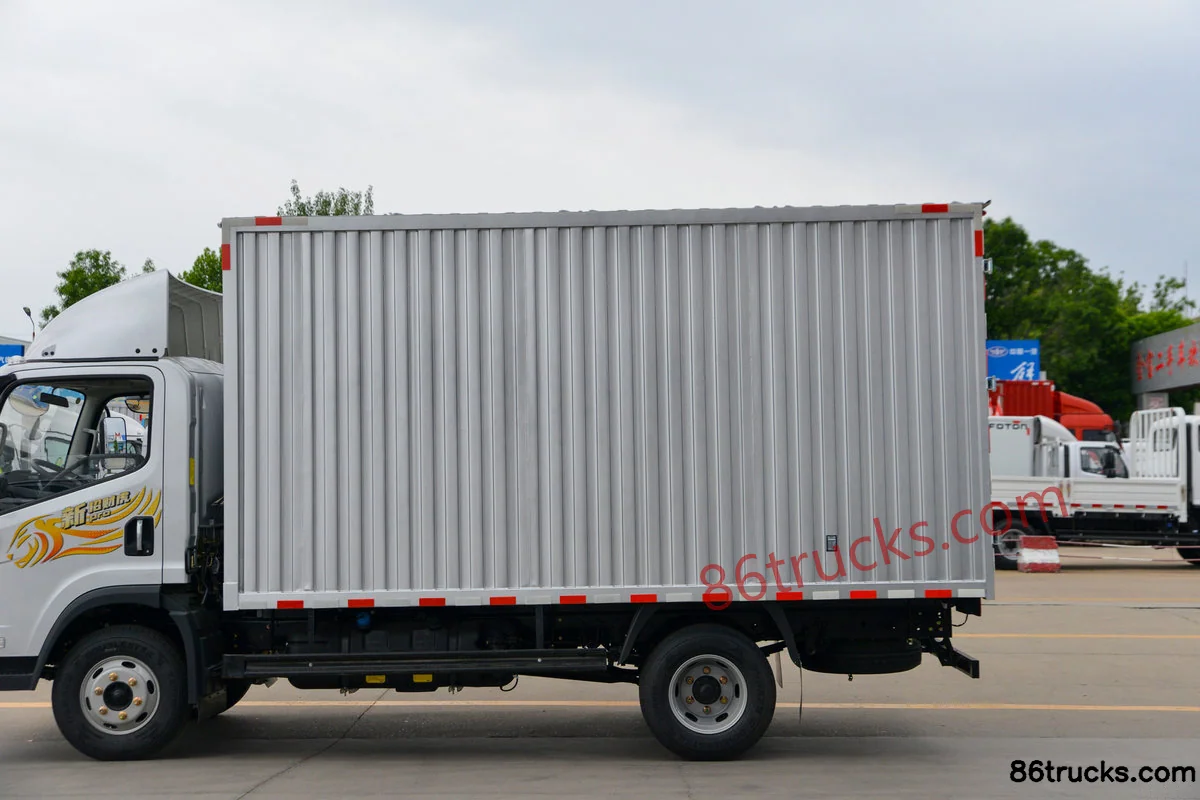

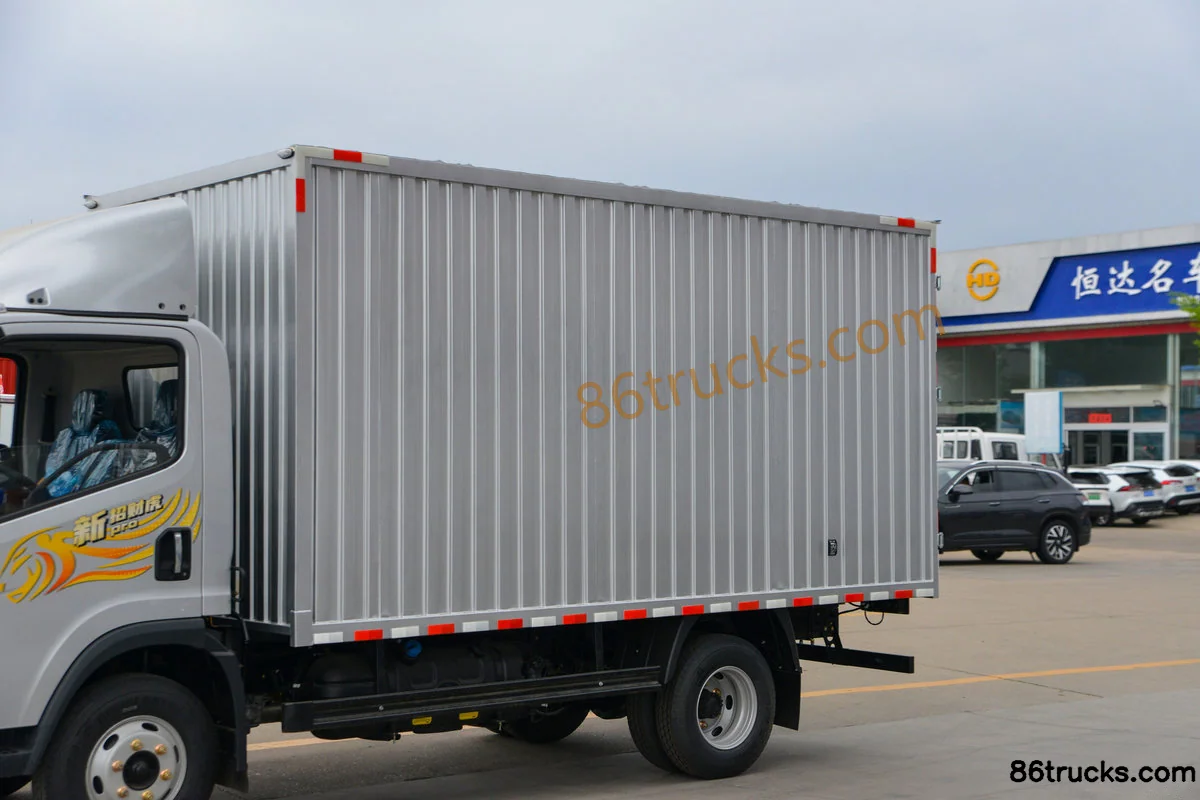

Body3

12 photos

FAQ

What emission standard does FAW Jiefang New Zhaocaihu Pro 2.5L Diesel 150hp 4X2(6 wheels) WLY 5-speed 4.16m Single Row Van Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang New Zhaocaihu Pro 2.5L Diesel 150hp 4X2(6 wheels) WLY 5-speed 4.16m Single Row Van Truck?

Key specs of FAW Jiefang New Zhaocaihu Pro 2.5L Diesel 150hp 4X2(6 wheels) WLY 5-speed 4.16m Single Row Van Truck: Drive: 4x2; Horsepower: 150 hp; Emission: China VI; Fuel: Diesel; Engine: Quanchai2.5L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang New Zhaocaihu Pro 2.5L Diesel 150hp 4X2(6 wheels) WLY 5-speed 4.16m Single Row Van Truck suited for?

FAW Jiefang New Zhaocaihu Pro 2.5L Diesel 150hp 4X2(6 wheels) WLY 5-speed 4.16m Single Row Van Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang New Zhaocaihu Pro 2.5L Diesel 150hp 4X2(6 wheels) WLY 5-speed 4.16m Single Row Van Truck differ from other variants in the same series?

FAW Jiefang New Zhaocaihu Pro 2.5L Diesel 150hp 4X2(6 wheels) WLY 5-speed 4.16m Single Row Van Truck belongs to FAW Jiefang New Zhaocai Hu Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang New Zhaocaihu Pro 2.5L Diesel 150hp 4X2(6 wheels) WLY 5-speed 4.16m Single Row Van Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang New Zhaocaihu Pro 2.5L Diesel 150hp 4X2(6 wheels) WLY 5-speed 4.16m Single Row Van Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
