SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh

Export reference
From $23,306
MSRP ¥16.78M CNY
Wheelbase:: 2865mm
Cargo box volume:: 7
Model code (announced):: JKC5038XXYA0X1BEV
Cab length:: 4.9m
GVWR:: 3ton
Max. speed:: 90km/h

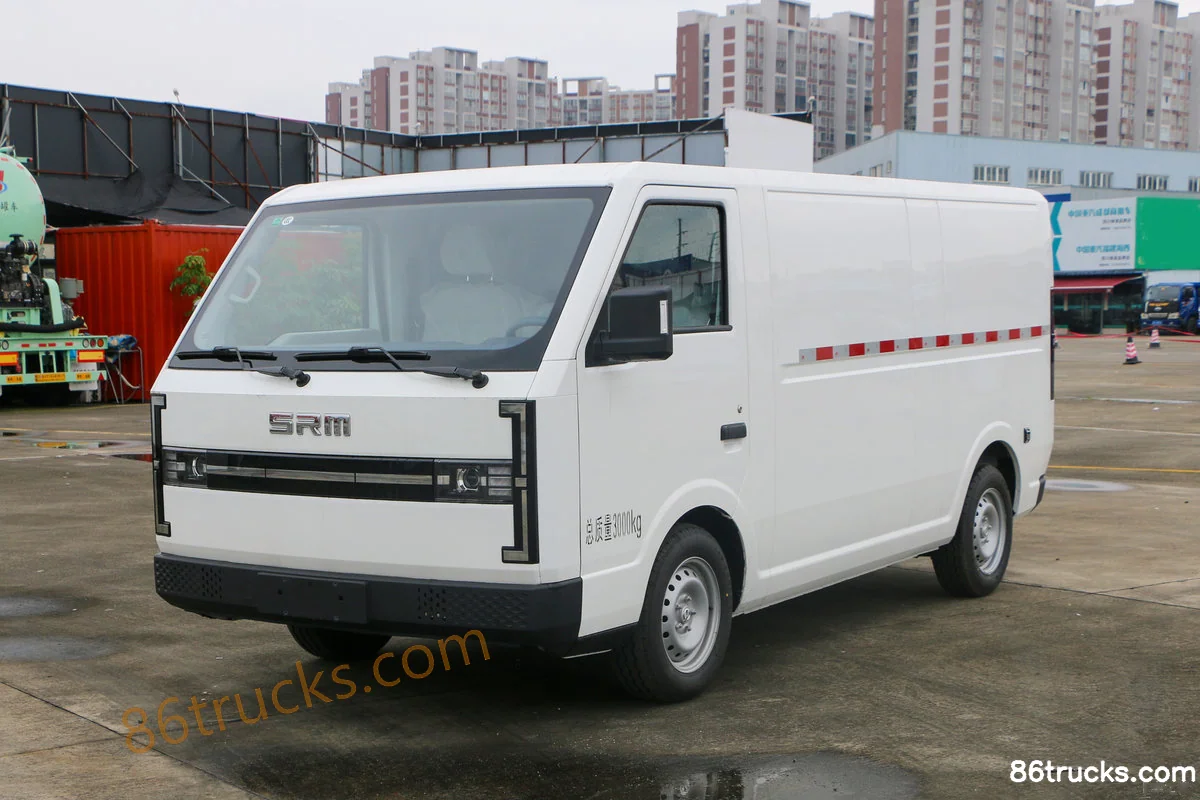

SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh exterior
View more photos (12)
CLTC range: 263km
Motor 1 Brand: Hefei Sunshine
Curb Weight: 1.53ton
Rated payload: 1.34ton

Overview

The SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh is a Electric Panel Van featuring 263km battery/range, Hefei Sunshine motor, 1.34t payload and 7 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JKC5038XXYA0X1BEV
Wheelbase: 2865mm
Cab length: 4.9m
Cab width: 1.78m
Cab height: 1.99m
CLTC range: 263km
Curb Weight: 1.53ton
Rated payload: 1.34ton
GVWR: 3ton
Max. speed: 90km/h
Front/rear suspension: 1.11/0.925m
Version: Custom standard type
Energy Type: Electric
electric motor
Motor 1 Brand: Hefei Sunshine
Motor 1 Model: TZ185XS022
Fuel Type: Electric
total rated power: 30kW
Peak power: 60kW
total peak torque: 220N·m
Battery/Charging
Battery Brand: CATL
Charging method: Fast charge, slow charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.65h
Battery capacity: 41.86kWh
Body parameters
Cargo box volume: 7
Max body depth: 3.145
Max body width: 1.73
Cargo Box Height: 1.375
Door Parameters
Floor Height: 605mm
Number of Doors: 5
side door type: Sliding side door

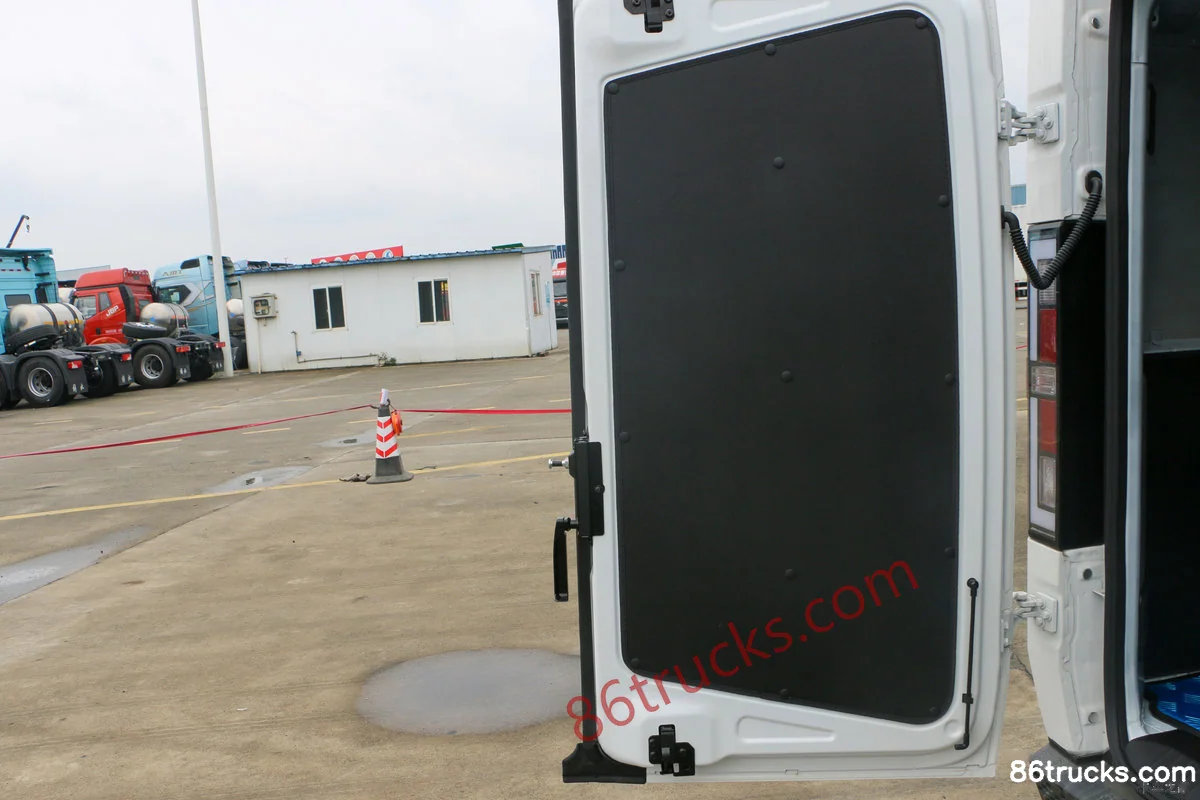

Tailgate type: split doors
Chassis Specs
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 195/70R15C
Rear Wheel Specification: 195/70R15C
Cab parameters
Seat rows:
Safety features
Tire Pressure Monitoring:
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Reverse Radar:
Reverse Camera:
Multimedia features
Bluetooth / hands-free calling:
smart configuration
Cruise control (CCS):

Photos

Exterior3

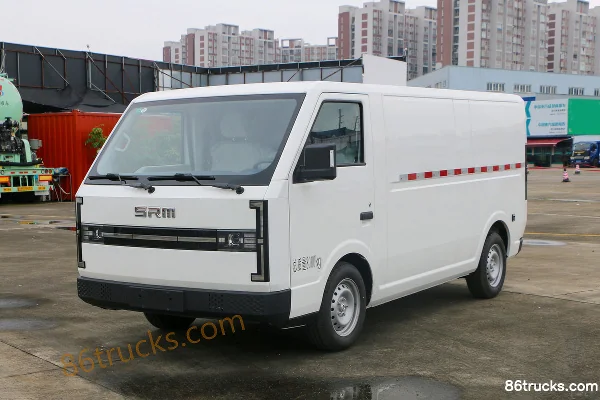

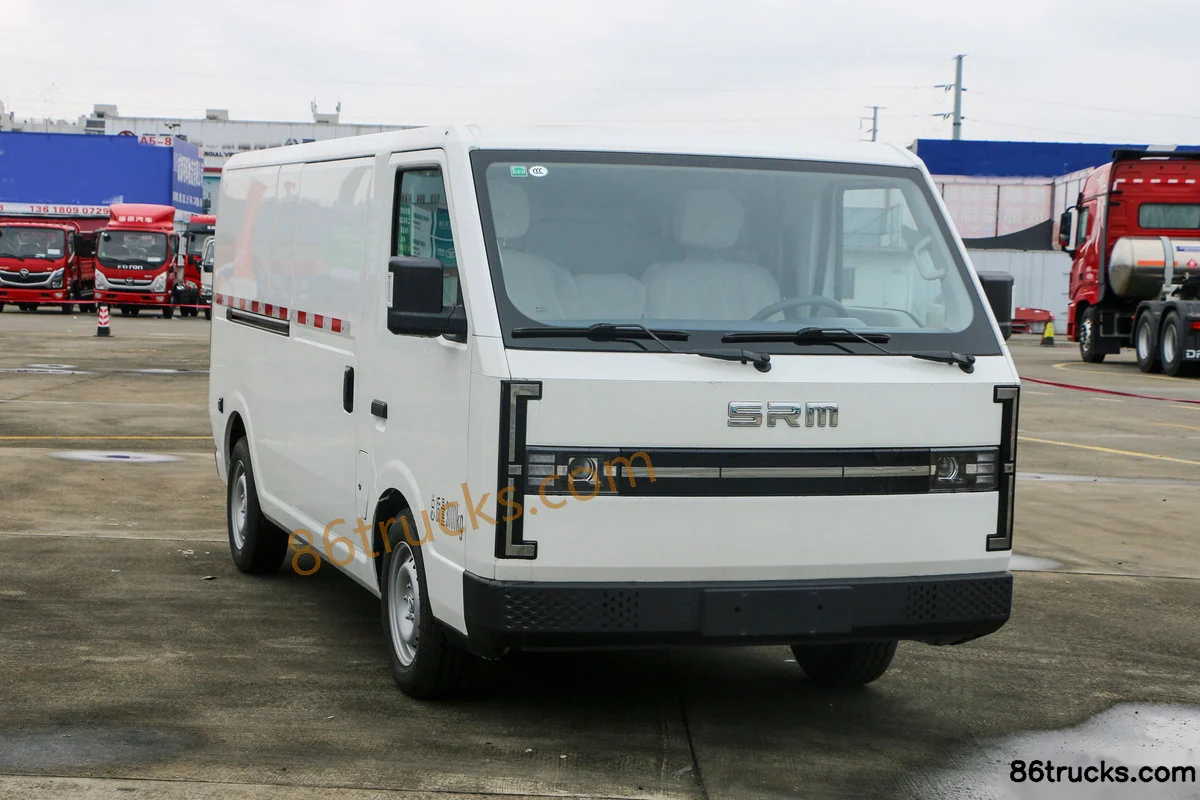

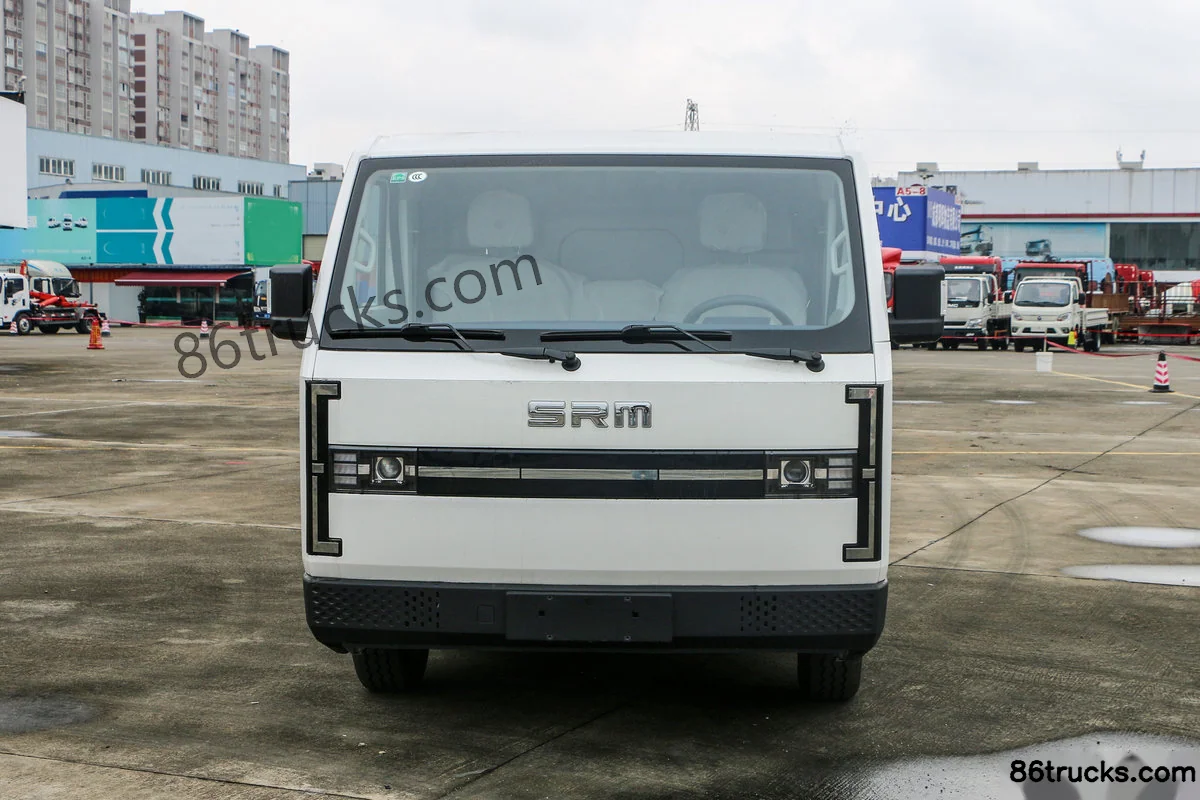

SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh Exterior (1) | 86Trucks SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh Exterior (2) | 86Trucks SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh Exterior (3) | 86Trucks

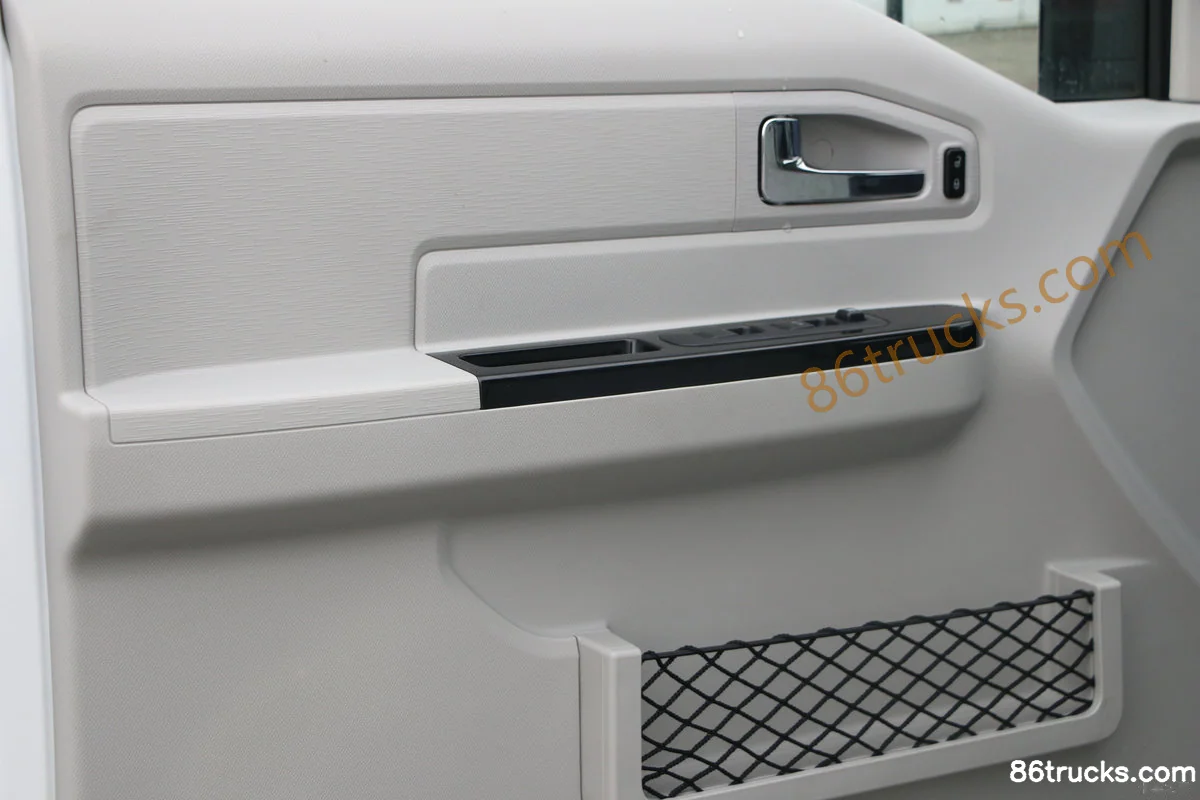

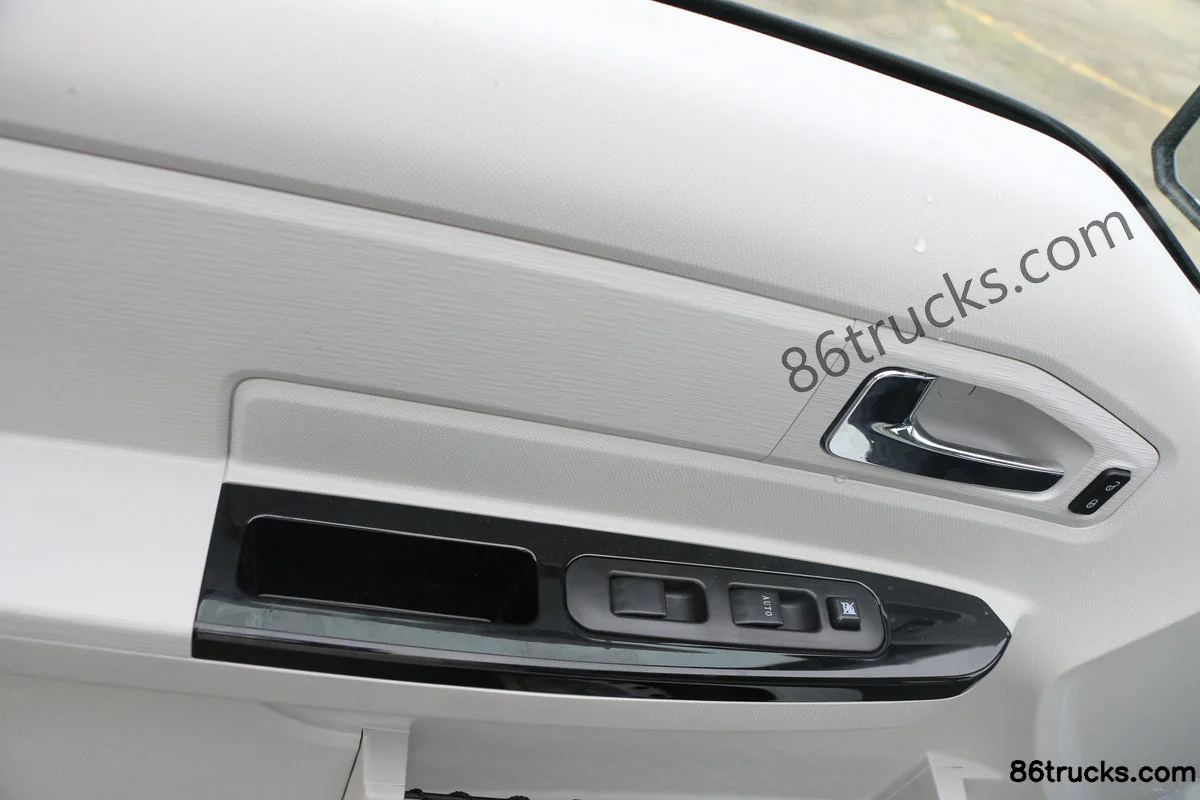

Cab3

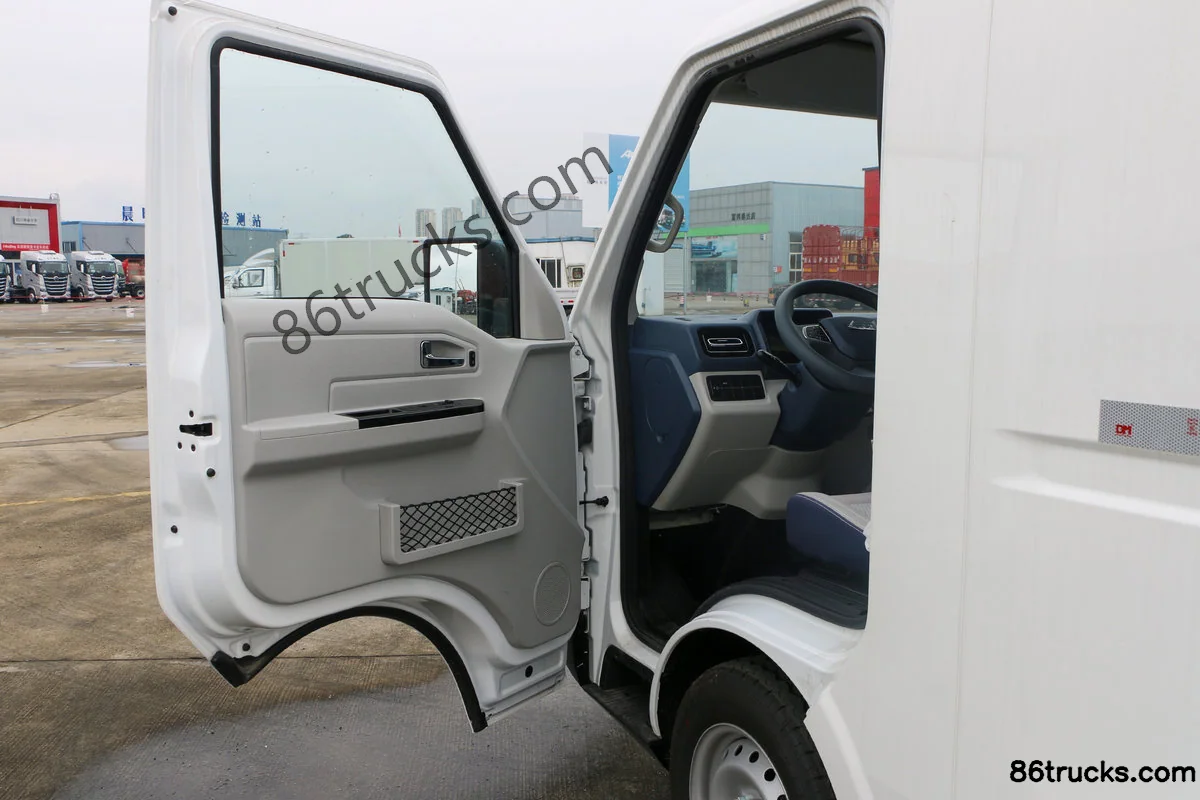

SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh Cab (1) | 86Trucks SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh Cab (2) | 86Trucks SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh Cab (3) | 86Trucks

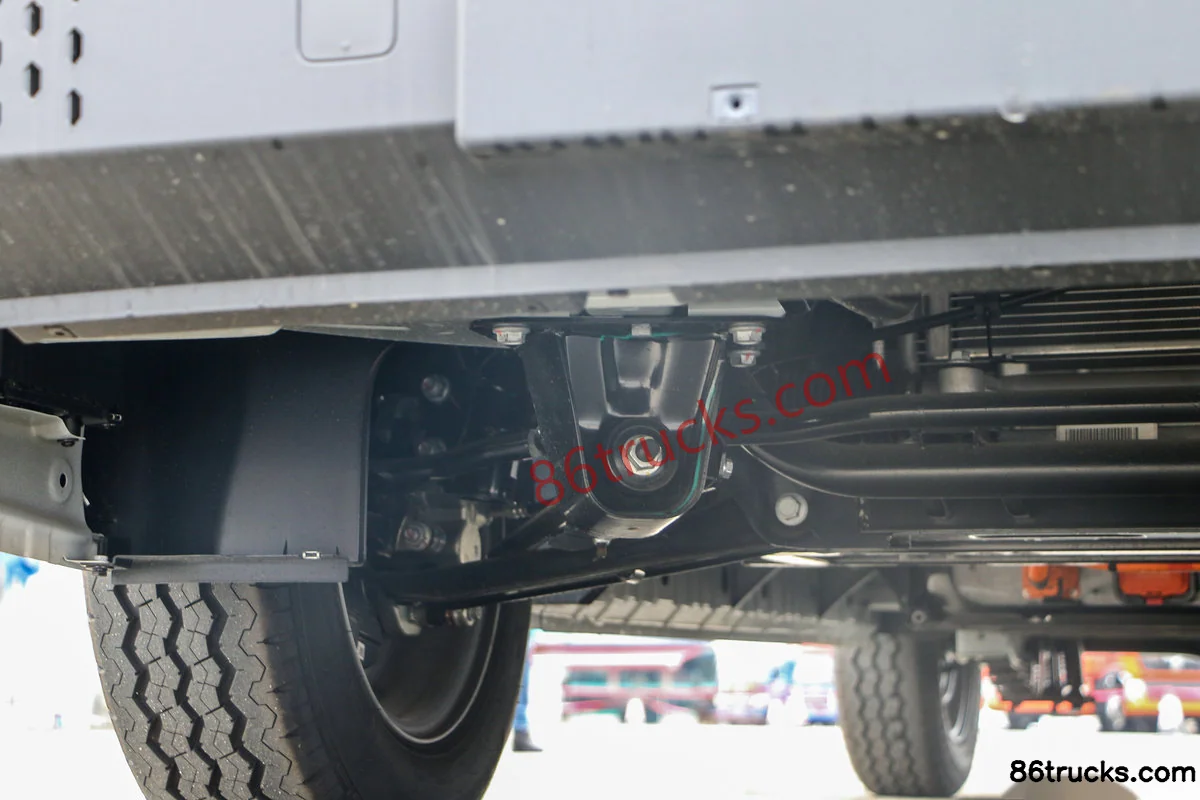

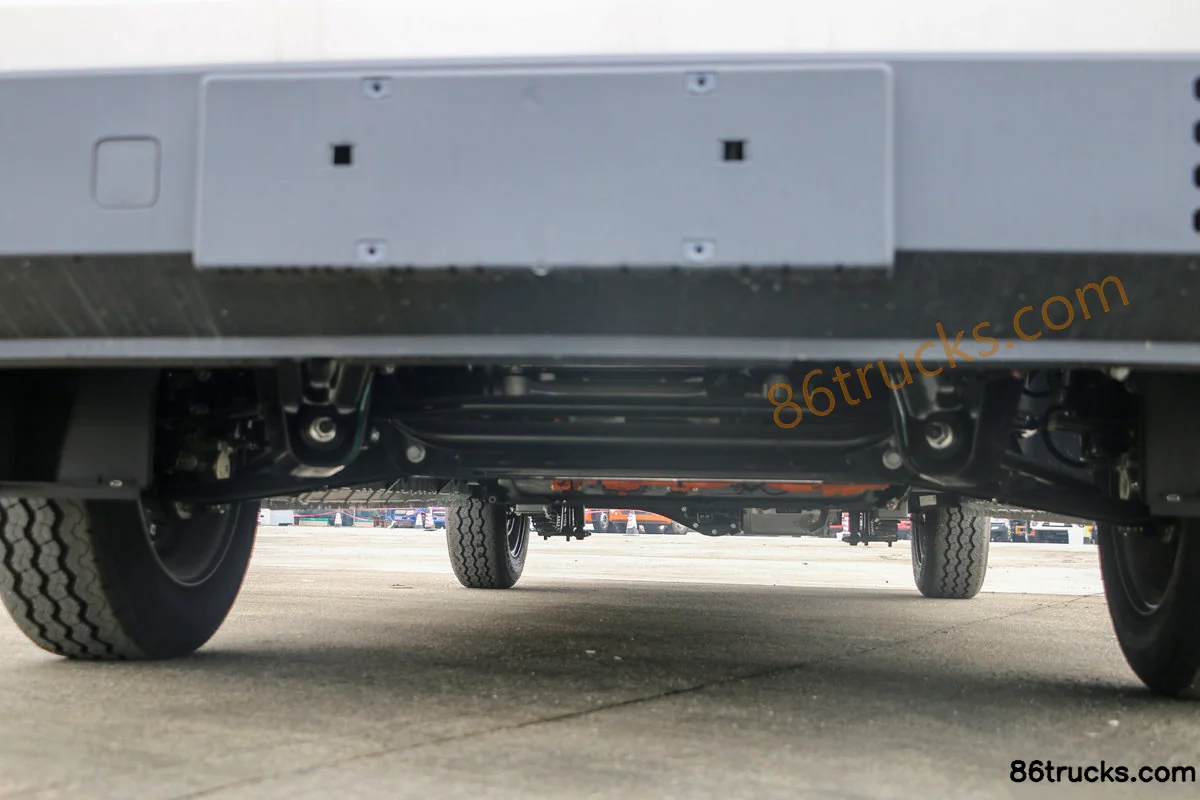

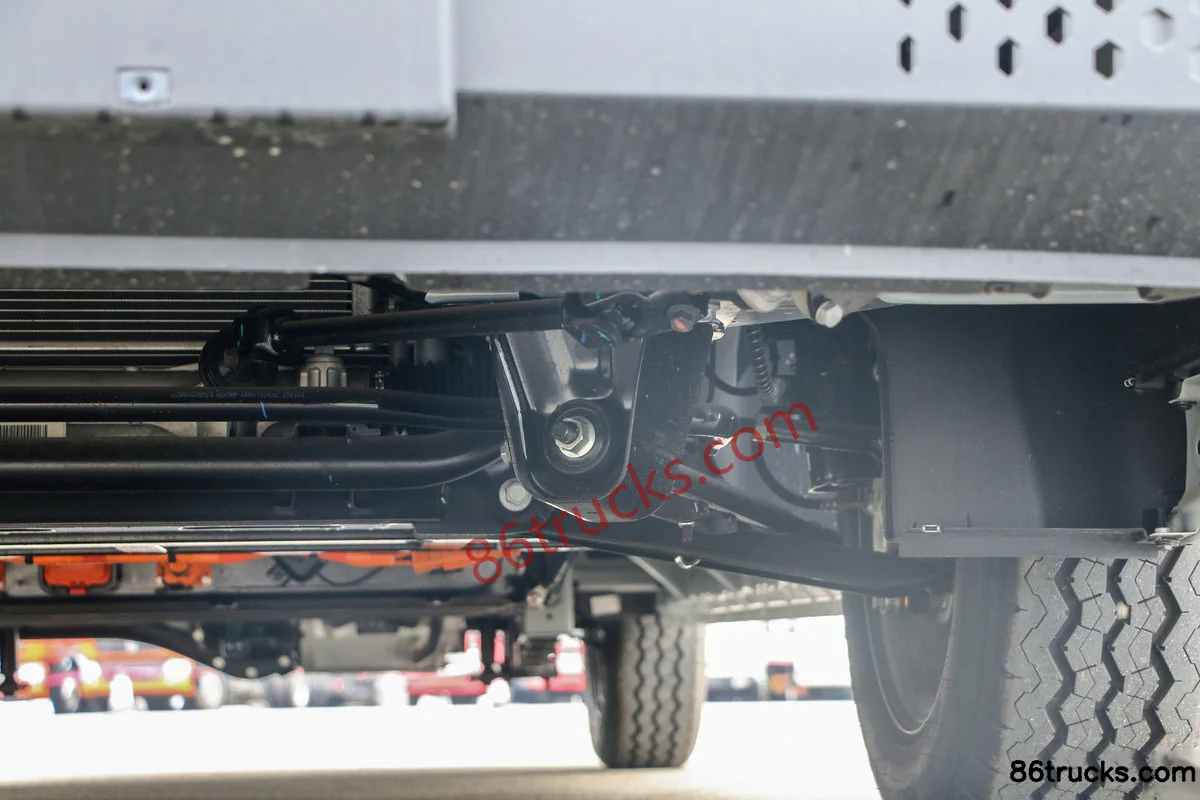

Chassis3

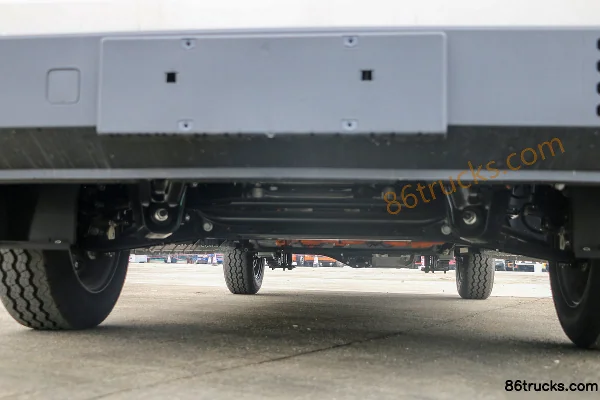

SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh Chassis (1) | 86Trucks SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh Chassis (2) | 86Trucks SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh Chassis (3) | 86Trucks

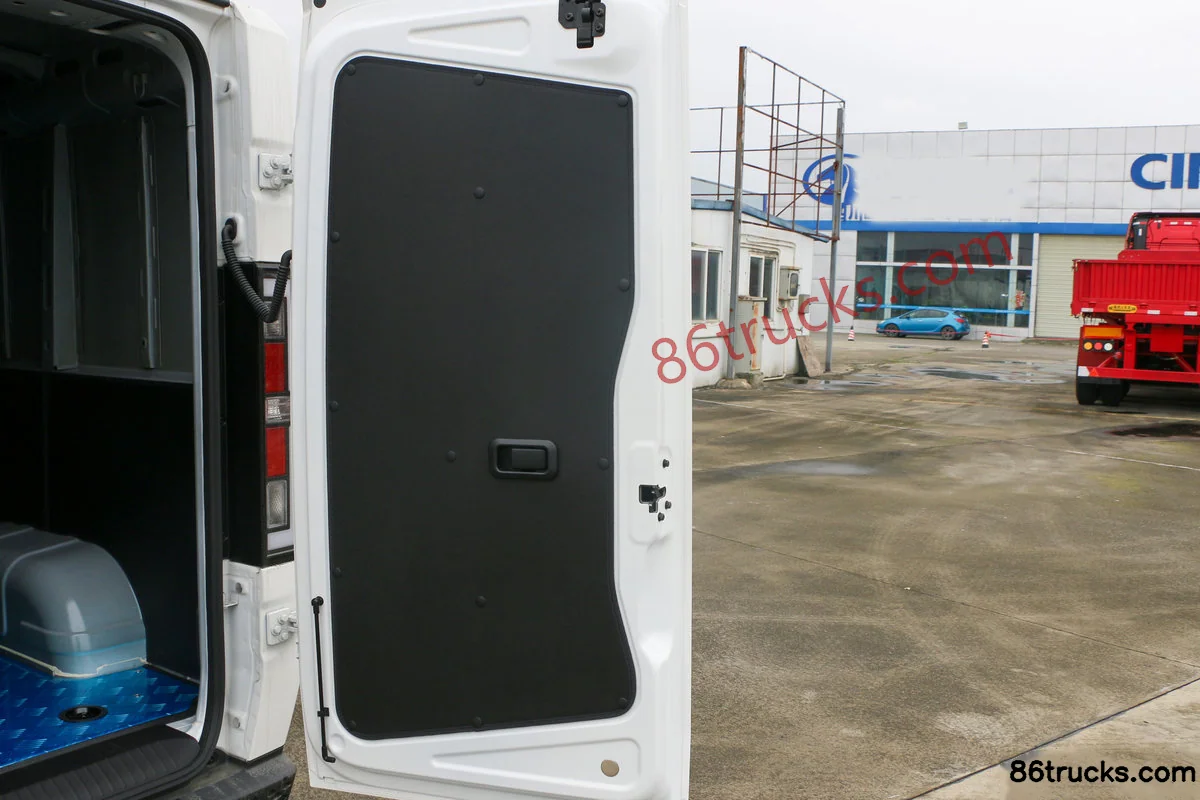

Cargo Box3

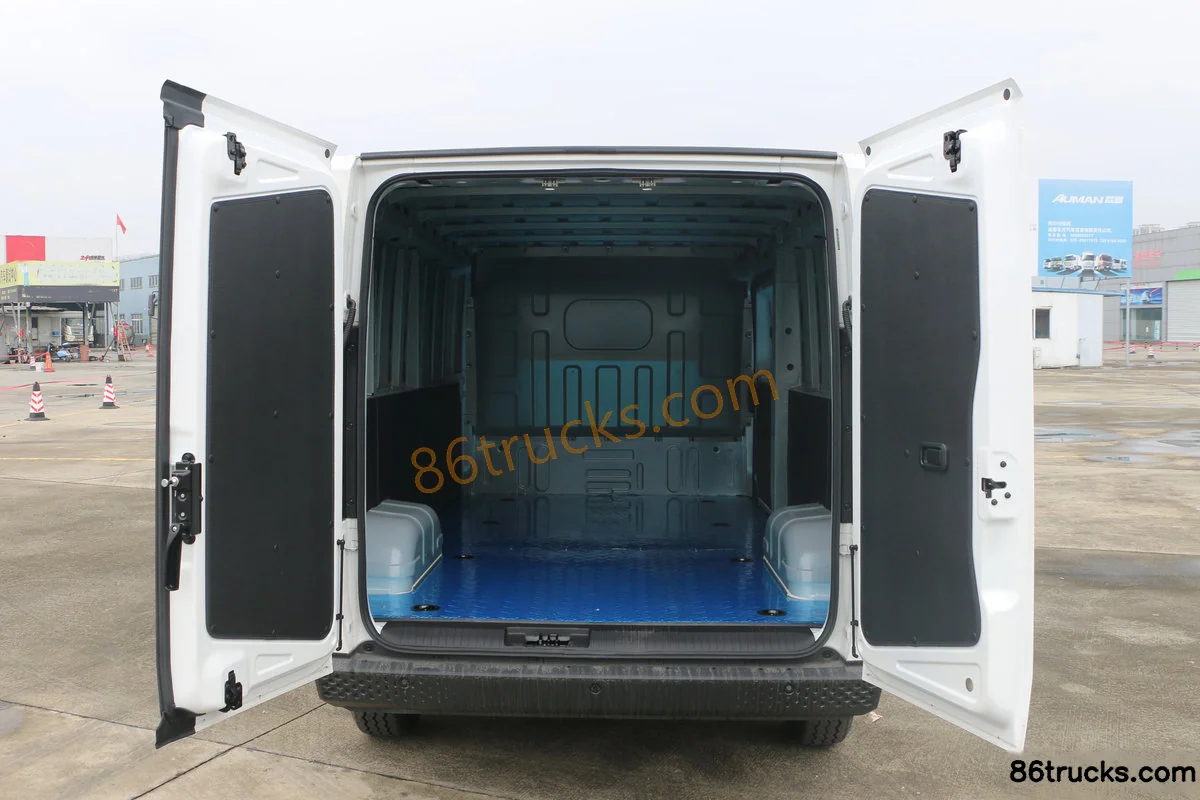

SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh Cargo Box (1) | 86Trucks SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh Cargo Box (2) | 86Trucks SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh, and what does it include?

SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh export reference is about From $23,306; MSRP is ¥16.78M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh suited for?

SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh differ from other variants in the same series?

SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh belongs to Xinyuan E3L (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SRM Xinyuan E3L 2024 Custom Standard 3T 4.9m Electric Panel Van 41.86kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
