Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.4ton
Wheelbase:: 3360mm
Cargo box type:: stake body
Model code (announced):: SQR1032BEVH72
Type:: Cargo Trucks
Box length class:: 3.4m
Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels)
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 260km
Motor 1 Brand: Ruilu
Curb Weight: 1.48ton

Overview

The Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) is a mini truck featuring 260km battery/range, Ruilu motor, 4X2 (6 wheels) drive and 1.4t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SQR1032BEVH72
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.4m
Cab length: 5.39m
Cab width: 1.75m
Cab height: 2.035m
CLTC range: 260km
Curb Weight: 1.48ton
Rated payload: 1.4ton
GVWR: 3.01ton
Max. speed: 80km/h
Origin: Kaifeng, Henan
tonnage class: mini truck
Remarks: Monitoring platform T-BOX, OTA FARIZON upgrade, mobile APP control, rear fog light
Energy Type: Electric
electric motor
Motor 1 Brand: Ruilu
Motor 1 Model: TZ180XS08I
Motor Type: Permanent magnet synchronous motor
total rated power: 35kW
Peak power: 70kW
total peak torque: 195N·m
total rated torque: 70N·m
Battery/Charging
Charging method: Fast Charge
Battery Brand: Karry
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 41.86kWh
fast charge time: 0.58h
fast charge range: 30%-80%
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.35m
Cargo box width: 1.65m
Cargo box height: 0.38m
Cab parameters
Cab width: 1650mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1030kg
rear axle allowable load: 1980kg
Tire
Tire Size: 195/70R15LT 12PR
Number of tires: 4pcs
Control configuration
ABS:
Stability control system:
Power steering: Electric Power Steering
interior configuration
AC control type: Manual
Power Windows:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Tire Pressure Monitoring System (TPMS):

Photos

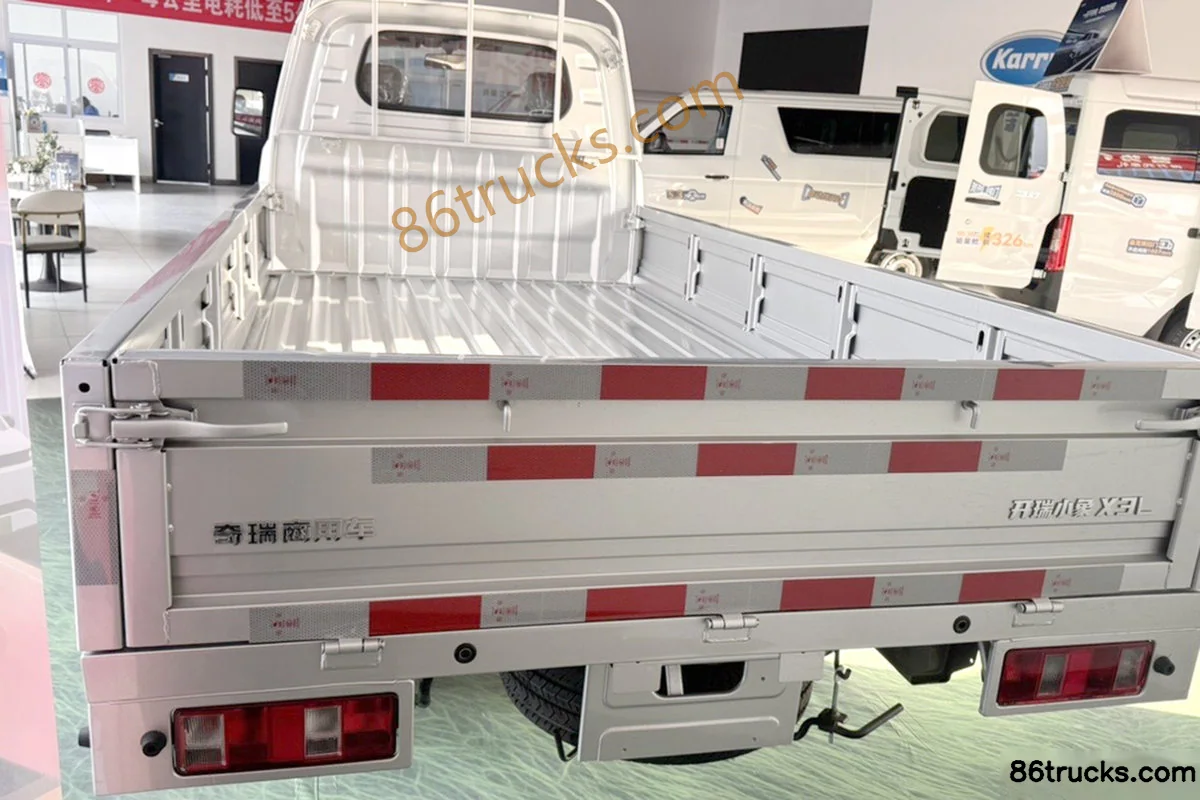

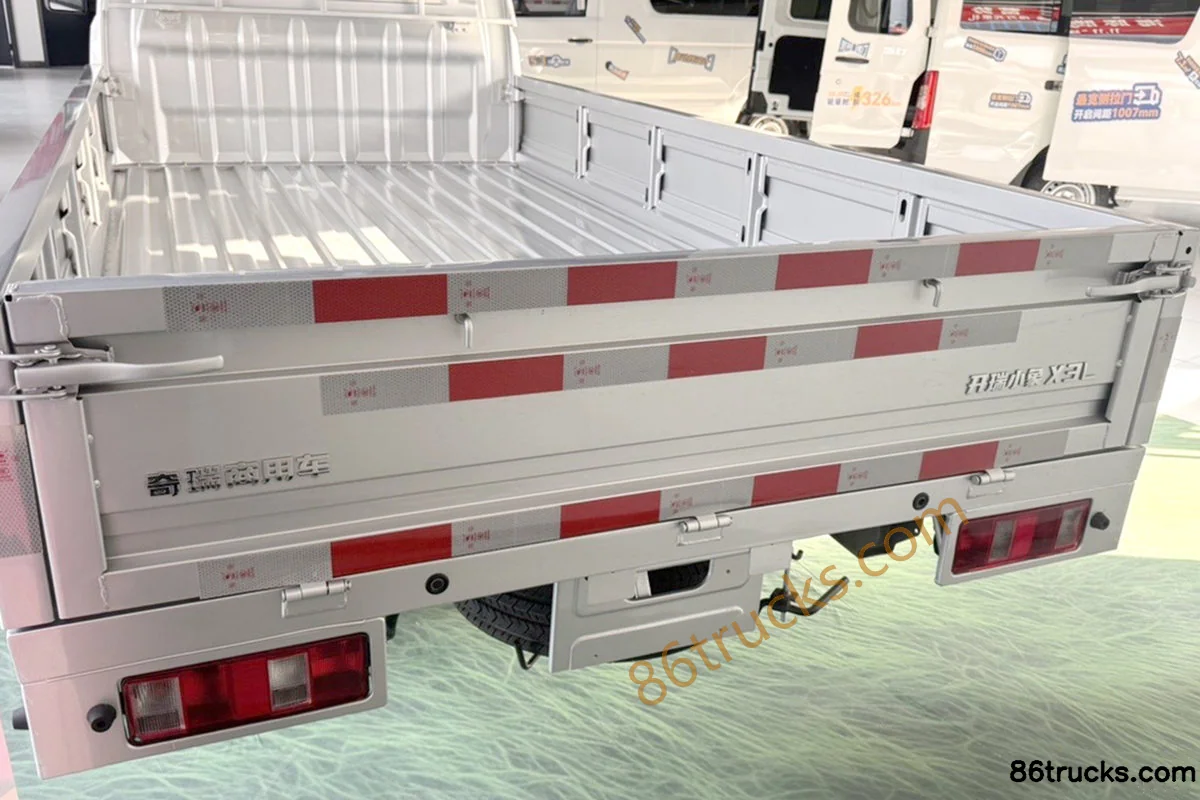

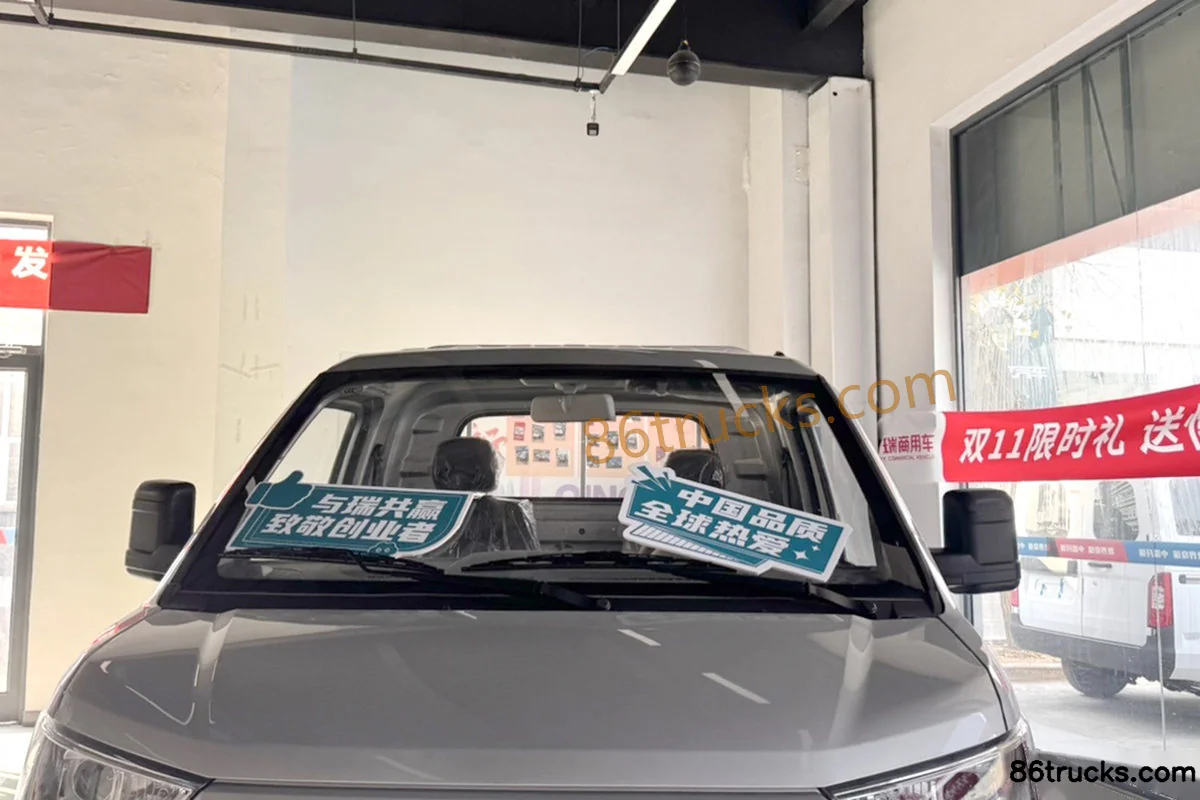

Exterior3

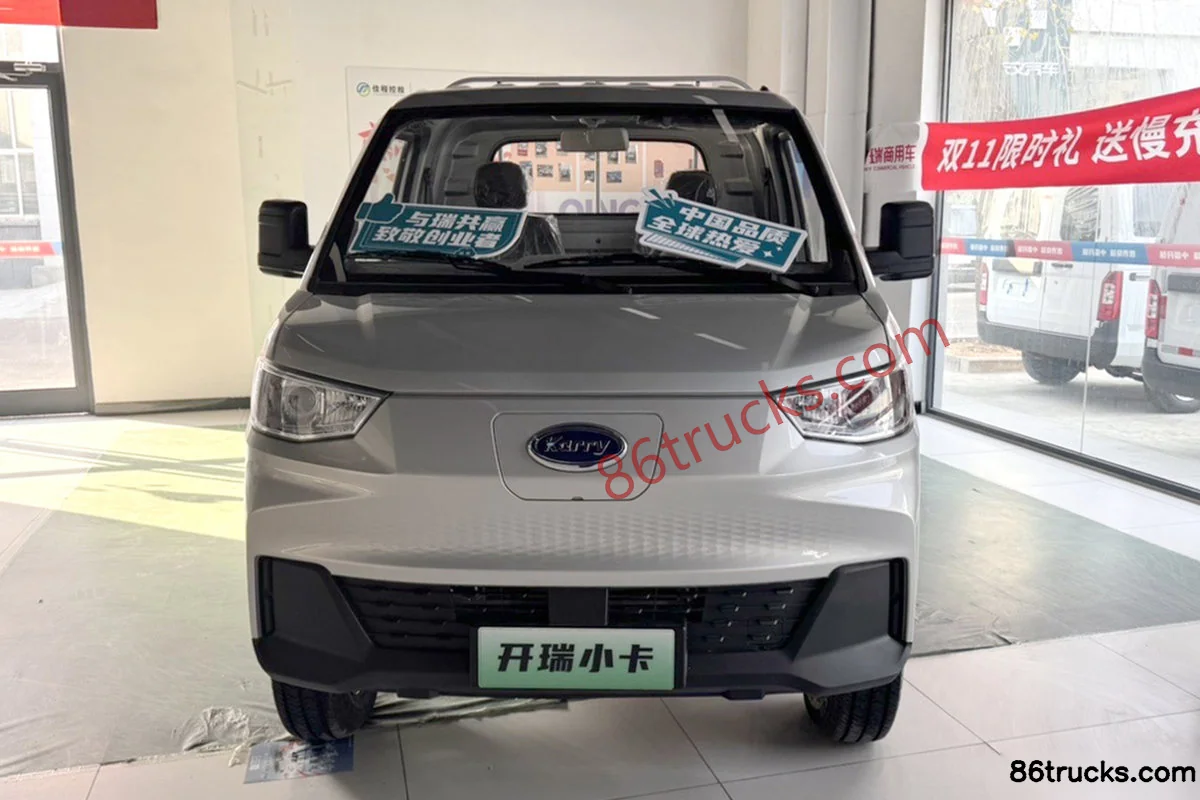

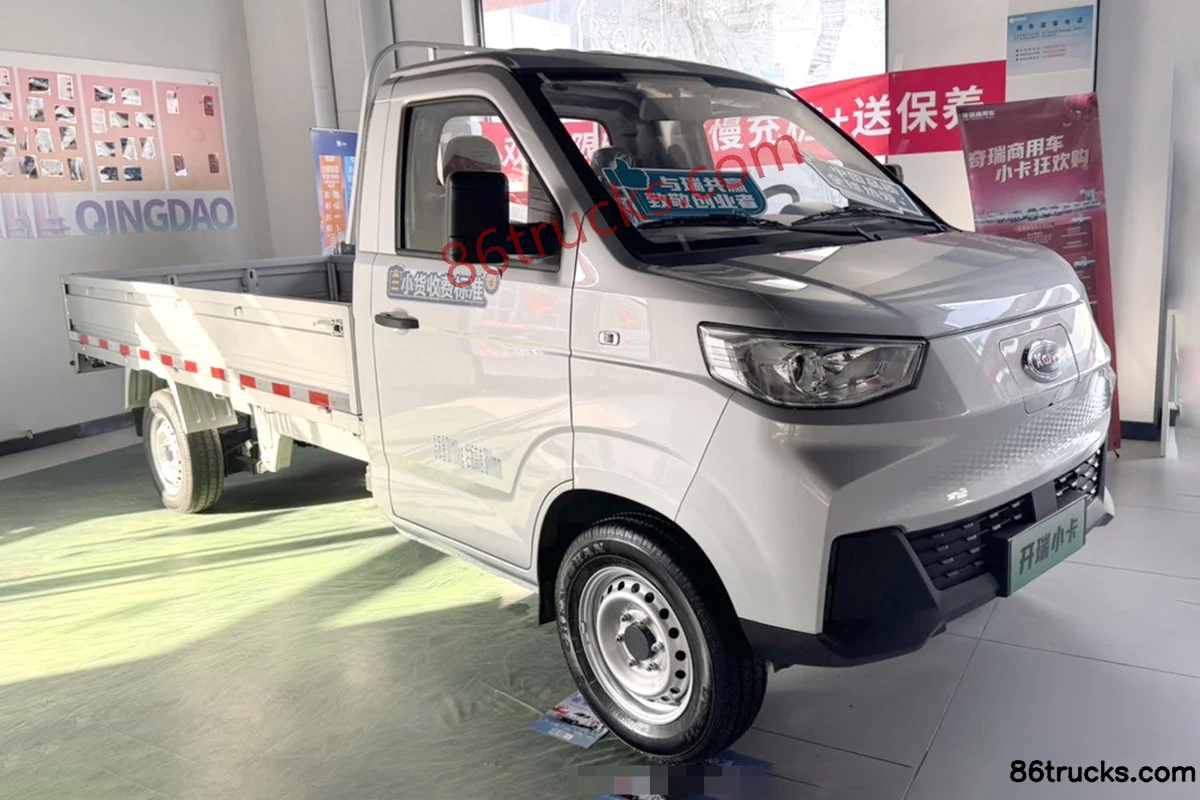

Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) Exterior (1) | 86Tru Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) Exterior (2) | 86Tru Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) Exterior (3) | 86Tru

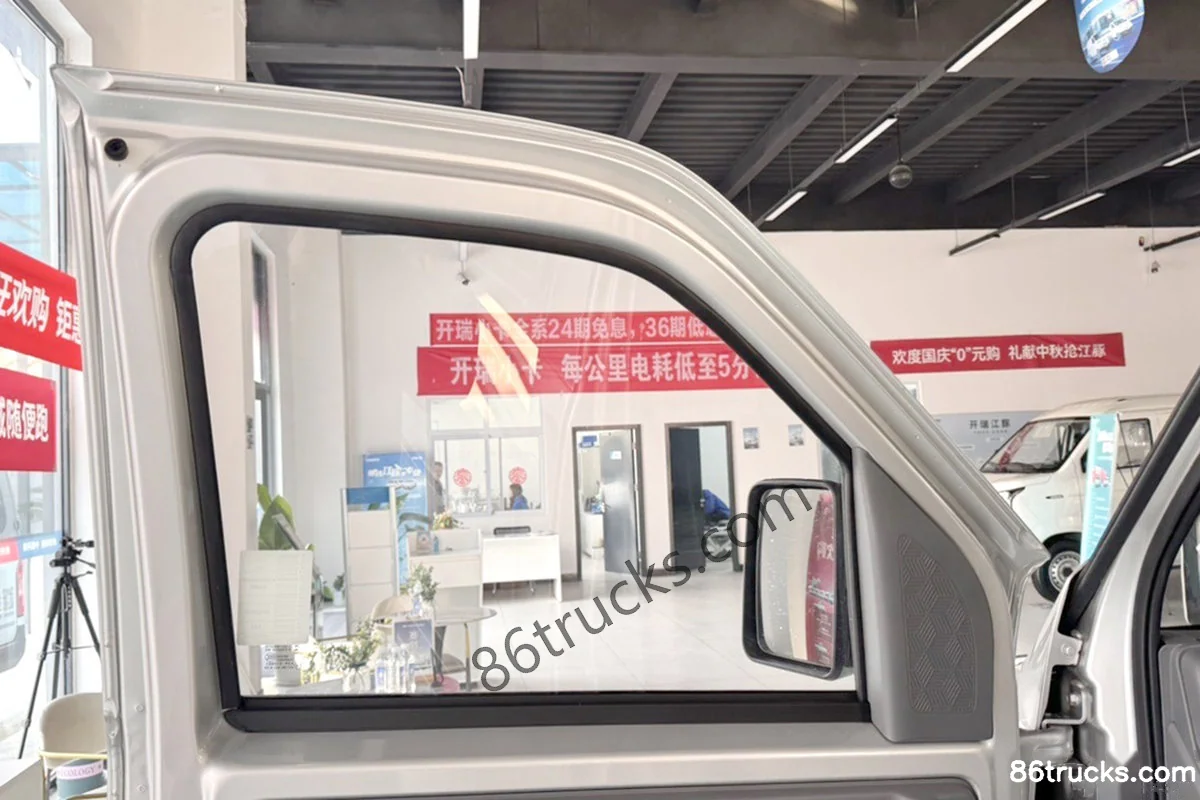

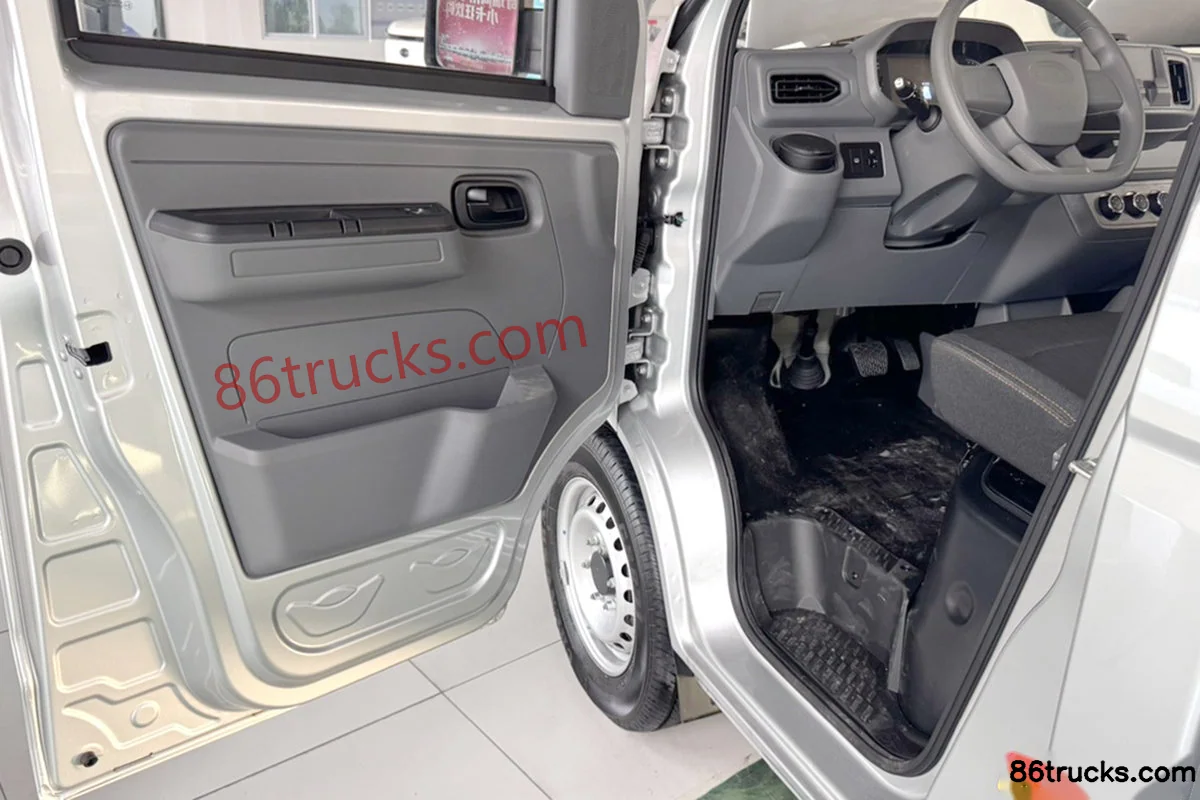

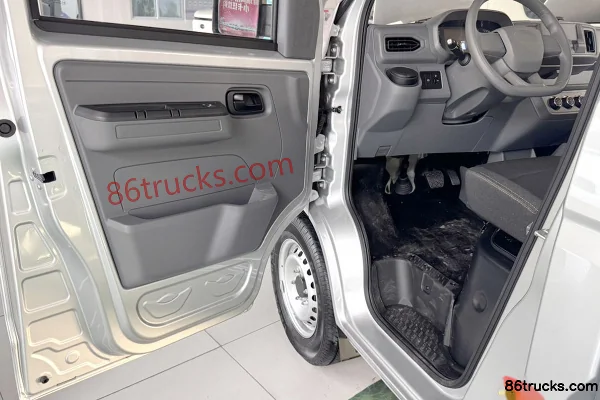

Cab3

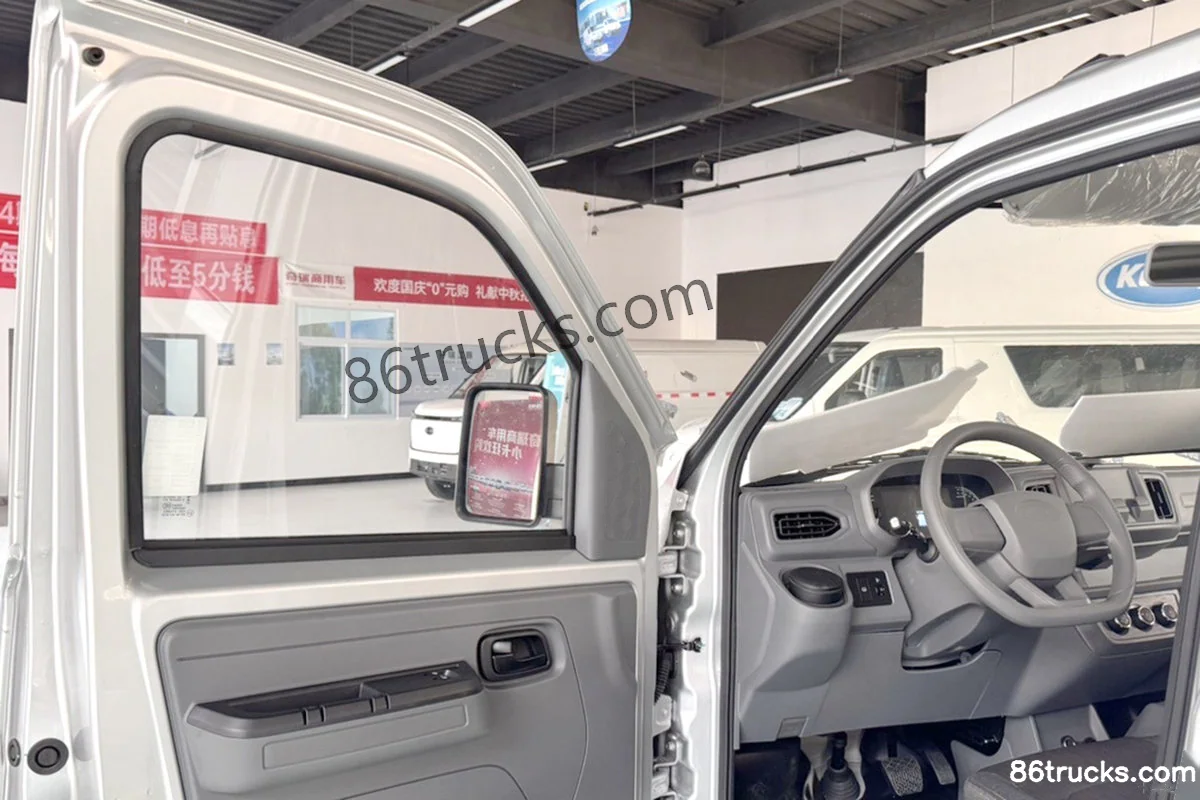

Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) Cab (1) | 86Trucks Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) Cab (2) | 86Trucks Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) Cab (3) | 86Trucks

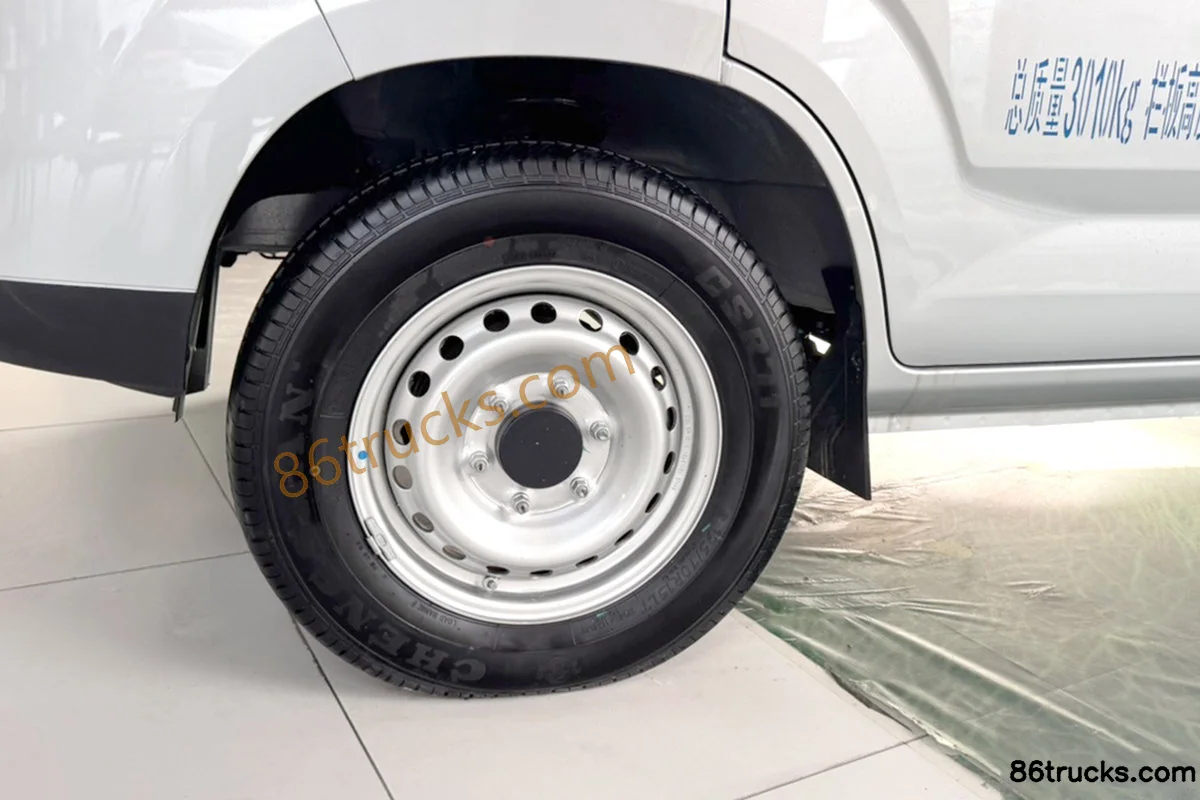

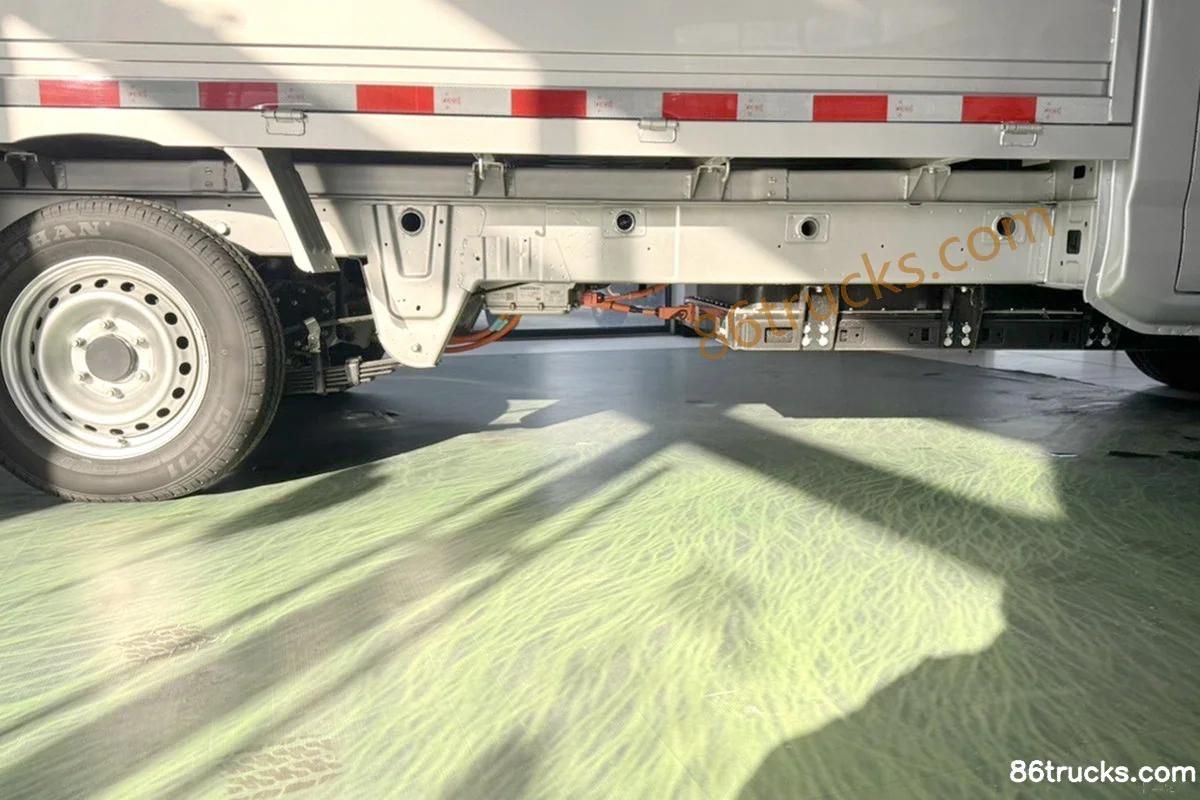

Chassis3

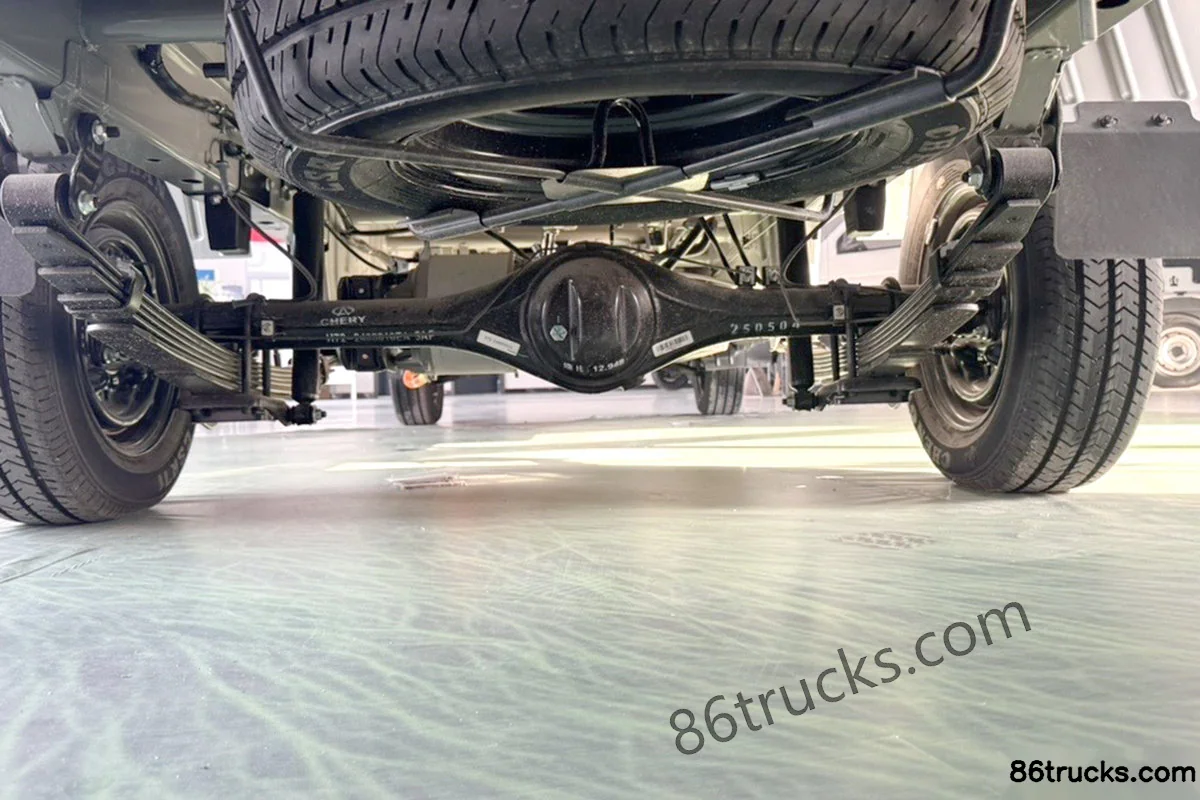

Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) Chassis (1) | 86Truc Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) Chassis (2) | 86Truc Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) Chassis (3) | 86Truc

Body3

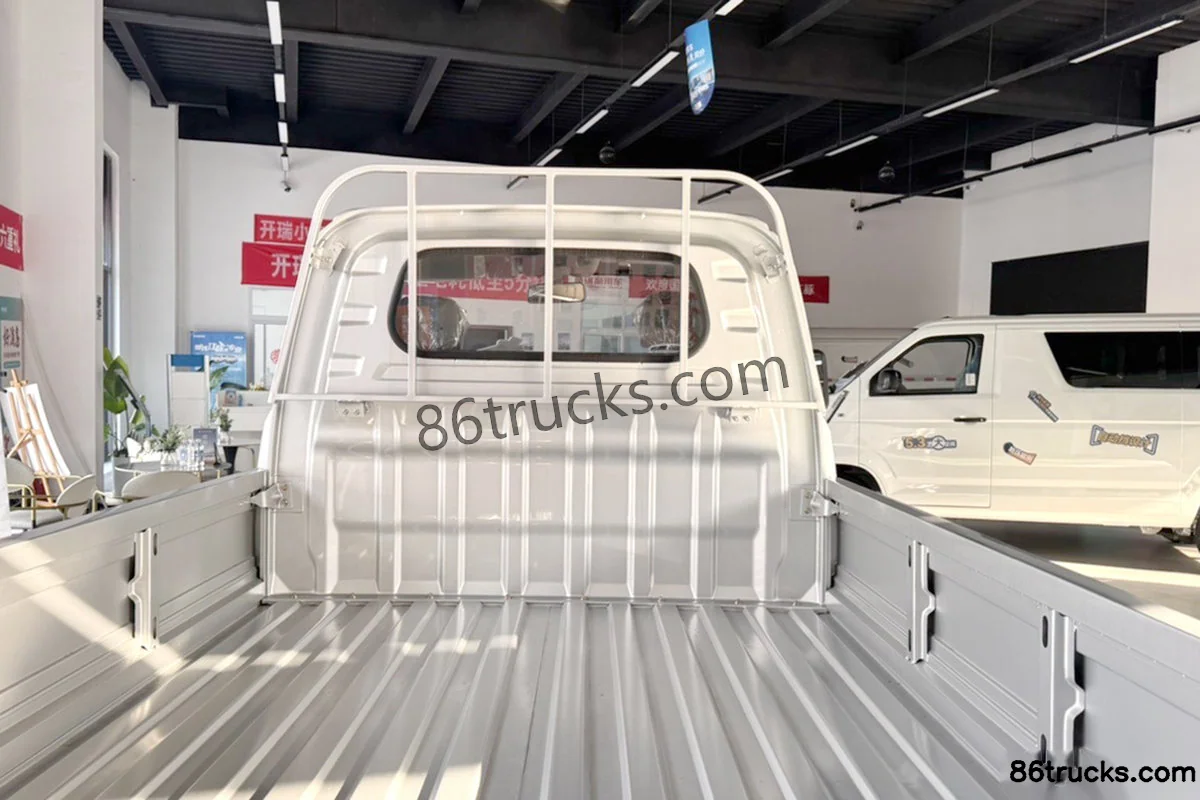

Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) Body (1) | 86Trucks Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) Body (2) | 86Trucks Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels)?

Key specs of Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) suited for?

Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) differ from other variants in the same series?

Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels) belongs to Chery Commercial Vehicle Xiaoxiang X3L Mini Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chery Commercial Vehicle Xiaoxiang X3L 3.35m single-row pure electric flatbed micro truck Kairui 41.86kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
