JAC Chaoyue Q7 Heavy Truck 560 hp 8X4(12 wheels) 9.4m AMT Automatic Cargo Truck with Cage

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Engine: Foton13L
Transmission: ZF
Curb Weight:: 12.2ton
Wheelbase:: 2100+4300+1350mm
Fuel tank capacity: 800L
Drive 8X4 (12 wheels)
Cargo box type: Stake type
Horsepower 560

Overview

The JAC Gallop JAC Chaoyue Q7 Heavy Truck 560 hp 8X4(12 wheels) 9.4m AMT Automatic Cargo Truck with Cage is a Heavy-duty cargo trucks featuring 9.4m cargo length, Stake type cargo body, 800L volume and 2100+4300+1350mm wheelbase. On the powertrain side, it comes with a Foton13L engine, 560 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 560 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5324CCYP1K6H43S
Type: stake truck
Drive type: 8X4
Wheelbase: 2100+4300+1350mm
Box length class: 9.4m
engine: FotonX13NS6B560
transmission: ZF12TX2620TD
Rear Axle Ratio: 2.643
Cab length: 12m
Cab width: 2.55m
Cab height: 3.98m
Curb Weight: 12.2ton
GVWR: 32ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Remarks: Standard: 60L urea tank; Optional: fuel tank heating, hydraulic retarder, 4kW high-altitude parking heater
Front/rear suspension: 1.475/2.775m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonX13NS6B560
Engine info: Foton13L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.9L
Emission standard: China VI
Max output power: 412kW
Max hp: 560Horsepower
Max torque: 2600N·m
Max torque speed: 1000-1400rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: ZF12TX2620TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 4pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.4m
Cargo box width: 2.46m
fuel tank
Fuel tank capacity: 800L
Tire
Tire Size: 295/80R22.5
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
Lane Departure Warning System (LDWS):

Photos

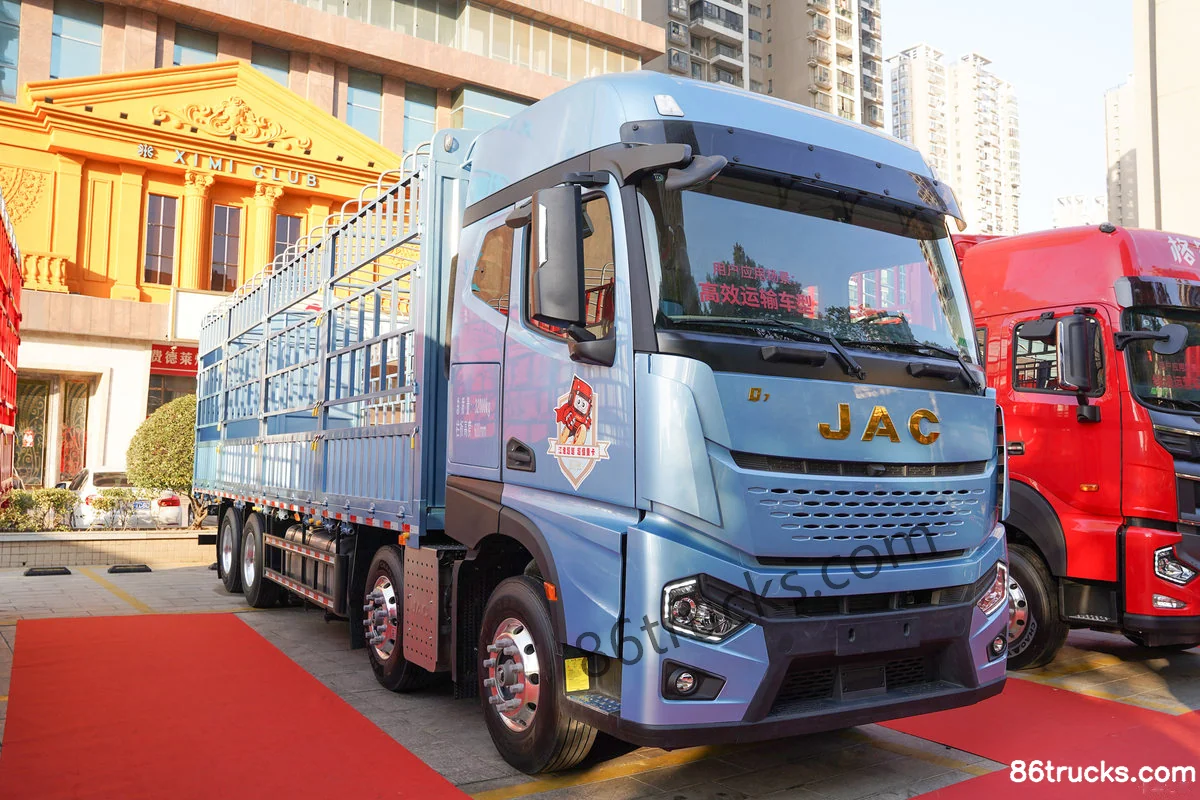

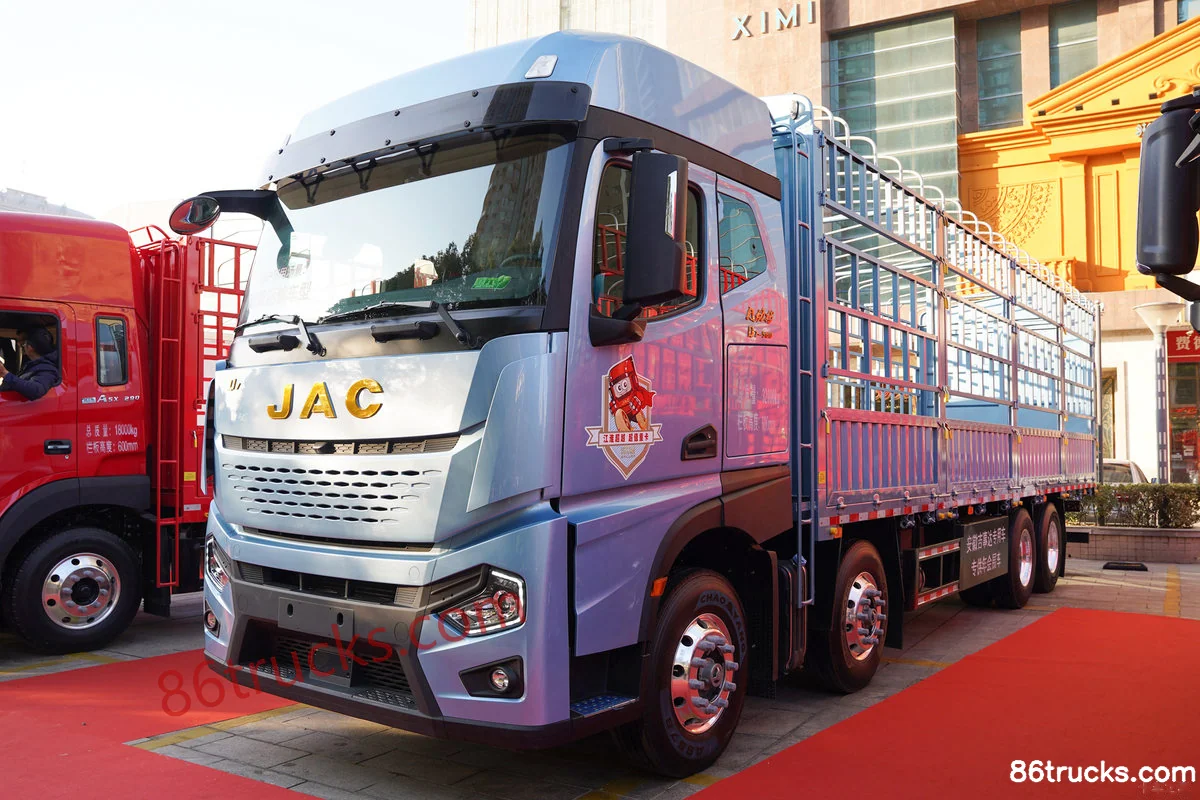

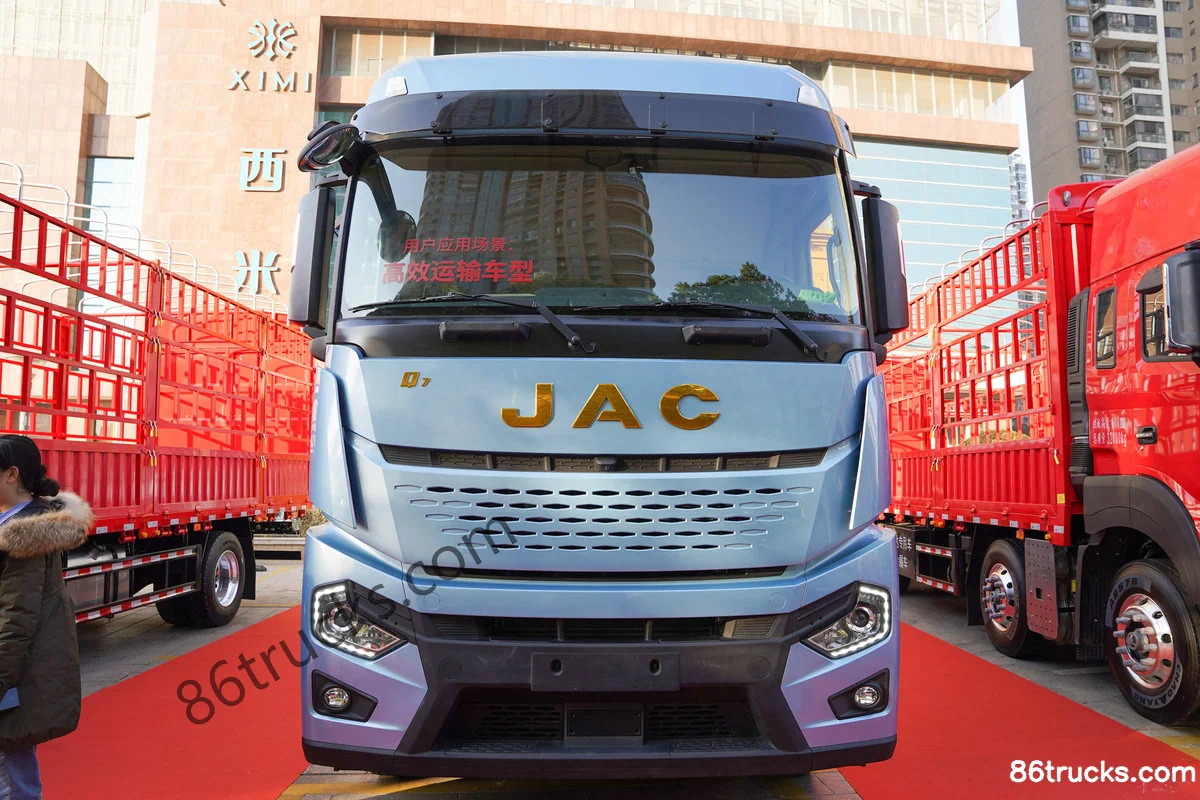

Exterior3

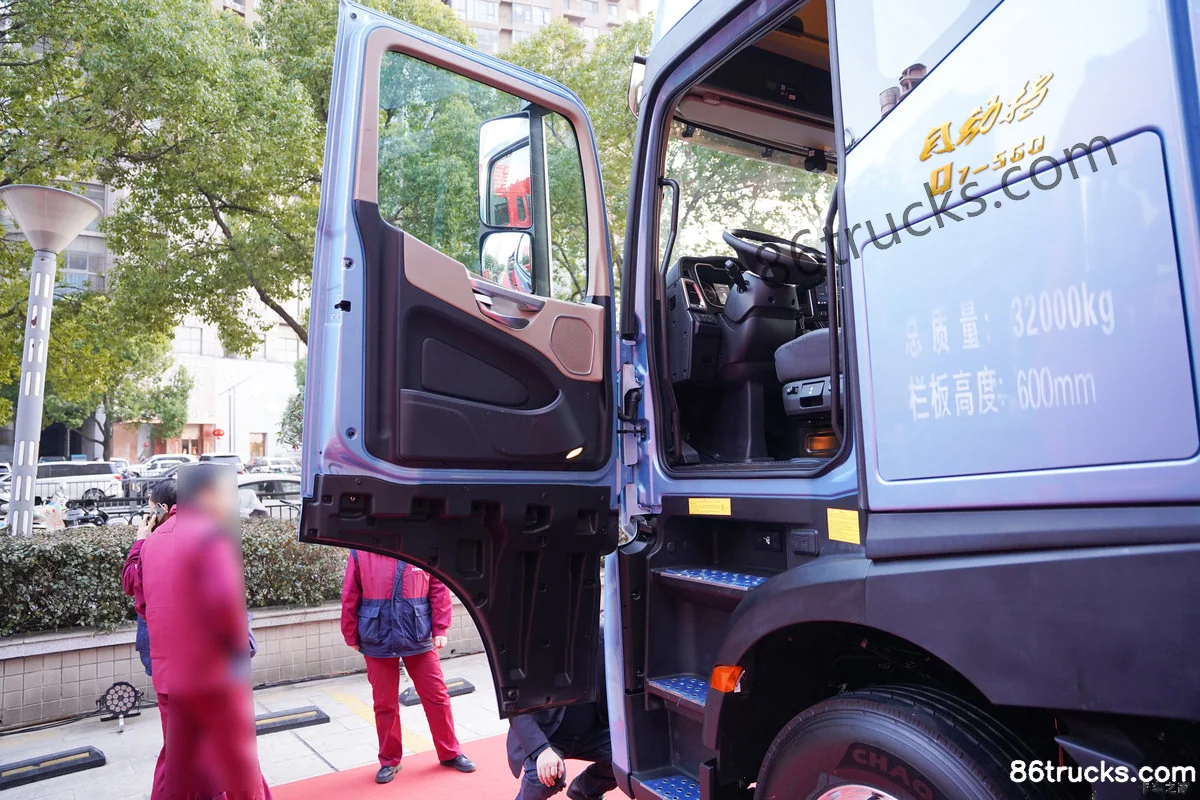

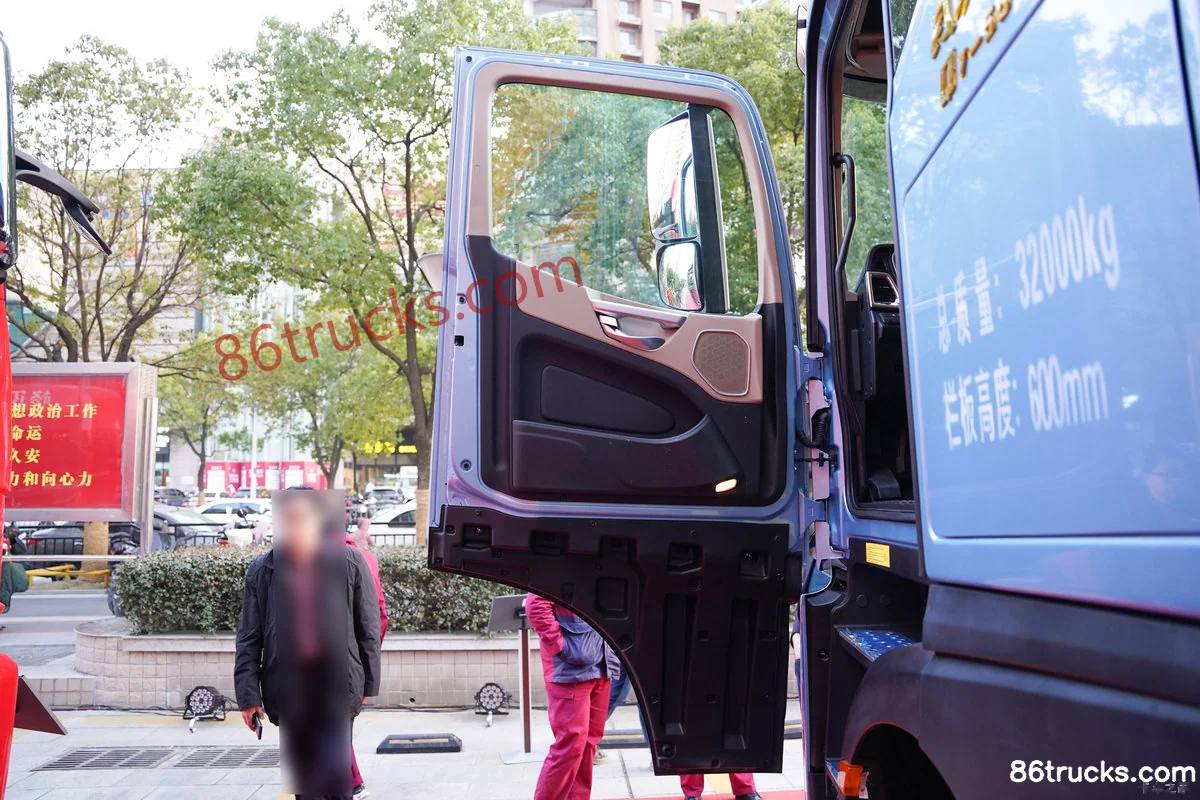

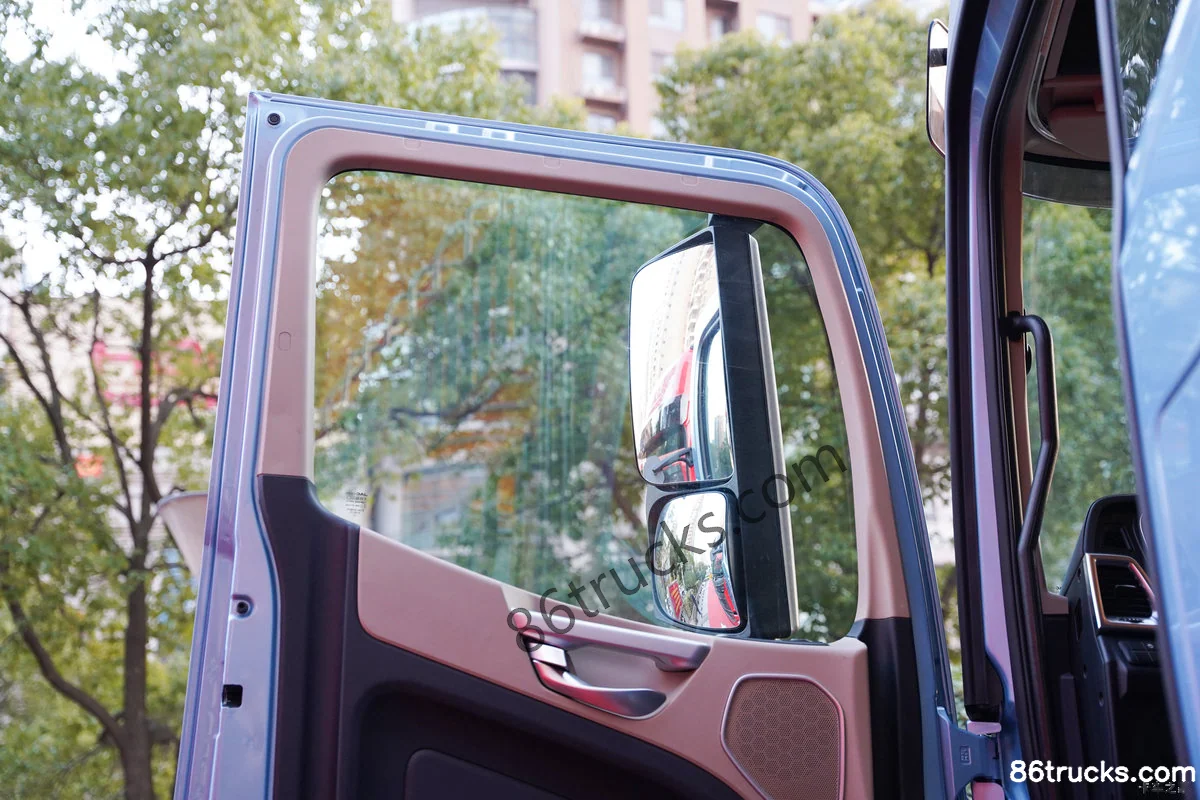

Cab3

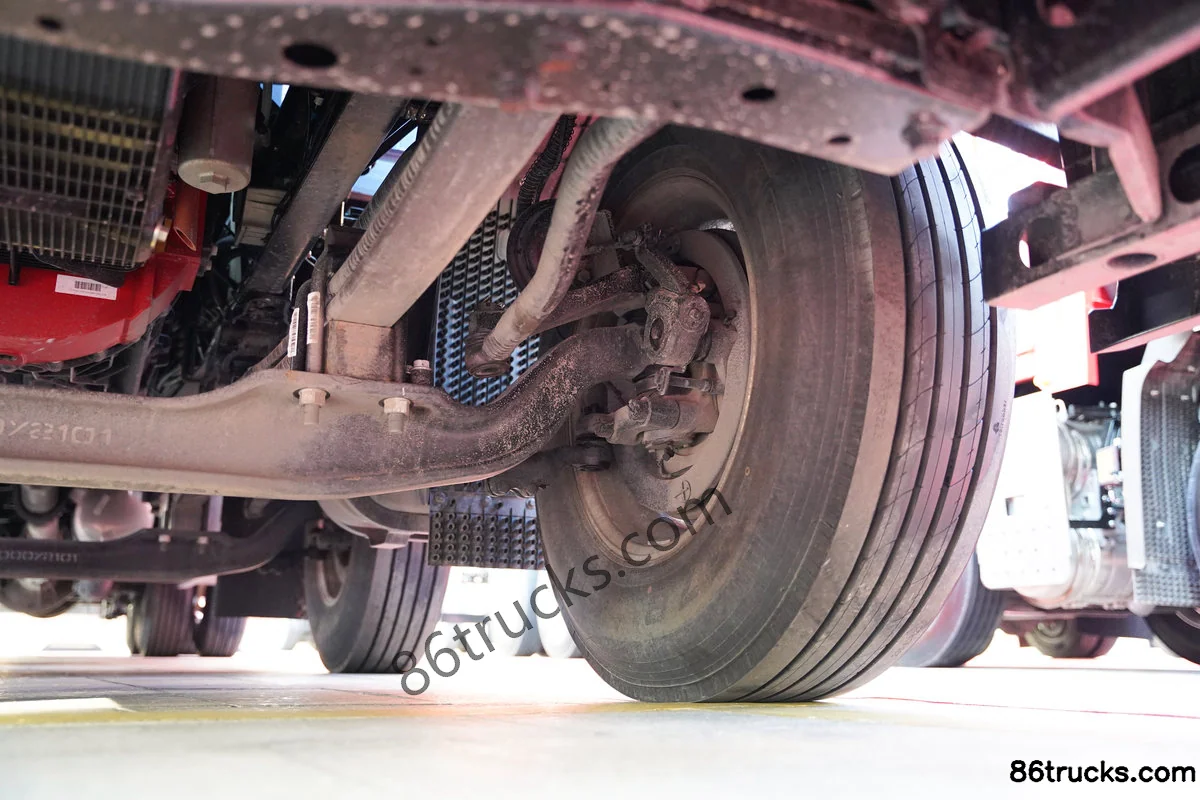

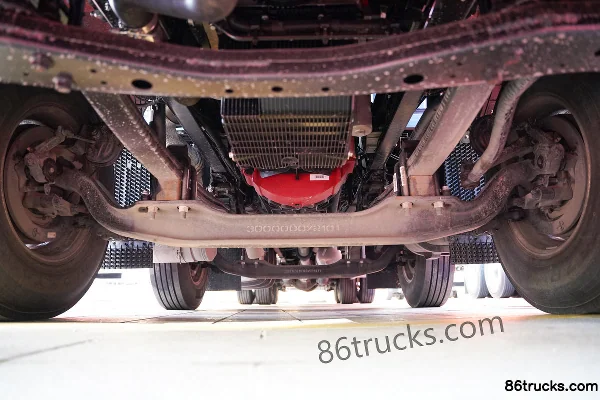

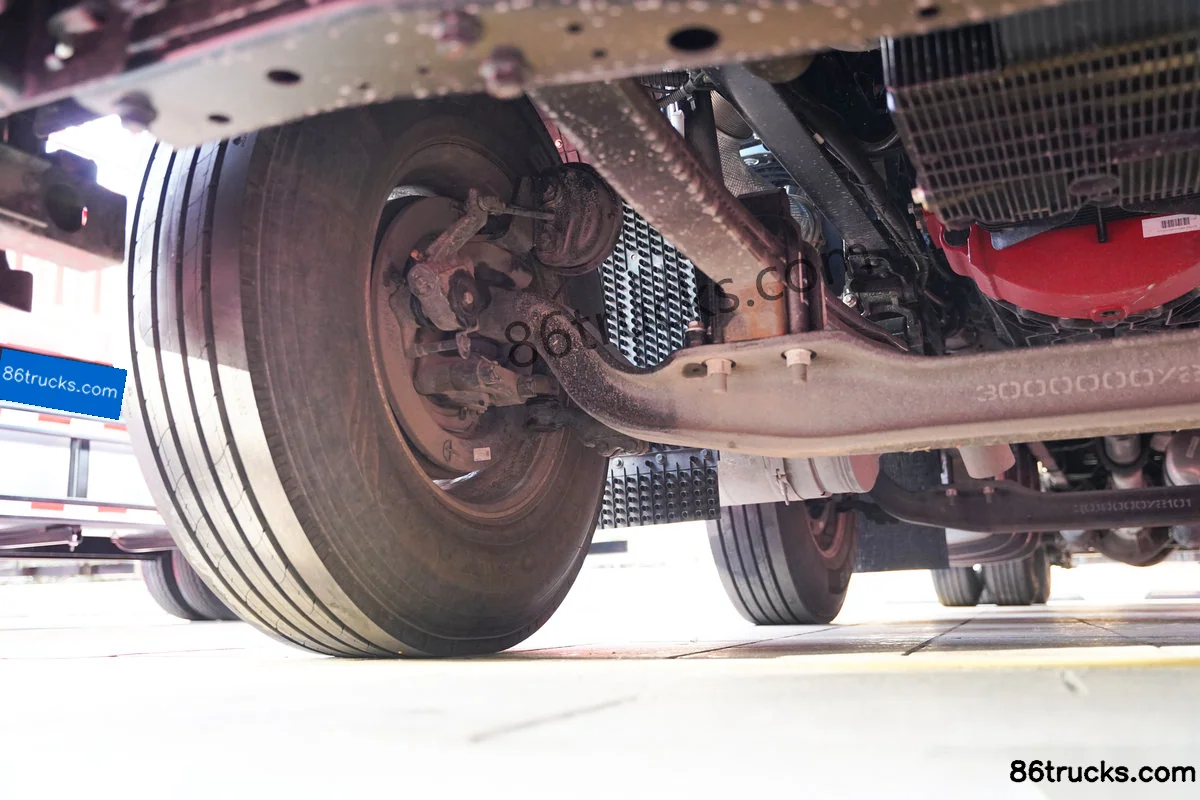

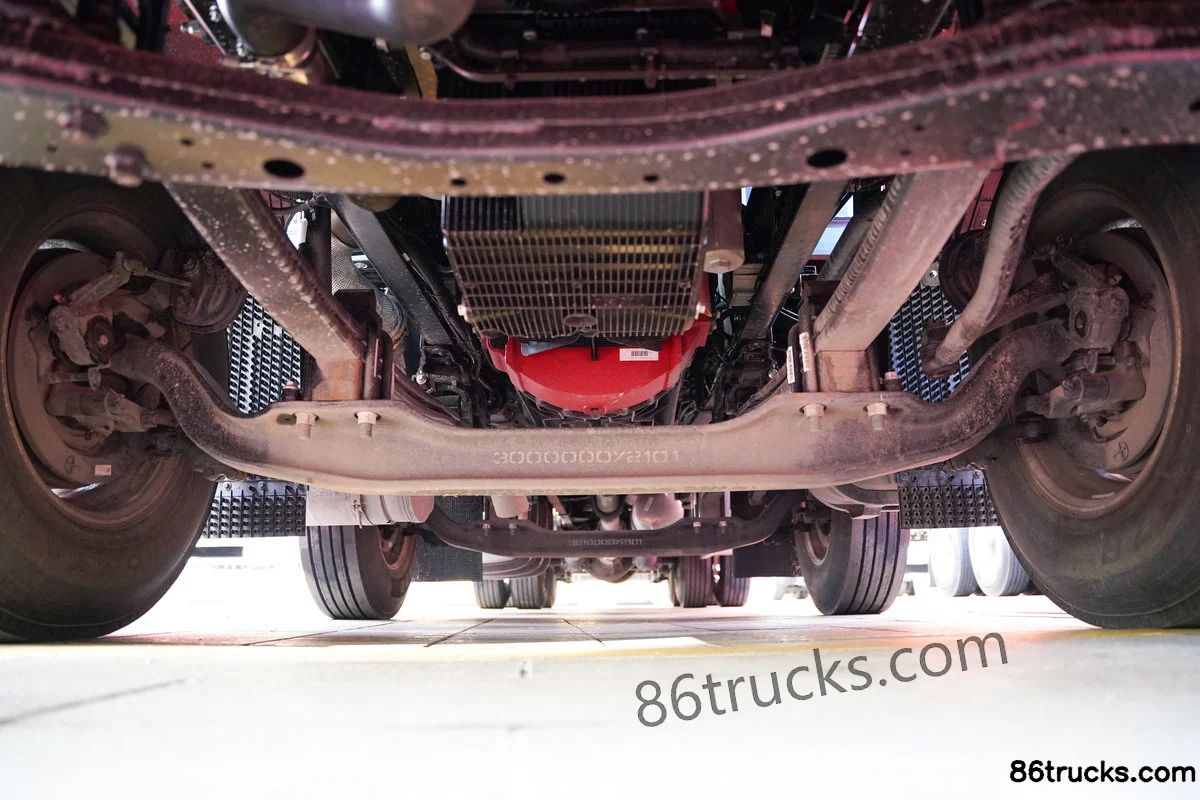

Chassis3

9 photos

FAQ

What emission standard does JAC Chaoyue Q7 Heavy Truck 560 hp 8X4(12 wheels) 9.4m AMT Automatic Cargo Truck with Cage use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Chaoyue Q7 Heavy Truck 560 hp 8X4(12 wheels) 9.4m AMT Automatic Cargo Truck with Cage?

Key specs of JAC Chaoyue Q7 Heavy Truck 560 hp 8X4(12 wheels) 9.4m AMT Automatic Cargo Truck with Cage: Drive: 8x4; Horsepower: 560 hp; Emission: China VI; Fuel: Diesel; Engine: Foton13L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Chaoyue Q7 Heavy Truck 560 hp 8X4(12 wheels) 9.4m AMT Automatic Cargo Truck with Cage suited for?

JAC Chaoyue Q7 Heavy Truck 560 hp 8X4(12 wheels) 9.4m AMT Automatic Cargo Truck with Cage is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Chaoyue Q7 Heavy Truck 560 hp 8X4(12 wheels) 9.4m AMT Automatic Cargo Truck with Cage differ from other variants in the same series?

JAC Chaoyue Q7 Heavy Truck 560 hp 8X4(12 wheels) 9.4m AMT Automatic Cargo Truck with Cage belongs to JAC Chaoyue Q7 heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Chaoyue Q7 Heavy Truck 560 hp 8X4(12 wheels) 9.4m AMT Automatic Cargo Truck with Cage?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Chaoyue Q7 Heavy Truck 560 hp 8X4(12 wheels) 9.4m AMT Automatic Cargo Truck with Cage?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
