JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh

Export reference
From $24,806
MSRP ¥17.86M CNY
Wheelbase:: 3350mm
Cargo box volume:: 7.5
Model code (announced):: JX5039XXYTFABEV
Cab length:: 5.418m
GVWR:: 2.88ton
Max. speed:: 90km/h
JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh exterior
View more photos (12)
CLTC range: 350km
Motor 1 Brand: Hefei Juyi
Curb Weight: 1.55ton
Rated payload: 1.2ton

Overview

The JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh is a Electric Panel Van featuring 350km battery/range, Hefei Juyi motor, 1.2t payload and 7.5 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JX5039XXYTFABEV
Wheelbase: 3350mm
Cab length: 5.418m
Cab width: 1.78m
Cab height: 1.95m
CLTC range: 350km
Curb Weight: 1.55ton
Rated payload: 1.2ton
GVWR: 2.88ton
Max. speed: 90km/h
Front/rear suspension: 0.798/1.27m
Version: Base Model
Energy Type: Electric
electric motor
Motor 1 Brand: Hefei Juyi
Motor 1 Model: TZ160XSJE2
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 37kW
Peak power: 110kW
total peak torque: 225N·m
total rated torque: 90N·m
Battery/Charging
Charging method: Fast charge: 40min; Slow charge: 5.5h
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 53.58kWh
Energy Density: 145
Body parameters
Cargo box volume: 7.5
Max body depth: 3.01
Max body width: 1.71
Cargo Box Height: 1.4
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Unibody
Seat count: 2Seats
Door Parameters
side door type: Right side double doors (upper and lower)
Tailgate type: Tailgate 270° double-opening
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 185/65R15
Rear Wheel Specification: 185/65R15
Cab parameters
Seat rows:
Safety features
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Power-Adjustable Rearview Mirror:
Power Windows:
Reverse Radar:
Reverse Camera:
lighting configuration
Headlight height adjustment:

Photos

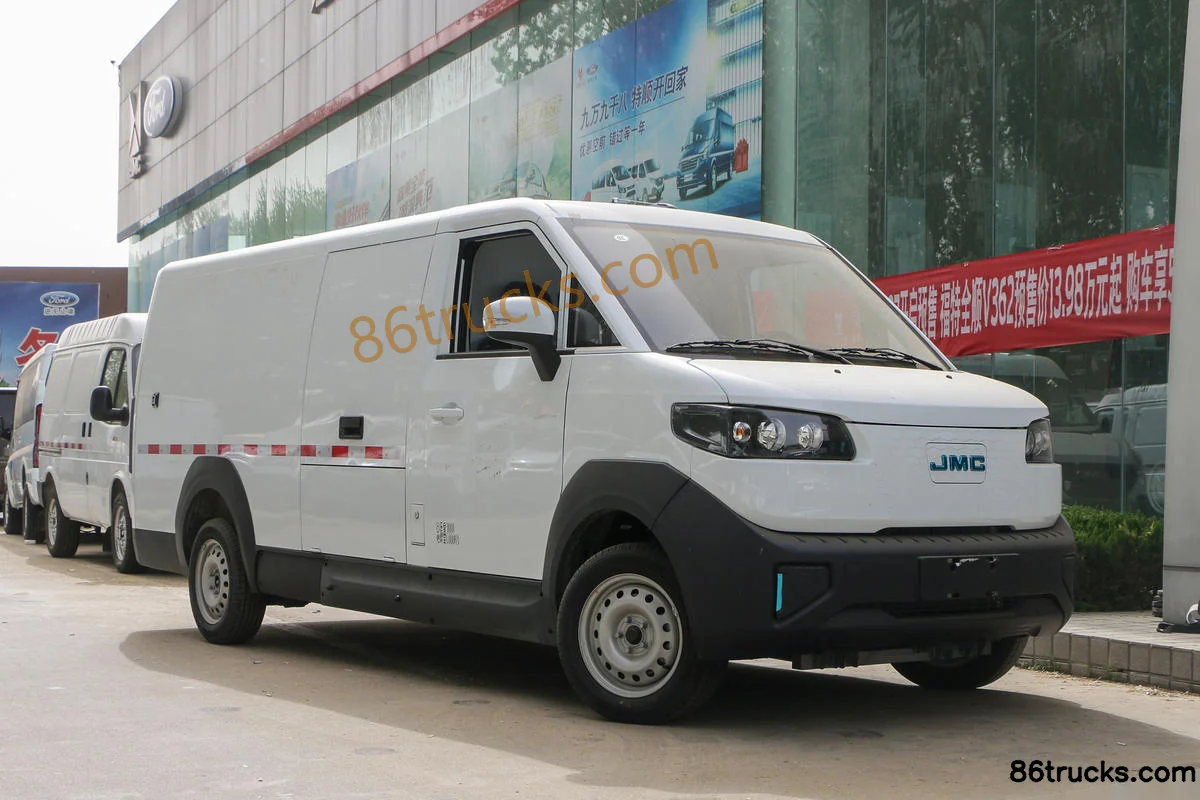

Exterior3

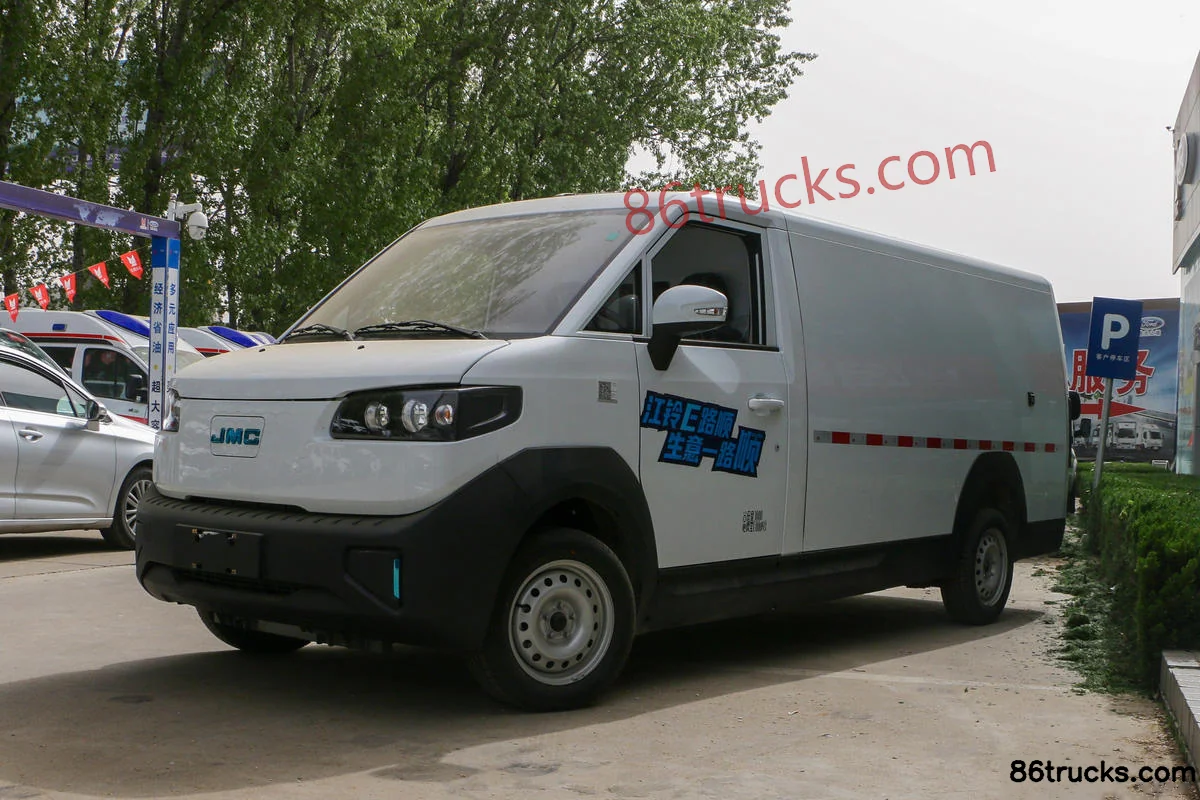

JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh Exterior (1) | 86Trucks JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh Exterior (2) | 86Trucks JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh Exterior (3) | 86Trucks

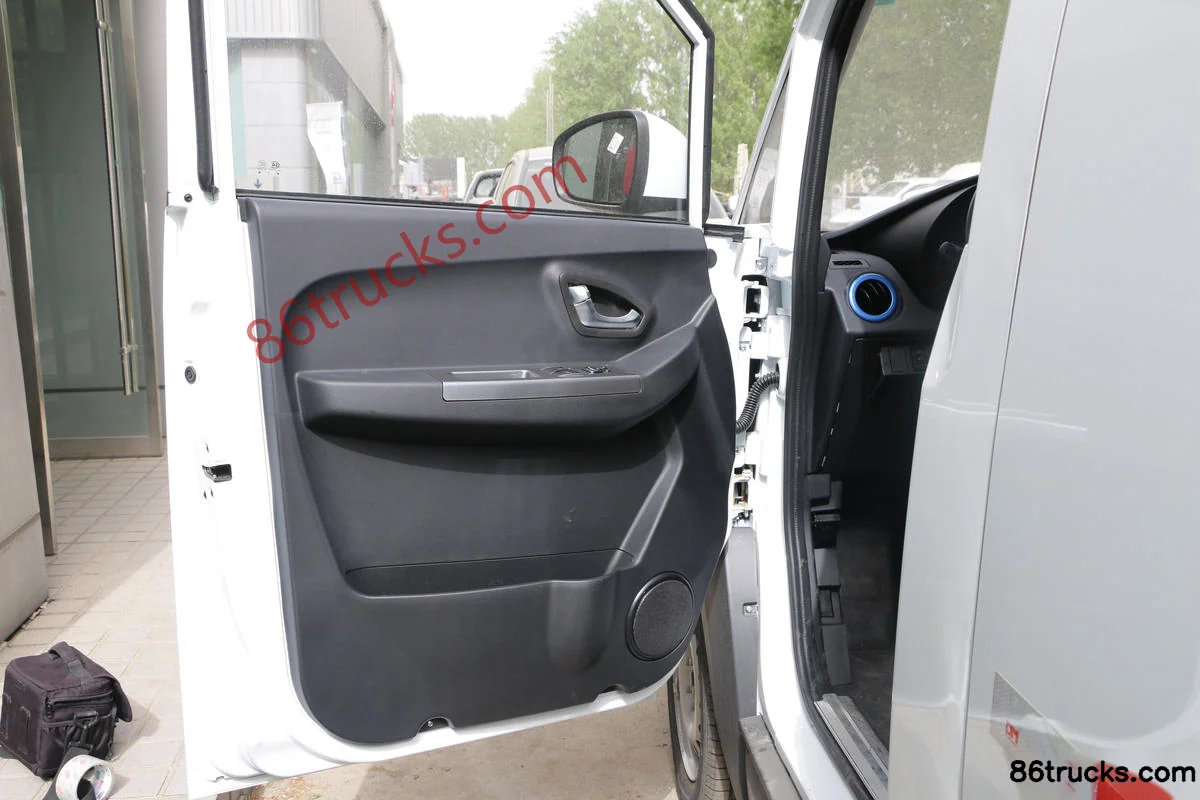

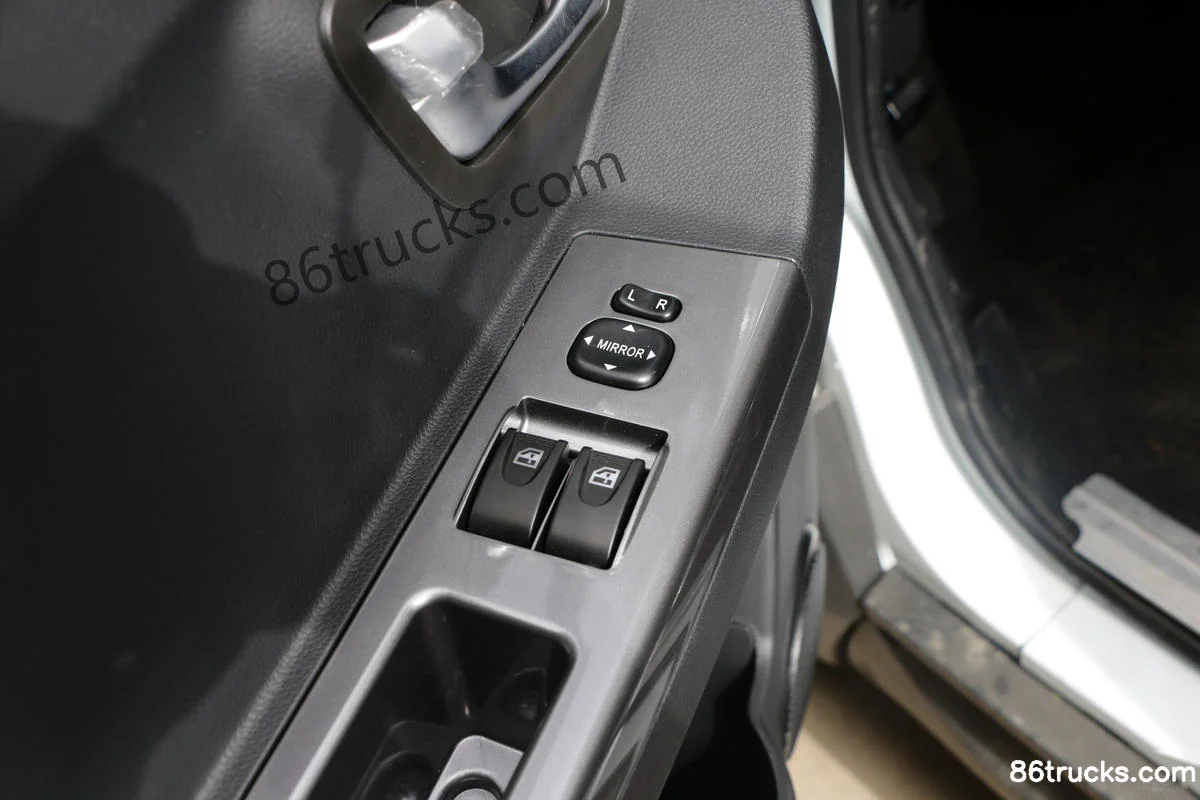

Cab3

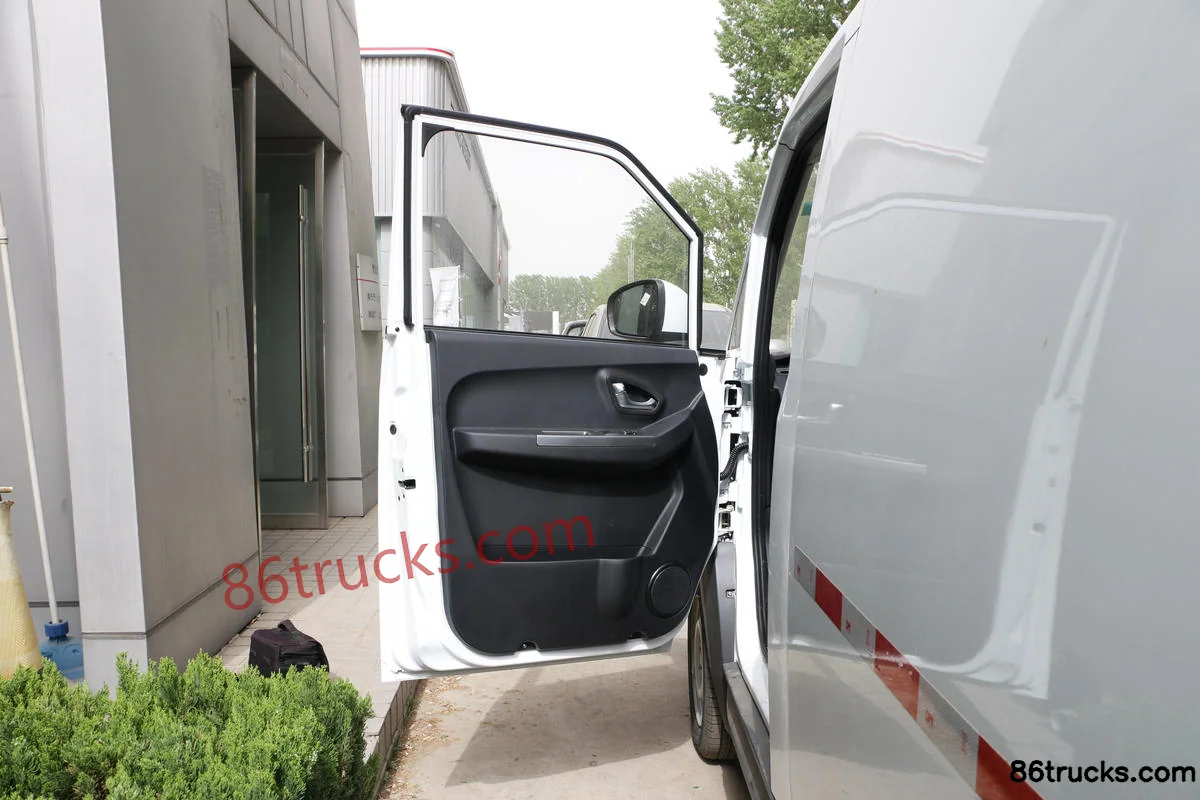

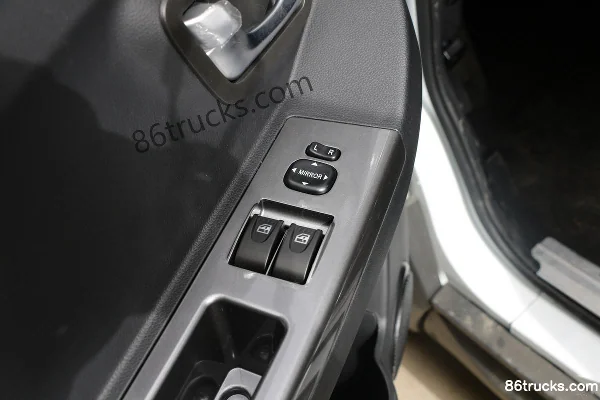

JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh Cab (1) | 86Trucks JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh Cab (2) | 86Trucks JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh Cab (3) | 86Trucks

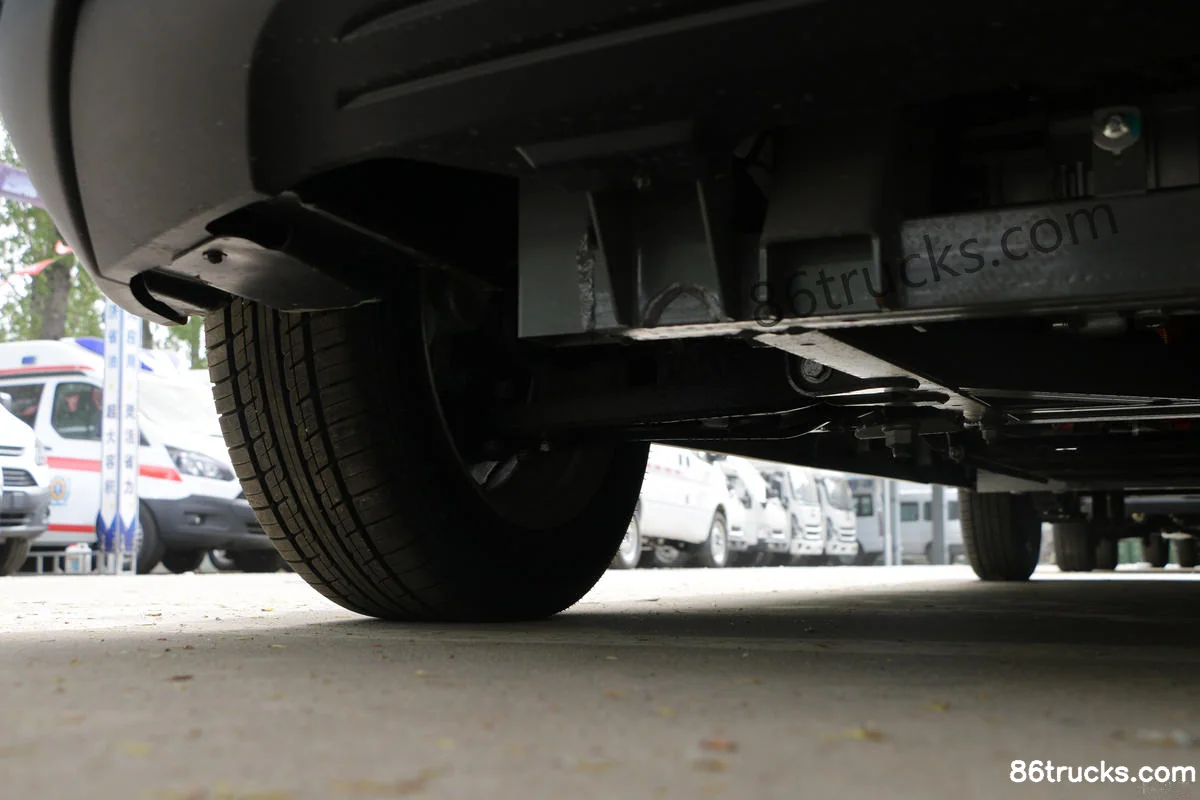

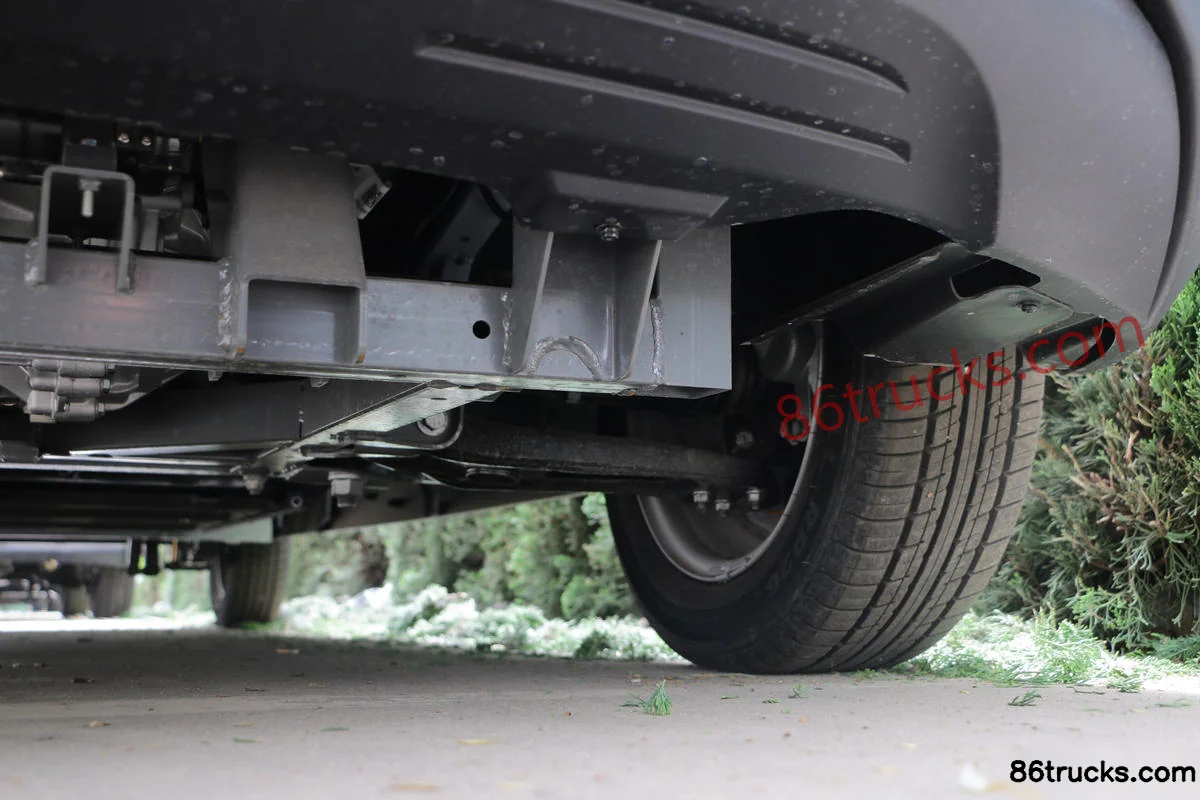

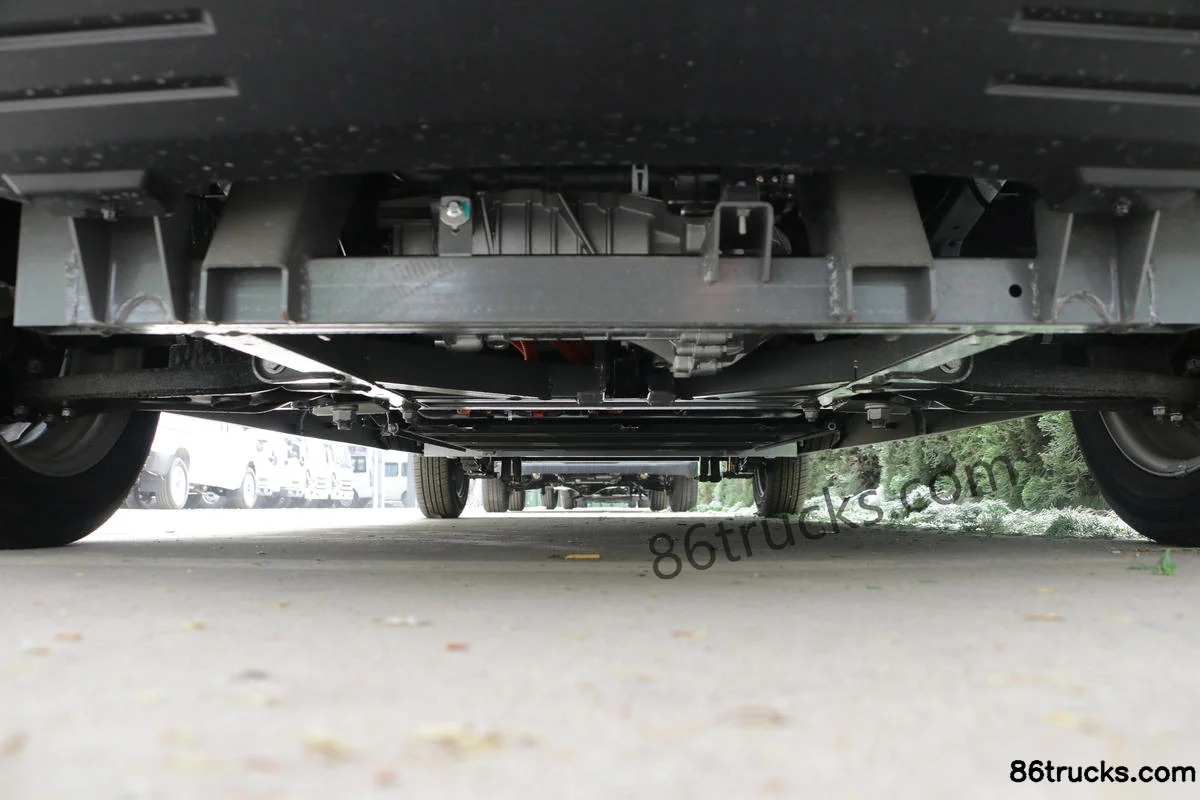

Chassis3

JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh Chassis (1) | 86Trucks JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh Chassis (2) | 86Trucks JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh Chassis (3) | 86Trucks

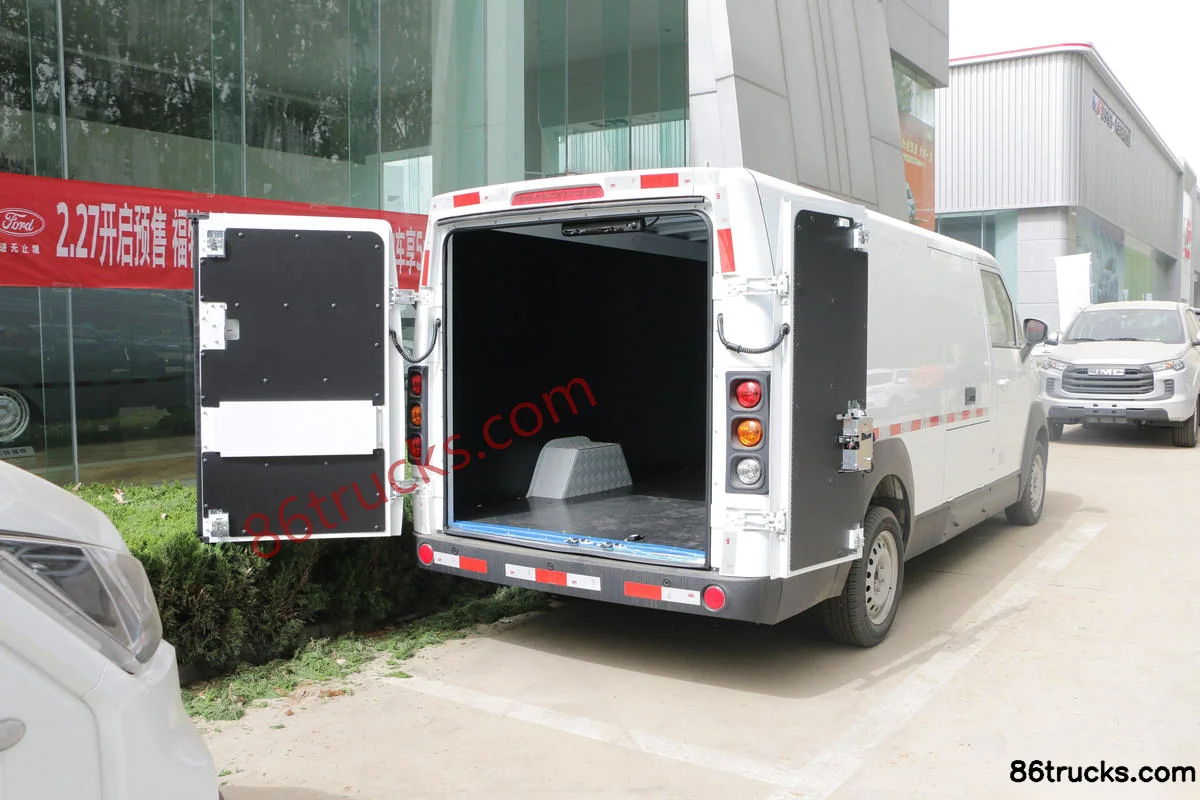

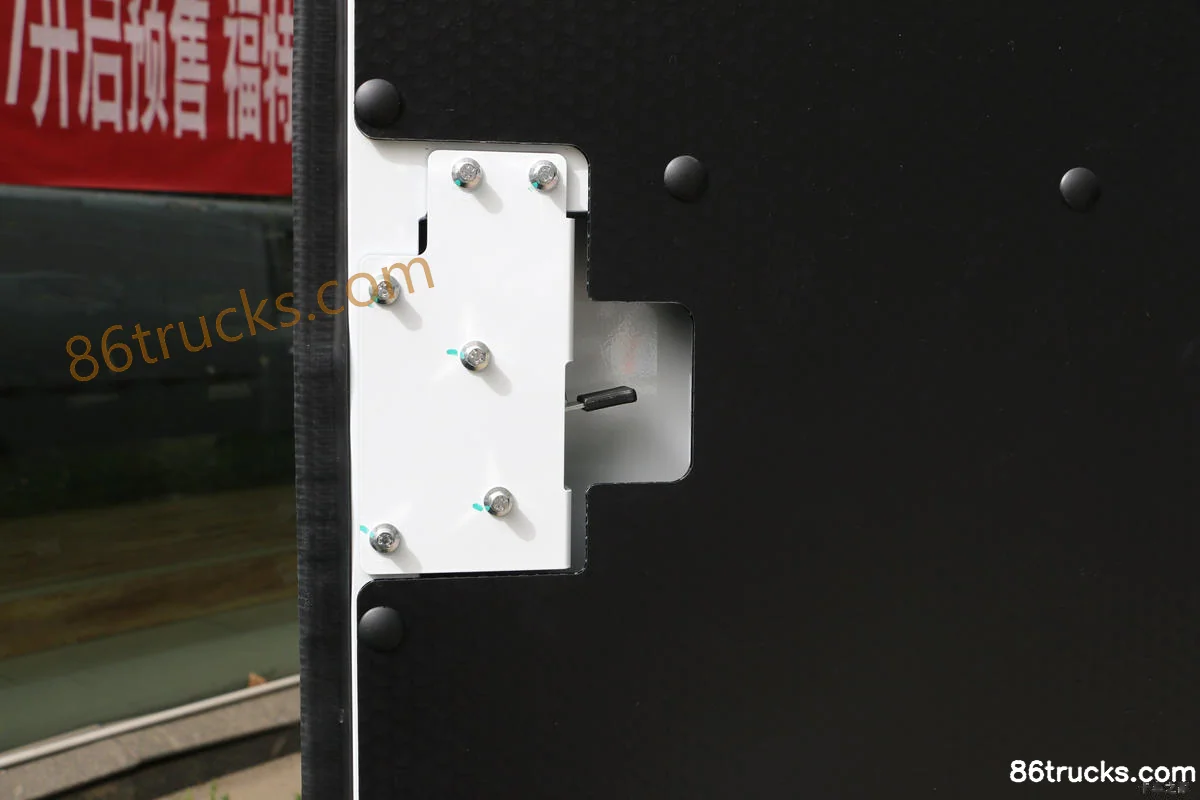

Cargo Box3

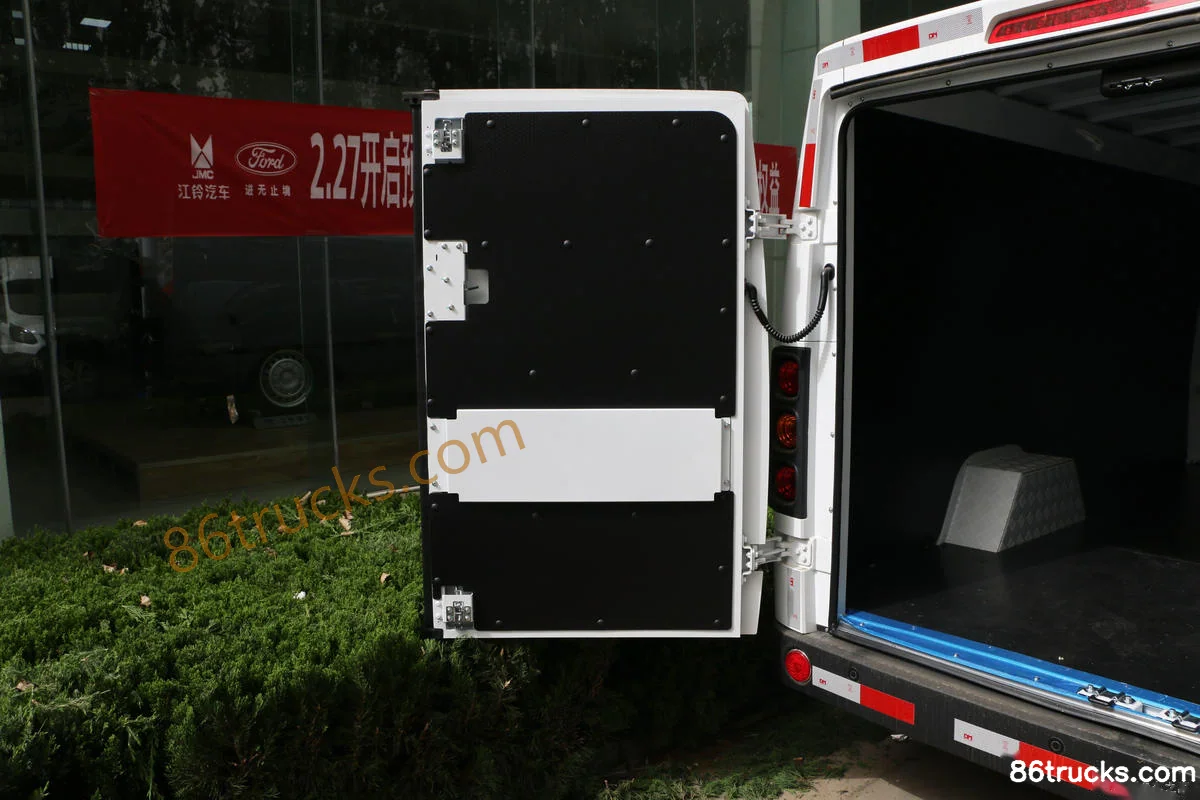

JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh Cargo Box (1) | 86Trucks JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh Cargo Box (2) | 86Trucks JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh, and what does it include?

JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh export reference is about From $24,806; MSRP is ¥17.86M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh suited for?

JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh differ from other variants in the same series?

JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh belongs to JMC E Lushun (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC E-Lushun Base Model 2.9T 5.418m Pure Electric Enclosed Cargo Truck 53.58kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
