Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh

Export reference
From $29,972
MSRP ¥21.58M CNY
Wheelbase:: 3450mm
Cargo box volume:: 7.2
Model code (announced):: KMC5033XXYBEVB305M
Cab length:: 5.265m
GVWR:: 3.15ton
Max. speed:: 90km/h
Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh exterior
View more photos (12)
CLTC range: 248km
Motor 1 Brand: Lingdian
Curb Weight: 1.66ton
Rated payload: 1.36ton

Overview

The Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh is a Electric Panel Van featuring 248km battery/range, Lingdian motor, 1.36t payload and 7.2 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): KMC5033XXYBEVB305M
Wheelbase: 3450mm
Cab length: 5.265m
Cab width: 1.77m
Cab height: 2.065m
CLTC range: 248km
Curb Weight: 1.66ton
Rated payload: 1.36ton
GVWR: 3.15ton
Max. speed: 90km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Lingdian
Motor 1 Model: TZ185XSTY3206
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 70kW
total peak torque: 230N·m
total rated torque: 80N·m
Electronic Control
ECU Brand: Kama
Battery/Charging
Battery Brand: Anchi
Battery type: Lithium-ion battery
Battery capacity: 38.016kWh
Battery total voltage: 345.6V
Energy Density: 133.75
Battery Model: IFP23140160-55AH
Body parameters
Cargo box volume: 7.2
Max body depth: 3.07
Max body width: 1.55
Cargo Box Height: 1.35
Body Parameters
Seat count: 2Seats
Cab parameters
Seat rows:
Wheel brake
Front tire specification: 195R14C
Rear Wheel Specification: 195R14C
Safety features
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
steering wheel adjustment:
Power Windows:
lighting configuration
daytime running lights:

Photos

Exterior3

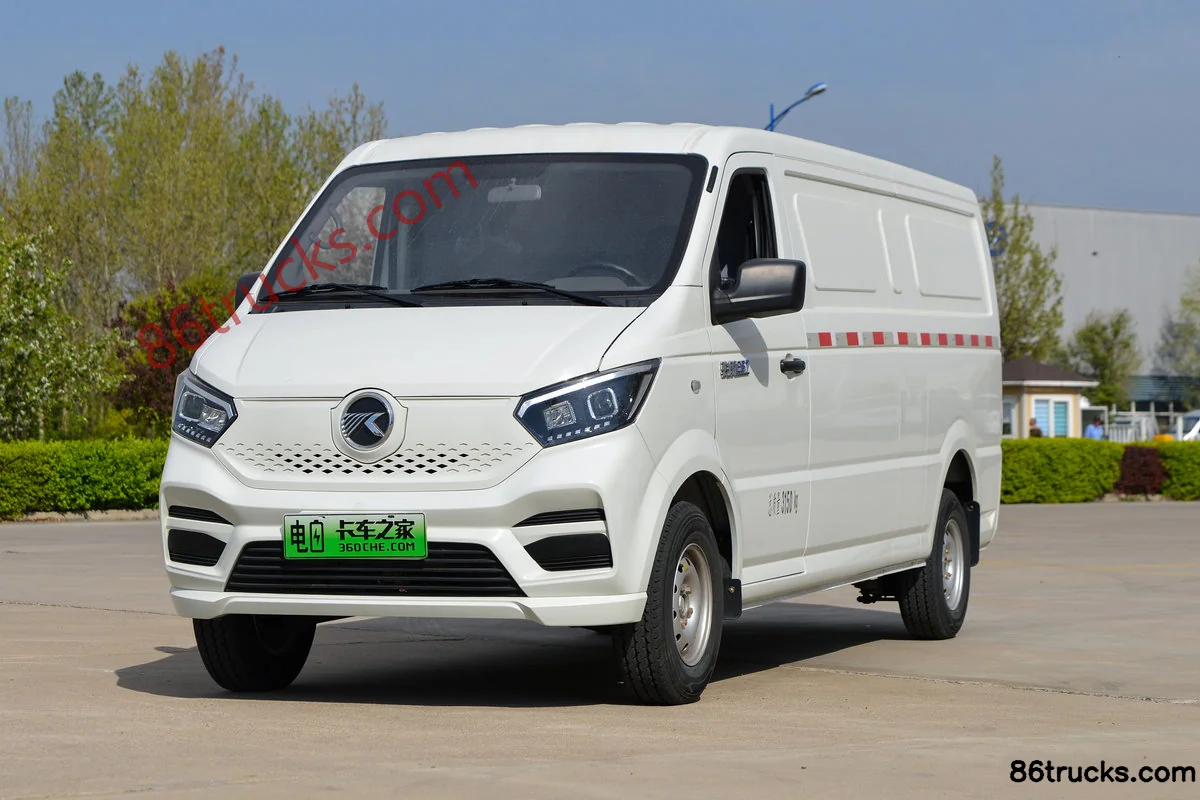

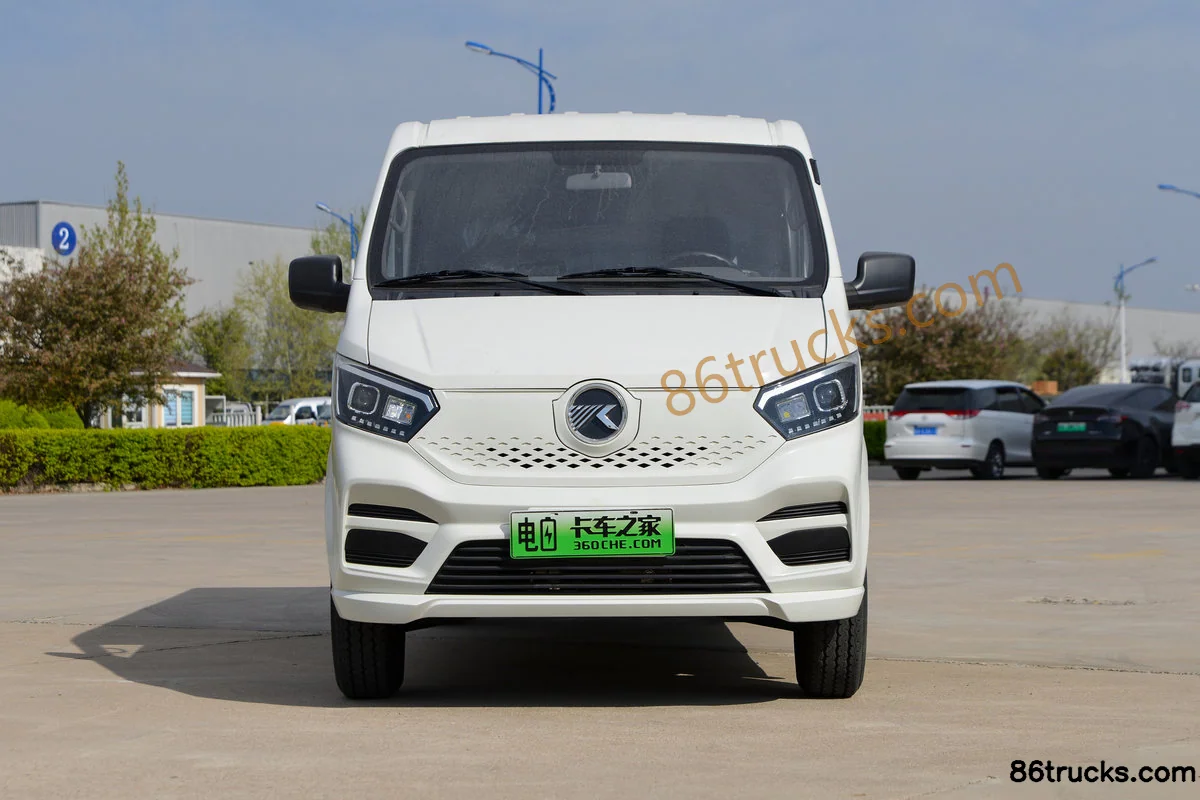

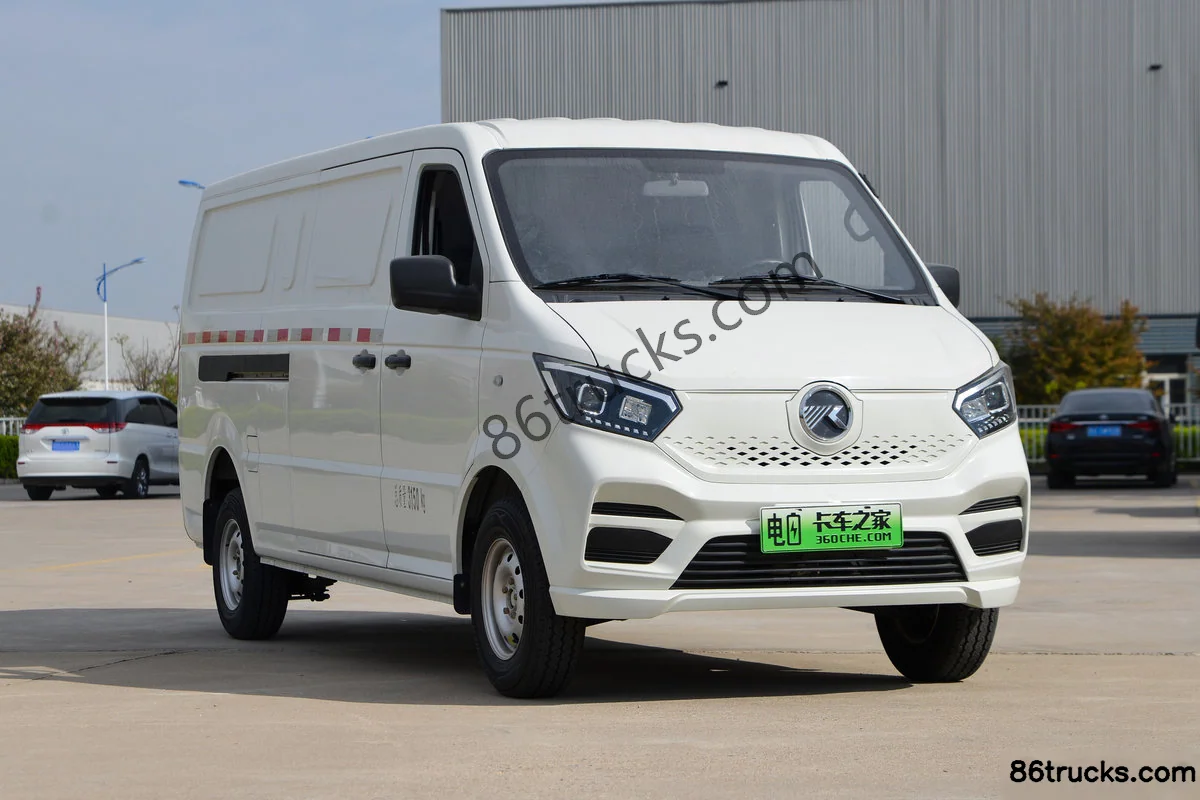

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh Exterior (1) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh Exterior (2) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh Exterior (3) | 86Trucks

Cab3

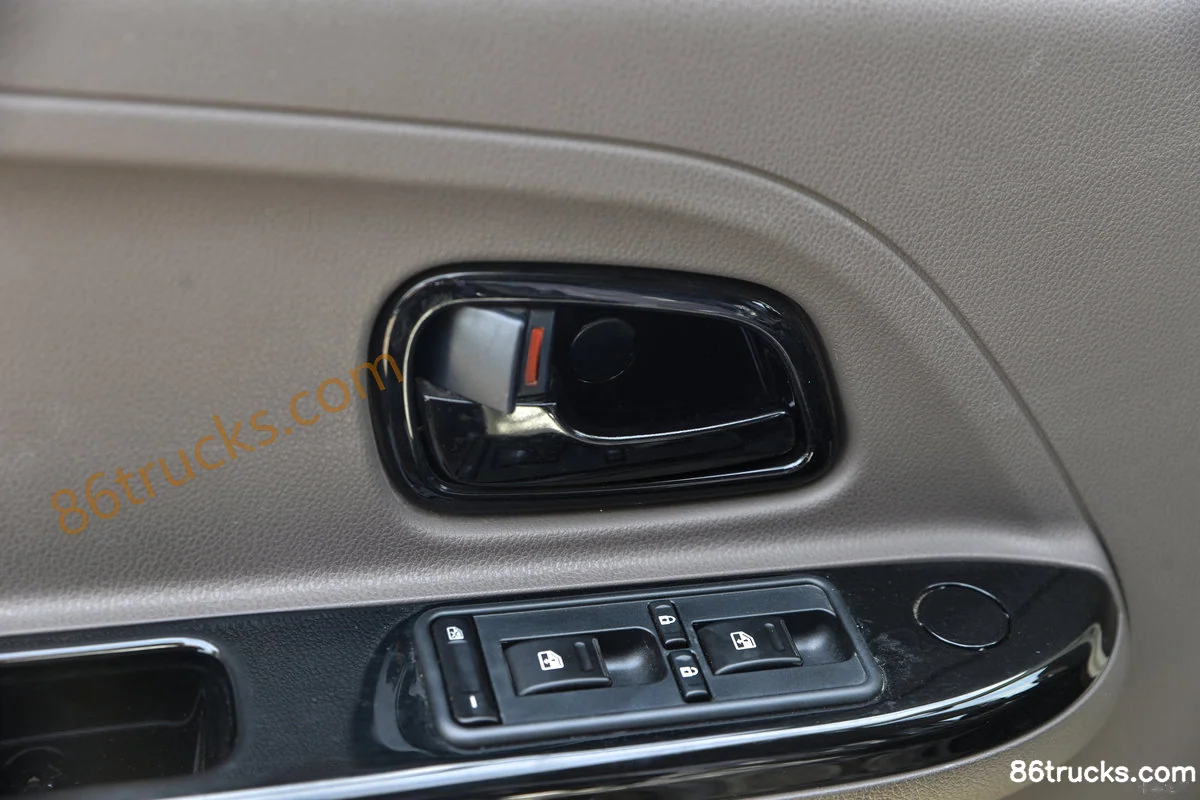

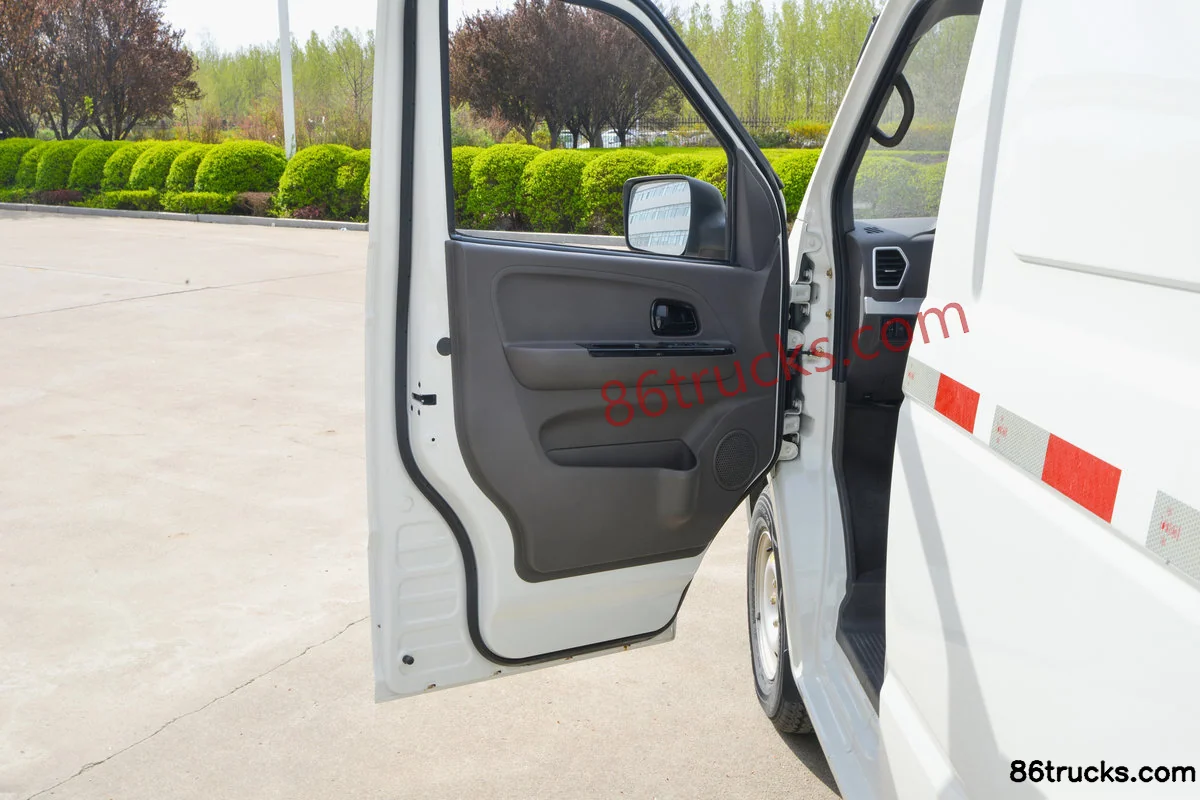

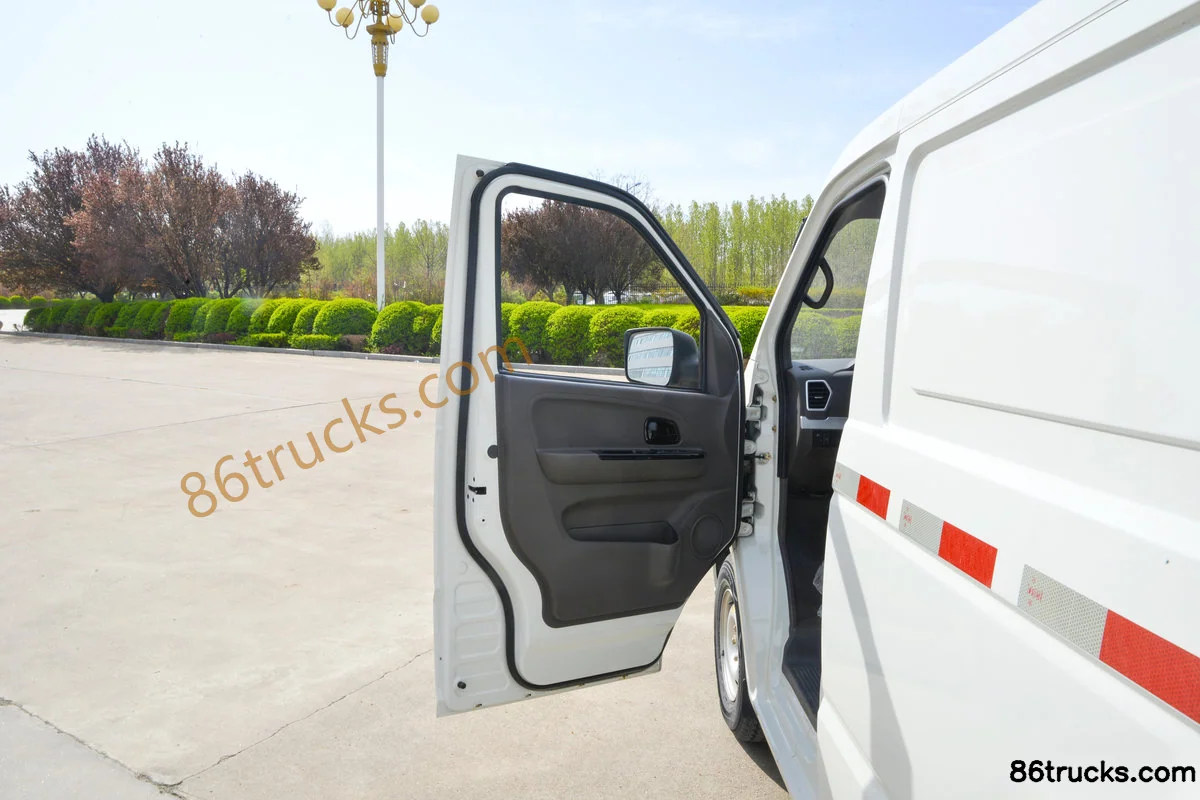

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh Cab (1) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh Cab (2) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh Cab (3) | 86Trucks

Chassis3

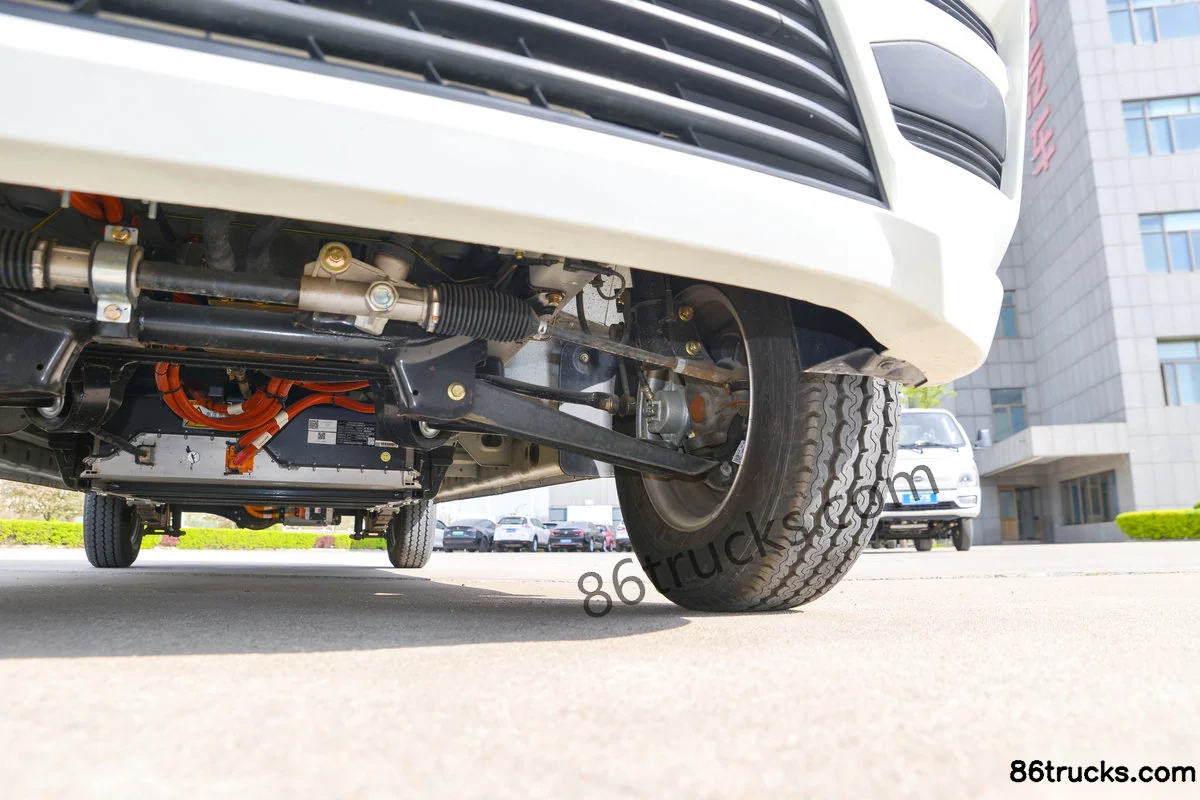

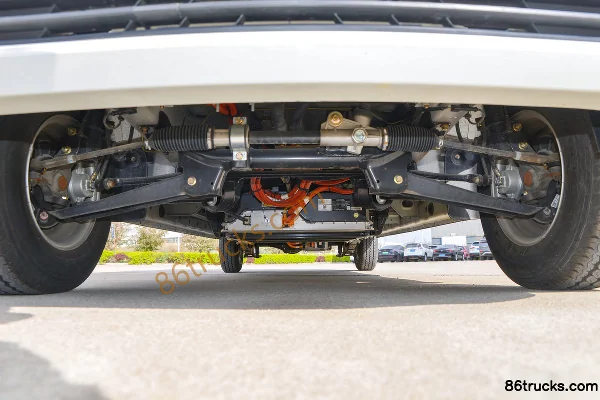

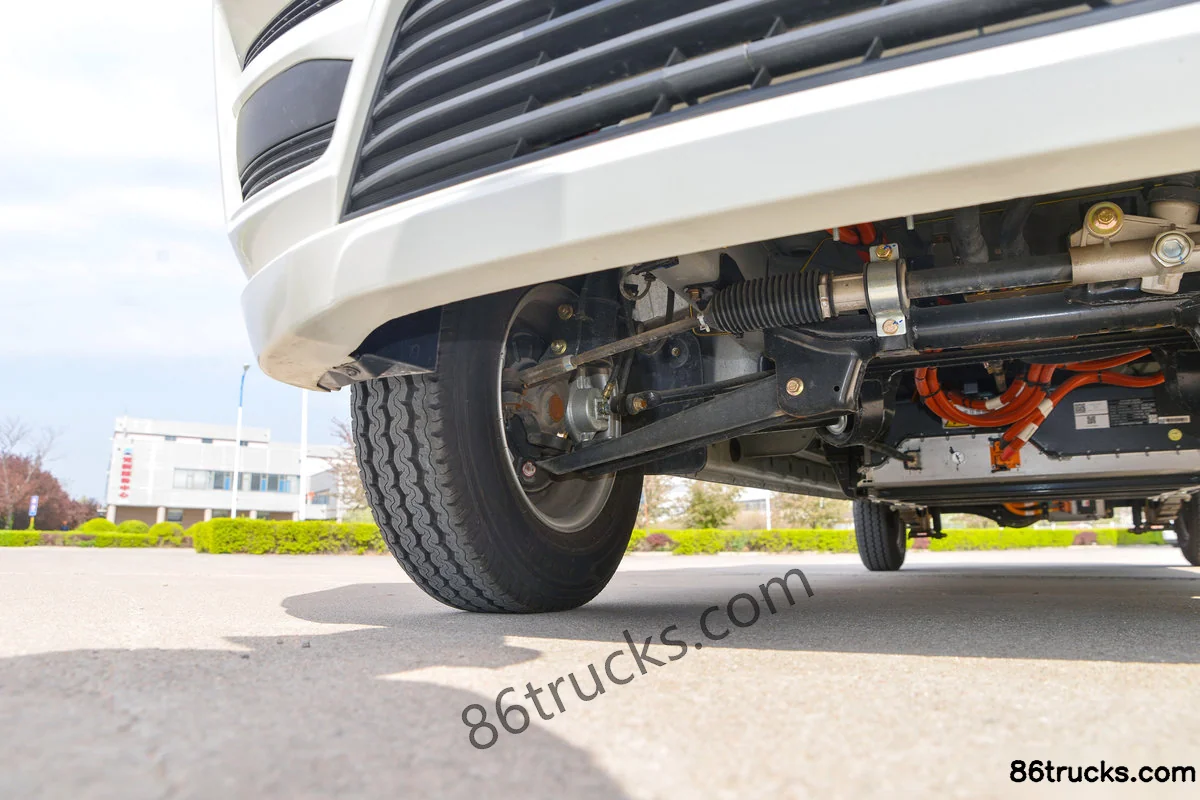

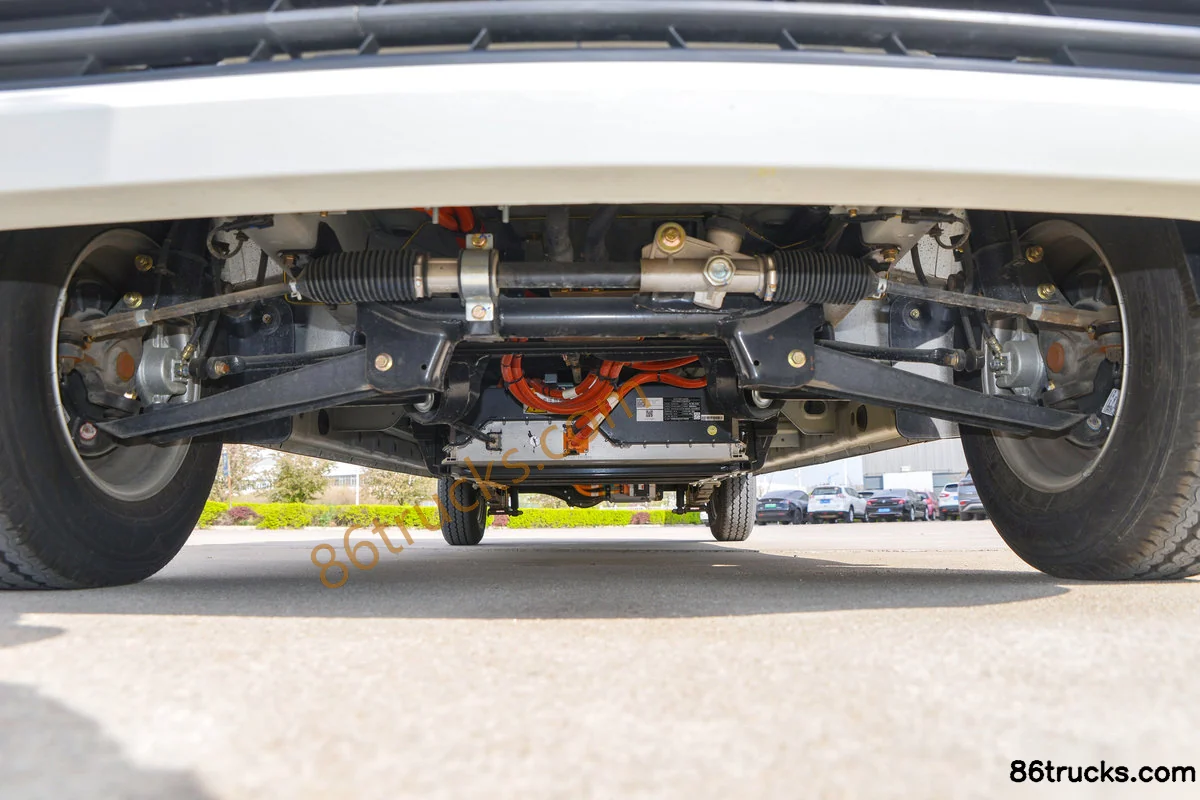

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh Chassis (1) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh Chassis (2) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh Chassis (3) | 86Trucks

Body3

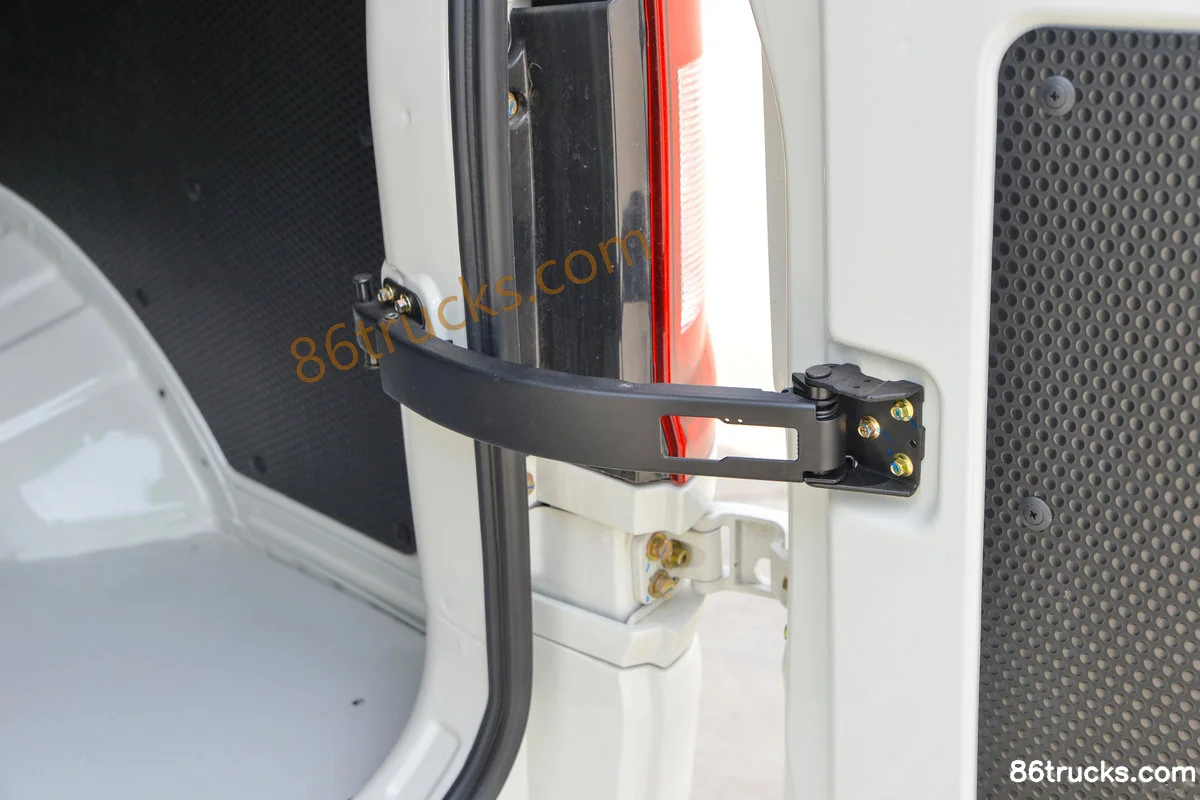

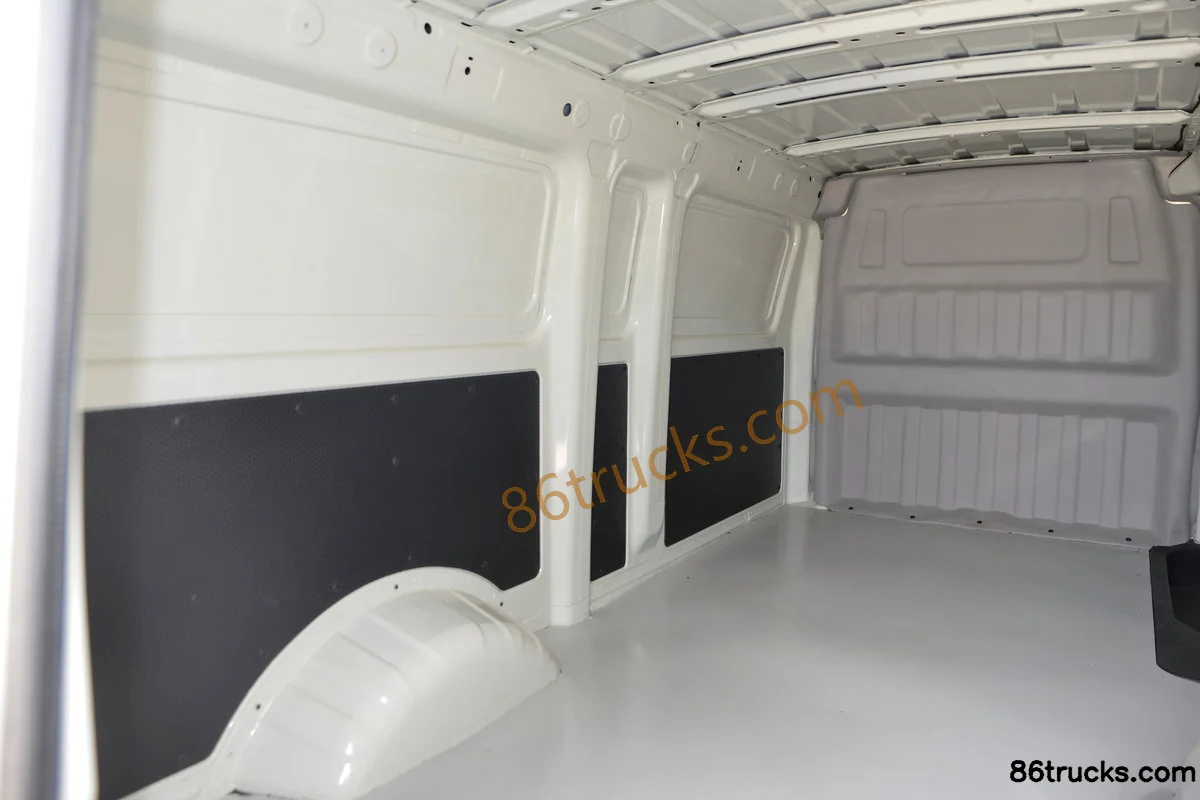

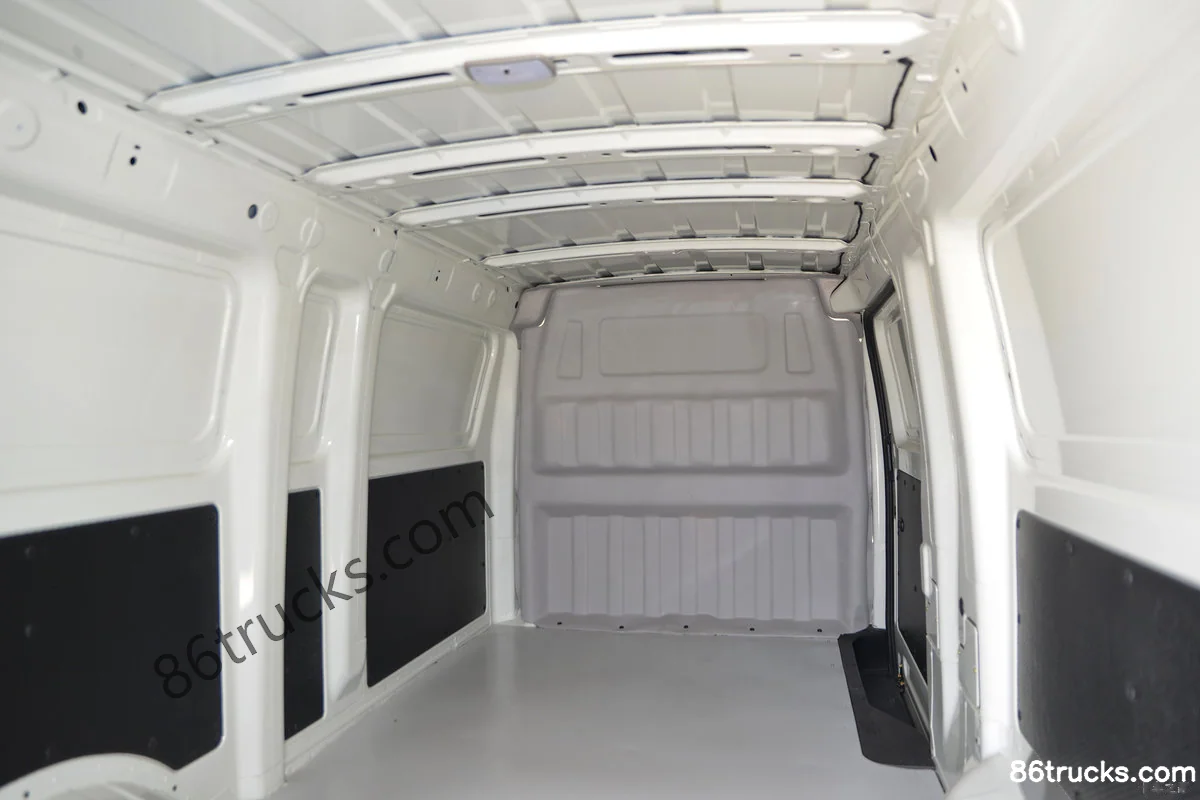

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh Body (1) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh Body (2) | 86Trucks Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh, and what does it include?

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh export reference is about From $29,972; MSRP is ¥21.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh suited for?

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh differ from other variants in the same series?

Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh belongs to Kama Junhang ES7 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Junhang ES7 3.2T 2-seat 5.265m pure electric panel van 38.016kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
