SRM Xinyuan Good Luck 1 300 (Haise X30L) 4.5m Electric Panel Van 49.1kWh

Export reference
MSRP N/A
Wheelbase:: 2925mm
Model code (announced):: JKC5030XXY-AXBEV
Cab length:: 4.495m
GVWR:: 2.51ton
Max. speed:: 110km/h
Energy Type:: Electric
CLTC range: 285km
Motor 1 Brand: Jingjin
Curb Weight: 1.5ton
Rated payload: 0.88ton

Overview

The SRM Xinyuan Good Luck 1 300 (Haise X30L) 4.5m Electric Panel Van 49.1kWh is a Electric Panel Van featuring 285km battery/range, Jingjin motor, 0.88t payload and 2.51t GVW.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC5030XXY-AXBEV
Wheelbase: 2925mm
Cab length: 4.495m
Cab width: 1.68m
Cab height: 1.99m
CLTC range: 285km
Curb Weight: 1.5ton
Rated payload: 0.88ton
GVWR: 2.51ton
Max. speed: 110km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TM4018
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 40kW
Peak power: 75kW
total peak torque: 165N·m
Battery/Charging
Battery Brand: Lishen
Battery type: NMC lithium battery pack
Battery capacity: 49.1kWh
Energy Density: 140.18
Chassis Specs
steering assist type: hydraulic power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Aluminum wheels:
Door Parameters
side door type: Sliding side door
Tailgate type: back door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 175/70R14C
Rear Wheel Specification: 175/70R14C
Safety features
Seat belt reminder:
Remote key:
interior configuration
Steering Wheel Material: Plastic
AC control type: Manual
Power Windows:
Seat material: Fabric
lighting configuration
Front fog lamp:

Photos

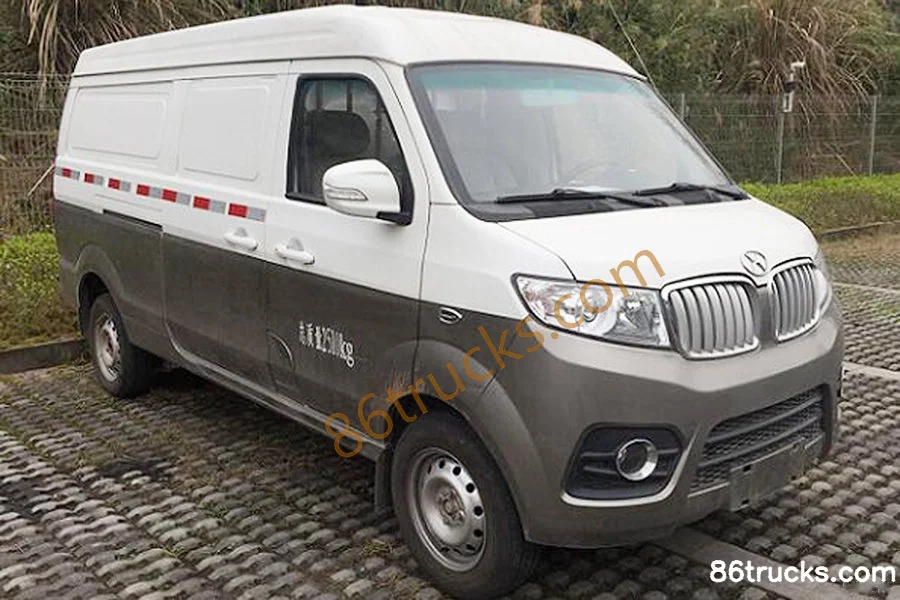

Exterior1

1 photos

FAQ

What transport jobs is SRM Xinyuan Good Luck 1 300 (Haise X30L) 4.5m Electric Panel Van 49.1kWh suited for?

SRM Xinyuan Good Luck 1 300 (Haise X30L) 4.5m Electric Panel Van 49.1kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SRM Xinyuan Good Luck 1 300 (Haise X30L) 4.5m Electric Panel Van 49.1kWh differ from other variants in the same series?

SRM Xinyuan Good Luck 1 300 (Haise X30L) 4.5m Electric Panel Van 49.1kWh belongs to Huajin Xinyuan Jinbei Good Luck 1 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SRM Xinyuan Good Luck 1 300 (Haise X30L) 4.5m Electric Panel Van 49.1kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SRM Xinyuan Good Luck 1 300 (Haise X30L) 4.5m Electric Panel Van 49.1kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
