FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels)

Export reference
MSRP N/A
Horsepower: 120
Emission: China V
Fuel: Methanol
Curb Weight:: 2.57ton
Wheelbase:: 3360mm
Tire brand:: Double Happiness
FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) exterior
View more photos (11)
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) is a Light Truck featuring 4.18m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. On the powertrain side, it comes with 120 hp, 4X2 (6 wheels) drive, China V emissions and Methanol fuel.

China V 120 Methanol 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DNG1040G-50
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Dongfeng NQ120BM5 methanol fuel
transmission: 5-speed
Cab length: 5.995m
Cab width: 2.25m
Cab height: 2.45m
Front track width: 1670mm
rear track: 1586mm
Curb Weight: 2.57ton
Rated payload: 1.735ton
GVWR: 4.5ton
Max. speed: 90km/h
Origin: Nanchong, Sichuan
tonnage class: Light Truck
Approach angle: 32°
departure angle: 10°
Front/rear suspension: 1.15/1.485m
Energy Type: Methanol
Engine parameters
Engine Brand: Dongfeng
Engine Model: Dongfeng NQ120BM5 methanol fuel
fuel type: Methanol
Cylinder arrangement: Inline
Displacement: 3.759L
Emission standard: China V
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 370N·m
Max torque speed: 1200-1600rpm
Rated speed: 2800rpm
Transmission Parameters
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.18m
Cargo box width: 2.05m
Cargo box height: 0.4m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab suspension: Rigid connection
Cab width: 1995mm
seating capacity: 3Personnel
Cab tilting: Manual
Seat rows: Single Row
Driver seat type: Rigid connection seat
fuel tank
Fuel tank capacity: 160L
Chassis Specs
Front axle description: 2.2T
Front axle allowable load: 2000kg
rear axle description: 4.2T rear axle
rear axle allowable load: 2500kg
Leaf spring count: 8/8+7
Suspension (front/rear): Leaf spring
Tire
Tire brand: Double Happiness
Tire Size: 7.50R16
Number of tires: 6pcs

Photos

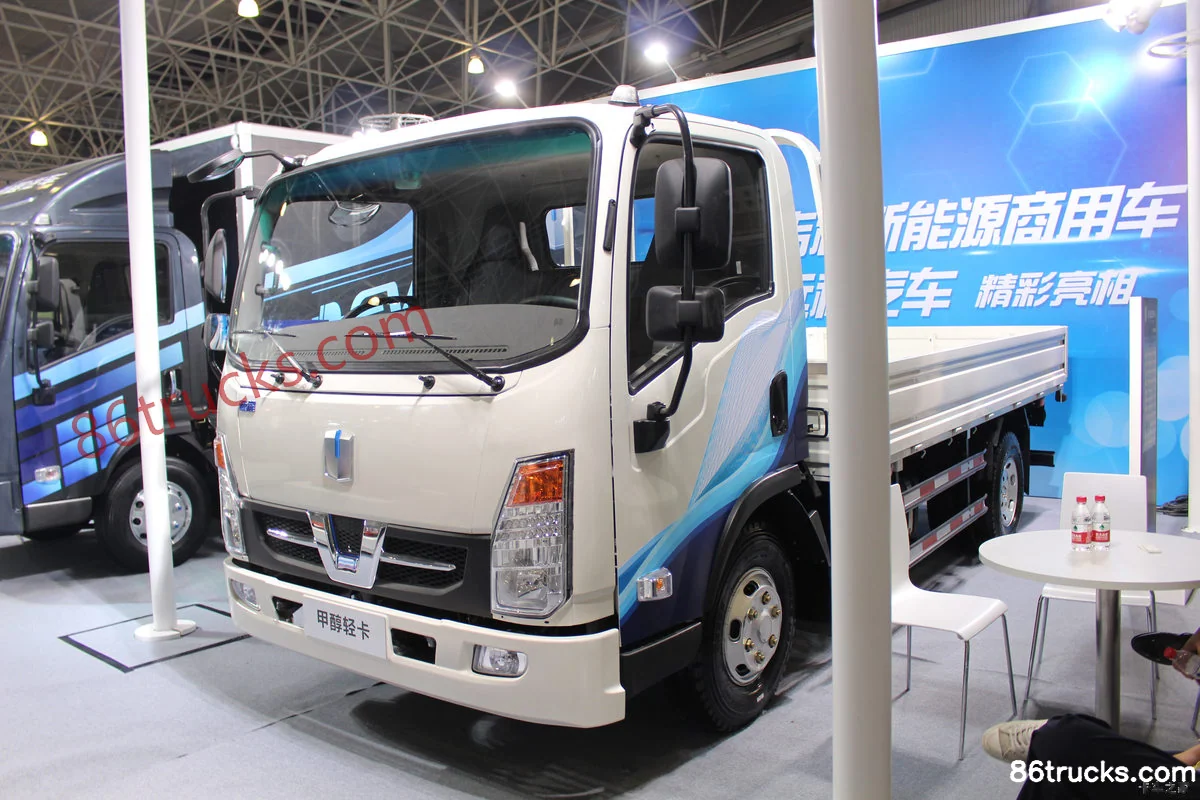

Exterior3

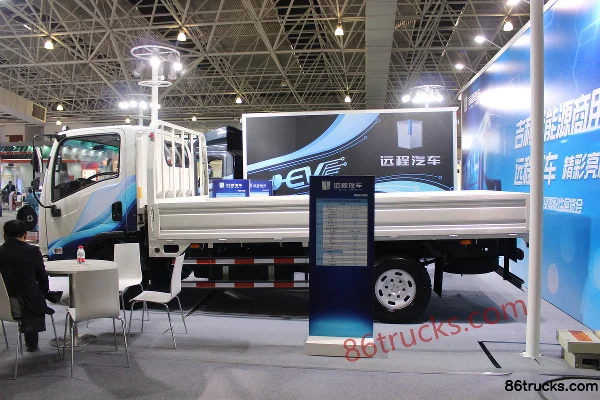

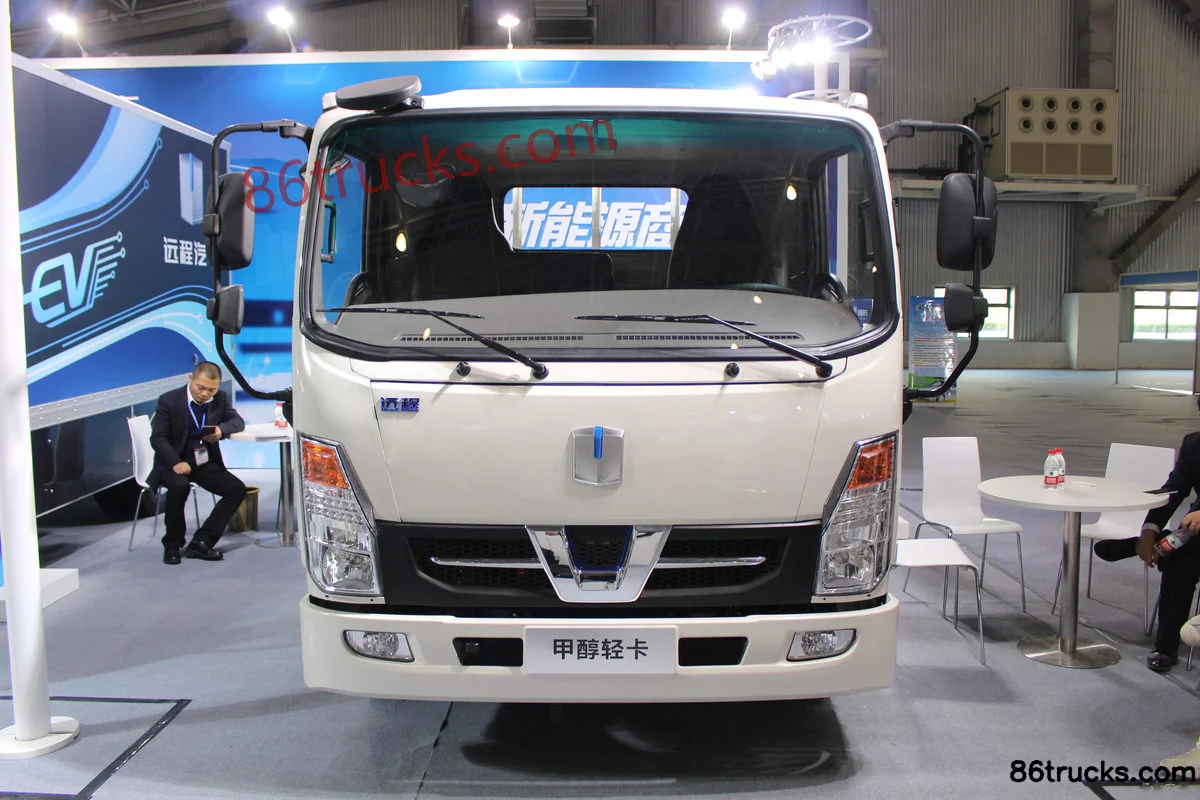

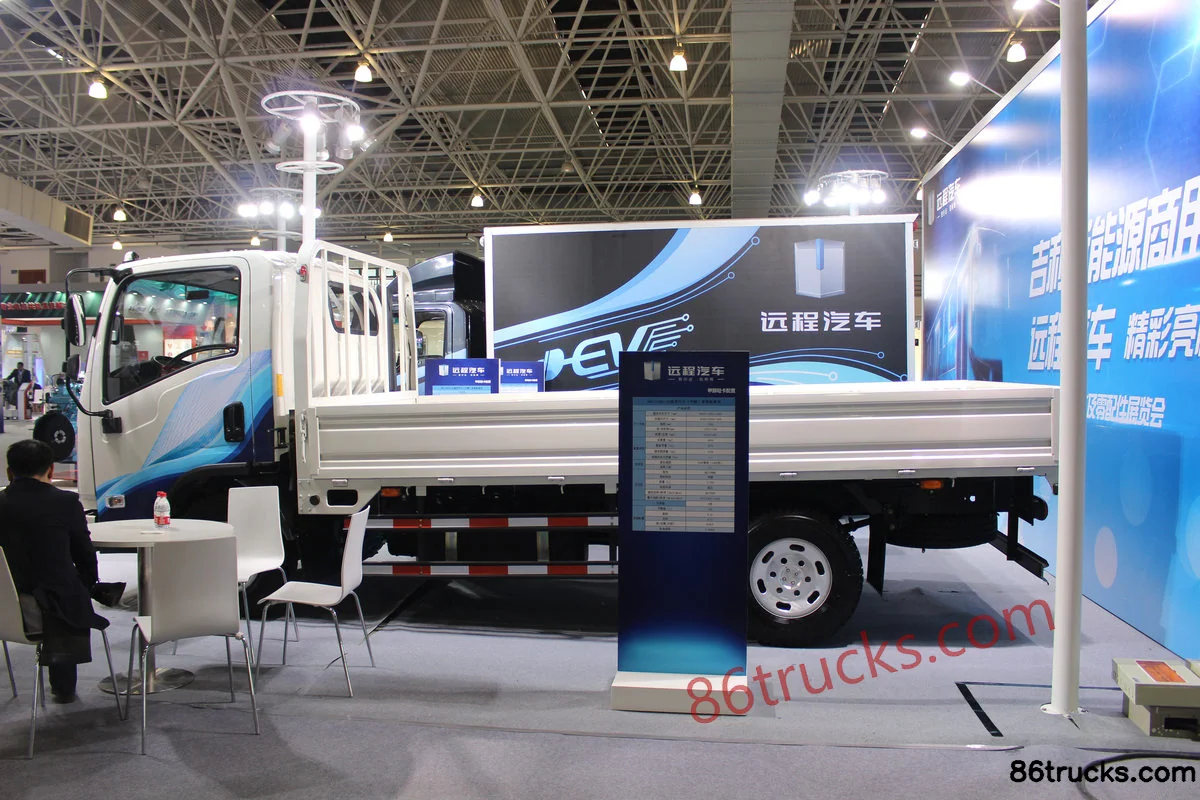

FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) Exterior (1) | 86Trucks FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) Exterior (2) | 86Trucks FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) Exterior (3) | 86Trucks

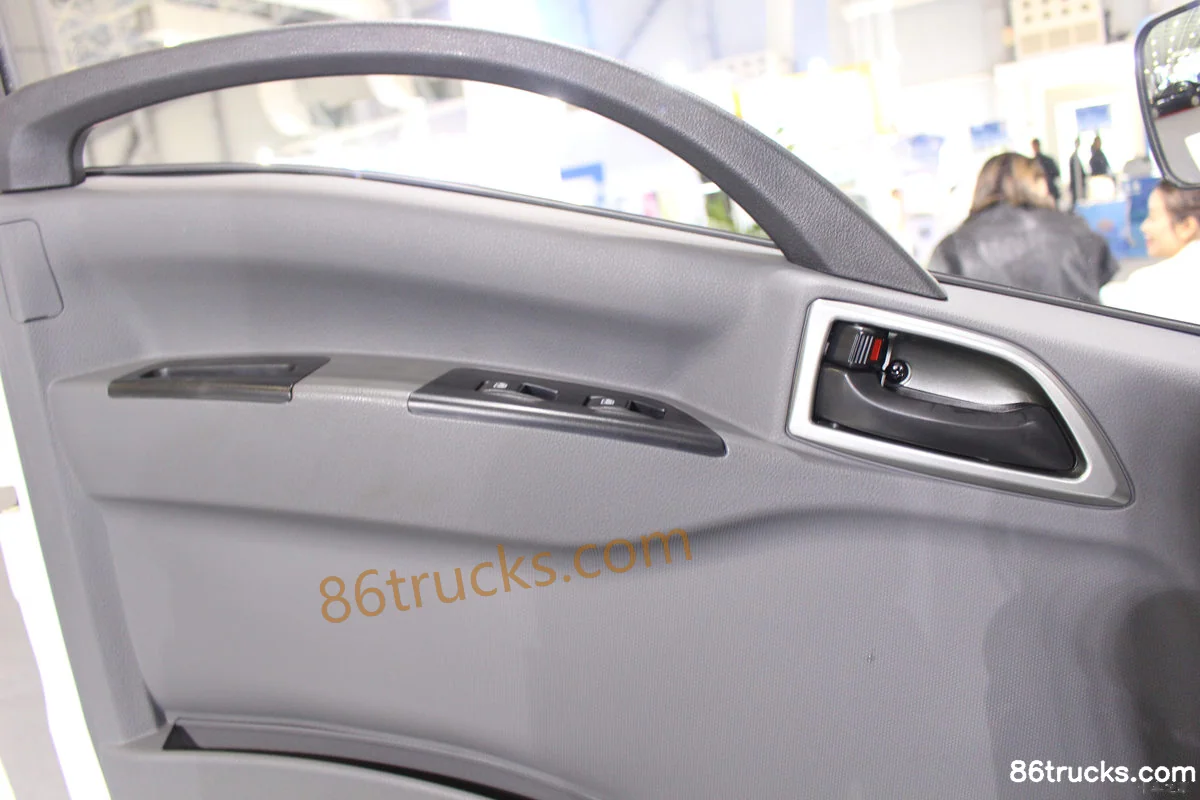

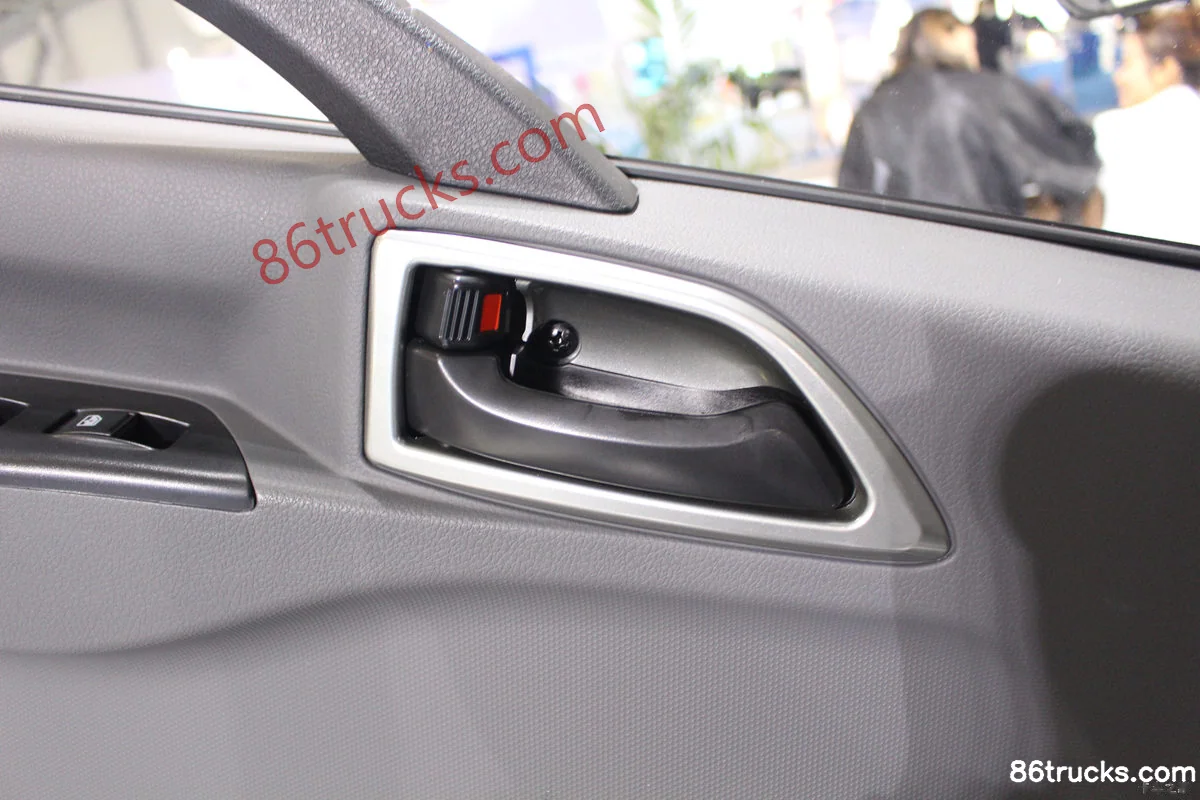

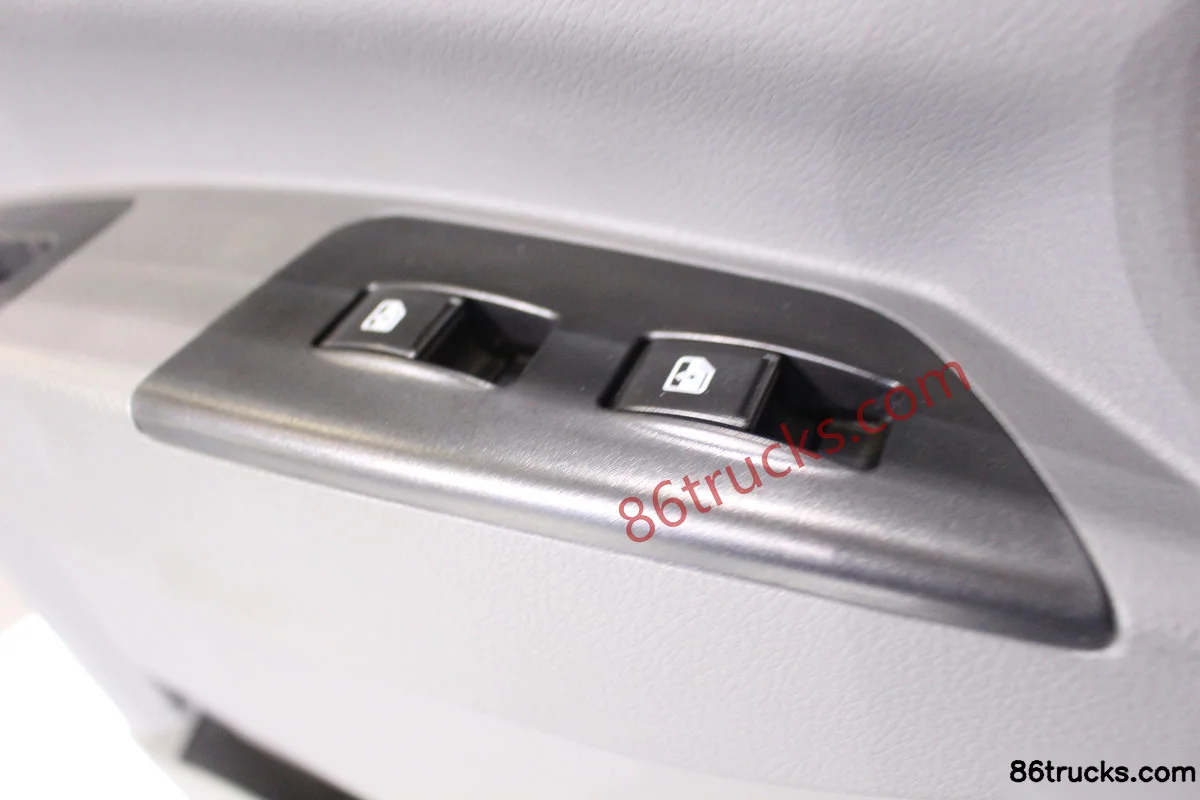

Cab3

FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) Cab (1) | 86Trucks FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) Cab (2) | 86Trucks FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) Cab (3) | 86Trucks

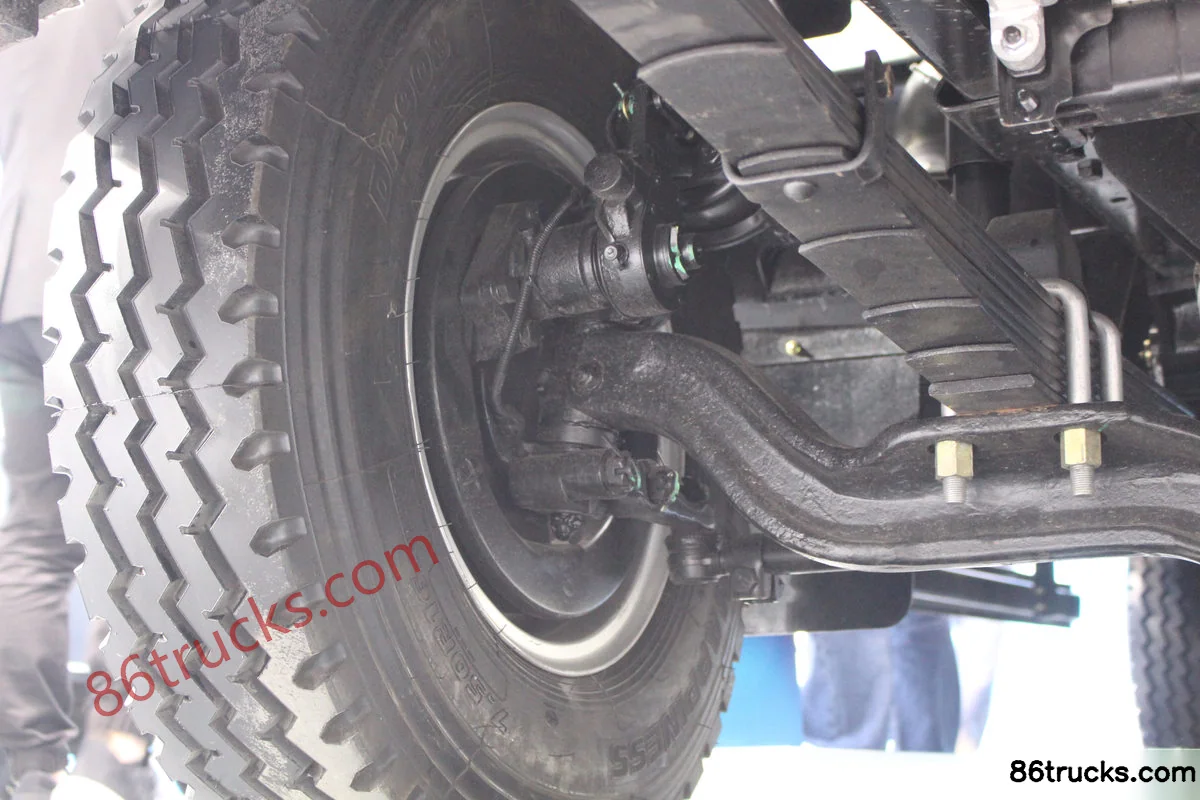

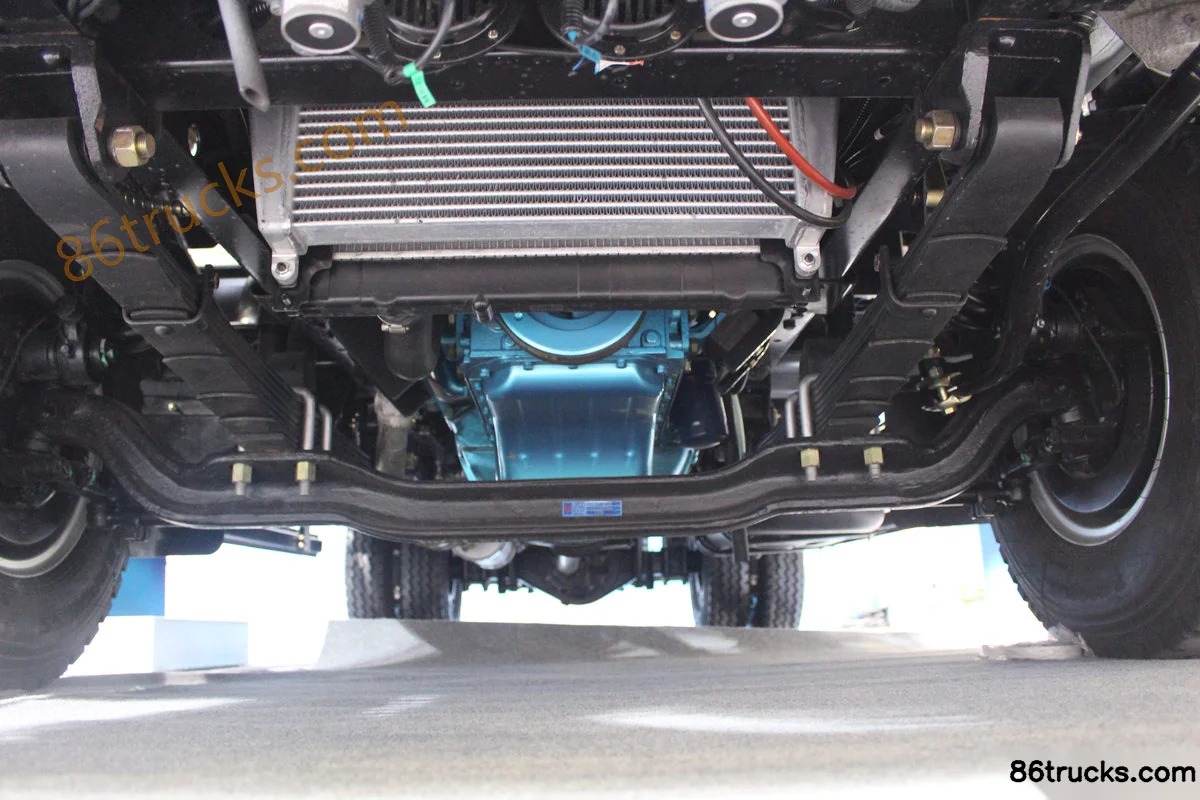

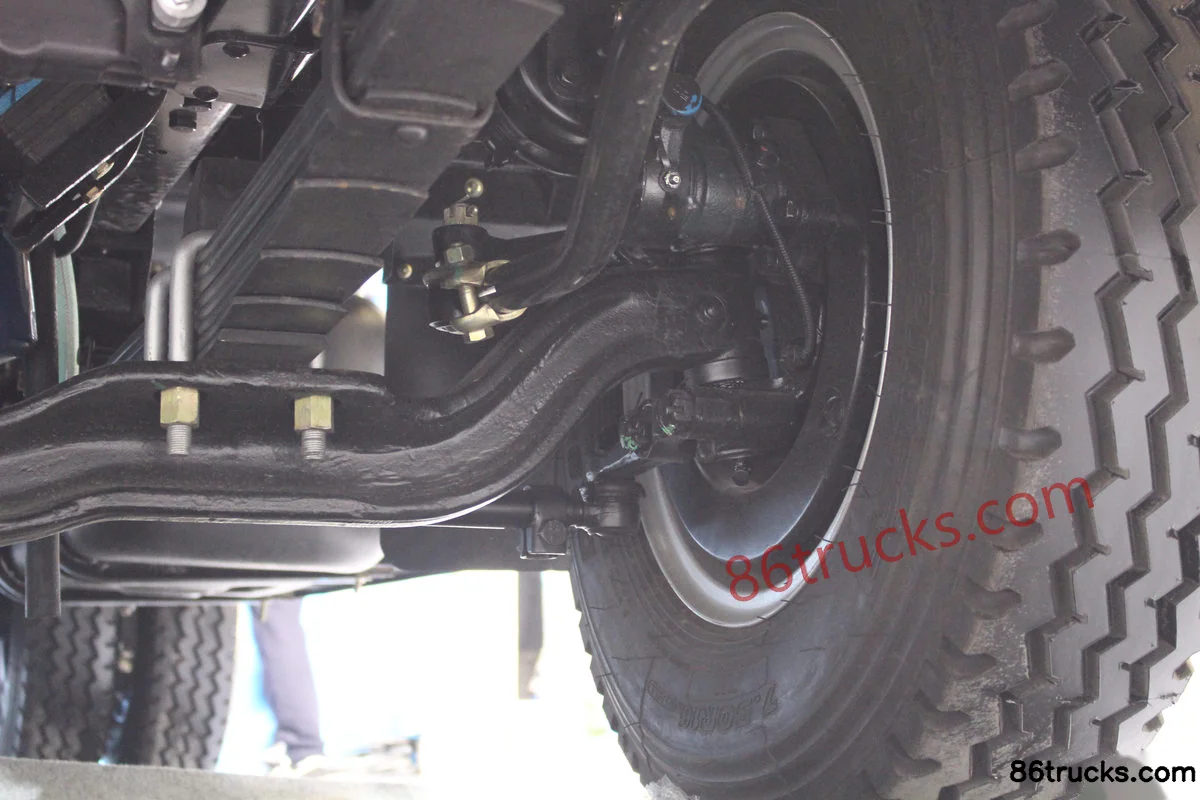

Chassis3

FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) Chassis (1) | 86Trucks FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) Chassis (2) | 86Trucks FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) Chassis (3) | 86Trucks

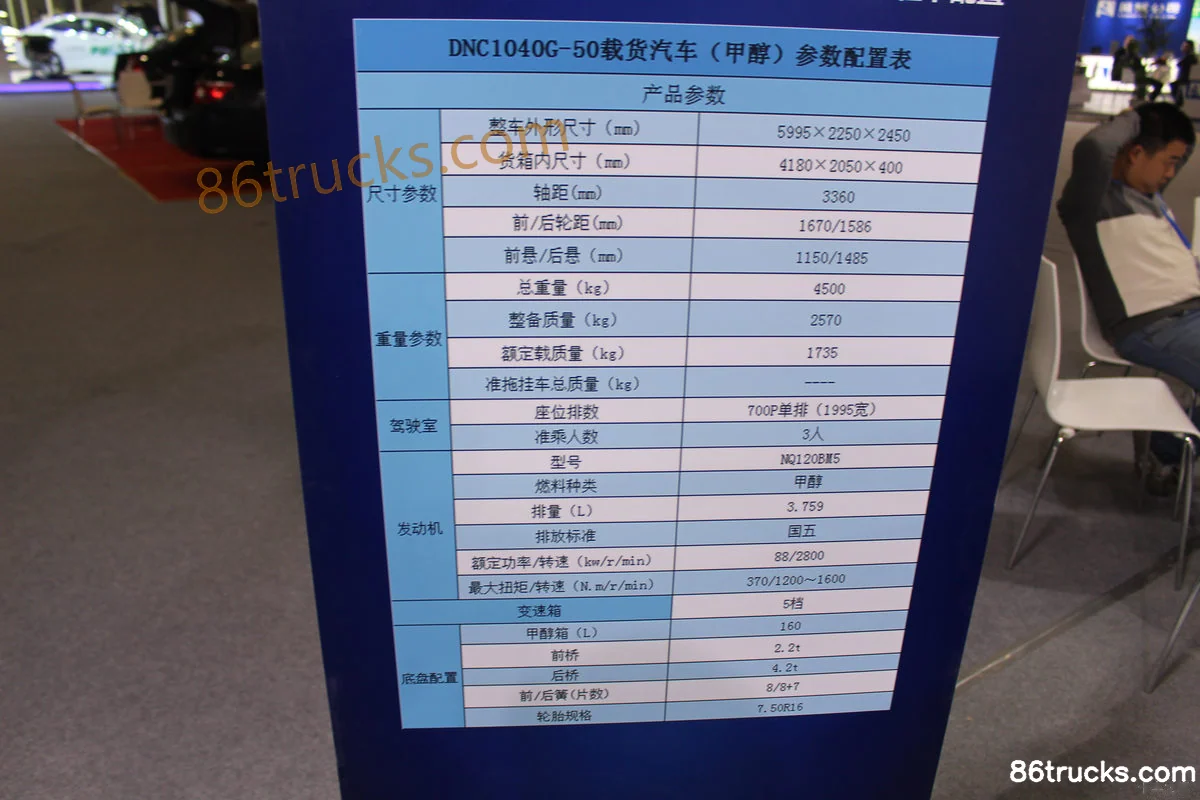

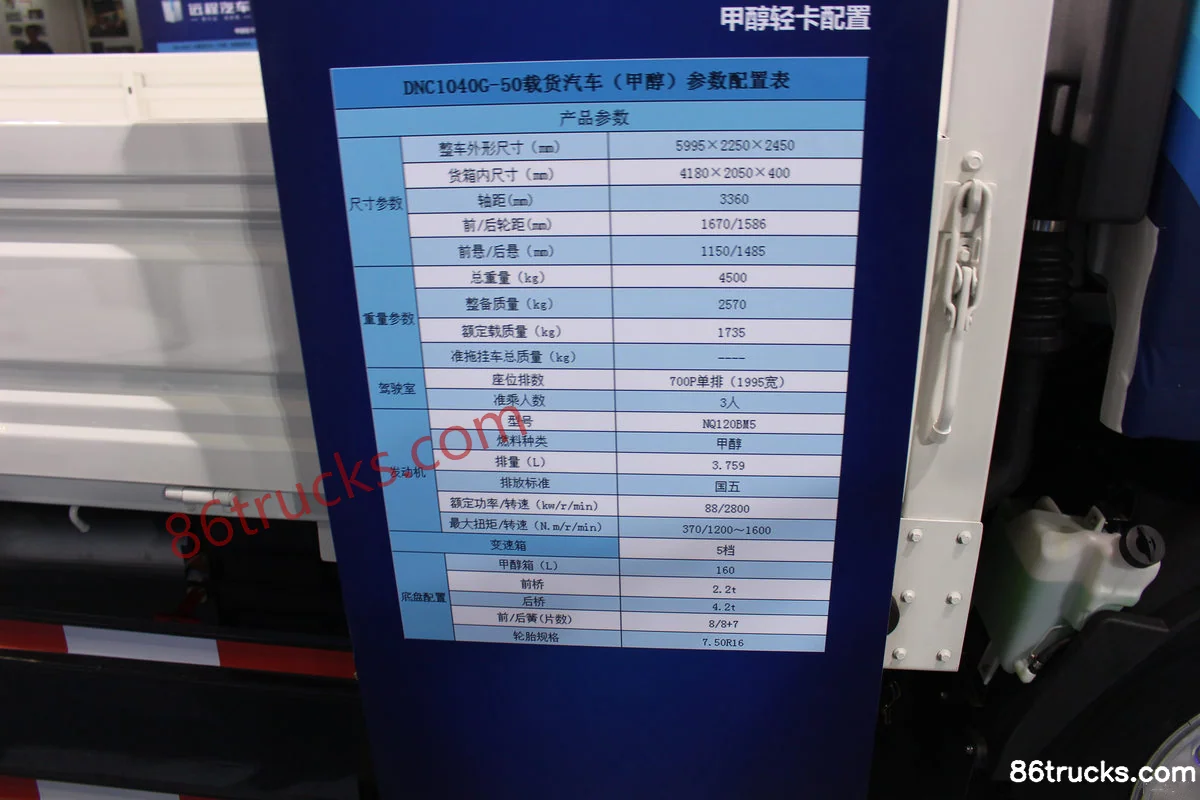

Body2

FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) Body (1) | 86Trucks FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) Body (2) | 86Trucks

11 photos

FAQ

What emission standard does FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels)?

Key specs of FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels): Drive: 4x2; Horsepower: 120 hp; Emission: China V; Fuel: Methanol. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) suited for?

FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) differ from other variants in the same series?

FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels) belongs to FARIZON Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON Methanol New Energy 4.18m flatbed cargo truck 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
