FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Wheelbase:: 4200+1350mm
Model code (announced):: HN4251X27C9BEVY
Front/rear track width:: Front track: 2085mm; Rear track: 1865/1865mm
Cab length:: 7.975m
GVWR:: 25ton

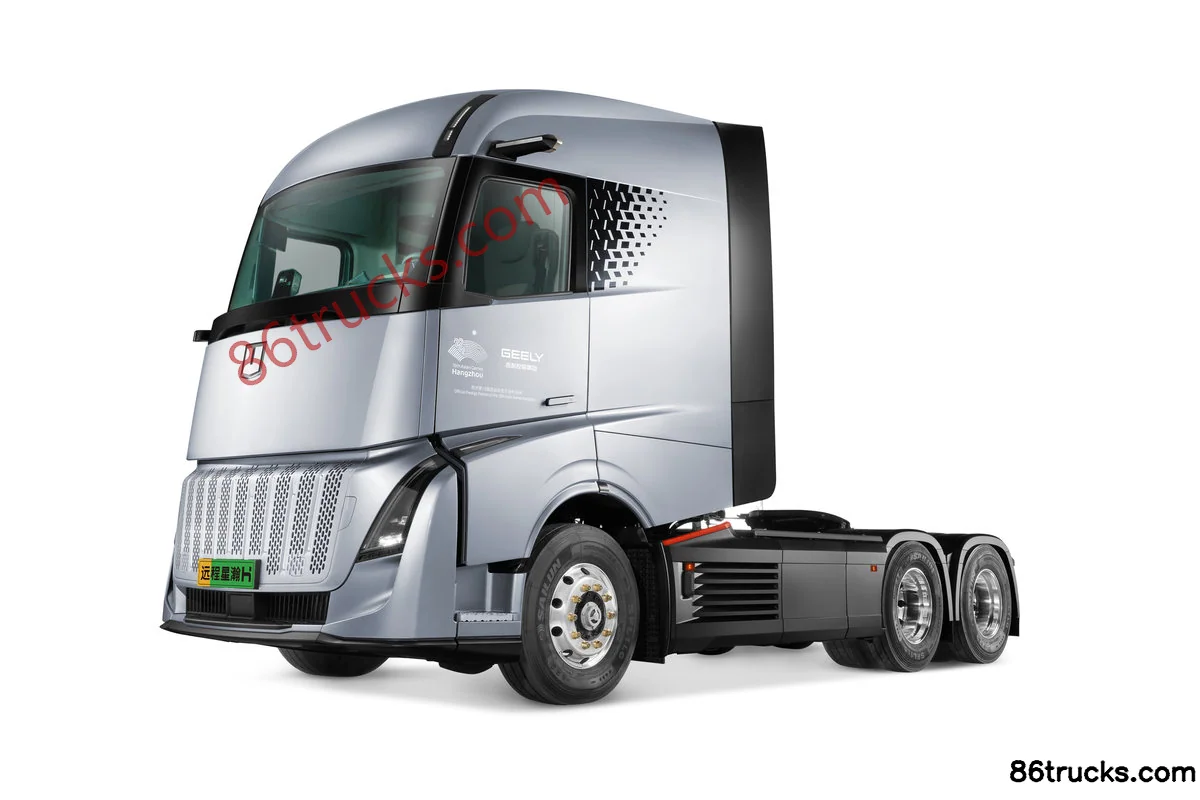

FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh exterior
View more photos (3)
Drive 6X4 (10 wheels)
battery swap support: Supported
Motor 2 Brand: Bosch
Gross Trailer Weight: 36.77ton

Overview

The FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh is a Heavy truck featuring Supported battery/range, Bosch motor, 6X4 (10 wheels) drive and 7000kg payload.

6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HN4251X27C9BEVY
Drive type: 6X4
Front/rear track width: Front track: 2085mm; Rear track: 1865/1865mm
Wheelbase: 4200+1350mm
Cab length: 7.975m
Cab width: 2.55m
Cab height: 3.94m
Gross Trailer Weight: 36.77ton
Curb Weight: 12.1ton
GVWR: 25ton
Max. speed: 120km/h
Origin: Ma'anshan
battery swap support: Supported
tonnage class: Heavy truck
Version: Zunxiang Edition
Energy Type: Electric
electric motor
Motor 2 Brand: Bosch
Motor 2 Model: TZ230XY100
Motor 1 Brand: Bosch
Motor 1 Model: TZ230XY100
Motor Type: Permanent magnet synchronous motor
total rated power: 392kW
Peak power: 530kW
total rated torque: 610N·m
Motor 1 Peak Power: 265kW
Motor 2 Peak Power: 265kW
Number of drive motors: Dual Motor
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 600kWh
Cab parameters
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Driver seat type: air suspension seat
Chassis Specs
Fifth wheel: 50#
Front axle allowable load: 7000kg
rear axle description: Zhuque integrated electric drive axle
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):

Photos

Exterior3

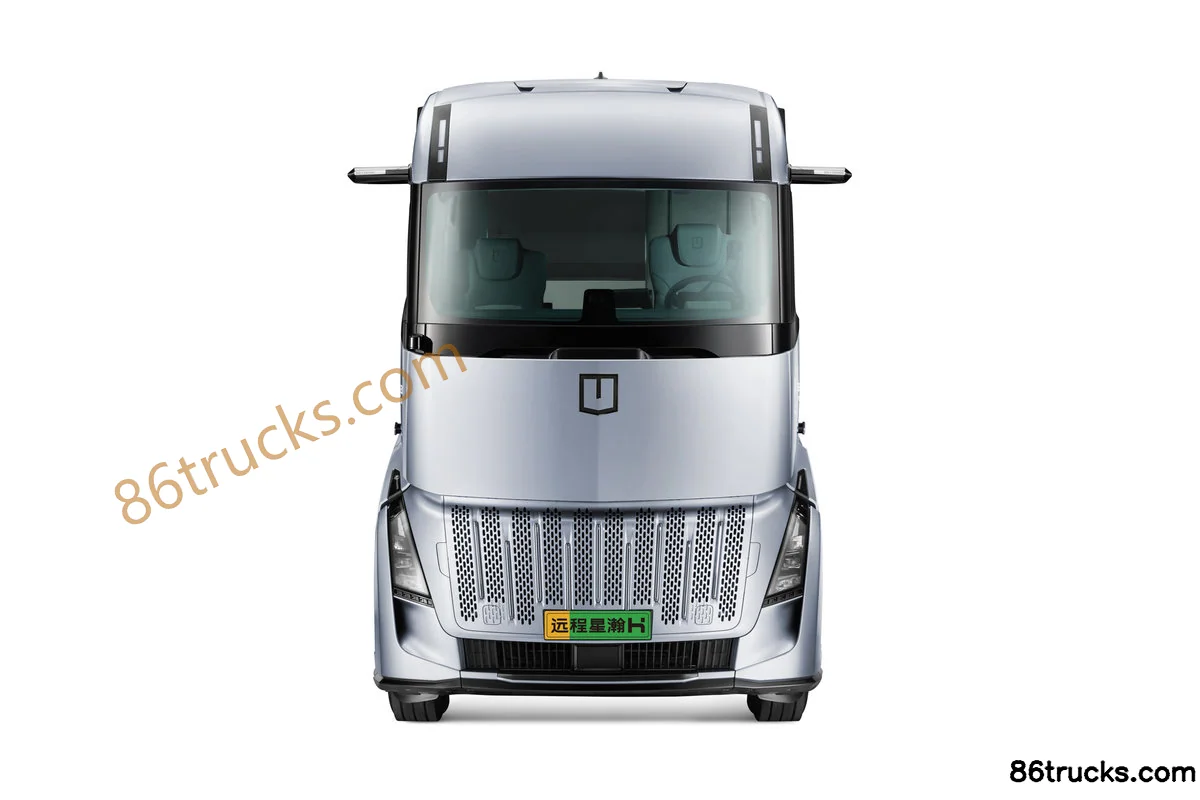

FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh Exterior (1) | 86Trucks FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh Exterior (2) | 86Trucks FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh Exterior (3) | 86Trucks

3 photos

FAQ

What are the key specs of FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh?

Key specs of FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh suited for?

FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh differ from other variants in the same series?

FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh belongs to FARIZON Xinghan H Series (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON Xinghan H-Series 6X4(10 wheels) Battery-Swap Electric Tractor Truck CATL 600kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
