FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh

Export reference
MSRP N/A
Tire brand:: 12R22.5
Front axle allowable load:: 7000kg
Model code (announced):: CA4256P26T1BEVA80
Rear Axle Ratio:: 5.143
Cab length:: 7.36m
Front track width:: 2020mm

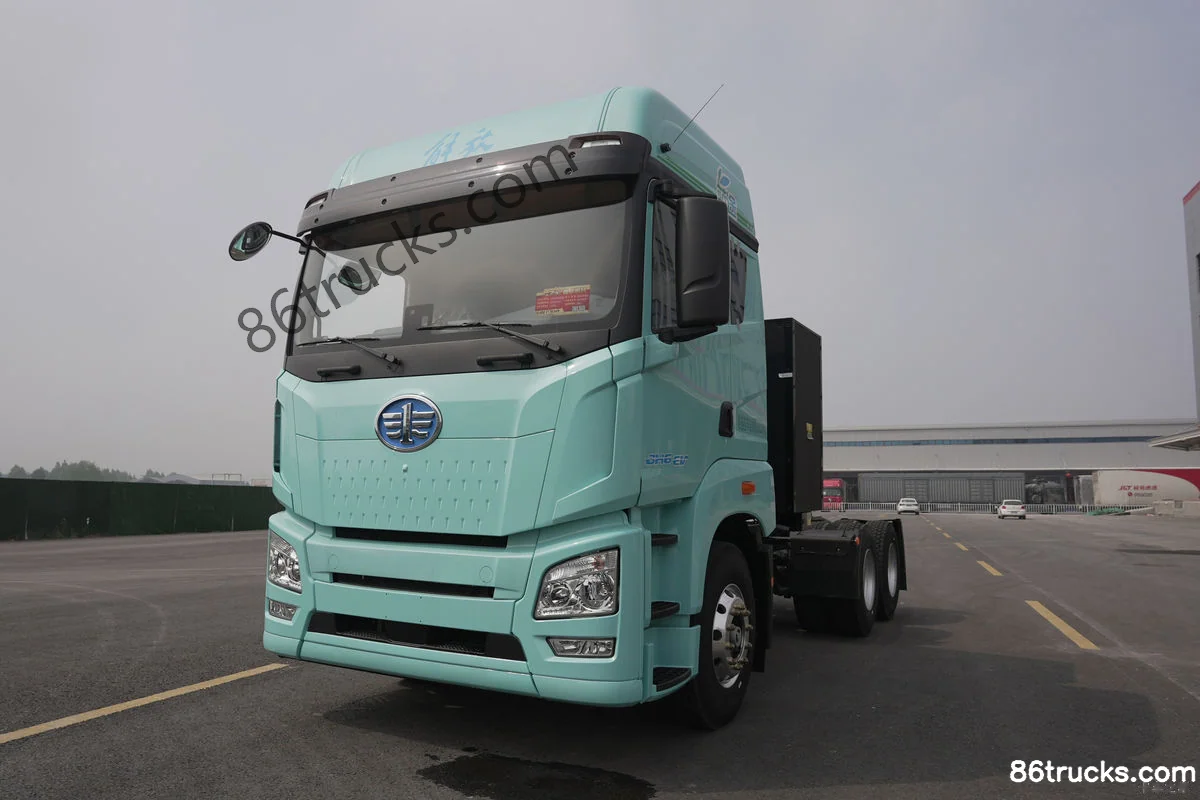

FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh exterior
View more photos (9)
Drive 6X4 (10 wheels)
Transmission Fast Gear
Gross Trailer Weight: 38.22ton
Wheelbase: 3800+1350mm

Overview

The FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh is a Heavy truck featuring 6X4 (10 wheels) drive, 25t GVW, 3800+1350mm wheelbase and JH6 Raised Floor Crew Cab High Roof cab. Its segment focus covers Coal, mining and steel, matching those duty cycles. On the powertrain side, it comes with Fast Gear transmission.

6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA4256P26T1BEVA80
Drive type: 6X4
Wheelbase: 3800+1350mm
Rear Axle Ratio: 5.143
Cab length: 7.36m
Cab width: 2.55m
Cab height: 3.5m
Front track width: 2020mm
Gross Trailer Weight: 38.22ton
rear track: 1830/1830mm
Curb Weight: 10.65ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Qingdao/Chengdu
tonnage class: Heavy truck
market segment: Coal, mining, steel, power resource transport
Energy Type: Electric
Transmission Parameters
Transmission Model: Fast Gear 6E240
Transmission Brand: Fast Gear
shift method: AMT manual/auto
Forward gears: 6Gear
Number of Reverse Gears:
Cab parameters
Cab: JH6 Raised Floor Crew Cab High Roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric tilting
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 7000kg
Fifth wheel: 90 fifth wheel plate
Frame Dimensions: 300×80×8mm
rear axle description: 435 upgraded axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.143
Leaf spring count: 3/3
Aluminum wheels:
Tire
Tire brand: 12R22.5
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
Traction Control (ASR/TCS/TRC etc.):
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Electric
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Tire Pressure Monitoring System (TPMS):
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:

Photos

Exterior3

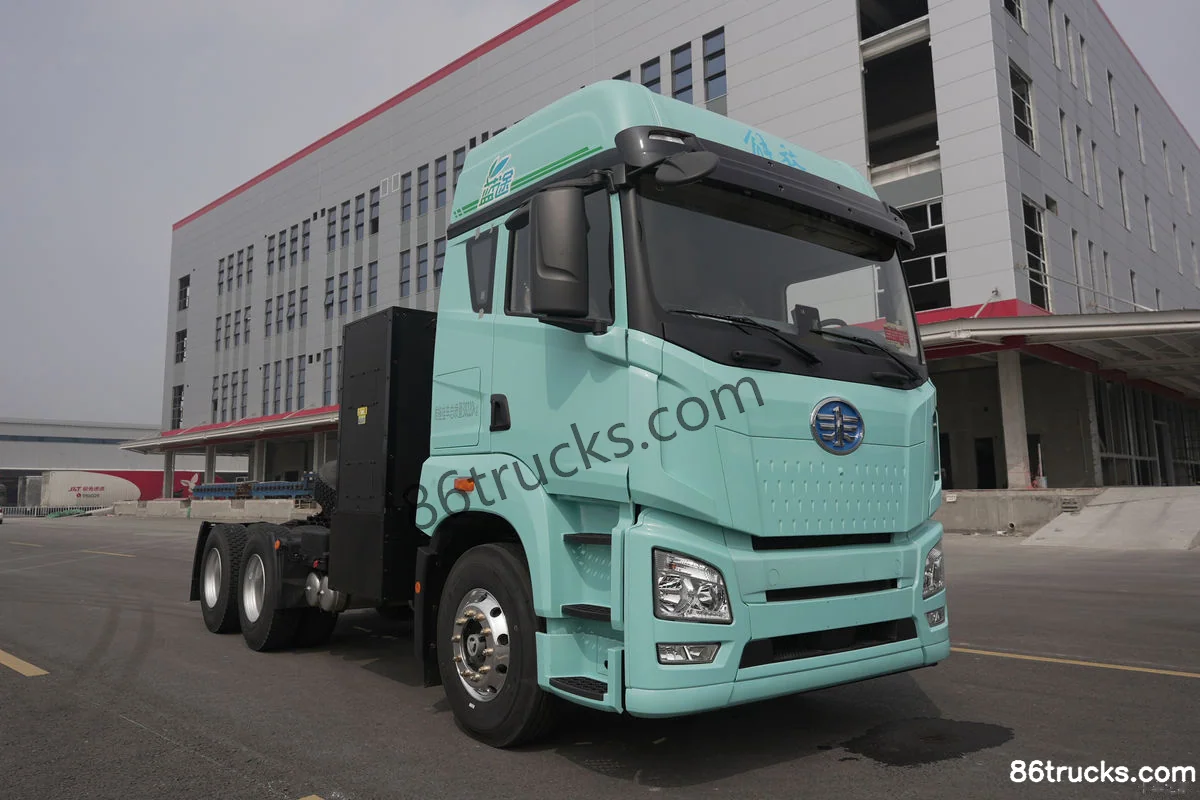

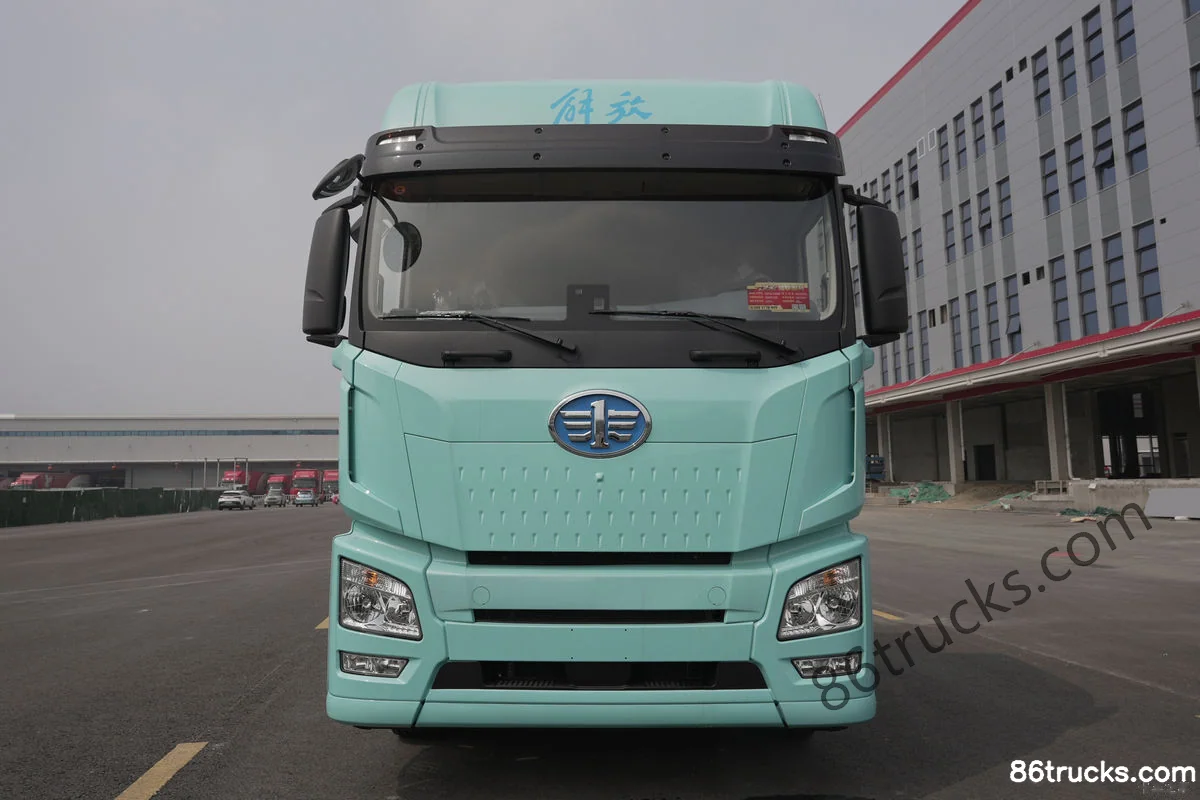

FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh Exterior (1) | 86Trucks FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh Exterior (2) | 86Trucks FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh Exterior (3) | 86Trucks

Cab3

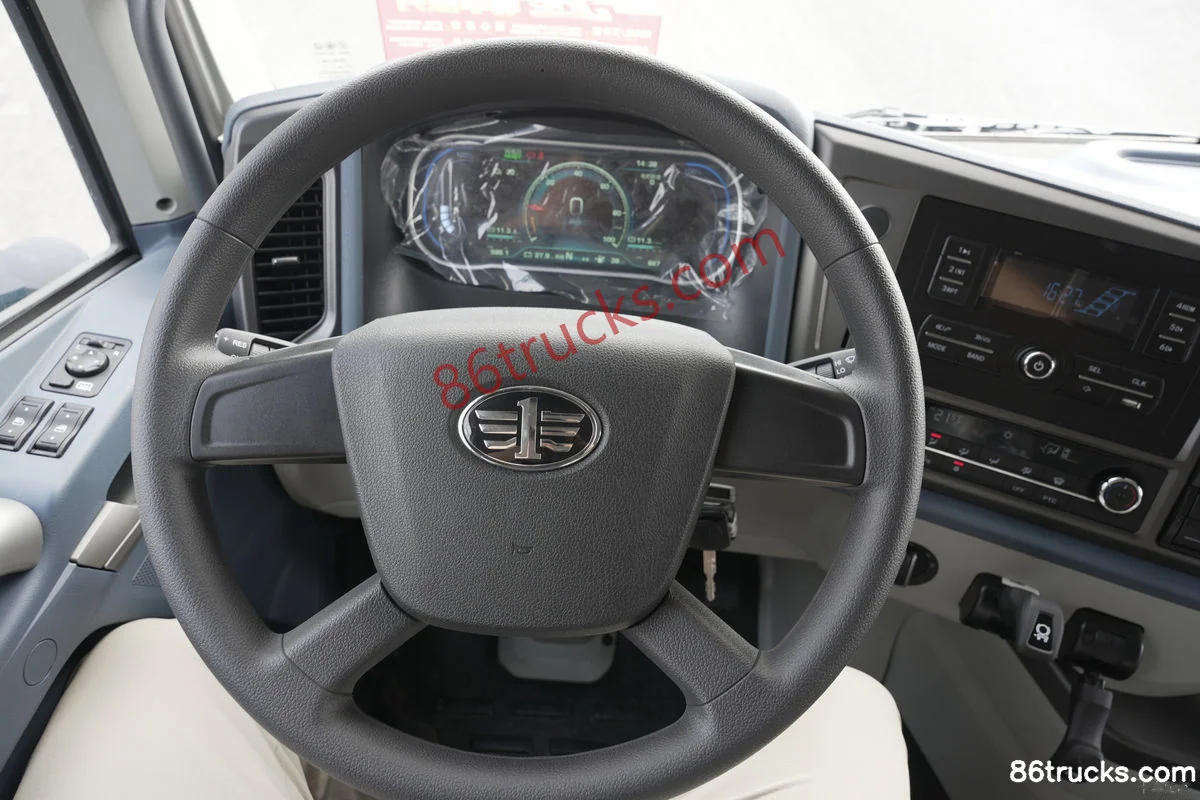

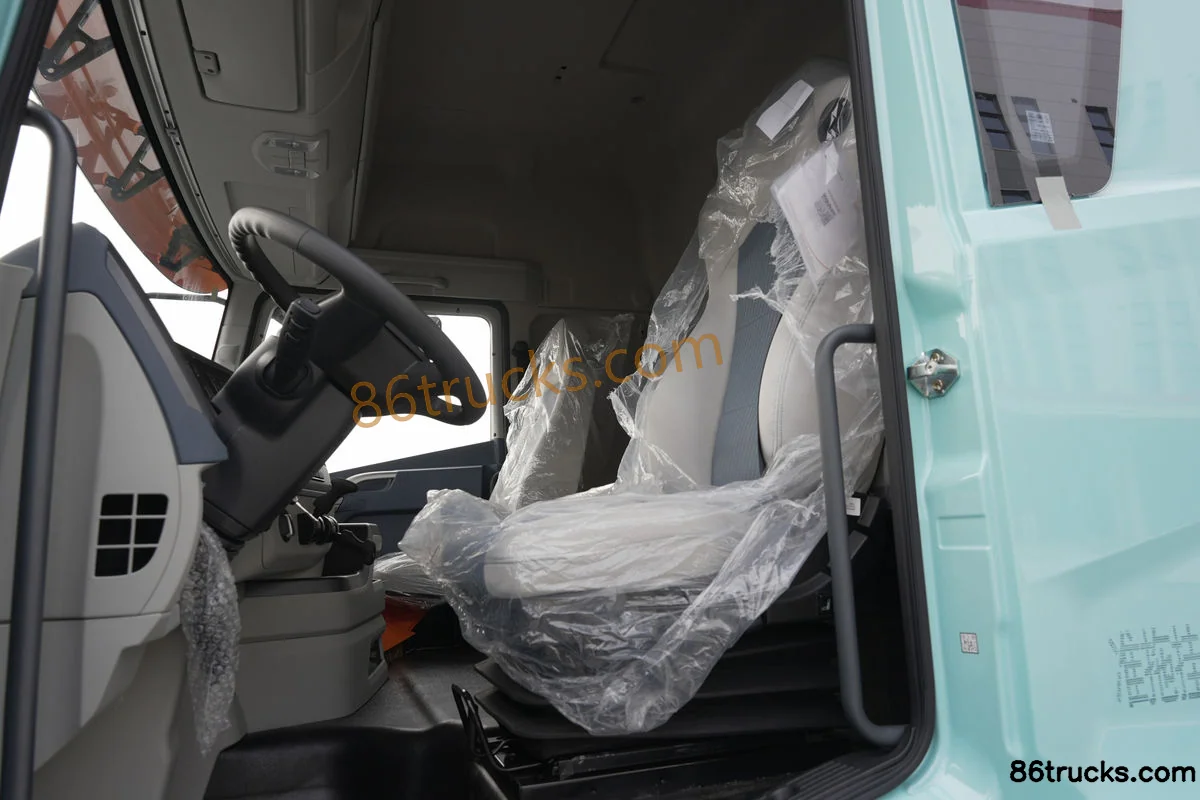

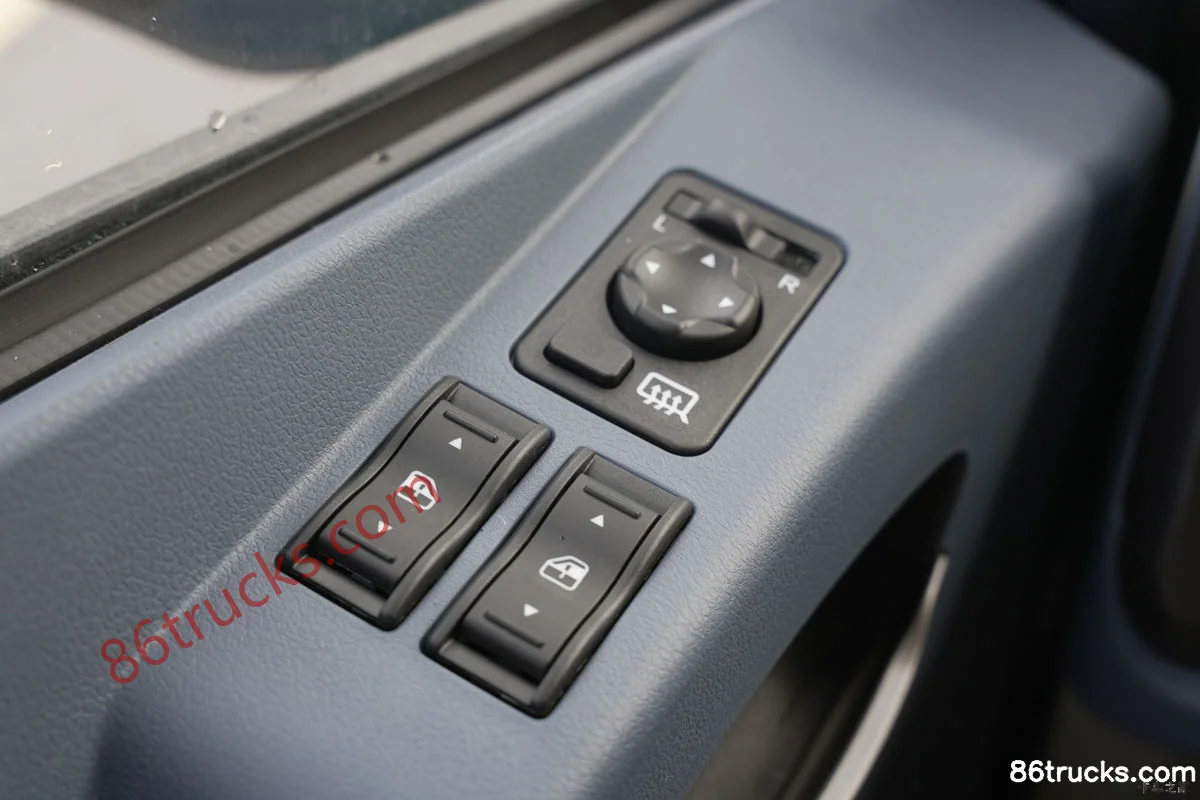

FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh Cab (1) | 86Trucks FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh Cab (2) | 86Trucks FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh Cab (3) | 86Trucks

Chassis3

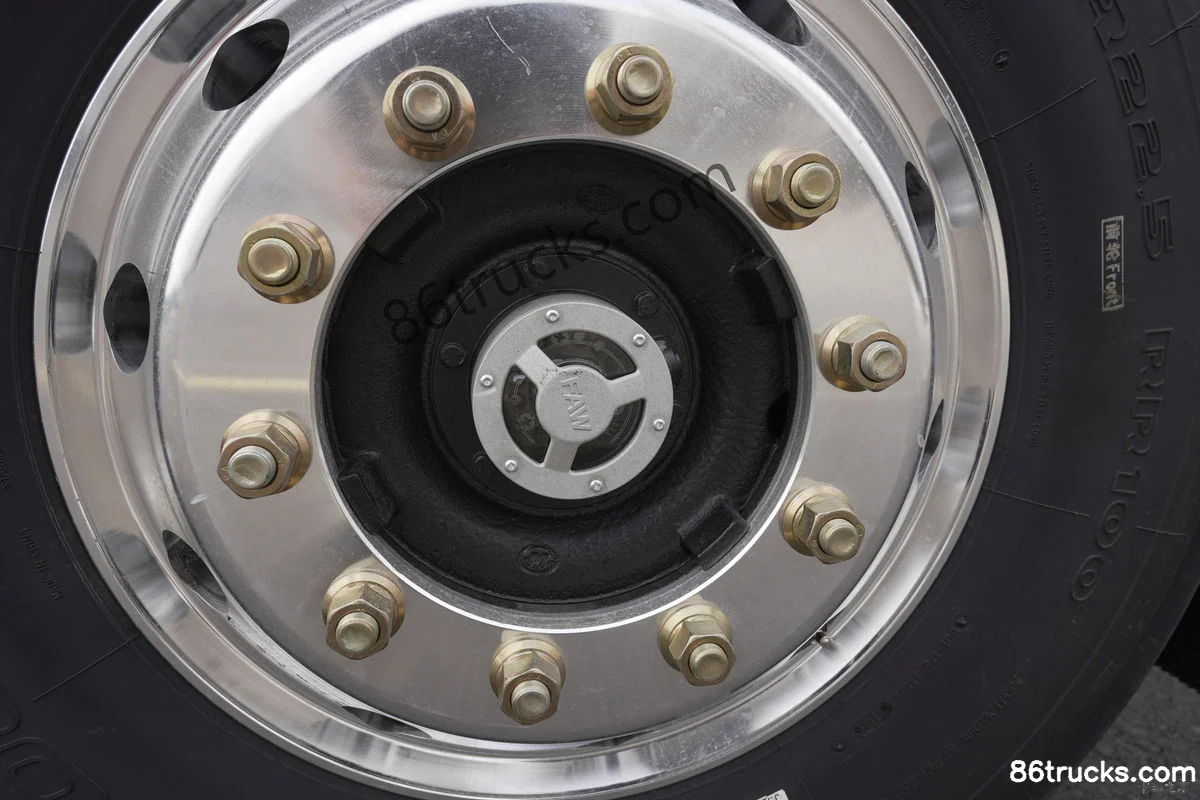

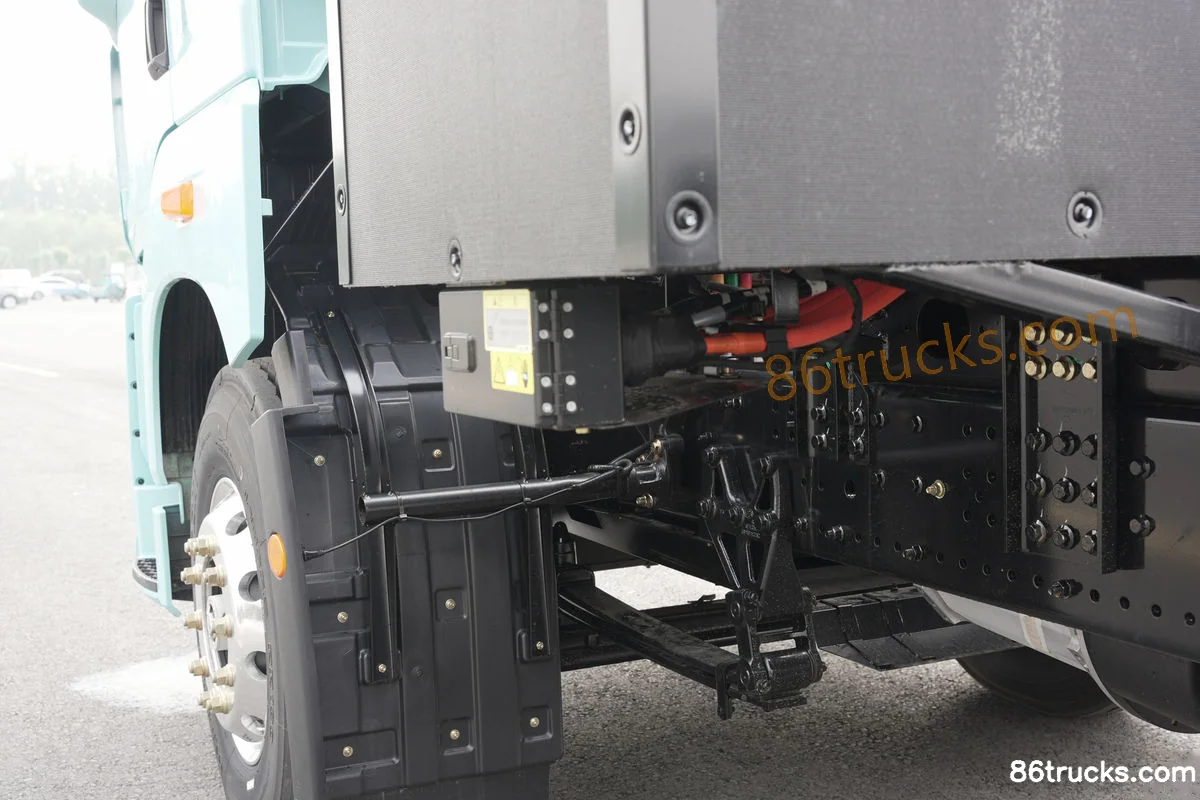

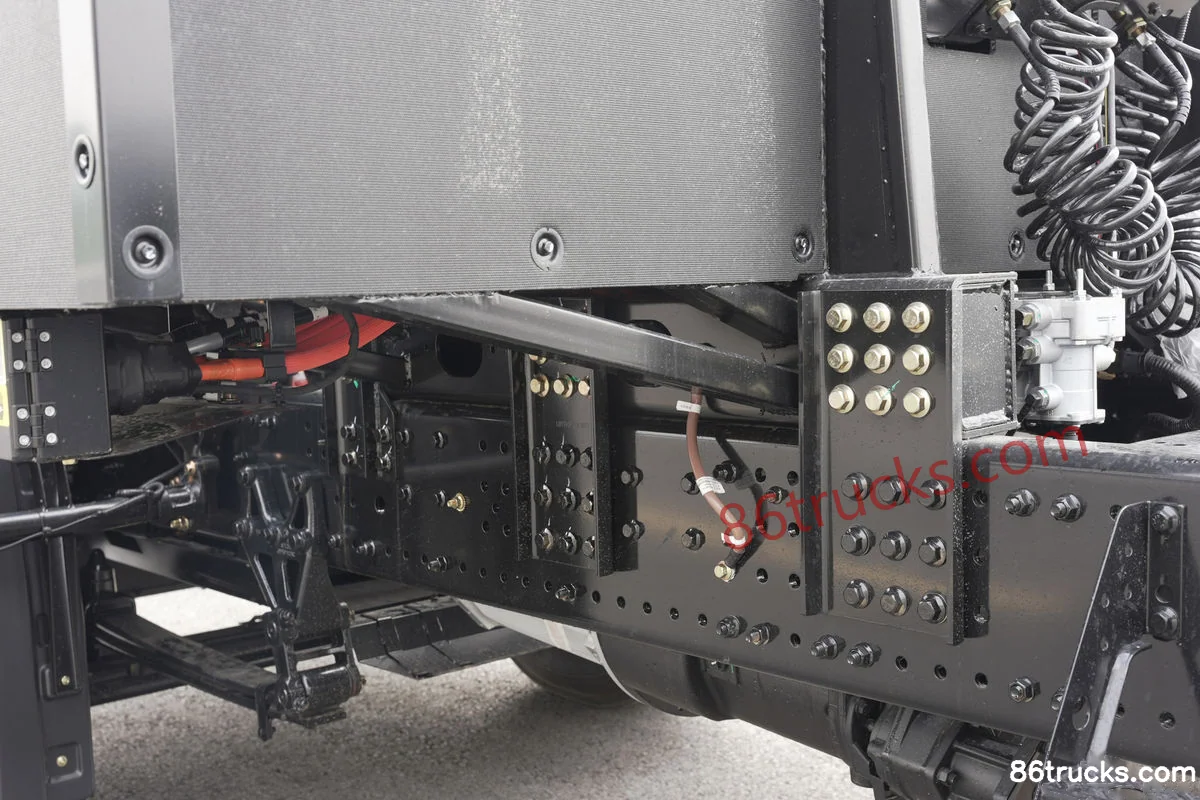

FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh Chassis (1) | 86Trucks FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh Chassis (2) | 86Trucks FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh?

Key specs of FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh: Drive: 6x4; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh suited for?

FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh differ from other variants in the same series?

FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh belongs to FAW Jiefang Qingdao JH6 heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JH6 6X4(10 wheels) Electric Tractor Truck CATL 400kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
