SHACMAN Commercial Vehicle Xuande Yi3L Intercity Edition 490hp 6X4(10 wheels) tractor truck (China VI)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3375+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 11.8L
Drive 6X4 (10 wheels)
Horsepower 490
Emission China VI
Transmission Fast Gear

Overview

The SHACMAN Commercial Vehicle Xuande Yi3L Intercity Edition 490hp 6X4(10 wheels) tractor truck (China VI) is a Heavy truck featuring 6X4 (10 wheels) drive, 490 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a FotonX12NS6B490 engine, Fast Gear transmission and Diesel fuel.

China VI 490 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4250XP6334
Drive type: 6X4
Wheelbase: 3375+1350mm
engine: FotonX12NS6B490
transmission: Fast GearF12JZ24A+FHB400
Rear Axle Ratio: 3.7
Cab length: 7m
Cab width: 2.55m
Cab height: 3.78m
Front track width: 2090mm
rear track: 1860/1860mm
Gross Trailer Weight: 40ton
Curb Weight: 8.3ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Baoji, Shaanxi
tonnage class: Heavy truck
Version: Intercity Version
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonX12NS6B490
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.8L
Emission standard: China VI
Max output power: 360kW
Max hp: 490Horsepower
Max torque: 2300N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast GearF12JZ24A
Transmission Brand: Fast Gear
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1100L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
Cab width: 2465mm
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: HDZ5.5T/maintenance-free
Front axle allowable load: 7000kg
Frame Dimensions: 270/8 single-layermm
rear axle description: HDZ11.5T/maintenance-free
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 2/3
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
lighting configuration
LED headlight:
Multimedia features
Center Console Color Screen:
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):

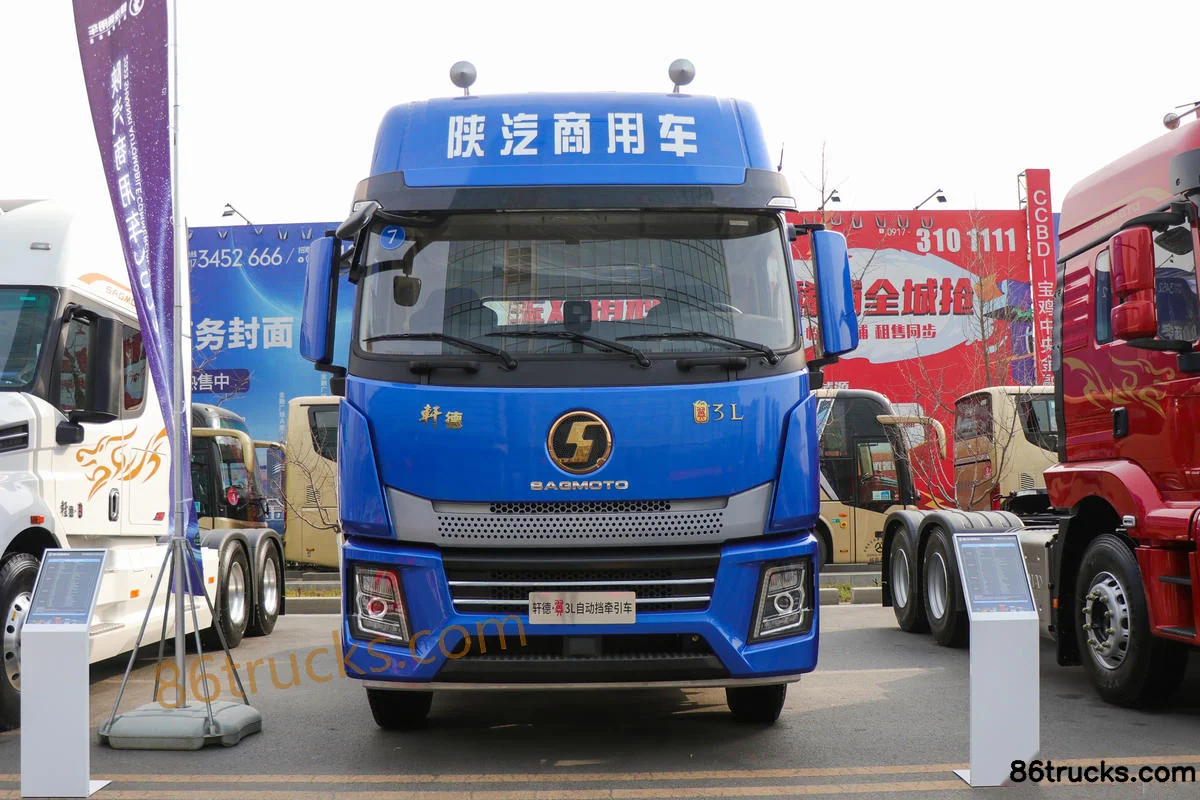

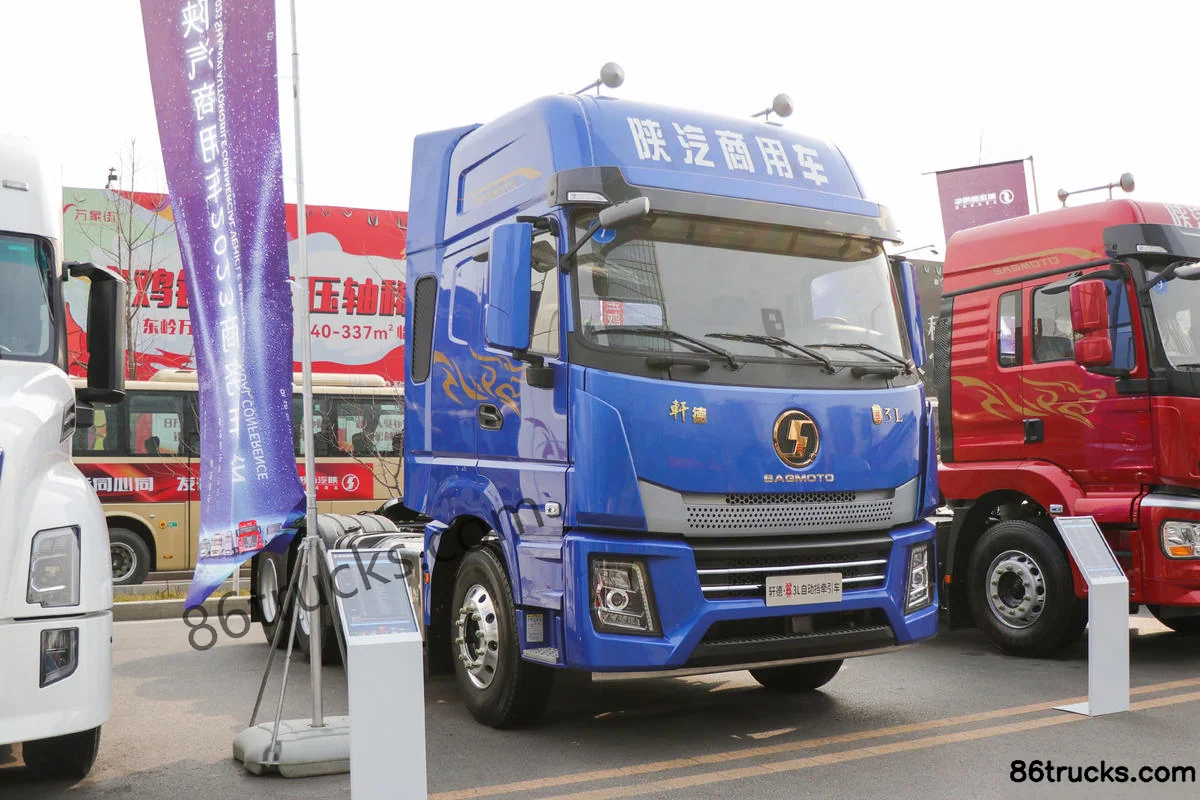

Photos

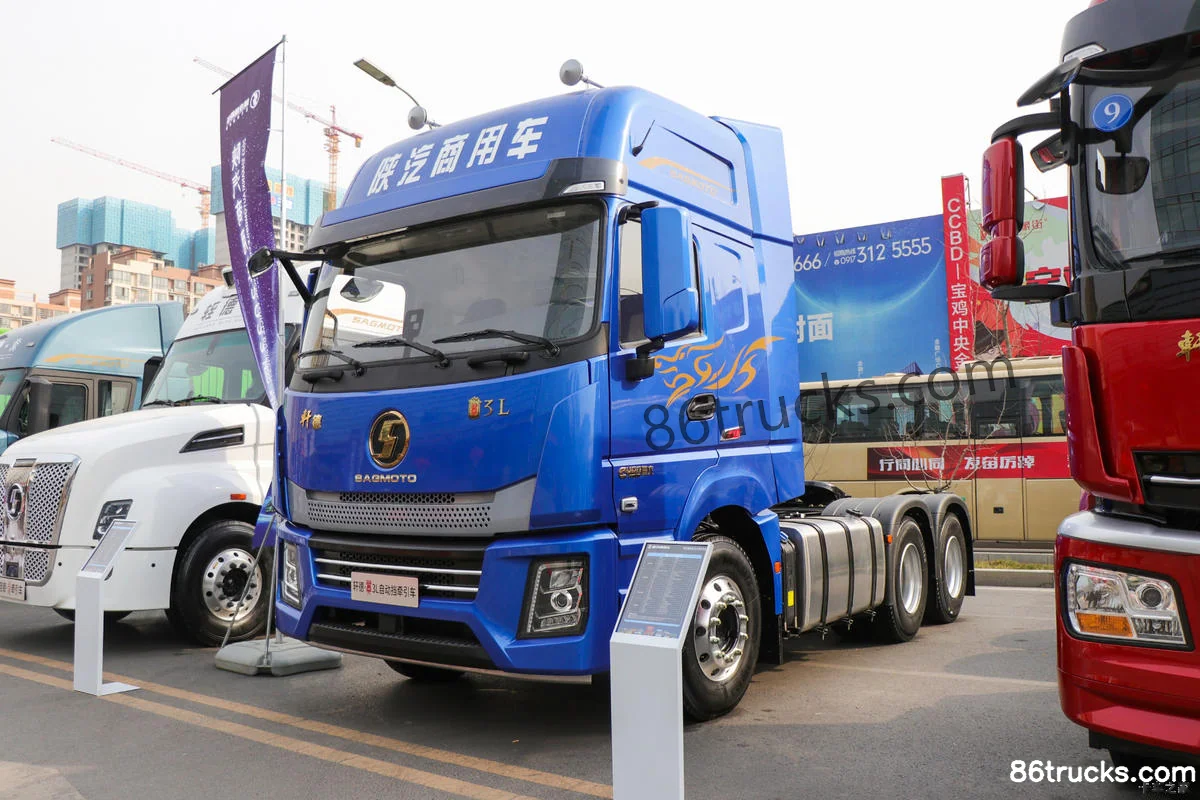

Exterior3

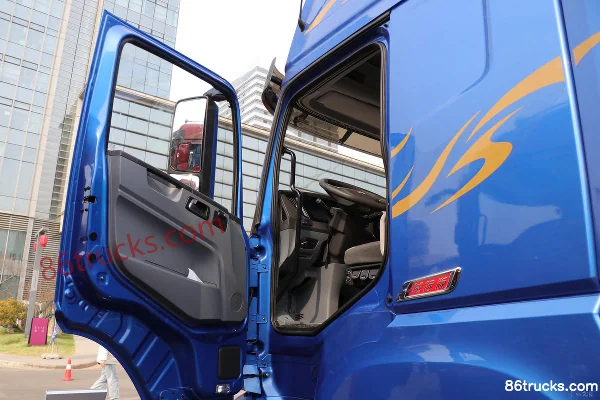

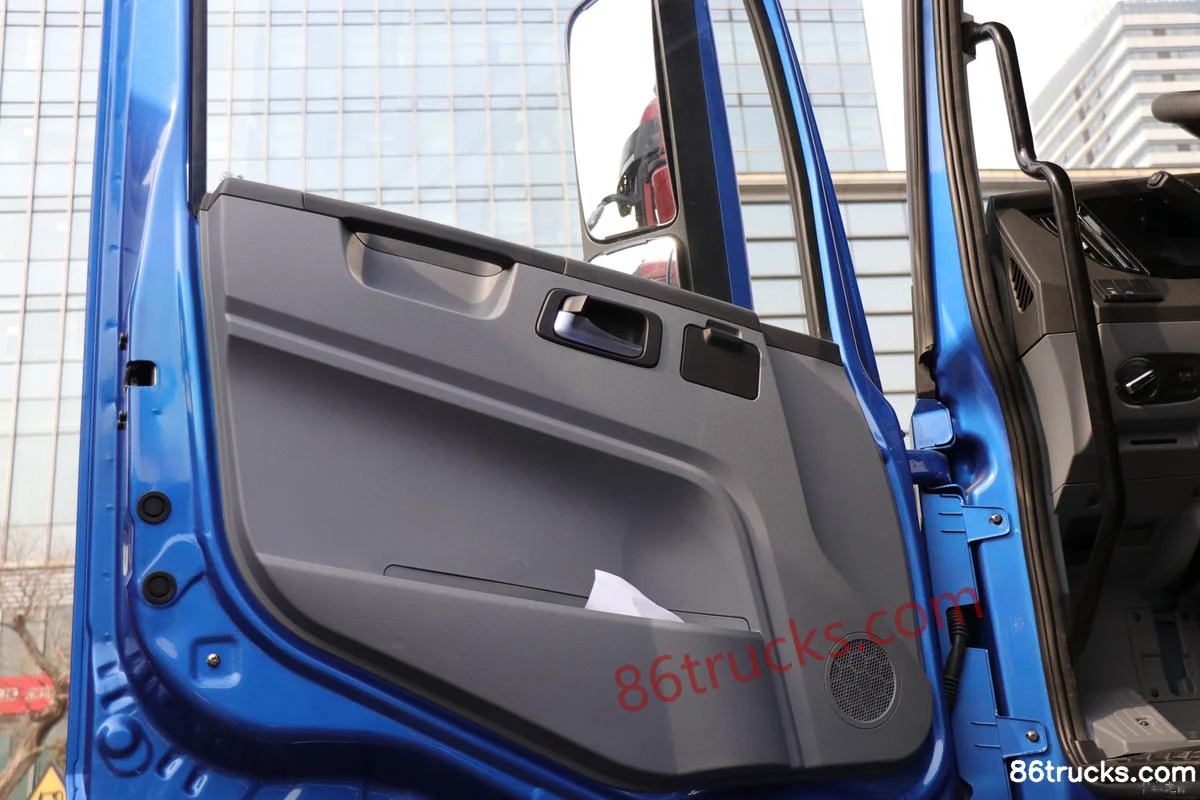

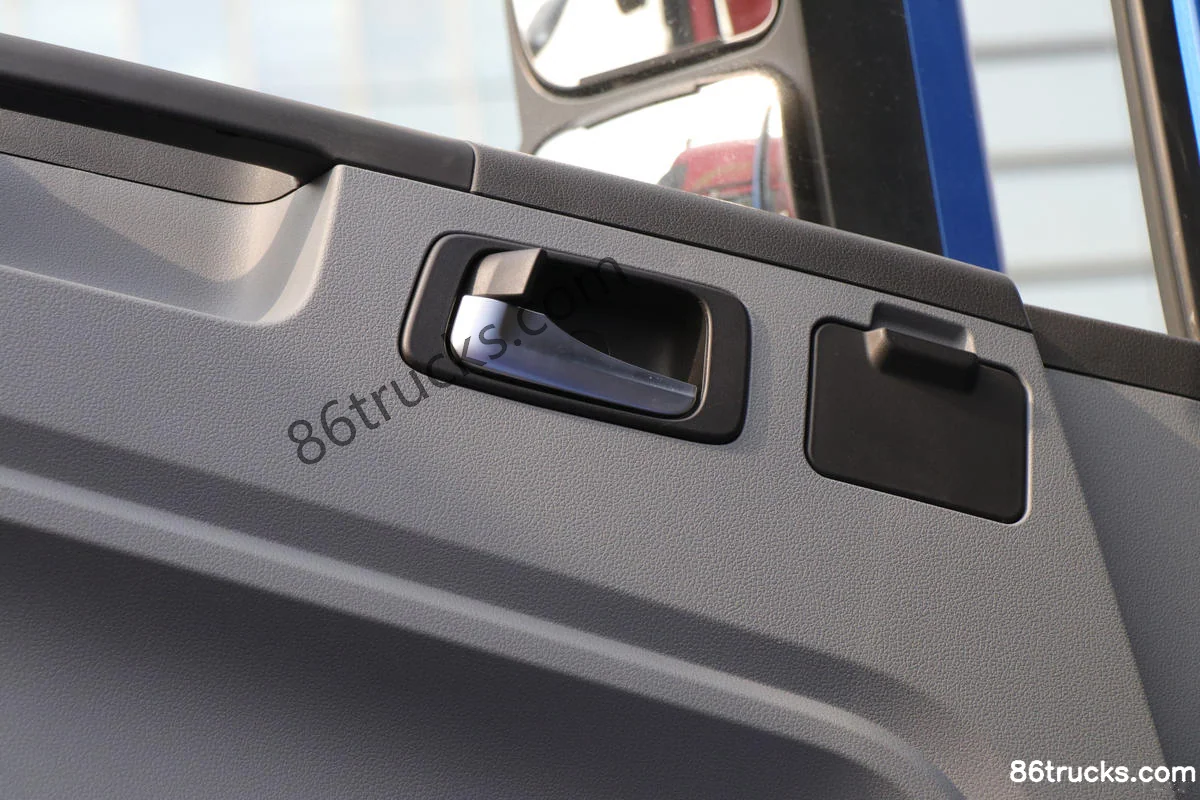

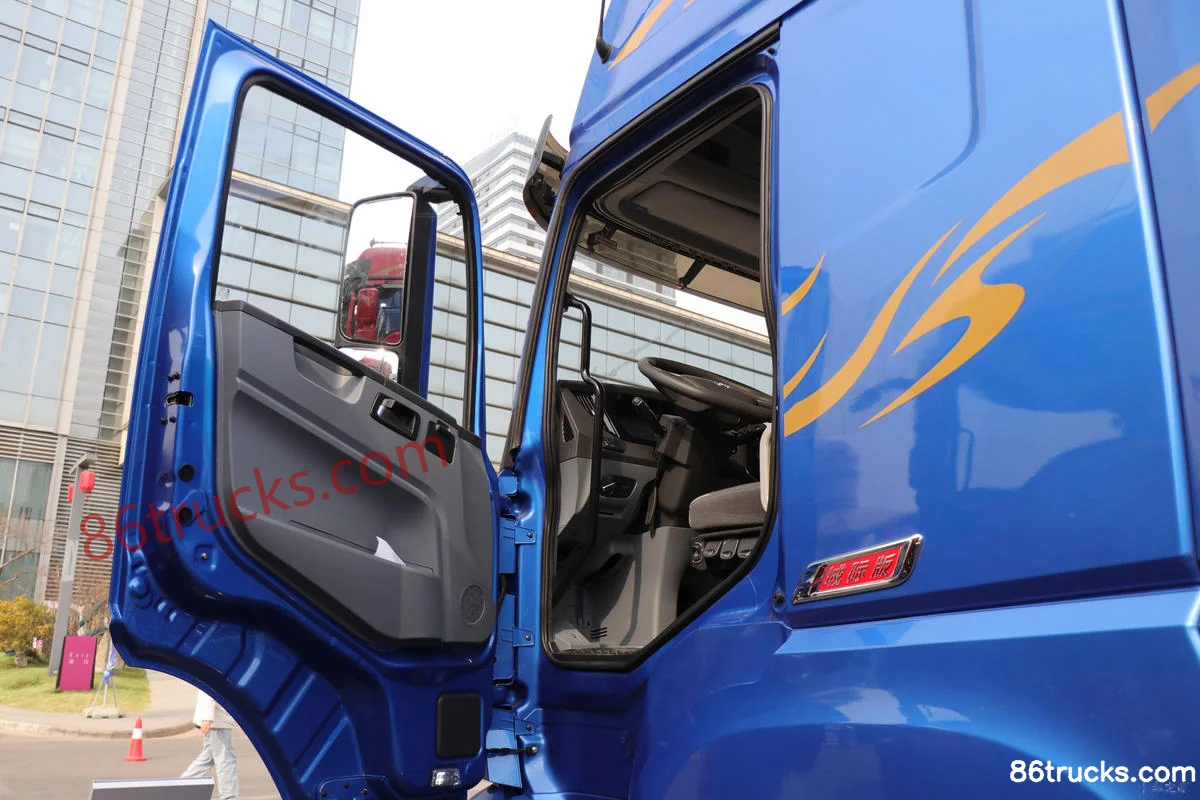

Cab3

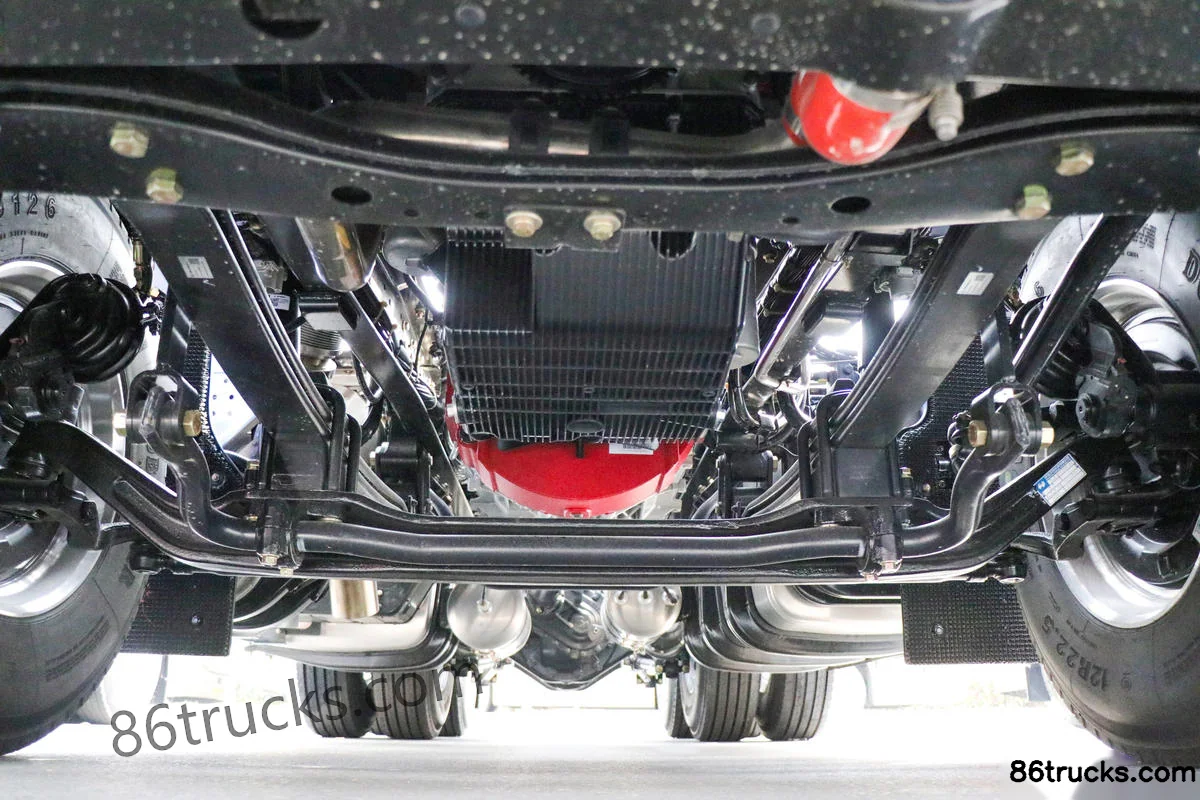

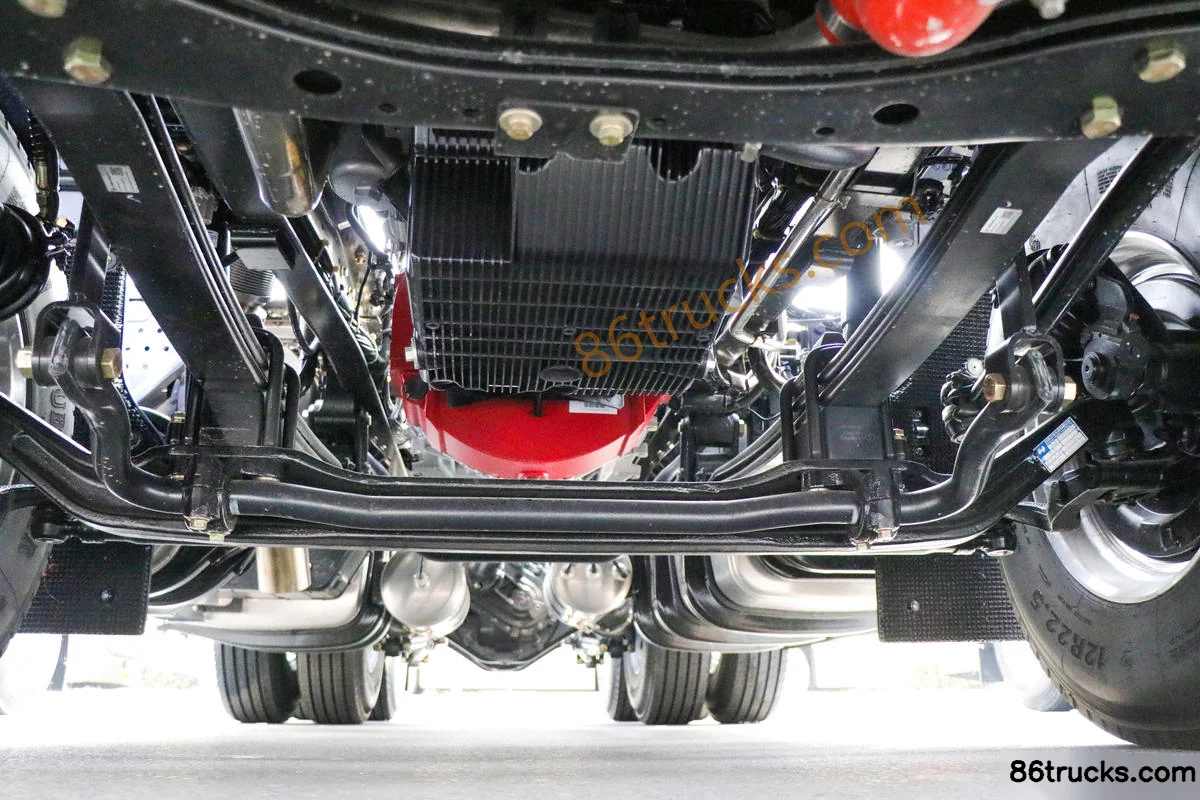

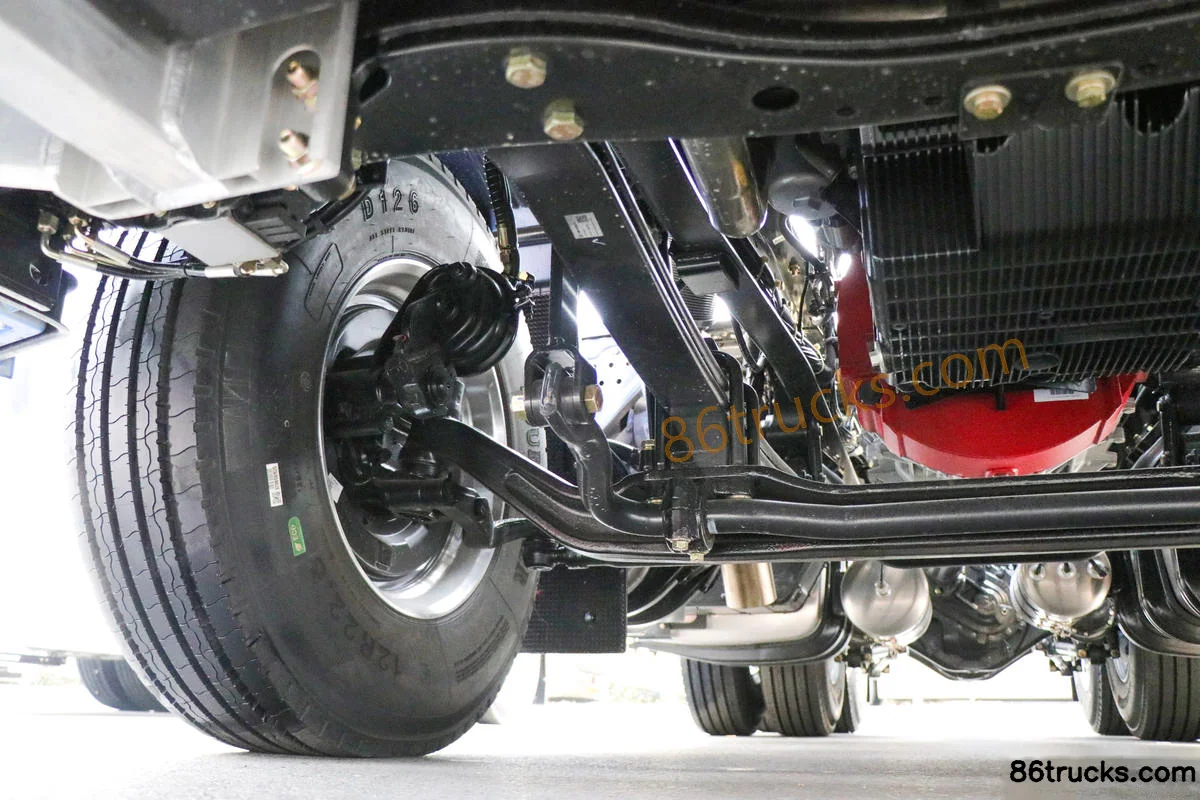

Chassis3

9 photos

FAQ

What emission standard does SHACMAN Commercial Vehicle Xuande Yi3L Intercity Edition 490hp 6X4(10 wheels) tractor truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande Yi3L Intercity Edition 490hp 6X4(10 wheels) tractor truck (China VI)?

Key specs of SHACMAN Commercial Vehicle Xuande Yi3L Intercity Edition 490hp 6X4(10 wheels) tractor truck (China VI): Drive: 6x4; Horsepower: 490 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande Yi3L Intercity Edition 490hp 6X4(10 wheels) tractor truck (China VI) suited for?

SHACMAN Commercial Vehicle Xuande Yi3L Intercity Edition 490hp 6X4(10 wheels) tractor truck (China VI) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Commercial Vehicle Xuande Yi3L Intercity Edition 490hp 6X4(10 wheels) tractor truck (China VI) differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande Yi3L Intercity Edition 490hp 6X4(10 wheels) tractor truck (China VI) belongs to SHACMAN Commercial Vehicle Xuande Yi 3L (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande Yi3L Intercity Edition 490hp 6X4(10 wheels) tractor truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande Yi3L Intercity Edition 490hp 6X4(10 wheels) tractor truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
