JMC E-Luda Max Wide Body Air Brake 4.2m Single Row Pure Electric Van Light Truck CATL 100.07kWh 4X2(6 wheels)

Export reference
From $28,569
MSRP ¥20.57M CNY
Rated payload:: 0.75ton
Wheelbase:: 3600mm
Cargo box type:: Van body
Model code (announced):: JX5049XXYT0A2BEV
Type:: enclosed cargo truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Bosch
Curb Weight: 3.55ton

Overview

The JMC E-Luda Max Wide Body Air Brake 4.2m Single Row Pure Electric Van Light Truck CATL 100.07kWh 4X2(6 wheels) is a Light Truck featuring CATL battery/range, Bosch motor, 4X2 (6 wheels) drive and 0.75t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5049XXYT0A2BEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3600mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.18m
Cab height: 3.16m
Curb Weight: 3.55ton
Rated payload: 0.75ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Version: Max
Energy Type: Electric
electric motor
Motor 1 Brand: Bosch
Motor 1 Model: TZ230XS003
Motor Type: Permanent magnet synchronous motor
total rated power: 110kW
Peak power: 200kW
total peak torque: 450N·m
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 100.07kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.2m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab: Wide body
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1930kg
rear axle allowable load: 2565kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Electric
Power Windows:
Power Mirrors:
Reverse Radar:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:

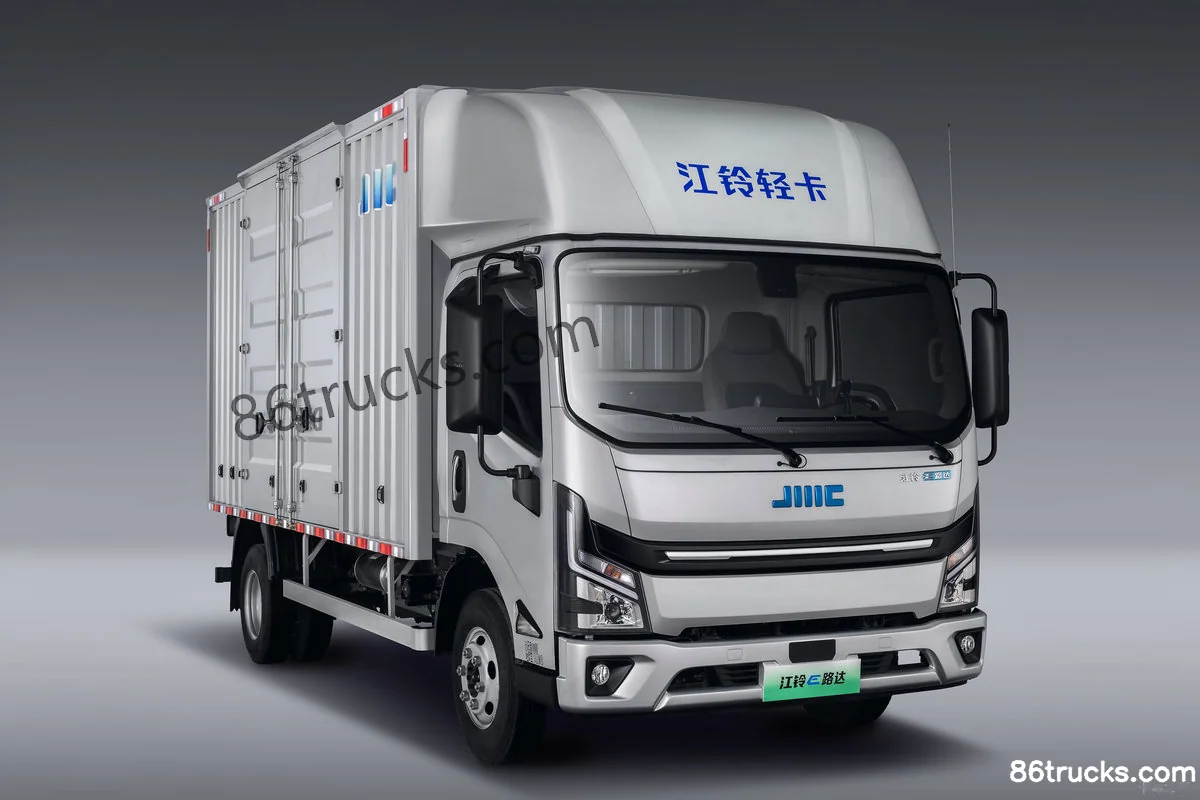

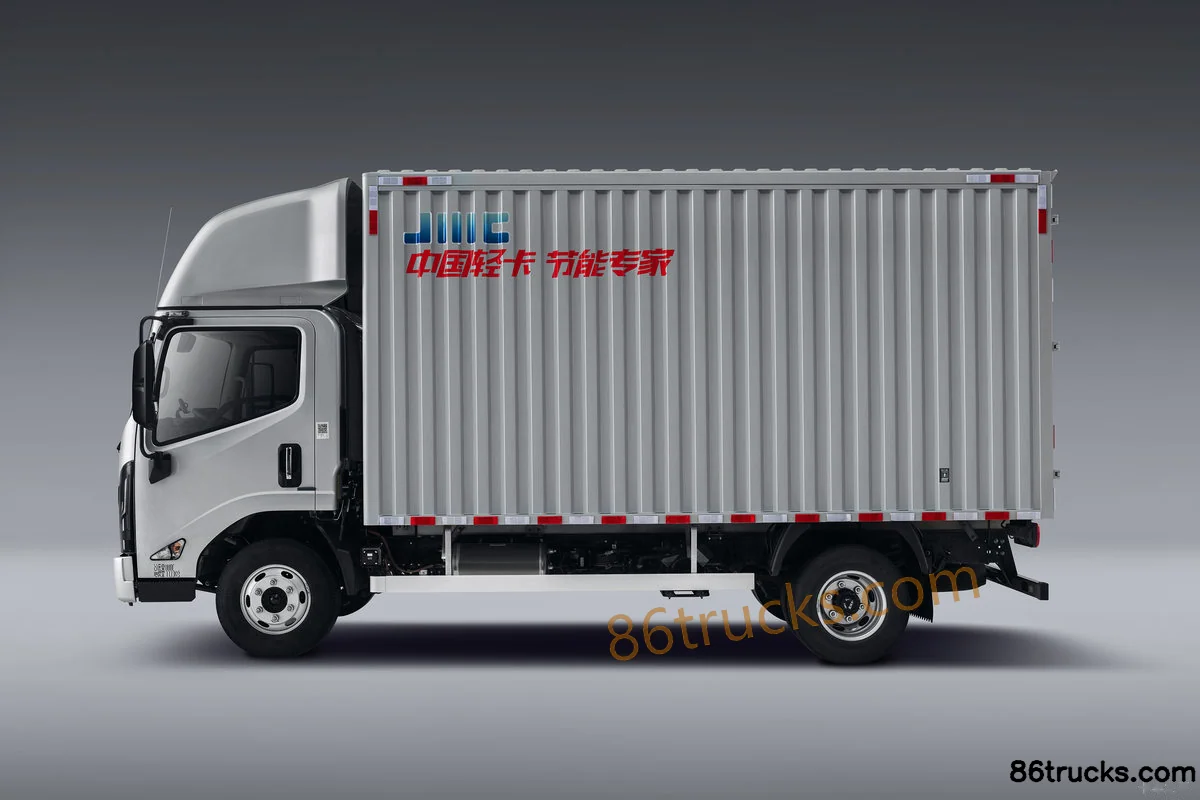

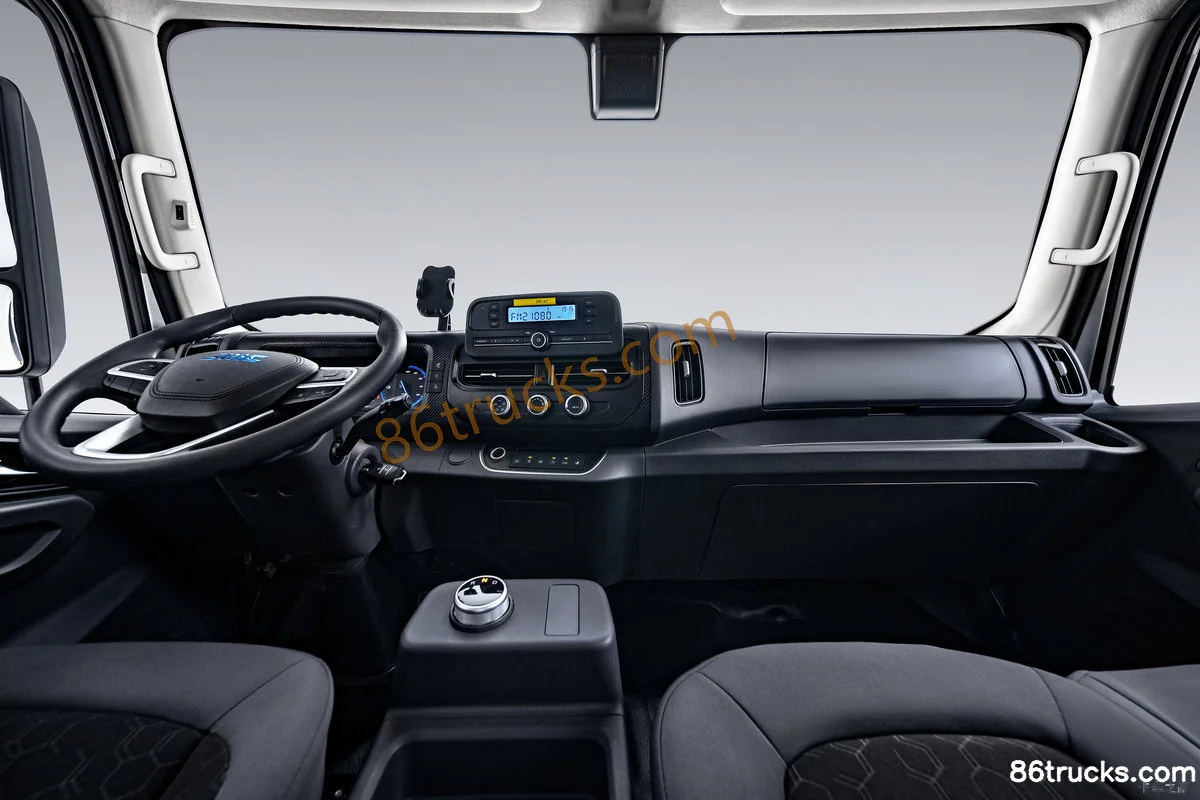

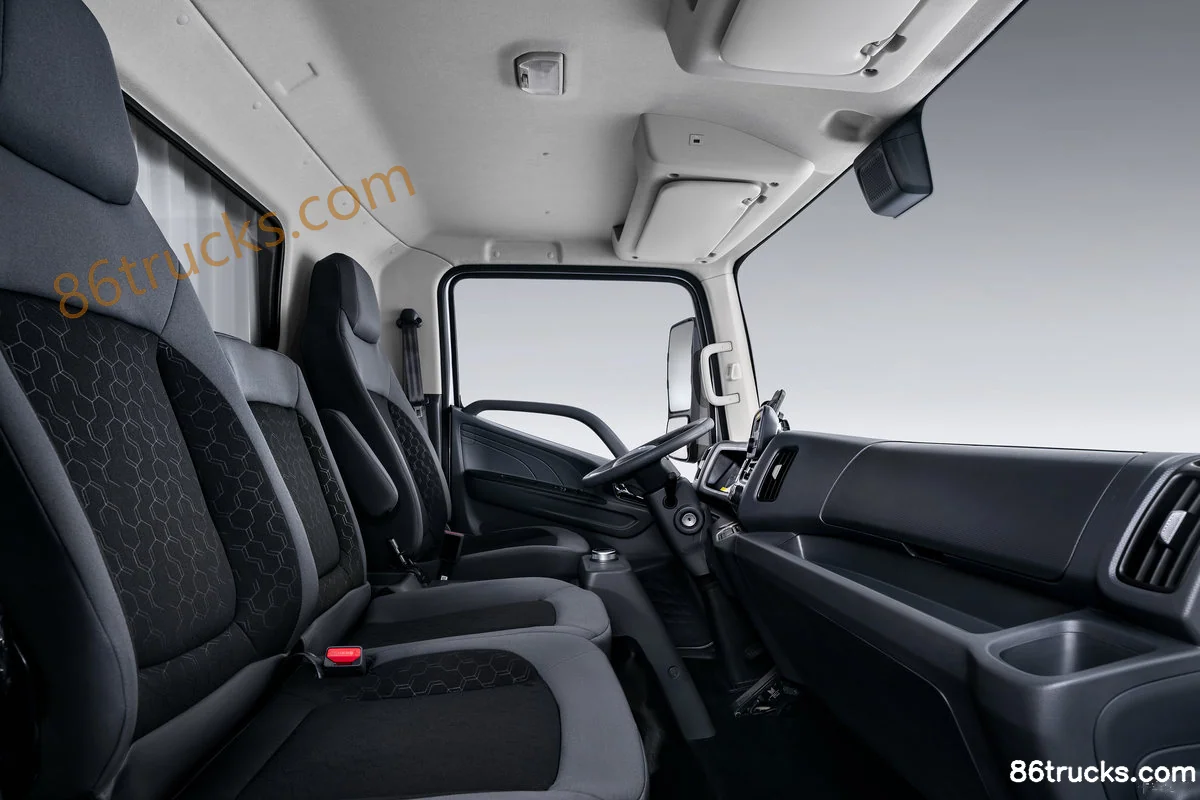

Photos

Exterior3

Cab2

5 photos

FAQ

What is the export price of JMC E-Luda Max Wide Body Air Brake 4.2m Single Row Pure Electric Van Light Truck CATL 100.07kWh 4X2(6 wheels), and what does it include?

JMC E-Luda Max Wide Body Air Brake 4.2m Single Row Pure Electric Van Light Truck CATL 100.07kWh 4X2(6 wheels) export reference is about From $28,569; MSRP is ¥20.57M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JMC E-Luda Max Wide Body Air Brake 4.2m Single Row Pure Electric Van Light Truck CATL 100.07kWh 4X2(6 wheels)?

Key specs of JMC E-Luda Max Wide Body Air Brake 4.2m Single Row Pure Electric Van Light Truck CATL 100.07kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC E-Luda Max Wide Body Air Brake 4.2m Single Row Pure Electric Van Light Truck CATL 100.07kWh 4X2(6 wheels) suited for?

JMC E-Luda Max Wide Body Air Brake 4.2m Single Row Pure Electric Van Light Truck CATL 100.07kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JMC E-Luda Max Wide Body Air Brake 4.2m Single Row Pure Electric Van Light Truck CATL 100.07kWh 4X2(6 wheels) differ from other variants in the same series?

JMC E-Luda Max Wide Body Air Brake 4.2m Single Row Pure Electric Van Light Truck CATL 100.07kWh 4X2(6 wheels) belongs to JMC E-Luda (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC E-Luda Max Wide Body Air Brake 4.2m Single Row Pure Electric Van Light Truck CATL 100.07kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC E-Luda Max Wide Body Air Brake 4.2m Single Row Pure Electric Van Light Truck CATL 100.07kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
