FAW Jiefang J6L 6X4(10 wheels) Pure Electric Tractor Truck 400.61kWh

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Wheelbase:: 3800+1350mm
Model code (announced):: CA4250P62T1BEVA9
Front/rear track width:: Front track: 2050mm; Rear track: 1830/1830mm
Cab length:: 7.335m
GVWR:: 25ton
Drive 6X4 (10 wheels)
CLTC range: 230km
Motor 1 Brand: Tebest
Gross Trailer Weight: 39.37ton

Overview

The FAW Jiefang J6L 6X4(10 wheels) Pure Electric Tractor Truck 400.61kWh is a Heavy truck featuring 230km battery/range, Tebest motor, 6X4 (10 wheels) drive and 7000kg payload.

6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4250P62T1BEVA9
Drive type: 6X4
Wheelbase: 3800+1350mm
Front/rear track width: Front track: 2050mm; Rear track: 1830/1830mm
Cab length: 7.335m
Cab width: 2.55m
Cab height: 3.13m
Gross Trailer Weight: 39.37ton
CLTC range: 230km
Curb Weight: 9.5ton
GVWR: 25ton
Max. speed: 89km/h
battery swap support: Charging
Origin: Qingdao, Changchun
tonnage class: Heavy truck
Remarks: Transmission CA4TA90EF (AMT, EZF680 spline output PTO)
Energy Type: Electric
electric motor
Motor 1 Brand: Tebest
Motor 1 Model: TZ220XSTPG73/TZ220XSTPG73
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 420kW
Motor 1 Peak Power: 210kW
Number of drive motors: Dual Motor
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 400.61kWh
Cab parameters
Cab: J6L high roof with sleeper
seating capacity: 2Personnel
Driver seat type: air suspension seat
Chassis Specs
Front axle description: F5N-2050 front axle
Fifth wheel: 50#
Front axle allowable load: 7000kg
rear axle description: Axle φ435 cast axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.875
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Exterior features
Aluminum air tank:
lighting configuration
Headlight height adjustment:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Disc brake
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
Tire Pressure Monitoring System (TPMS):

Photos

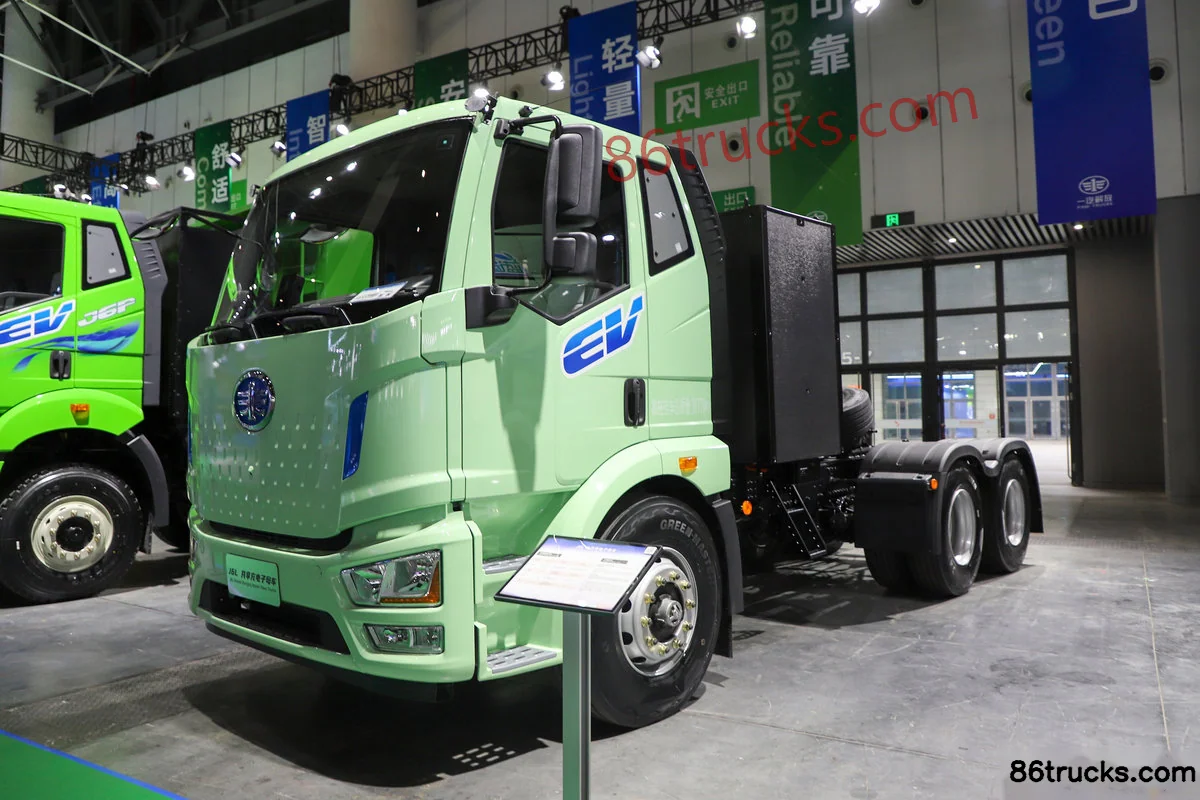

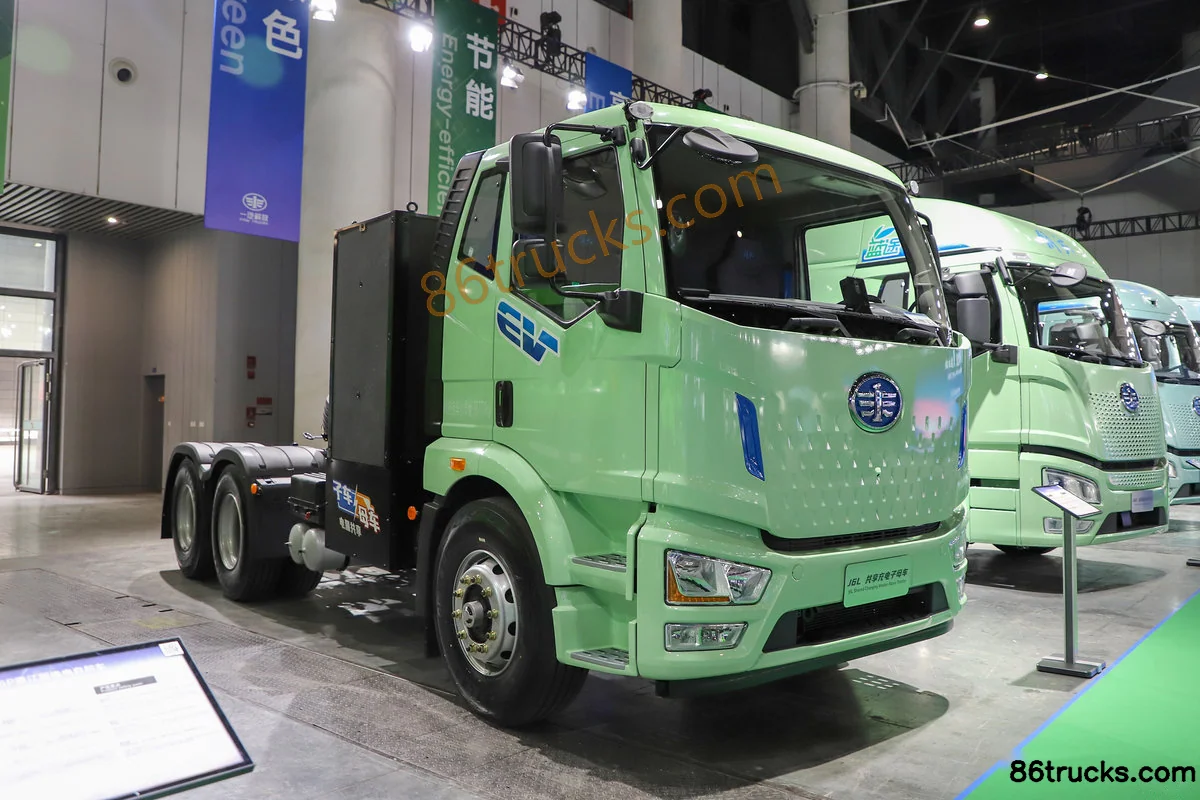

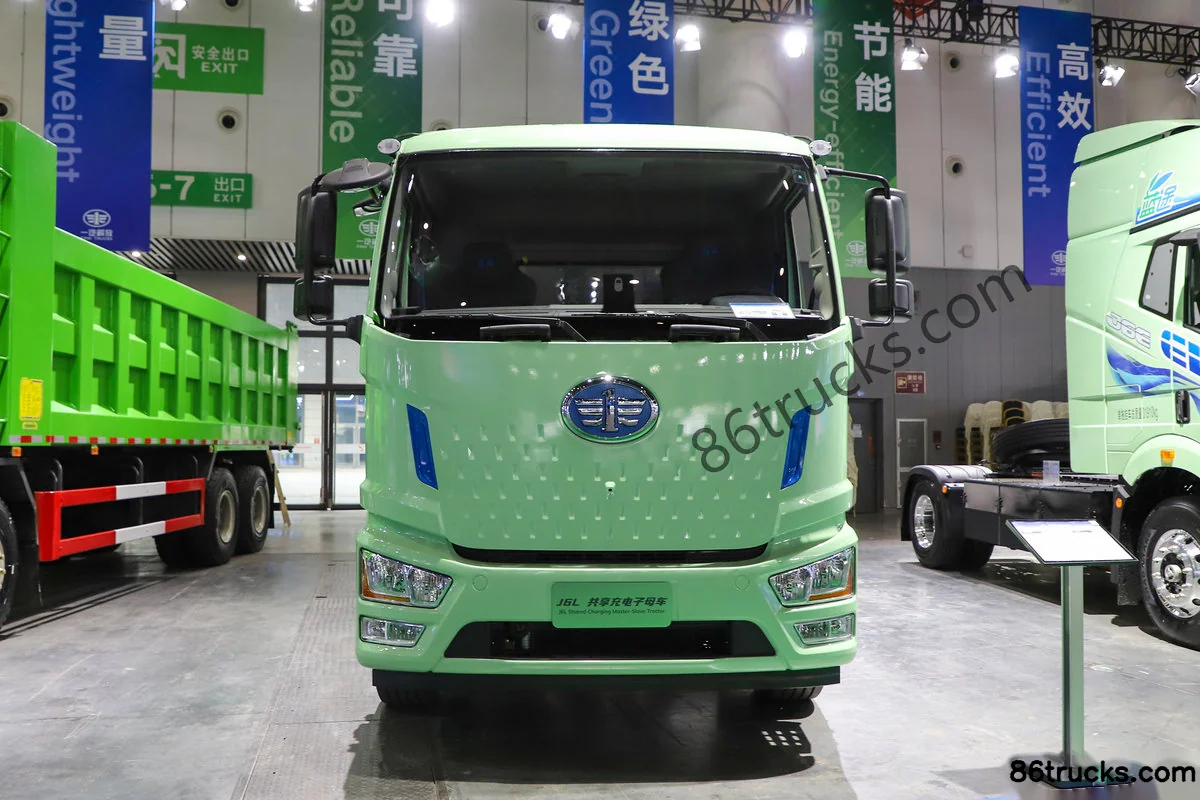

Exterior3

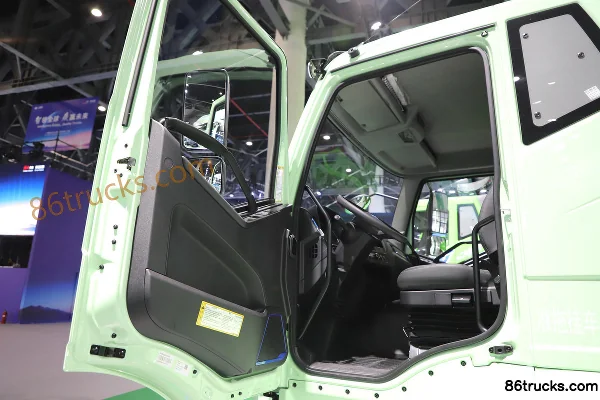

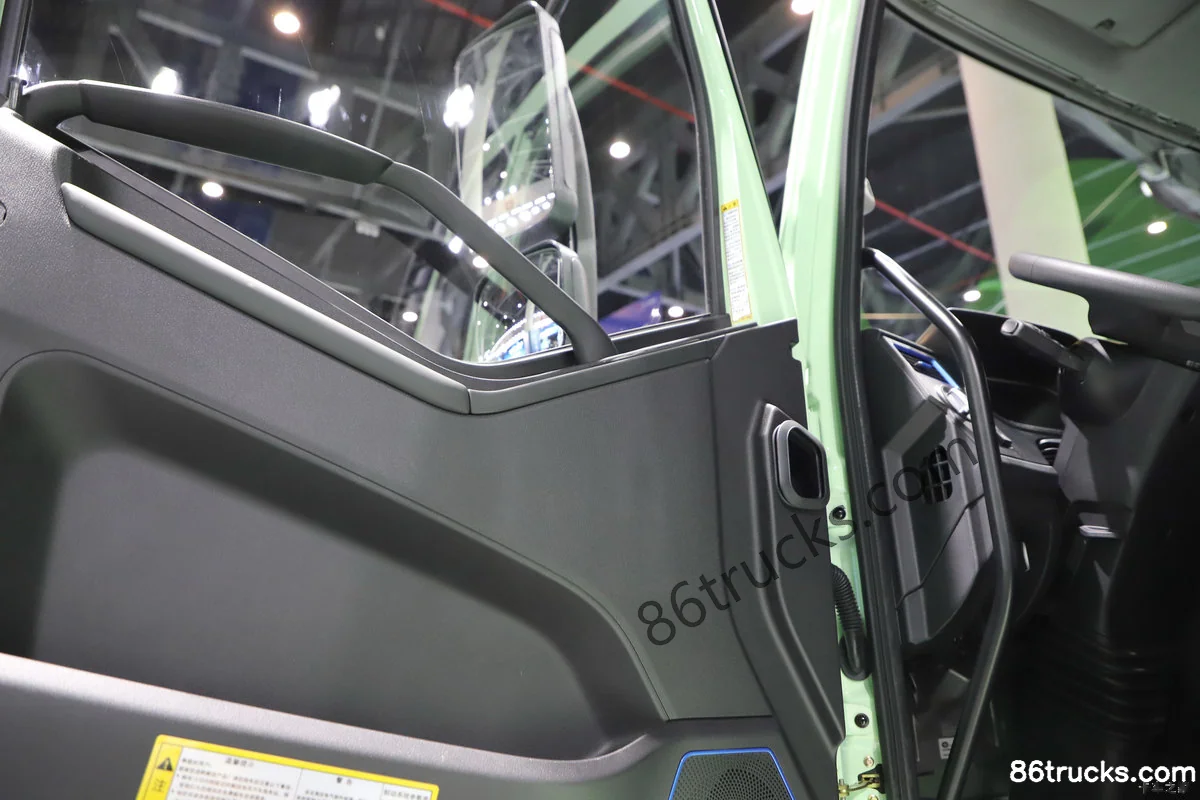

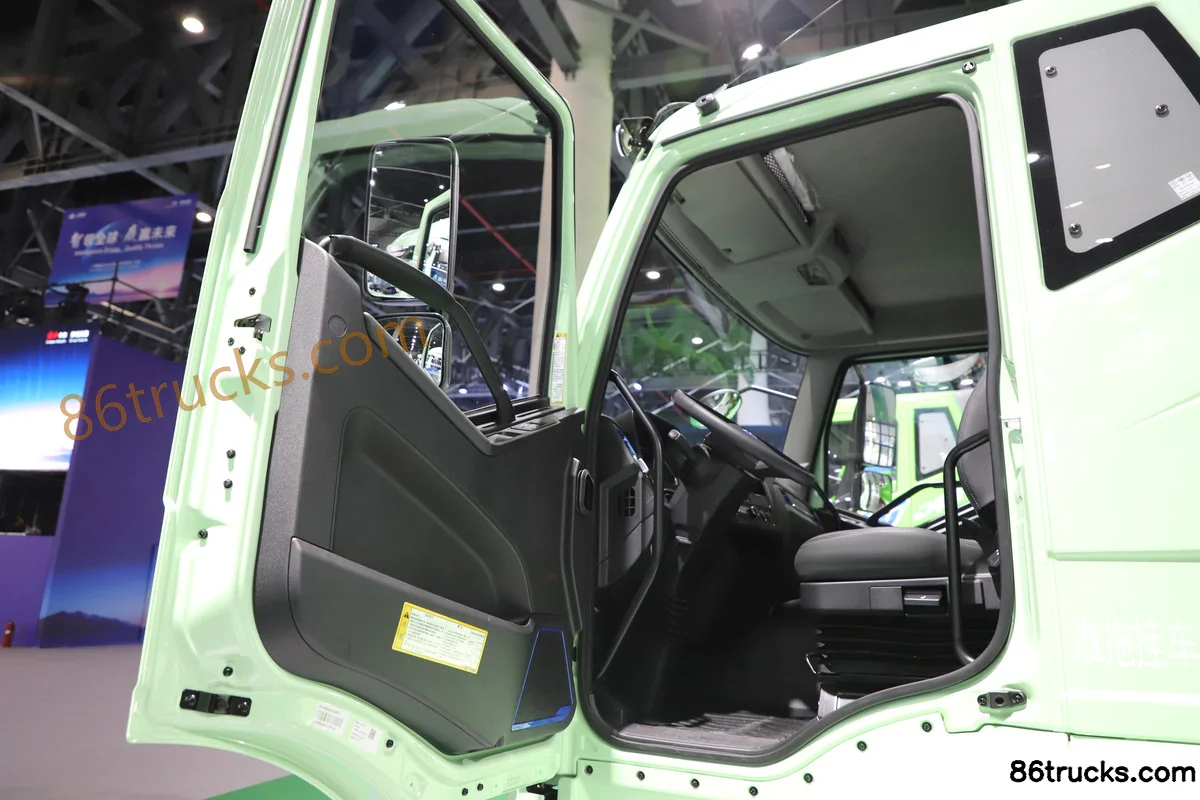

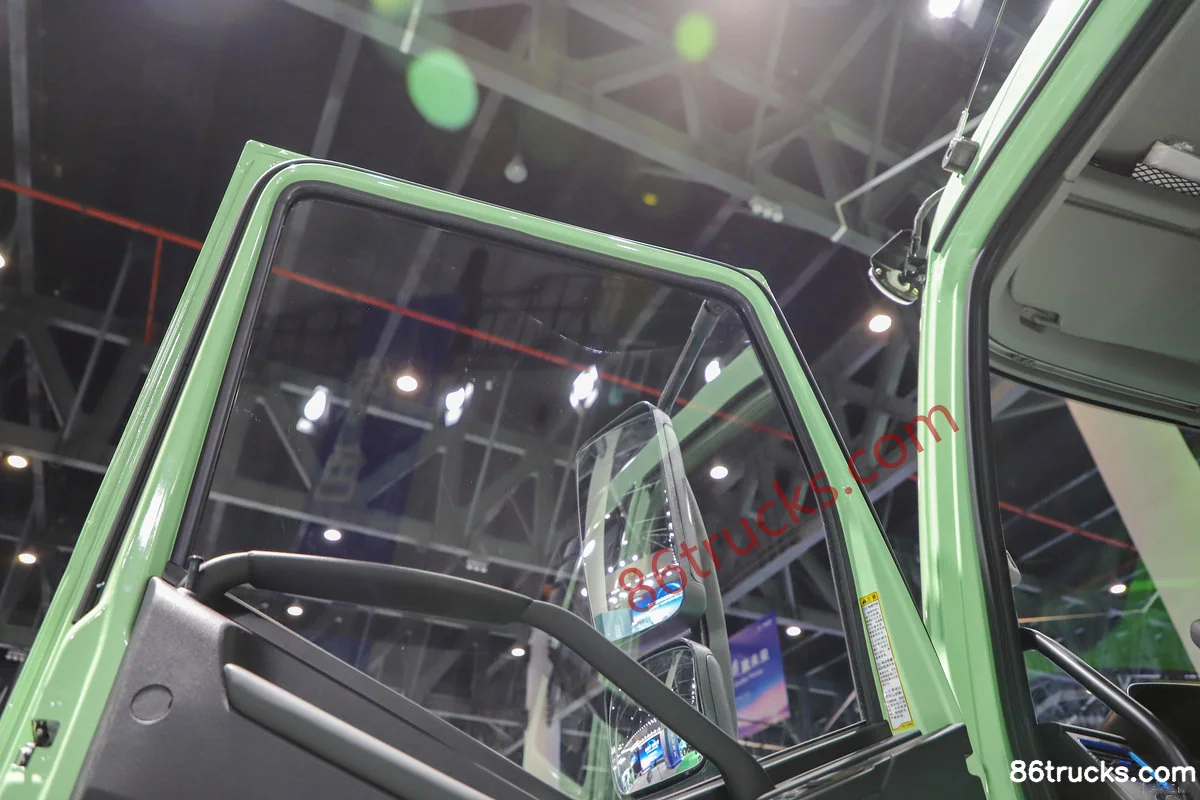

Cab3

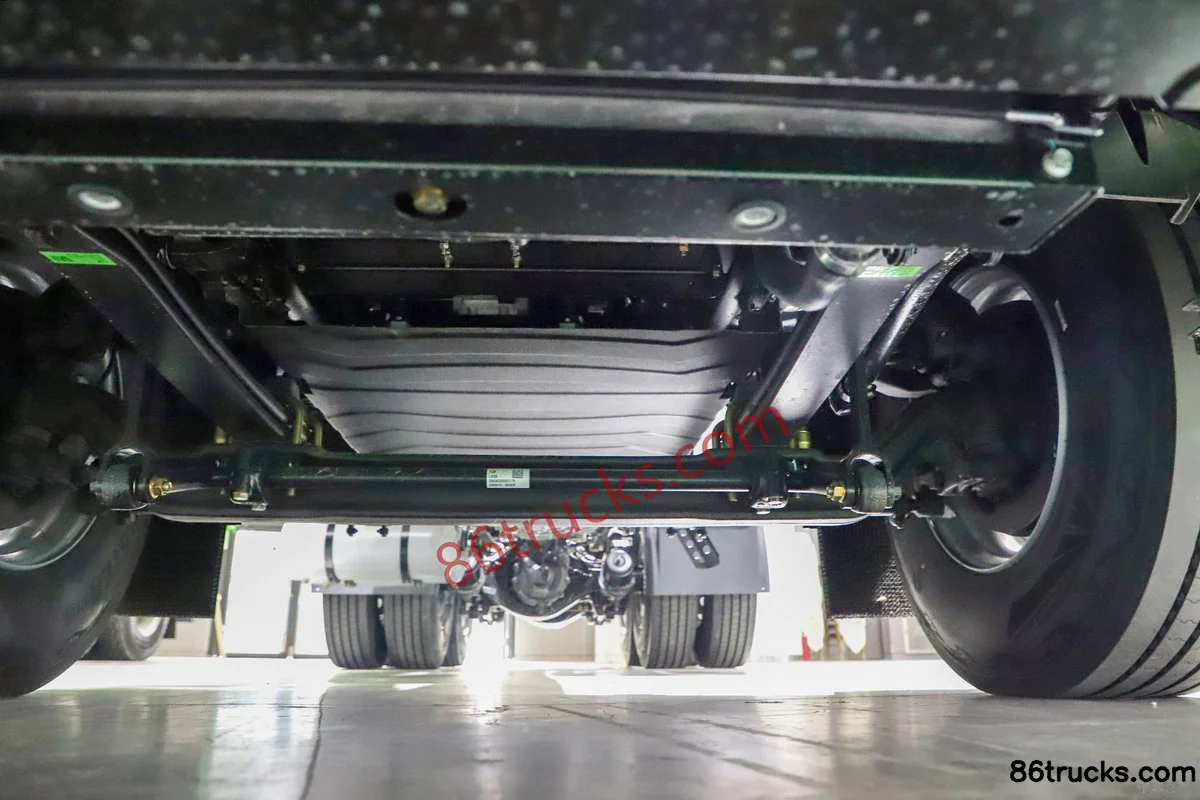

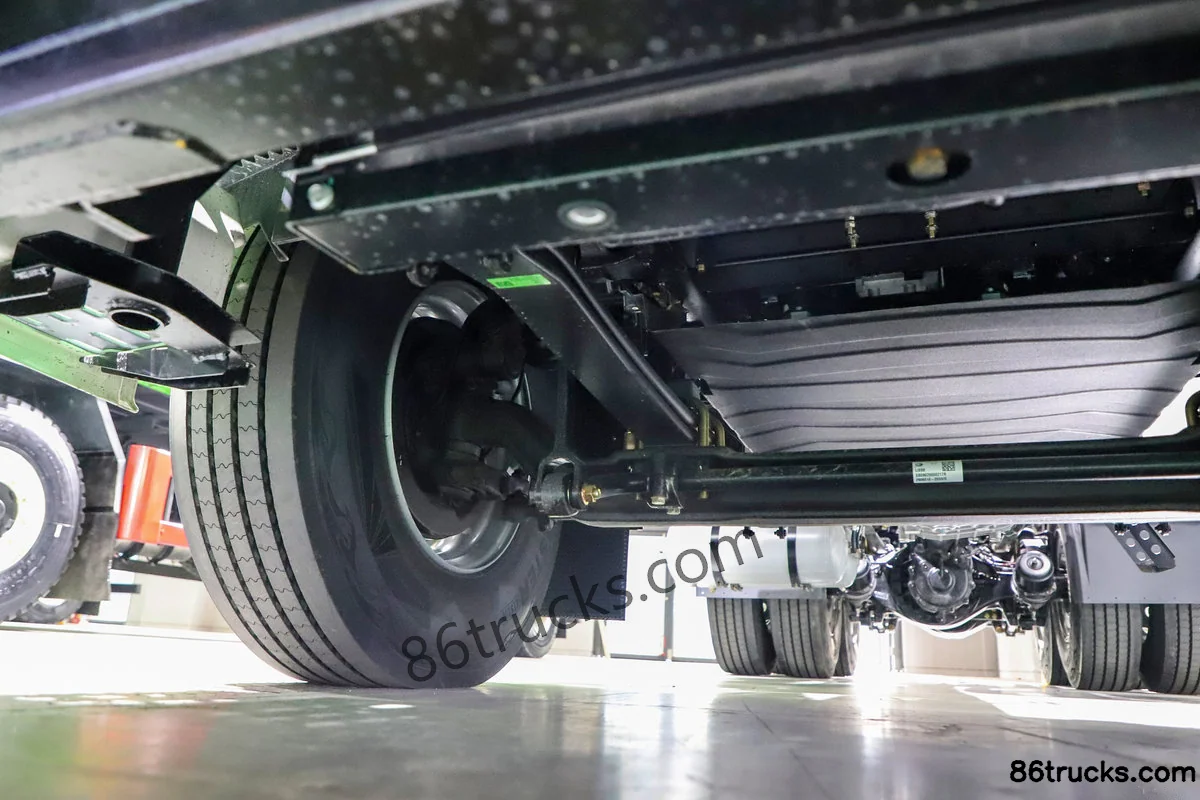

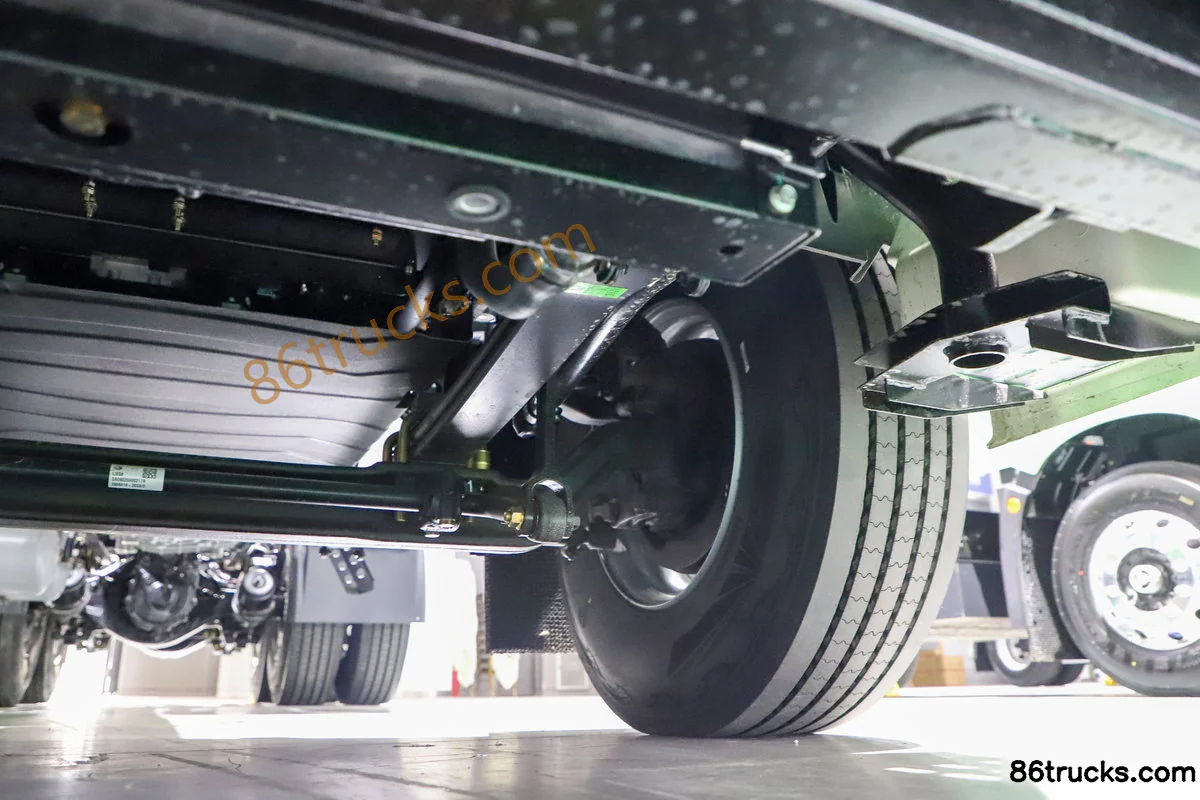

Chassis3

9 photos
