Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck

Export reference
From $16,250
MSRP ¥11.7M CNY
Emission: China III / Euro III
Fuel: Diesel
Curb Weight:: 6.835ton
Wheelbase:: 3650mm
Tire Size:: 9.00-20
Model code (announced):: EQ3142GD4AC
Rated payload: 7.31ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box length: 4.3m

Overview

The Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck is a Light Truck featuring 7.31t payload, 14.34t GVW, 4.3m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4D130-33 engine, 130 hp, China III / Euro III emissions and 653 rear auxiliary transmission.

China III / Euro III 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3142GD4AC
Drive type: 4X2
Wheelbase: 3650mm
engine: YuchaiYC4D130-33
transmission: 653 rear auxiliary
Rear Axle Ratio: 6.33
Cab length: 6.64m
Cab width: 2.49m
Cab height: 2.85m
Front track width: 1340mm
rear track: 1590mm
Curb Weight: 6.835ton
Rated payload: 7.31ton
GVWR: 14.34ton
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Approach angle: 30°
departure angle: 13°
Remarks: Dump type: rear dump; optional front grille lower cover, radiator grille, new bumper, new DFAC logo, with optional parts photos; when overall length is 6550mm, box length is 4200mm, rear overhang is 1560mm; when overall length is 6640mm, box length is 4300mm, rear overhang is 1650mm; guard material: Q235; connection: bolted; rear guard section dimensions (mm): 100×30; ground clearance: 475mm
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4D130-33
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214L
Emission standard: China III / Euro III
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 420N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection
Cargo box parameters
Cargo box length: 4.3m
Cargo box width: 2.3m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 180L
Chassis Specs
rear axle description: 153 shortened
Axle ratio: 6.33
Leaf spring count: 12/12+9
Tire
Tire Size: 9.00-20
Number of tires: 6pcs

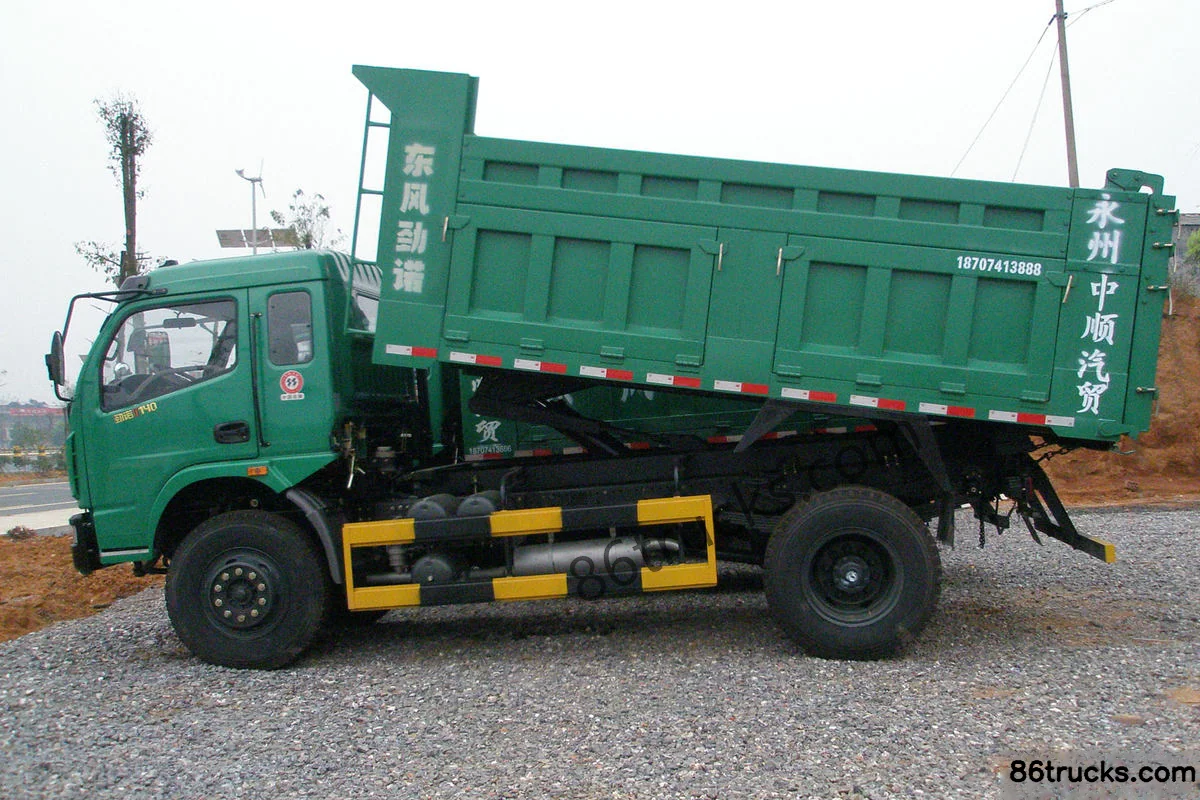

Photos

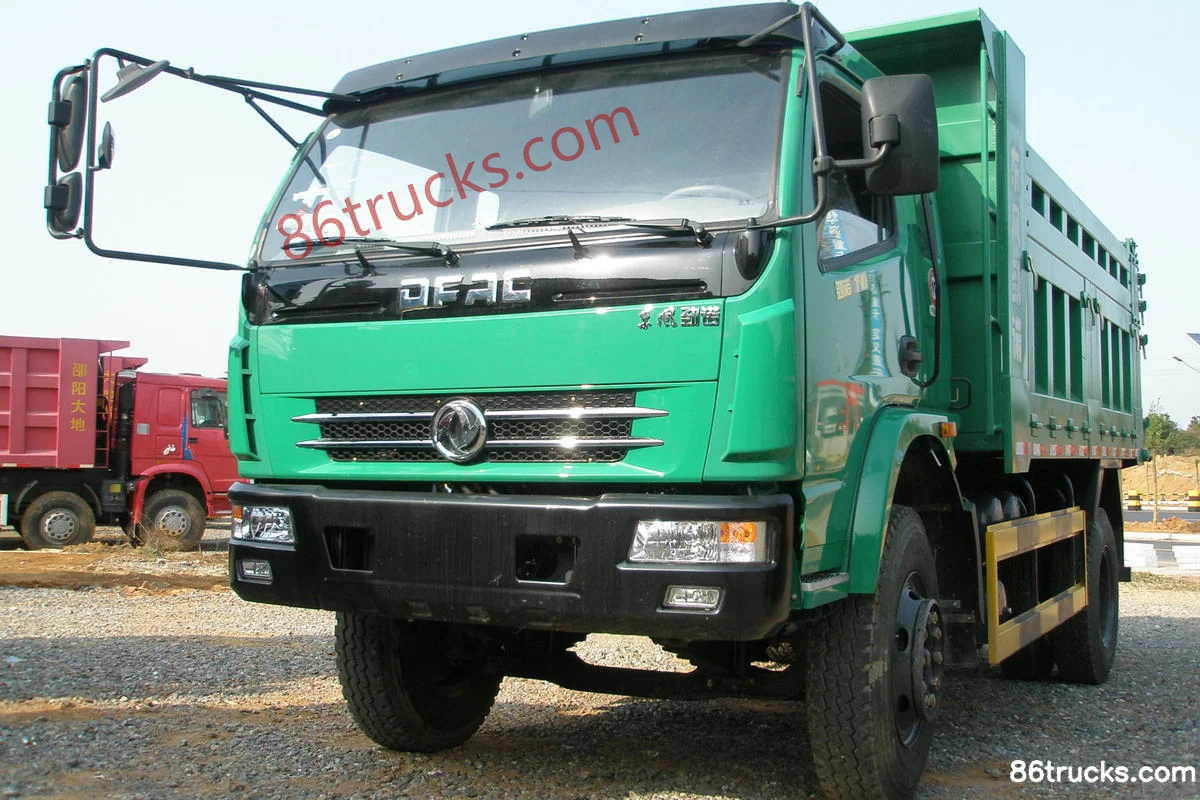

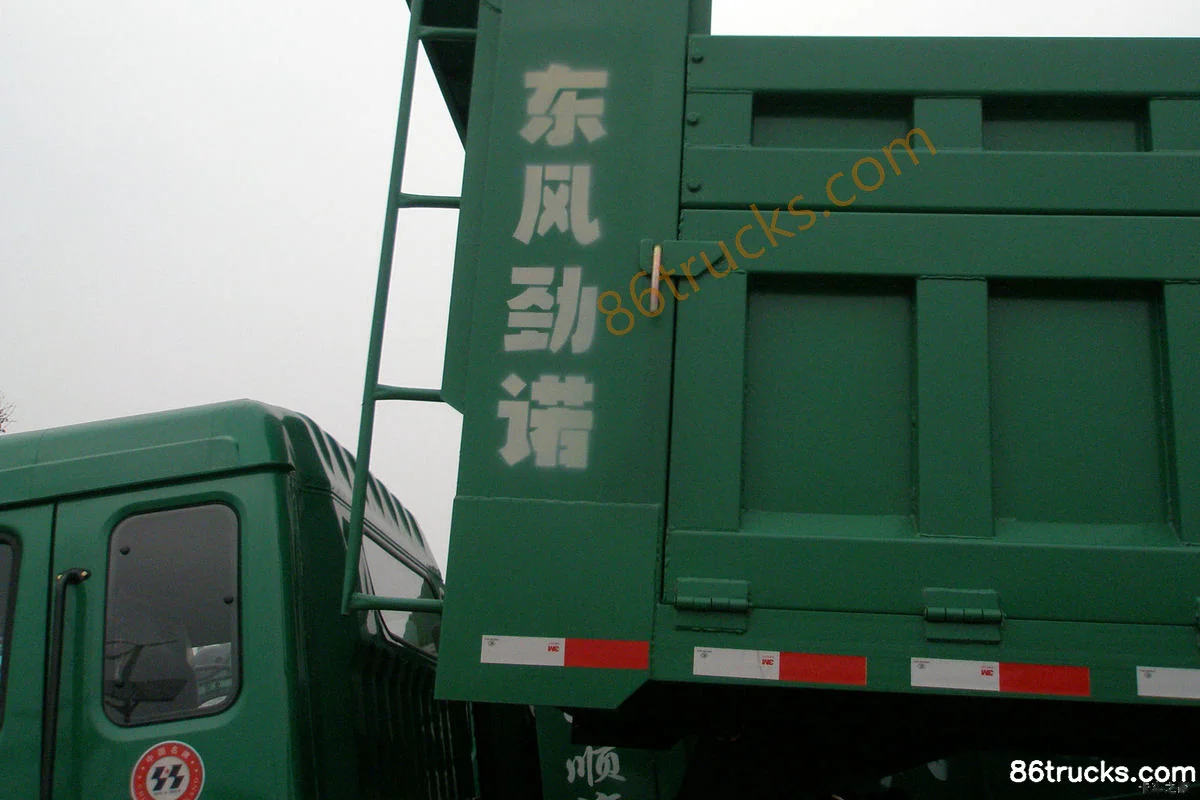

Exterior2

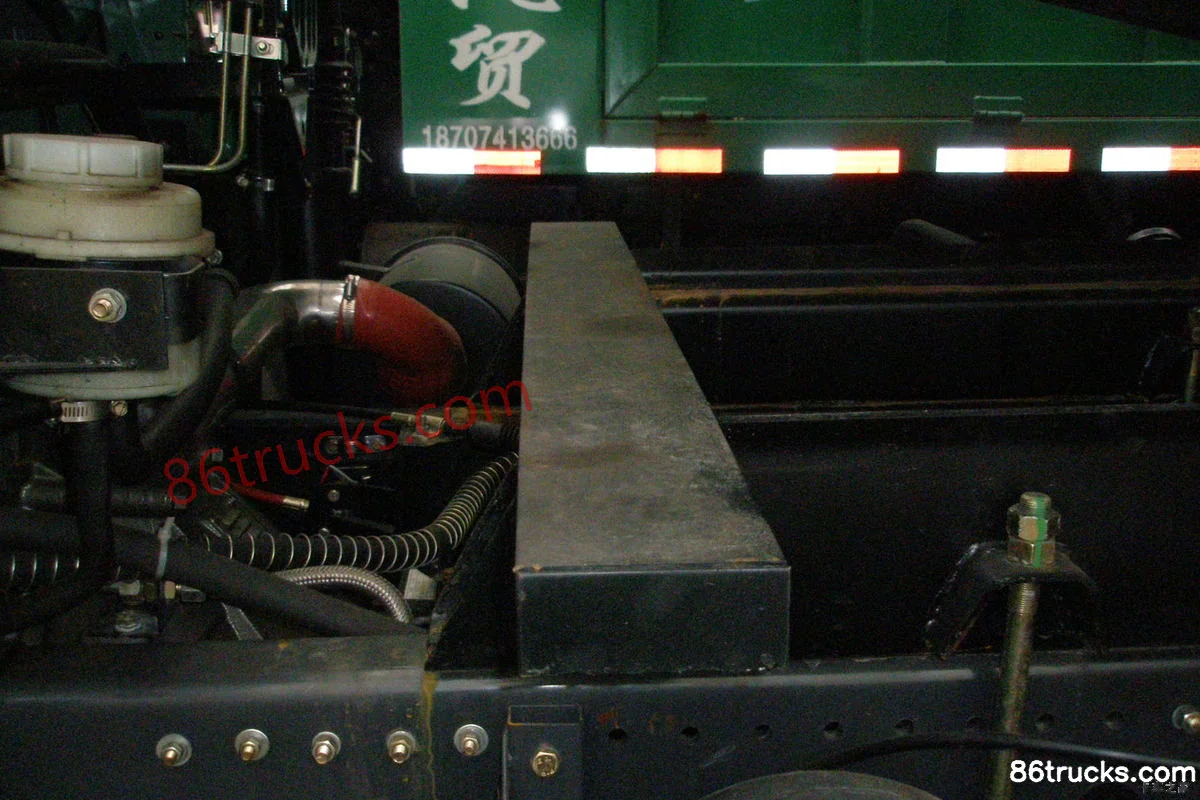

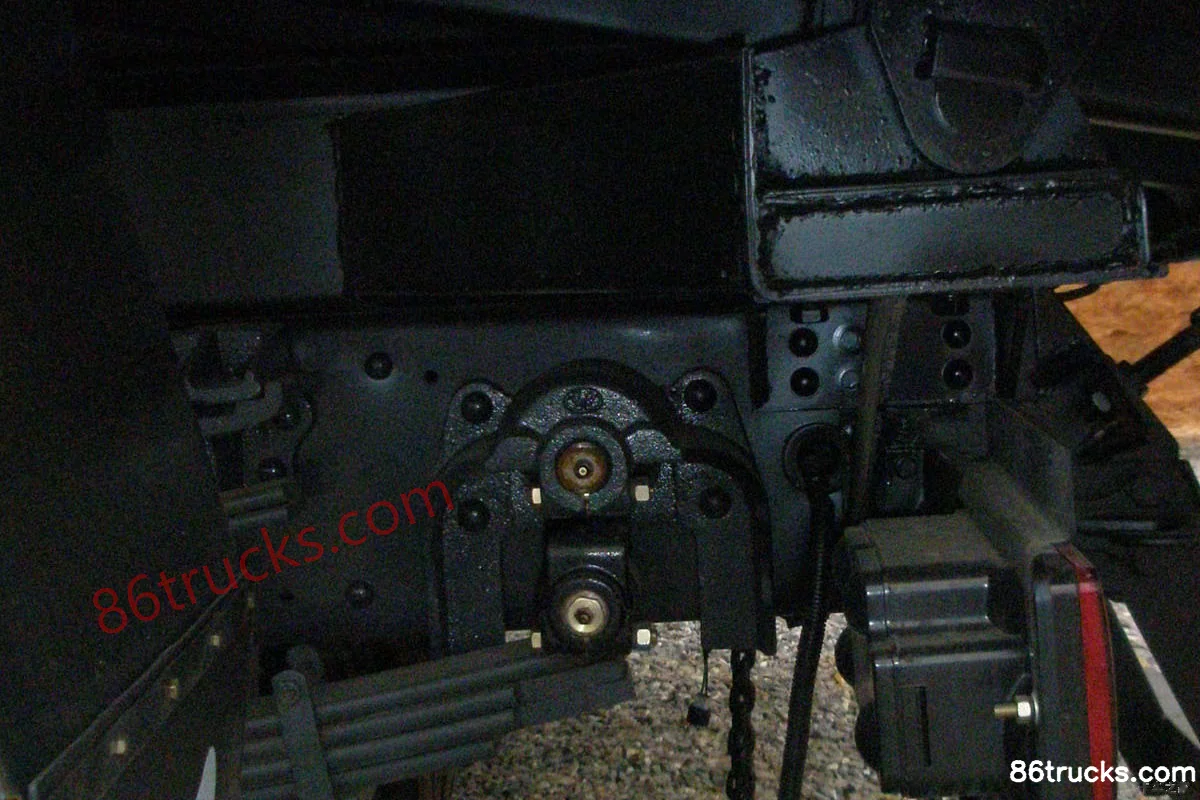

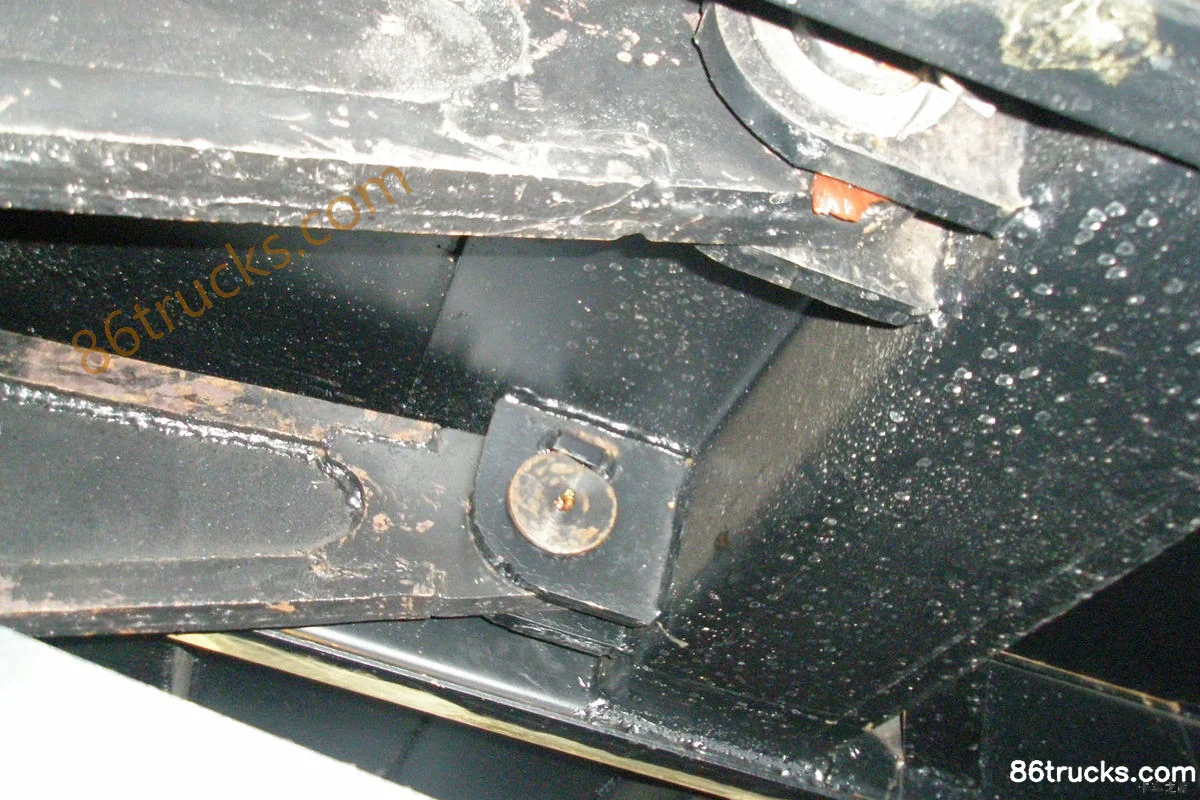

Chassis3

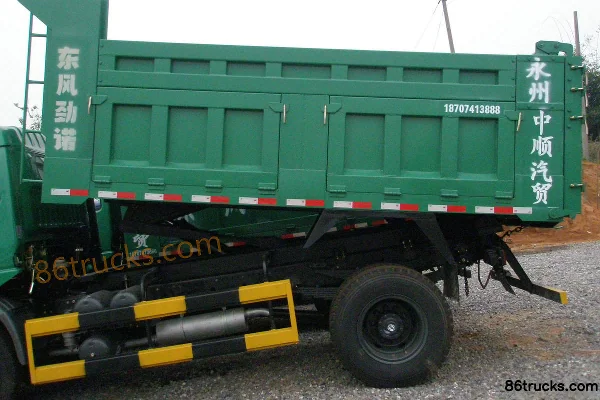

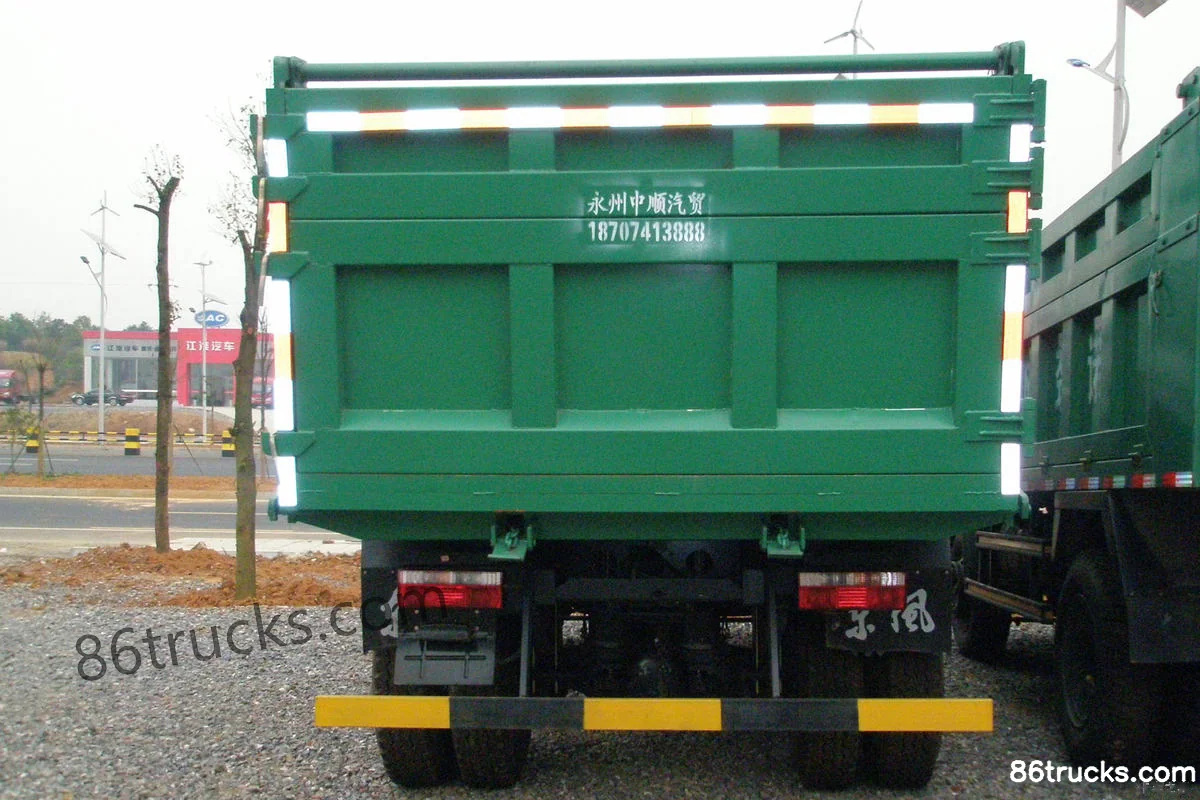

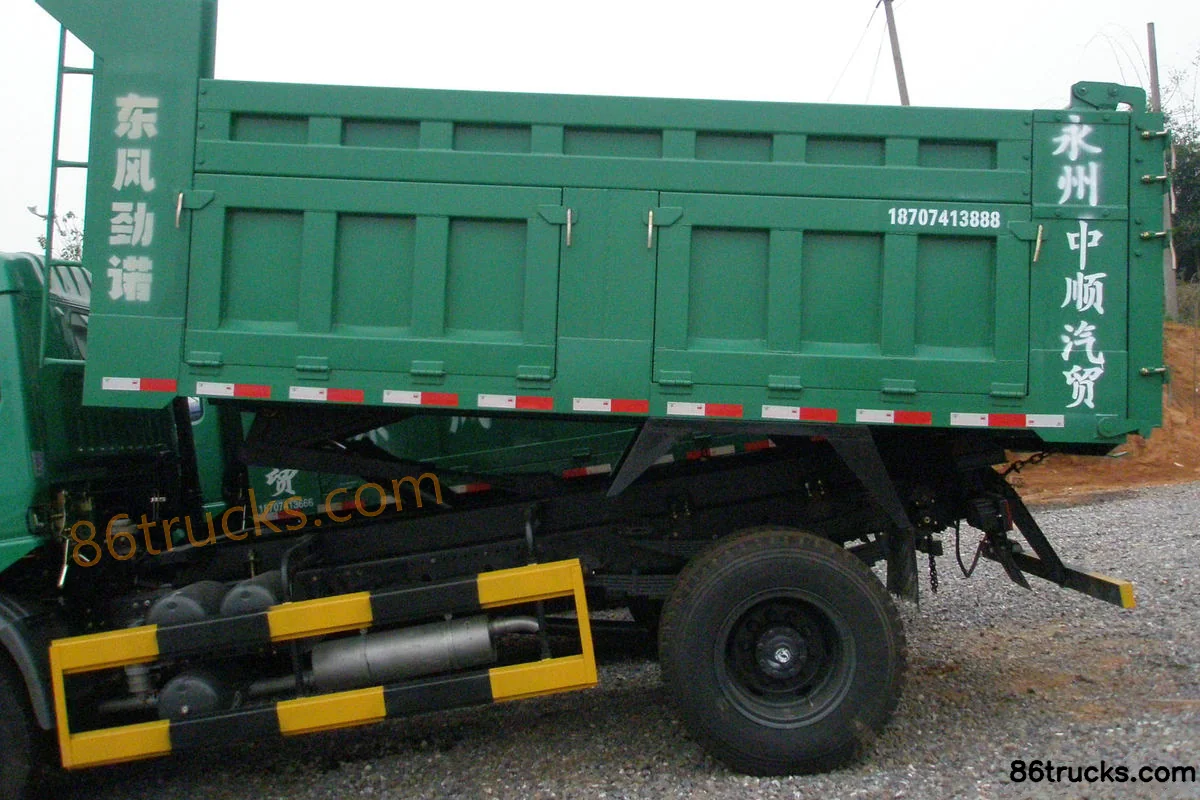

Body3

8 photos

FAQ

What is the export price of Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck, and what does it include?

Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck export reference is about From $16,250; MSRP is ¥11.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck?

Key specs of Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck: Drive: 4x2; Horsepower: 130 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck suited for?

Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck differ from other variants in the same series?

Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck belongs to Dongfeng Jinnuo light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Jinnuo 130 hp 4X2(6 wheels) 4.3m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
