JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 12.155L
JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) exterior
View more photos (9)
Drive 6X4 (10 wheels)
Horsepower 510
Emission China VI
Transmission Fast Gear

Overview

The JAC Gallop JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) is a Heavy truck featuring 6X4 (10 wheels) drive, 510 hp, 25t GVW and China VI emissions. Its segment focus covers Gravel Transport, matching those duty cycles. On the powertrain side, it comes with Fast Gear transmission and Diesel fuel.

China VI 510 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC4254P1K6E33S
Drive type: 6X4
Wheelbase: 3300+1350mm
Min. turning diameter: 17m
engine: YuchaiK1251-60
transmission: Fast GearF16JZ24A
Rear Axle Ratio: 3.7
Cab length: 6.9m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2020mm
Gross Trailer Weight: 40ton
rear track: 1860/1860mm
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
market segment: Gravel Transport
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiK1251-60
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.155L
Emission standard: China VI
Max output power: 375kW
Max hp: 510Horsepower
Transmission Parameters
Transmission Model: Fast GearF16JZ24A
Transmission Brand: Fast Gear
shift method: AMT manual/auto
Forward gears: 16Gear
Number of Reverse Gears: 4pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 600L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
Cab tilting: Electric
seating capacity: 2Personnel
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 7000kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 2/3
Aluminum wheels:
Maintenance-free wheel end:
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
Stability control system:
Traction Control (ASR/TCS/TRC etc.):
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
Exterior features
integrated mudguard:
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
lighting configuration
LED headlight:
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
Service features
subsidy available:
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:
maintenance service
24-hour service hotline:
Rescue service:

Photos

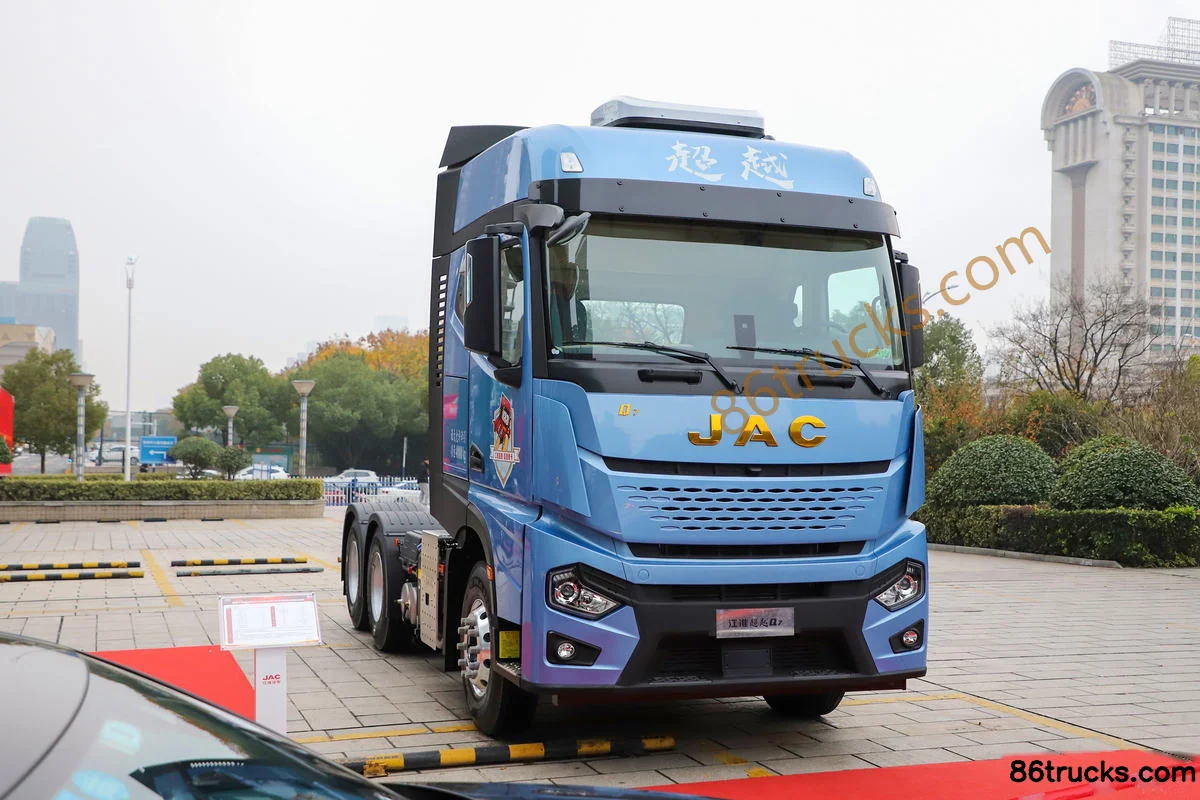

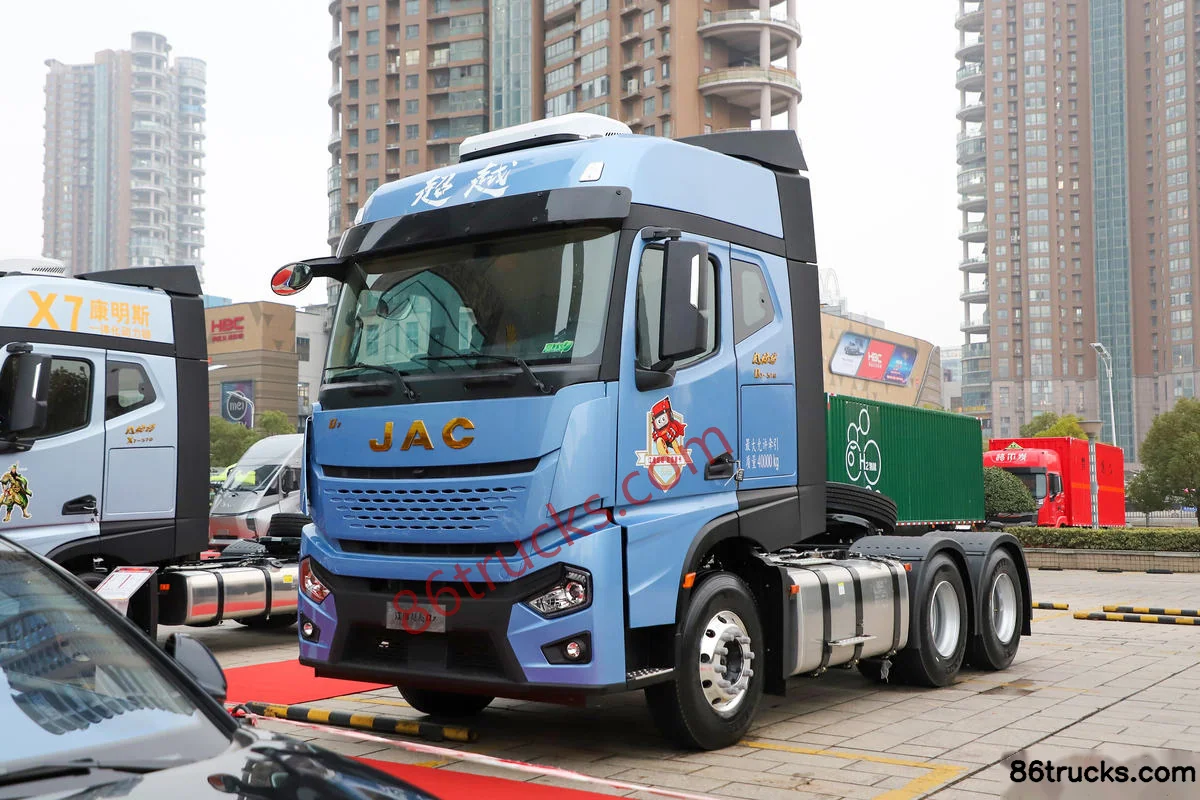

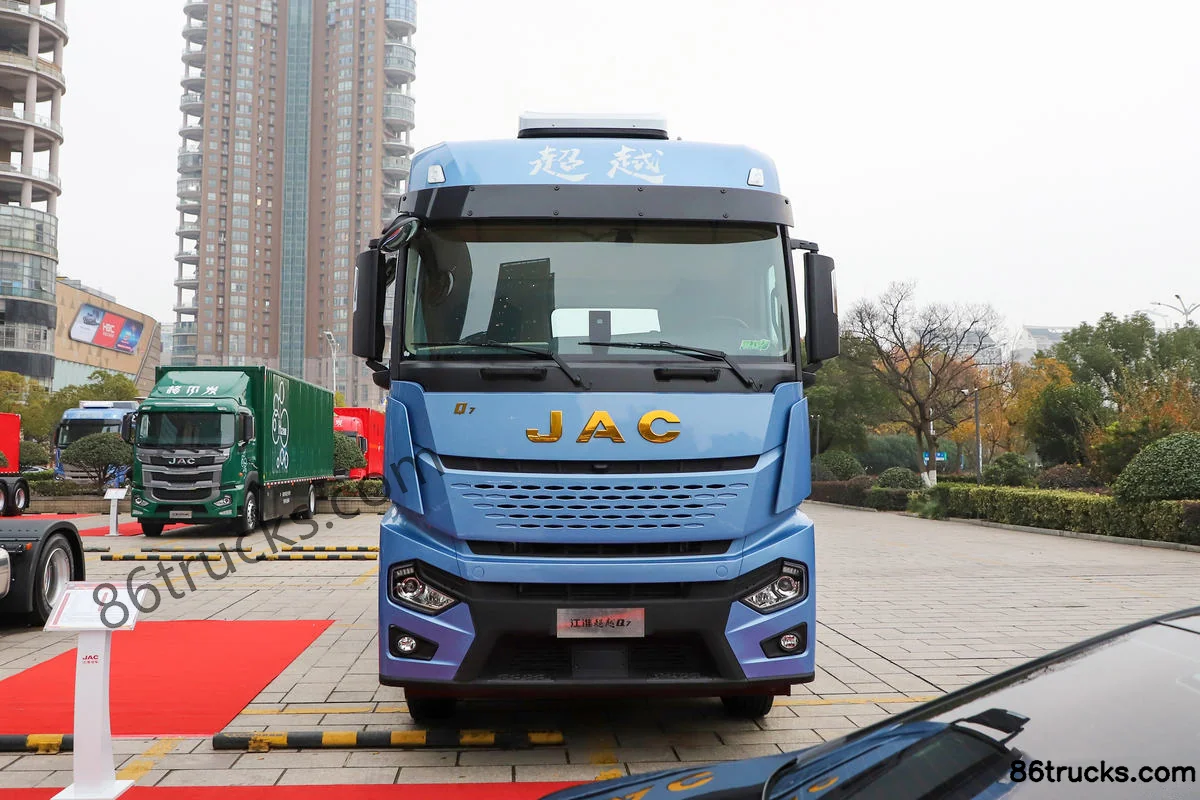

Exterior3

JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) Exterior (1) | 86Trucks JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) Exterior (2) | 86Trucks JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) Exterior (3) | 86Trucks

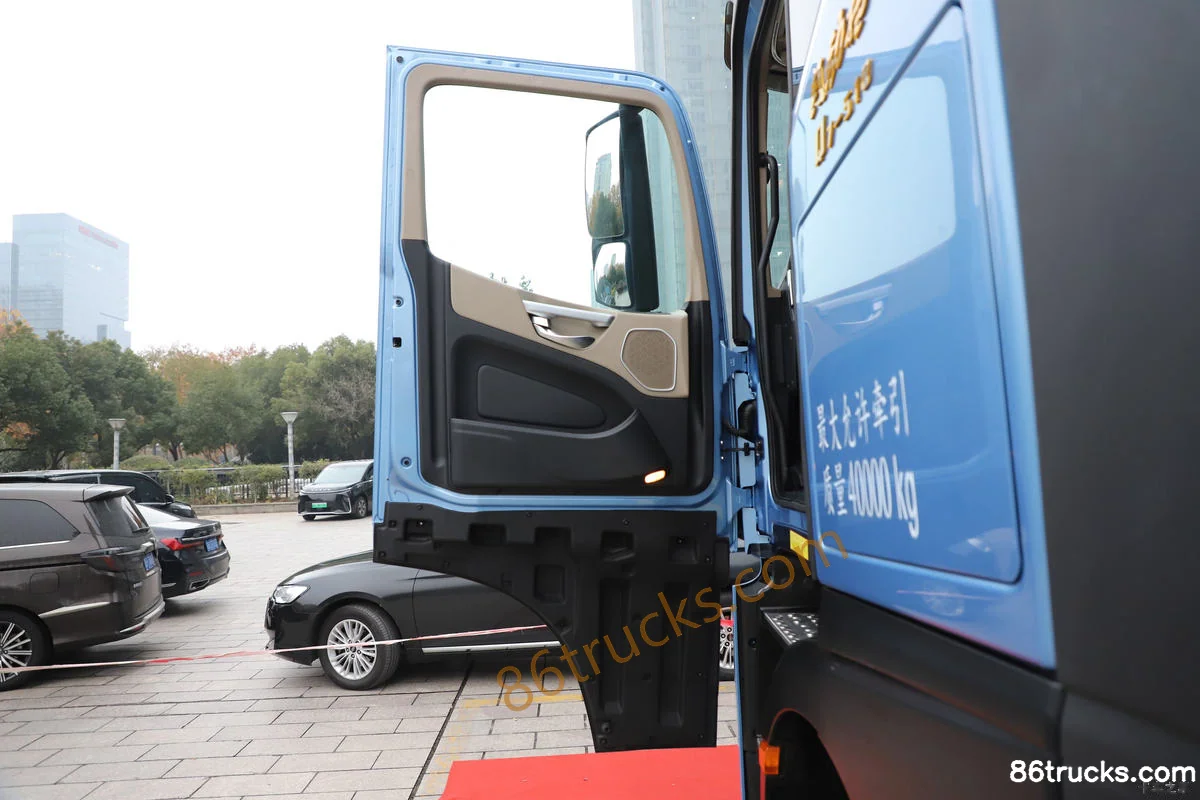

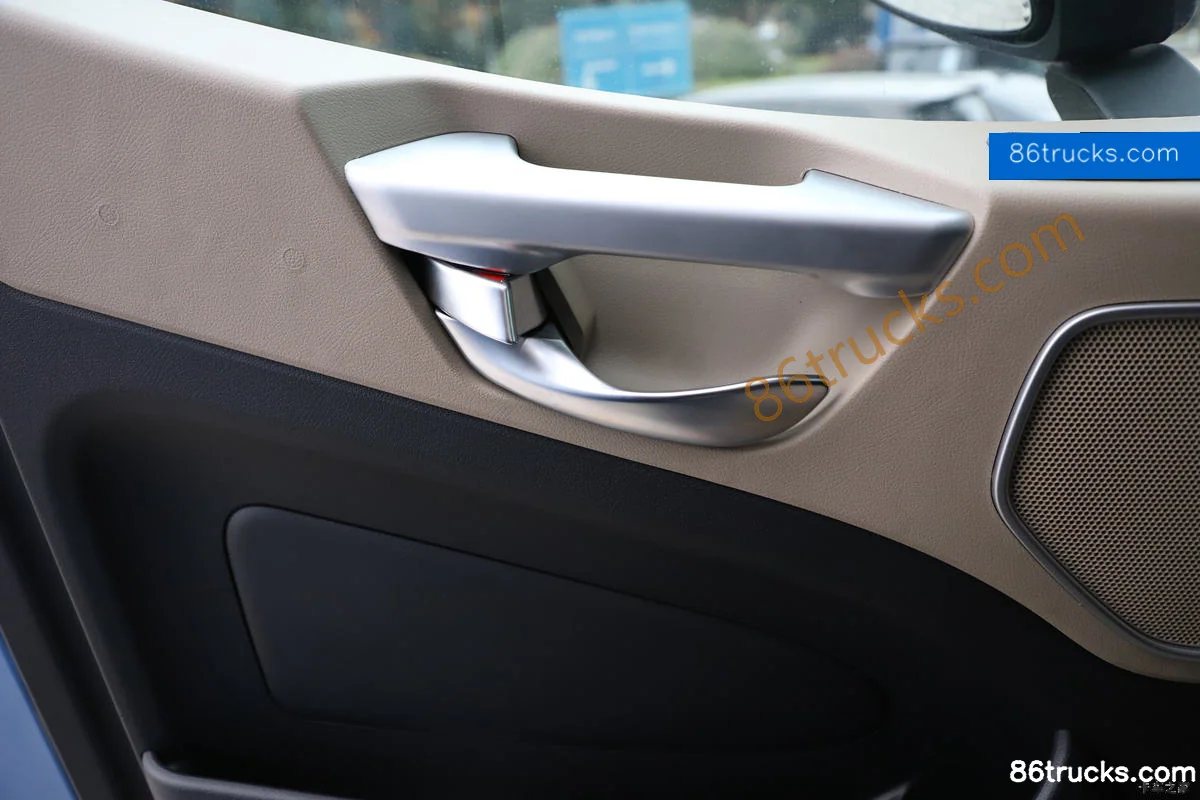

Cab3

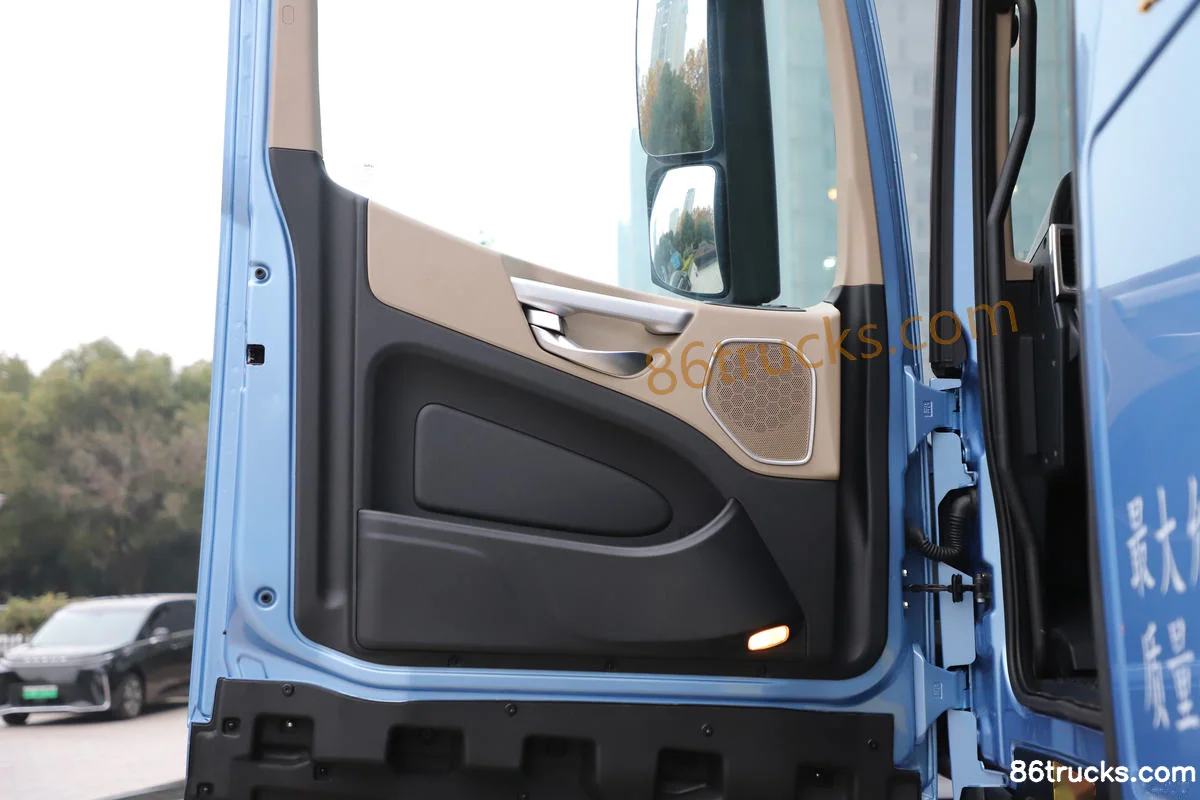

JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) Cab (1) | 86Trucks JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) Cab (2) | 86Trucks JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) Cab (3) | 86Trucks

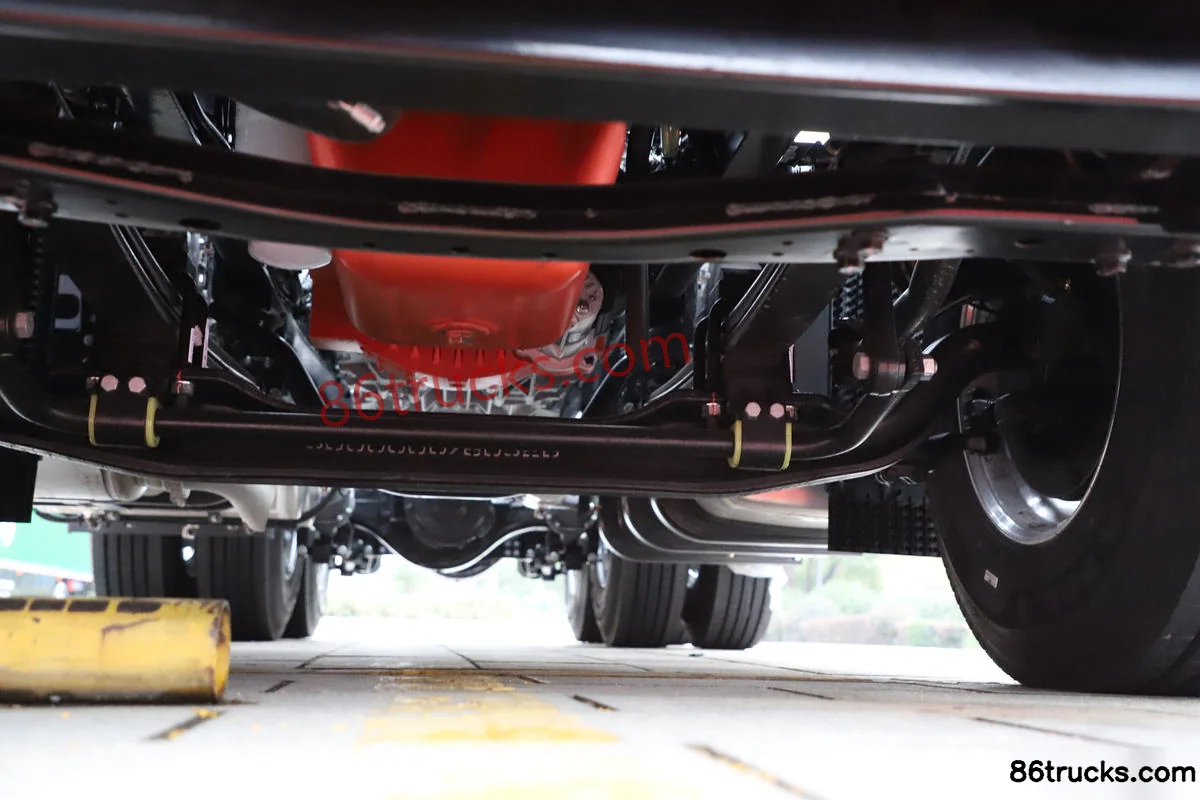

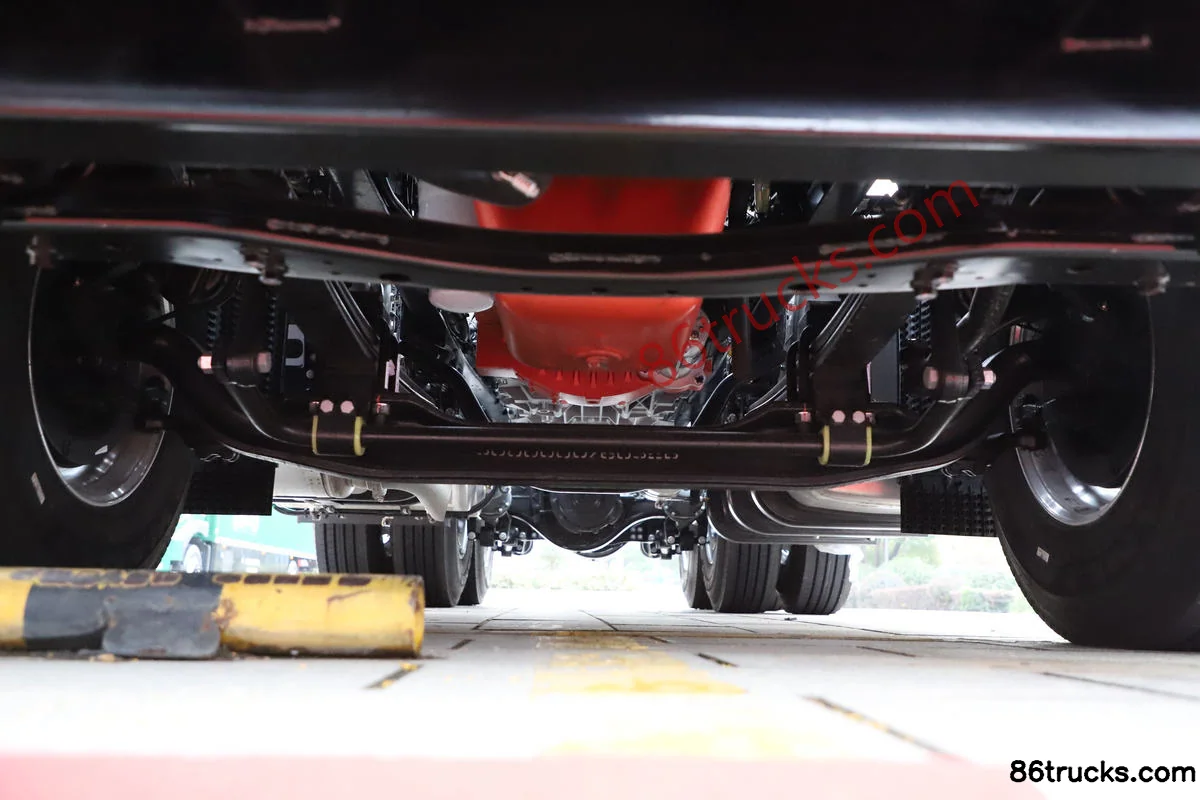

Chassis3

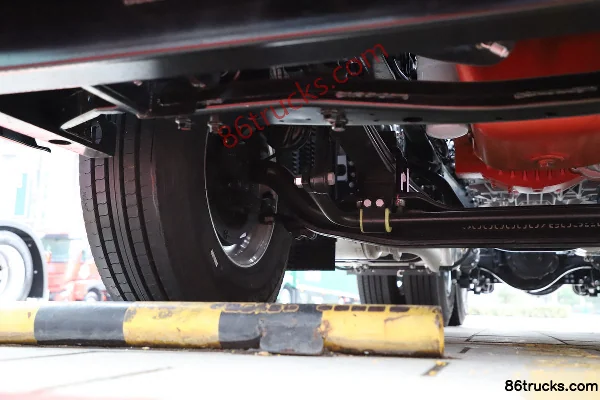

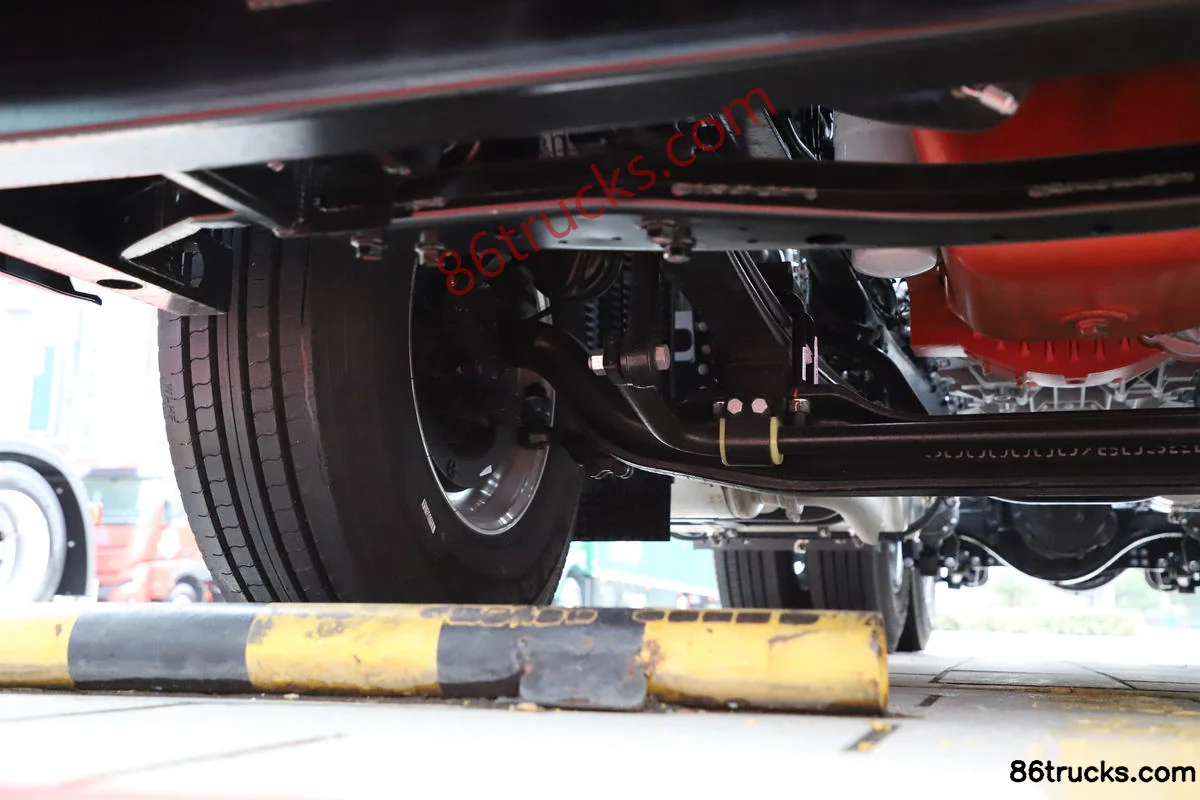

JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) Chassis (1) | 86Trucks JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) Chassis (2) | 86Trucks JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed)?

Key specs of JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed): Drive: 6x4; Horsepower: 510 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) suited for?

JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) differ from other variants in the same series?

JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed) belongs to JAC Chaoyue Q7 heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC ChaoYue Q7 Heavy Truck 510hp 6X4(10 wheels) AMT Automatic Tractor Truck (16-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
