Kama Ruihang EV 3.5T 3.98m Single Row Pure Electric Van Mini Truck 54.912kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.185ton
Wheelbase:: 3180mm
Cargo box type:: Van body
Model code (announced):: KMC5033XXYBEVC318X1
Type:: enclosed cargo truck
Box length class:: 4m
Drive 4X2 (6 wheels)
CLTC range: 260km
Motor 1 Brand: Zhongke Shenjiang
Curb Weight: 2.18ton

Overview

The Kama Ruihang EV 3.5T 3.98m Single Row Pure Electric Van Mini Truck 54.912kWh 4X2(6 wheels) is a mini truck featuring 260km battery/range, Zhongke Shenjiang motor, 4X2 (6 wheels) drive and 1.185t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC5033XXYBEVC318X1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3180mm
Box length class: 4m
Cab length: 5.995m
Cab width: 2.1m
Cab height: 2.72m
CLTC range: 260km
Curb Weight: 2.18ton
Rated payload: 1.185ton
GVWR: 3.495ton
Max. speed: 80km/h
Origin: Shouguang, Shandong
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Zhongke Shenjiang
Motor 1 Model: TZ210XS045A
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 45kW
Peak power: 90kW
total peak torque: 280N·m
total rated torque: 140N·m
Electronic Control
ECU Brand: Kama
Battery/Charging
Battery Brand: Anchi
Battery type: Lithium-ion battery
Battery capacity: 54.912kWh
Battery total voltage: 332.8V
Energy Density: 145.8
Battery Model: IFP48173166-165Ah
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.98m
Cargo box width: 1.85m
Cargo box height: 1.85m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1260kg
rear axle allowable load: 2235kg
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

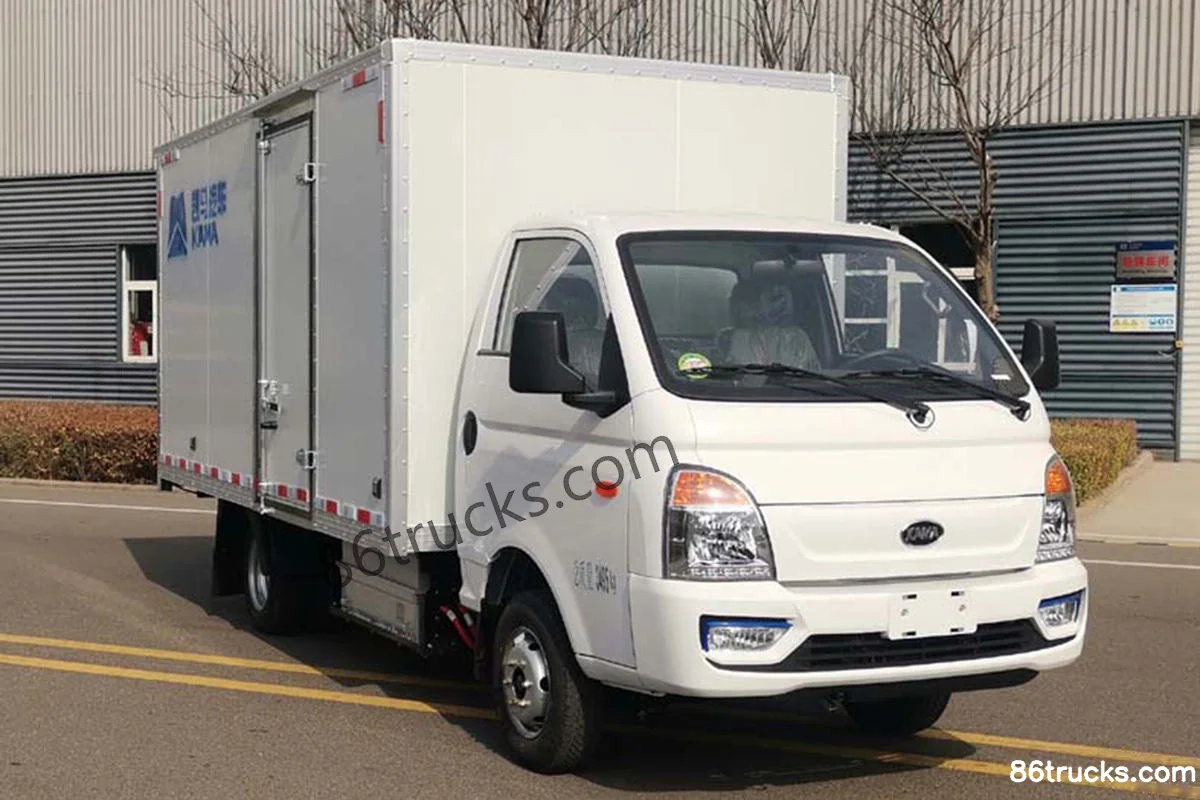

Exterior1

1 photos

FAQ

What are the key specs of Kama Ruihang EV 3.5T 3.98m Single Row Pure Electric Van Mini Truck 54.912kWh 4X2(6 wheels)?

Key specs of Kama Ruihang EV 3.5T 3.98m Single Row Pure Electric Van Mini Truck 54.912kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Ruihang EV 3.5T 3.98m Single Row Pure Electric Van Mini Truck 54.912kWh 4X2(6 wheels) suited for?

Kama Ruihang EV 3.5T 3.98m Single Row Pure Electric Van Mini Truck 54.912kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Kama Ruihang EV 3.5T 3.98m Single Row Pure Electric Van Mini Truck 54.912kWh 4X2(6 wheels) differ from other variants in the same series?

Kama Ruihang EV 3.5T 3.98m Single Row Pure Electric Van Mini Truck 54.912kWh 4X2(6 wheels) belongs to Kama Ruihang EV (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Ruihang EV 3.5T 3.98m Single Row Pure Electric Van Mini Truck 54.912kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Ruihang EV 3.5T 3.98m Single Row Pure Electric Van Mini Truck 54.912kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
