Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck

Export reference
MSRP N/A
Horsepower: 86
Emission: China V
Fuel: gasoline
Engine: Foton gasoline 1.2L
Curb Weight:: 1.206ton
Wheelbase:: 3070mm
Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 1.209ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck is a mini truck featuring 2.8m cargo length, stake body cargo body, 2Personnel volume and 1.209t payload. On the powertrain side, it comes with a Foton gasoline 1.2L engine, 86 hp, 4X2 (6 wheels) drive and China V emissions.

China V 86 gasoline 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ1036V5JV5-D1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3070mm
Box length class: 2.8m
engine: Foton4W12M1
transmission: 5MT
Cab length: 4.88m
Cab width: 1.65m
Cab height: 1.925m
Front track width: 1338mm
rear track: 1375mm
Curb Weight: 1.206ton
Rated payload: 1.209ton
GVWR: 2.545ton
Max. speed: 115km/h
Origin: Beijing
tonnage class: mini truck
Approach angle: 39°
departure angle: 23°
Front/rear suspension: 0.605/1.205m
Version: Luxury
Energy Type: gasoline
Engine parameters
Engine Brand: Foton
Engine Model: Foton4W12M1
Engine info: Foton gasoline 1.2L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.206L
Emission standard: China V
Max output power: 63kW
Max hp: 86Horsepower
Max torque: 112N·m
Max torque speed: 4000-4400rpm
Rated speed: 6000rpm
Transmission Parameters
Transmission Model: 5MT
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.8m
Cargo box width: 1.56m
Cargo box height: 0.36m
*Cargo box interior width: 1.5599999427795
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 700kg
rear axle allowable load: 1845kg
Leaf spring count: -/5
Suspension (front/rear): Front MacPherson strut independent suspension / rear leaf spring non-independent suspension
Tire
Tire Size: 175R14
Number of tires: 4pcs
Control configuration
Power steering:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
lighting configuration
Front fog lamp:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

Exterior3

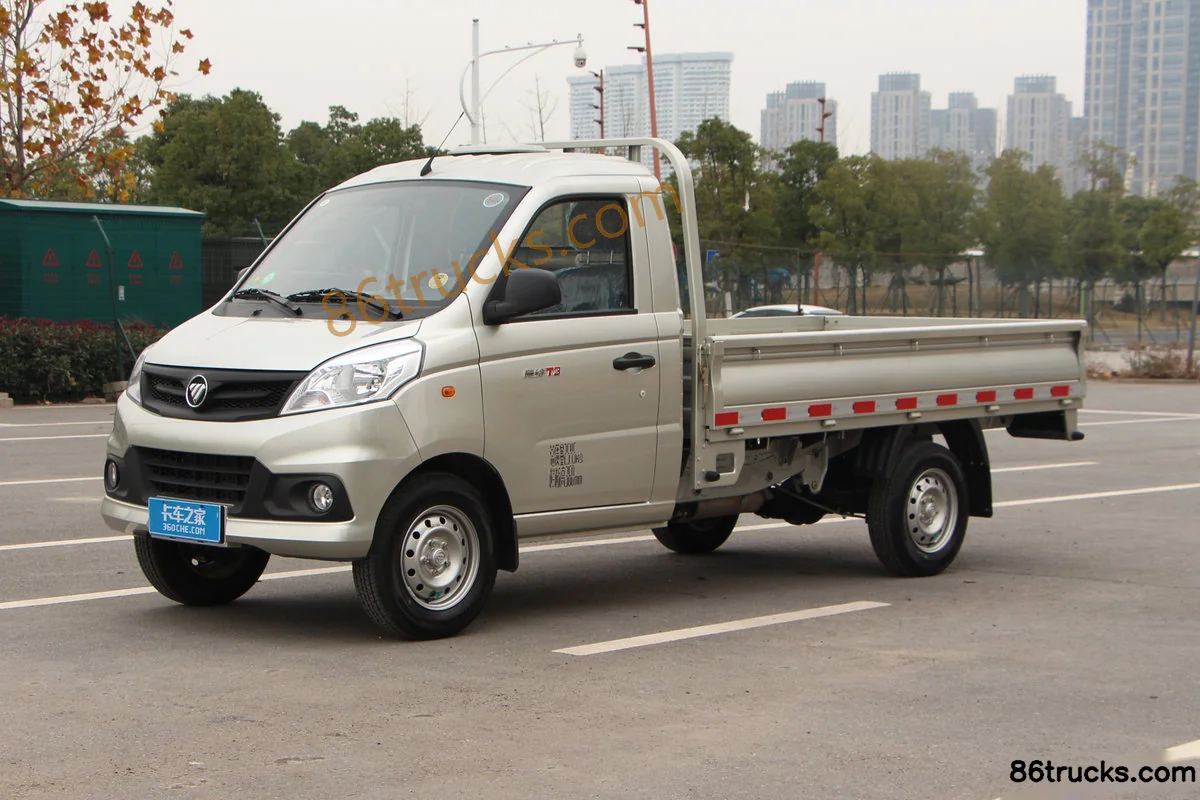

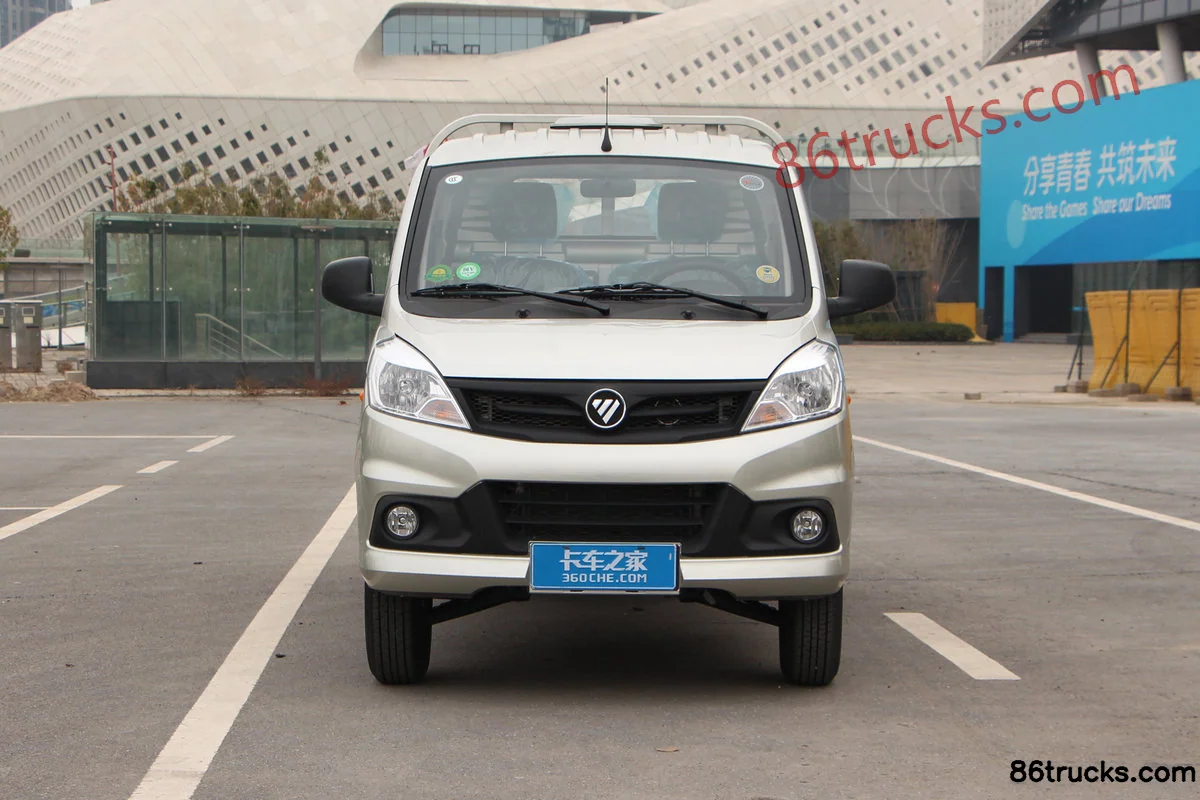

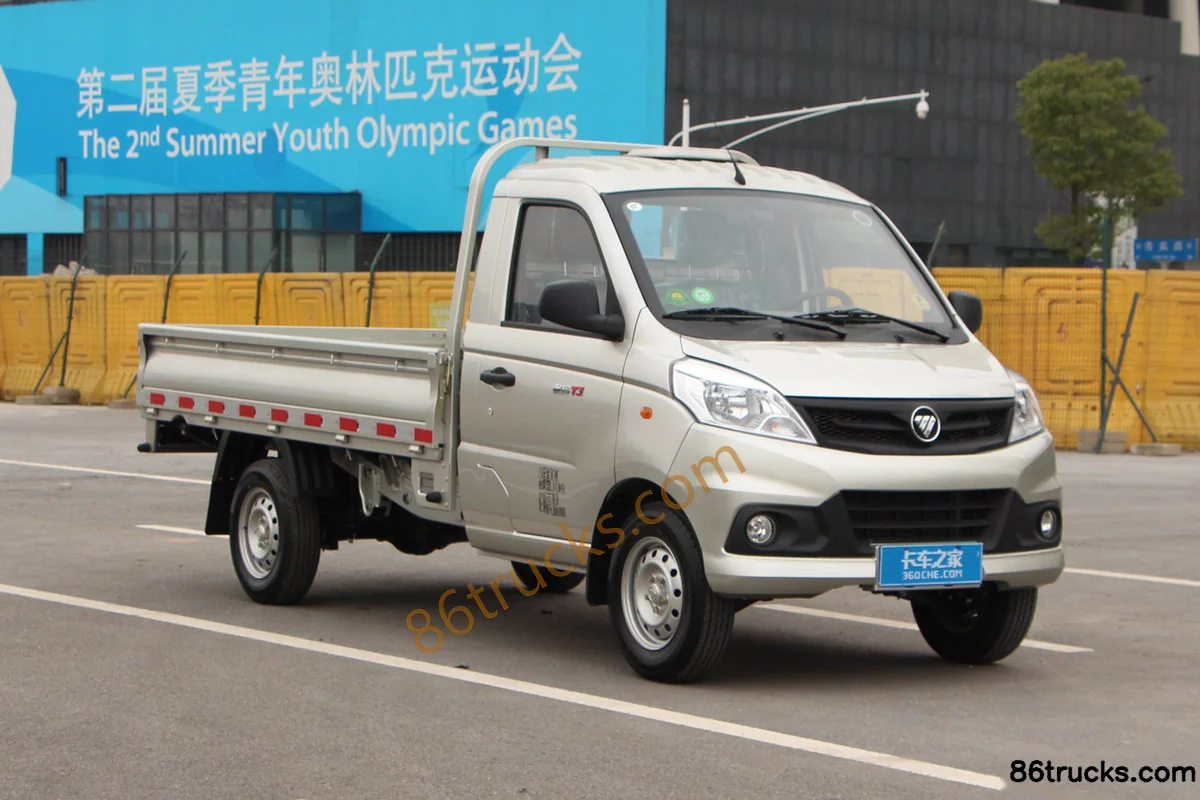

Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck Exterior (1) | 86Trucks Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck Exterior (2) | 86Trucks Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck Exterior (3) | 86Trucks

Cab3

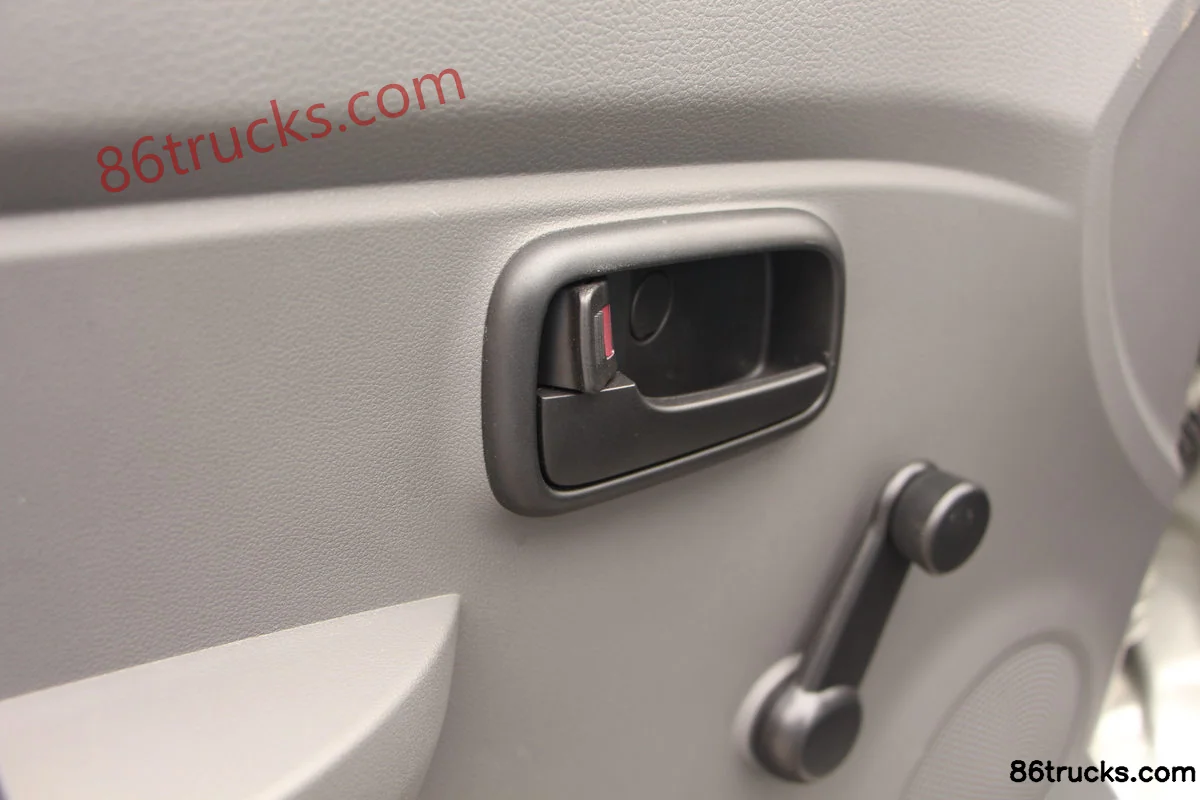

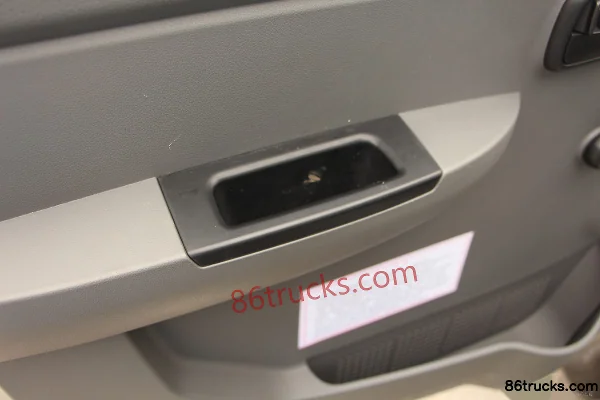

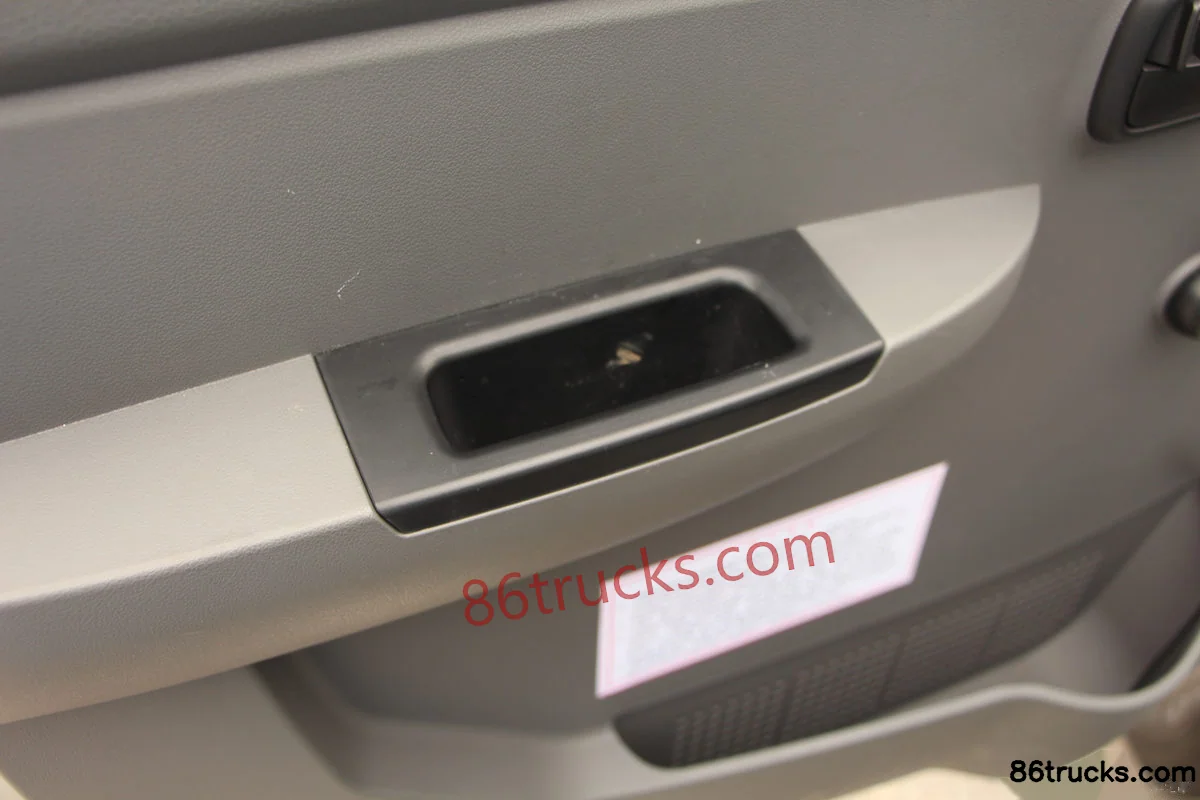

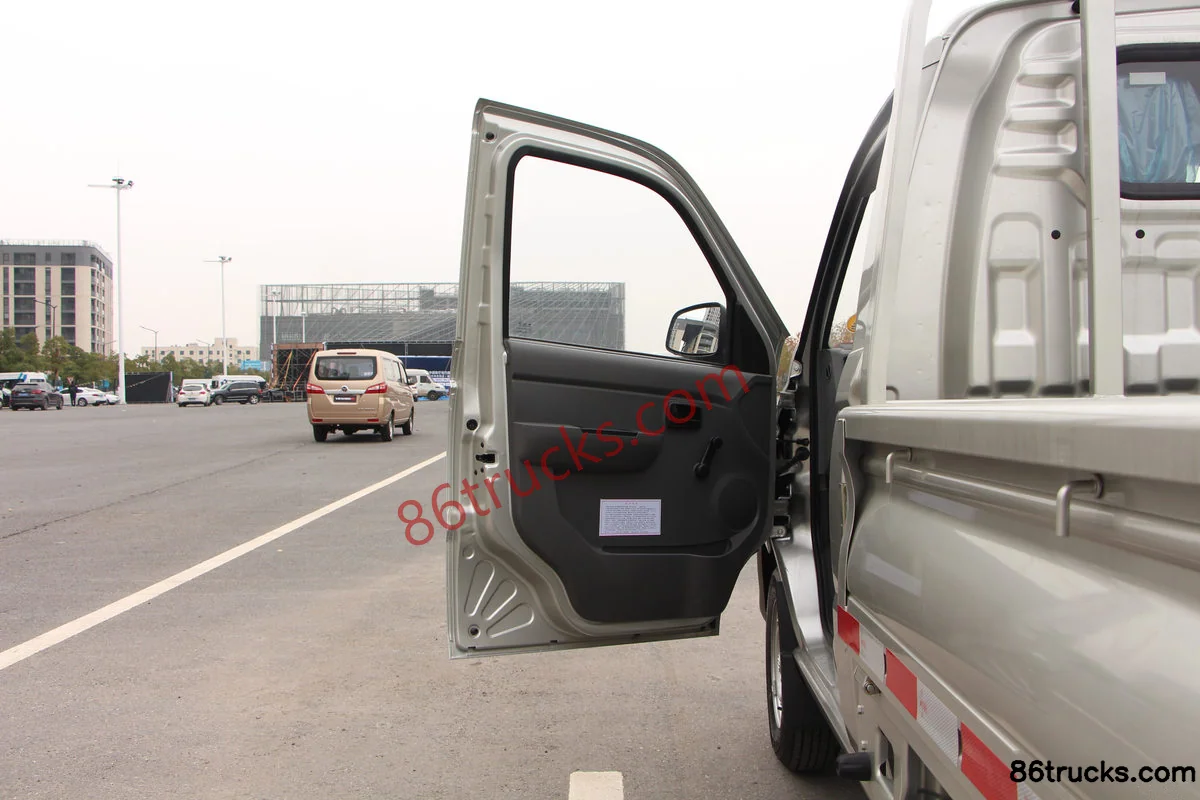

Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck Cab (1) | 86Trucks Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck Cab (2) | 86Trucks Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck Cab (3) | 86Trucks

Chassis3

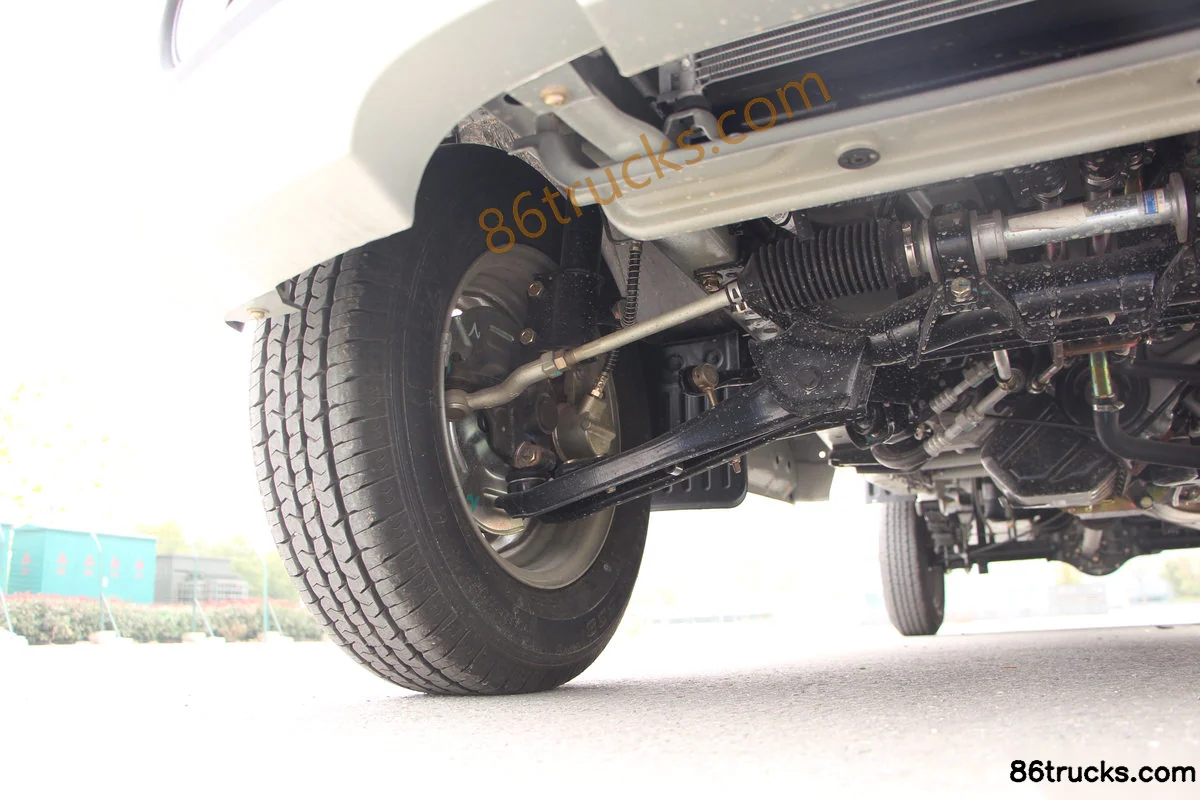

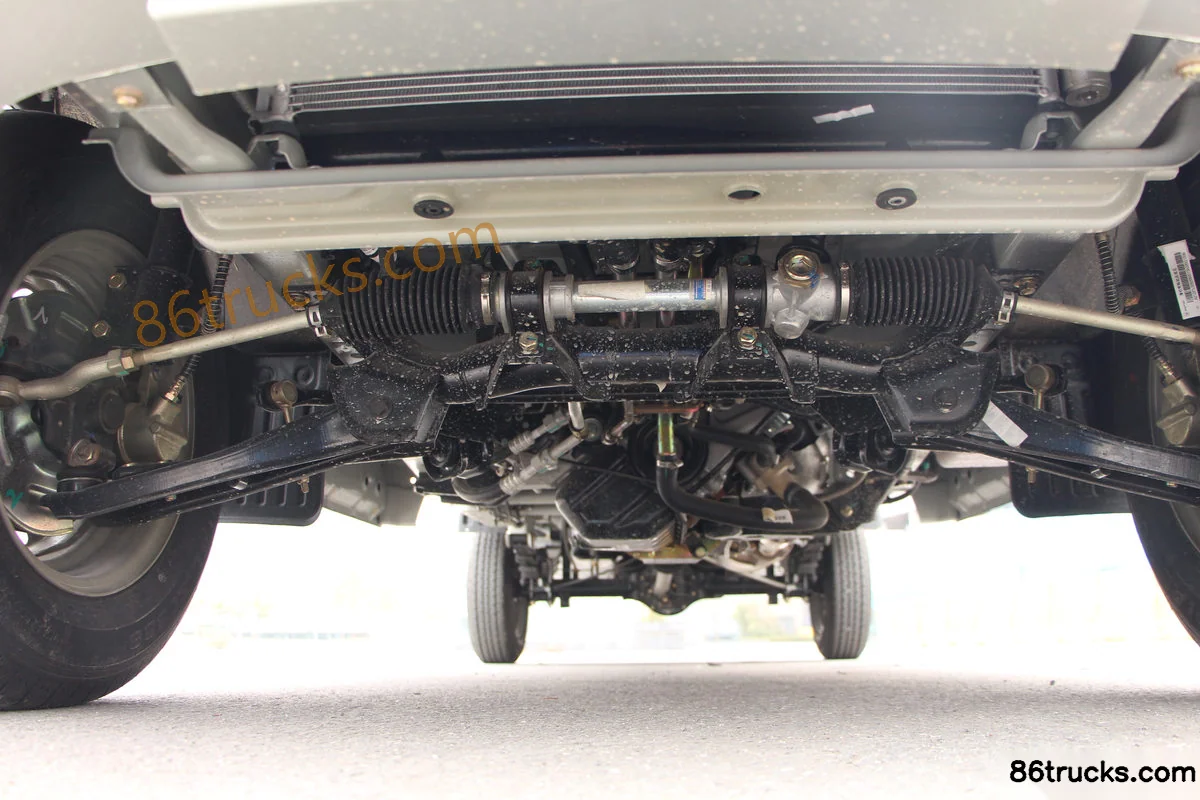

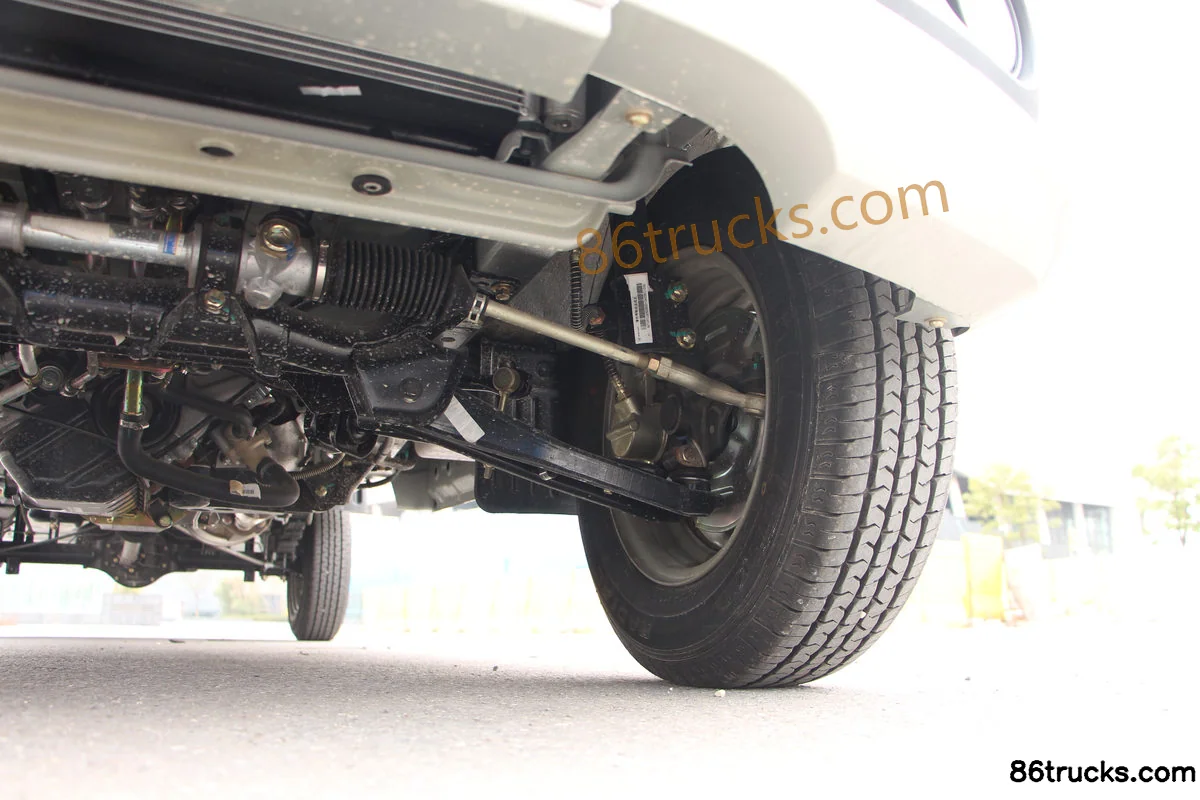

Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck Chassis (1) | 86Trucks Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck Chassis (2) | 86Trucks Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck Chassis (3) | 86Trucks

Body3

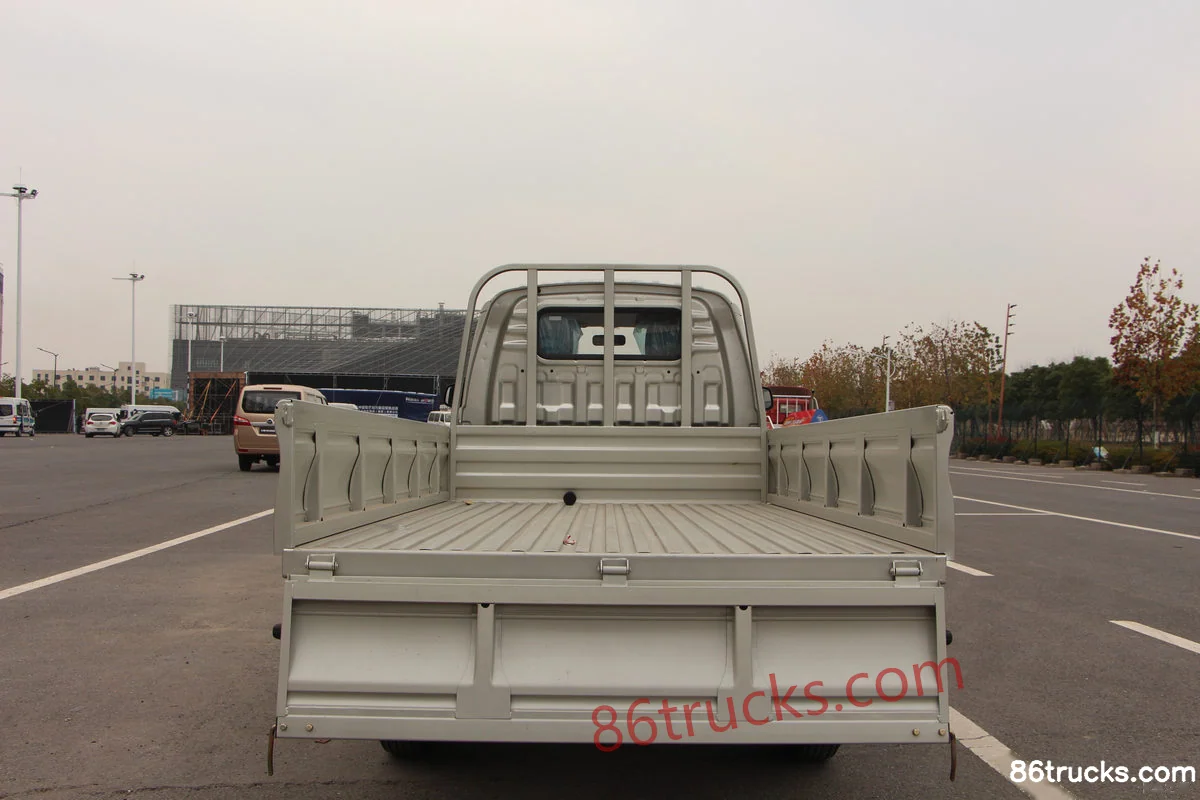

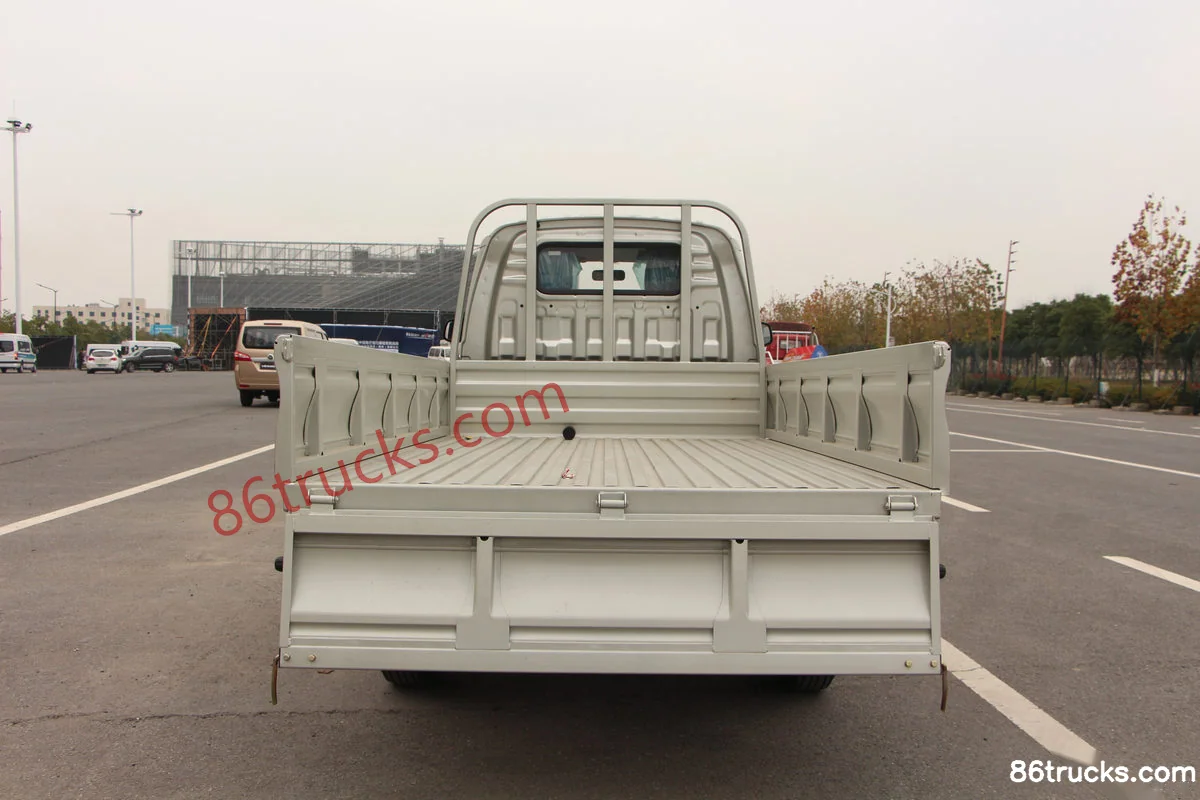

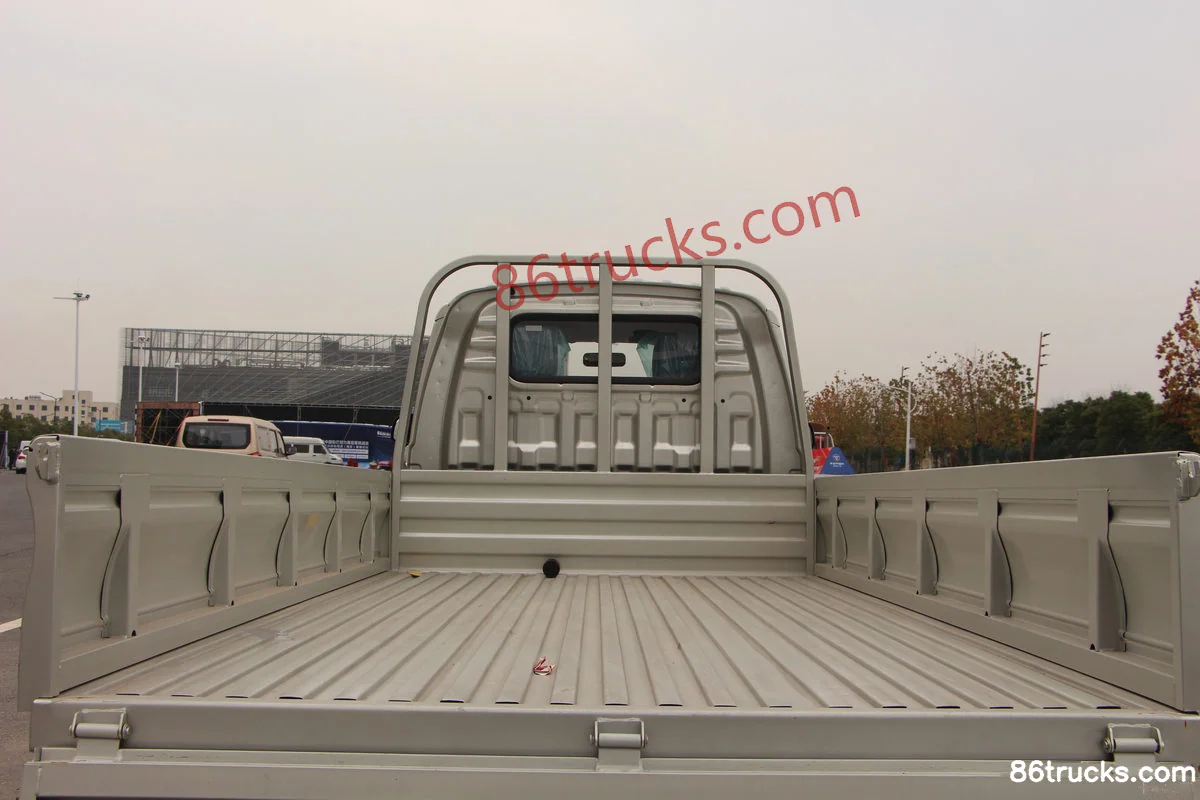

Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck Body (1) | 86Trucks Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck Body (2) | 86Trucks Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck?

Key specs of Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck: Drive: 4x2; Horsepower: 86 hp; Emission: China V; Fuel: gasoline; Engine: Foton gasoline 1.2L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck suited for?

Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck differ from other variants in the same series?

Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck belongs to Foton T3 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Gratour T3 Luxury 1.2L 86hp 4X2(6 wheels) Gasoline 2.8m Single Row Flatbed Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
