JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels)

Export reference
From $13,028
MSRP ¥9.38M CNY
Rated payload:: 1.215ton
Wheelbase:: 3360mm
Cargo box type:: Stake type
Model code (announced):: JX5031CCYTGCBEV
Type:: stake truck
Box length class:: 3.2m

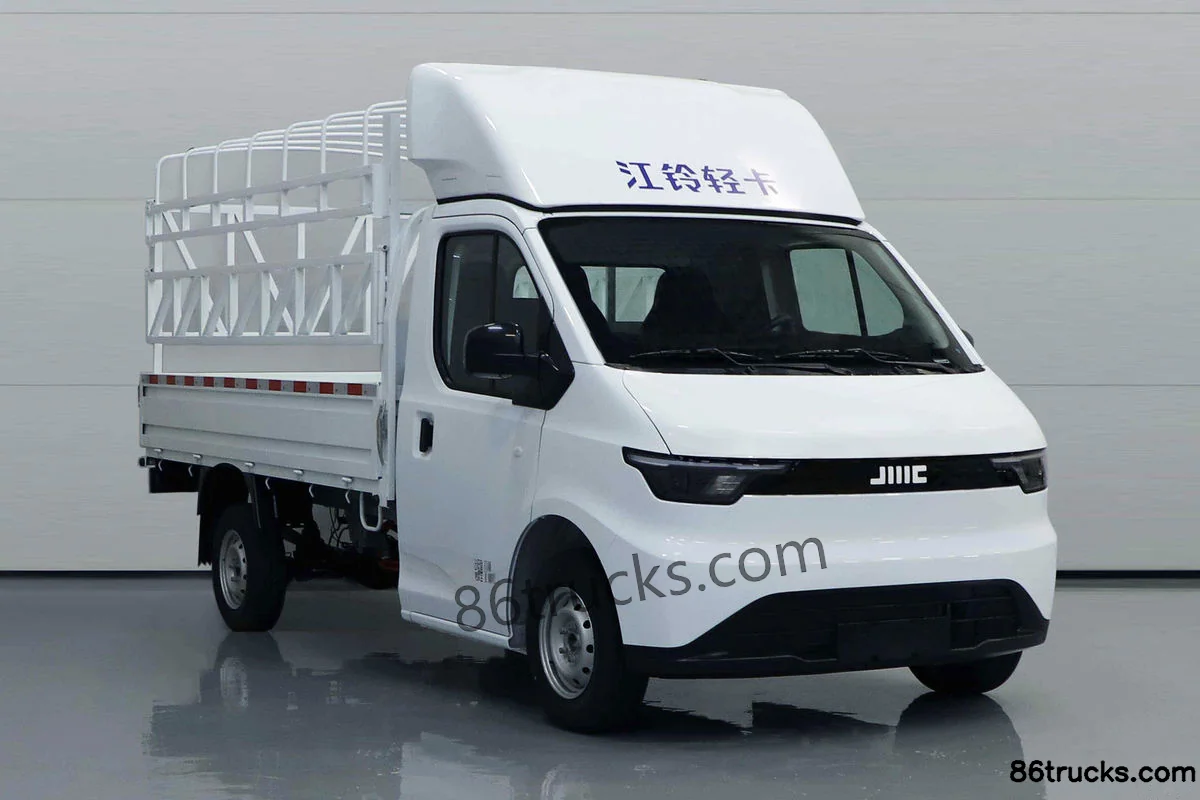

JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels) exterior
View more photos (1)
Drive 4X2 (6 wheels)
CLTC range: 235km
Motor 1 Brand: Inovance
Curb Weight: 1.83ton

Overview

The JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels) is a mini truck featuring 235km battery/range, Inovance motor, 4X2 (6 wheels) drive and 1.215t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JX5031CCYTGCBEV
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
Cab length: 5.465m
Cab width: 1.89m
Cab height: 2.495m
CLTC range: 235km
Curb Weight: 1.83ton
Rated payload: 1.215ton
GVWR: 3.2ton
Max. speed: 90km/h
Origin: Nanchang, Jiangxi
tonnage class: mini truck
Remarks: Standard: Hill-start assist, Vehicle status query/diagnosis, Vehicle locating/vehicle finder; Optional: 3-seat configuration.
Version: 2025 Model
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ180XS000
Motor Type: Permanent magnet synchronous motor
total rated power: 32kW
Peak power: 60kW
total peak torque: 220N·m
Battery/Charging
Charging method: Fast Charge
Battery Brand: Ganfeng Lithium
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.5h
Battery capacity: 41.5kWh
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.2m
Cargo box width: 1.8m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1500kg
rear axle allowable load: 1700kg
Tire
Tire Size: 185R14LT 8PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
Steering Wheel Material: Plastic
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

Exterior1

JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels) Exterior (1) | 86Trucks

1 photos

FAQ

What is the export price of JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels), and what does it include?

JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels) export reference is about From $13,028; MSRP is ¥9.38M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels)?

Key specs of JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels) suited for?

JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels) differ from other variants in the same series?

JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels) belongs to JMC E-Fushun (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC E Fushun 2025 Electric Hydraulic Brake 3.2m Single Row Stake Truck Ganfeng Lithium 41.5kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
