Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh

Export reference
MSRP N/A
Rated payload:: 1.195ton
Wheelbase:: 3300mm
Cargo box type:: stake body
Model code (announced):: BJ1030EVAA73
Type:: Cargo Trucks
Box length class:: 2.1m
Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh exterior
View more photos (12)
Drive Front-mounted front drive
CLTC range: 260km
Motor 1 Brand: Foton
Curb Weight: 1.465ton

Overview

The Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh is a mini truck featuring 260km battery/range, Foton motor, Front-mounted front drive drive and 1.195t payload.

Front-mounted front drive

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ1030EVAA73
Type: Cargo Trucks
Drive type: Front-mounted front drive
Wheelbase: 3300mm
Box length class: 2.1m
Cab length: 5.385m
Cab width: 1.77m
Cab height: 1.99m
CLTC range: 260km
Curb Weight: 1.465ton
Rated payload: 1.195ton
GVWR: 2.985ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTBP070E
Motor Type: Permanent magnet synchronous motor
total rated power: 30kW
Peak power: 70kW
total peak torque: 180N·m
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 41.86kWh
fast charge time: 0.75h
fast charge range: 20%~80%
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.5m
Cargo box width: 1.65m
Cargo box height: 0.36m
Cab parameters
Cab width: 1605mm
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1440kg
rear axle allowable load: 1545kg
Tire
Tire Size: 175/75R14C
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Optional manual.
Power Windows:
Power Mirrors:
Reverse Radar:
Reverse Camera:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

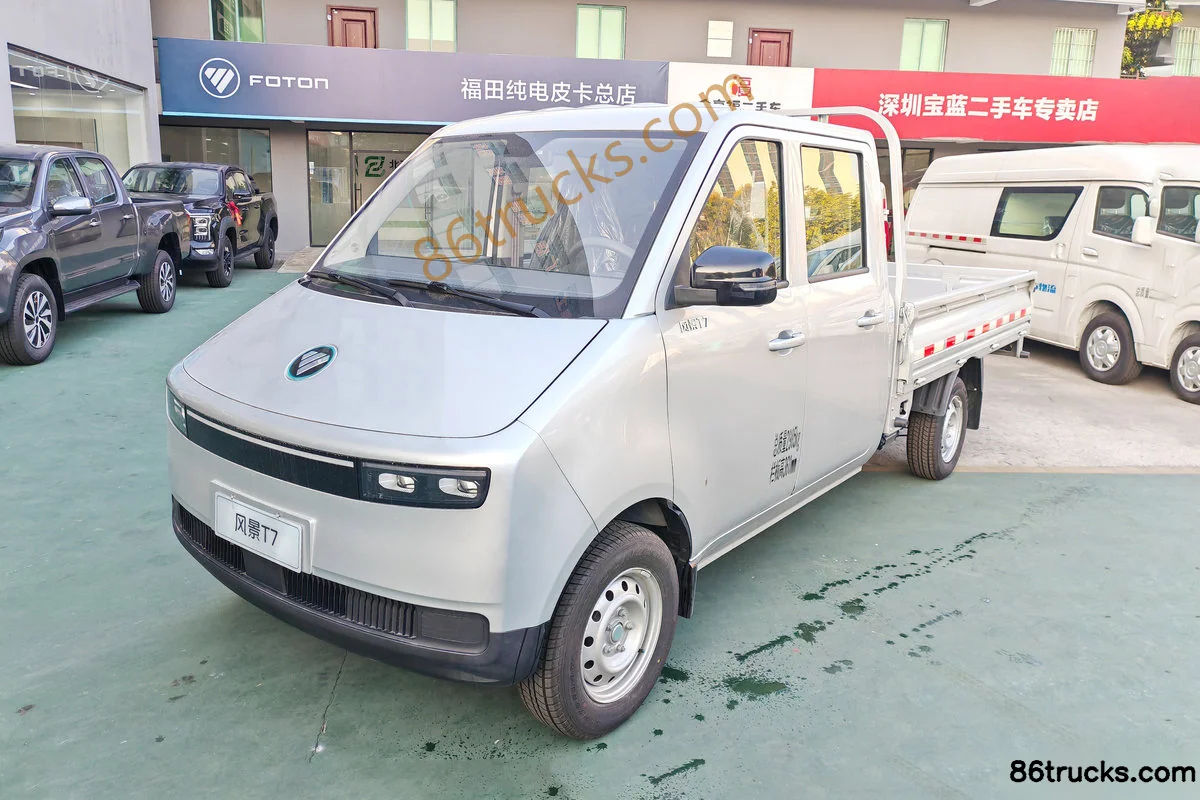

Exterior3

Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh Exterior (1) | 86Trucks Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh Exterior (2) | 86Trucks Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh Exterior (3) | 86Trucks

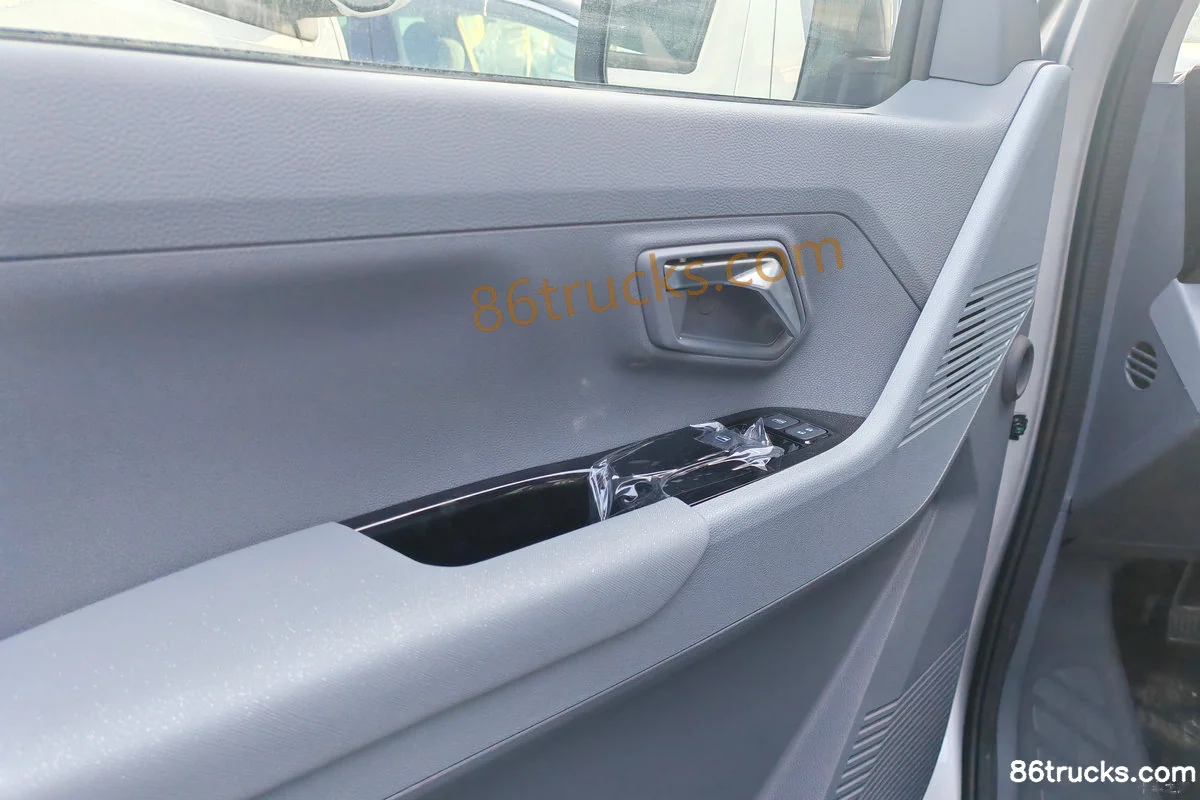

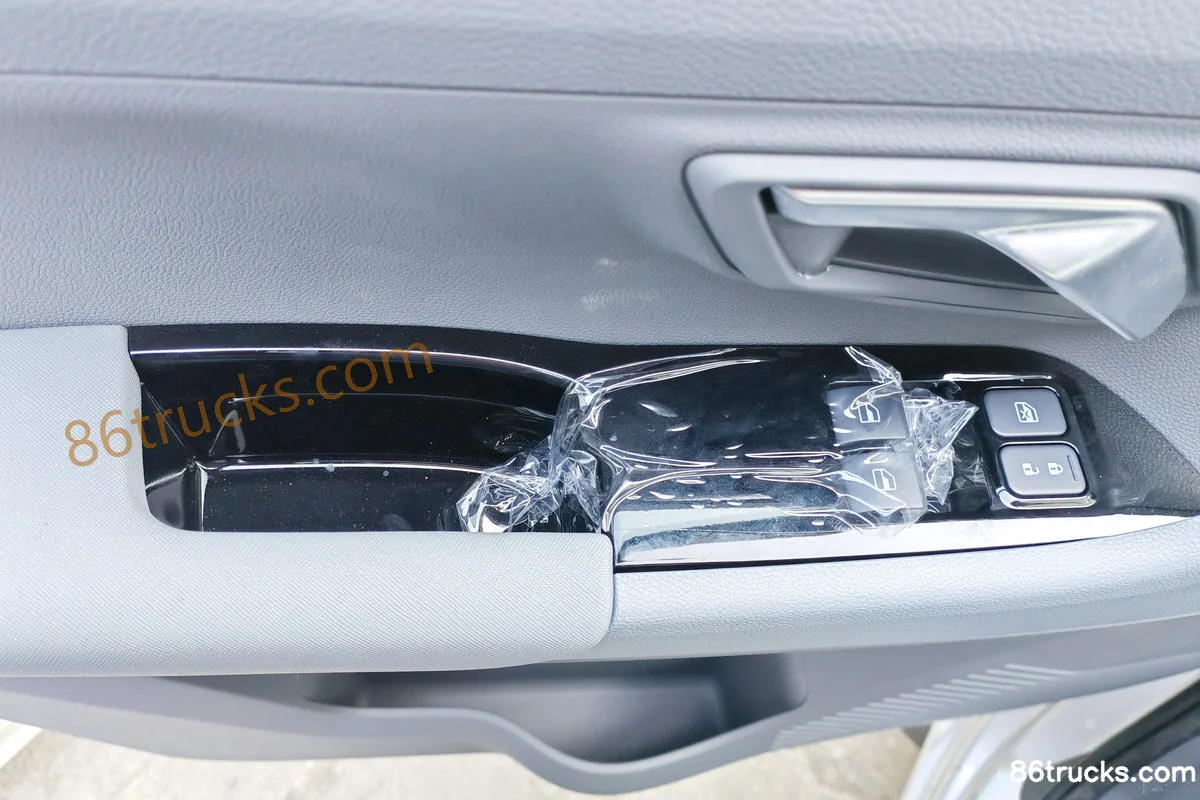

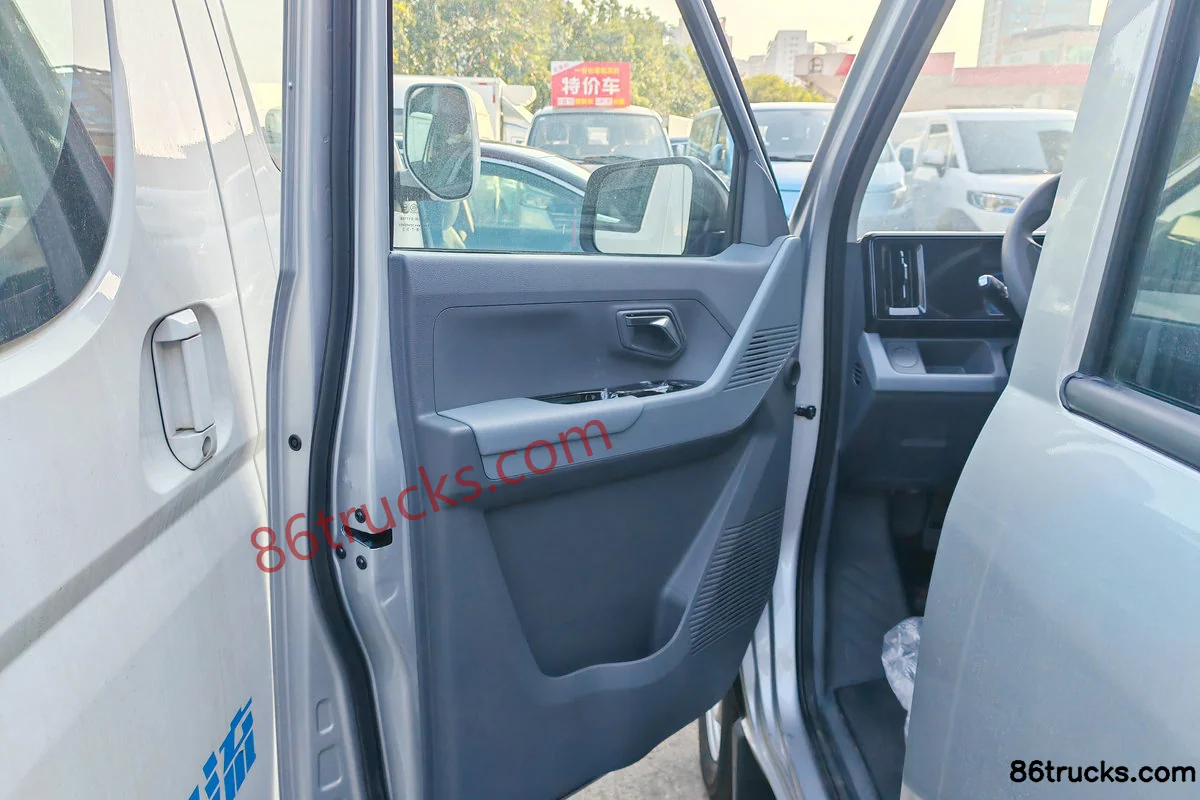

Cab3

Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh Cab (1) | 86Trucks Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh Cab (2) | 86Trucks Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh Cab (3) | 86Trucks

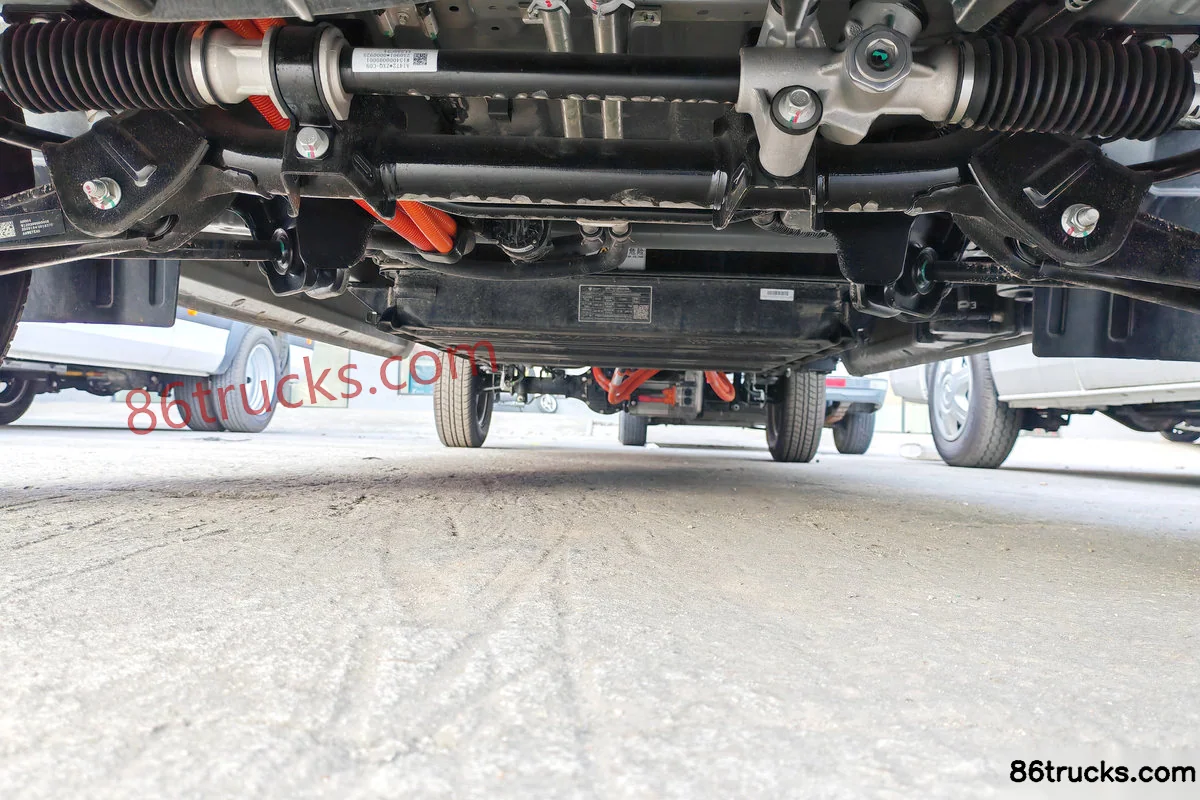

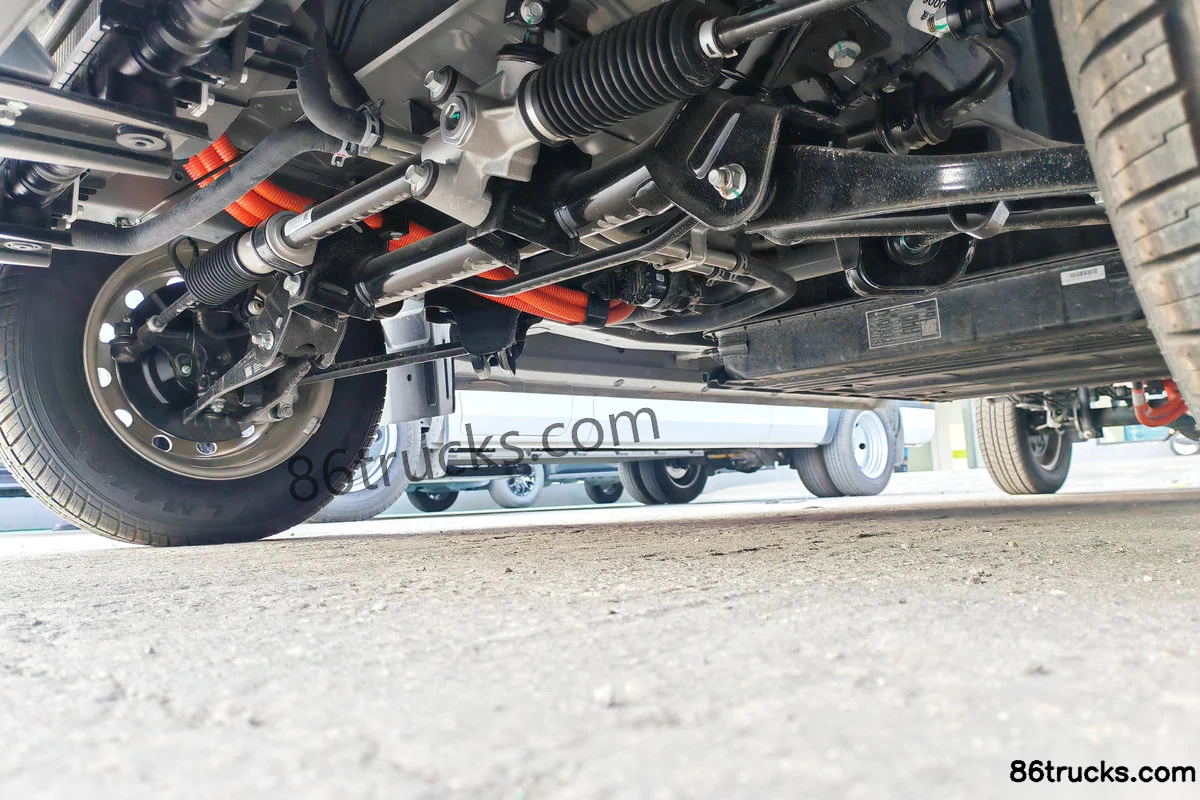

Chassis3

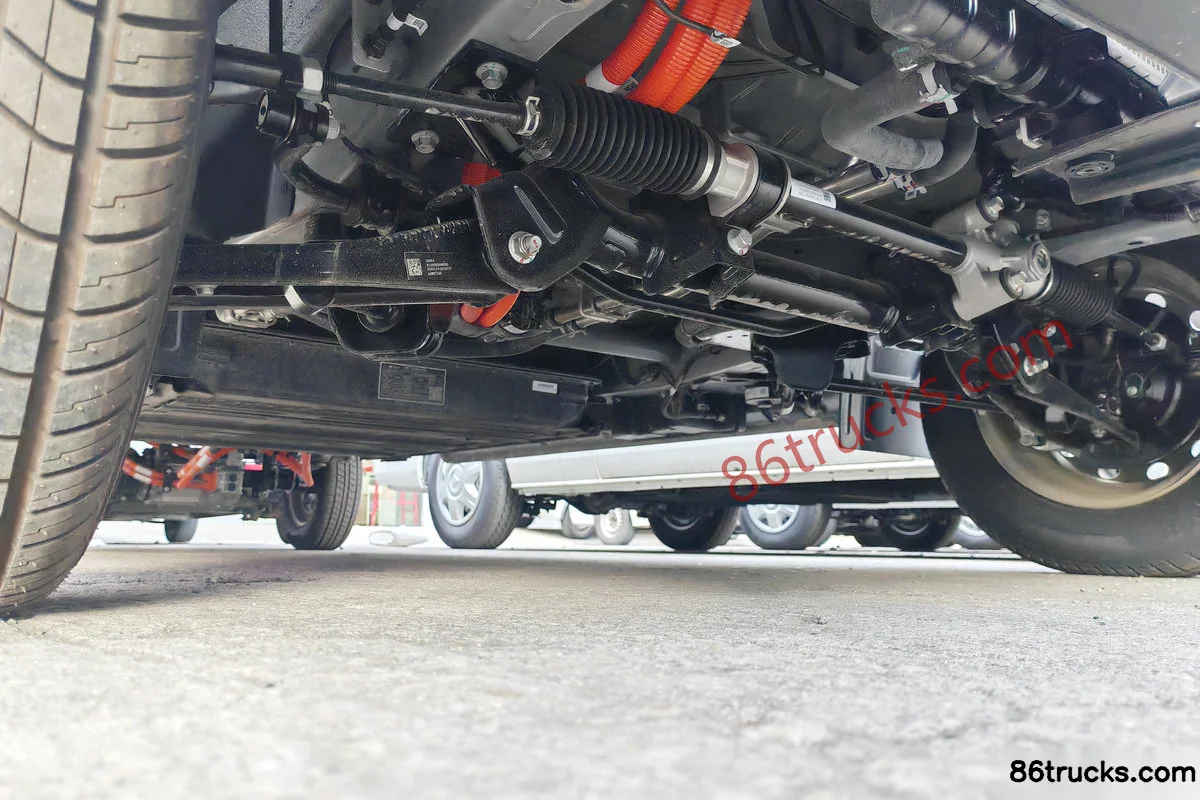

Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh Chassis (1) | 86Trucks Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh Chassis (2) | 86Trucks Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh Chassis (3) | 86Trucks

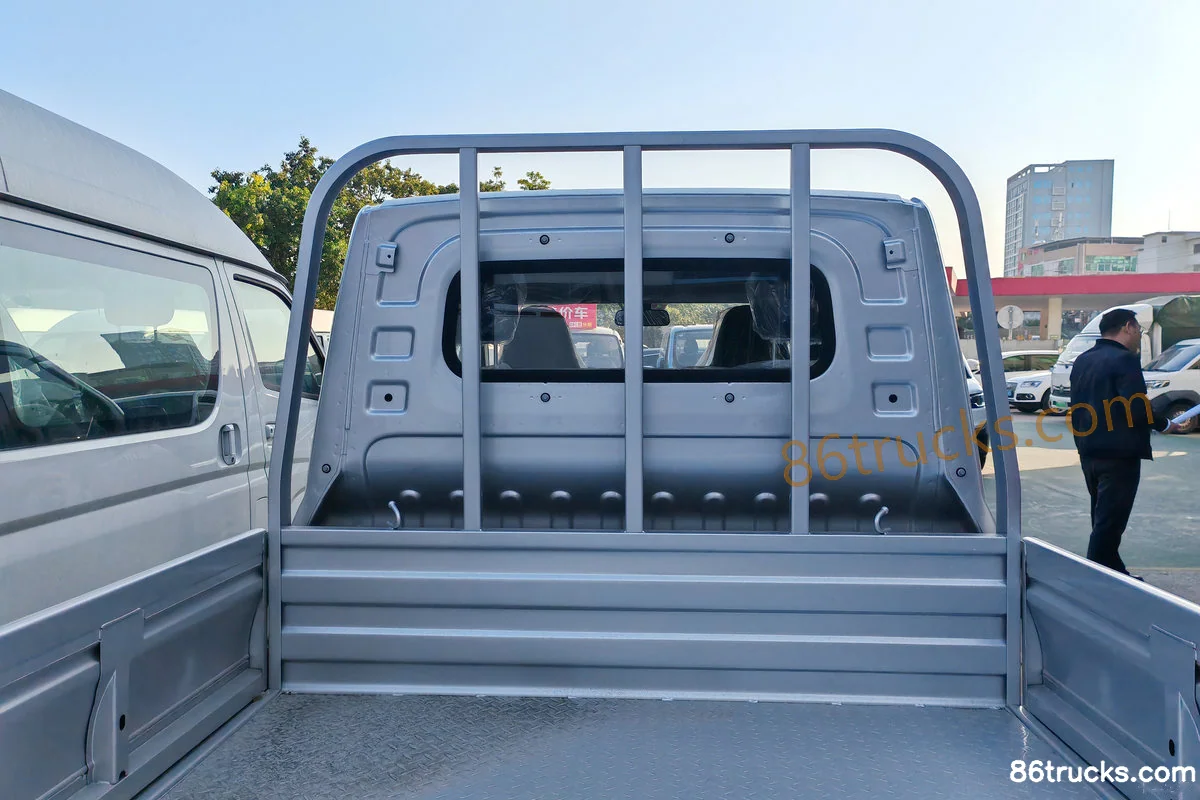

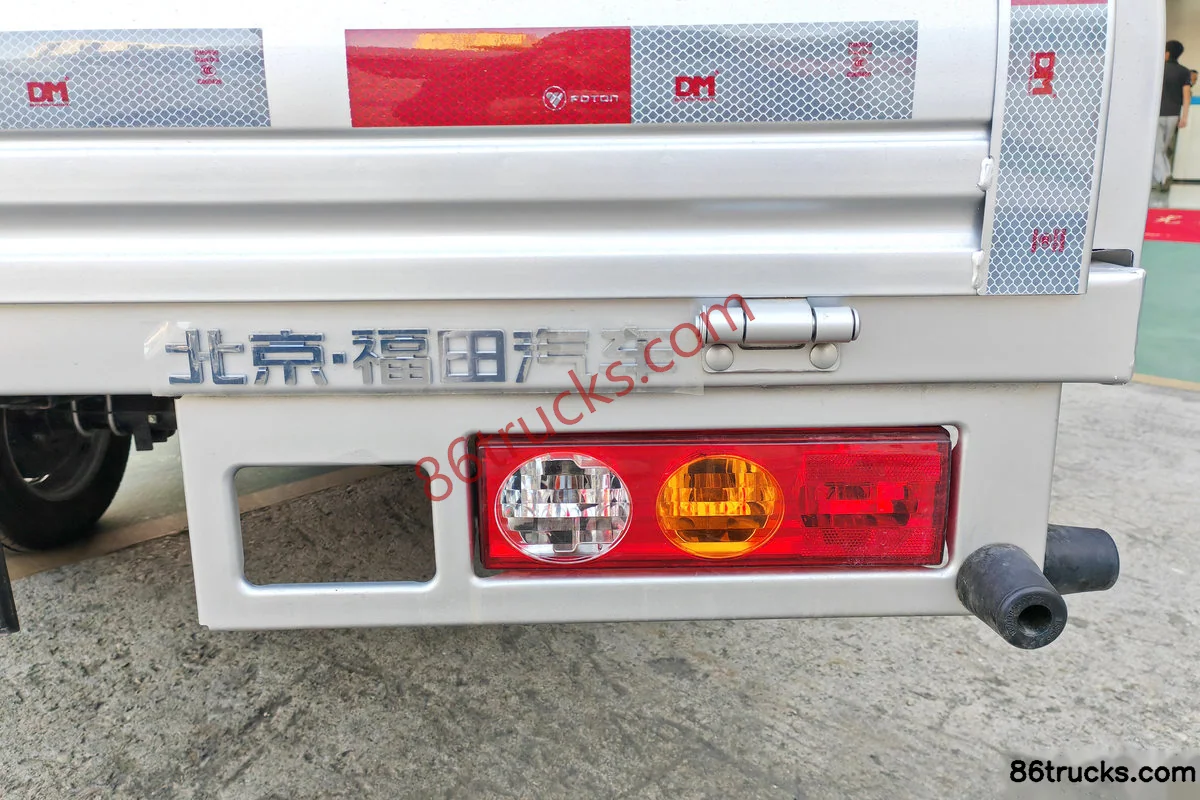

Body3

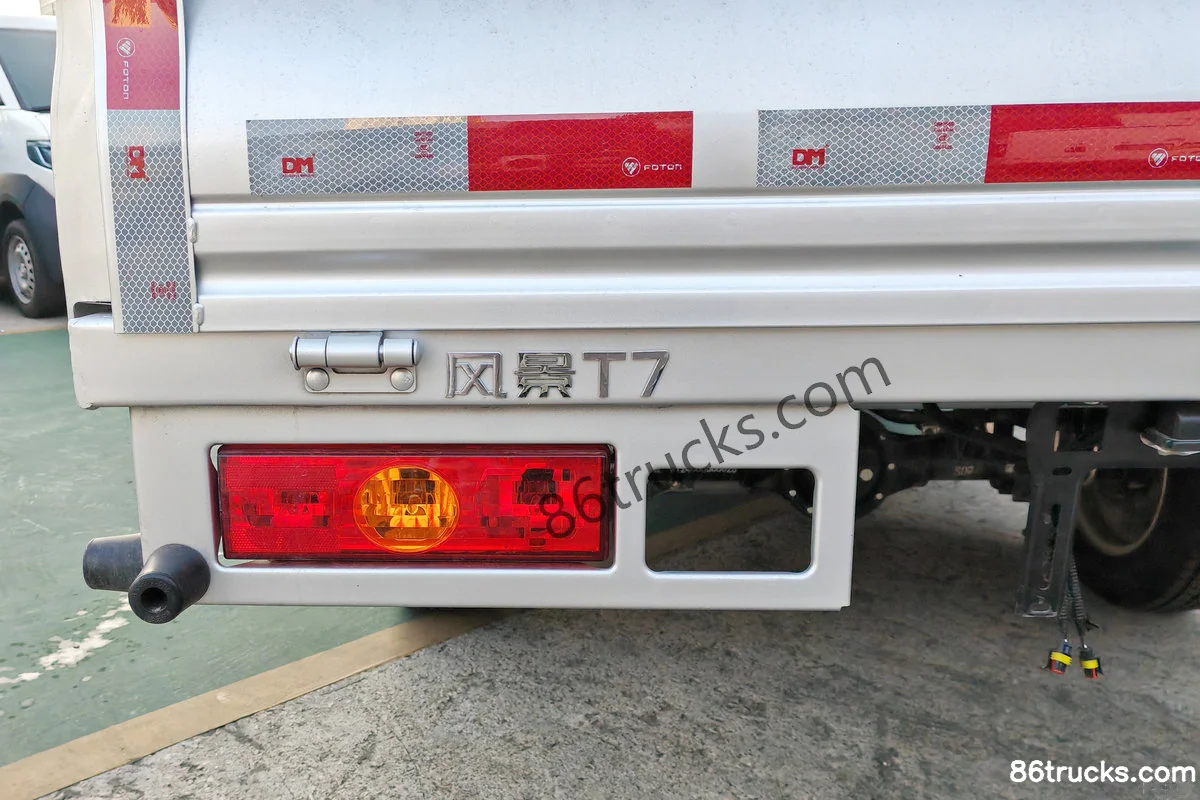

Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh Body (1) | 86Trucks Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh Body (2) | 86Trucks Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh?

Key specs of Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh: Drive: Front-mounted front drive. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh suited for?

Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh differ from other variants in the same series?

Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh belongs to Tuyano Fengjing T7 Micro Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tuyano Fengjing T7 2.5m Double Row Pure Electric Flatbed Mini Truck CATL 41.86kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
