Sinotruk Sitrak SITRAK C5H 310hp 6X4(10 wheels) Water Sprinkler Truck (Lvye Brand)(13.33m³)

Export reference
MSRP N/A
Curb Weight:: 11.47ton
Emission: China VI
Fuel: Diesel
Wheelbase:: 4275+1400mm
Cab dimensions:: 9.23×2.5×3.08m
Truck Type:: Water Sprinkler Truck
Tank Dimensions (L×W×H): 6.25×2.42×1.54m
Rated payload: 13.4ton
Drive 6X4 (10 wheels)
Horsepower 310

Overview

The Sinotruk Sitrak SITRAK C5H 310hp 6X4(10 wheels) Water Sprinkler Truck (Lvye Brand)(13.33m³) is a water sprinkler truck featuring 6.25×2.42×1.54m tank capacity, 13.4t payload, 13.33m³ volume and 11.47ton GVW. On the powertrain side, it comes with 310 hp, 6X4 (10 wheels) drive, China VI emissions and Diesel fuel.

China VI 310 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.23×2.5×3.08m
Truck Type: Water Sprinkler Truck
Drive type: 6X4
Wheelbase: 4275+1400mm
Vehicle origin: Shandong Zhangqiu
Front track width: 1998mm
rear track: 1850/1850mm
Curb Weight: 11.47ton
Rated payload: 13.4ton
Max. speed: 89km/h
Front/rear suspension: 1.45/2.105m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 6.25×2.42×1.54m
Vehicle certification code: JYJ5256GSSF
Body Brand: Luye Brand
Engine parameters
Engine Model: SinotrukMC07.31-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China VI
Max output power: 225kW
Max hp: 310Horsepower
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Cargo box parameters
Box volume: 13.33m³
Chassis Specs
Chassis Brand: Sitrak
Chassis Series: SITRAK C5H
Chassis Model: ZZ5256XXYN504GF1
Leaf spring count: 11/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk 10-speed
Tire
Tire Size: 11.00R20 18PR
Number of tires: 10pcs

Photos

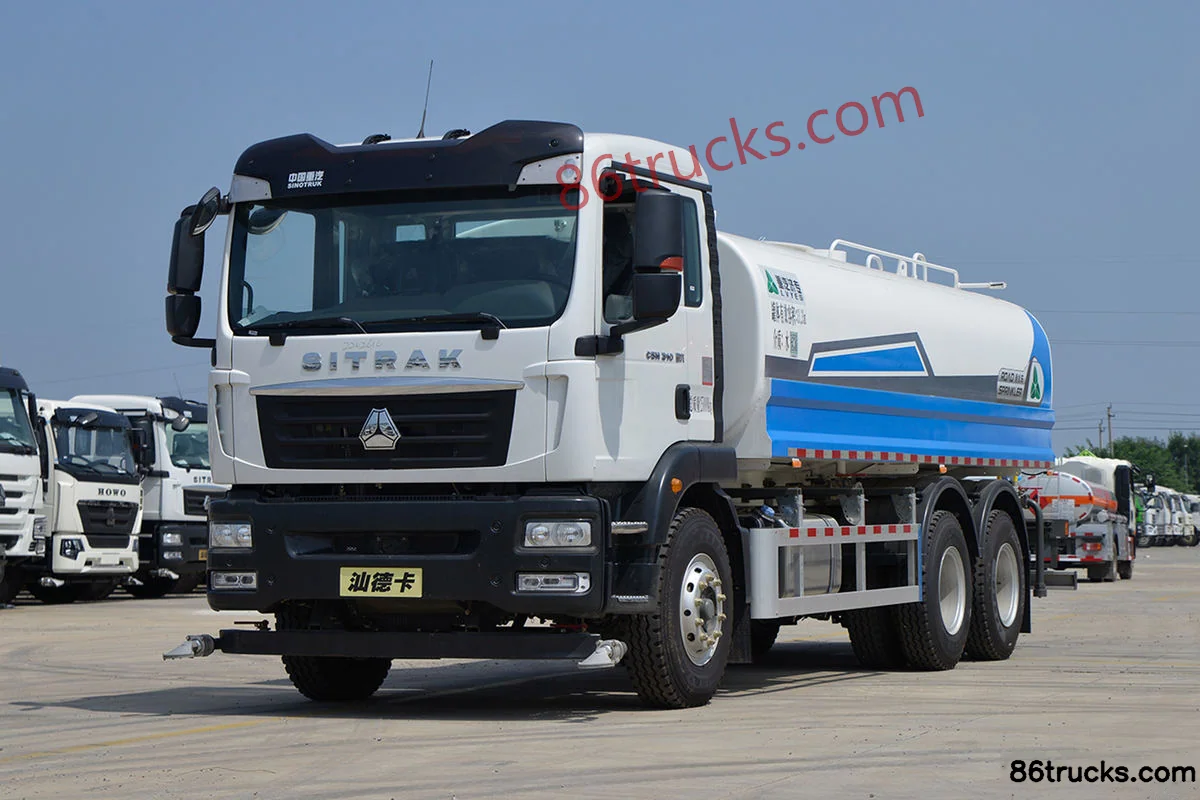

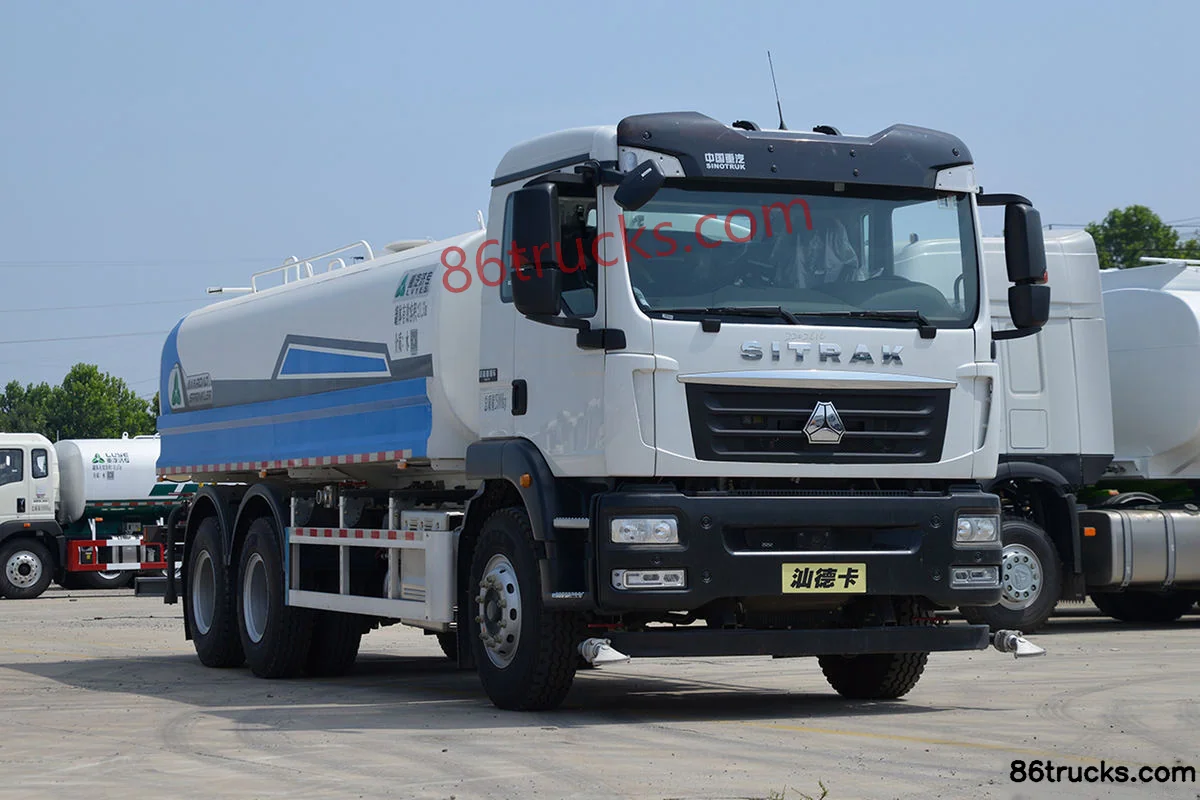

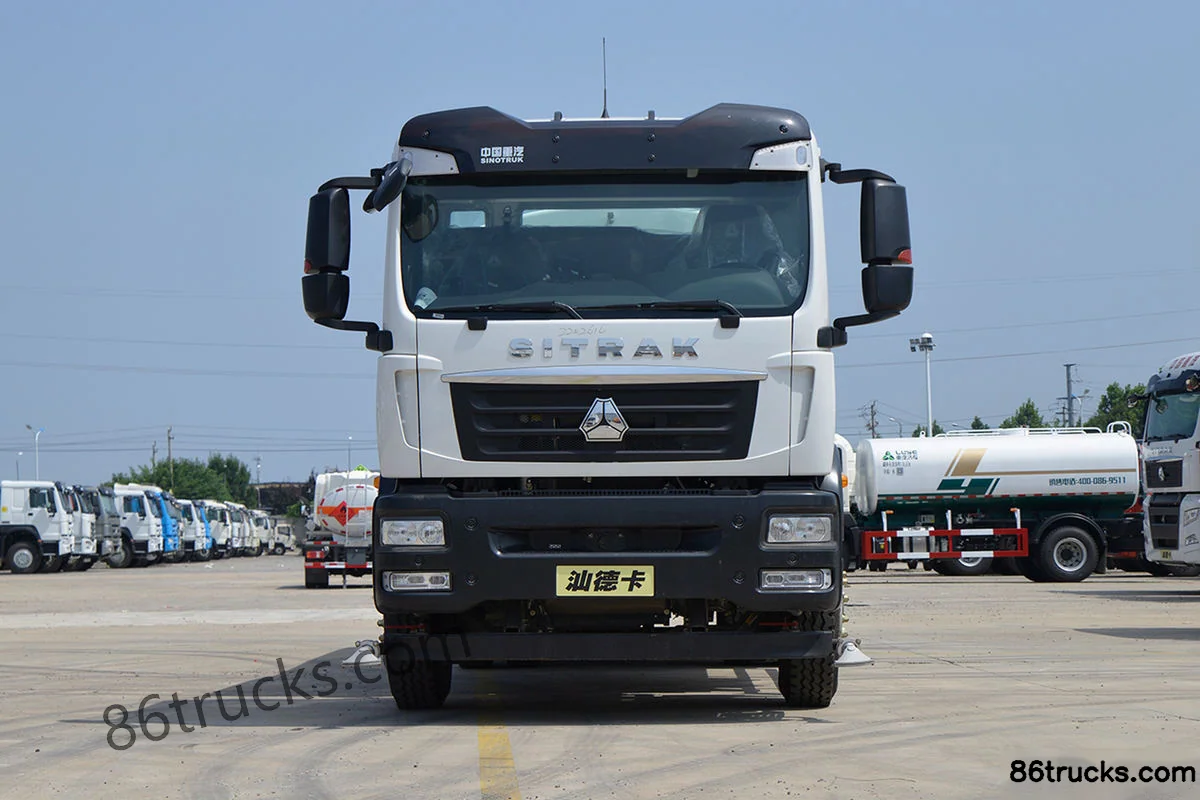

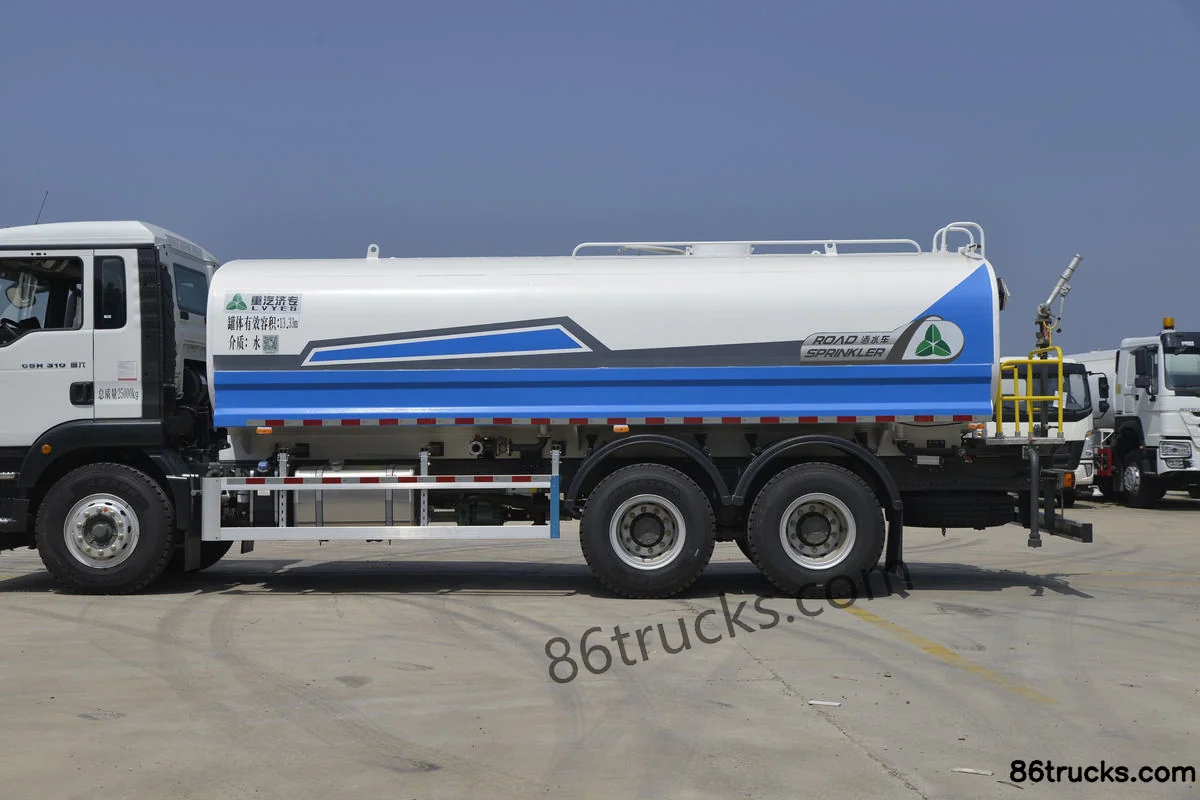

Exterior3

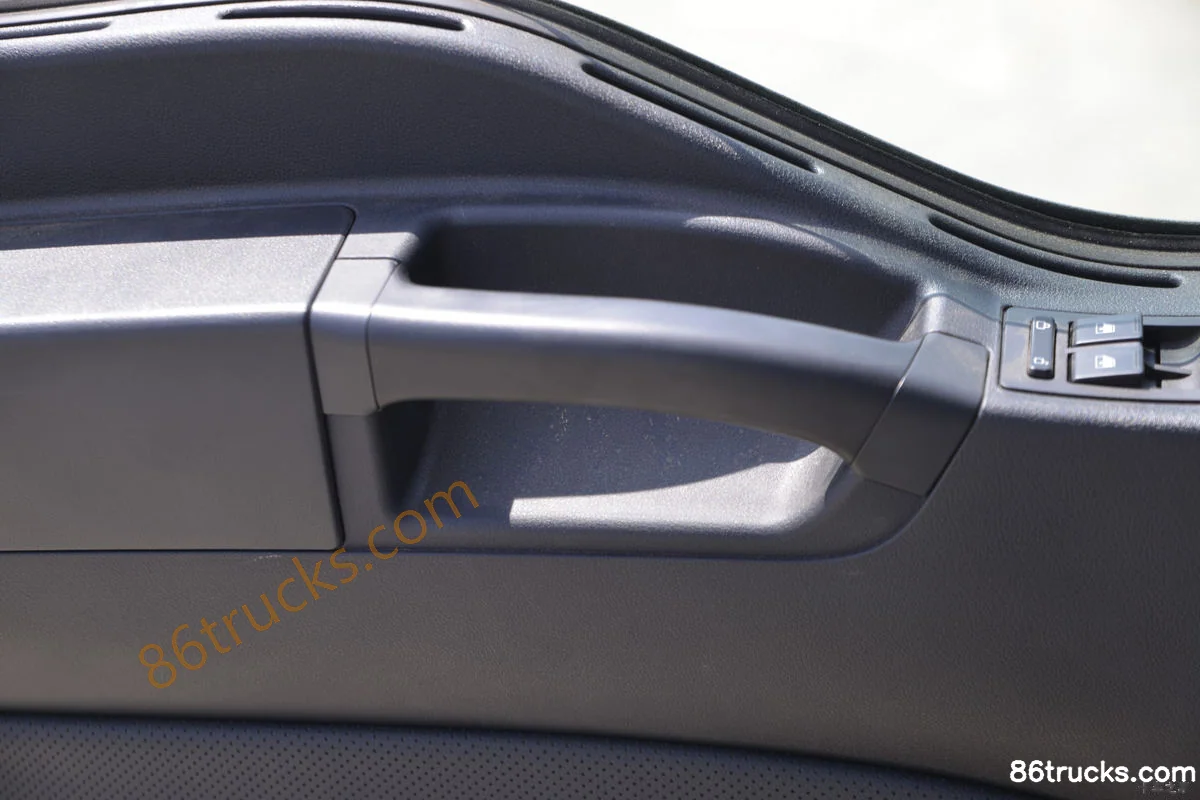

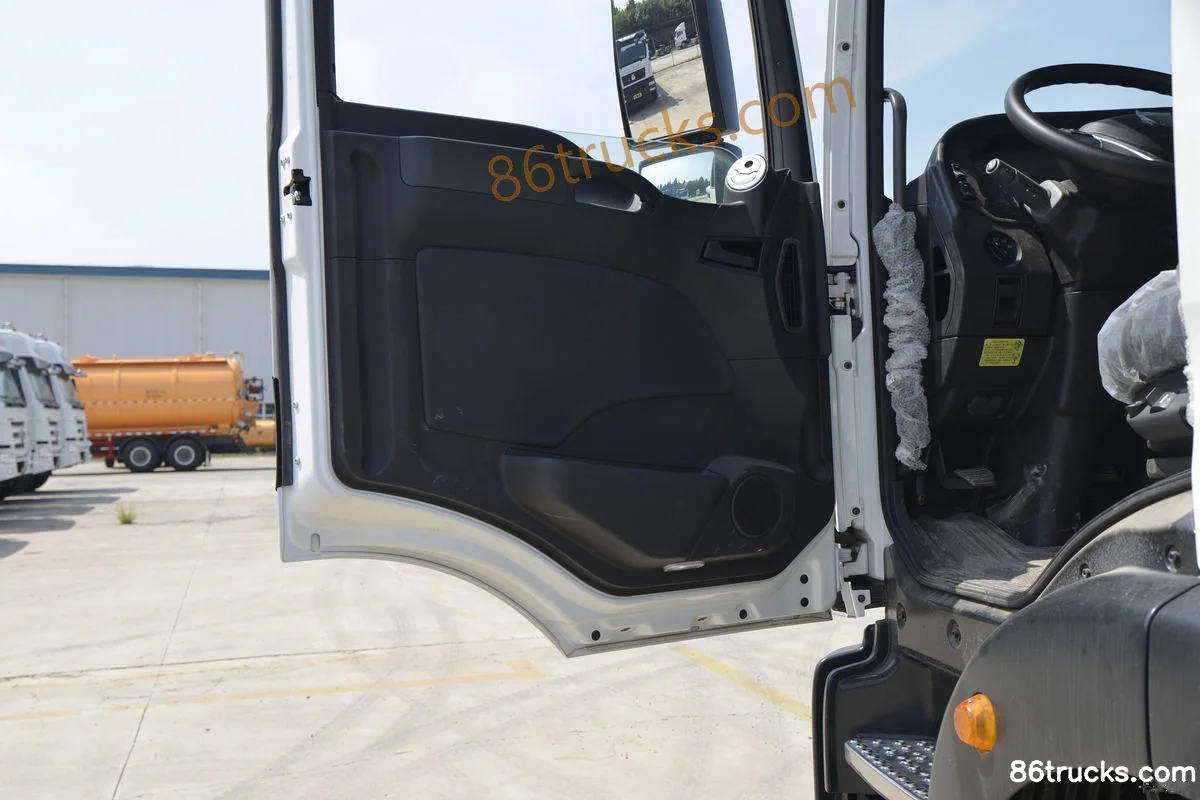

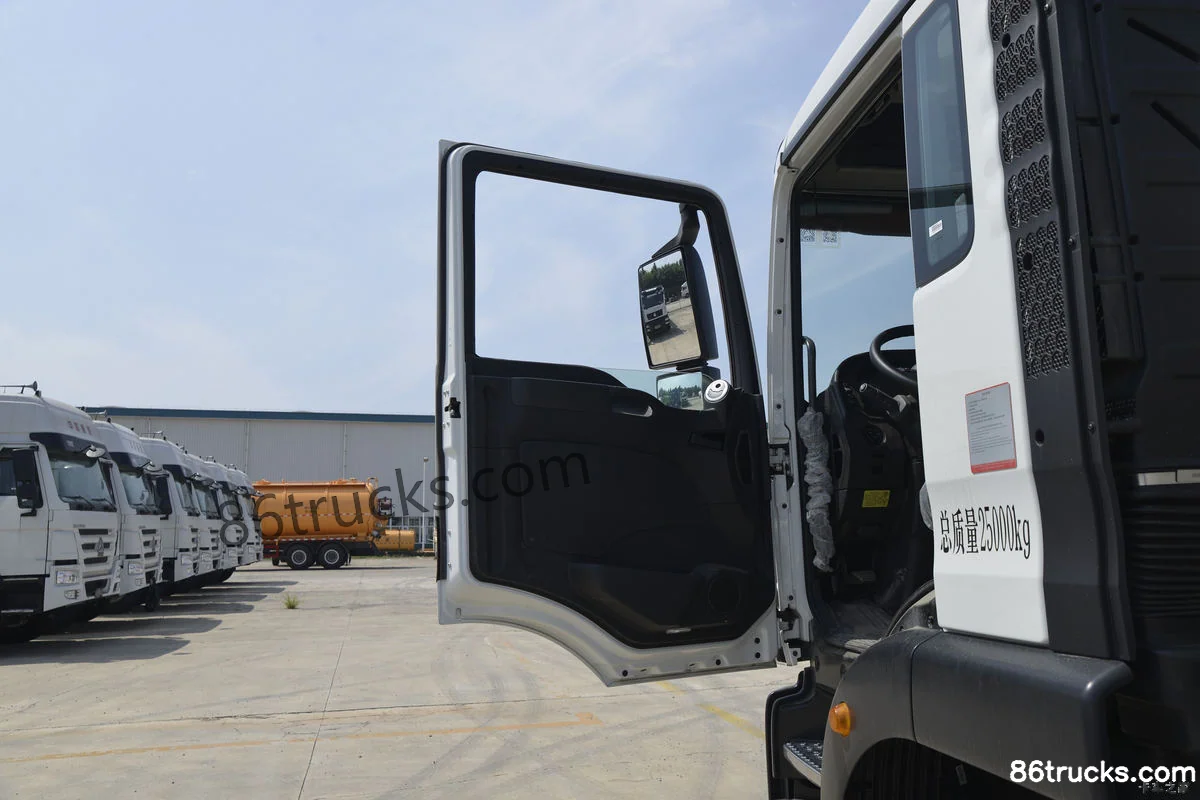

Cab3

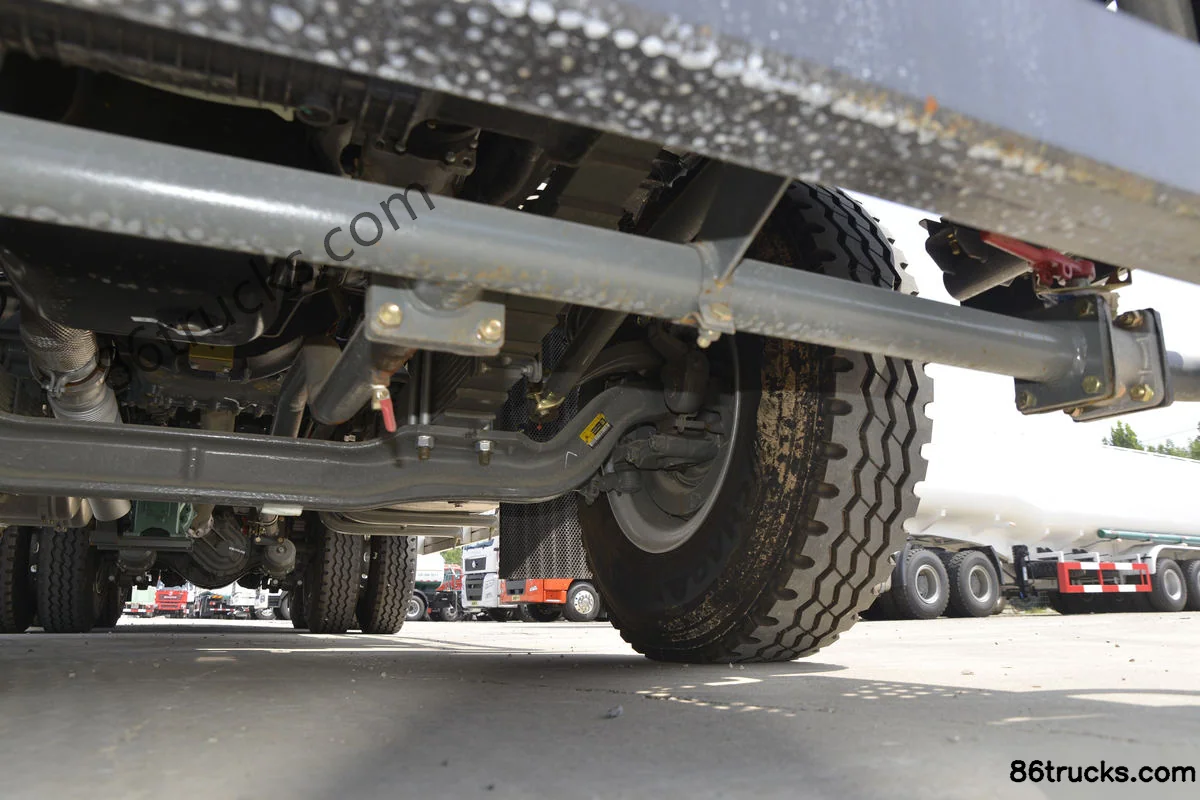

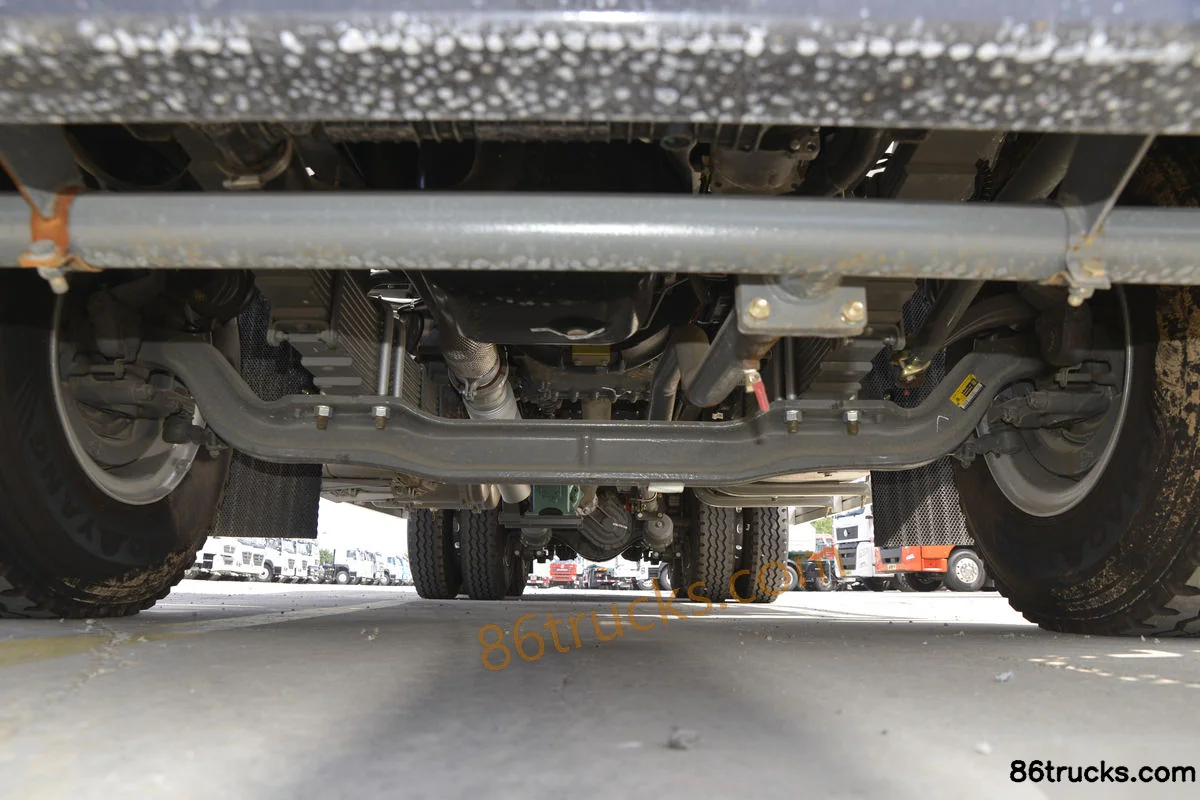

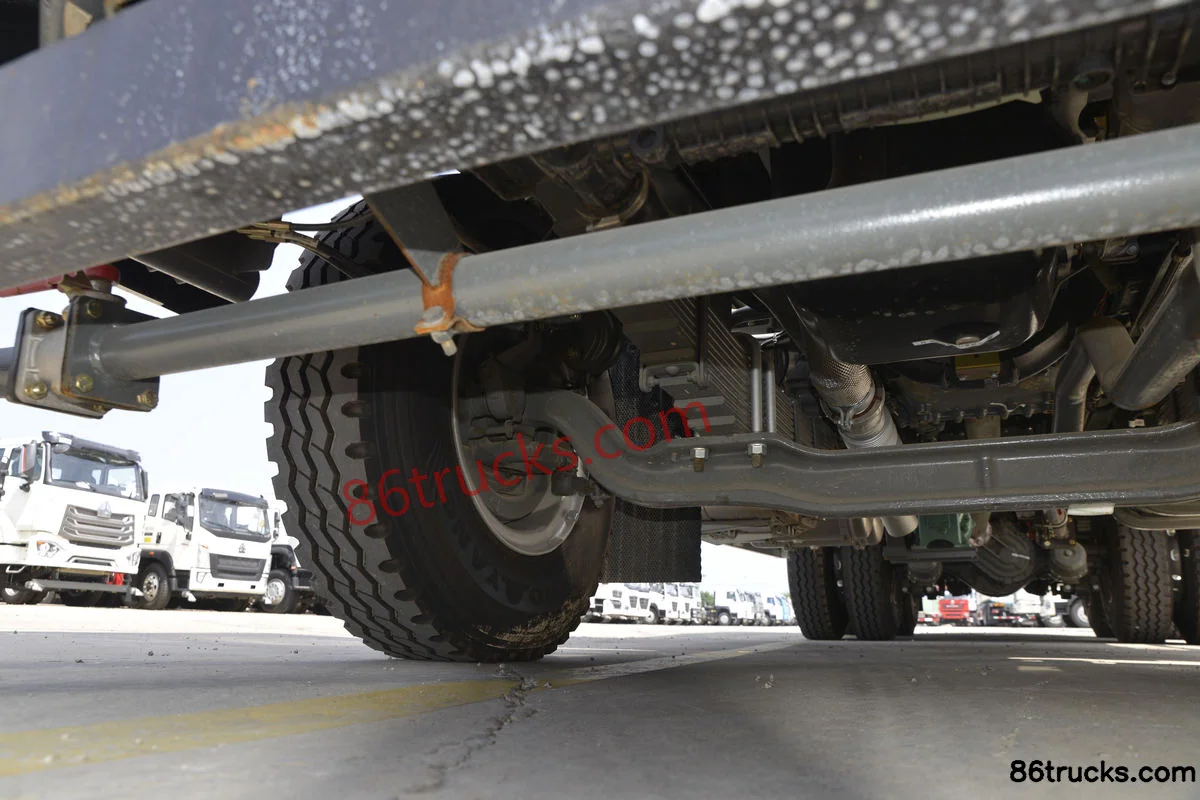

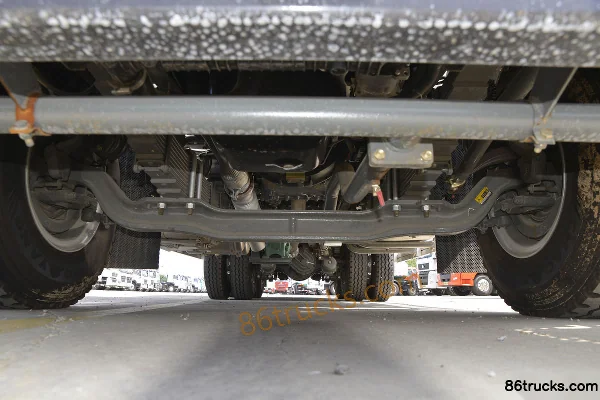

Chassis3

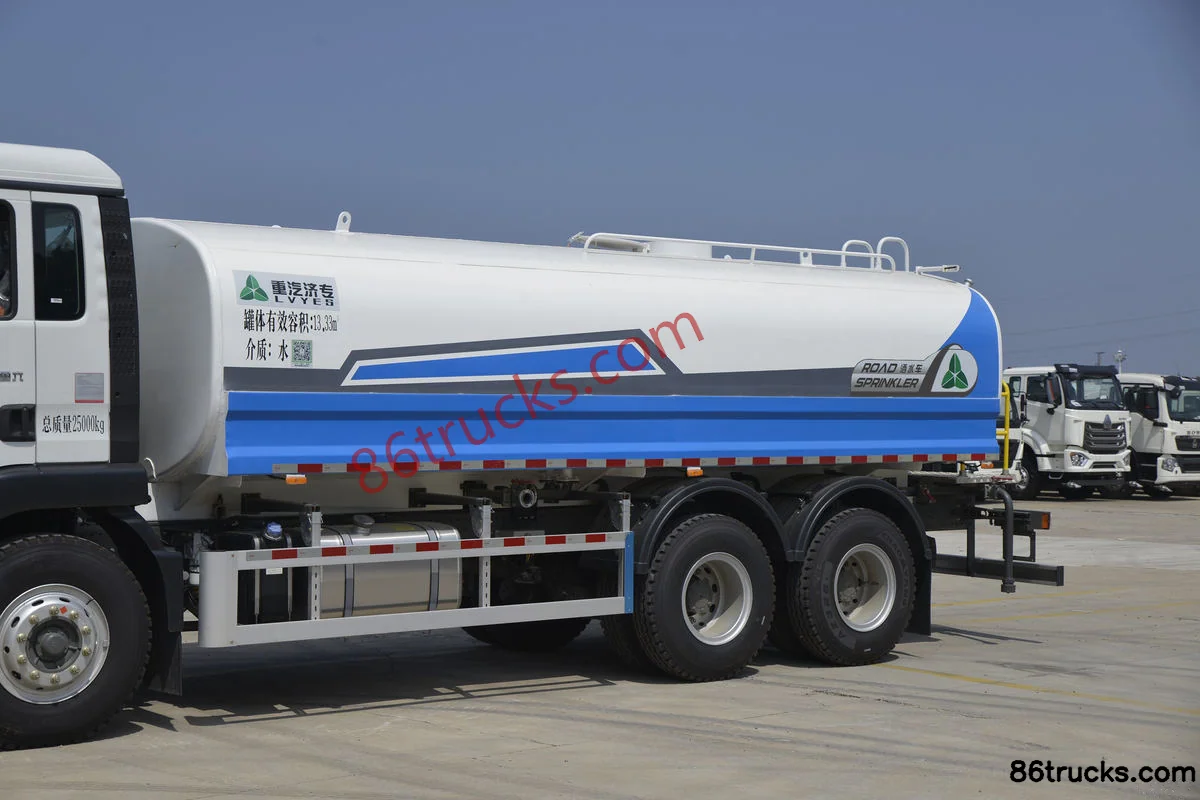

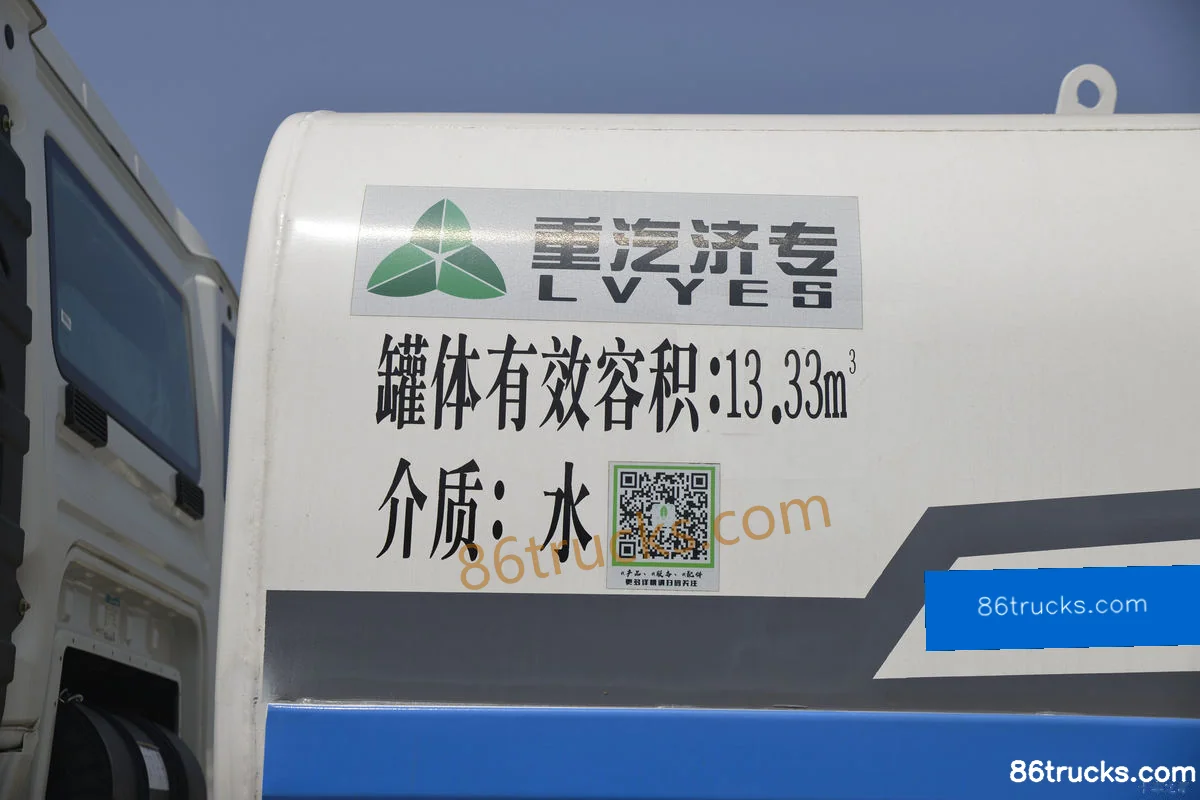

Body3

12 photos

FAQ

What emission standard does Sinotruk Sitrak SITRAK C5H 310hp 6X4(10 wheels) Water Sprinkler Truck (Lvye Brand)(13.33m³) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak SITRAK C5H 310hp 6X4(10 wheels) Water Sprinkler Truck (Lvye Brand)(13.33m³)?

Key specs of Sinotruk Sitrak SITRAK C5H 310hp 6X4(10 wheels) Water Sprinkler Truck (Lvye Brand)(13.33m³): Drive: 6x4; Horsepower: 310 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak SITRAK C5H 310hp 6X4(10 wheels) Water Sprinkler Truck (Lvye Brand)(13.33m³) suited for?

Sinotruk Sitrak SITRAK C5H 310hp 6X4(10 wheels) Water Sprinkler Truck (Lvye Brand)(13.33m³) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Sitrak SITRAK C5H 310hp 6X4(10 wheels) Water Sprinkler Truck (Lvye Brand)(13.33m³) differ from other variants in the same series?

Sinotruk Sitrak SITRAK C5H 310hp 6X4(10 wheels) Water Sprinkler Truck (Lvye Brand)(13.33m³) belongs to Jinan Sinotruk (Luye) Sitrak Chassis (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak SITRAK C5H 310hp 6X4(10 wheels) Water Sprinkler Truck (Lvye Brand)(13.33m³)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak SITRAK C5H 310hp 6X4(10 wheels) Water Sprinkler Truck (Lvye Brand)(13.33m³)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
