Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck

Export reference
From $49,222
MSRP ¥35.44M CNY
Horsepower: 350
Emission: China VI
Fuel: Diesel
Engine: Yuchai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 12.9ton
seating capacity: 2Personnel
Rated payload: 17.97ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck is a Heavy-duty cargo trucks featuring 9.47m cargo length, Stake type cargo body, 2Personnel volume and 17.97t payload. Its segment focus covers Livestock Transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai 6-cylinder engine, 350 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ5310CCQH7FC1
Type: stake truck
Drive type: 8X4
Wheelbase: 2050+4400+1350mm
Box length class: 9.5m
engine: YuchaiYCK08350-60
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 4.111
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 12.9ton
Rated payload: 17.97ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 11°
market segment: Livestock Transport
Remarks: Laminated glass, standard paint, standard steering wheel, multi-state switch, electronic controlled silicone oil fan, WABCO valves (air treatment unit, parking hand control valve, brake master cylinder), automatic adjuster arm, external sun visor, right-turn warning buzzer, T-BOX
Front/rear suspension: 1.512/2.688m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK08350-60
Engine info: Yuchai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.7L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1450N·m
Max torque speed: 1300-1500rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.47m
Cargo box width: 2.46m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: H73S
Cab suspension: Four-point air suspension
Cab width: 2490mm
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 2*5.5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 282(8)mm
rear axle description: 2*440
Steering gear: Domestic
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.111
Leaf spring count: 3/3/10
Aluminum wheels:
clutch: Φ430
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
Rear Axle Lift:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
clutch booster:
Load-sensing proportioning valve (SABS):
automatic slack adjuster:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
Lane Keeping Assist System (B.LKA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:
AEB automatic emergency braking system:

Photos

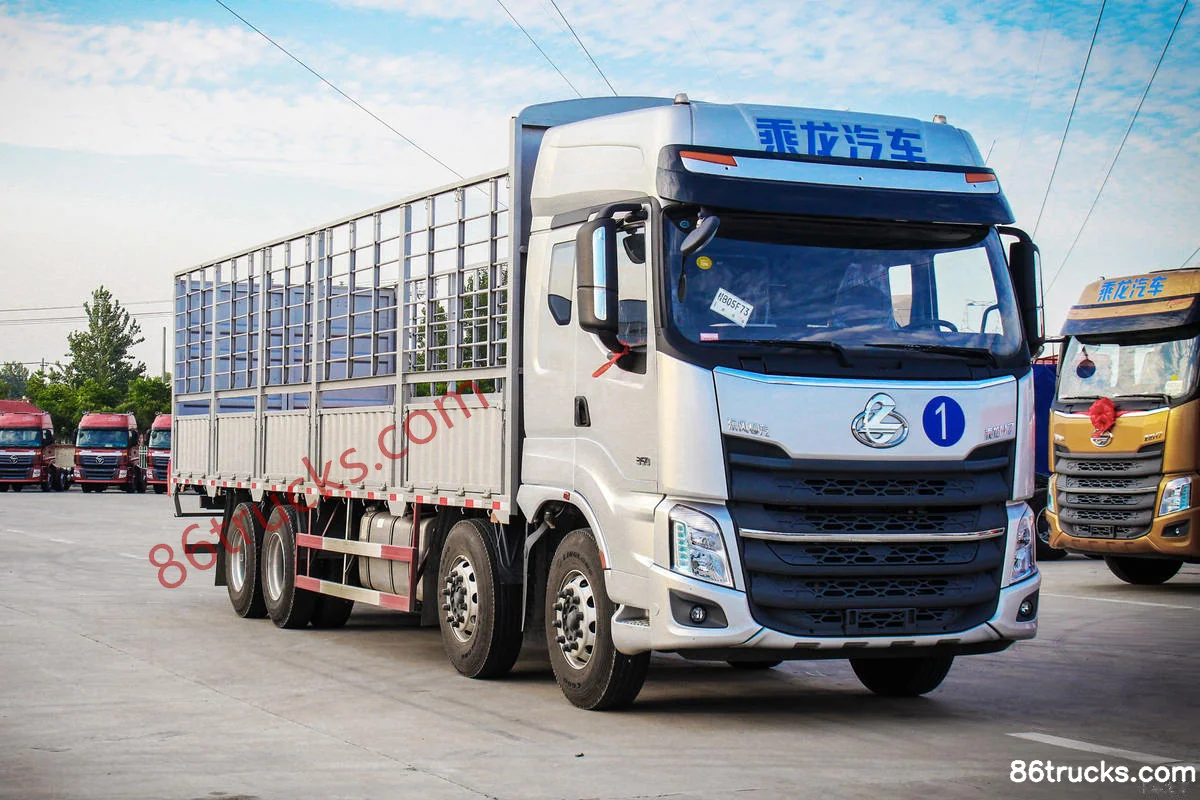

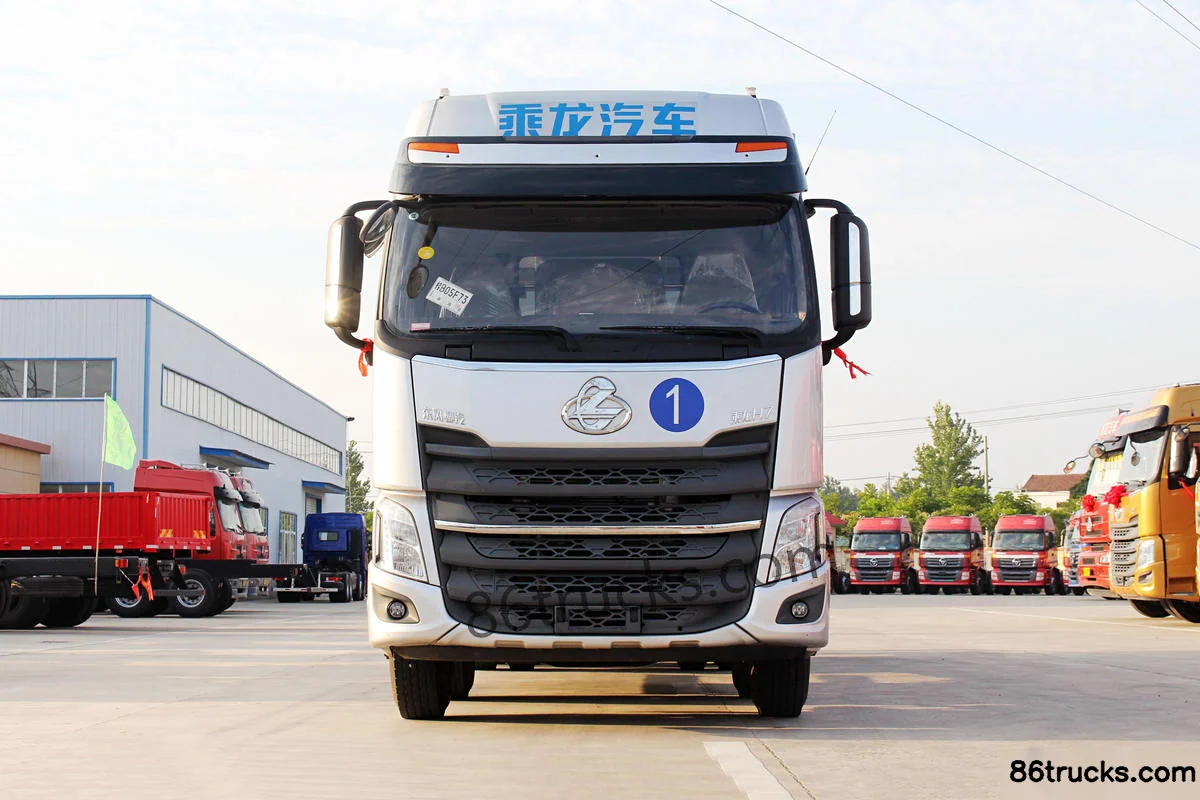

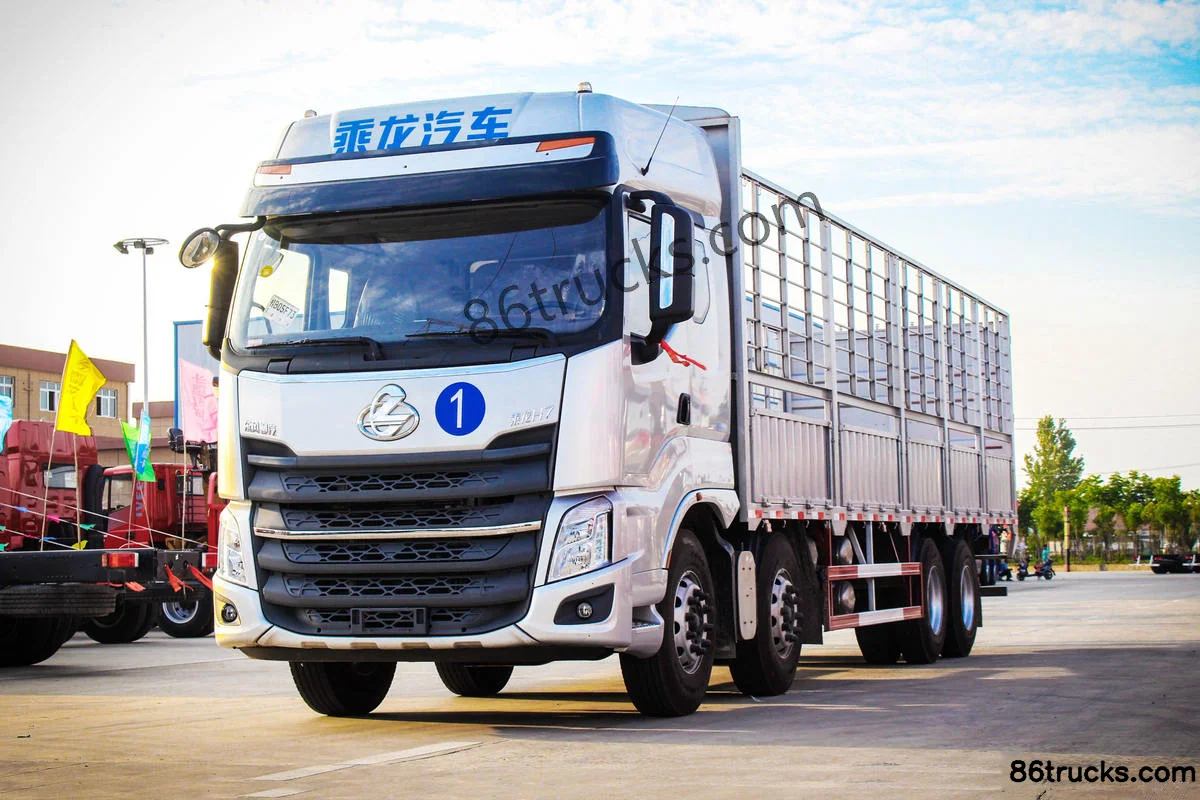

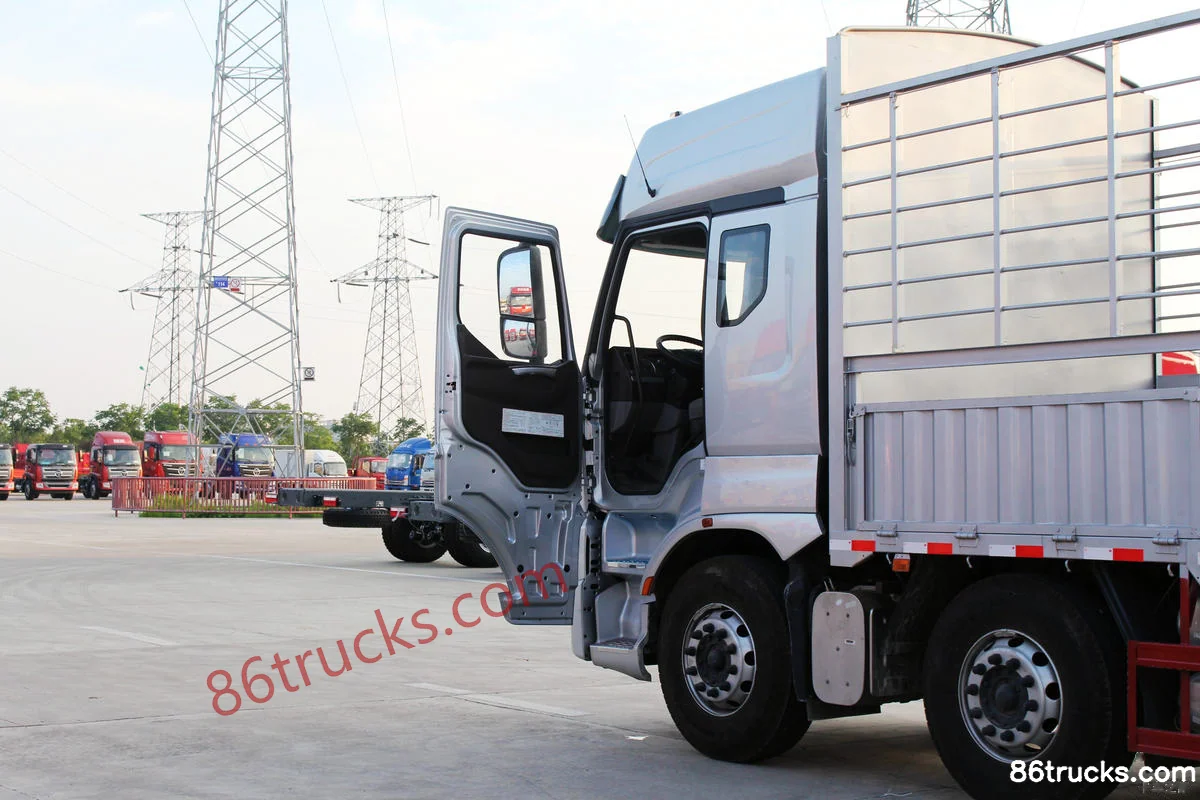

Exterior3

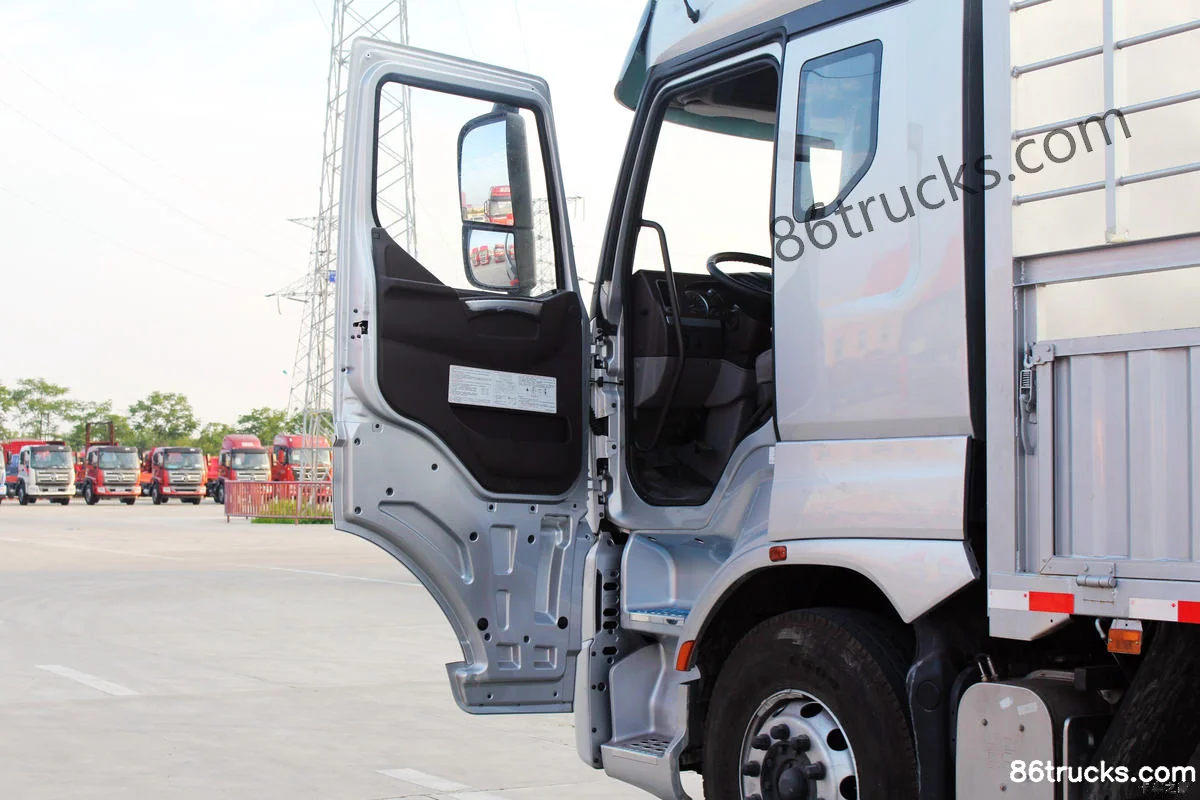

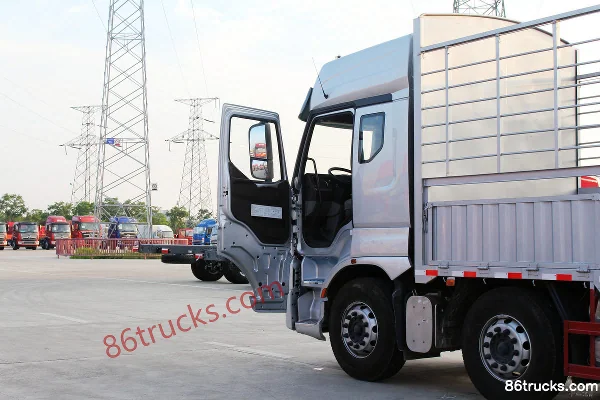

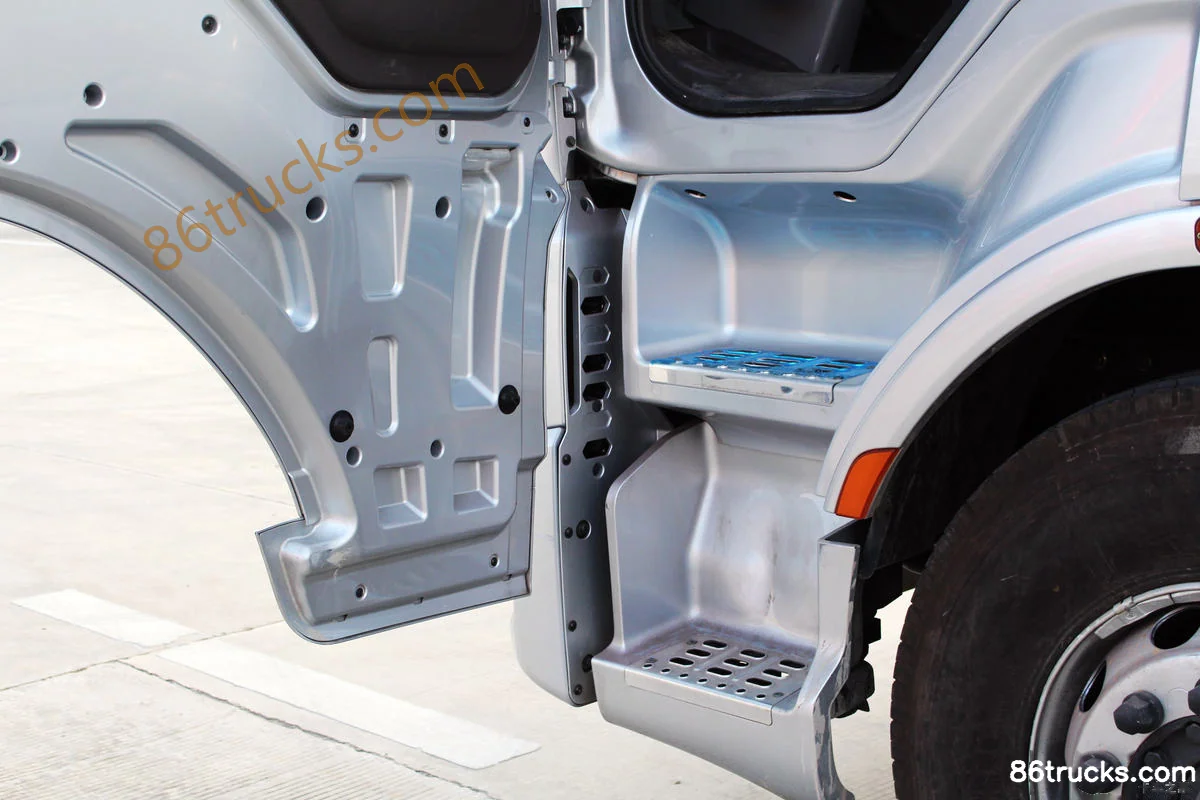

Cab3

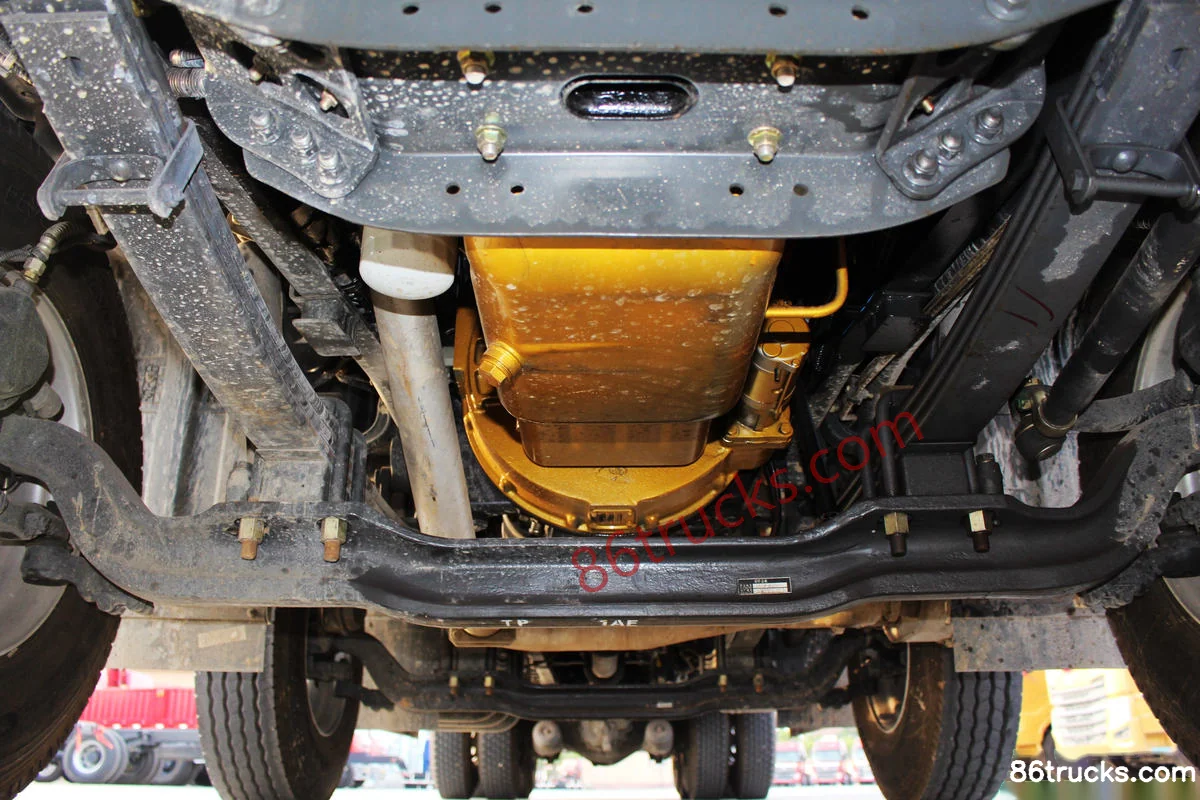

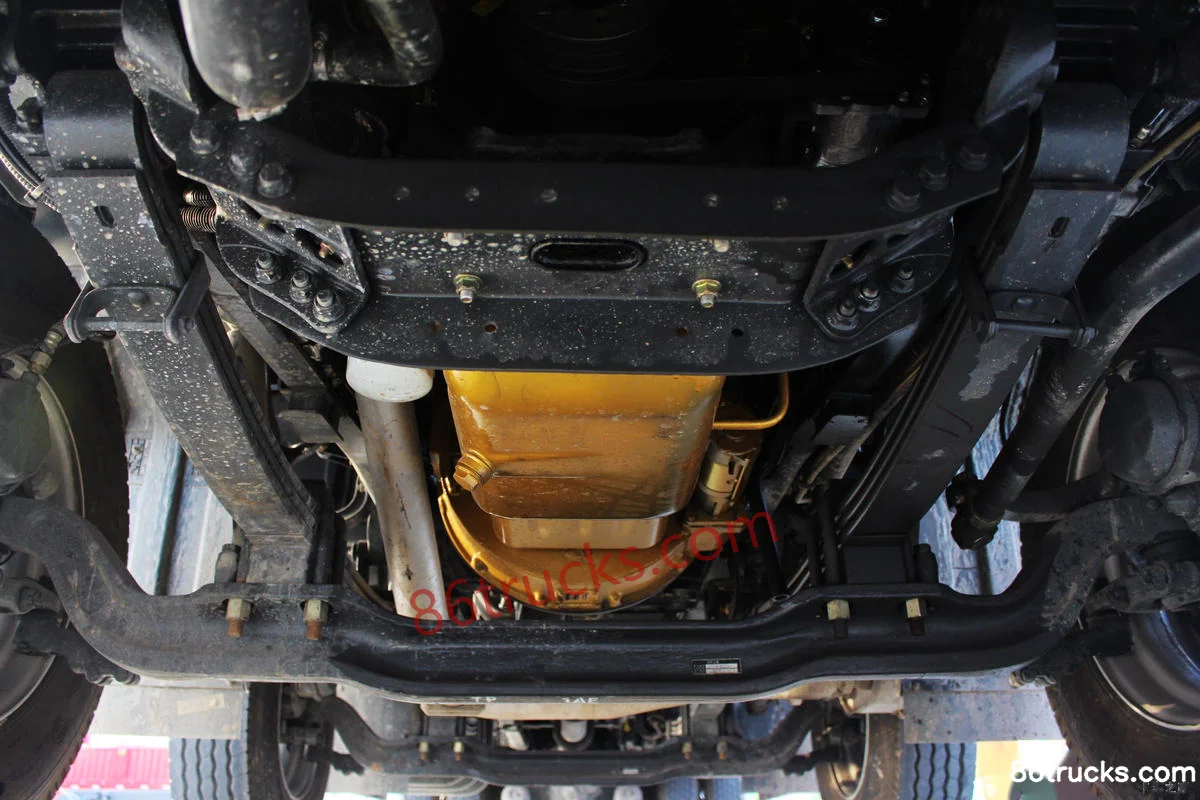

Chassis3

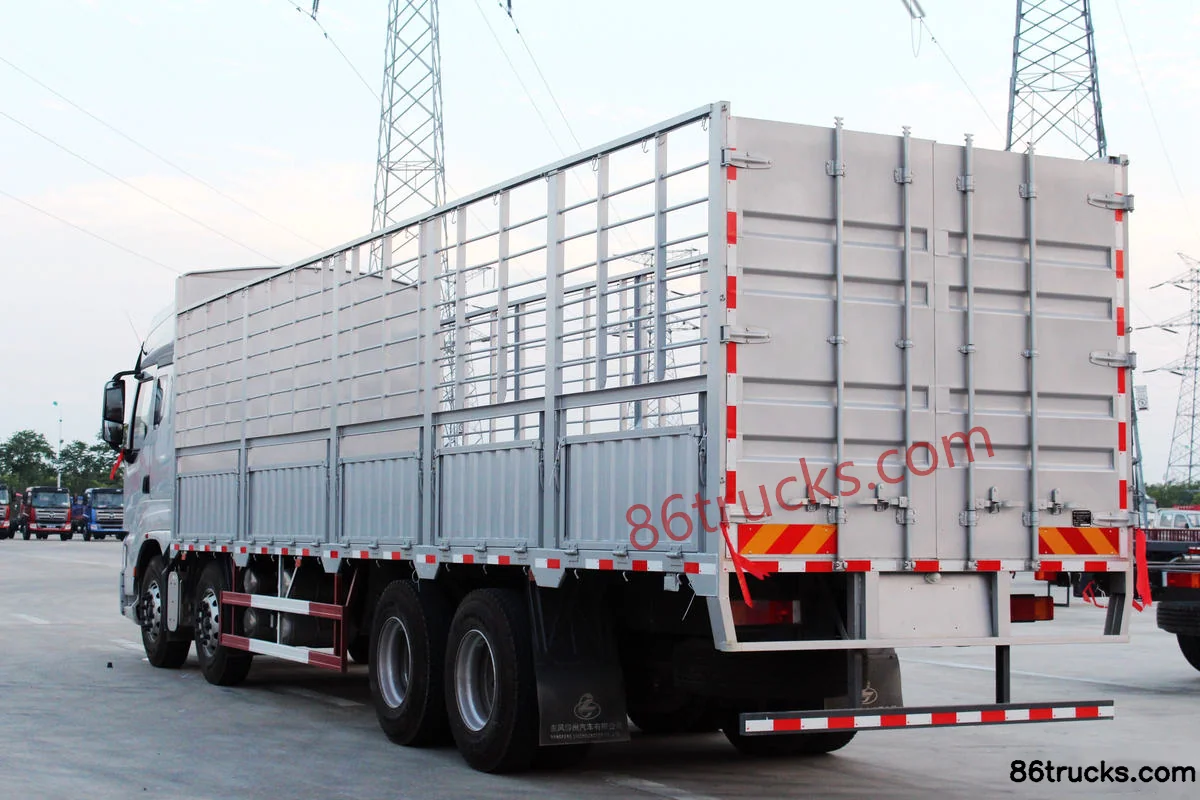

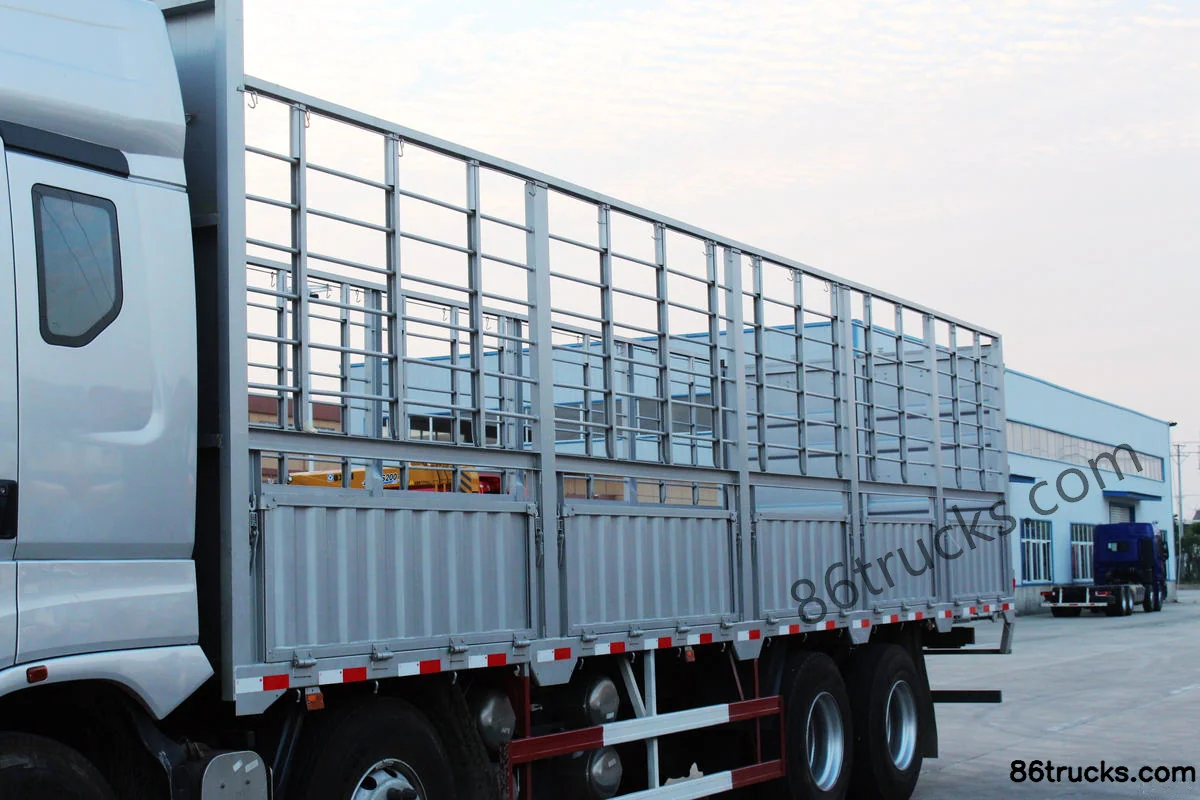

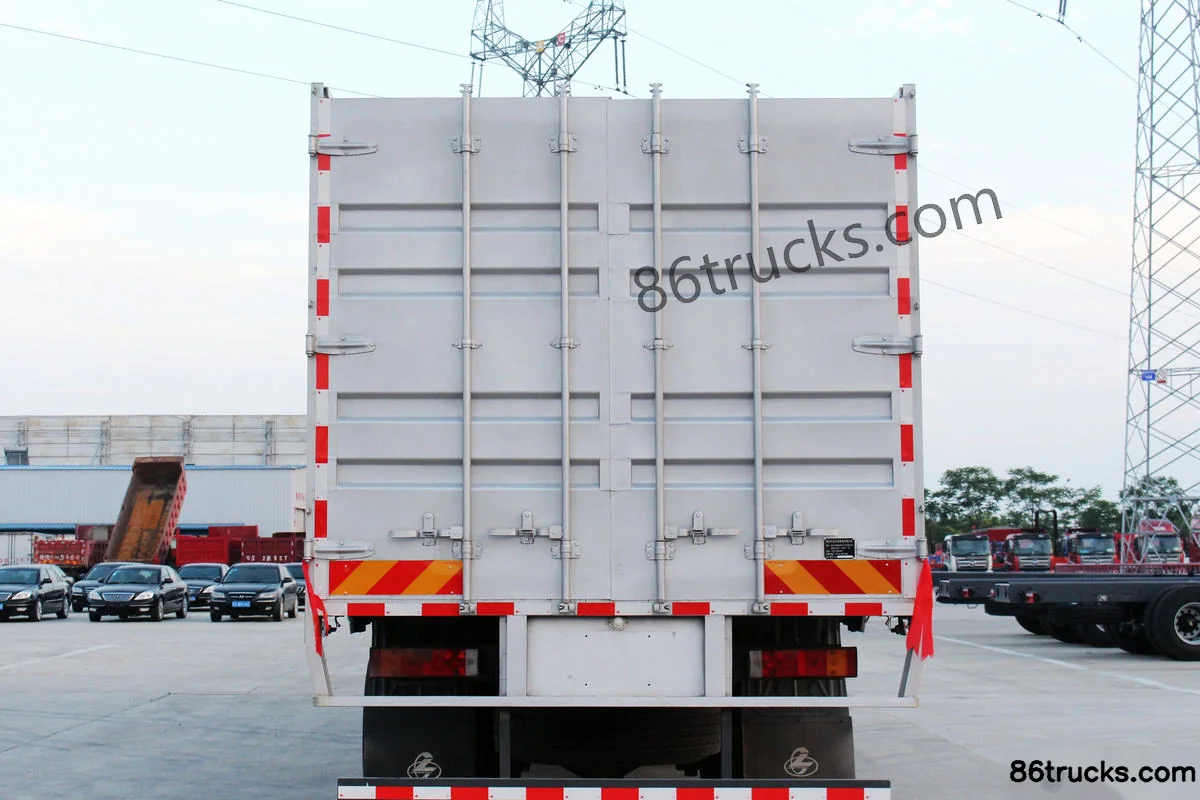

Body3

12 photos

FAQ

What is the export price of Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck, and what does it include?

Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck export reference is about From $49,222; MSRP is ¥35.44M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck?

Key specs of Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck: Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck suited for?

Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck differ from other variants in the same series?

Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck belongs to Dongfeng Chenglong H7 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H7 350 hp 8X4(12 wheels) 9.47m livestock transport truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
