Hualing Hanma H6 420 hp 8X4(12 wheels) 9.5m stake truck

Export reference
MSRP N/A
Horsepower: 420
Emission: China V
Fuel: Diesel
Engine: Hanma10L
Transmission: Hanma
Curb Weight:: 11.8ton
seating capacity: 3Personnel
Rated payload: 19.005ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Hualing Hanma H6 420 hp 8X4(12 wheels) 9.5m stake truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, Stake type cargo body, 3Personnel volume and 19.005t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Hanma10L engine, 420 hp, 8X4 (12 wheels) drive and China V emissions.

China V 420 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN5310CCYX34D6M5
Type: stake truck
Drive type: 8X4
Wheelbase: 1850+4605+1350mm
Box length class: 9.5m
engine: HanmaCM6D18.420 50
transmission: Hanma12S0B2250
Rear Axle Ratio: 4.11
Cab length: 11.98m
Cab width: 2.5m
Cab height: 3.85m
Front track width: 2020/2020mm
rear track: 1860/1860mm
Curb Weight: 11.8ton
Rated payload: 19.005ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Ma'anshan, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle: 15°
market segment: Daily industrial goods transport, agricultural and sideline products transport, LTL transport, green channel
Front/rear suspension: 1.37/2.085m
Energy Type: Diesel
Engine parameters
Engine Brand: Hanma
Engine Model: HanmaCM6D18.420 50
Engine info: Hanma10L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.84L
Emission standard: China V
Max output power: 309kW
Max hp: 420Horsepower
Max torque: 1840N·m
Max torque speed: 1100-1500rpm
Rated speed: 1900rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Model: Hanma12S0B2250
Transmission Brand: Hanma
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs

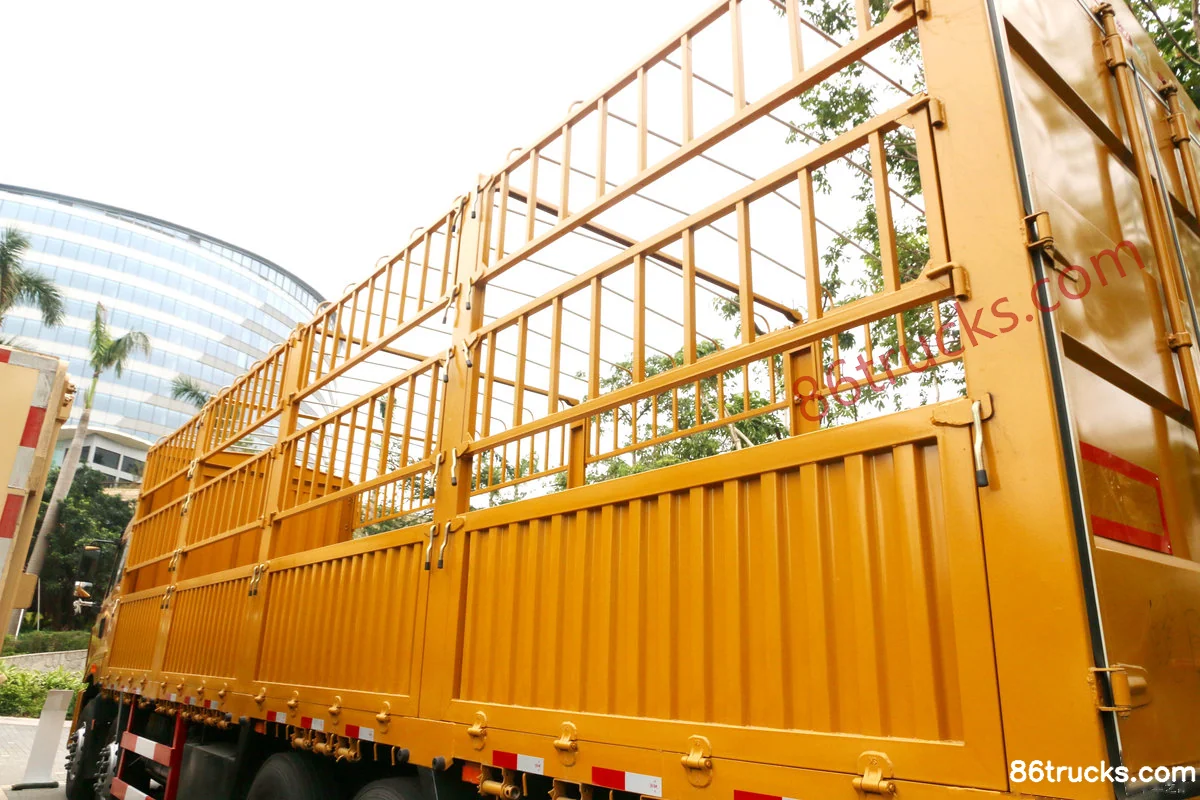

Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.35m
*Cargo box interior width: 2.3499999046326
Cab parameters
Cab: H6 high roof
seating capacity: 3Personnel
Chassis Specs
Front axle description: 7T
Front axle allowable load: 6500/6500kg
rear axle description: HL439 lightweight maintenance-free middle-rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.11
Leaf spring count: 9/9/12

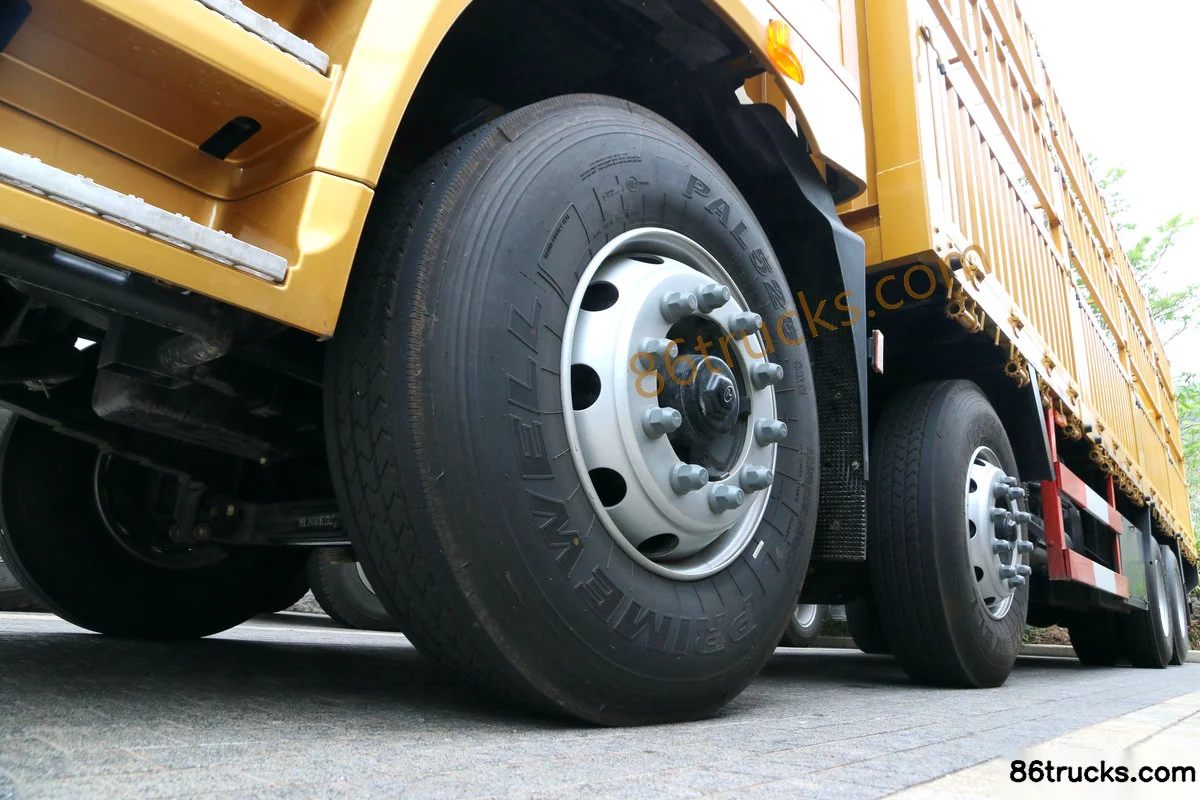

Tire

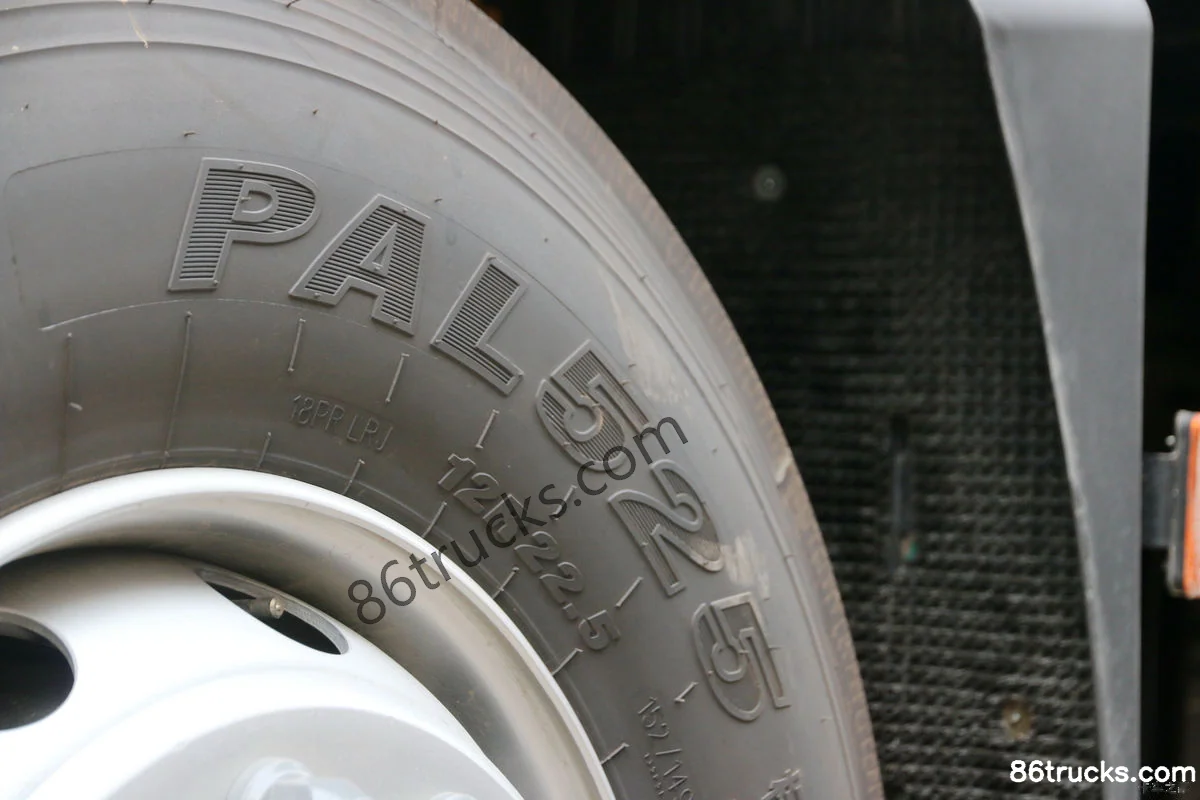

Tire Size: 12R22.5
Tire Type: tubeless tire
Number of tires: 12pcs
Control configuration
ABS:

Photos

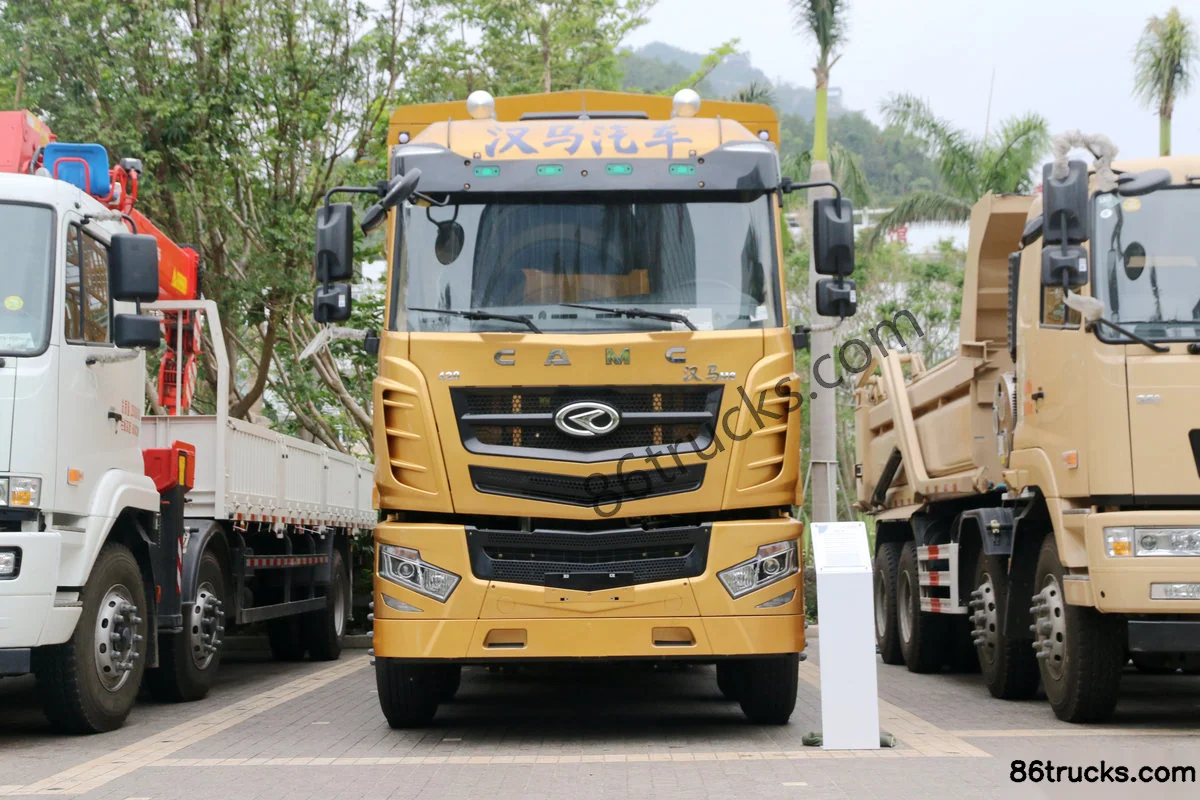

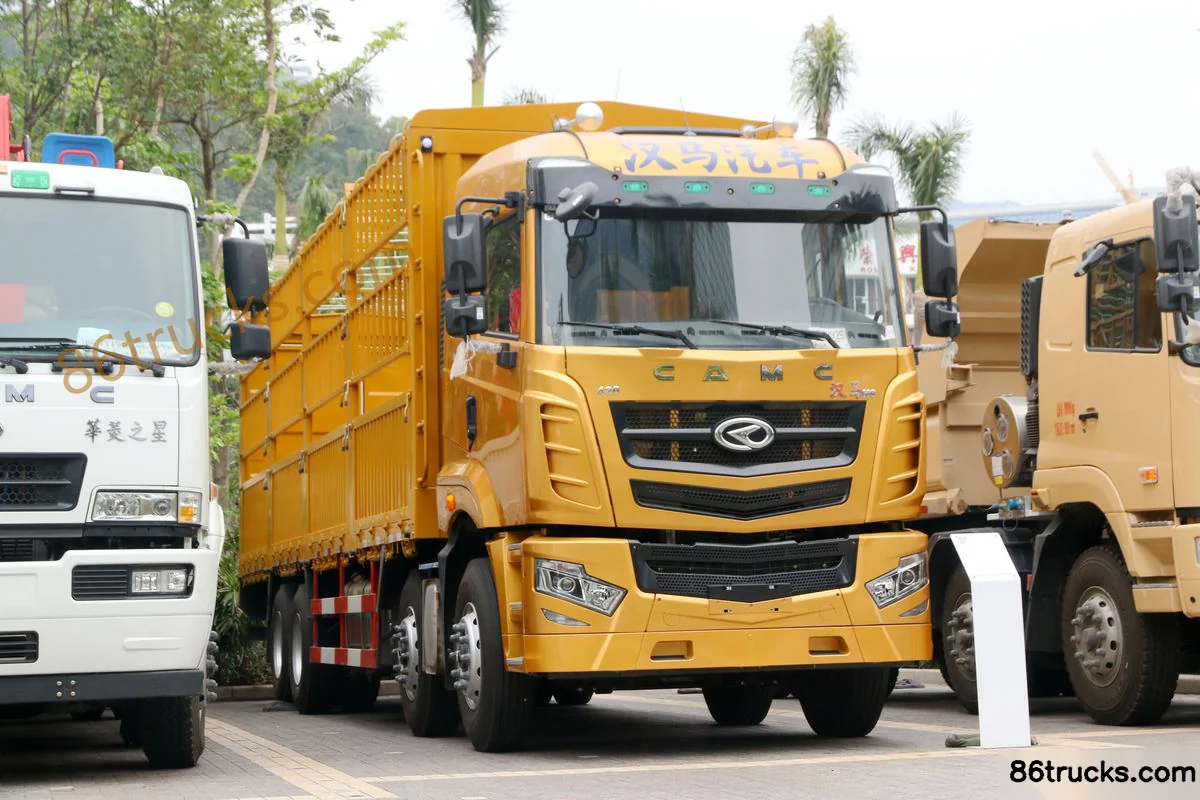

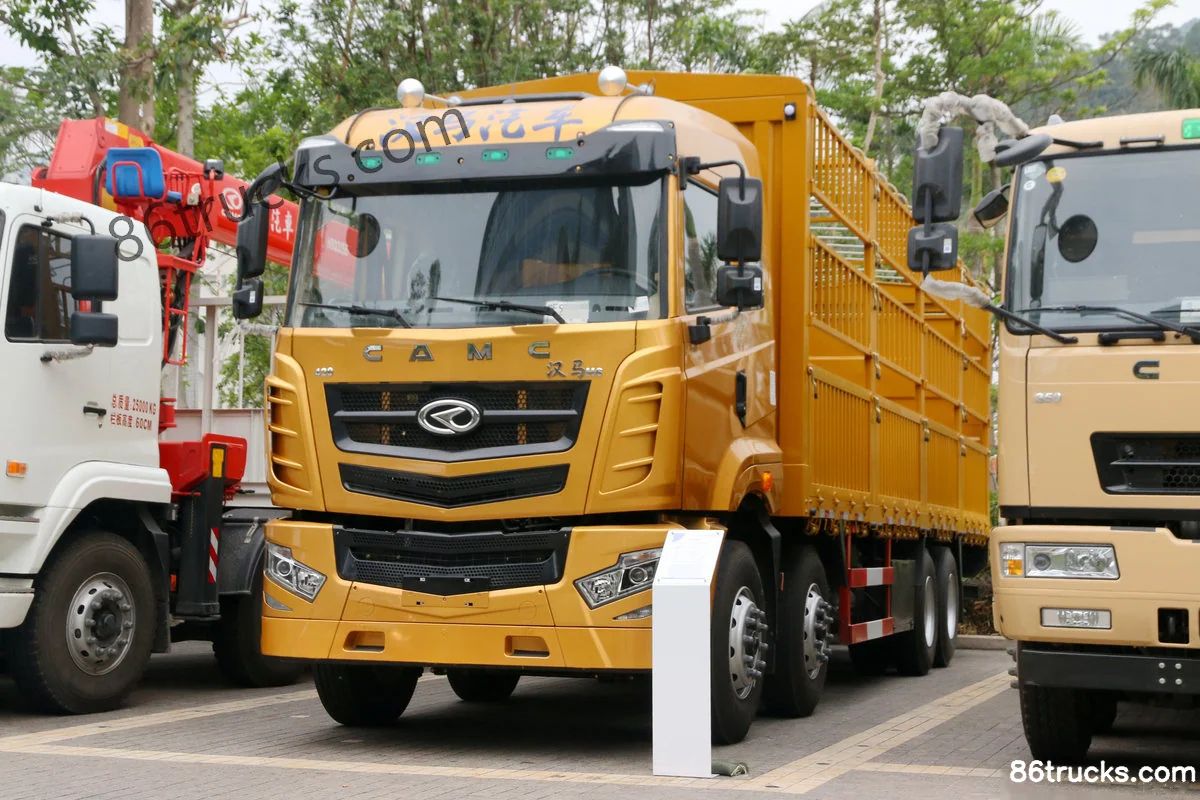

Exterior3

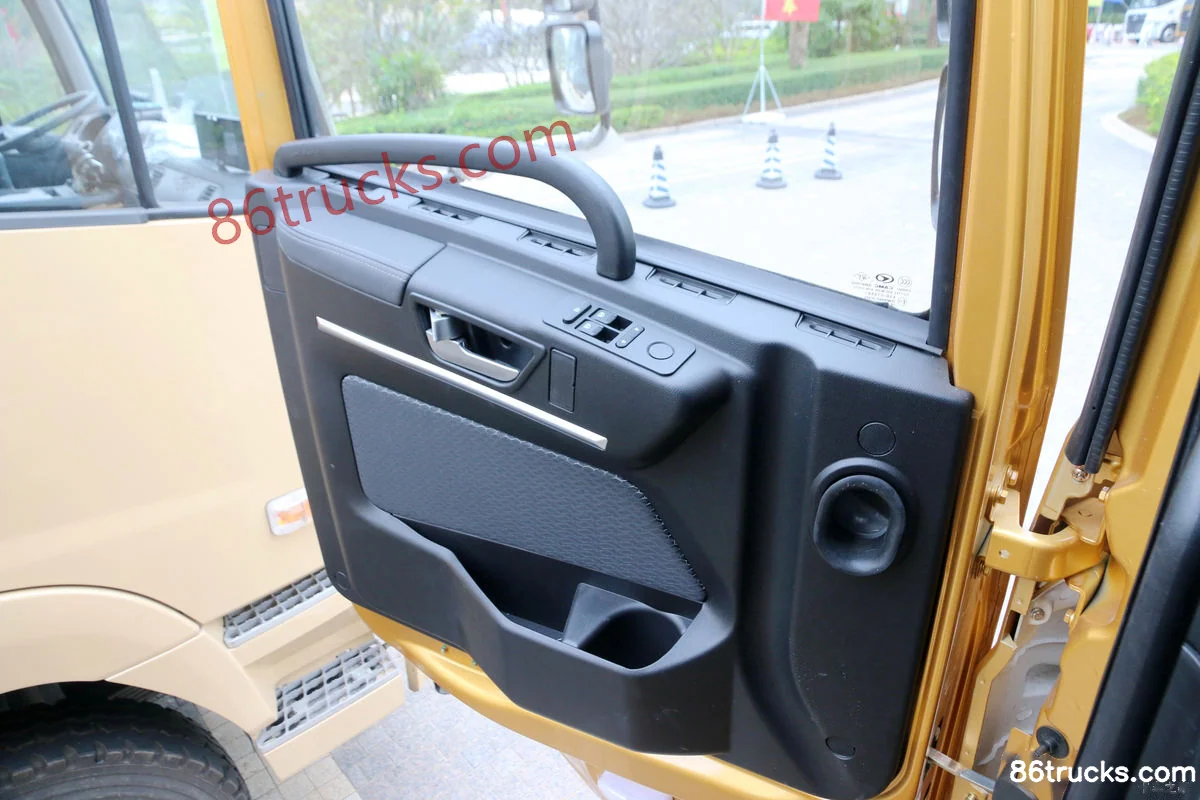

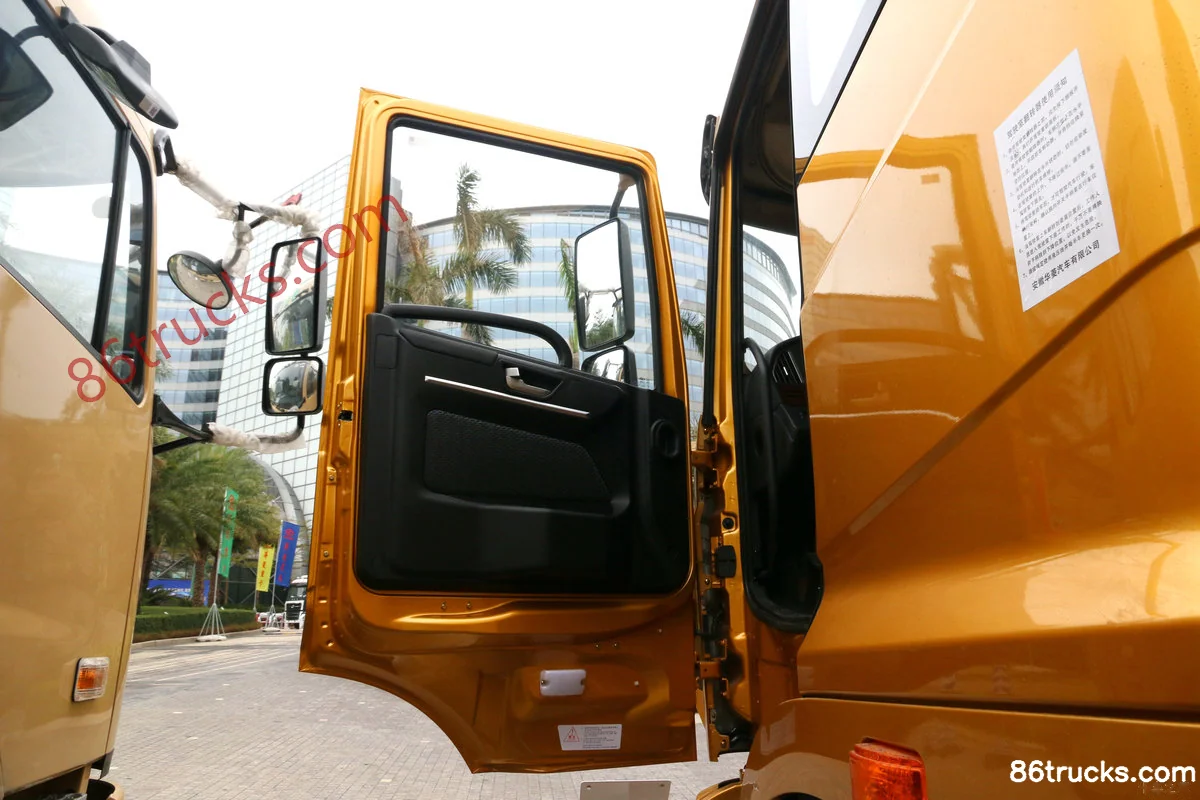

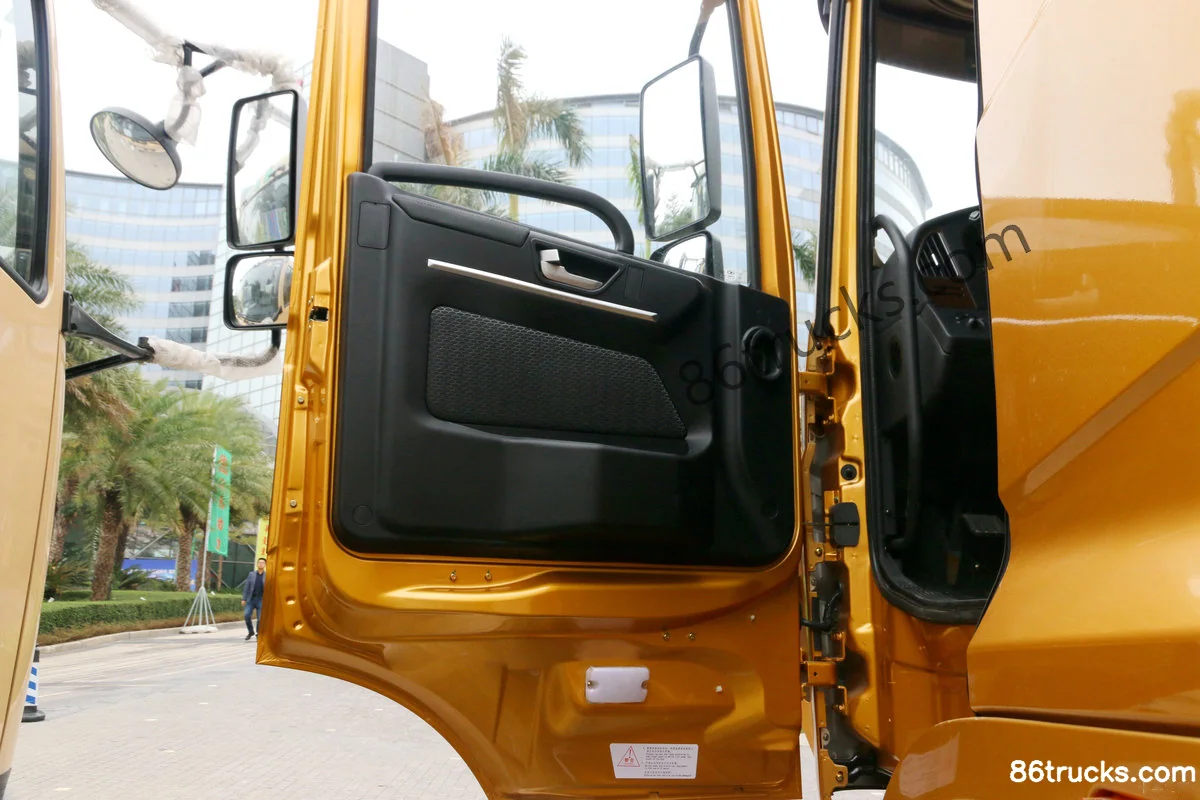

Cab3

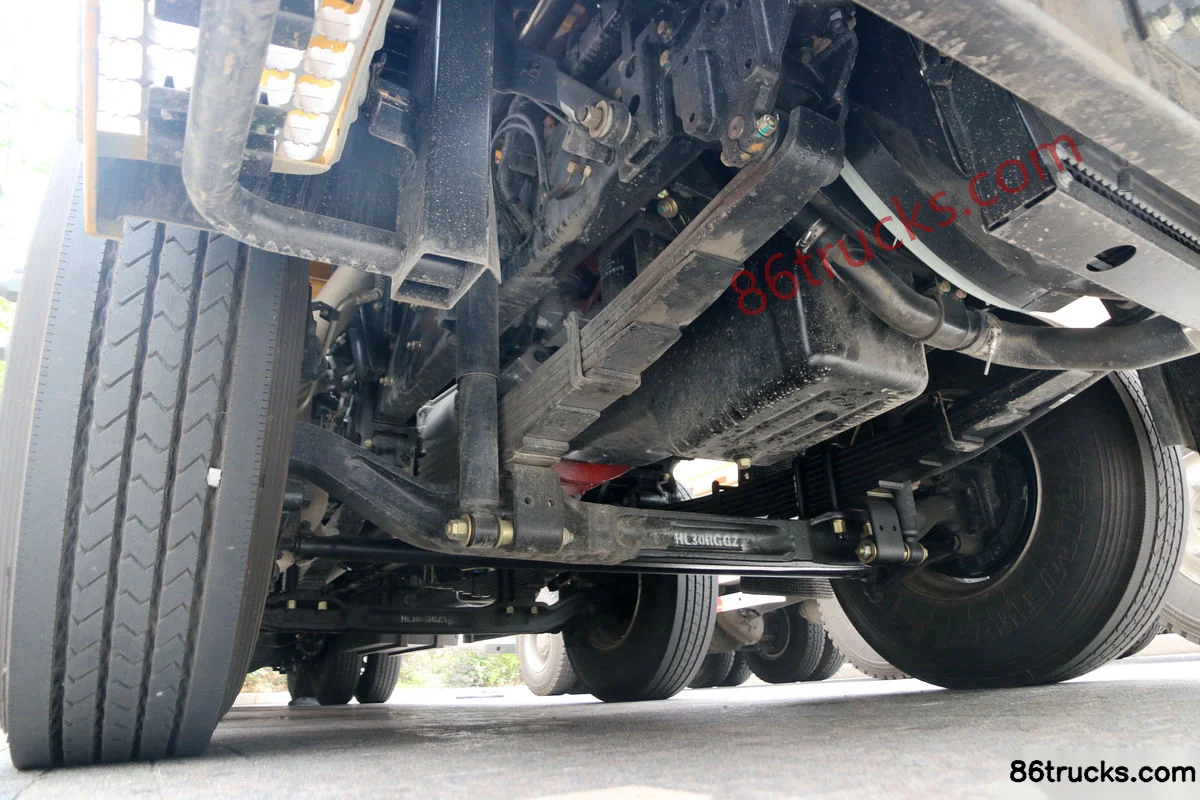

Chassis3

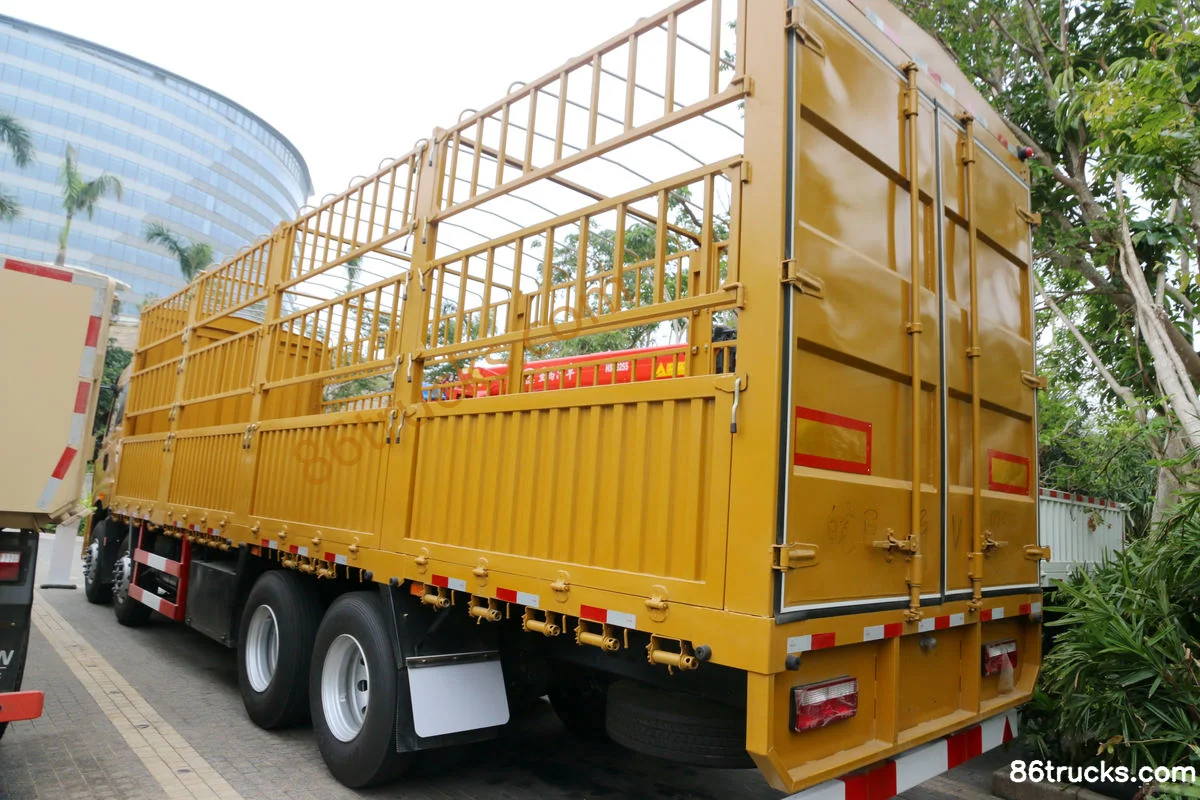

Body2

11 photos

FAQ

What emission standard does Hualing Hanma H6 420 hp 8X4(12 wheels) 9.5m stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Hanma H6 420 hp 8X4(12 wheels) 9.5m stake truck?

Key specs of Hualing Hanma H6 420 hp 8X4(12 wheels) 9.5m stake truck: Drive: 8x4; Horsepower: 420 hp; Emission: China V; Fuel: Diesel; Engine: Hanma10L; Transmission: Hanma. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Hanma H6 420 hp 8X4(12 wheels) 9.5m stake truck suited for?

Hualing Hanma H6 420 hp 8X4(12 wheels) 9.5m stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Hualing Hanma H6 420 hp 8X4(12 wheels) 9.5m stake truck differ from other variants in the same series?

Hualing Hanma H6 420 hp 8X4(12 wheels) 9.5m stake truck belongs to Hualing Hanma H6 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Hanma H6 420 hp 8X4(12 wheels) 9.5m stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Hanma H6 420 hp 8X4(12 wheels) 9.5m stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
