SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels)

Export reference
MSRP N/A
Cargo box type:: stake body
Model code (announced):: JKC1031D0X0BEV
Type:: Cargo Trucks
Box length class:: 3.1m
Cab length:: 5.15m
GVWR:: 3.05ton

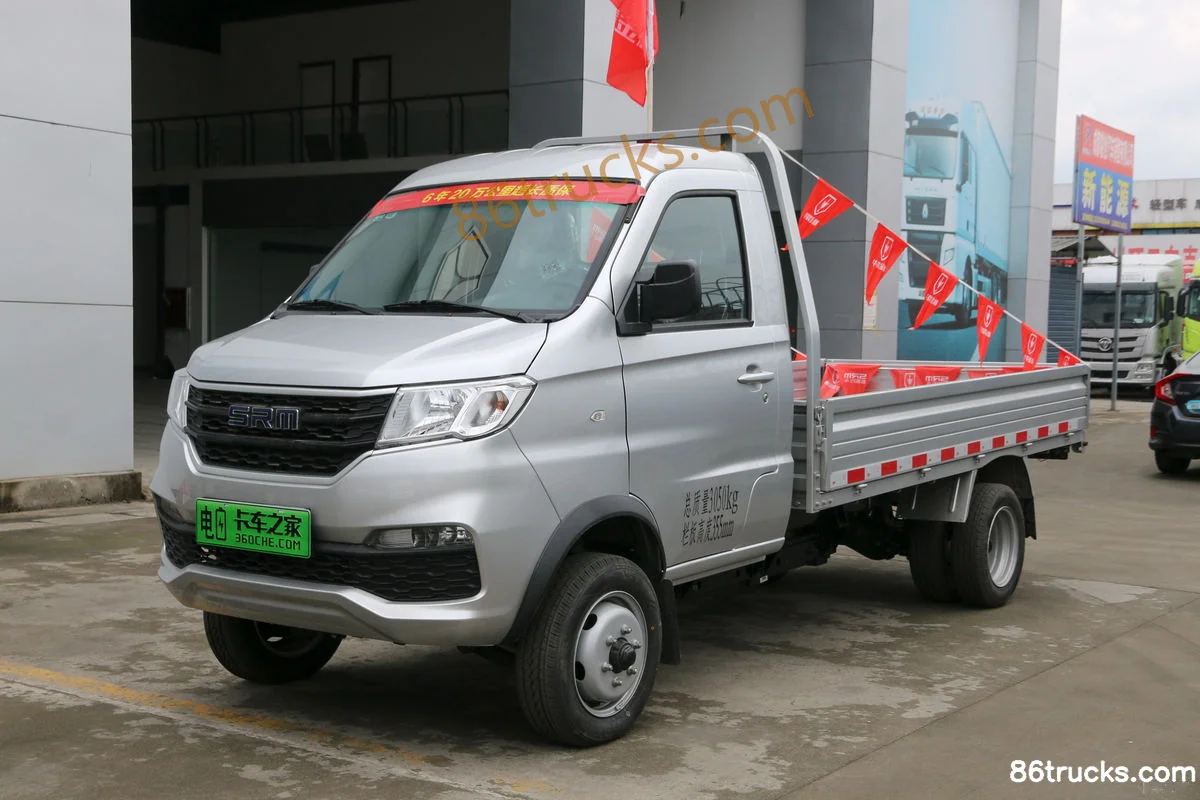

SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
Motor 1 Brand: Inovance
Curb Weight: 1.46ton
Wheelbase: 3200mm

Overview

The SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) is a mini truck featuring Inovance motor, 4X2 (6 wheels) drive, 1.46t payload and 3.05m cargo length.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JKC1031D0X0BEV
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3200mm
Box length class: 3.1m
Cab length: 5.15m
Cab width: 1.635m
Cab height: 2.07m
Curb Weight: 1.46ton
Rated payload: 1.46ton
GVWR: 3.05ton
Max. speed: 80km/h
Origin: Chongqing Fuling New City
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ180XSIN102
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 60kW
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.05m
Cargo box width: 1.54m
Cargo box height: 0.355m
Cab parameters
Cab width: 1540mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1015kg
rear axle allowable load: 2035kg
Tire
Tire Size: 175/70R14C
Number of tires: 6pcs

Photos

Exterior3

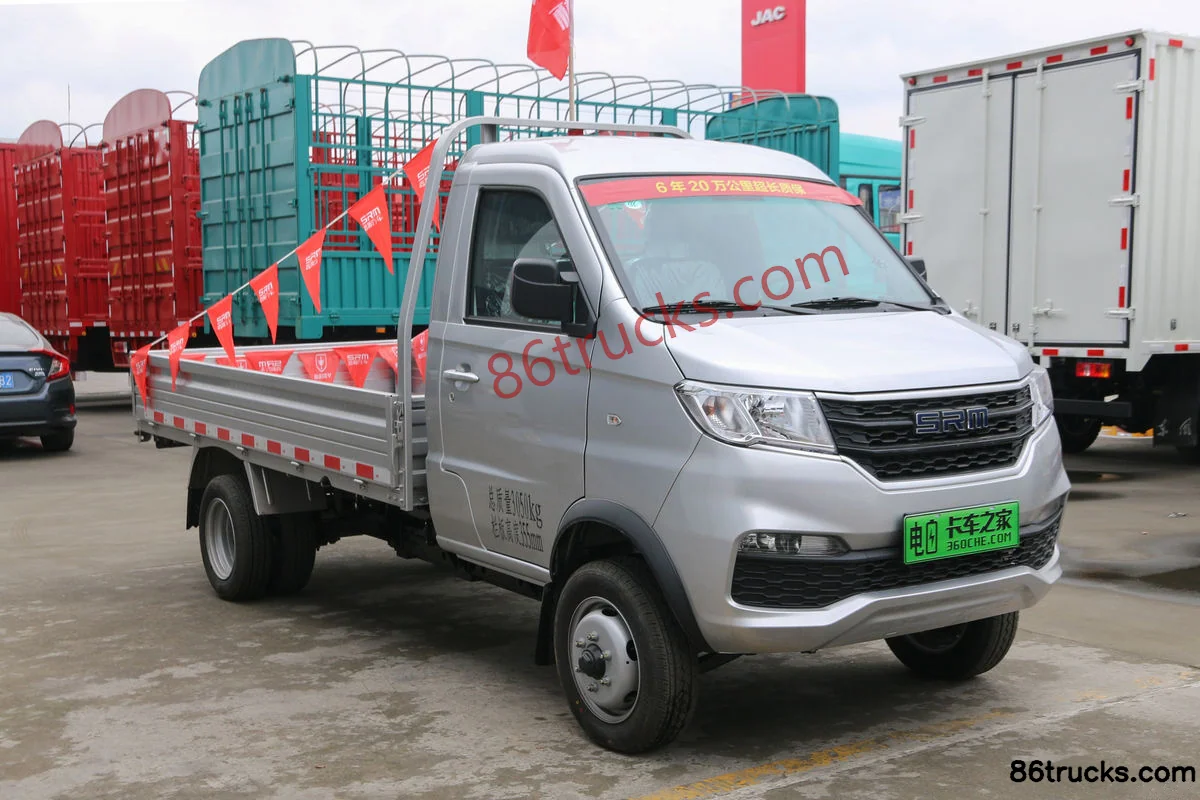

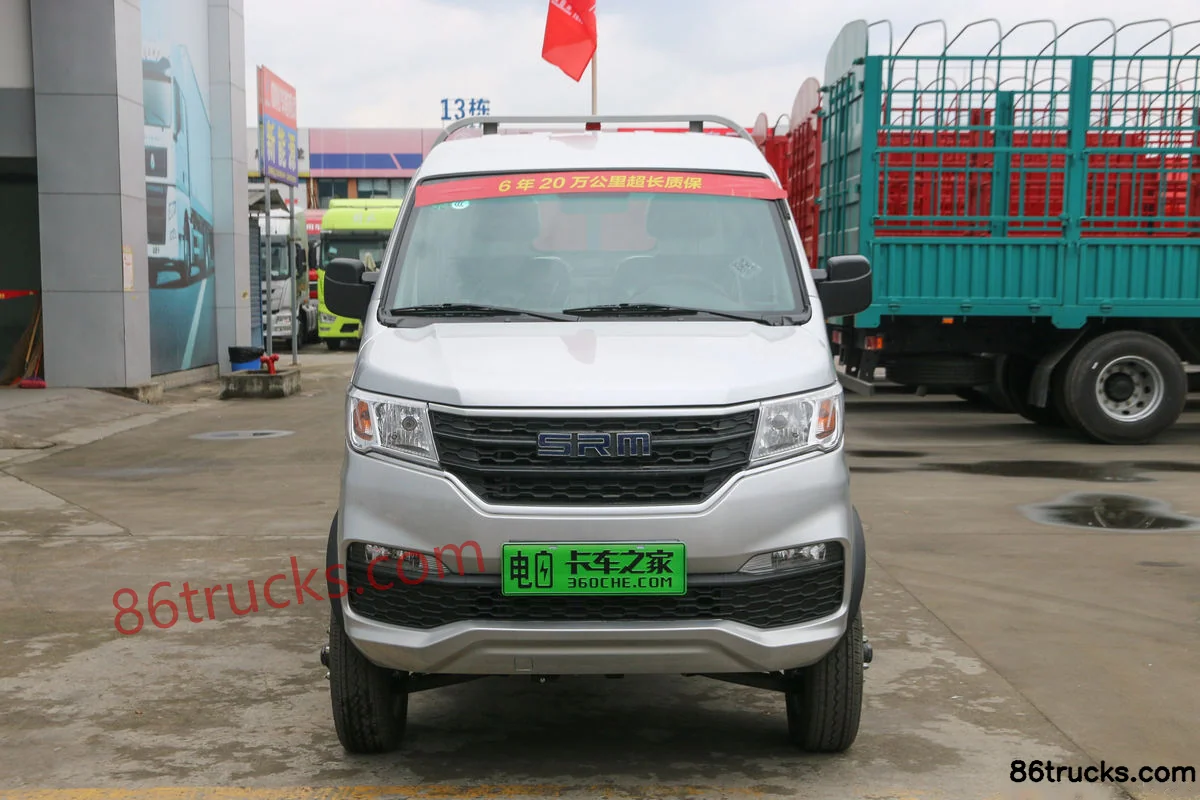

SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) Exterior (1) | 86Trucks SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) Exterior (2) | 86Trucks SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) Exterior (3) | 86Trucks

Interior3

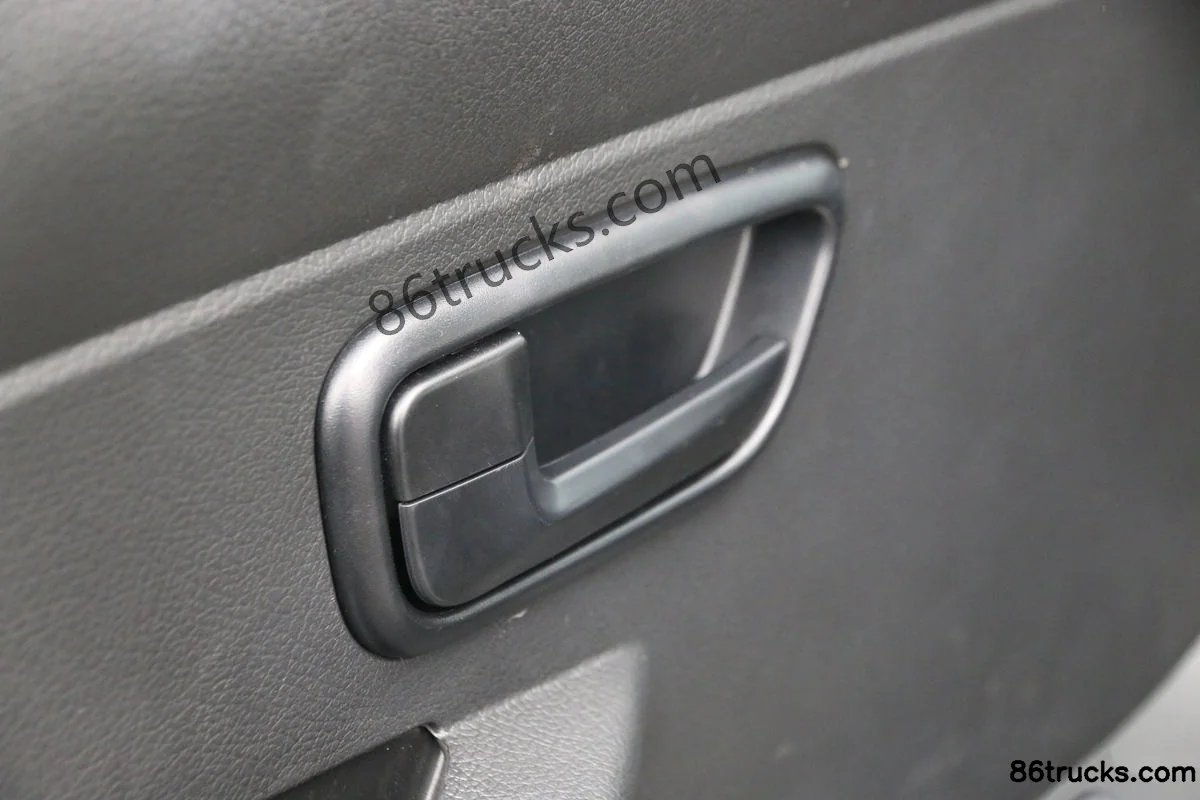

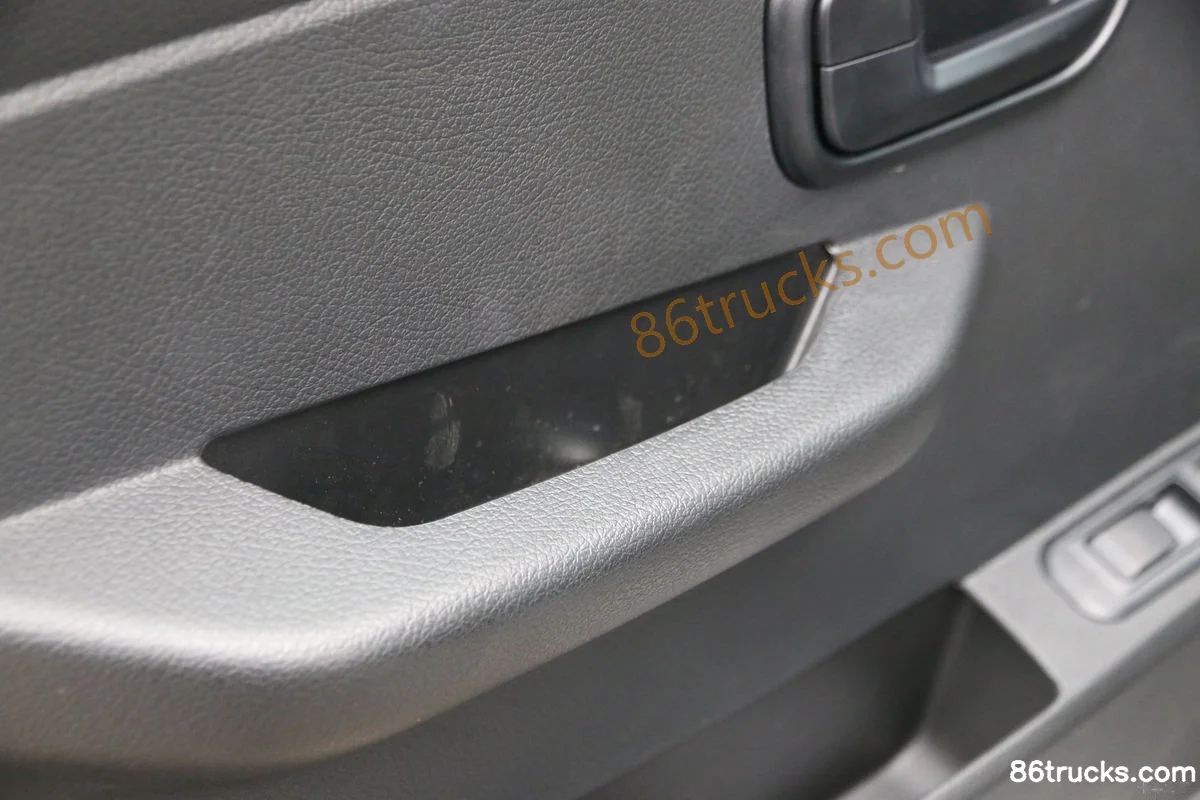

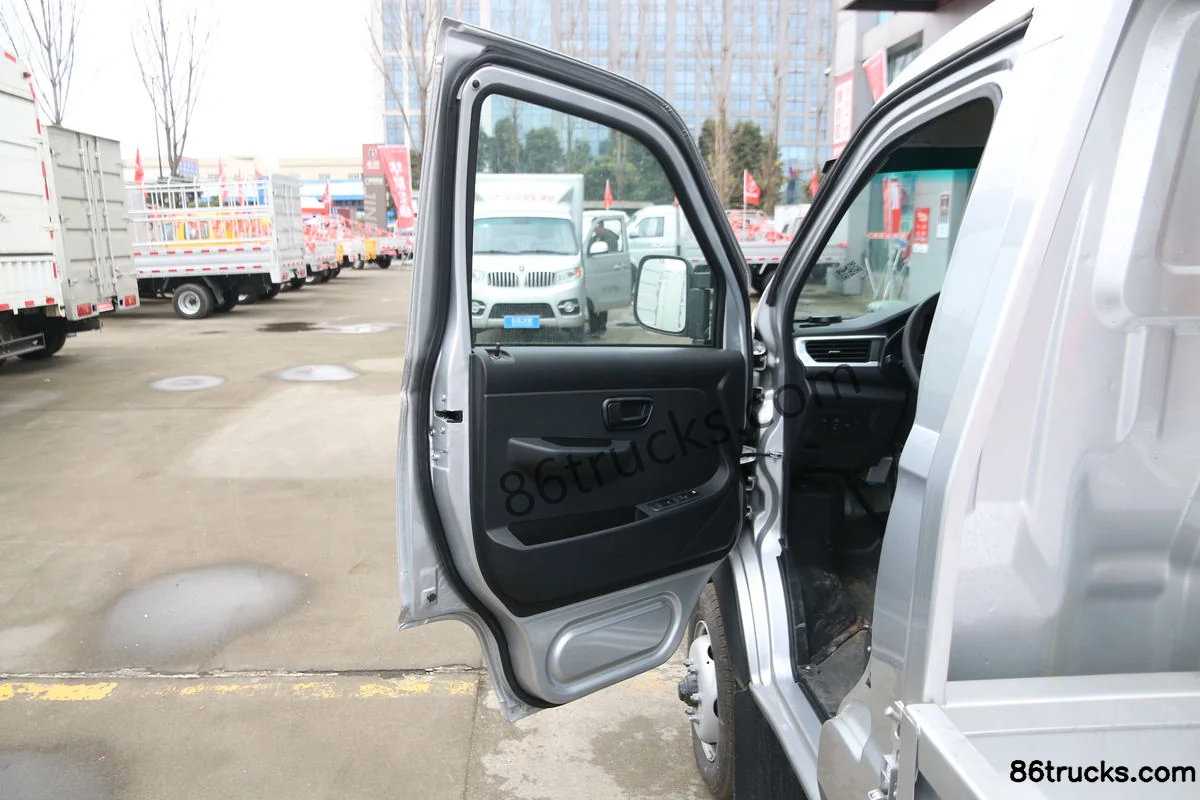

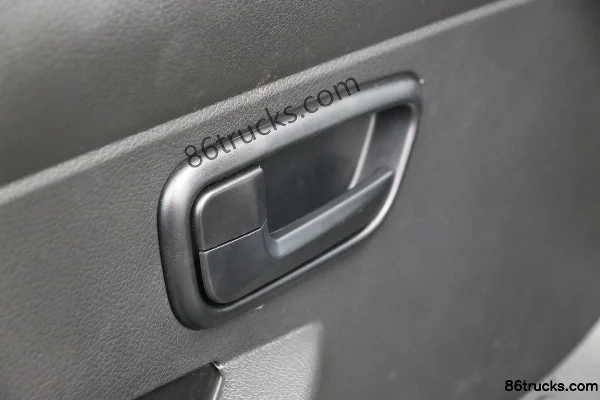

SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) Interior (1) | 86Trucks SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) Interior (2) | 86Trucks SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) Interior (3) | 86Trucks

Chassis3

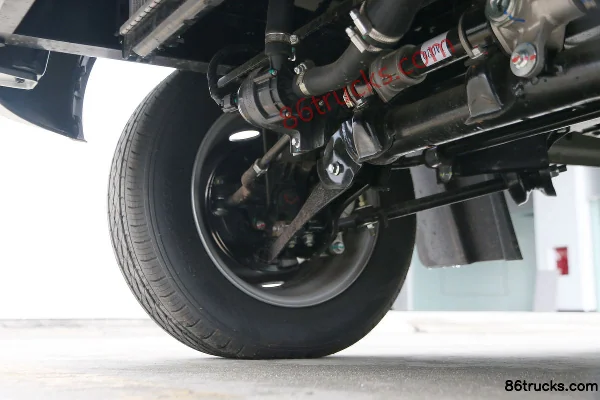

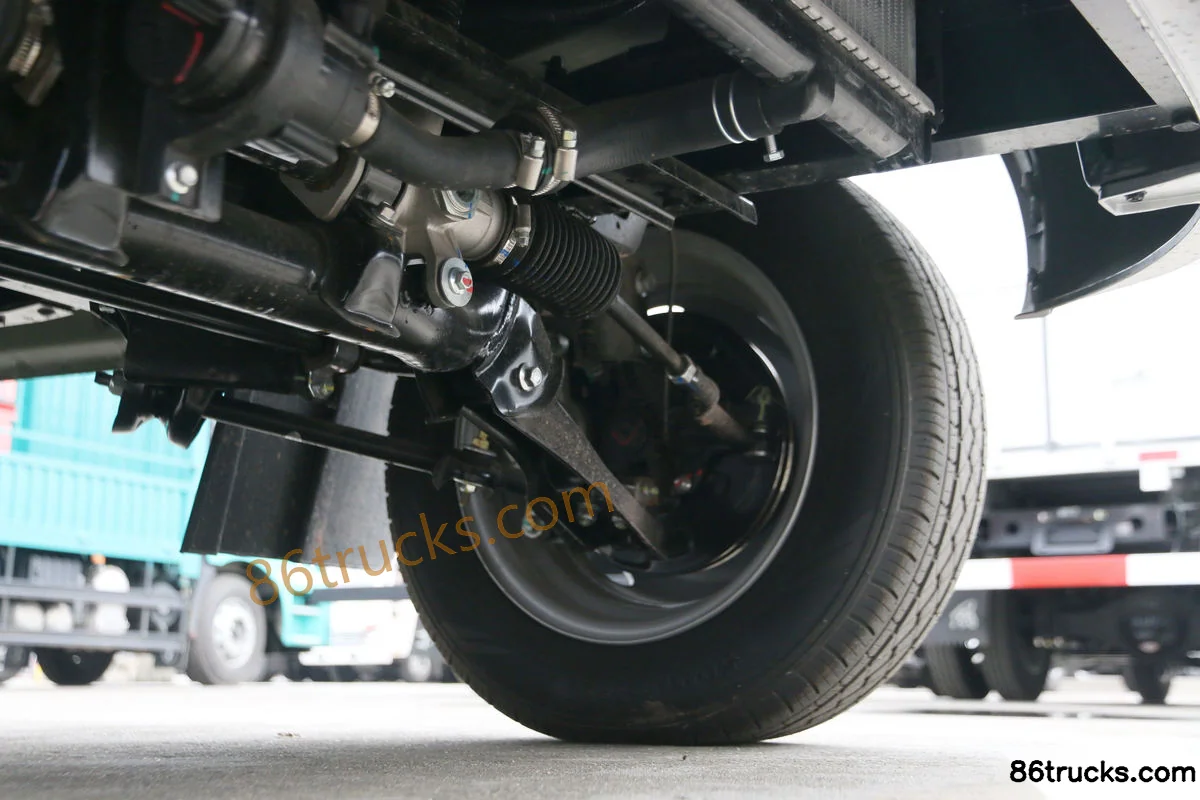

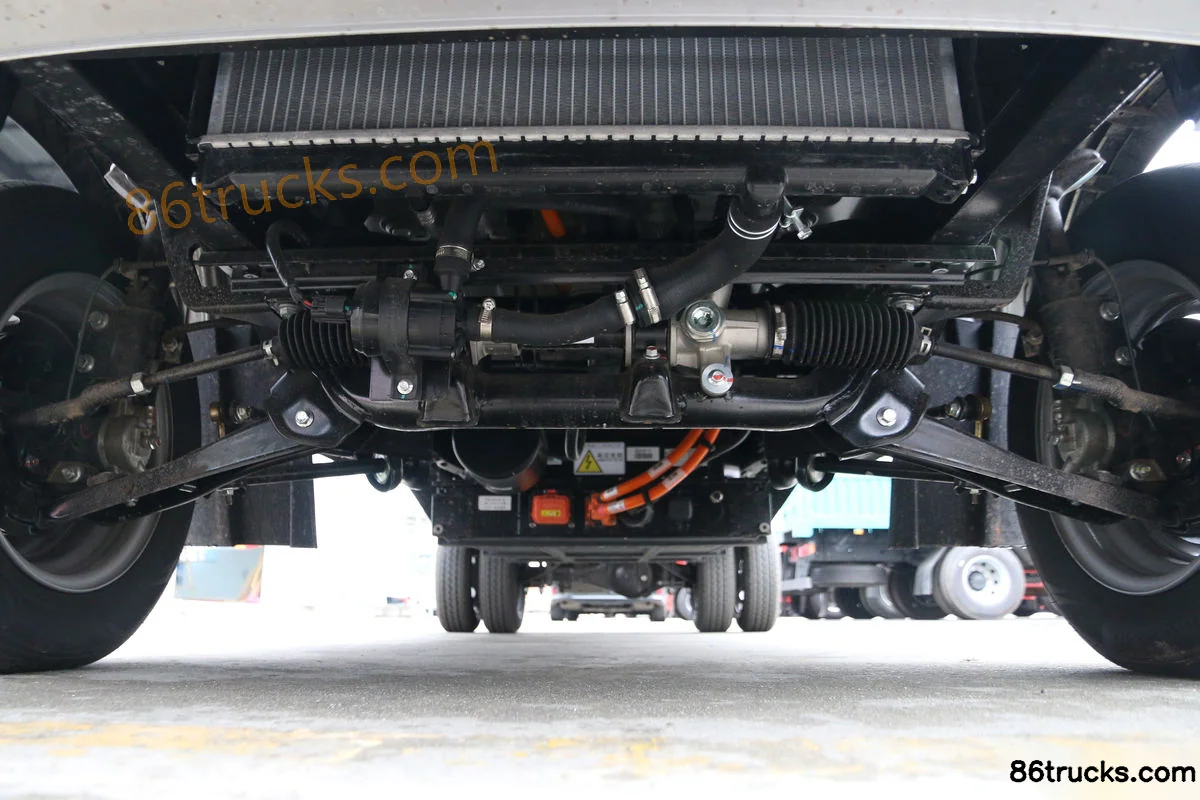

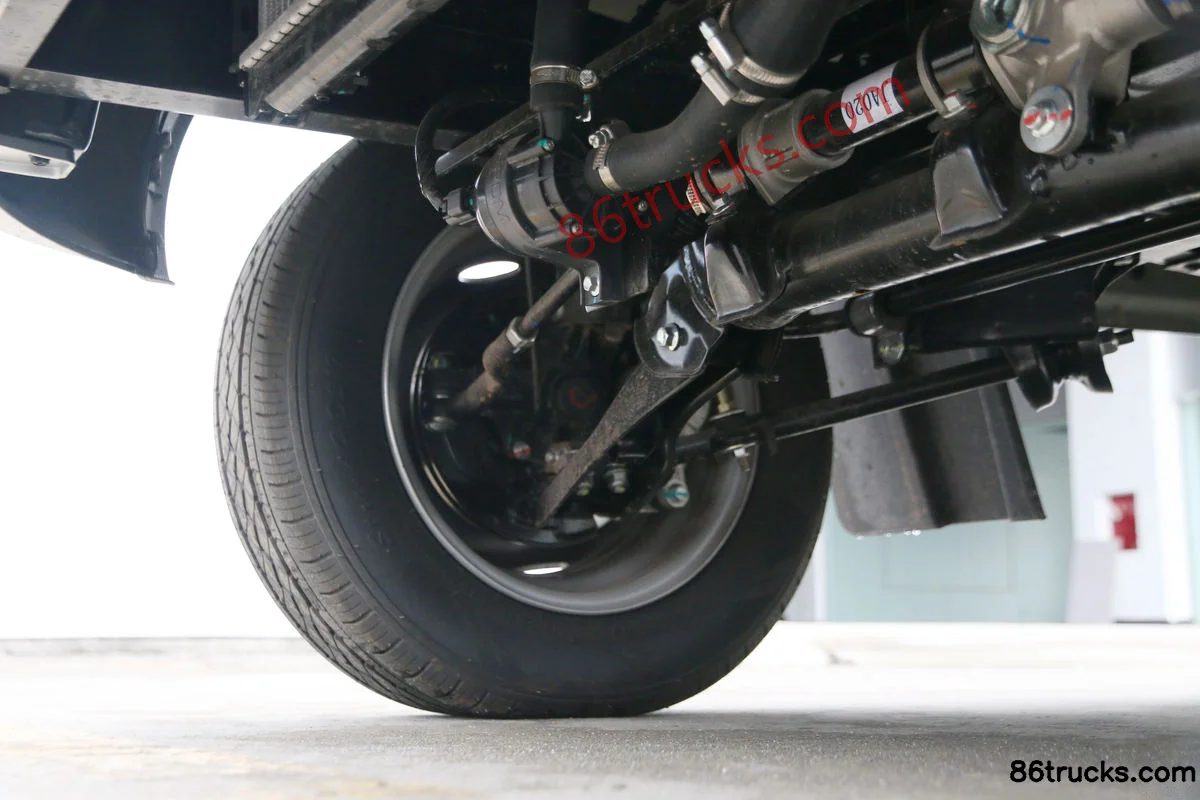

SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) Chassis (1) | 86Trucks SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) Chassis (2) | 86Trucks SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) Chassis (3) | 86Trucks

Body3

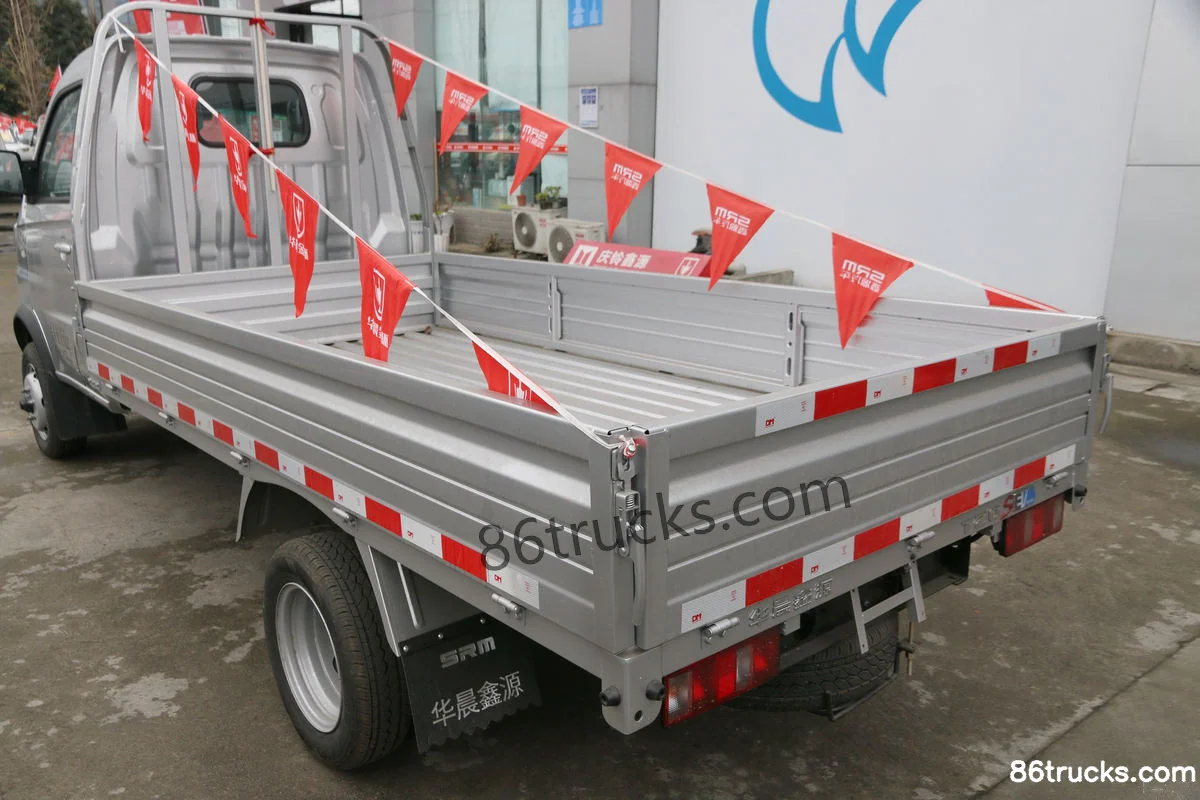

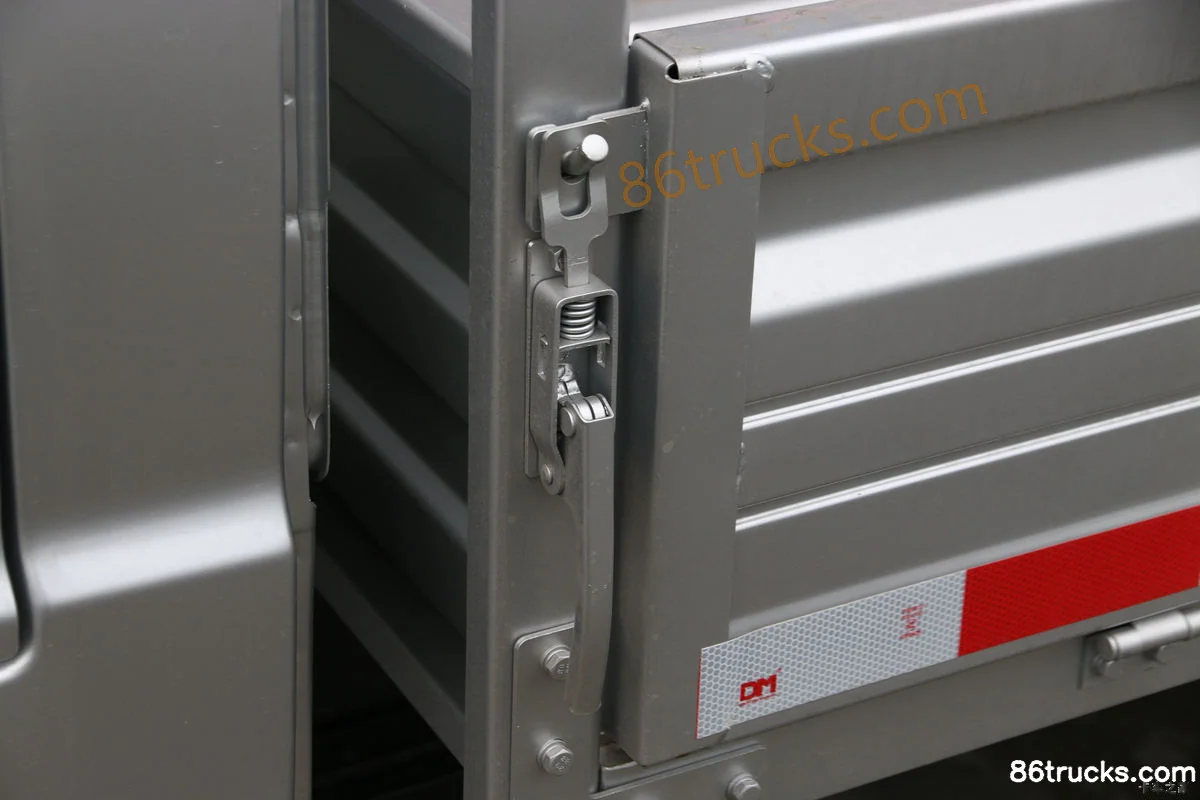

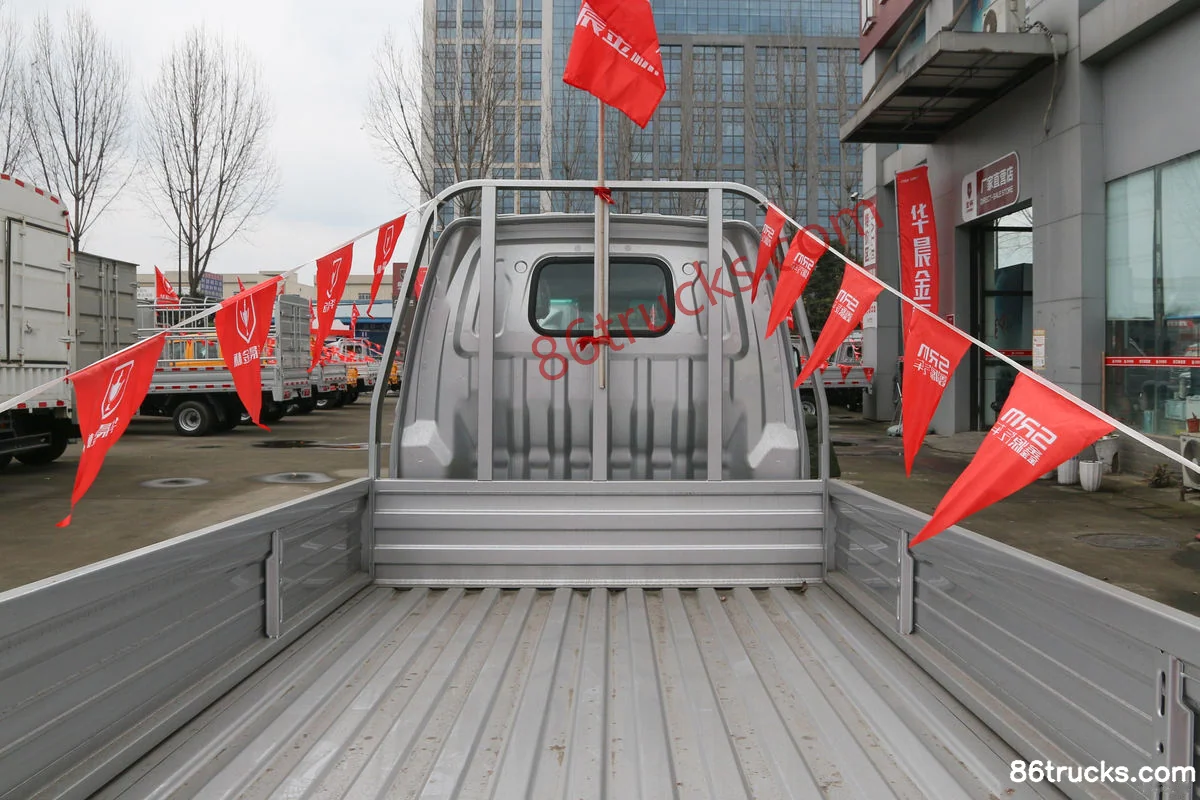

SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) Body (1) | 86Trucks SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) Body (2) | 86Trucks SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels)?

Key specs of SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) suited for?

SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) differ from other variants in the same series?

SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels) belongs to Huajin Xinyuan T20S EV (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SRM Xinwang T20SEV 3.05T 3.05m Single Row Pure Electric Flatbed Micro Truck 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
