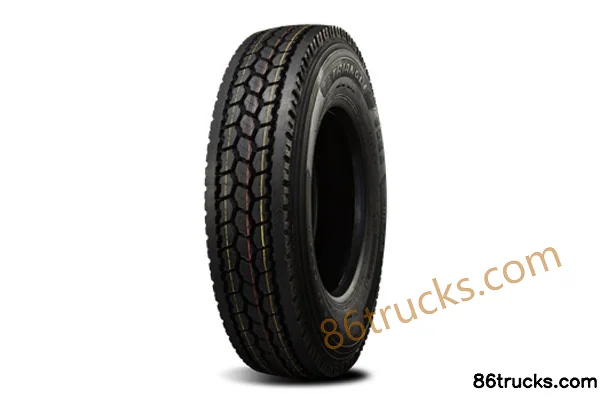

Triangle TRD01 (11R22.5 16PR)

Export reference
MSRP N/A
Tread Pattern:: Tread depth 22.5mm
Load index:: 146/143
Load per axle:: 3000/2725kg
Suitable rim: Standard 8.25 / Permitted 7.5
Inflated Overall Diameter: 1054mm
Tire Series: Highway Series

Overview

The Triangle TRD01 (11R22.5 16PR) is a parts product with fit for Standard 8.25 / Permitted 7.5 and 1054mm size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Tire specs
Tire Series: Highway Series
Tread Pattern: Tread depth 22.5mm
Load index: 146/143
Load per axle: 3000/2725kg
Max air pressure: 830Kpa
Inflated Overall Diameter: 1054mm
Inflated Section Width: 279mm
Ply rating: 16
Speed Rating: M
Suitable rim: Standard 8.25 / Permitted 7.5
Applicable conditions: Highway
Tubed or tubeless: TL
Basic Info
Remarks: Min dual-wheel spacing 318mm
Tire
Tire Size: 11R22.5

Photos

0 photos

FAQ

What transport jobs is Triangle TRD01 (11R22.5 16PR) suited for?

Match Triangle TRD01 (11R22.5 16PR) to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Triangle TRD01 (11R22.5 16PR) differ from other variants in the same series?

Triangle TRD01 (11R22.5 16PR) belongs to Triangle Highway Series (Tire). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Triangle TRD01 (11R22.5 16PR)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Triangle TRD01 (11R22.5 16PR)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
