SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck

Export reference
From $67,250
MSRP ¥48.42M CNY
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 39.1ton
Wheelbase:: 3850+1400mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 12.82L
Drive 6X4 (10 wheels)
Horsepower 500
Emission China VI
Transmission Fast Gear

Overview

The SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 500 hp, 15.19t GVW and China VI emissions. On the powertrain side, it comes with a SDECSC13ET500Q6 engine, Fast Gear transmission and LNG (liquefied natural gas) fuel.

China VI 500 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ4257HD13384T
Drive type: 6X4
Wheelbase: 3850+1400mm
engine: SDECSC13ET500Q6
transmission: Fast Gear16JSDX240T
Rear Axle Ratio: 4.229
Cab length: 7.435m
Cab width: 2.55m
Cab height: 3.96m
Front track width: 2020mm
rear track: 1858/1580mm
Gross Trailer Weight: 39.1ton
Curb Weight: 9.68ton
GVWR: 15.19ton
Max. speed: 89km/h
Origin: Chongqing
tonnage class: Heavy truck
Remarks: Optional: flat roof standard-length cab, driver air suspension seat (damping adjustable, ventilated/heated), 12JSDX240TA-AL transmission, 485 rear axle (16-speed optional), 469 rear axle (12-speed optional).
Version: composite version
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: SDEC
Engine Model: SDECSC13ET500Q6
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 12.82L
Emission standard: China VI
Max output power: 368kW
Max hp: 500Horsepower
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear16JSDX240T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
fuel tank
Air tank capacity: 1000L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Sunroof: Manual sunroof
Chassis Specs
Front axle description: 6.5T
Front axle allowable load: 7000kg
Fifth wheel: 50# reinforced
Frame Dimensions: 305×(8+4)mm
rear axle description: HY320
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.229
Leaf spring count: 3/6
Aluminum wheels:
Tire
Tire Size: 12R22.5 18PR
Tire Type: mixed tread pattern
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
ASR traction control:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Independent Heater:
Power Windows:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Independent AC:
Exterior features
Aluminum air tank:
Multimedia features
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Service brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):

Photos

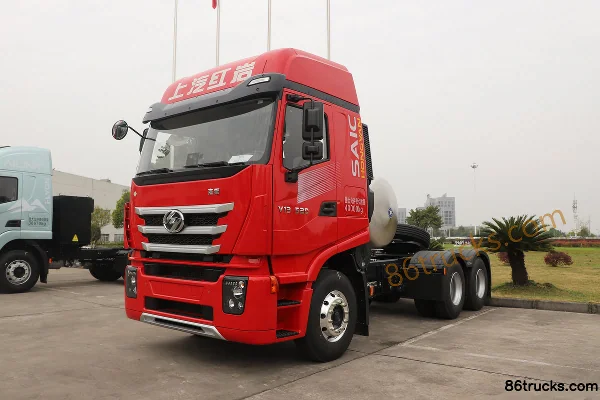

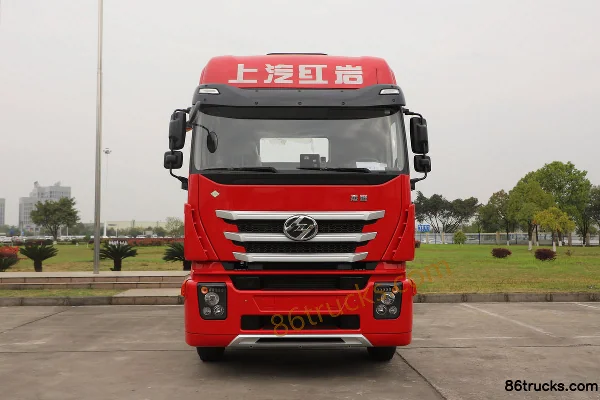

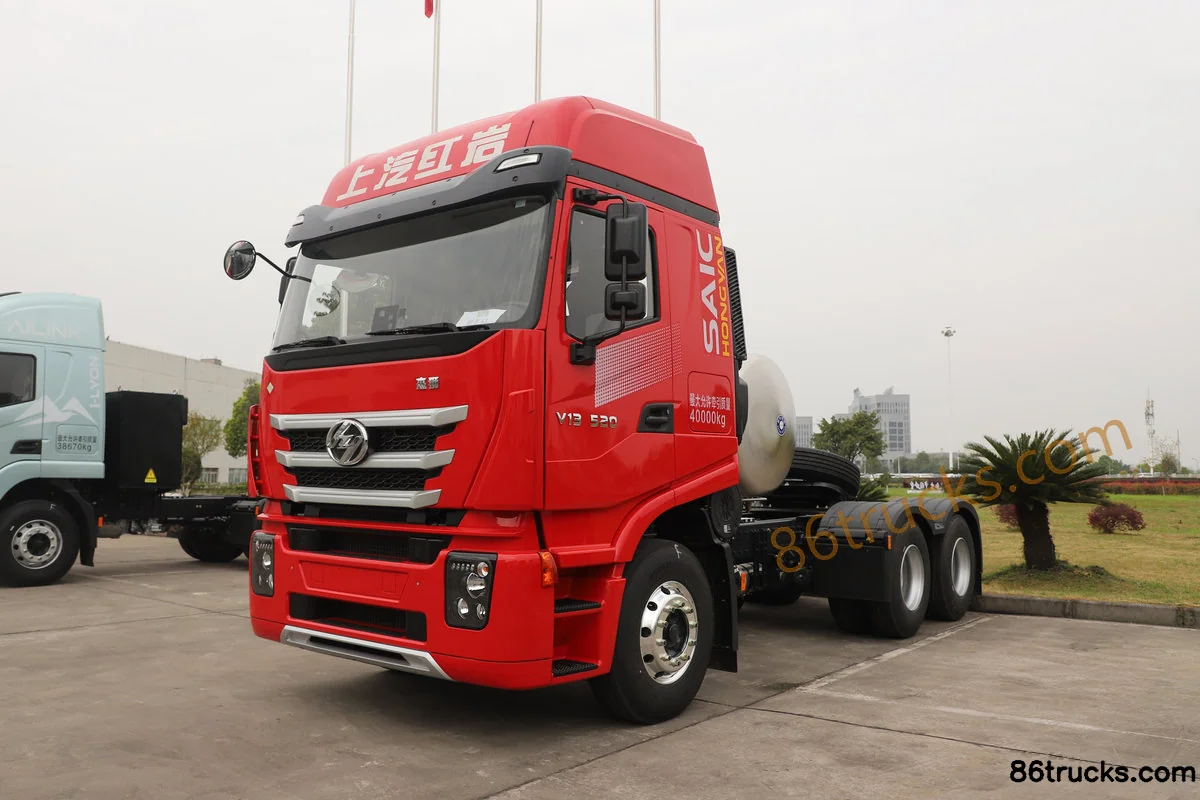

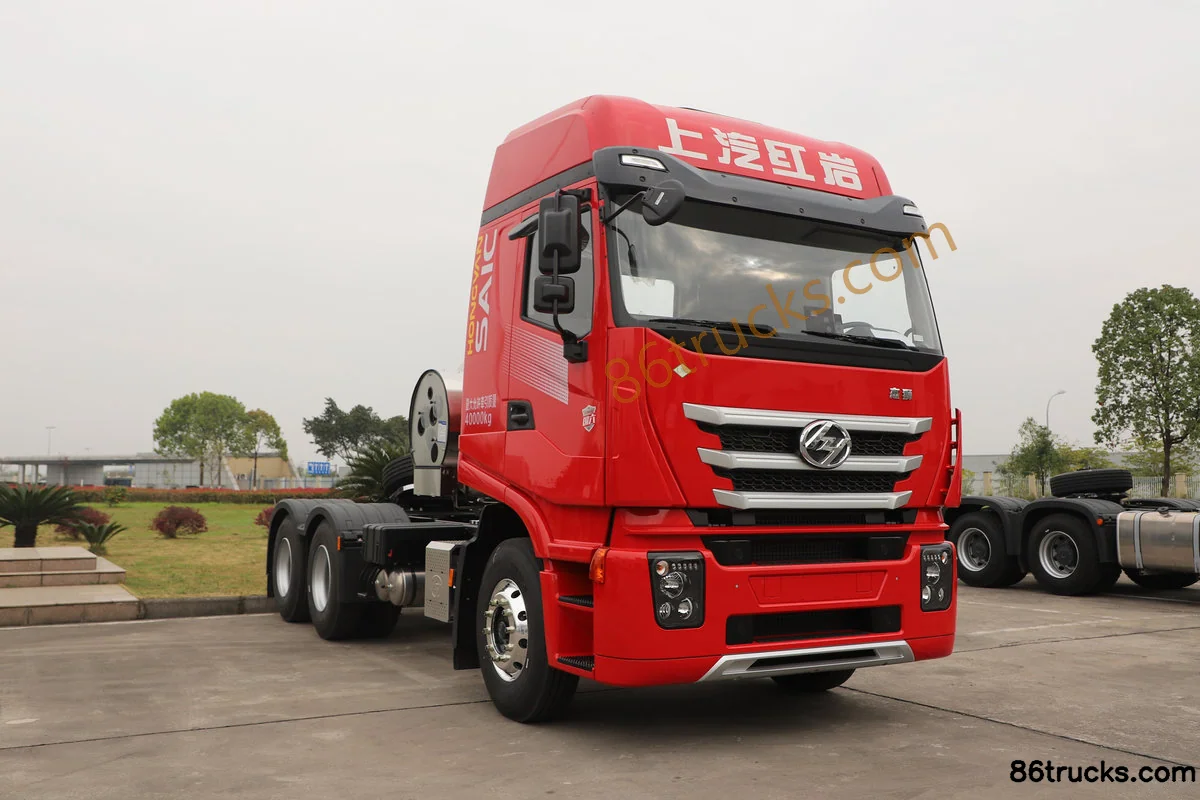

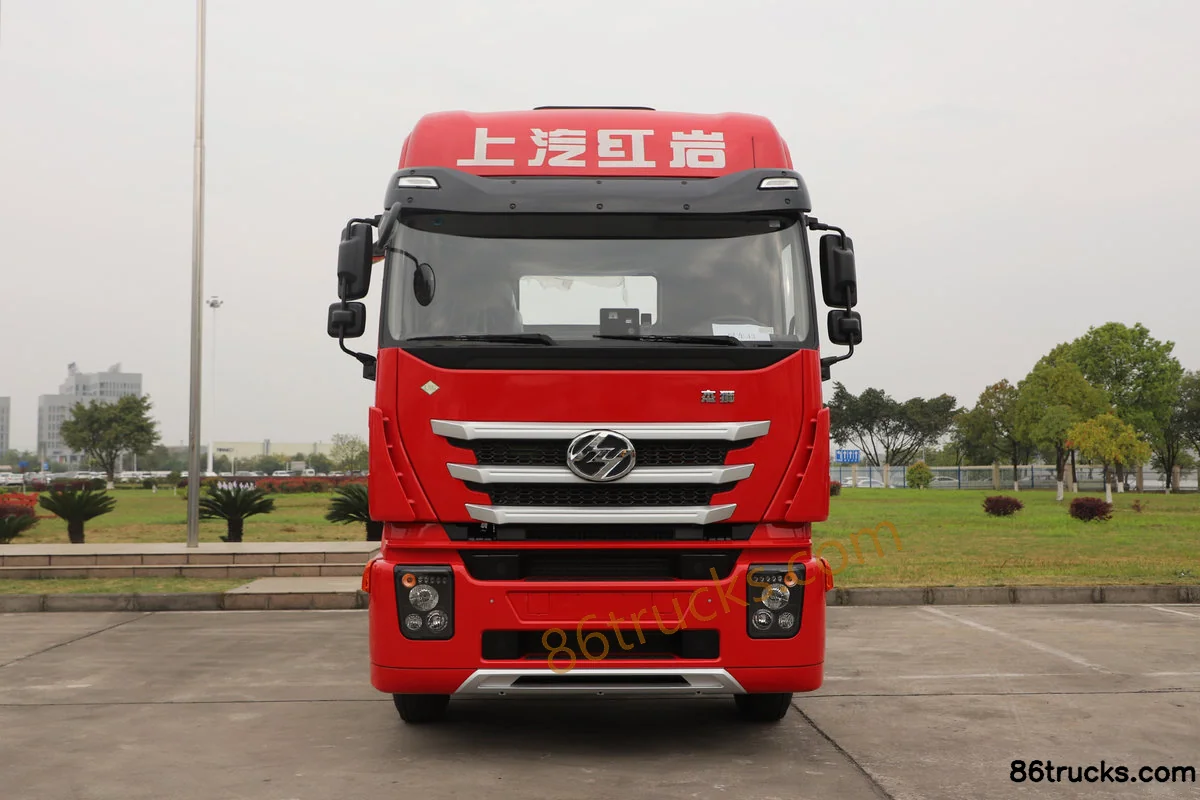

Exterior3

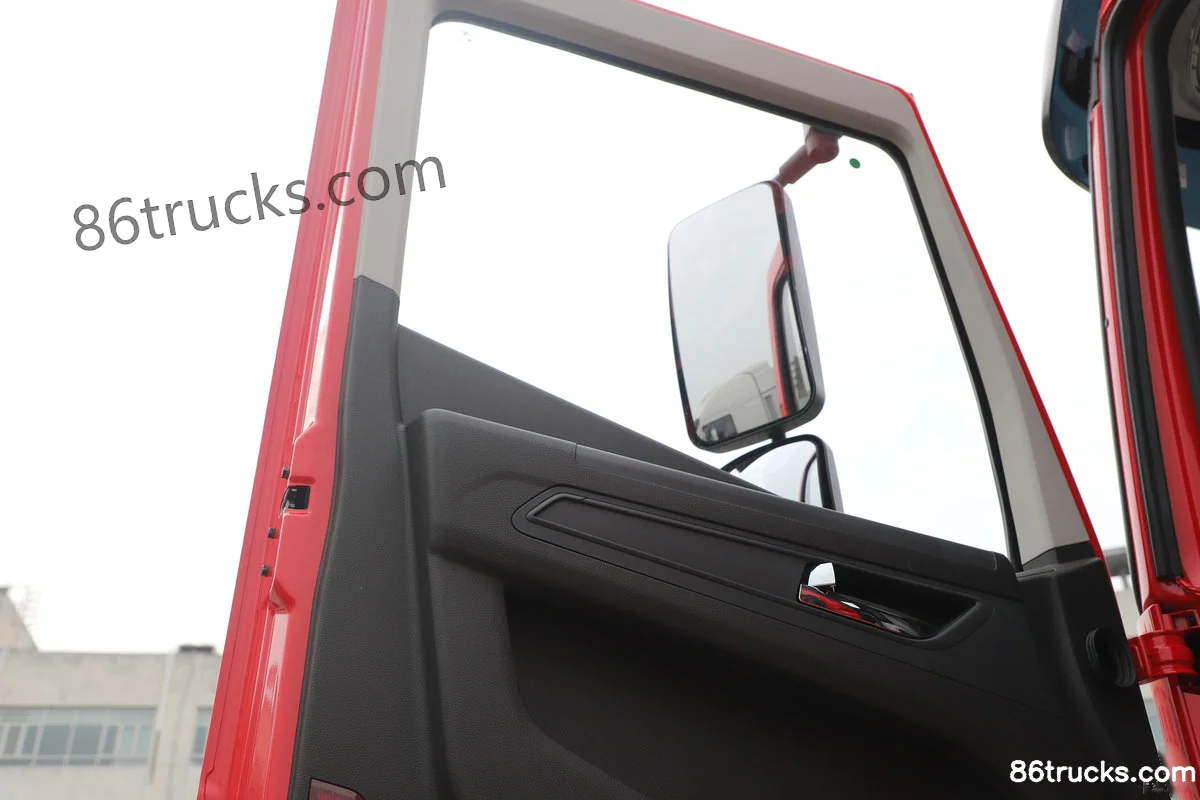

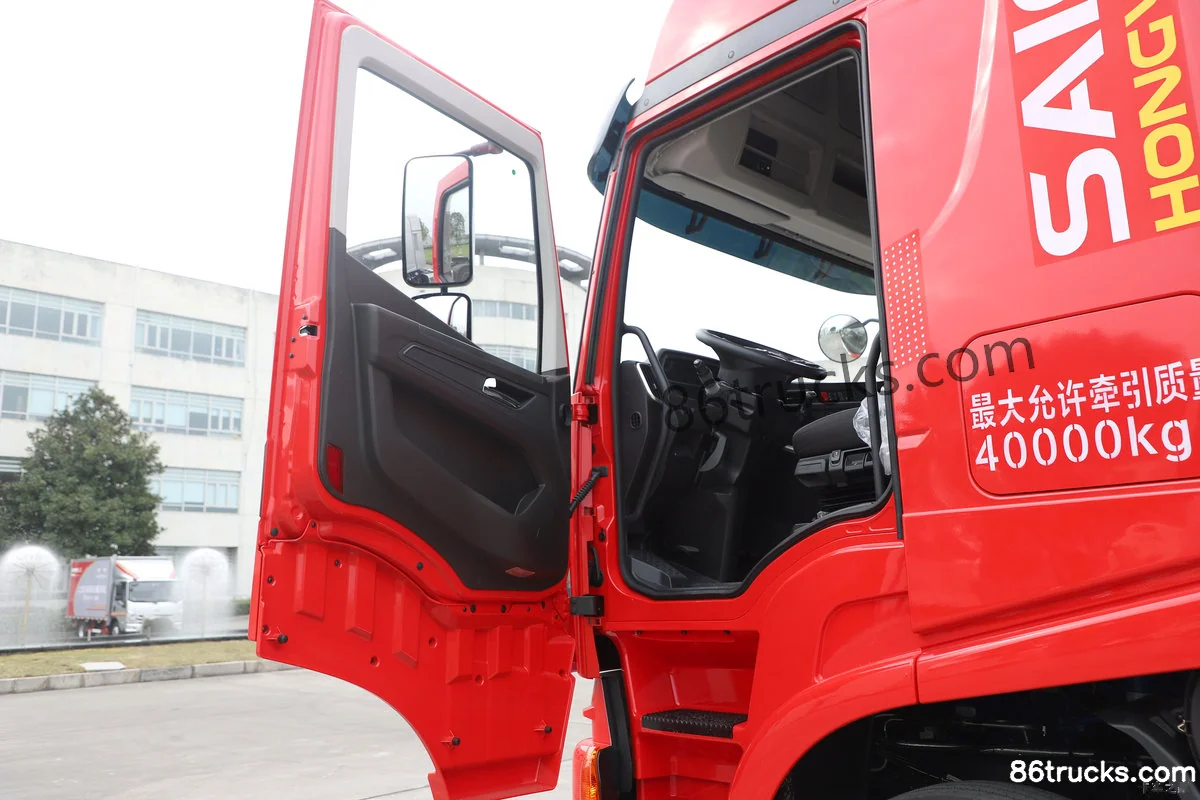

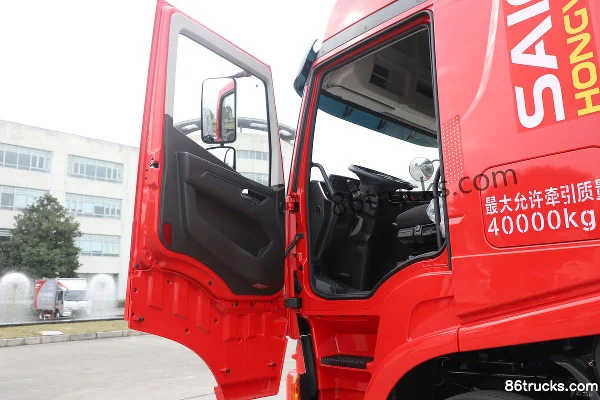

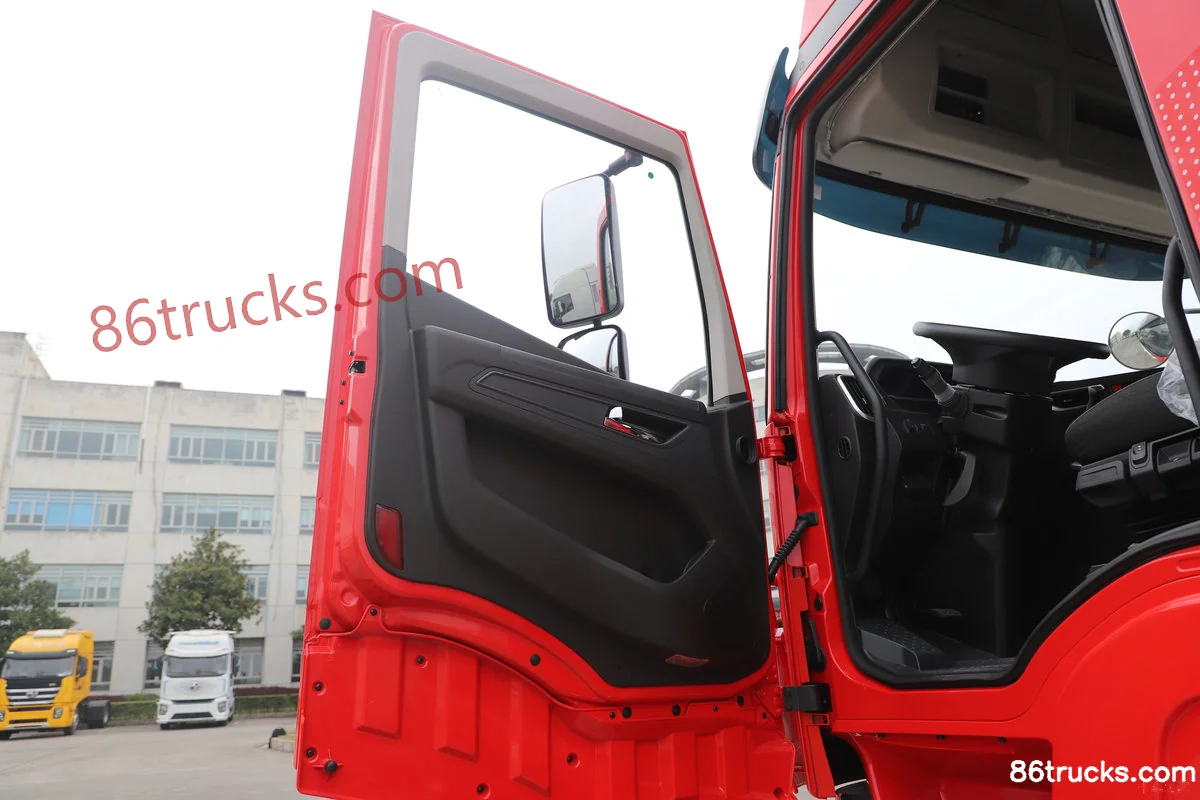

Cab3

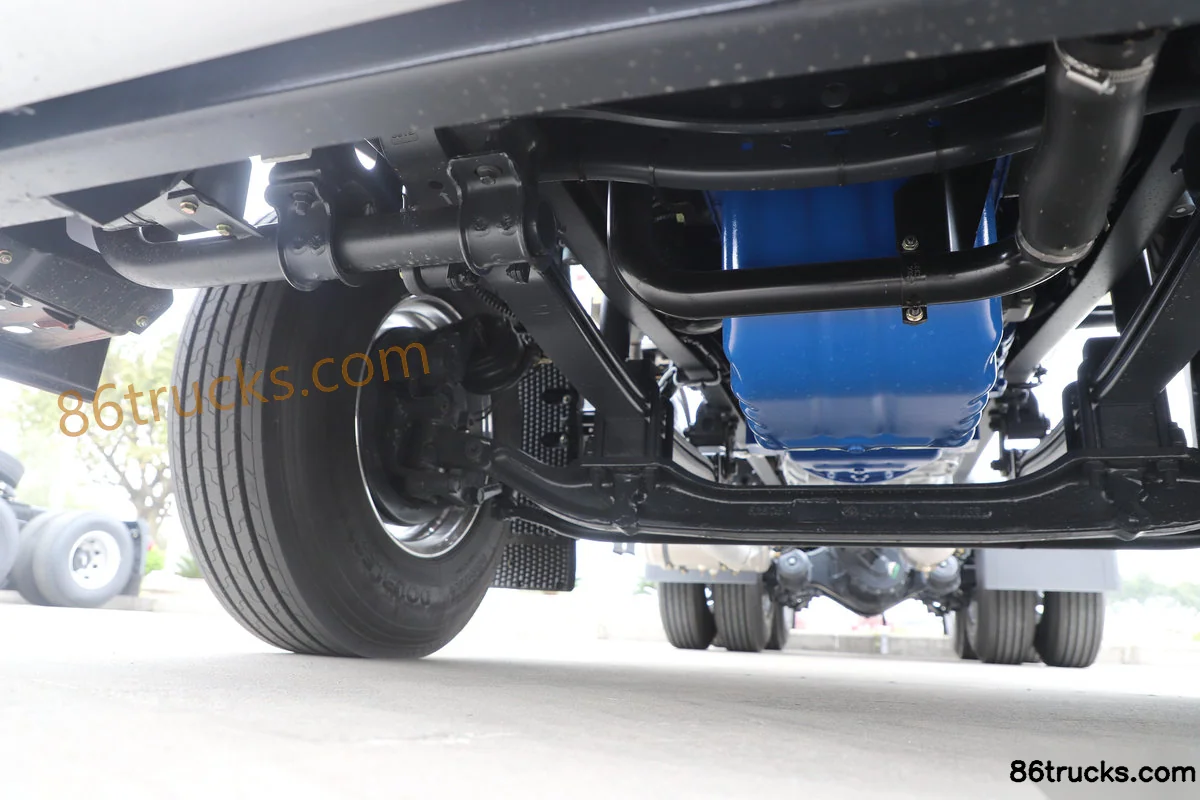

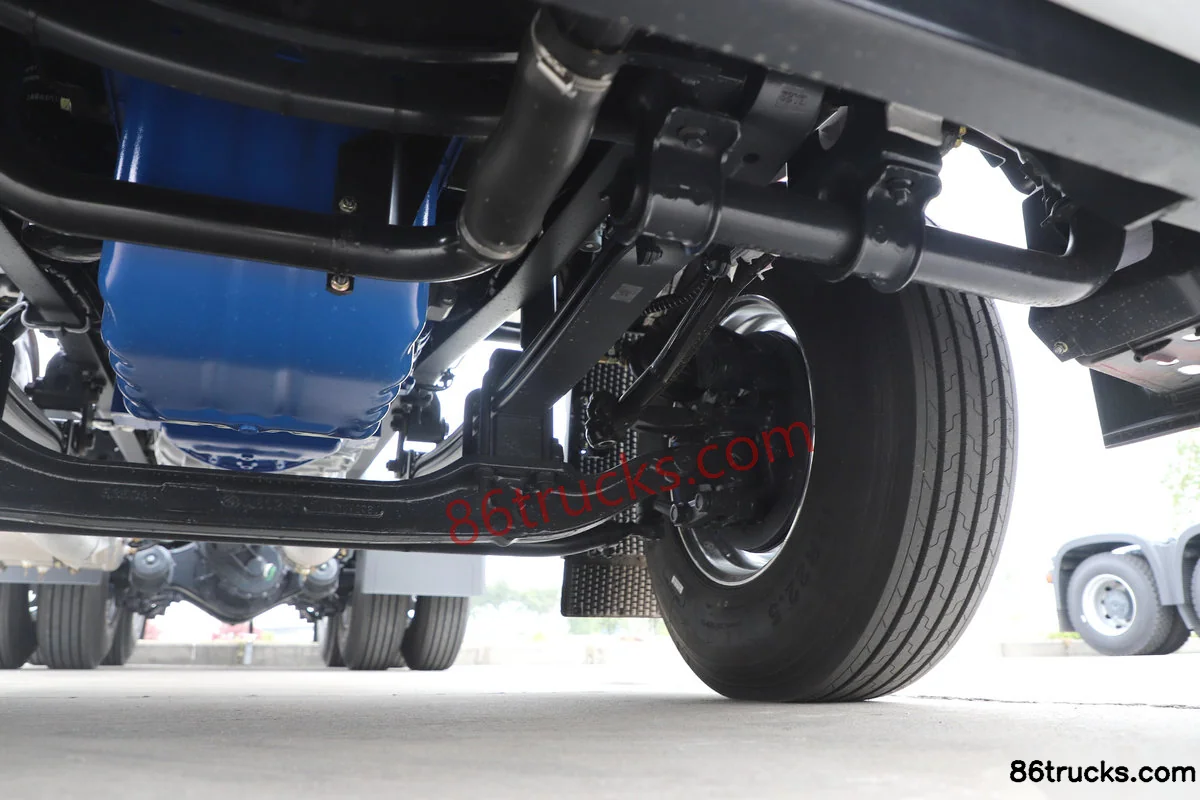

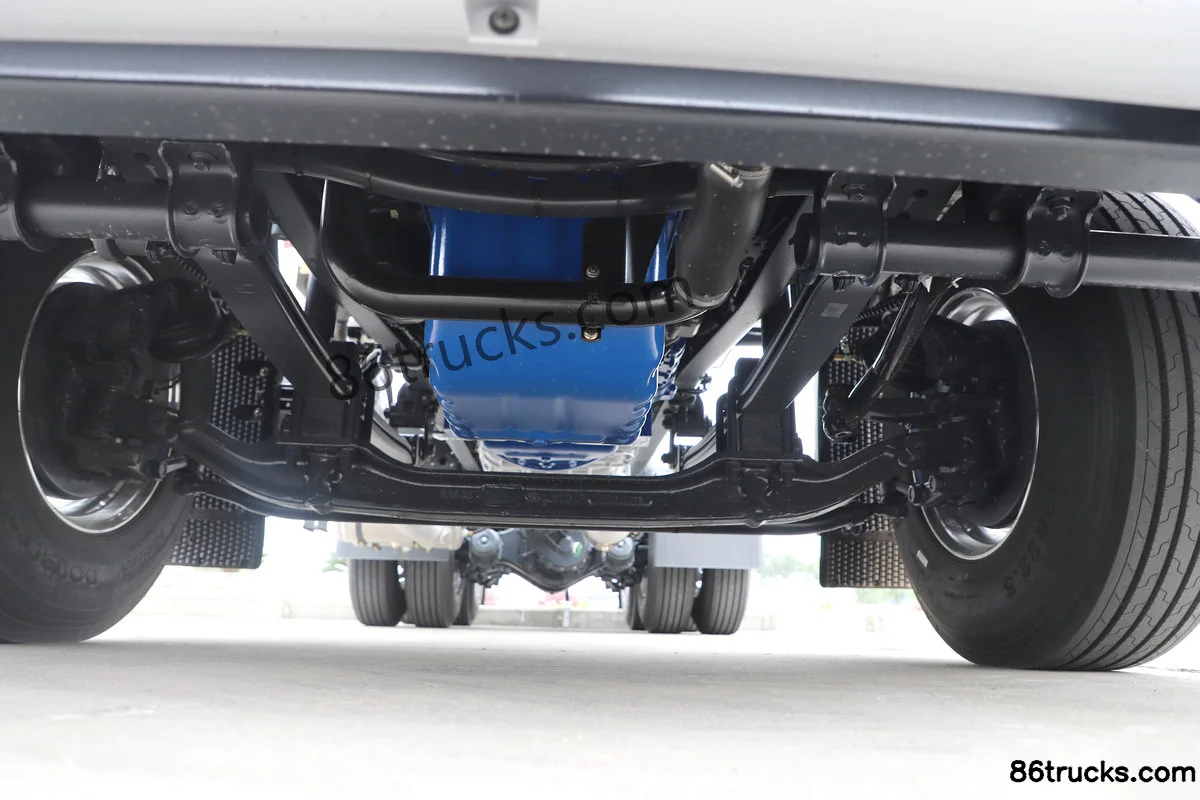

Chassis3

9 photos

FAQ

What is the export price of SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck, and what does it include?

SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck export reference is about From $67,250; MSRP is ¥48.42M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck?

Key specs of SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck: Drive: 6x4; Horsepower: 500 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck suited for?

SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck differ from other variants in the same series?

SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck belongs to SAIC Hongyan Genlyon Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon C6 Composite Edition 500hp 6X4(10 wheels) LNG Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
