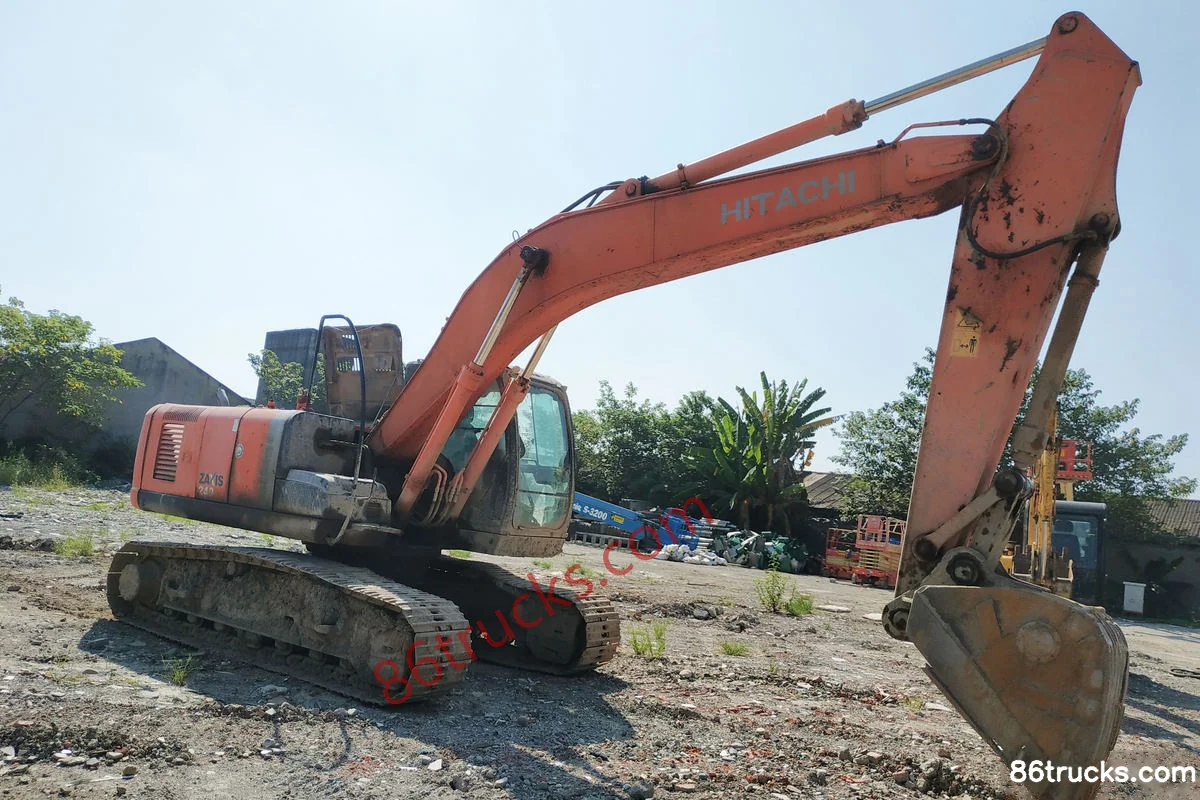

Hitachi ZX200-3 Crawler Excavator

Export reference
MSRP N/A
Model:: ZX200-3
Engine Model:: crawler excavator
Tonnage:: 20ton
Bucket capacity:: 0.8cubic meter
boom length:: 5680mm
Arm Length:: 2910mm
Operating weight: 20.3ton
Bucket type: backhoe
Fuel Tank Capacity: 400L
Product power: Conventional Power

Overview

The Hitachi ZX200-3 Crawler Excavator is a excavator featuring 20.3ton GVW, backhoe bucket capacity, 400L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: ZX200-3
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 20ton
Bucket capacity: 0.8cubic meter
Operating weight: 20.3ton
boom length: 5680mm
Arm Length: 2910mm
Machine dimensions: 9.52×2.86×3.01mm
Track shoe width: 600mm
Track gauge: 2200mm
Counterweight ground clearance: 1030mm
Min ground clearance: 450cm
Rear Overhang Radius: 2750mm
Oil capacity
Fuel Tank Capacity: 400L
hydraulic oil tank: 135L
Engine Oil Capacity: 23L
performance specs
Travel speed: 3.5/5.5km/h
Bucket digging force: 151kN
Arm Digging Force: 109kN
hydraulic system
Working hydraulic circuit: 34.3
travel hydraulic circuit: 34.3Mpa
Swing Hydraulic Circuit: 32.4Mpa
Operating Range
Max digging radius: 9920mm
Max digging depth: 6670mm
Max digging height: 10040mm
Max unloading height: 7180mm
Max vertical digging depth: 5990mm
Engine parameters
Engine Model: IsuzuISUZU AI-4HK1X
Max output power: 122kW

Photos

Exterior3

3 photos

FAQ

What transport jobs is Hitachi ZX200-3 Crawler Excavator suited for?

Hitachi ZX200-3 Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Hitachi ZX200-3 Crawler Excavator differ from other variants in the same series?

Hitachi ZX200-3 Crawler Excavator belongs to Hitachi Hitachi Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hitachi ZX200-3 Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hitachi ZX200-3 Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
