New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh

Export reference
From $20,528
MSRP ¥14.78M CNY
Wheelbase:: 3050mm
Cargo Box Height:: 1.35
Model code (announced):: NGA5030XXYBEV5
Cab length:: 4.865m
GVWR:: 3.15ton
Max. speed:: 95km/h
New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh exterior
View more photos (12)
CLTC range: 261km
Motor 1 Brand: Aosiweier
Curb Weight: 1.59ton
Rated payload: 1.43ton

Overview

The New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh is a Electric Panel Van featuring 261km battery/range, Aosiweier motor, 1.43t payload and 1.35 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): NGA5030XXYBEV5
Wheelbase: 3050mm
Cab length: 4.865m
Cab width: 1.715m
Cab height: 2.06m
CLTC range: 261km
Curb Weight: 1.59ton
Rated payload: 1.43ton
GVWR: 3.15ton
Max. speed: 95km/h
Front/rear suspension: 0.75/1.065m
Energy Type: Electric
electric motor
Motor 1 Brand: Aosiweier
Motor 1 Model: TZ200XS60K
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 60kW
total rated torque: 90N·m
total peak torque: 220N·m
Battery/Charging
Battery Brand: Guoxuan High-Tech
Charging method: DC fast charge / slow charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.8h
Battery capacity: 41.93kWh
Chassis Specs
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Body parameters
Max body depth: 2.65
Max body width: 1.5
Cargo Box Height: 1.35
Door Parameters
side door type: Manual Side Sliding Door
Tailgate type: split
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 195R14C 8PR
Rear Wheel Specification: 195R14C 8PR
Cab parameters
Seat rows:
Safety features
Seat belt reminder:
Remote key:
Central door lock:
interior configuration
AC control type: Manual
Power Windows:
Reverse Radar:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:

Photos

Exterior3

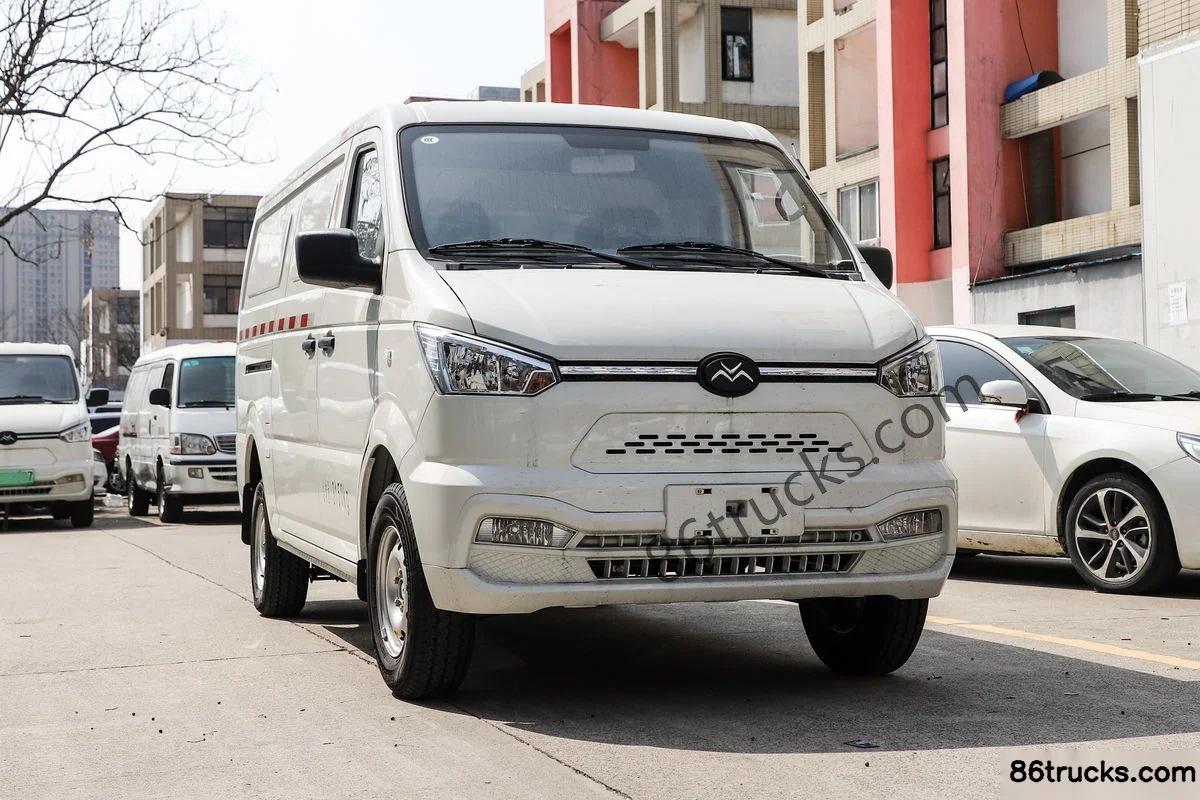

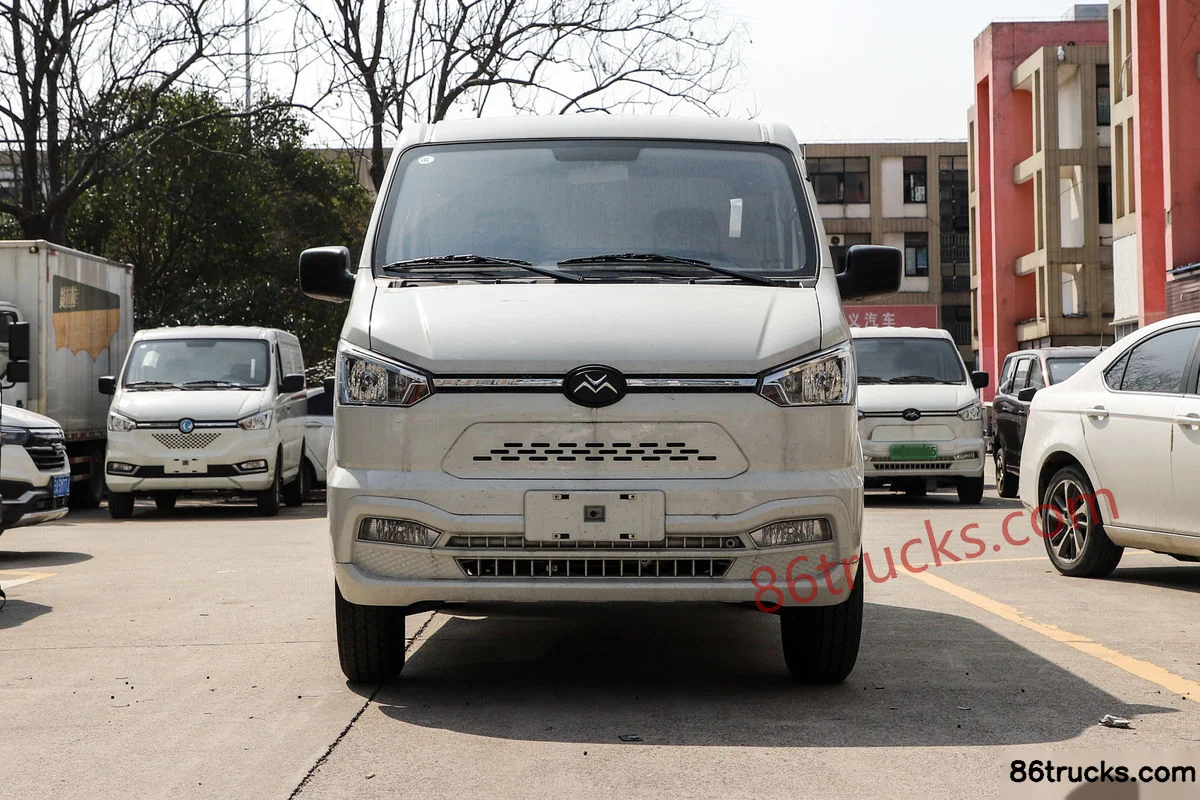

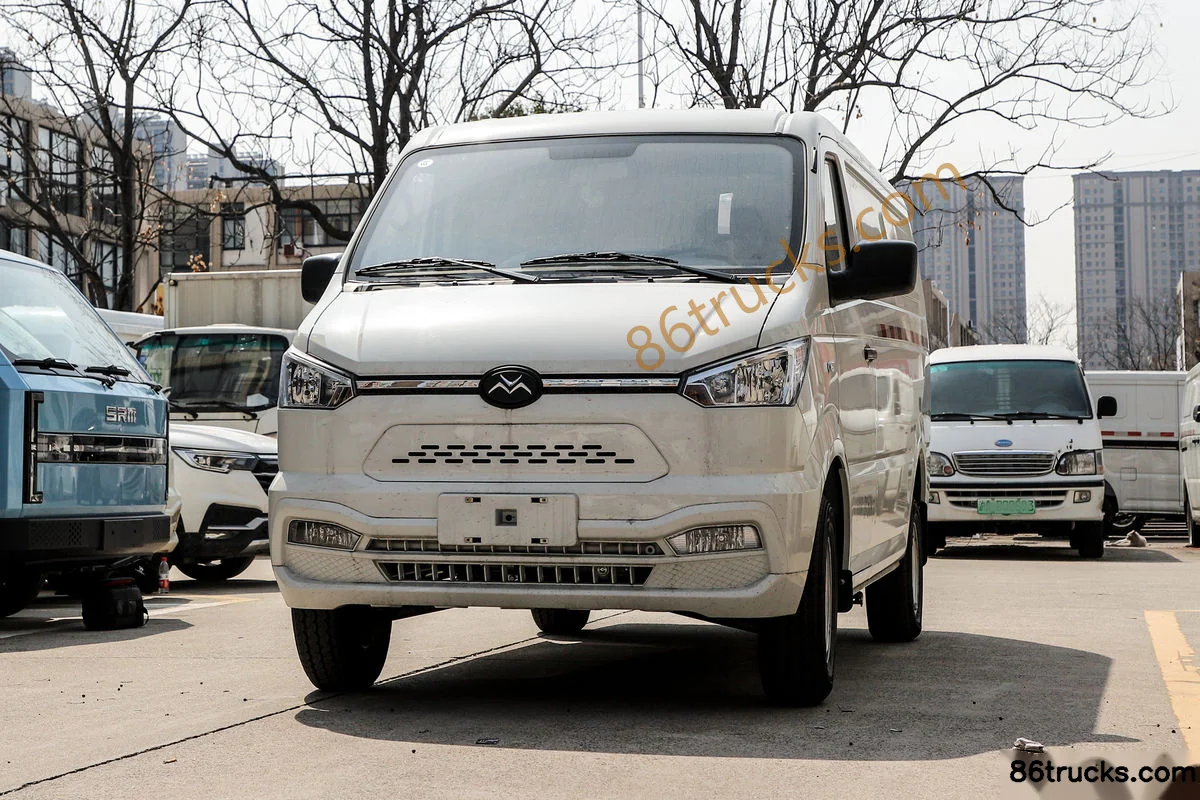

New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh Exterior (1) | 86Trucks New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh Exterior (2) | 86Trucks New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh Exterior (3) | 86Trucks

Cab3

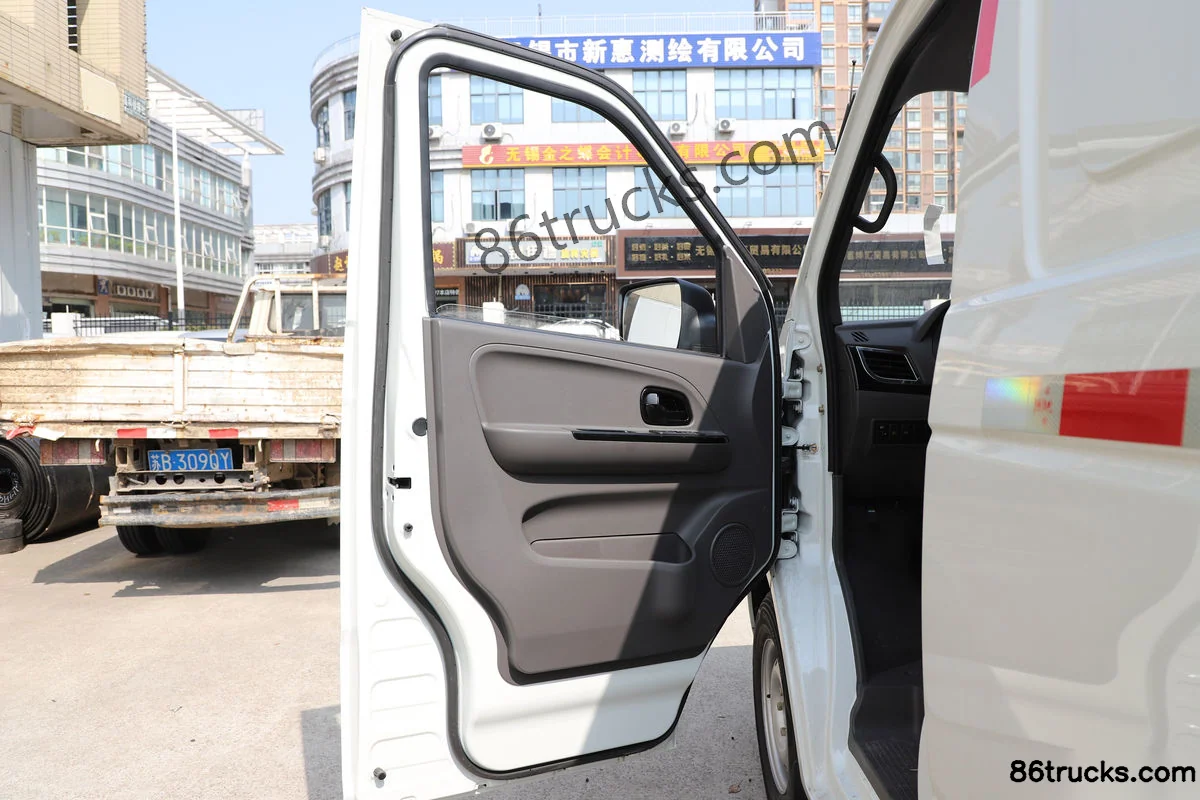

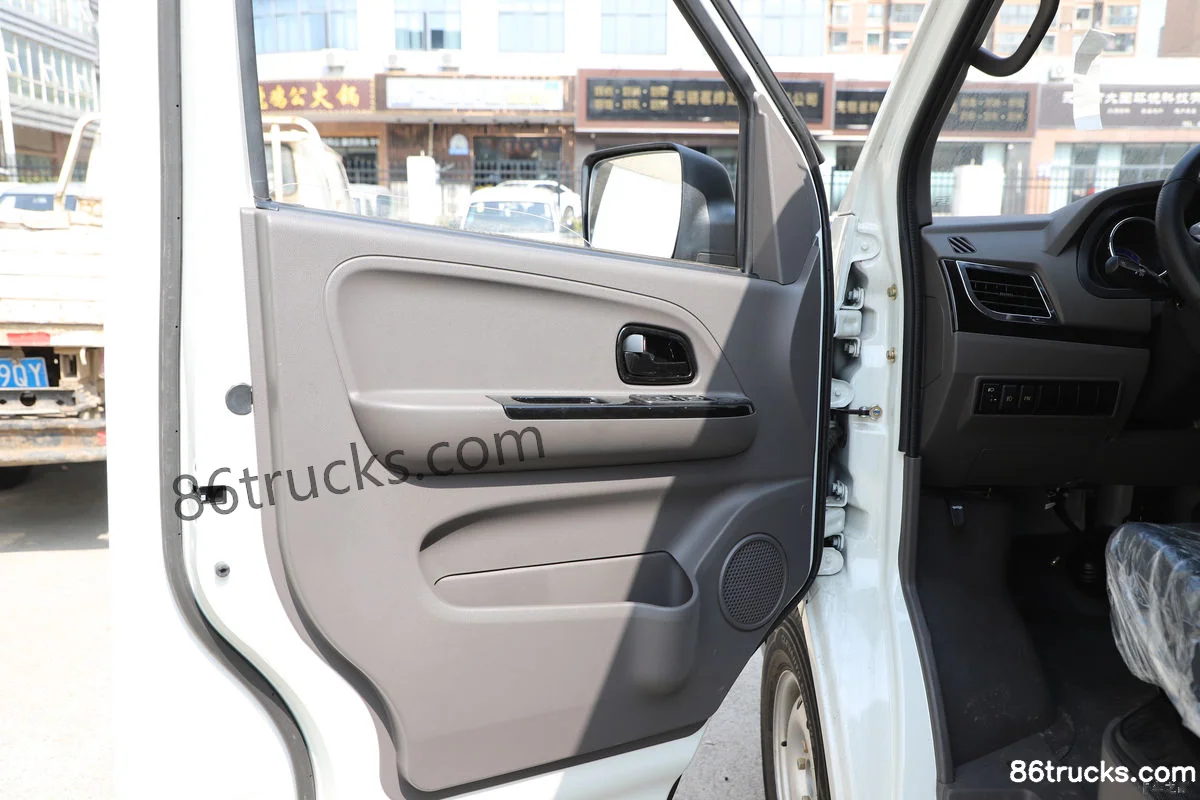

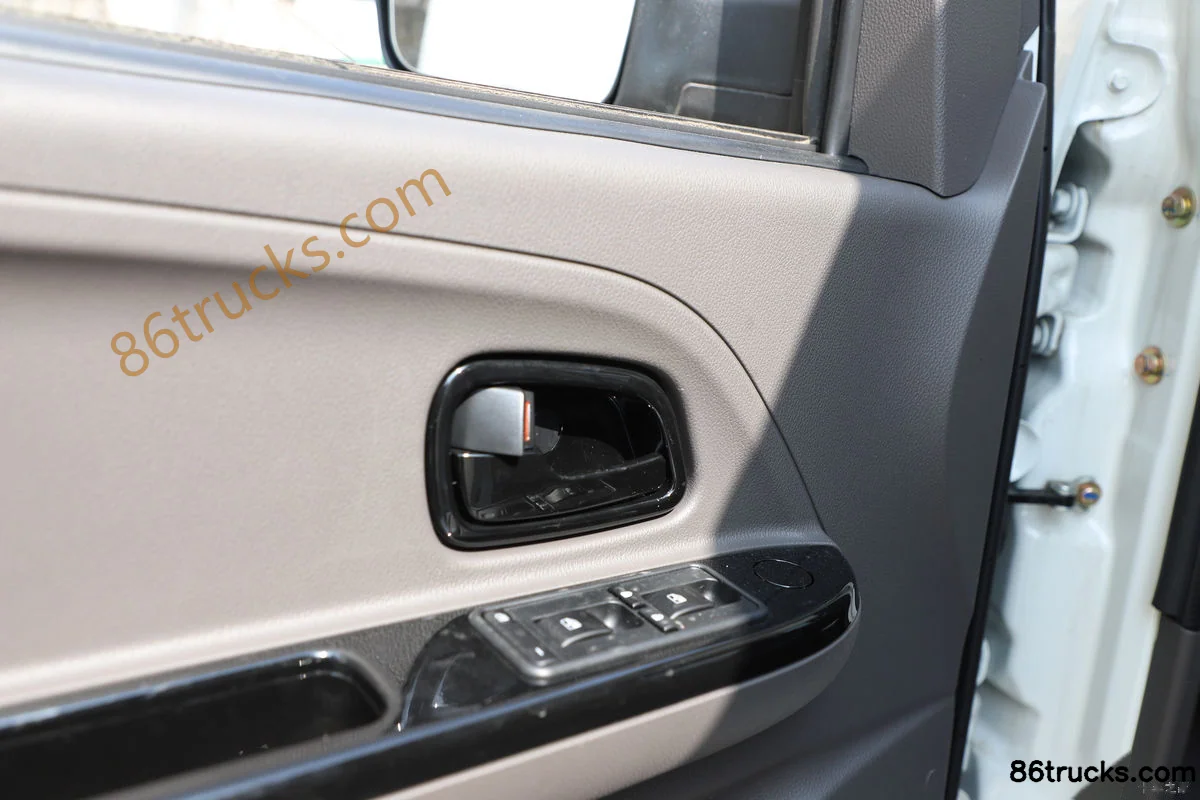

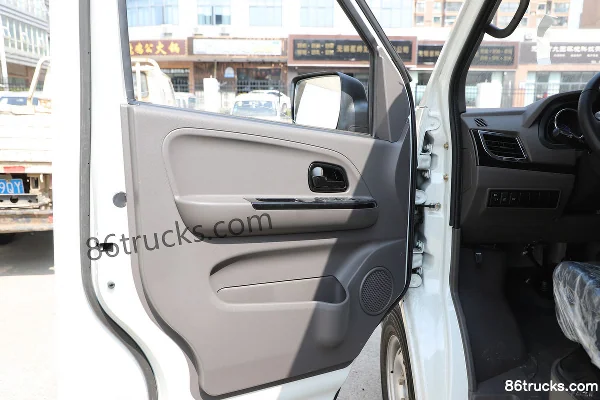

New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh Cab (1) | 86Trucks New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh Cab (2) | 86Trucks New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh Cab (3) | 86Trucks

Chassis3

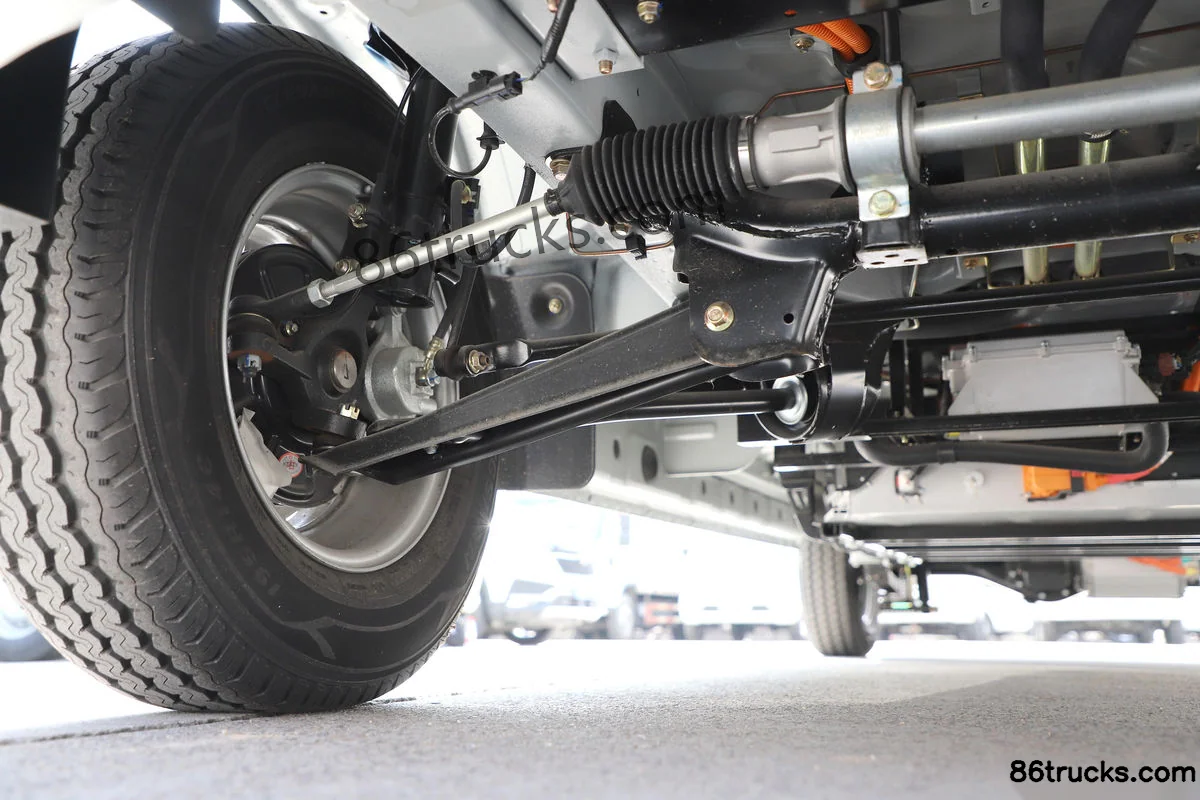

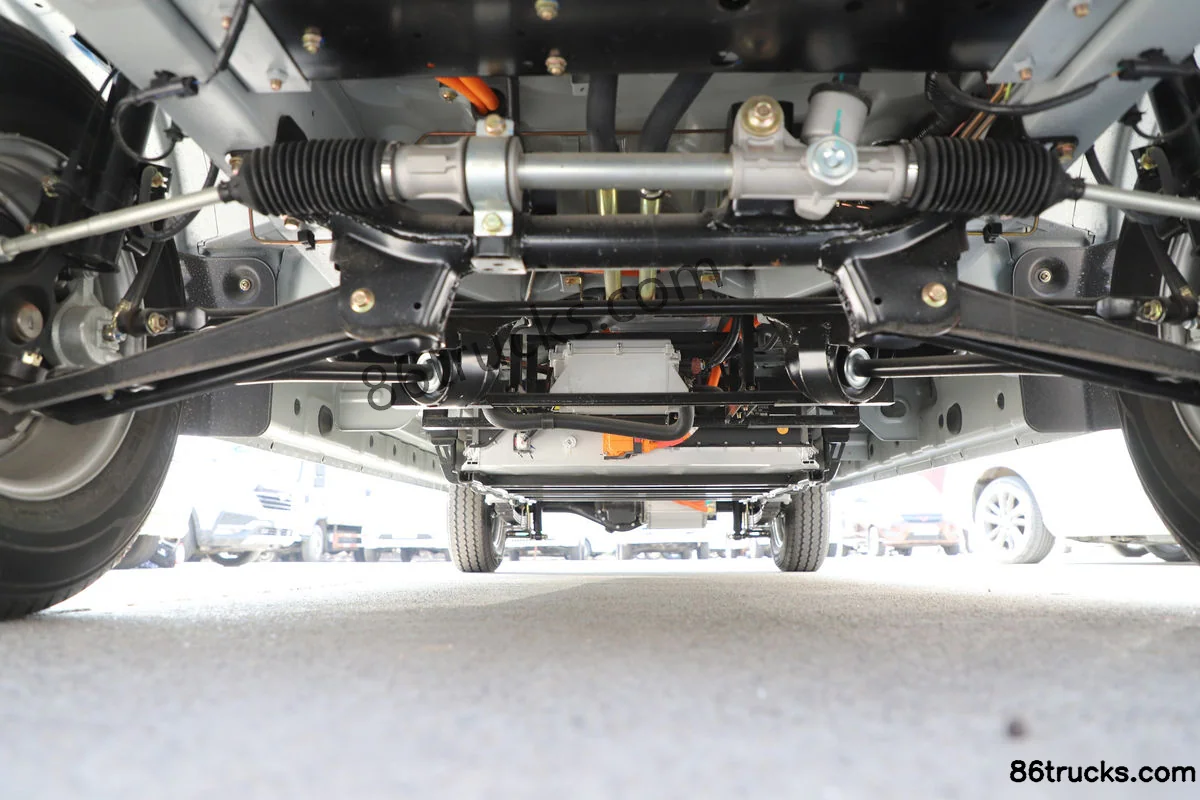

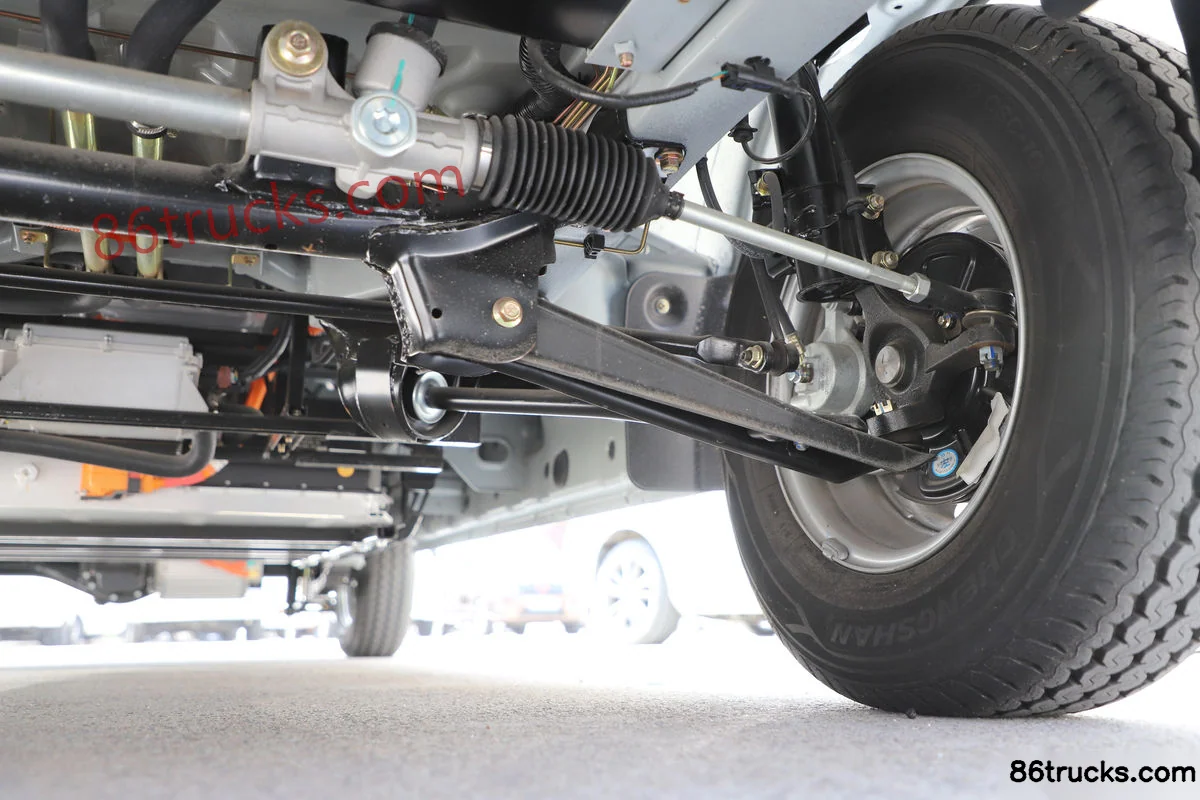

New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh Chassis (1) | 86Trucks New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh Chassis (2) | 86Trucks New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh Chassis (3) | 86Trucks

Cargo Box3

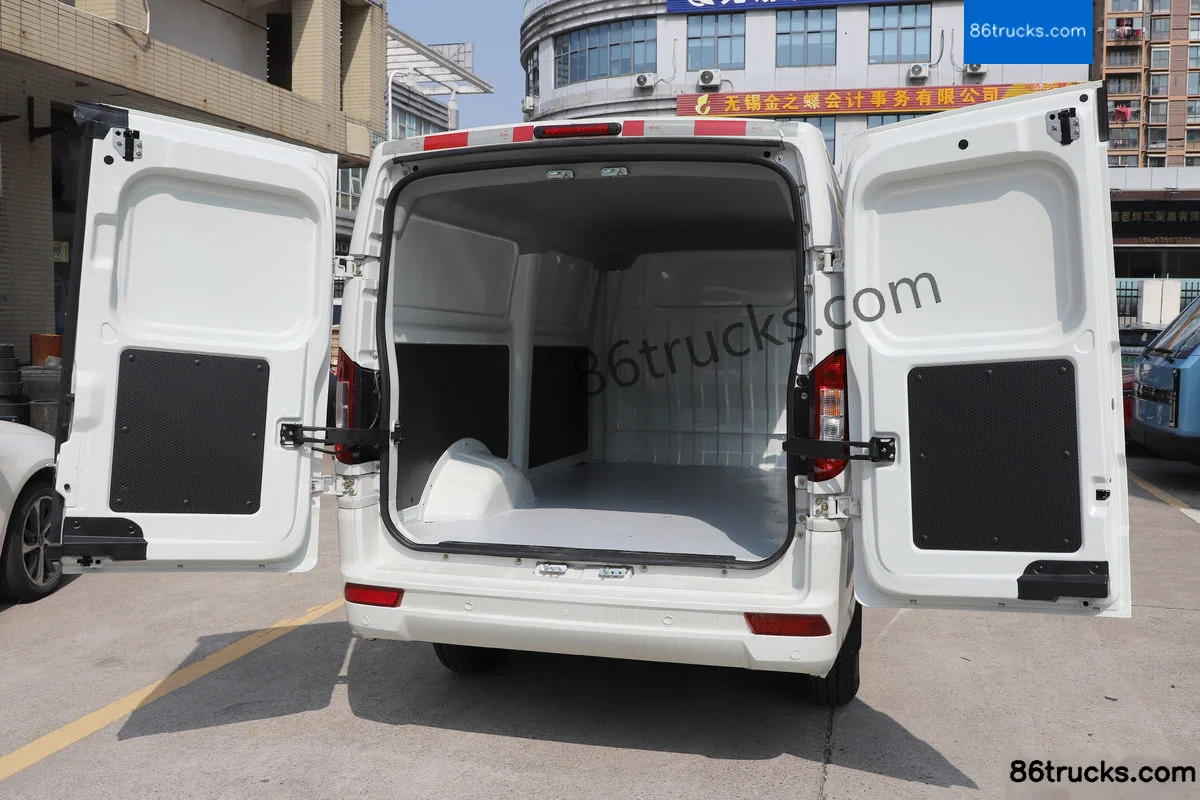

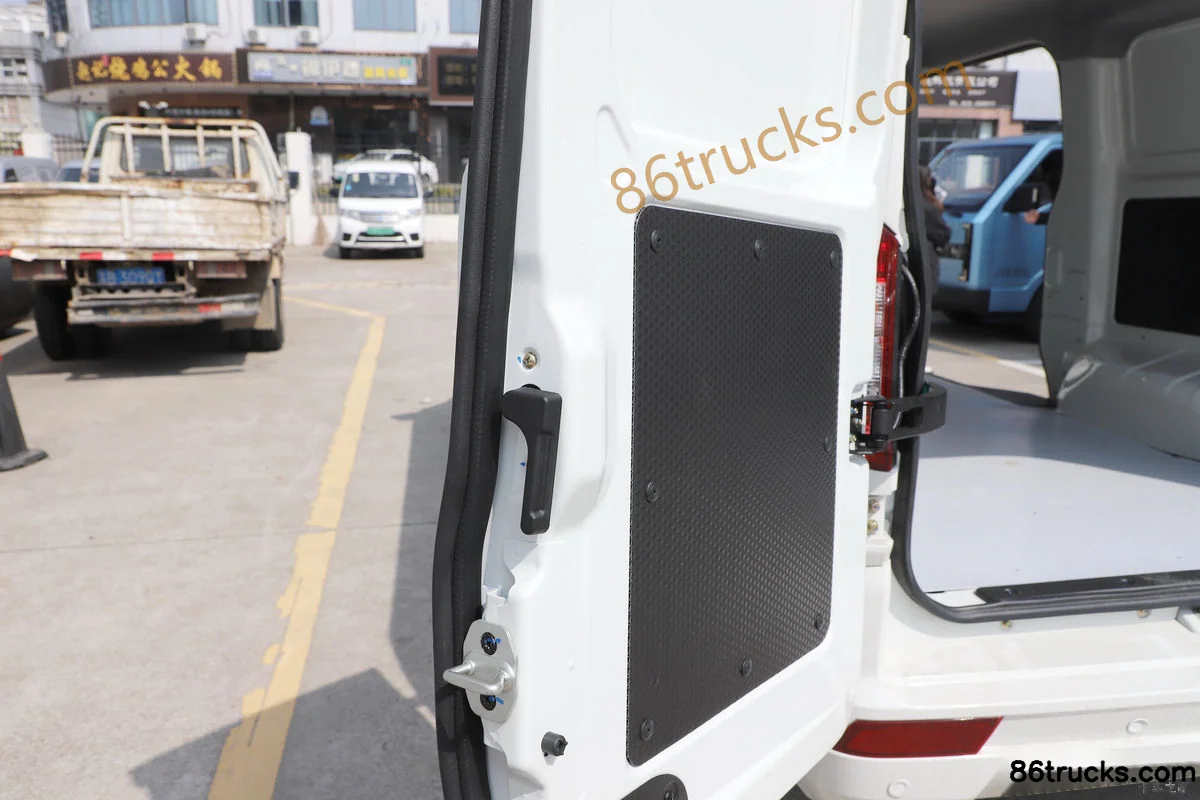

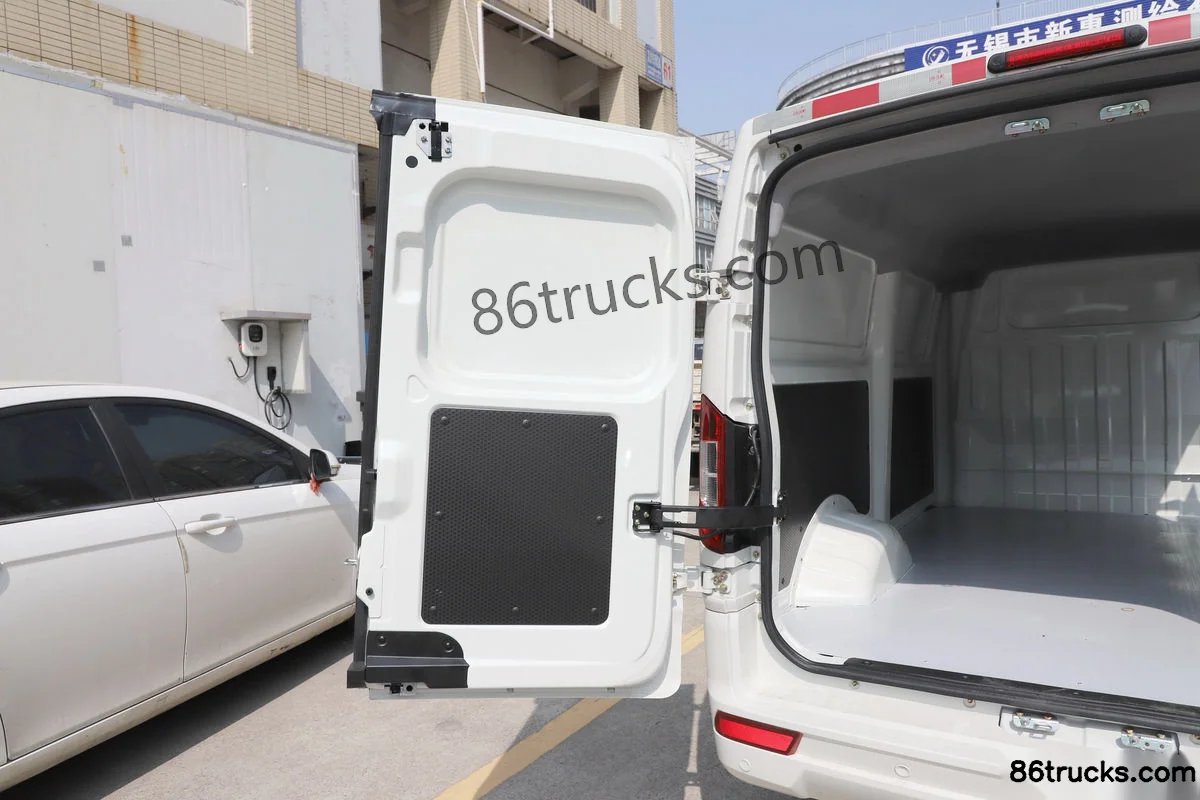

New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh Cargo Box (1) | 86Trucks New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh Cargo Box (2) | 86Trucks New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh, and what does it include?

New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh export reference is about From $20,528; MSRP is ¥14.78M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh suited for?

New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh differ from other variants in the same series?

New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh belongs to New Gonow Shuailing (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export New Gonow Shuailing 3.2T 2-Seat 4.865m Pure Electric Panel Van 41.93kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
