Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck

Export reference
From $80,556
MSRP ¥58M CNY
Drive: 6X4 (10 wheels)
Model:: CQ5763PTG384
Cab dimensions:: 8.53×3.3×4.18m
Rated payload:: 50ton
GVWR:: 76ton
Max. speed:: 52km/h
Curb Weight: 26ton
Horsepower 371
Max output power: 273kW
Emission China II/Euro II

Overview

The SAIC Hongyan Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck is a off-highway mining dump truck featuring 76t GVW, 371 hp, 273kW power and 6X4 (10 wheels) drive. On the powertrain side, it comes with China II/Euro II emissions.

China II/Euro II 371 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: CQ5763PTG384
Cab dimensions: 8.53×3.3×4.18m
Drive type: 6X4
Curb Weight: 26ton
Rated payload: 50ton
GVWR: 76ton
Max. speed: 52km/h
Body Parameters
Truck Brand: Hongyan Jieshi
Other special notes: Rear overhang 800 mm, no tailgate, floor 16 mm side 12 mm, Hyva FC172--4700
Max dump angle:

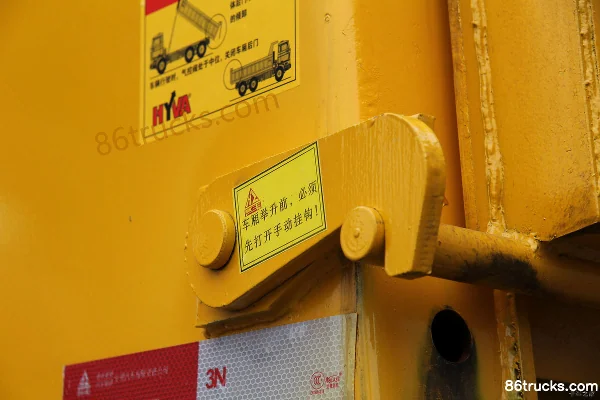

Lifting type: Hyva FC172-4700
Chassis Specs
Front/rear axle load: 16/40ton
Engine parameters
Engine Model: SinotrukWD615.47
Displacement: 9.726L
Emission standard: China II/Euro II
Max output power: 273kW
Max hp: 371Horsepower
Max torque speed: 1500/1100-1600rpm

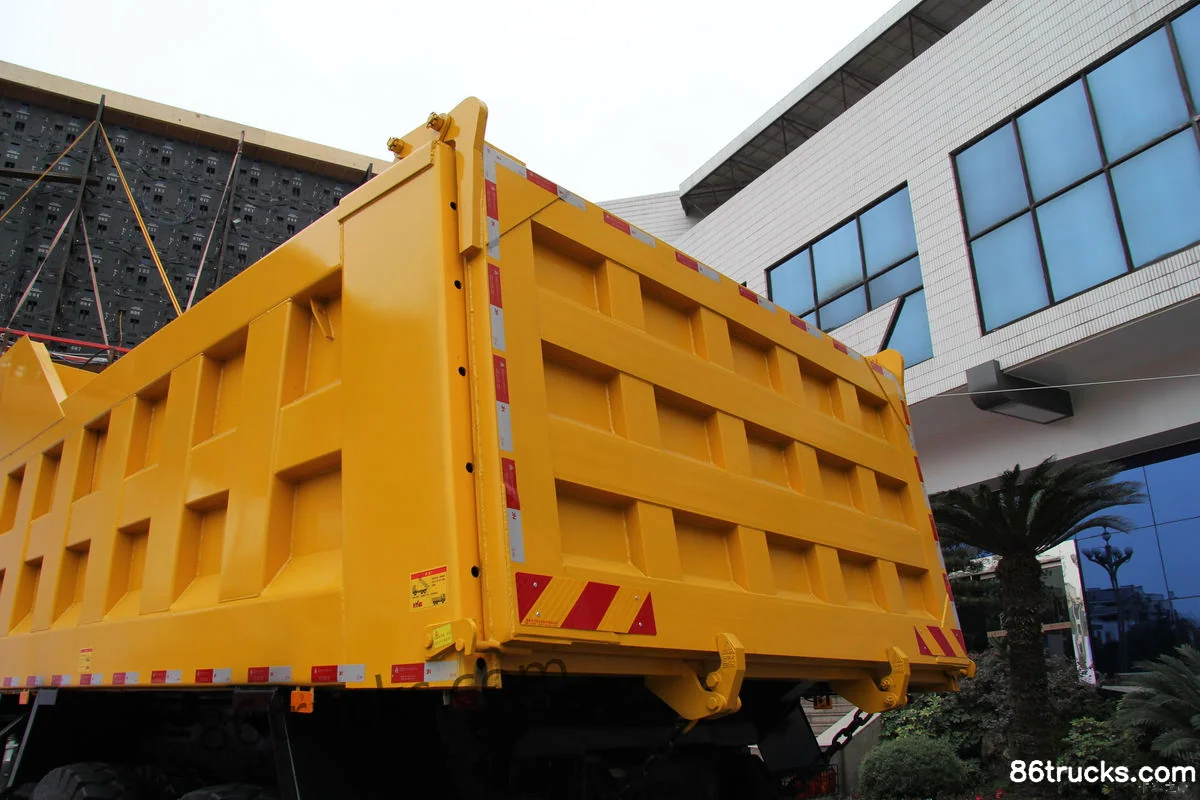

Cargo box parameters
Cargo box dimensions: 5.6×3×1.6m
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD180K
Tire

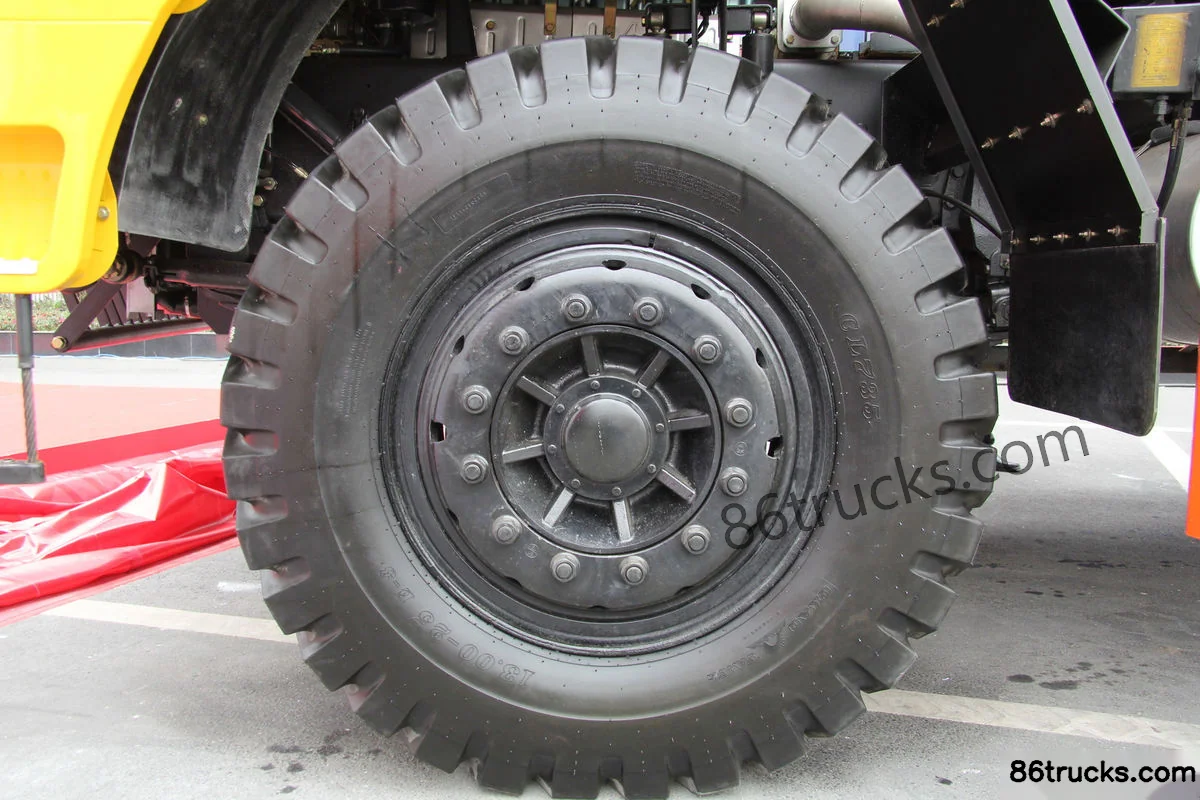

Tire Size: 13.00-25
Number of tires: 10pcs

Photos

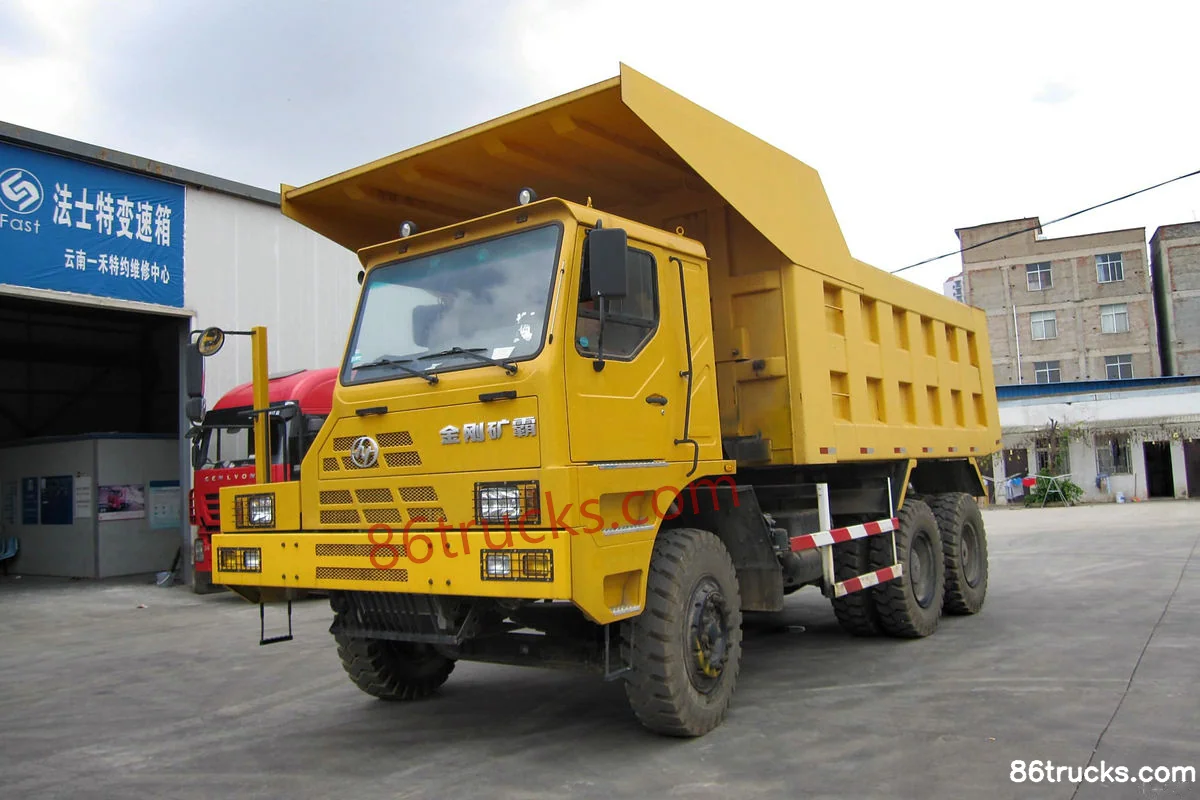

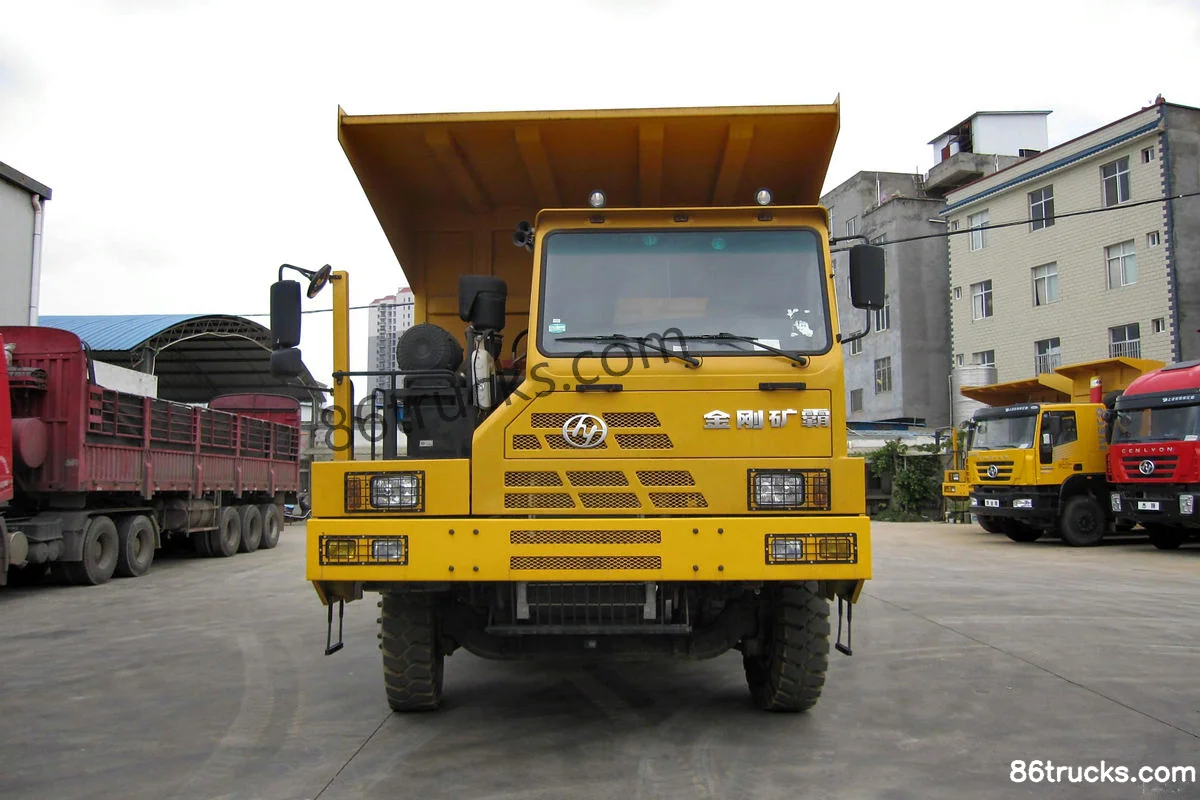

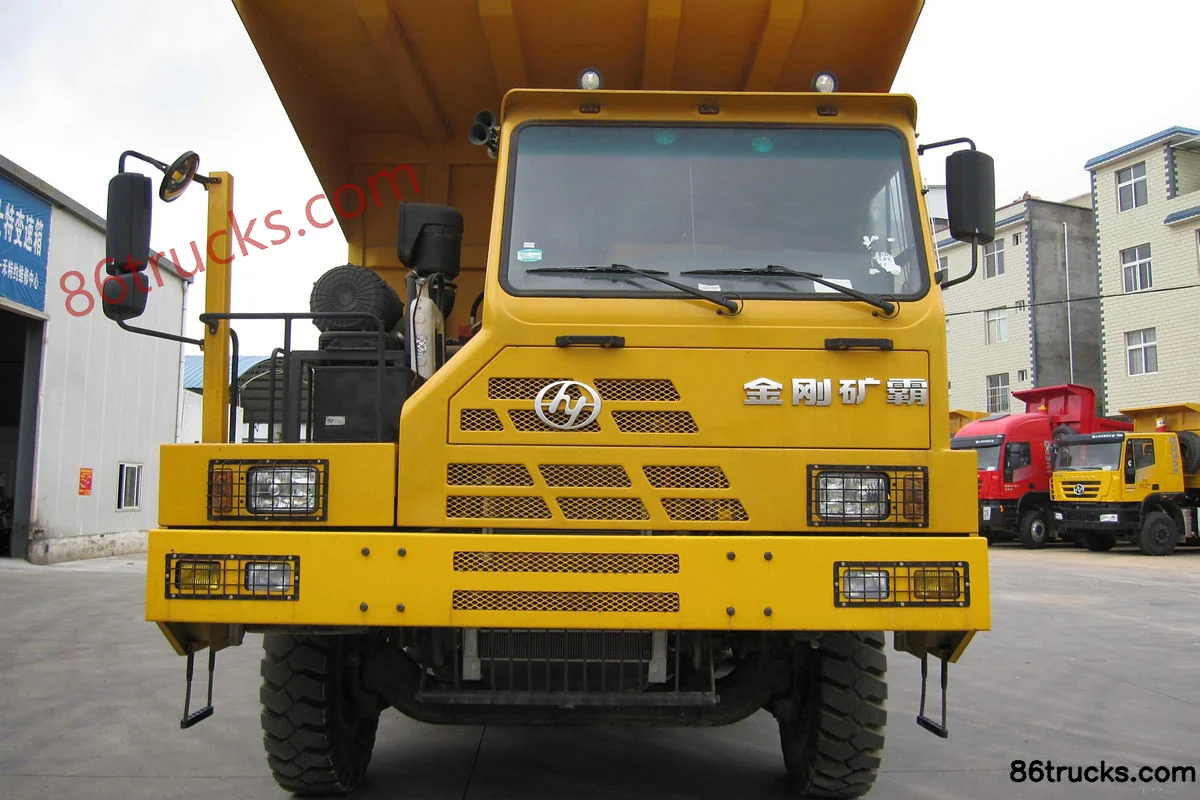

Exterior3

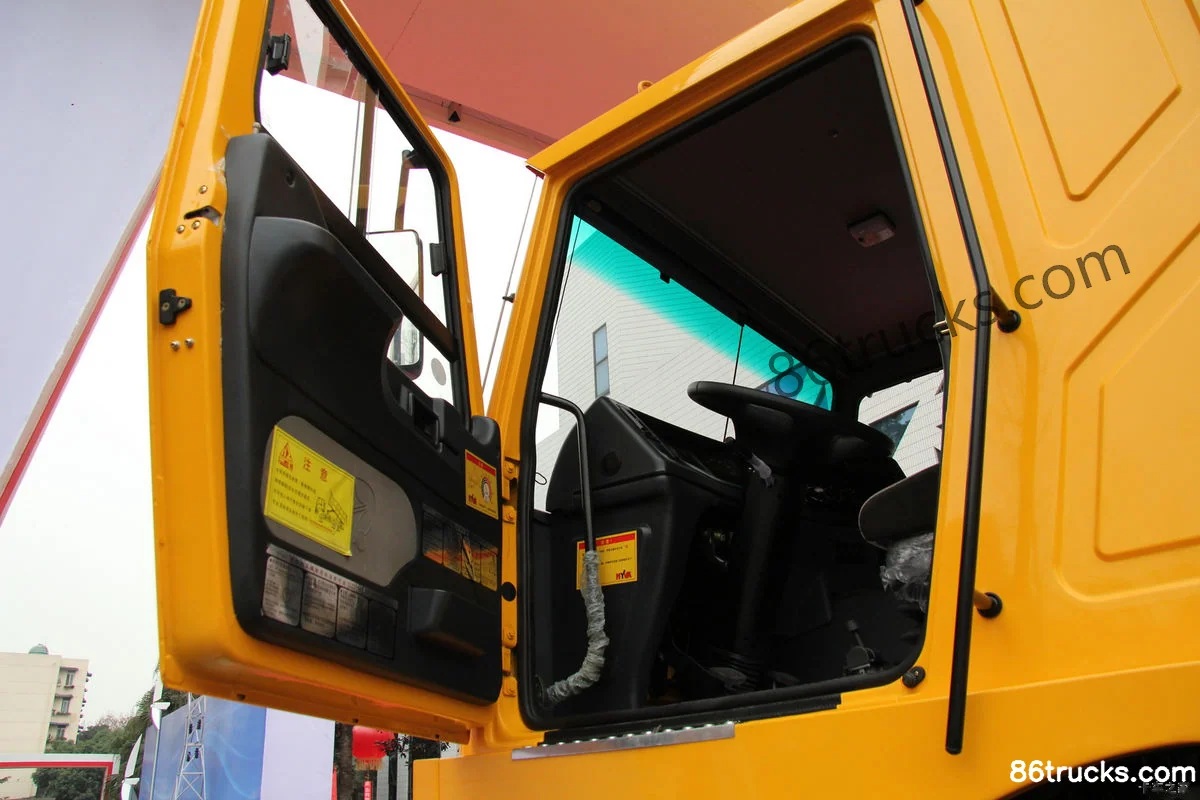

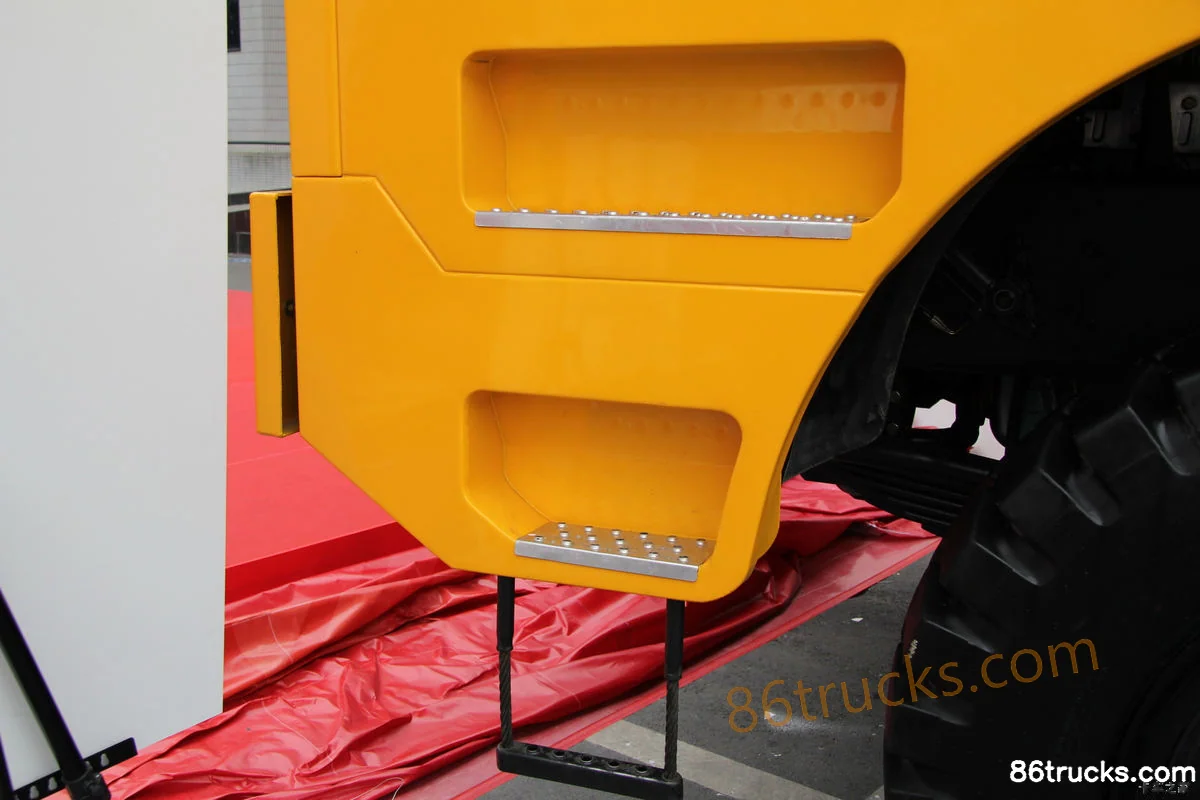

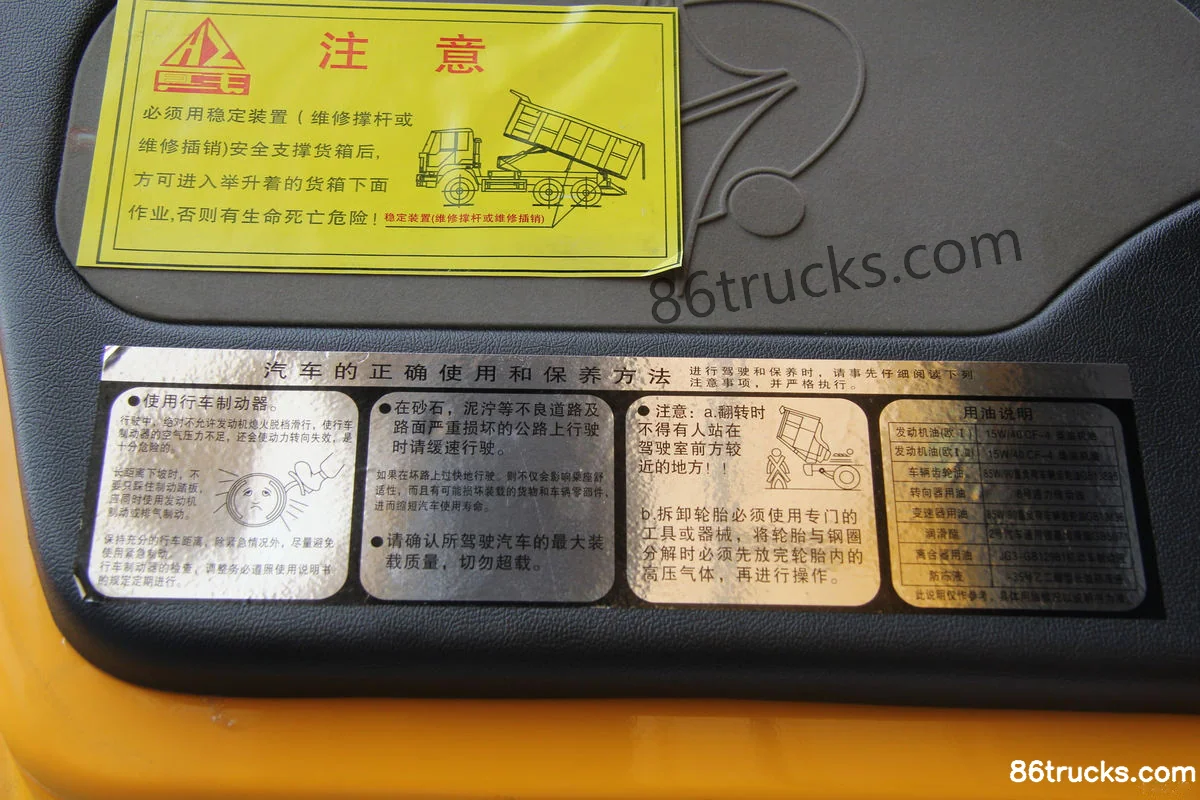

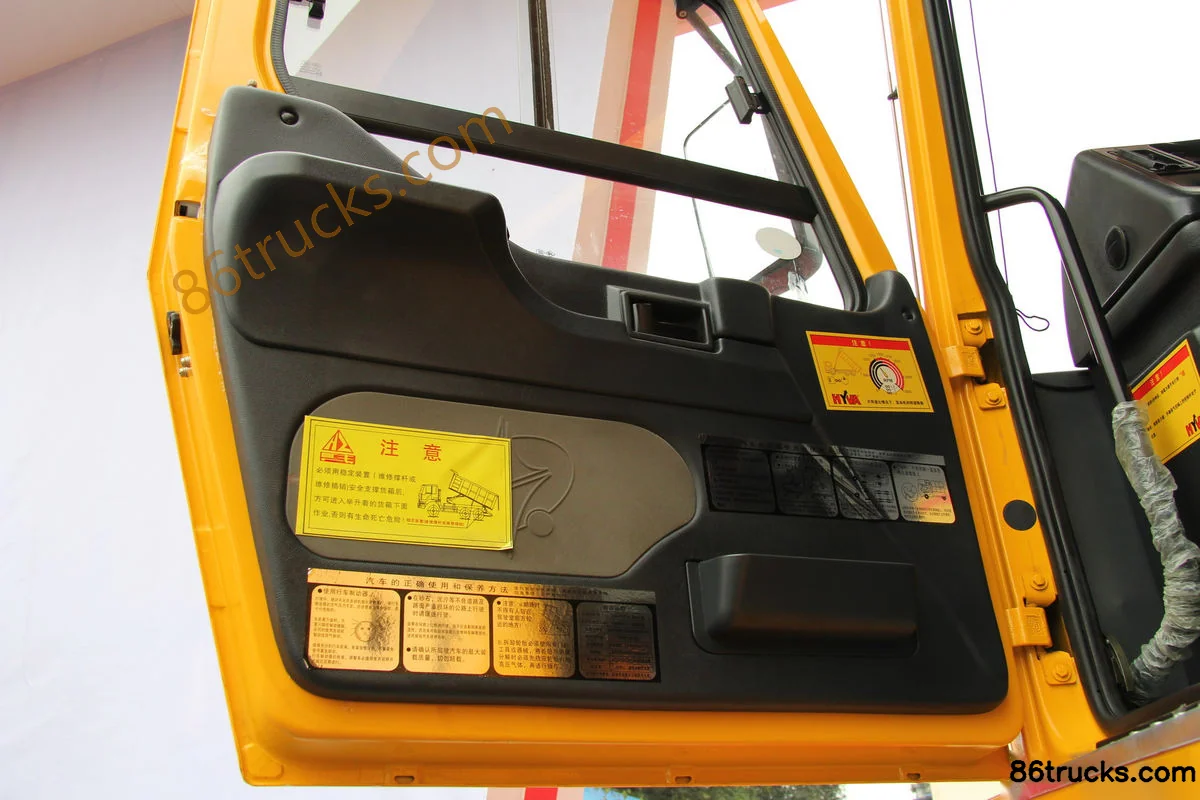

Cab3

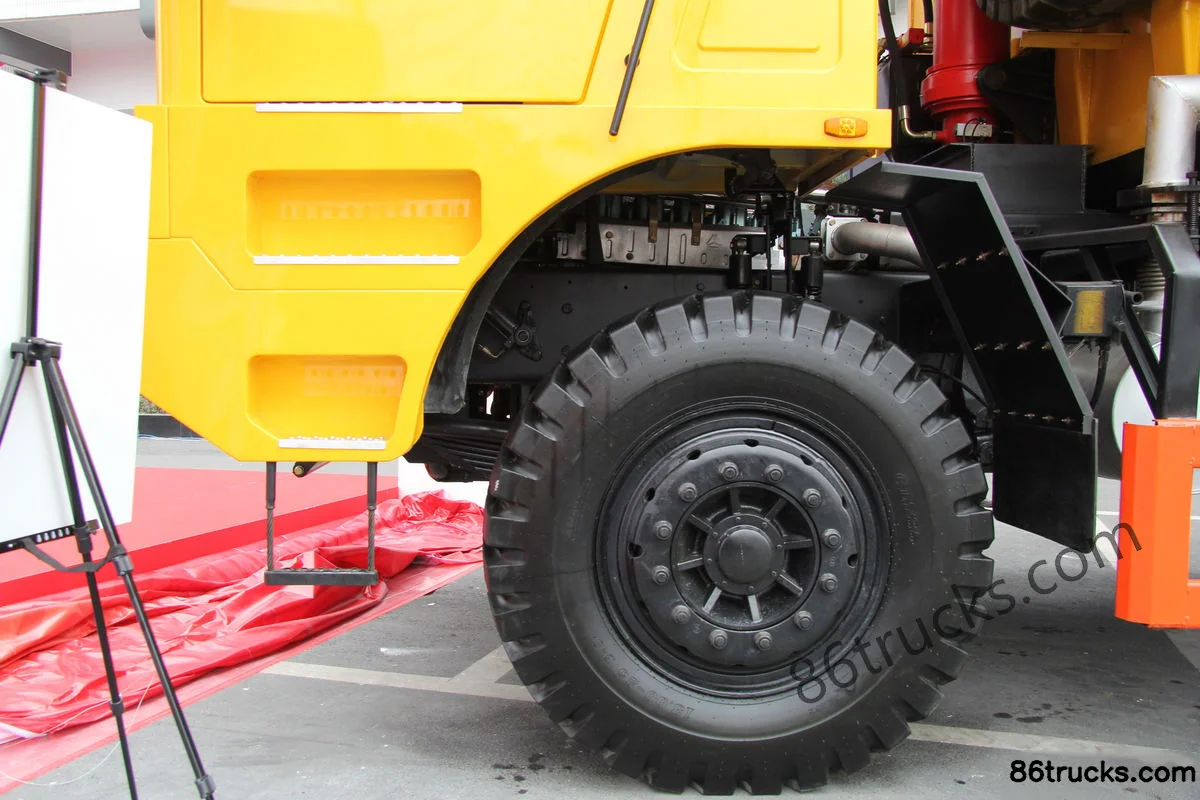

Chassis3

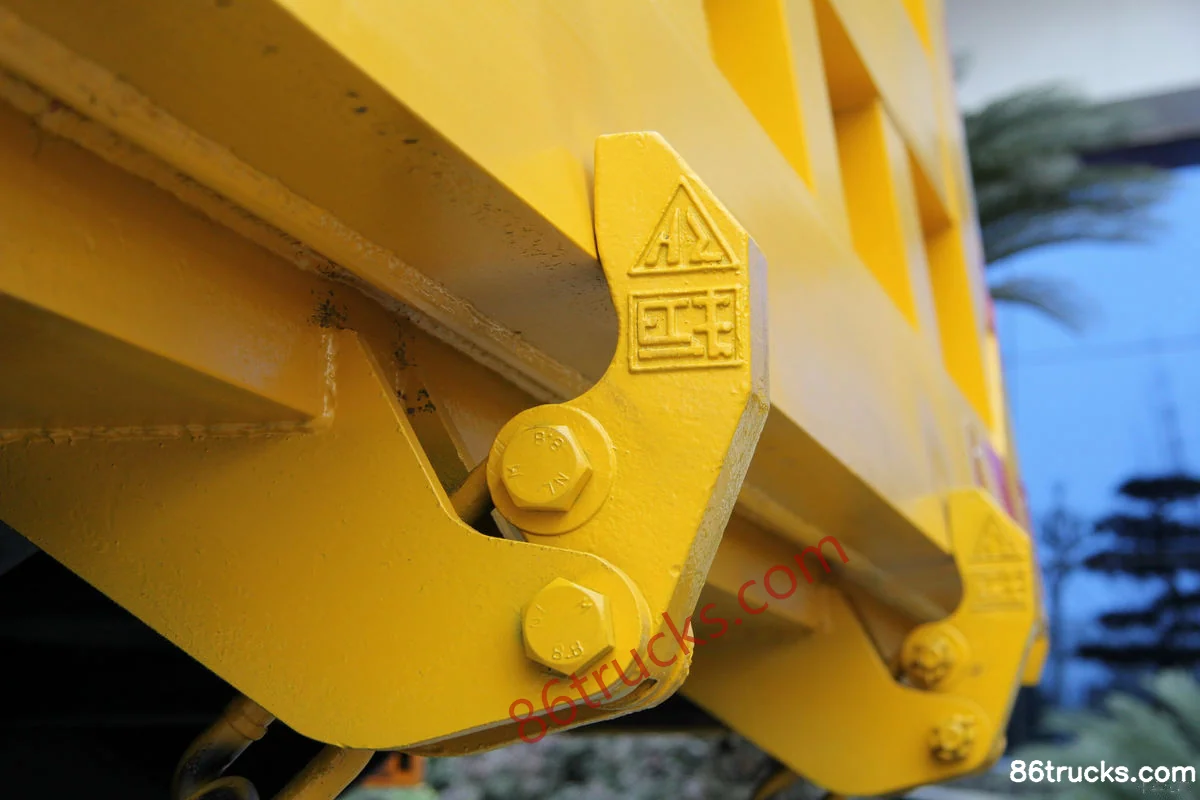

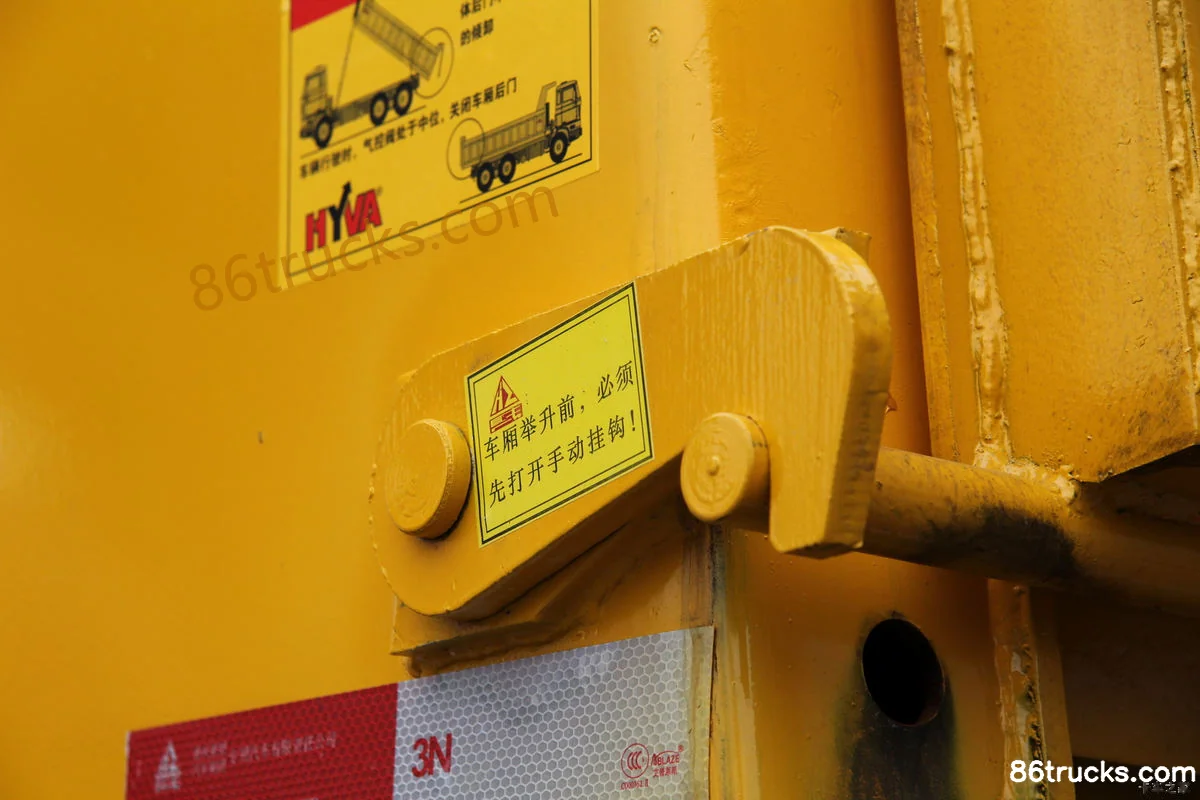

Body3

12 photos

FAQ

What is the export price of Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck, and what does it include?

Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck export reference is about From $80,556; MSRP is ¥58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck use, and can it enter my country?

This model is listed as China II/Euro II. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck?

Key specs of Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck: Drive: 6x4; Horsepower: 371 hp; Emission: China II/Euro II. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck suited for?

Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck differ from other variants in the same series?

Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck belongs to SAIC Hongyan King Kong Mine King (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hongyan King Mine Truck 371hp 6X4(10 wheels) Wide-body Mining Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
