Dongfeng T1 4.5T 4.15m Single Row Pure Electric Flatbed Light Truck 80.6kWh 4X2(6 wheels)

Export reference
From $24,861
MSRP ¥17.9M CNY
Rated payload:: 1.405ton
Wheelbase:: 3300mm
Cargo box type:: stake body
Model code (announced):: EQ5040CCYTZBEV1
Type:: Cargo Trucks
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 260km
Motor 1 Brand: Nanjing Yuebo
Curb Weight: 2.96ton

Overview

The Dongfeng T1 4.5T 4.15m Single Row Pure Electric Flatbed Light Truck 80.6kWh 4X2(6 wheels) is a Light Truck featuring 260km battery/range, Nanjing Yuebo motor, 4X2 (6 wheels) drive and 1.405t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ5040CCYTZBEV1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.1m
Cab height: 2.3m
CLTC range: 260km
Curb Weight: 2.96ton
Rated payload: 1.405ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Nanjing Yuebo
Motor 1 Model: TZ230XS-YBM406
Max torque: 1200N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 50kW
Peak power: 85kW
total peak torque: 1200N·m
total rated torque: 600N·m
Battery/Charging
Battery rated voltage: 565V
fast charge time: 1.5h
Battery capacity: 80.6kWh
Battery total voltage: 565V
Energy Density: 140.4
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.15m
Cargo box width: 2.03m
Cargo box height: 0.4m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1800kg
rear axle allowable load: 2695kg
Tire
Tire Size: 6.50R16LT 12PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

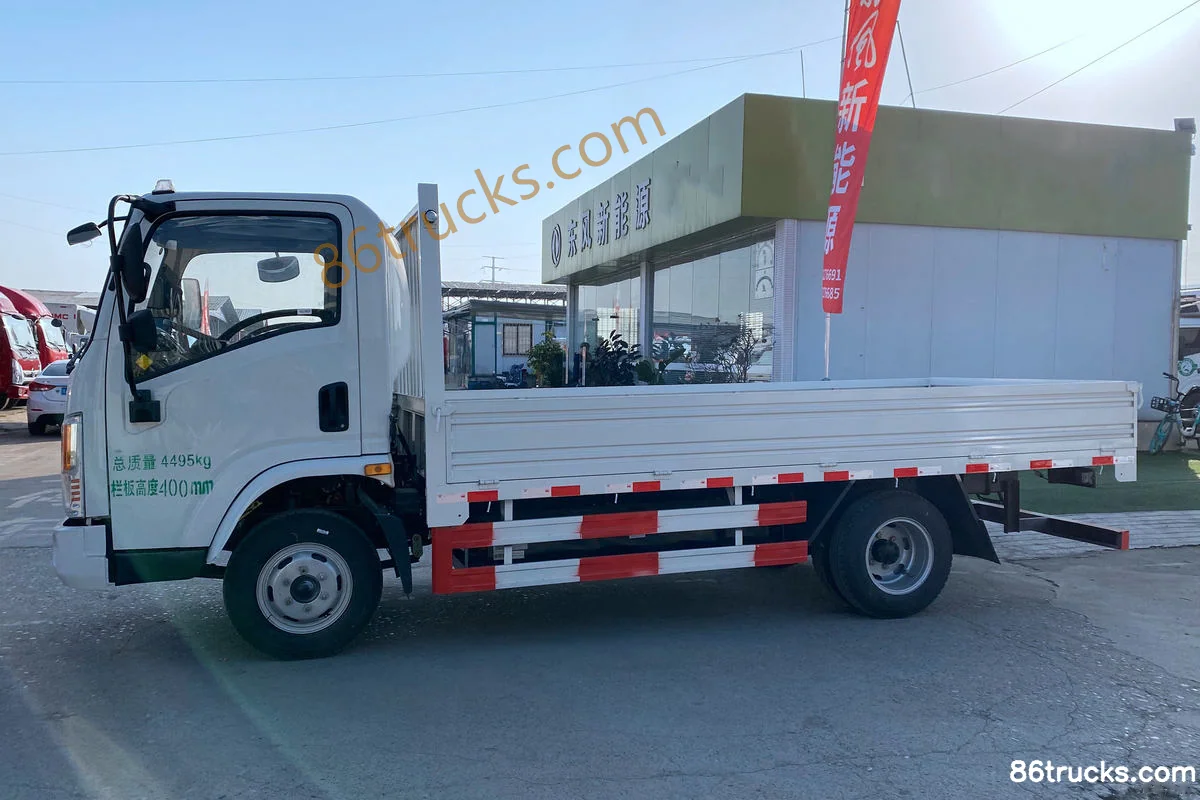

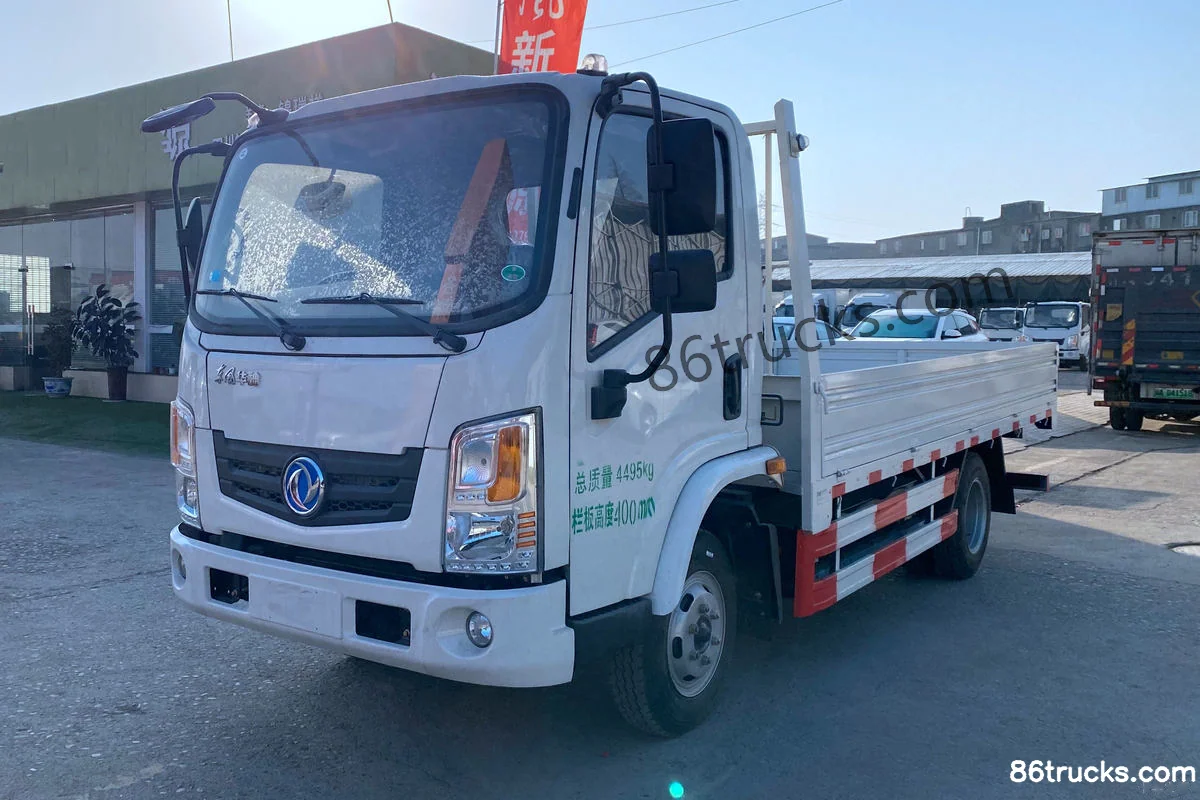

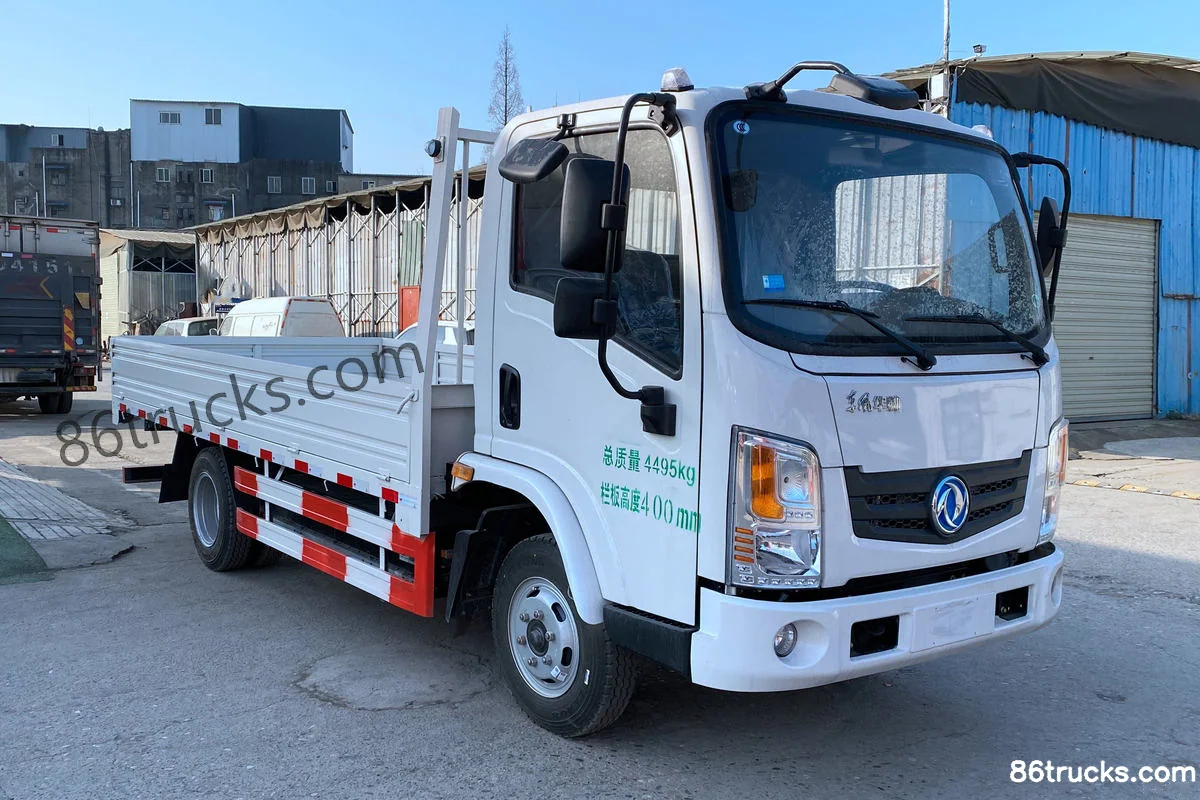

Exterior3

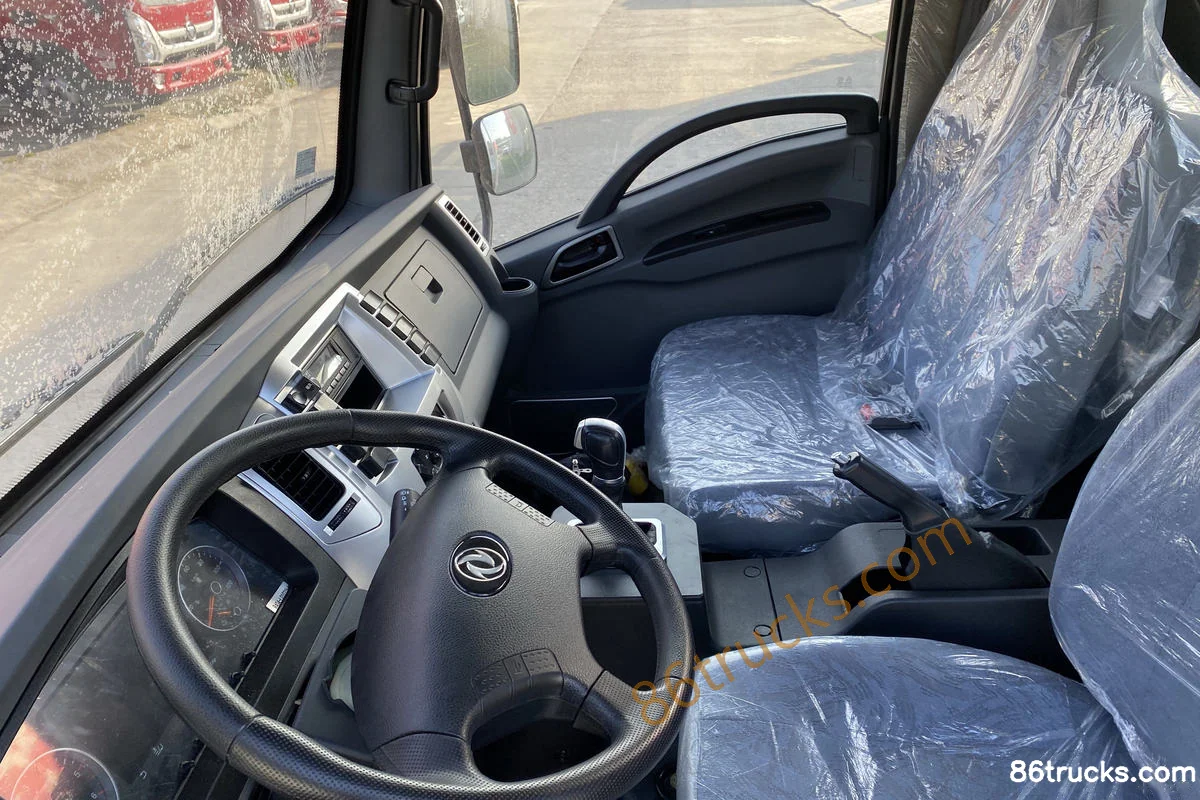

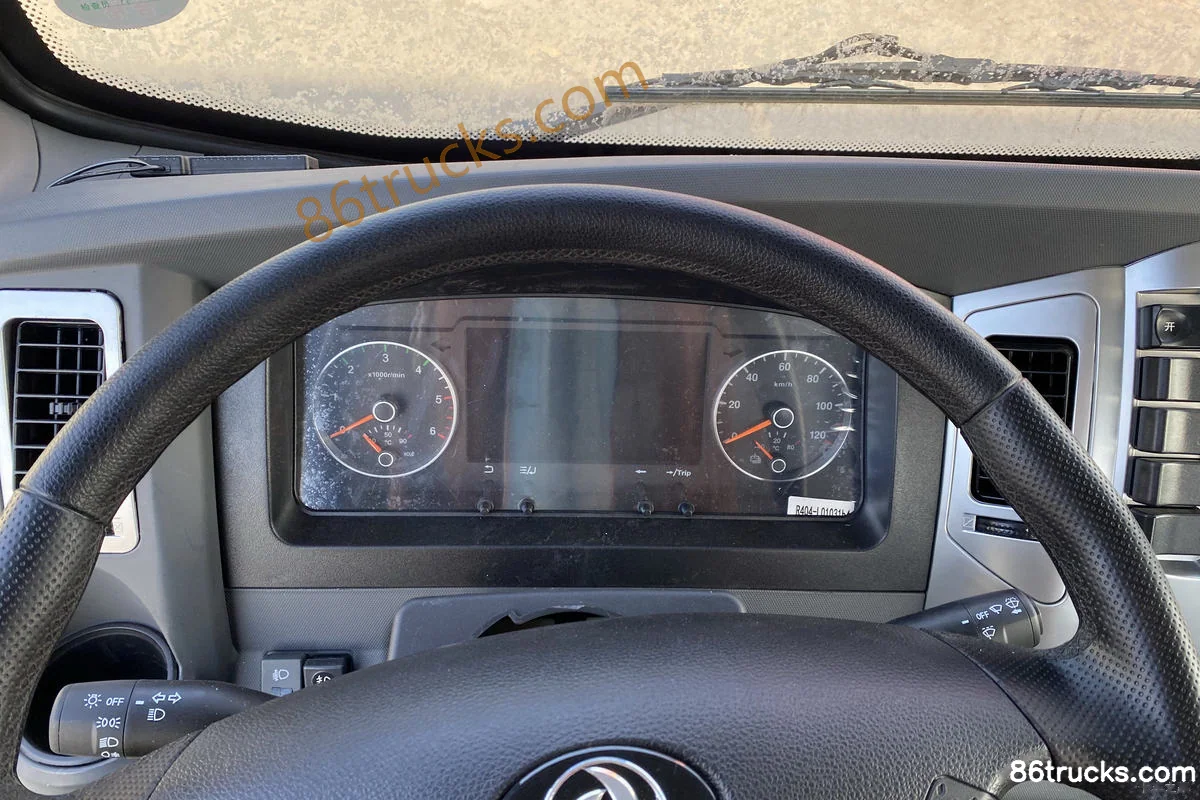

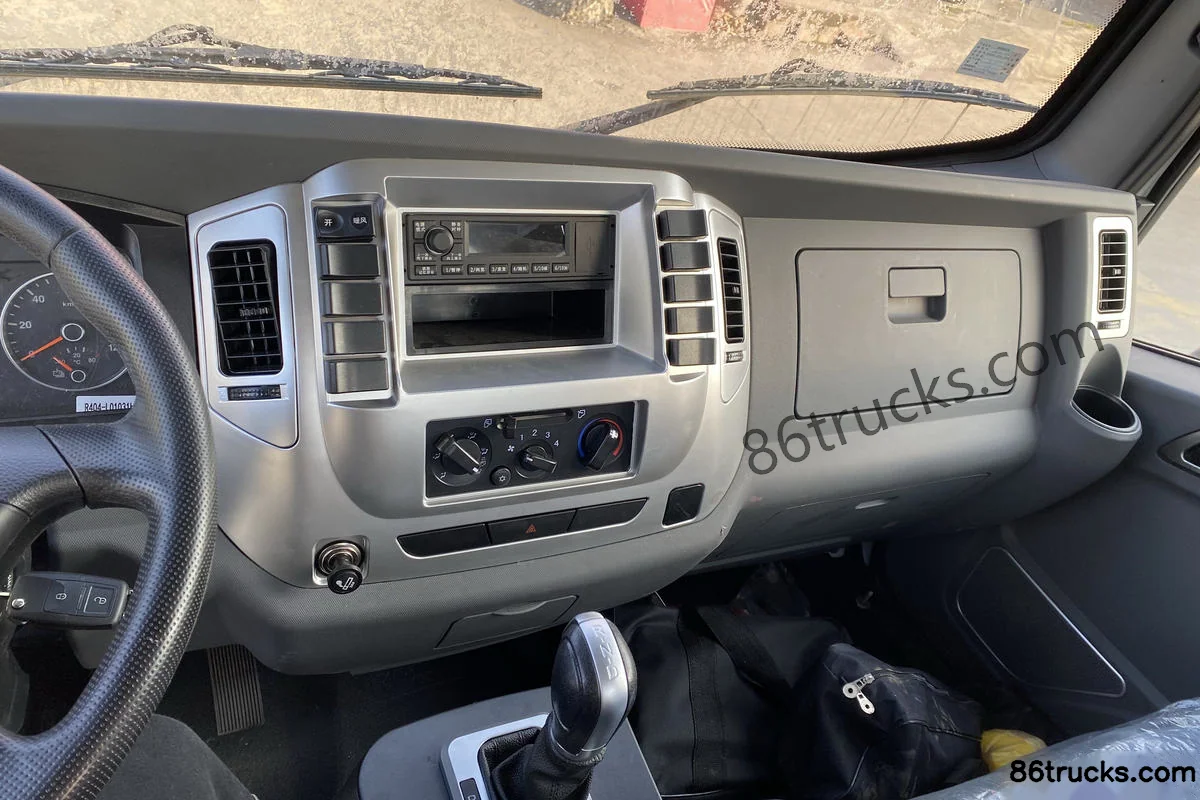

Cab3

6 photos

FAQ

What is the export price of Dongfeng T1 4.5T 4.15m Single Row Pure Electric Flatbed Light Truck 80.6kWh 4X2(6 wheels), and what does it include?

Dongfeng T1 4.5T 4.15m Single Row Pure Electric Flatbed Light Truck 80.6kWh 4X2(6 wheels) export reference is about From $24,861; MSRP is ¥17.9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Dongfeng T1 4.5T 4.15m Single Row Pure Electric Flatbed Light Truck 80.6kWh 4X2(6 wheels)?

Key specs of Dongfeng T1 4.5T 4.15m Single Row Pure Electric Flatbed Light Truck 80.6kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng T1 4.5T 4.15m Single Row Pure Electric Flatbed Light Truck 80.6kWh 4X2(6 wheels) suited for?

Dongfeng T1 4.5T 4.15m Single Row Pure Electric Flatbed Light Truck 80.6kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng T1 4.5T 4.15m Single Row Pure Electric Flatbed Light Truck 80.6kWh 4X2(6 wheels) differ from other variants in the same series?

Dongfeng T1 4.5T 4.15m Single Row Pure Electric Flatbed Light Truck 80.6kWh 4X2(6 wheels) belongs to Dongfeng T15 light truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T1 4.5T 4.15m Single Row Pure Electric Flatbed Light Truck 80.6kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T1 4.5T 4.15m Single Row Pure Electric Flatbed Light Truck 80.6kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
