Dayun 40ft Gooseneck Container Chassis Skeleton Semi-trailer

Export reference
From $11,736
MSRP ¥8.45M CNY
Cab width:: 2.55m
suspension:: 4-leaf leaf spring
Fifth Wheel Pin:: 50#
Design load capacity:: 40ton
Wheel brand:: Better / Rishang
Brake chamber:: 4/2Ruili
Axle Brand: Fuhua Wosheng 400,000 km maintenance-free axle
Curb Weight: 5.5ton
Cab length: 12.6m
Tire brand: Giti

Overview

The Dayun 40ft Gooseneck Container Chassis Skeleton Semi-trailer is a container semi-trailer featuring Fuhua Wosheng 400,000 km maintenance-free axle-axle setup, 5.5ton GVW, 12.6m length and 40ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 40ton
Cab length: 12.6m
Cab width: 2.55m
Curb Weight: 5.5ton
Chassis Specs
Axle Brand: Fuhua Wosheng 400,000 km maintenance-free axle
Number of Axles: 3
Axle Load Rating: 13 tons
Wheel brand: Better / Rishang
Number of wheels: 12
suspension: 4-leaf leaf spring
Wheel Material: Steel
Parts & accessories
Fifth Wheel Pin: 50#
Brake chamber: 4/2Ruili
Outrigger: Fuwa linked landing gear
Toolbox:
Spare Tire Carrier:
ABS: Kemi 4S/3M
Body Parameters
Frame material: T700
frame rail height: 350mm
Web Plate: 5mm
upper wing panel: 8mm
Lower Wing Plate: 10mm
Other notes
Other: Locks: 10 corner locks + 2 pin locks, Paint: full-vehicle E-coat + waterborne paint, Side guard: aluminum, Air tank: aluminum
Tire
Tire brand: Giti
Tire Size: 12R22.5
Number of tires: 12pcs

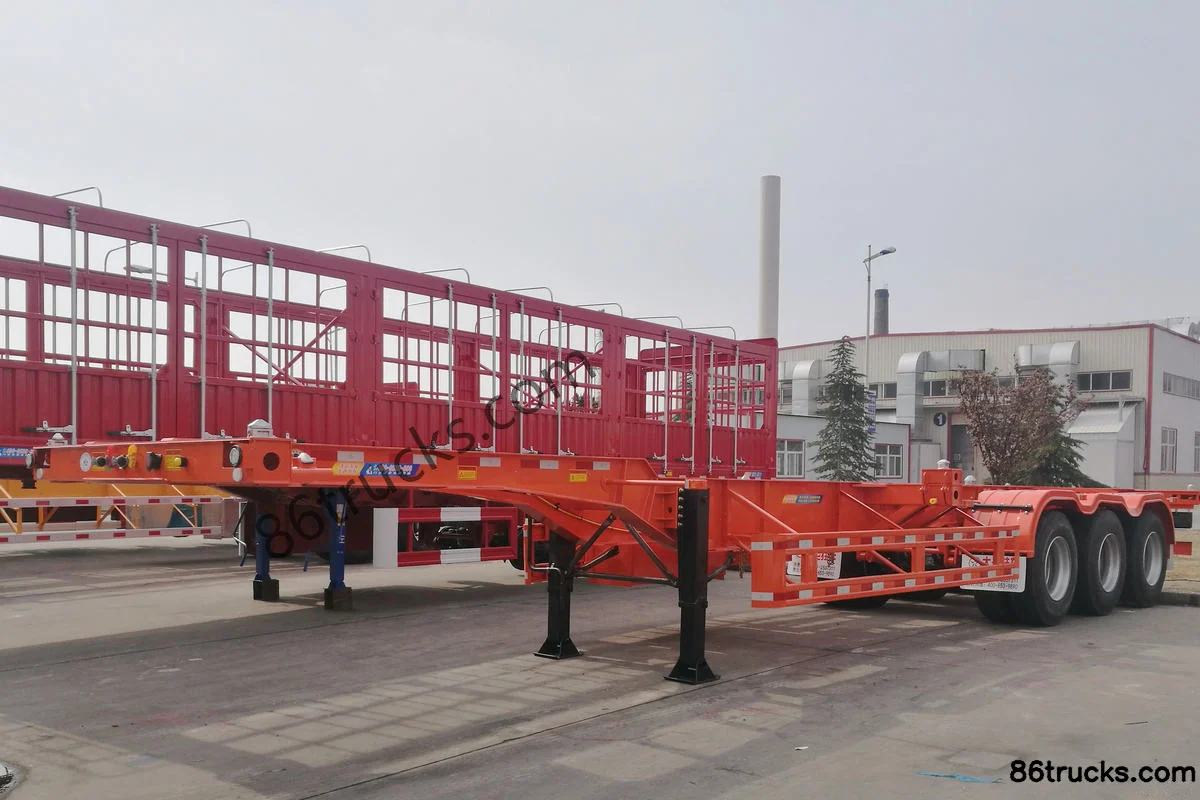

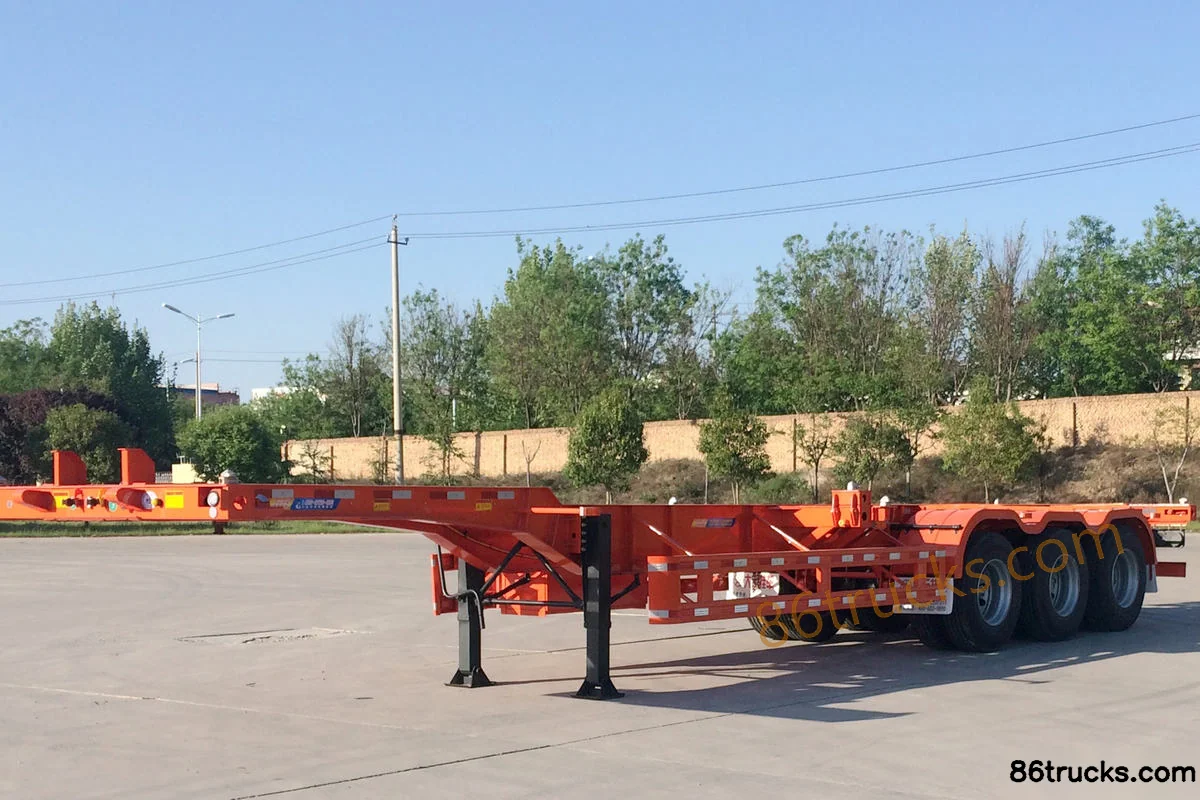

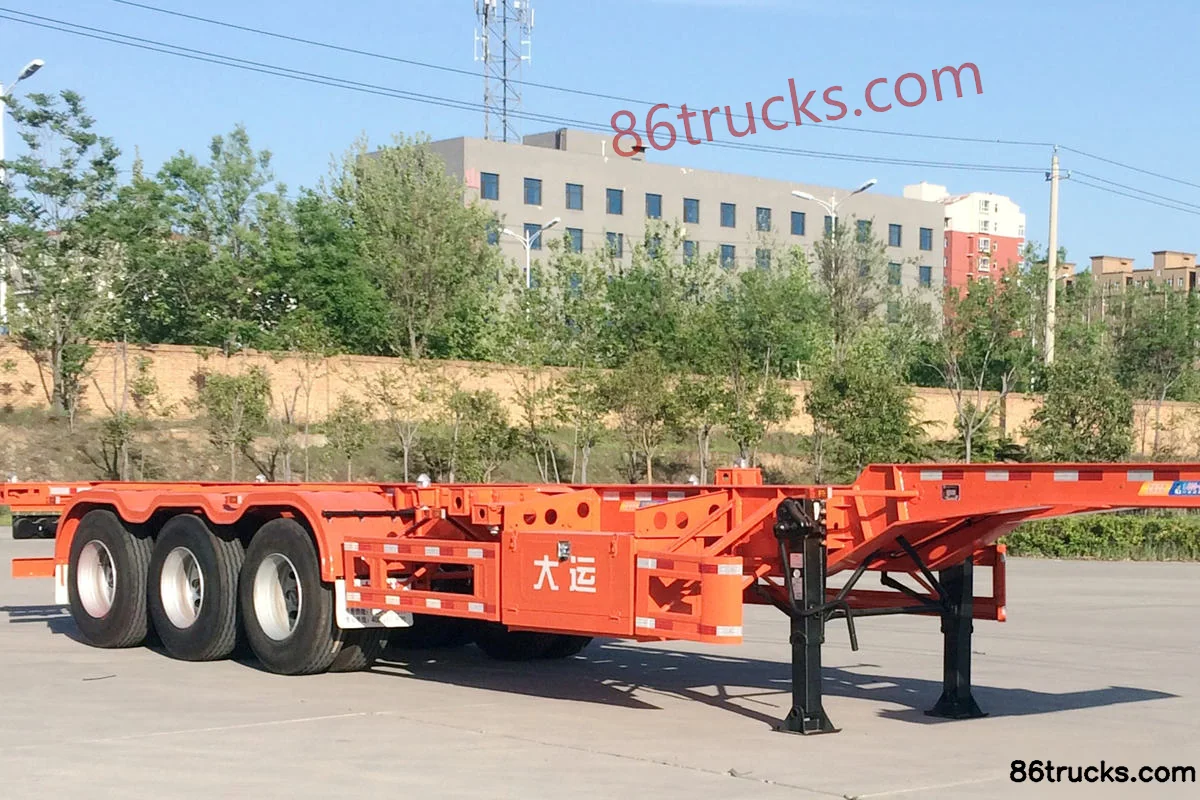

Photos

Exterior3

3 photos

FAQ

What is the export price of Dayun 40ft Gooseneck Container Chassis Skeleton Semi-trailer, and what does it include?

Dayun 40ft Gooseneck Container Chassis Skeleton Semi-trailer export reference is about From $11,736; MSRP is ¥8.45M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Dayun 40ft Gooseneck Container Chassis Skeleton Semi-trailer suited for?

Dayun 40ft Gooseneck Container Chassis Skeleton Semi-trailer is a container semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dayun 40ft Gooseneck Container Chassis Skeleton Semi-trailer differ from other variants in the same series?

Dayun 40ft Gooseneck Container Chassis Skeleton Semi-trailer belongs to Dayun 40ft Container Semi-trailer (container semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun 40ft Gooseneck Container Chassis Skeleton Semi-trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun 40ft Gooseneck Container Chassis Skeleton Semi-trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
