Dayun New N8E Heavy Truck 476hp 4X2(6 wheels) Pure Electric Tractor Truck 290.61kWh

Export reference
MSRP N/A
Gross Trailer Weight:: 33.775ton
Front axle allowable load:: 6700kg
Wheelbase:: 3600mm
Model code (announced):: CGC4180BEV1AAEJNALD
Front/rear track width:: Front track: 2020mm; Rear track: 1860mm
Cab length:: 6.03m
Drive 4X2 (6 wheels)
Battery Brand: Wotema
Motor 1 Brand: MinFeng WoNeng
Horsepower 476

Overview

The Dayun New N8E Heavy Truck 476hp 4X2(6 wheels) Pure Electric Tractor Truck 290.61kWh is a Heavy truck featuring Wotema battery/range, MinFeng WoNeng motor, 4X2 (6 wheels) drive and 6700kg payload. On the powertrain side, it comes with 476 hp.

476 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CGC4180BEV1AAEJNALD
Drive type: 4X2
Front/rear track width: Front track: 2020mm; Rear track: 1860mm
Wheelbase: 3600mm
Cab length: 6.03m
Cab width: 2.5m
Cab height: 3.43m
Gross Trailer Weight: 33.775ton
Curb Weight: 8.03ton
GVWR: 18ton
Max. speed: 60km/h
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: MinFeng WoNeng
Motor 1 Model: TZ400XS-MFM215G01
Max torque: 2800N·m
Fuel Type: Electric
total rated power: 245kW
Peak power: 350kW
total rated torque: 1207N·m
Battery/Charging
Battery Brand: Wotema
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 290.61kWh
Battery rated voltage: 3.2V
Battery Model: 32650-5Ah
Engine parameters
Max hp: 476Horsepower
Cab parameters
Cab: High-roof short cab with half-row seat
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 6700kg
rear axle description: 13T485 stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.625
Tire
Tire Size: 12R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Semi-automatic
Independent Heater: Yes
Power Mirrors: Yes

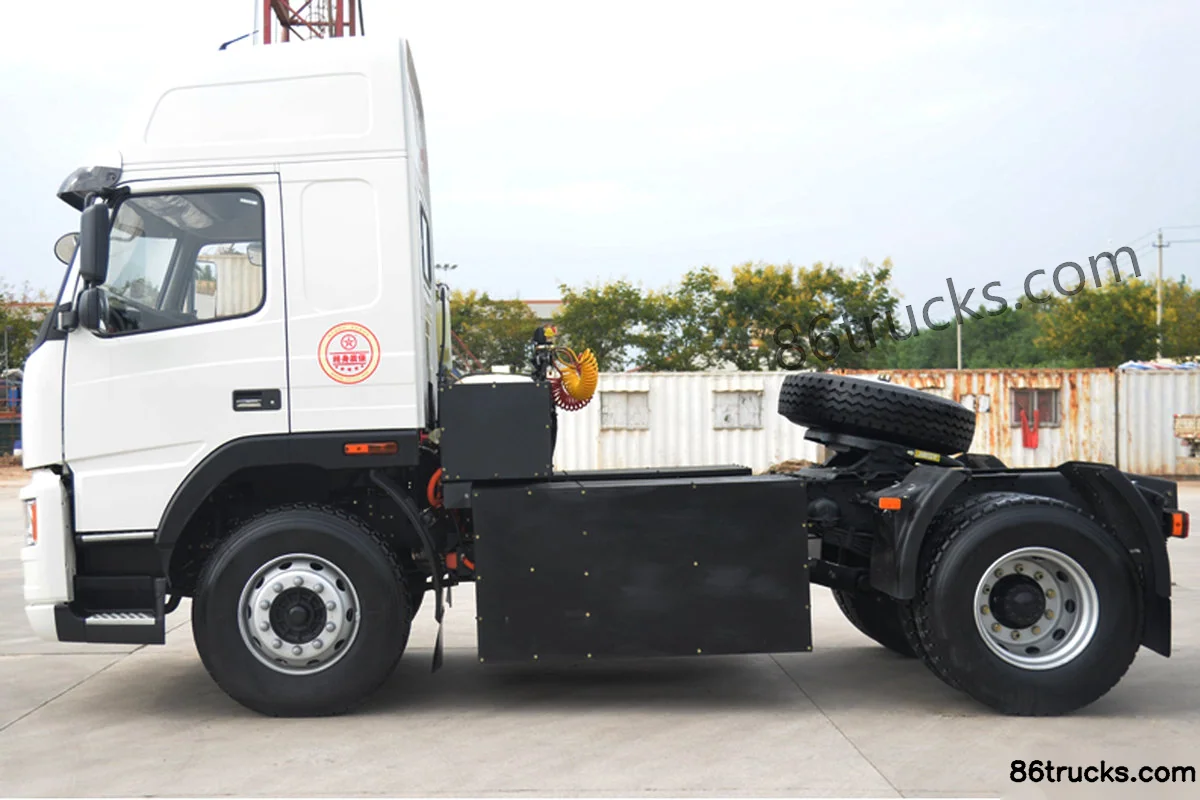

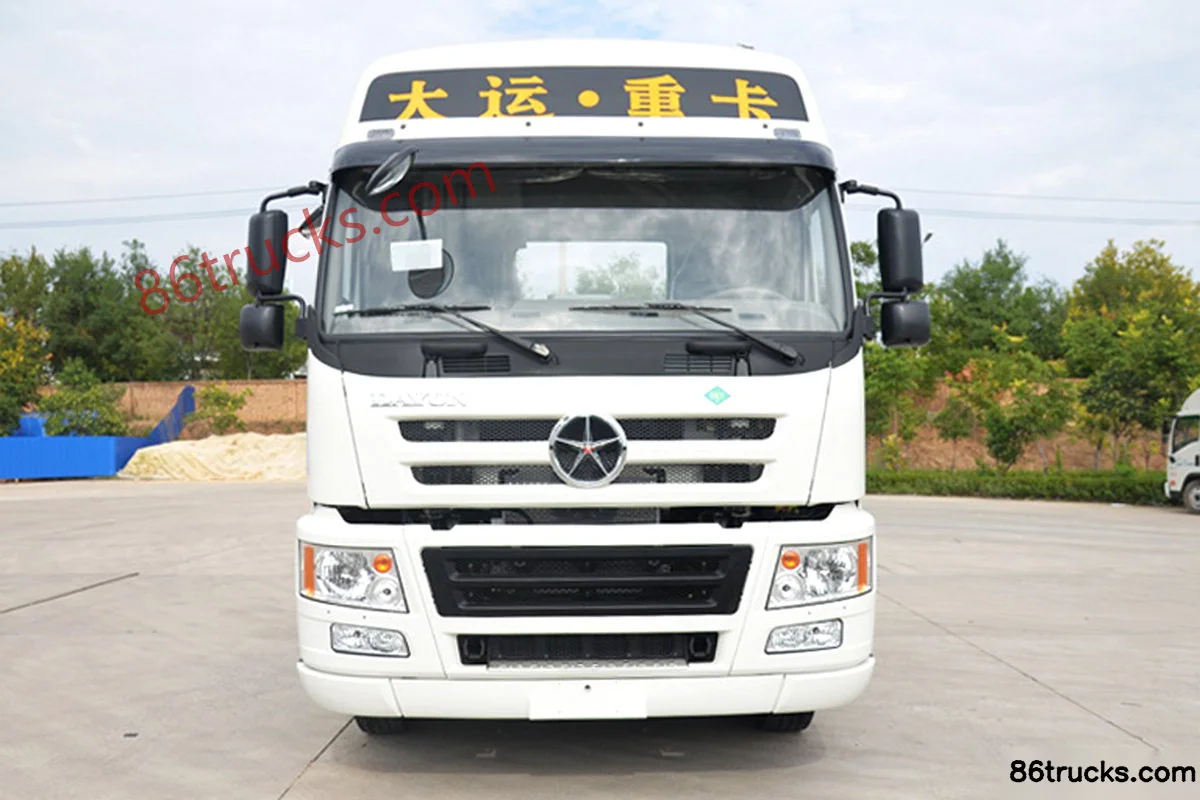

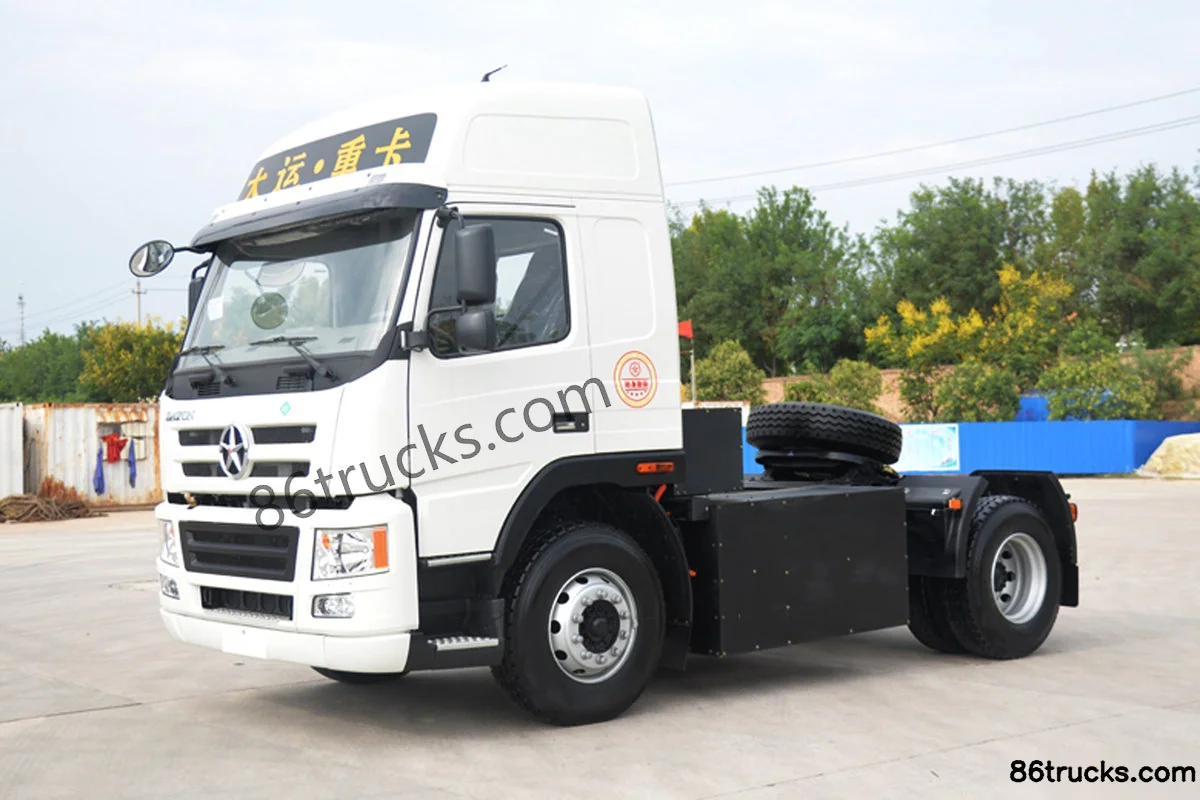

Photos

Exterior3

3 photos

FAQ

What are the key specs of Dayun New N8E Heavy Truck 476hp 4X2(6 wheels) Pure Electric Tractor Truck 290.61kWh?

Key specs of Dayun New N8E Heavy Truck 476hp 4X2(6 wheels) Pure Electric Tractor Truck 290.61kWh: Drive: 4x2; Horsepower: 476 hp. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun New N8E Heavy Truck 476hp 4X2(6 wheels) Pure Electric Tractor Truck 290.61kWh suited for?

Dayun New N8E Heavy Truck 476hp 4X2(6 wheels) Pure Electric Tractor Truck 290.61kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dayun New N8E Heavy Truck 476hp 4X2(6 wheels) Pure Electric Tractor Truck 290.61kWh differ from other variants in the same series?

Dayun New N8E Heavy Truck 476hp 4X2(6 wheels) Pure Electric Tractor Truck 290.61kWh belongs to Dayun New N8E quasi-heavy truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun New N8E Heavy Truck 476hp 4X2(6 wheels) Pure Electric Tractor Truck 290.61kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun New N8E Heavy Truck 476hp 4X2(6 wheels) Pure Electric Tractor Truck 290.61kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
