JMC Shunda 102 hp 4X2(6 wheels) Sweeper Truck (Chusheng Brand)

Export reference
MSRP N/A
Emission: China III / Euro III
Wheelbase:: 3360mm
Cab dimensions:: 5.8×1.985×2.35m
Type:: sweeper truck
Front/rear track width:: Front track: 1385, Rear track: 1425mm
GVWR:: 5.79ton
Box volume: 3m³
Drive 4X2 (6 wheels)
Horsepower 102
Rated mass: 1.05ton

Overview

The JMC Shunda 102 hp 4X2(6 wheels) Sweeper Truck (Chusheng Brand) is a sweeper truck featuring 3m³ tank capacity, 3m³ volume, 5.79t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 102 hp and China III / Euro III emissions.

China III / Euro III 102 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.8×1.985×2.35m
Type: sweeper truck
Drive type: 4X2
Wheelbase: 3360mm
Front/rear track width: Front track: 1385, Rear track: 1425mm
Rated mass: 1.05ton
GVWR: 5.79ton
Front/rear suspension: 1.015/1.425m
Body Parameters
sweeping area: 3m³
Other special notes: hopper volume 3m³, water tank 1m³, sweeping width 3m
Vehicle certification code: CSC5060TSLJ
Body Brand: Chusheng Brand
Engine parameters
Engine Model: JMC JX493ZLQ3A
Displacement: 2.771L
Emission standard: China III / Euro III
Max output power: 75kW
Max hp: 102Horsepower
Cargo box parameters
Box volume: 3m³
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda
Chassis Model: JX1060TG23
rear axle description: Front axle 2.15T, Rear axle 3.64T
Leaf spring count: 7/5+5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: JMC JC528T6
Tire
Tire Size: 7.00-16LT
Number of tires: 6pcs

Photos

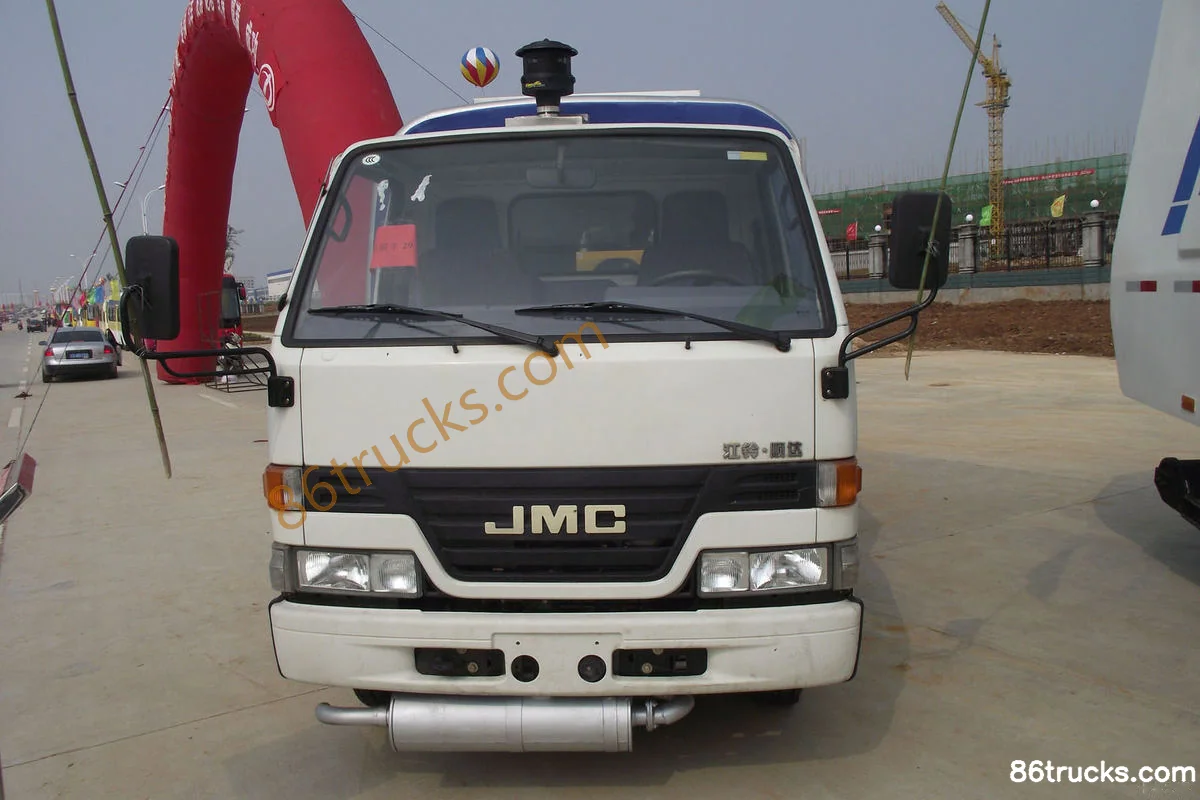

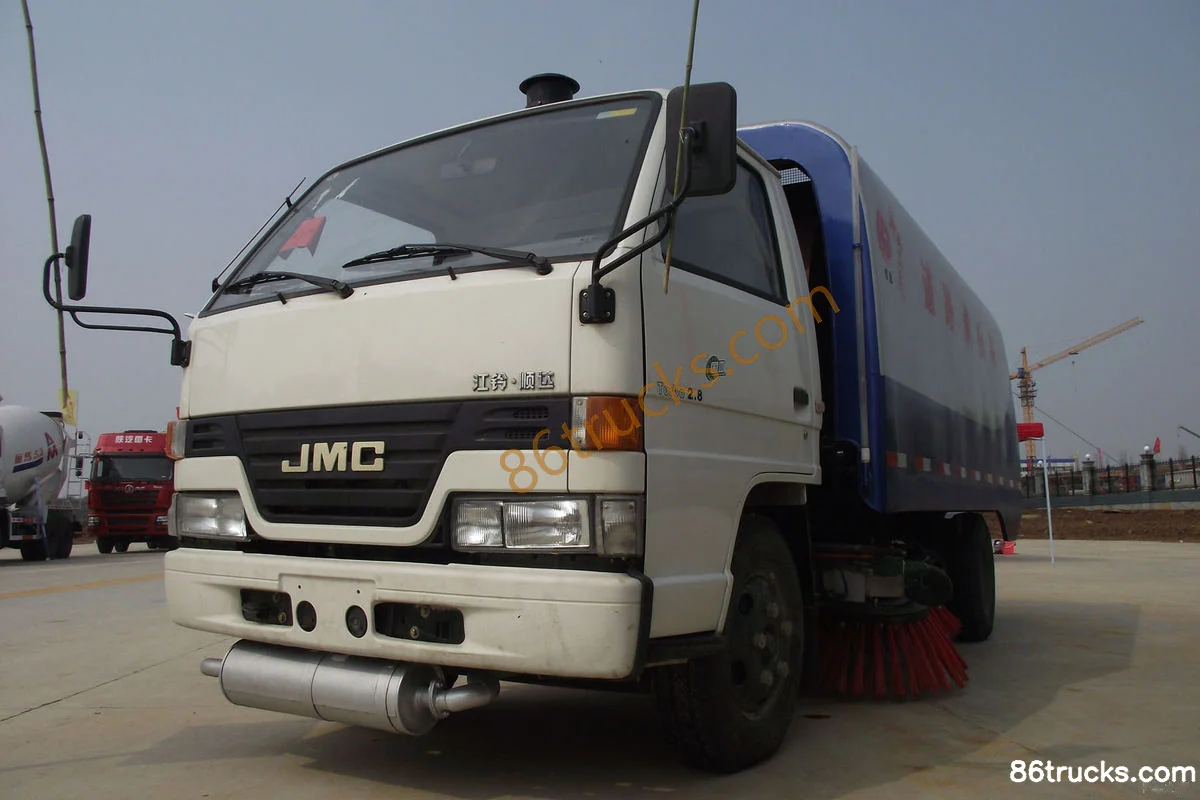

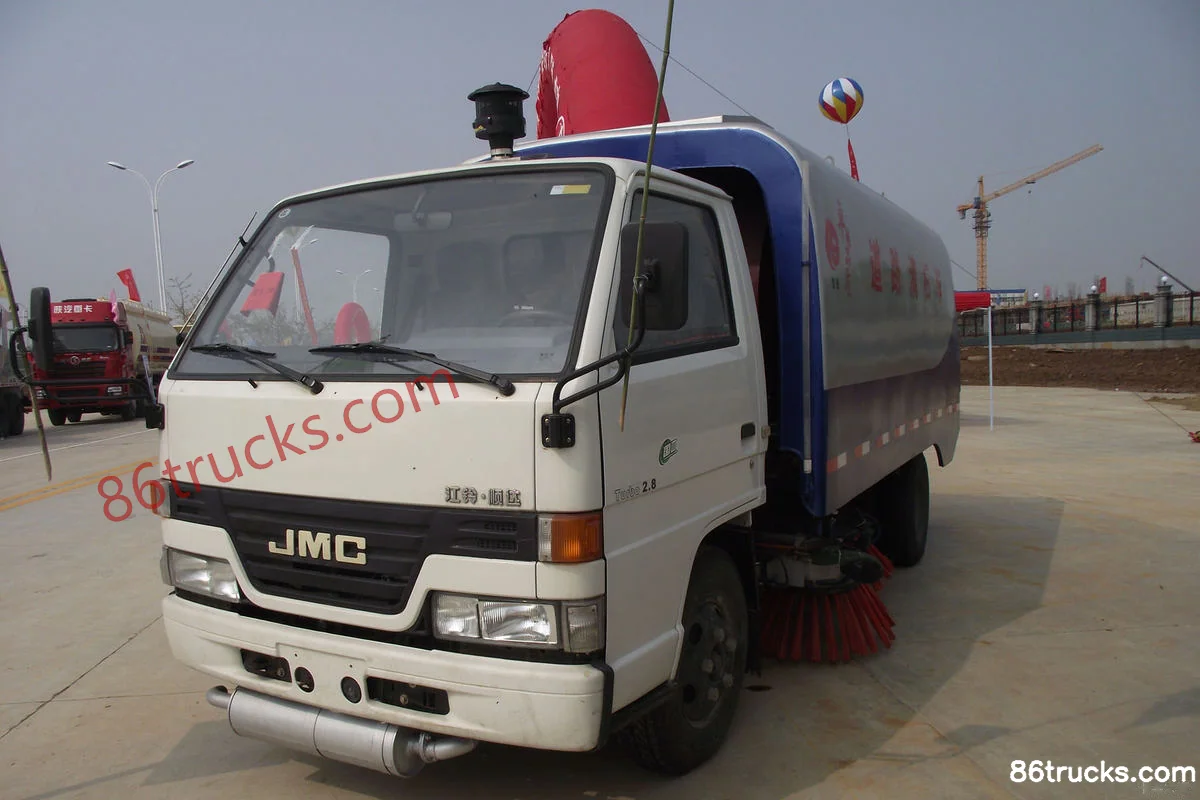

Exterior3

Cab1

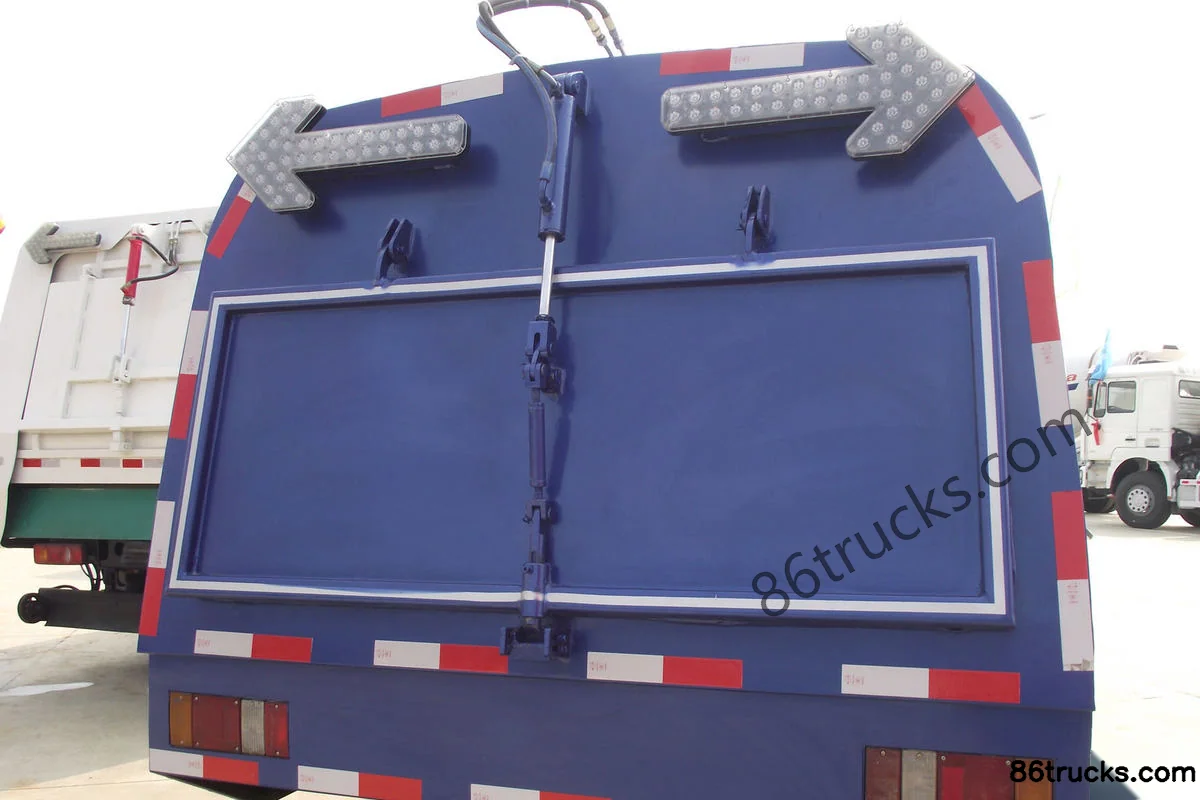

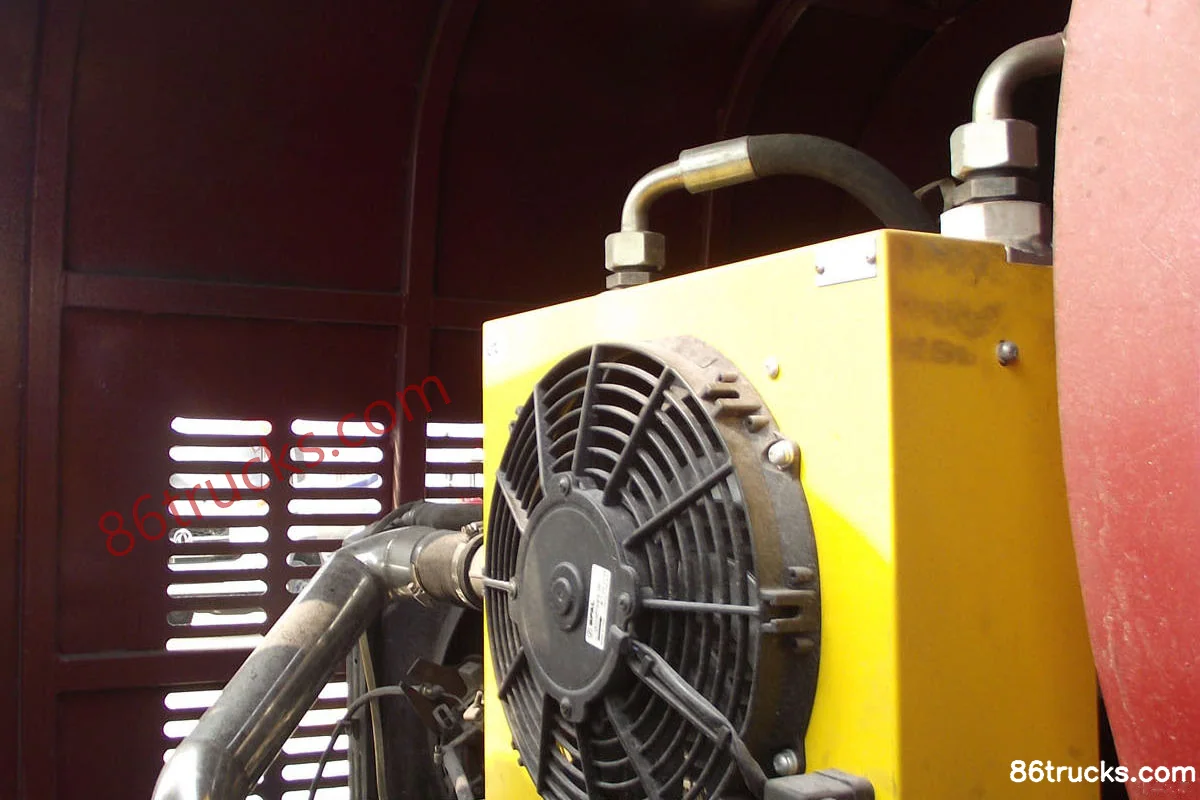

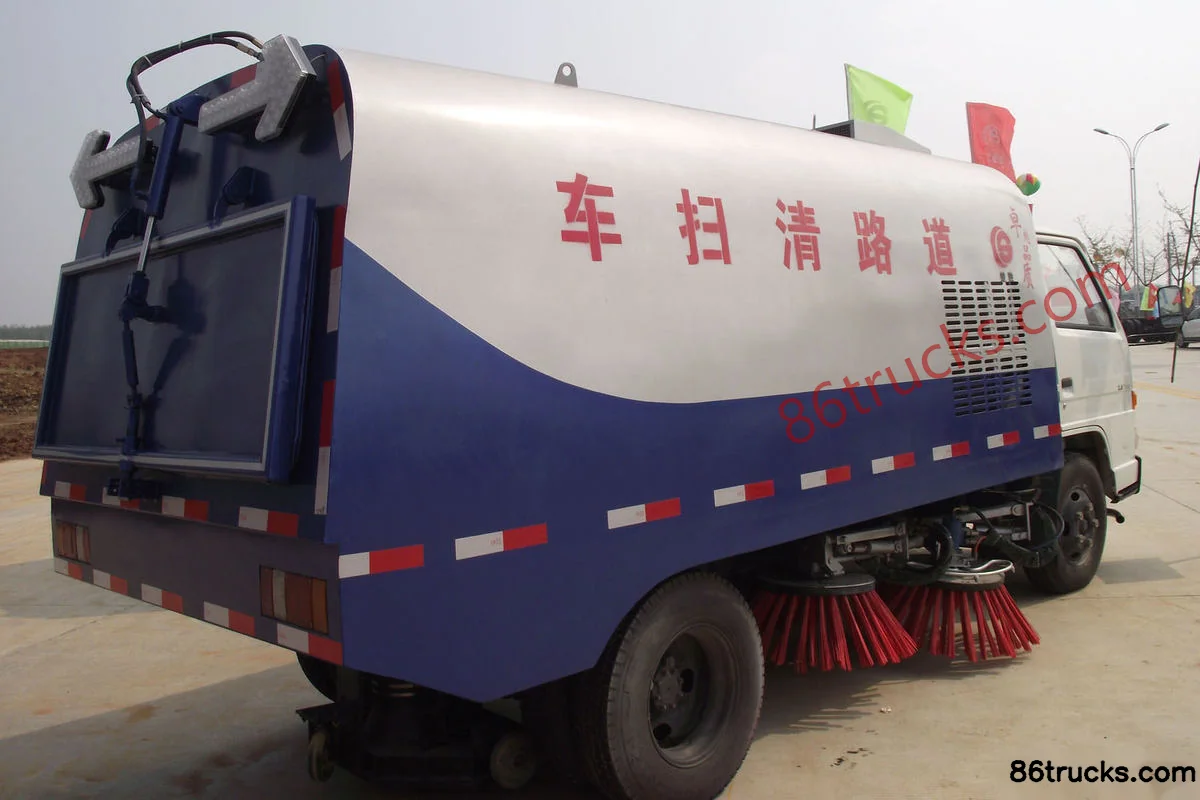

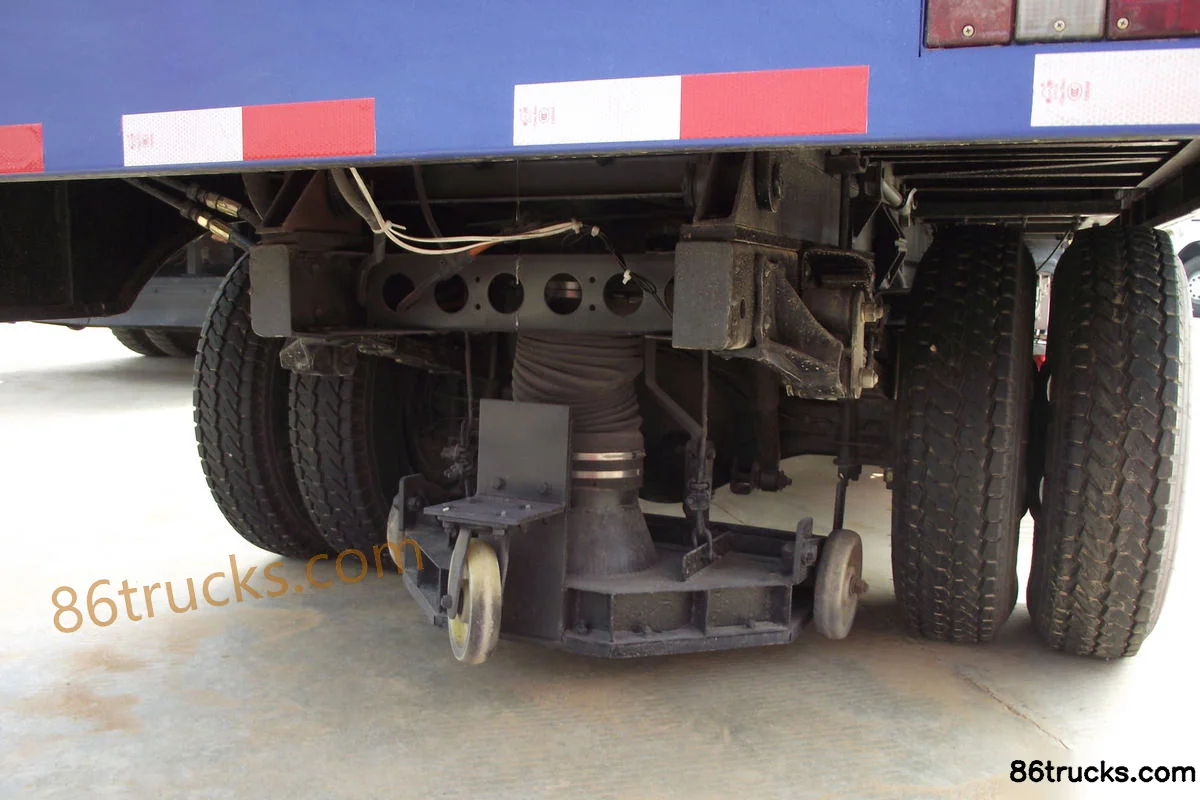

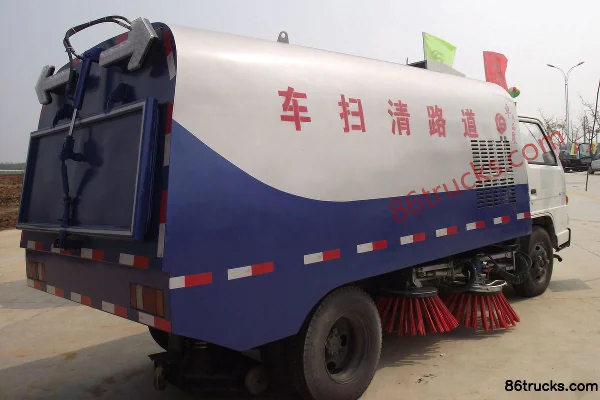

Body3

7 photos

FAQ

What emission standard does JMC Shunda 102 hp 4X2(6 wheels) Sweeper Truck (Chusheng Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda 102 hp 4X2(6 wheels) Sweeper Truck (Chusheng Brand)?

Key specs of JMC Shunda 102 hp 4X2(6 wheels) Sweeper Truck (Chusheng Brand): Drive: 4x2; Horsepower: 102 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda 102 hp 4X2(6 wheels) Sweeper Truck (Chusheng Brand) suited for?

JMC Shunda 102 hp 4X2(6 wheels) Sweeper Truck (Chusheng Brand) is a sweeper truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JMC Shunda 102 hp 4X2(6 wheels) Sweeper Truck (Chusheng Brand) differ from other variants in the same series?

JMC Shunda 102 hp 4X2(6 wheels) Sweeper Truck (Chusheng Brand) belongs to Chusheng JMC chassis (sweeper truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda 102 hp 4X2(6 wheels) Sweeper Truck (Chusheng Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda 102 hp 4X2(6 wheels) Sweeper Truck (Chusheng Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
