Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh

Export reference

MSRP N/A

Front axle allowable load:: 7000kg

Wheelbase:: 5120mm

Model code (announced):: KLQ4183FCEV1

Front/rear track width:: Front track: 2080mm; Rear track: 1860mm

Cab length:: 7.965m

GVWR:: 18ton

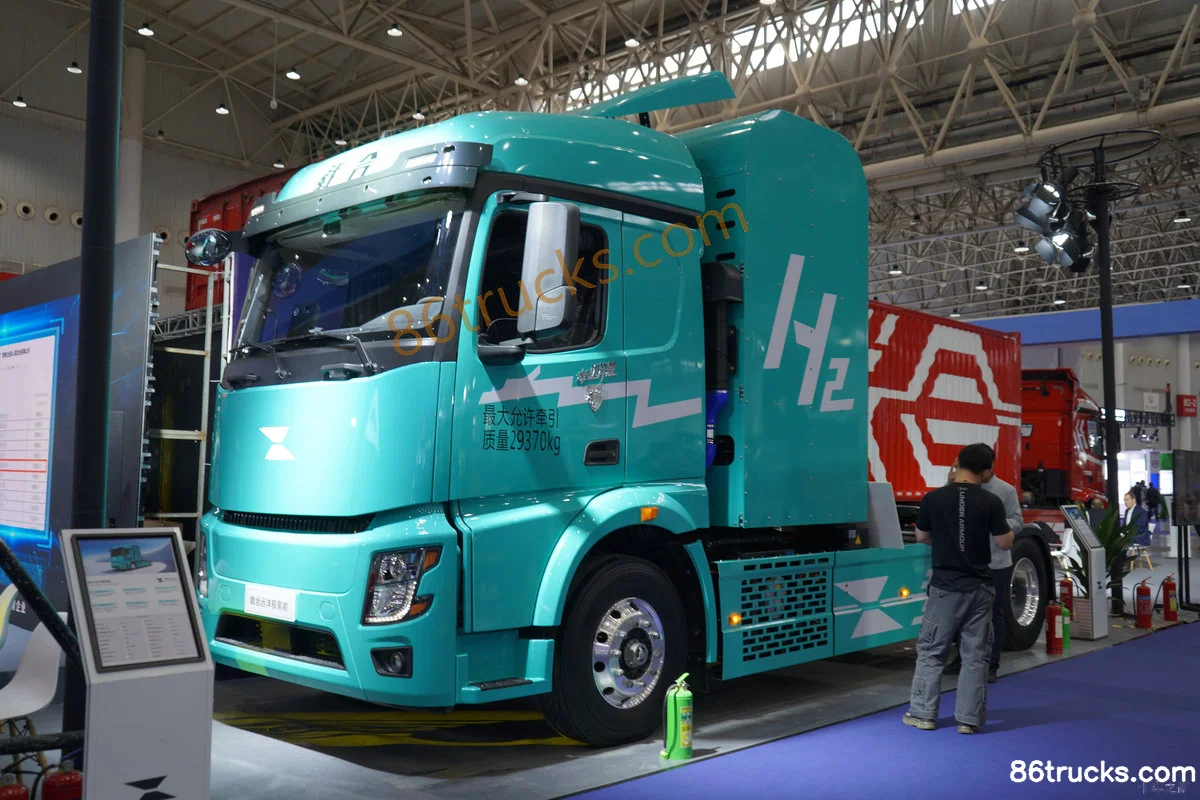

Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh exterior

View more photos (9)

Drive 4X2 (6 wheels)

Battery Brand: CATL

Motor 2 Brand: Fast Gear

Gross Trailer Weight: 29.37ton

Overview

The Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh is a Heavy truck featuring CATL battery/range, Fast Gear motor, 4X2 (6 wheels) drive and 7000kg payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): KLQ4183FCEV1

Drive type: 4X2

Wheelbase: 5120mm

Front/rear track width: Front track: 2080mm; Rear track: 1860mm

Cab length: 7.965m

Cab width: 2.55m

Cab height: 3.93m

Gross Trailer Weight: 29.37ton

Curb Weight: 12.5ton

GVWR: 18ton

Max. speed: 89km/h

Origin: Suzhou

tonnage class: Heavy truck

Version: Extended Range Version

Energy Type: Hydrogen

electric motor

Motor 2 Brand: Fast Gear

Motor 2 Model: TZ270XYSF-SZF801

Motor 1 Brand: Fast Gear

Motor 1 Model: TZ270XYSF-SZF801

Motor Type: Permanent magnet synchronous motor

total rated power: 300kW

Peak power: 530kW

total rated torque: 530N·m

Motor 1 Peak Power: 265kW

Motor 2 Peak Power: 265kW

Number of drive motors: Single motor

Battery/Charging

Battery Brand: CATL

Charging method: Dual-gun DC fast charging

Battery type: Lithium Iron Phosphate Battery

fast charge time: 0.75h

Battery capacity: 600kWh

Transmission Parameters

shift method: AMT manual/auto

Forward gears: 2Gear

Number of Reverse Gears:

Cab parameters

Cab suspension: Four-point air suspension

seating capacity: 2Personnel

Driver seat type: air suspension seat

Lower Bunk Width: 650mm

Chassis Specs

Front axle description: 6.5t

Fifth wheel: 50#

Front axle allowable load: 7000kg

rear axle description: 11.5t

rear axle allowable load: 11000kg

Axle ratio: 5.286

Aluminum wheels:

Tire

Tire Size: 295/80R22.5 18PR

Number of tires: 6pcs

Control configuration

ABS:

Stability control system:

EBS electronic braking system:

Inter-axle Differential Lock:

interior configuration

Multifunction steering wheel:

AC control type: Automatic

Independent Heater:

Power Windows:

Electric Heated Rearview Mirror:

Exterior features

Air deflector:

Aluminum air tank:

lighting configuration

Headlight height adjustment:

Service brake

Brake Type: Air brake

Front wheel brake: Disc

Rear Wheel Brake: Disc

smart configuration

Telematics System:

Cruise control (CCS):

Forward Collision Warning (FCW):

Emergency Brake Assist (EBA):

Tire Pressure Monitoring System (TPMS):

Lane change assist (ALC):

Photos

Exterior3

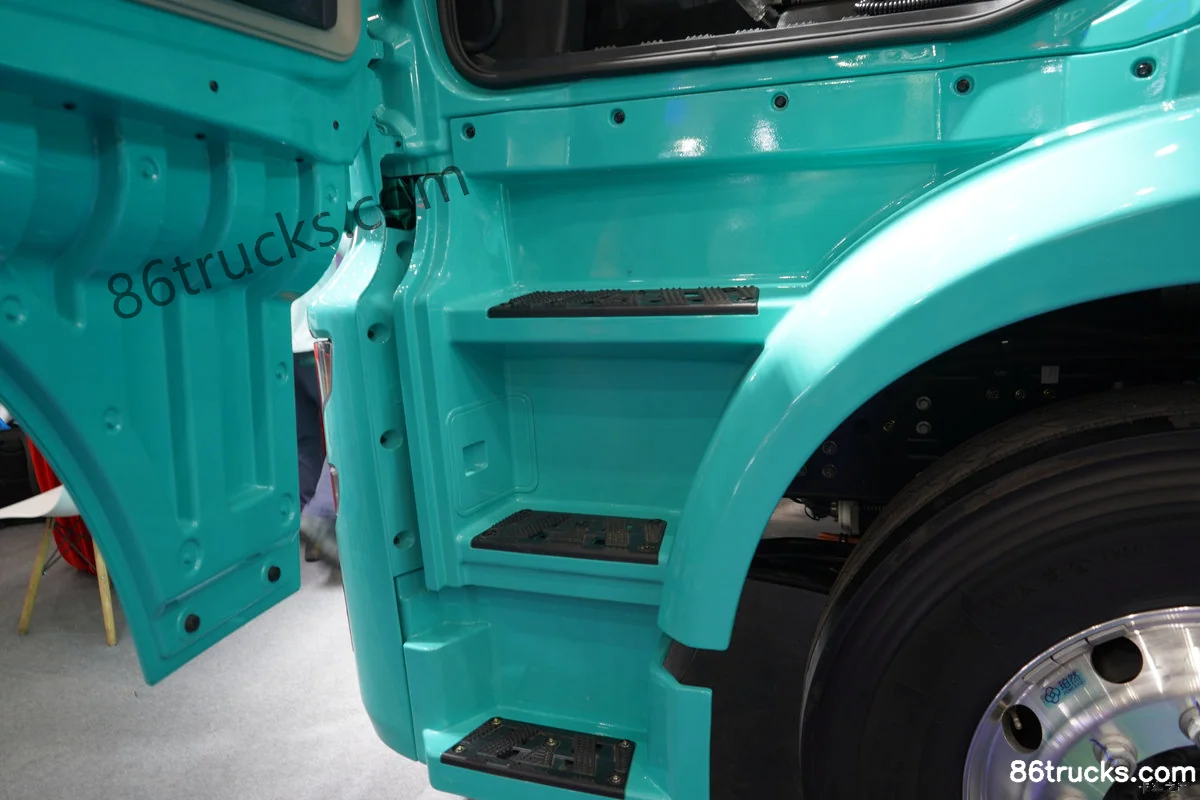

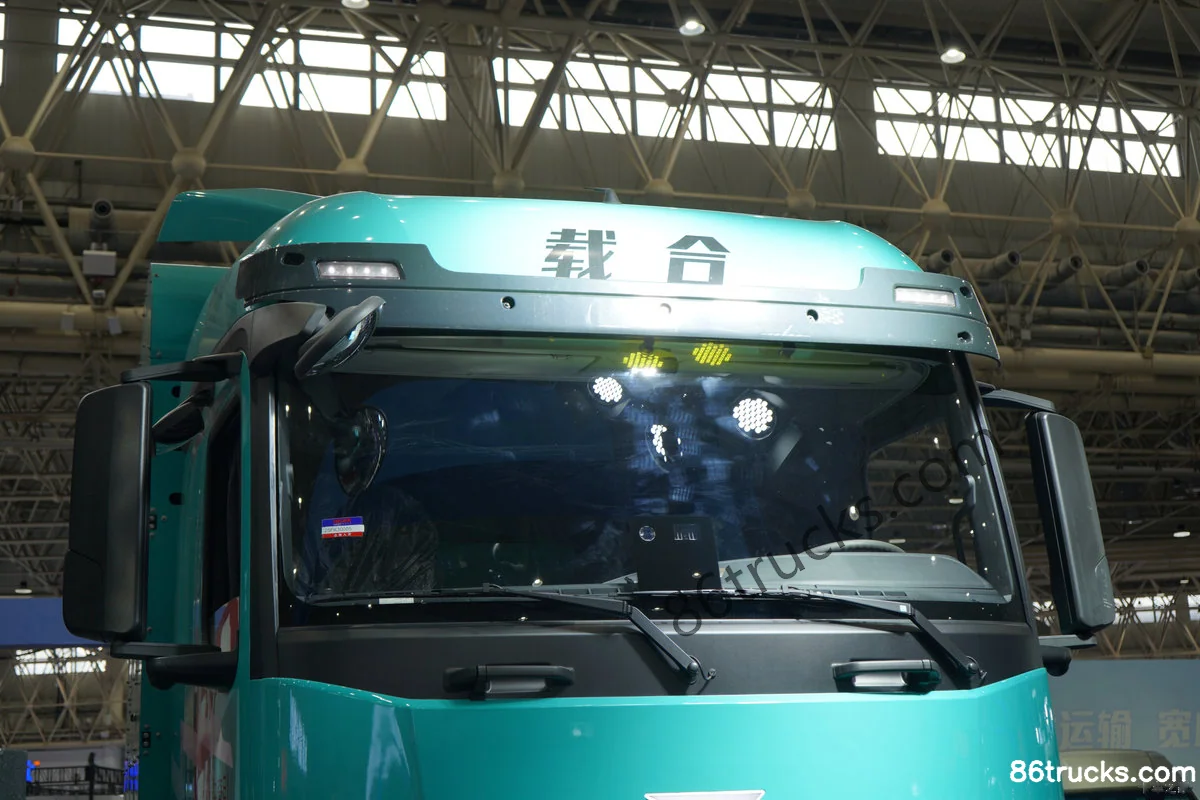

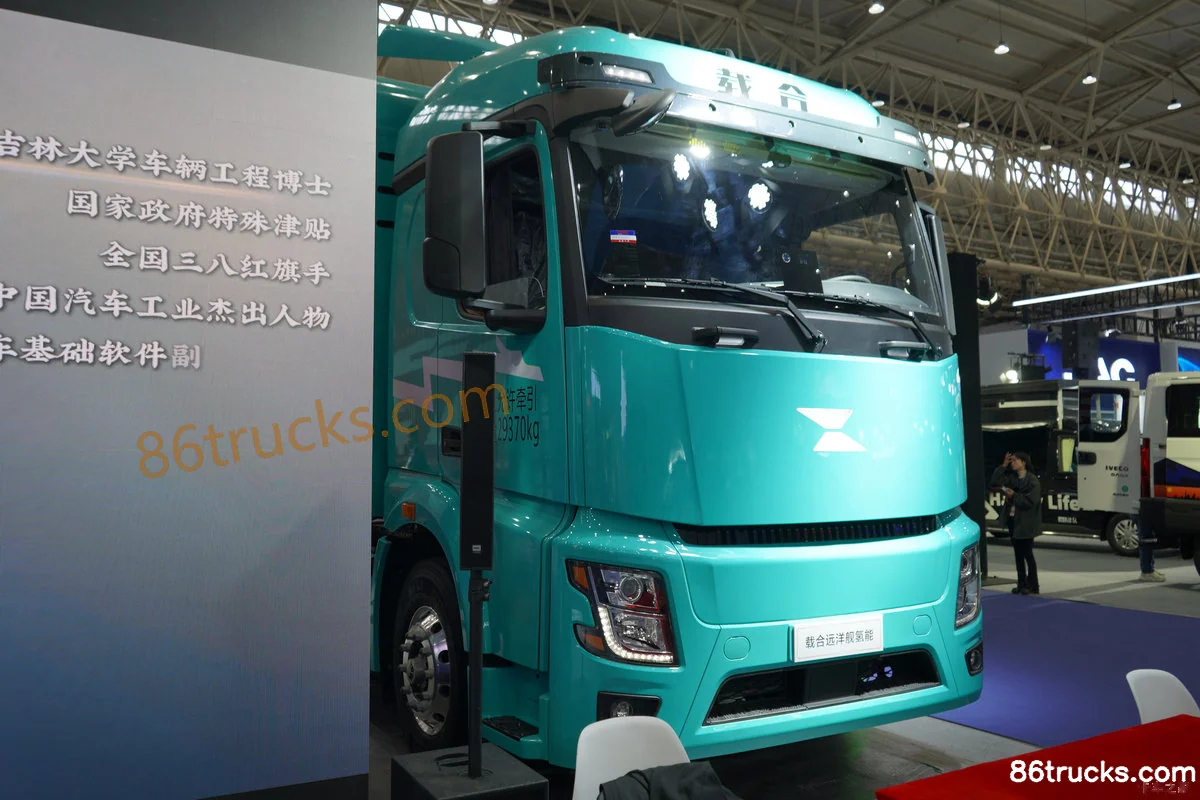

Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh Exterior (1) | 86Trucks

Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh Exterior (2) | 86Trucks

Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh Exterior (3) | 86Trucks

Cab3

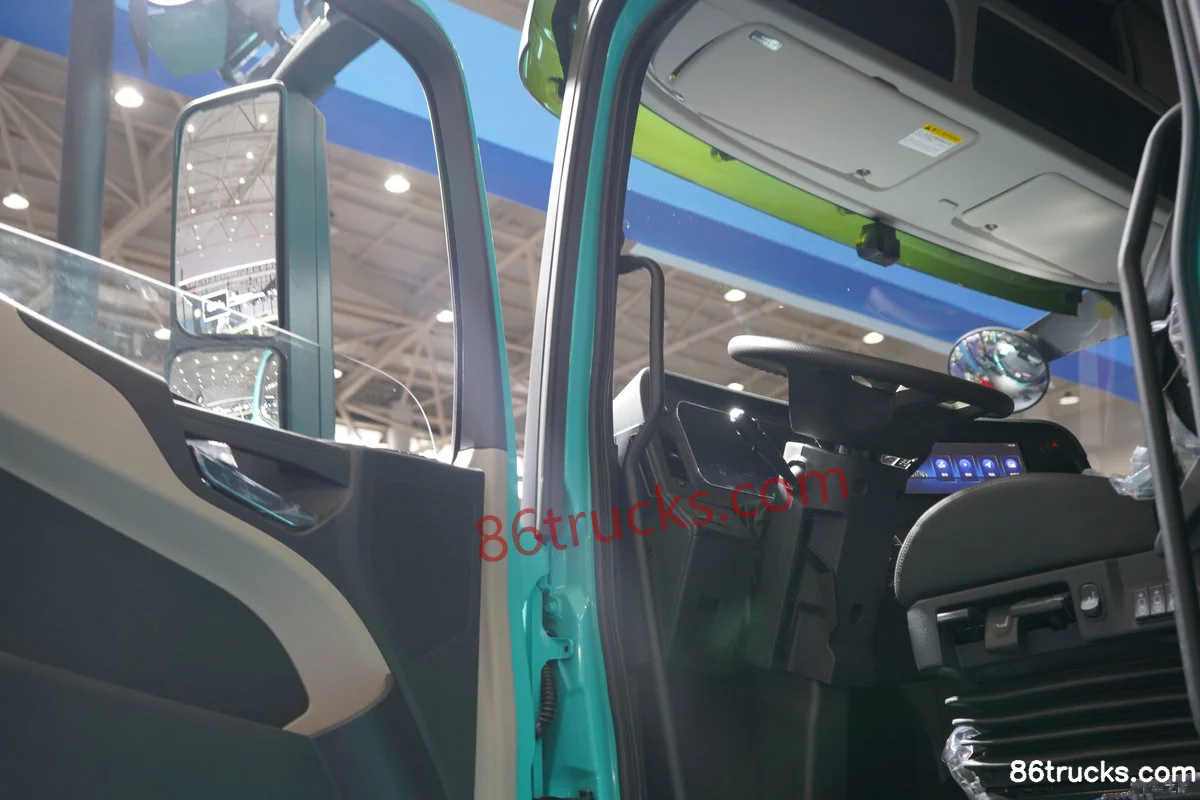

Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh Cab (1) | 86Trucks

Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh Cab (2) | 86Trucks

Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh Cab (3) | 86Trucks

Chassis3

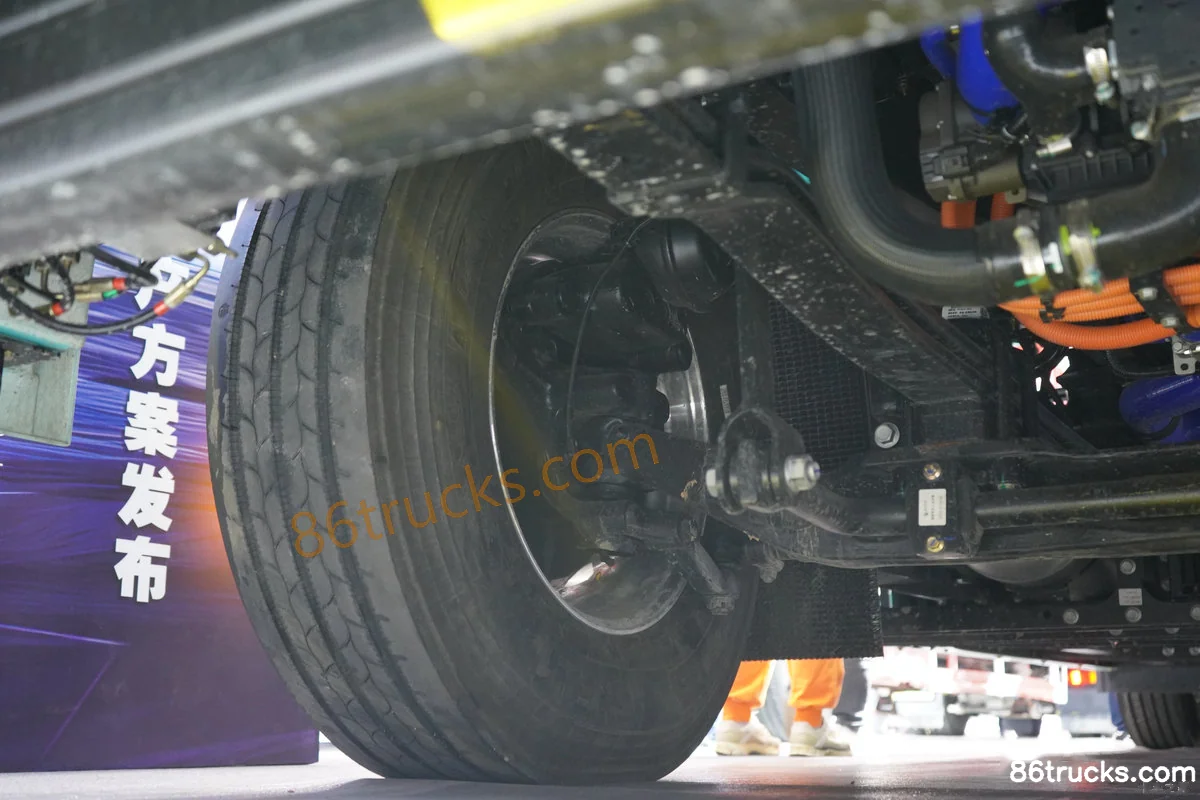

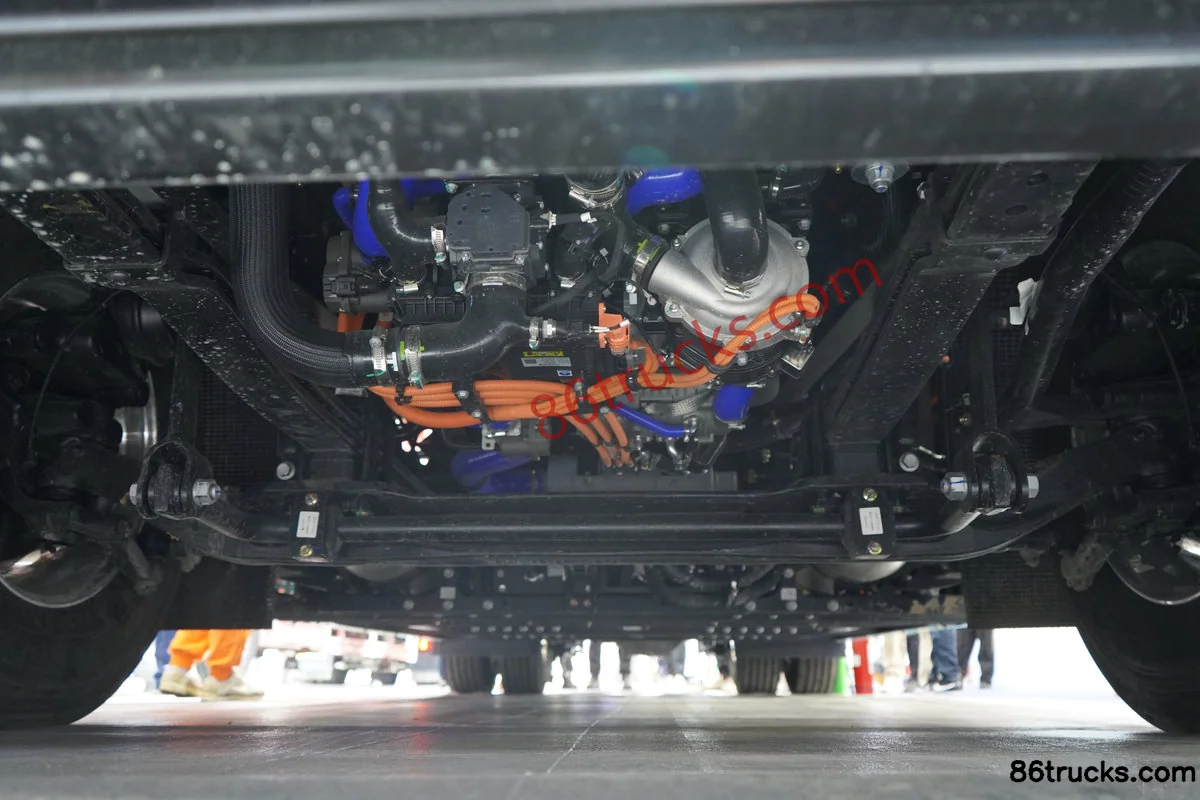

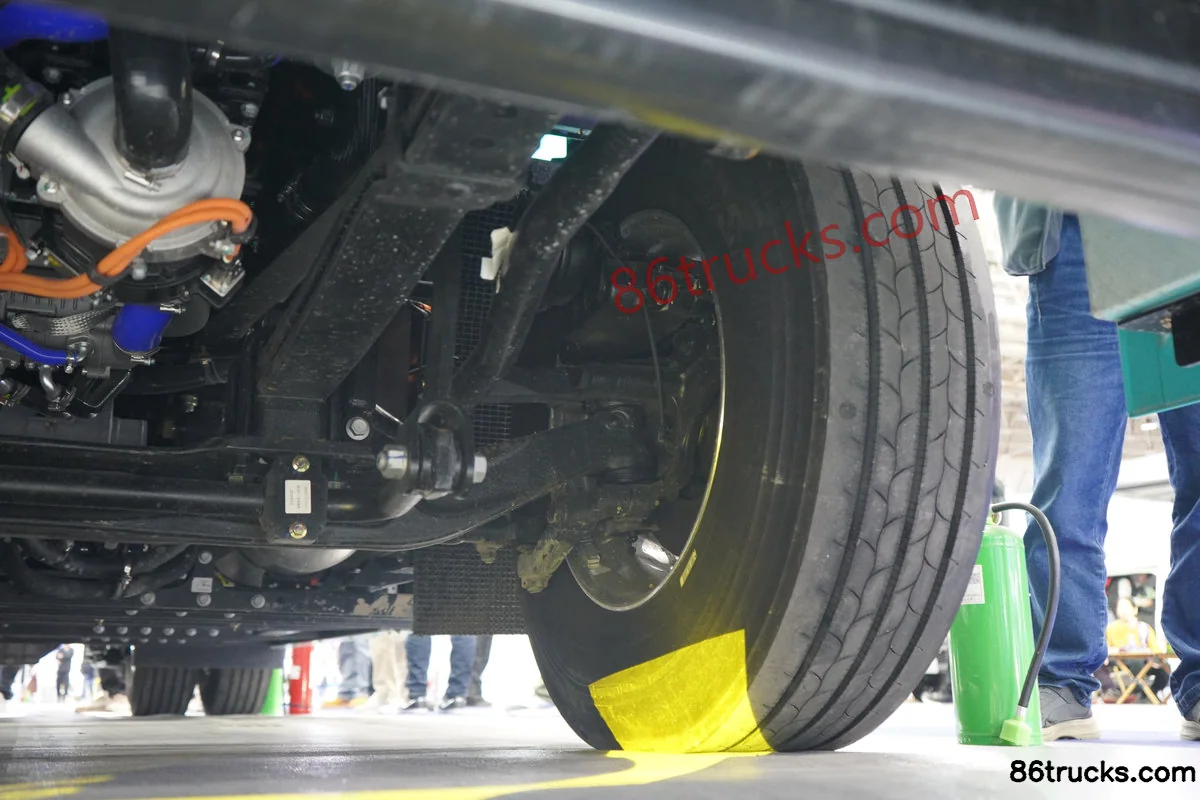

Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh Chassis (1) | 86Trucks

Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh Chassis (2) | 86Trucks

Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh?

Key specs of Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh suited for?

Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh differ from other variants in the same series?

Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh belongs to Zaihe Z2A (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Zaihe Auto Ultra Long Range Edition 4X2(6 wheels) Fuel Cell Tractor Truck CATL 600kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
