Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh

Export reference
From $24,972
MSRP ¥17.98M CNY
Wheelbase:: 2890mm
Cargo box volume:: 7.5
Model code (announced):: ZQ5030XXYDBEV
Cab length:: 5.33m
GVWR:: 3.49ton
Max. speed:: 100km/h
Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh exterior
View more photos (9)
CLTC range: 245km
Motor 1 Brand: Hefei Sunshine
Curb Weight: 1.54ton
Rated payload: 1.82ton

Overview

The Haima New Energy Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh is a Electric Panel Van featuring 245km battery/range, Hefei Sunshine motor, 1.82t payload and 7.5 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZQ5030XXYDBEV
Wheelbase: 2890mm
Cab length: 5.33m
Cab width: 1.7m
Cab height: 2.066m
CLTC range: 245km
Curb Weight: 1.54ton
Rated payload: 1.82ton
GVWR: 3.49ton
Max. speed: 100km/h
Version: Luxury
Energy Type: Electric
electric motor
Motor 1 Brand: Hefei Sunshine
Motor 1 Model: TZ220XS030D1SG
Max torque: 270N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 50kW
Peak power: 80kW
total peak torque: 270N·m
total rated torque: 130N·m
Electronic Control
ECU Brand: CATL
Battery/Charging
Battery Brand: CATL
Charging method: Fast charge + Slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 50.23kWh
fast charge time: 1.5h
Battery rated voltage: 335V
Energy Density: 140.4
Battery total voltage: 335V
Battery Model: L150V01
Body parameters
Cargo box volume: 7.5
Max body depth: 3.275
Max body width: 1.565
Cargo Box Height: 1.465
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Unibody
Seat count: 2Seats
Door Parameters
Number of Doors: 4
side door type: Right sliding door
Tailgate type: tailgate
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 195/70R15LT
Rear Wheel Specification: 195/70R15LT
Cab parameters
Seat rows:
Safety features
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment:
AC control type: Manual
Power Windows:
lighting configuration
Front fog lamp:
Headlight height adjustment:

Photos

Exterior3

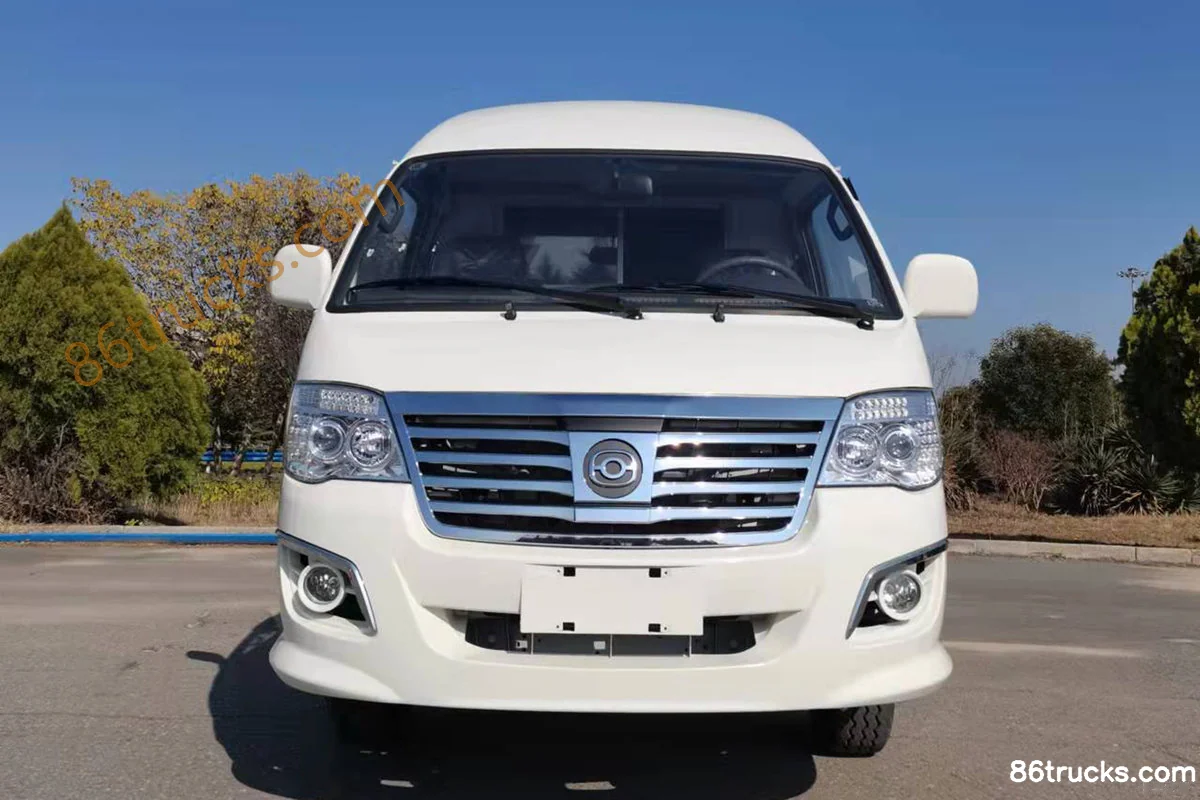

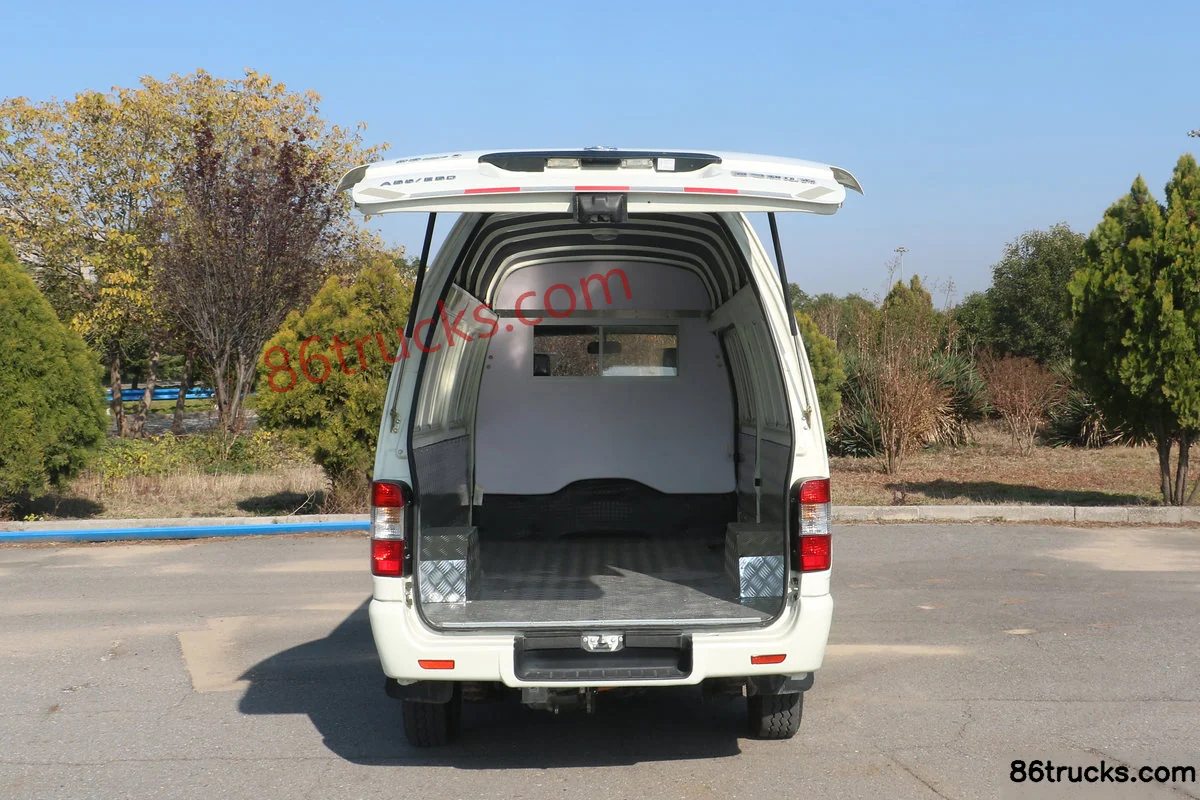

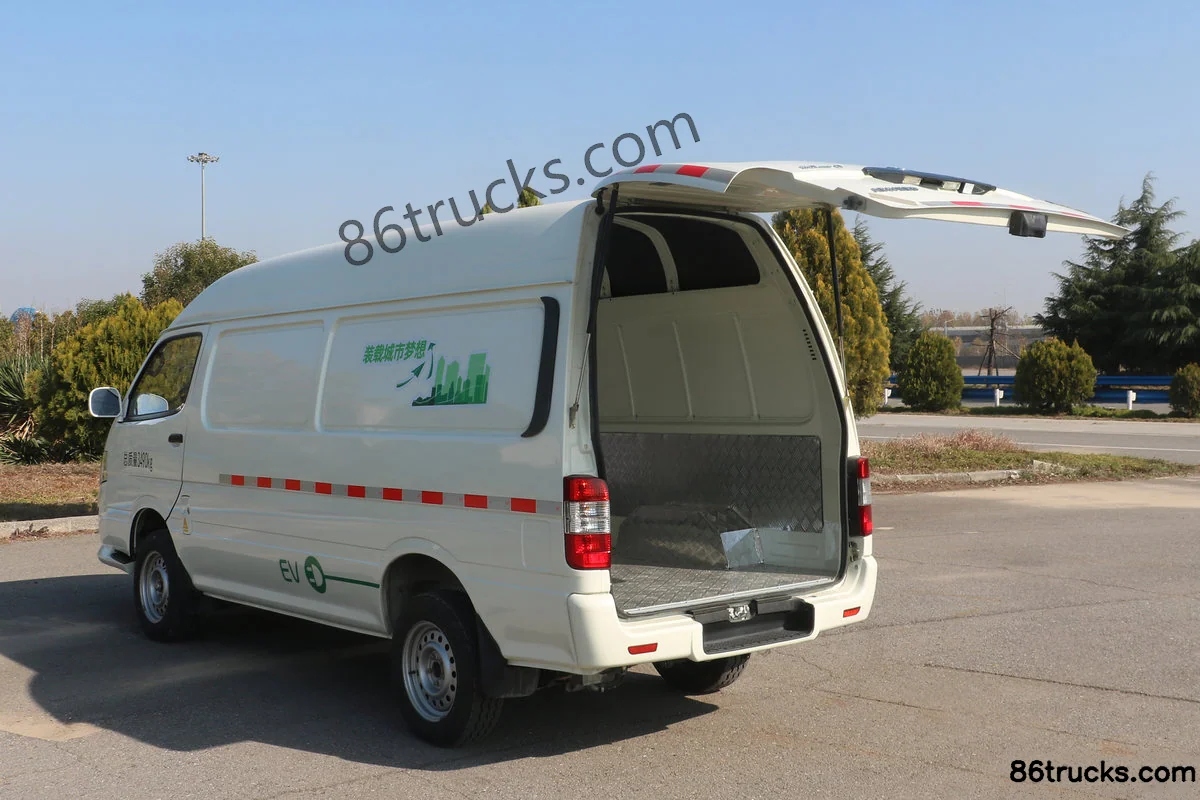

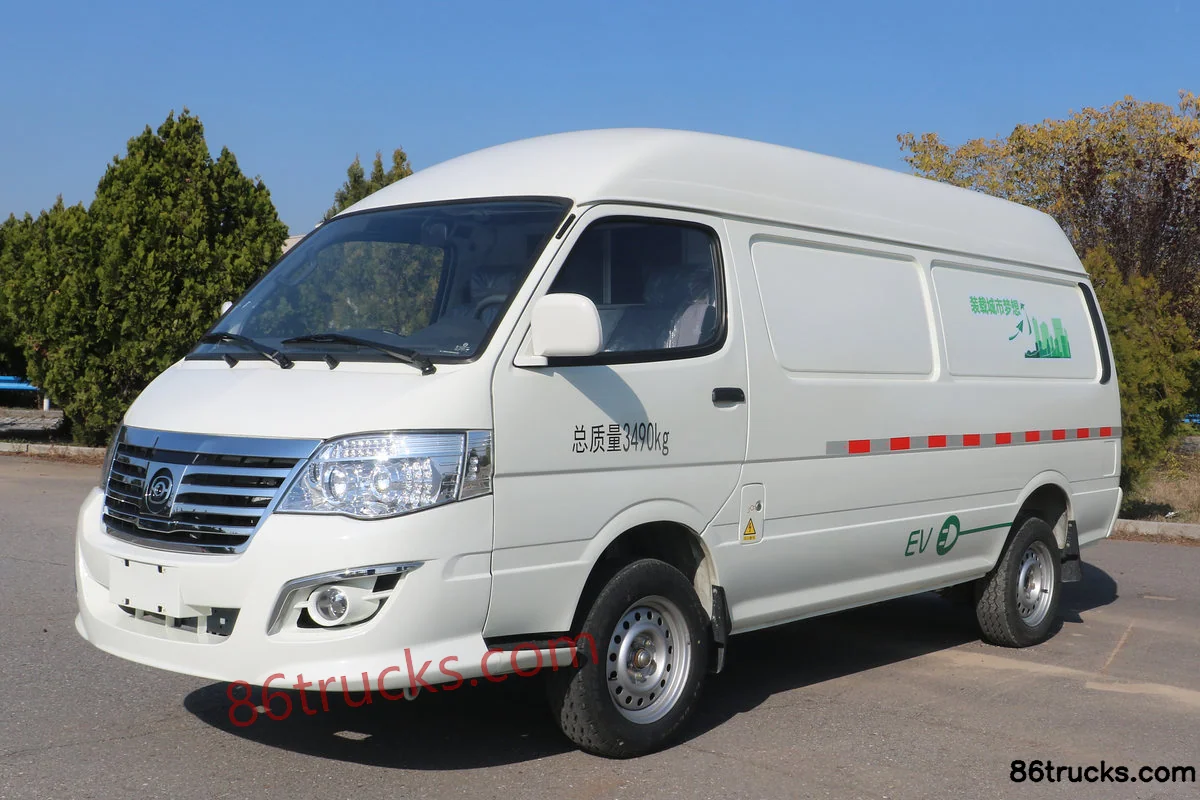

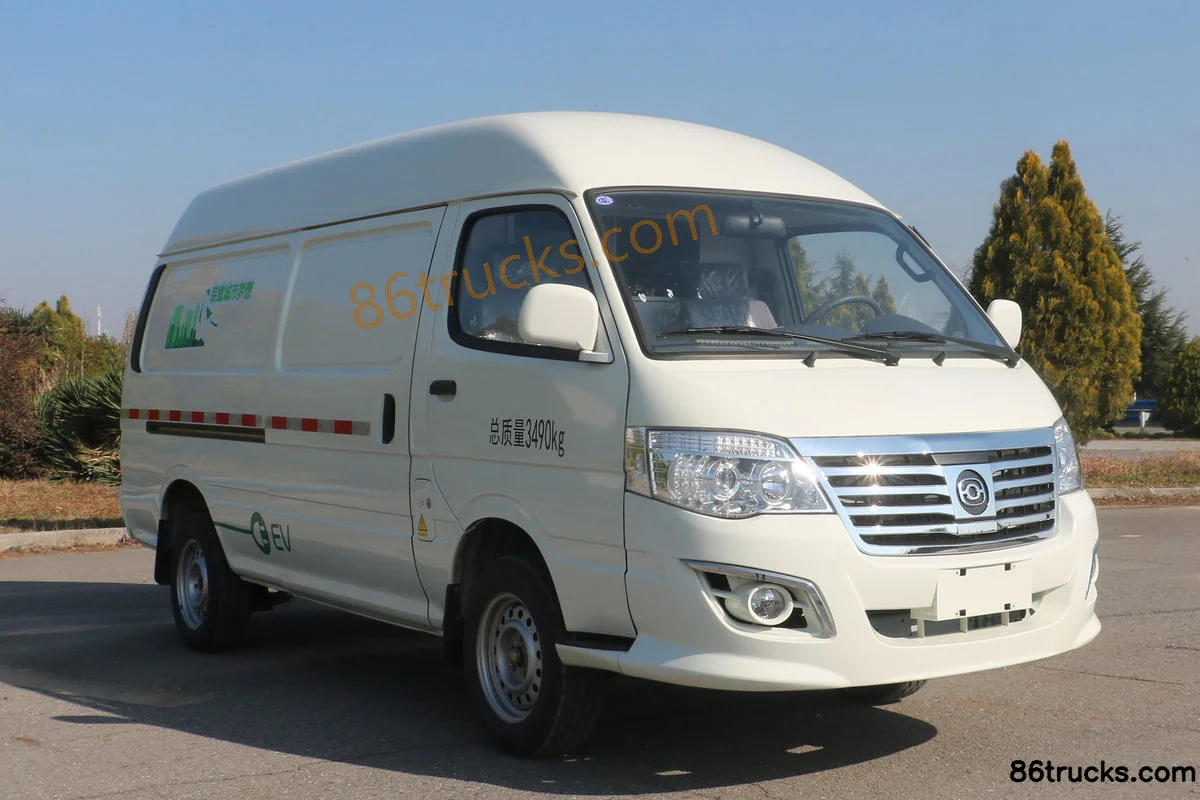

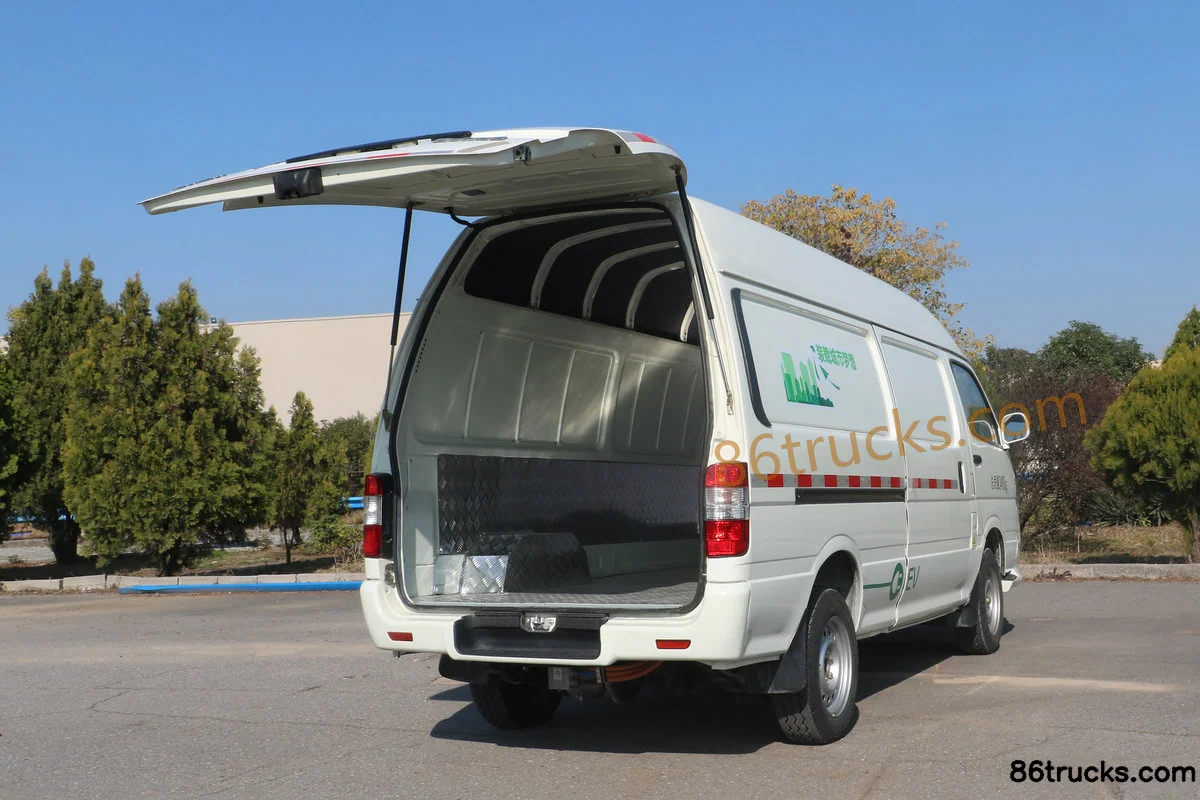

Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh Exterior (1) | 86Trucks Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh Exterior (2) | 86Trucks Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh Exterior (3) | 86Trucks

Cab3

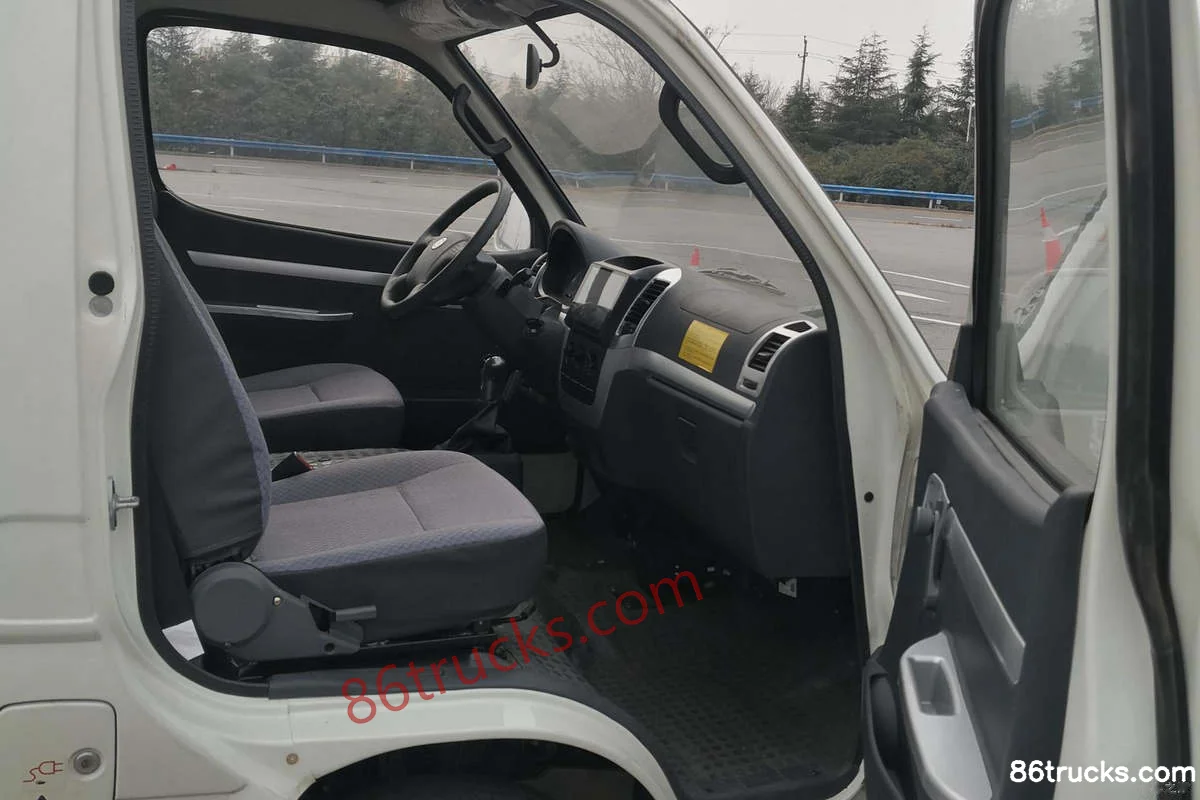

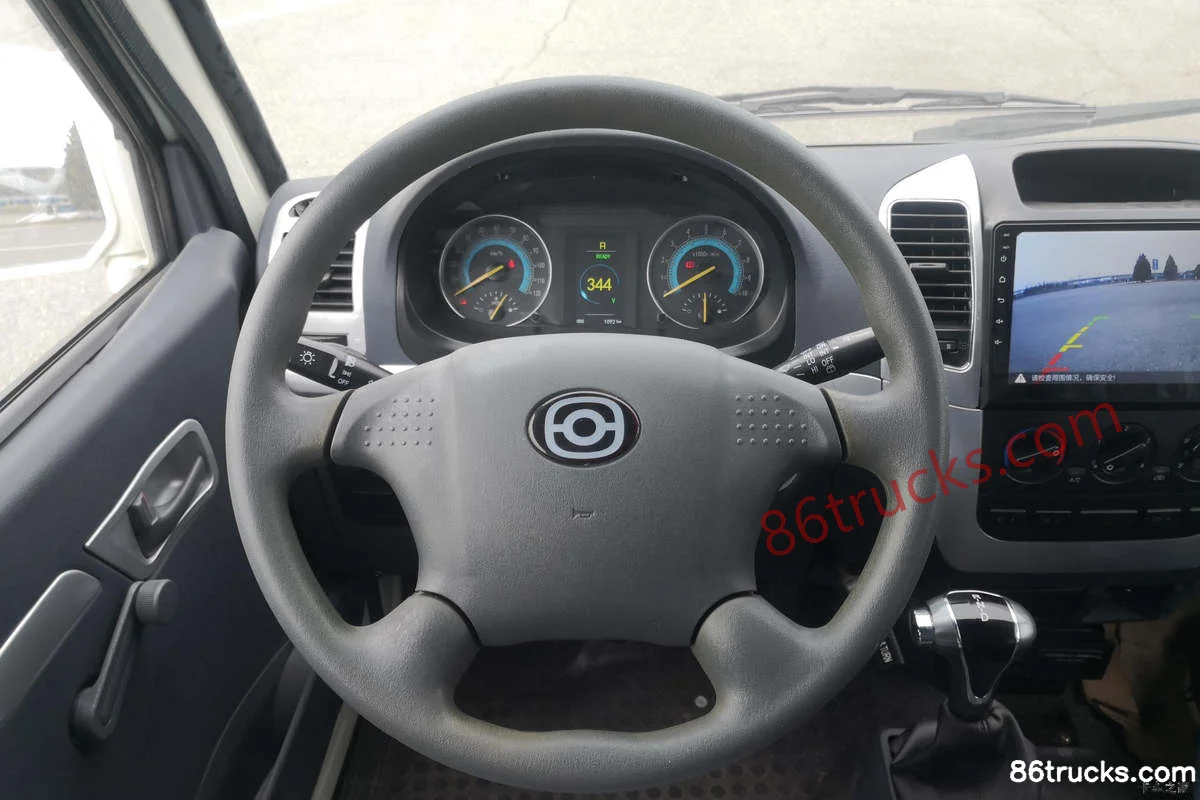

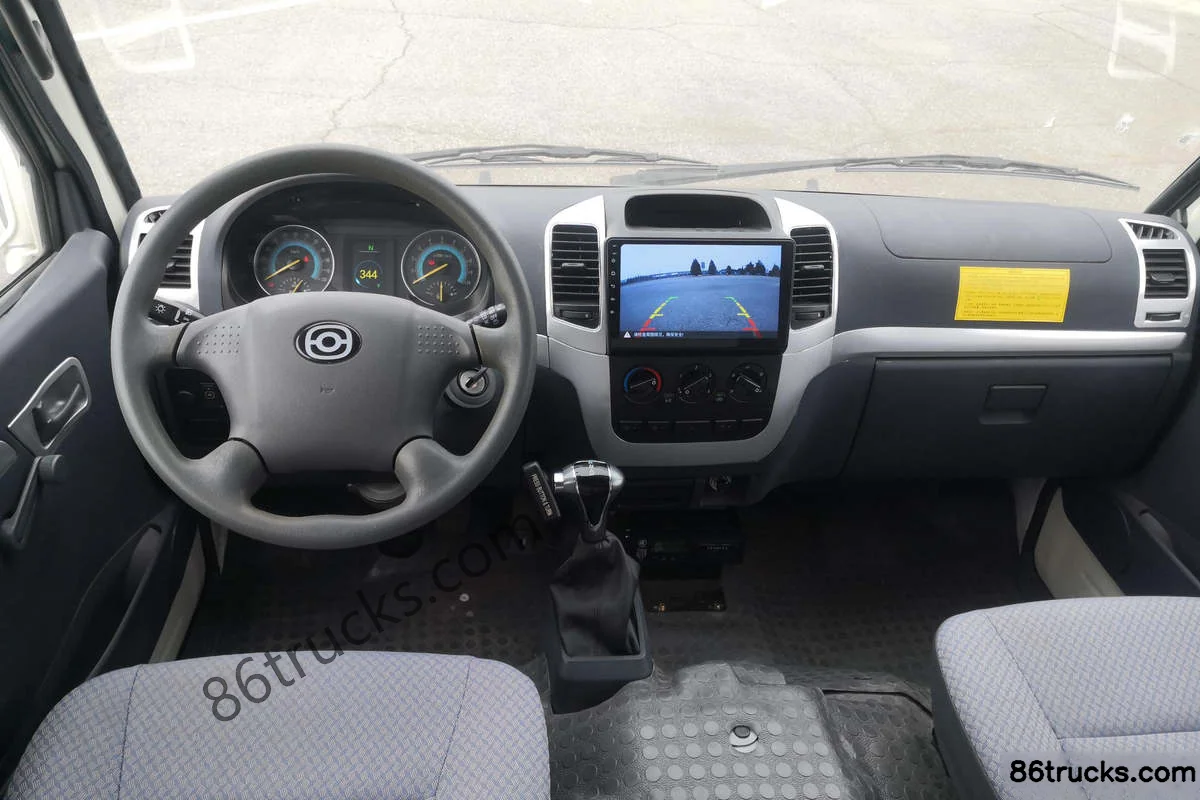

Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh Cab (1) | 86Trucks Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh Cab (2) | 86Trucks Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh Cab (3) | 86Trucks

Chassis3

Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh Chassis (1) | 86Trucks Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh Chassis (2) | 86Trucks Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh Chassis (3) | 86Trucks

9 photos

FAQ

What is the export price of Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh, and what does it include?

Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh export reference is about From $24,972; MSRP is ¥17.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh suited for?

Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh differ from other variants in the same series?

Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh belongs to Haima New Energy Rongda II (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Haima Rongda II Luxury 3.5T 5.33m Pure Electric Panel Van 50.23kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
