Tangjun Ouling T3 Series 110hp 4X2(6 wheels) 3.88m Half Row Flatbed Light Truck

Export reference
MSRP N/A
Horsepower: 110
Emission: China V
Fuel: Diesel
Engine: WeichaiWP2.3
Curb Weight:: 2.56ton
Wheelbase:: 3360mm
seating capacity: 3Personnel
Rated payload: 1.725ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Tangjun Ouling T3 Series 110hp 4X2(6 wheels) 3.88m Half Row Flatbed Light Truck is a Light Truck featuring 3.88m cargo length, stake body cargo body, 3Personnel volume and 1.725t payload. Its segment focus covers Building materials and LTL transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP2.3 engine, 110 hp, 4X2 (6 wheels) drive and China V emissions.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB1044JPD6V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.9m
engine: WeichaiWP2.3Q110E50
transmission: 5-speed transmission
Rear Axle Ratio: 4.875
Cab length: 5.98m
Cab width: 2.145m
Cab height: 2.46m
Front track width: 1650mm
rear track: 1600mm
Curb Weight: 2.56ton
Rated payload: 1.725ton
GVWR: 4.48ton
Max. speed: 95km/h
Origin: Zichuan, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 15°
market segment: Building materials, LTL transport
Front/rear suspension: 1.14/1.48m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3Q110E50
Engine info: WeichaiWP2.3
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.29L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.88m
Cargo box width: 2.05m
Cargo box height: 0.4m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Plastic
Chassis Specs
Front axle allowable load: 1800kg
rear axle allowable load: 2680kg
Axle ratio: 4.875
Leaf spring count: ,3/4+3
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

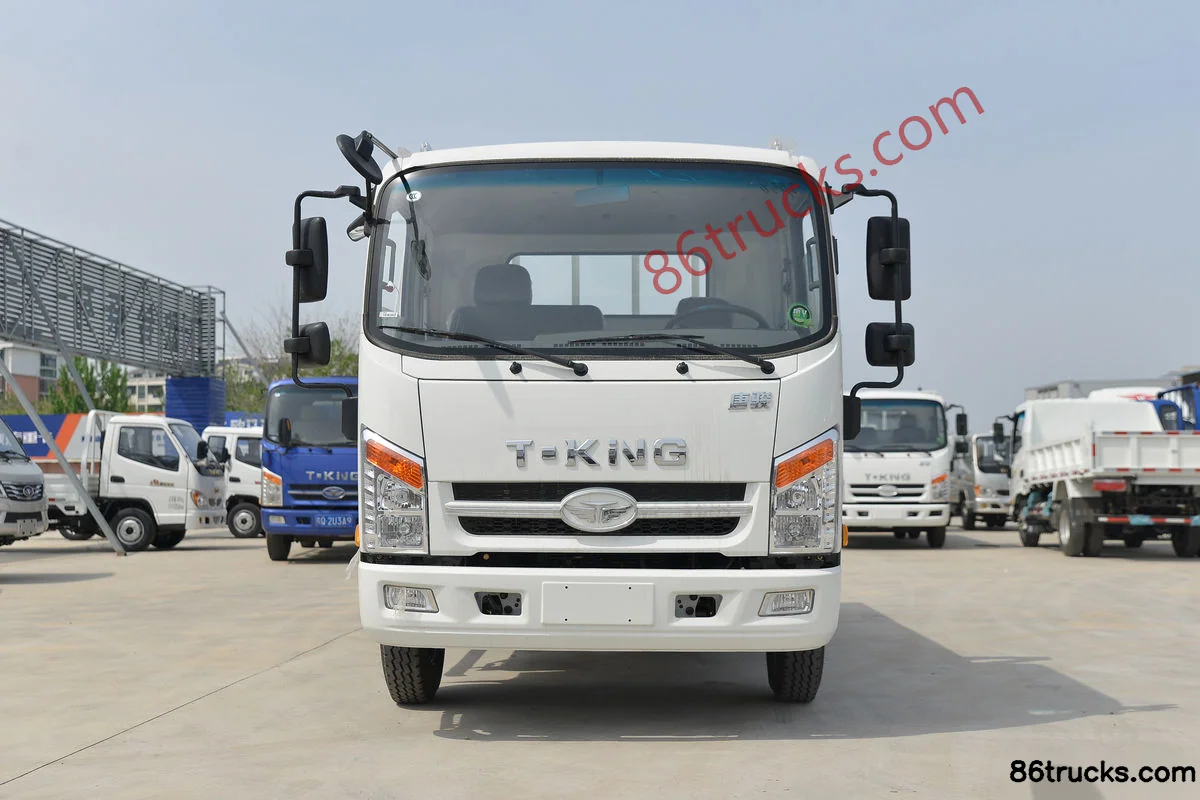

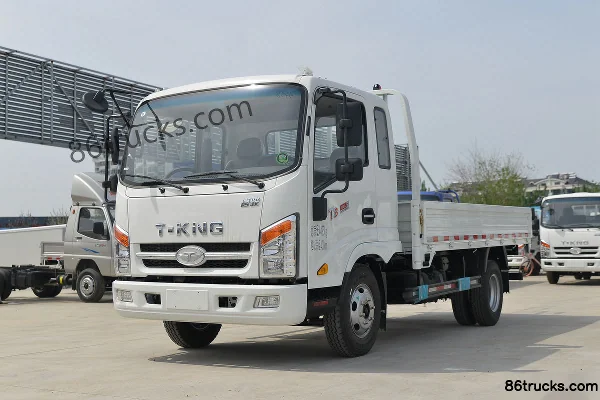

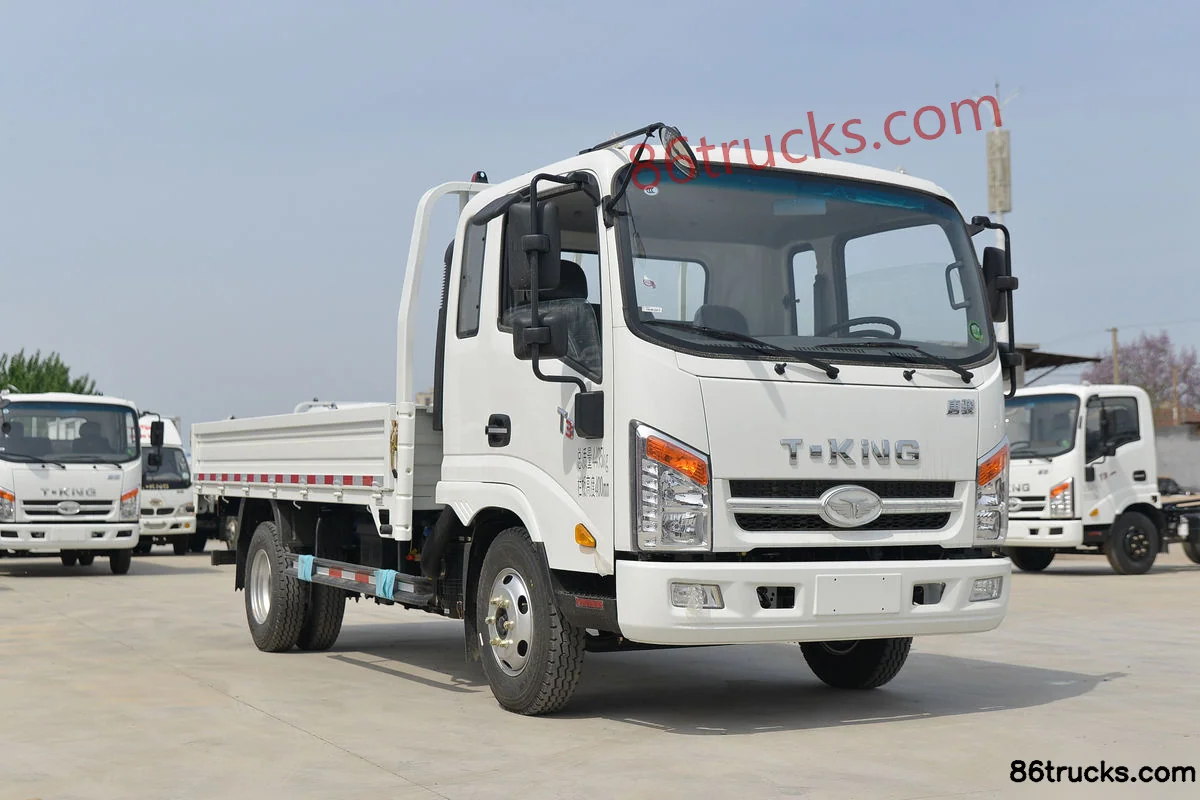

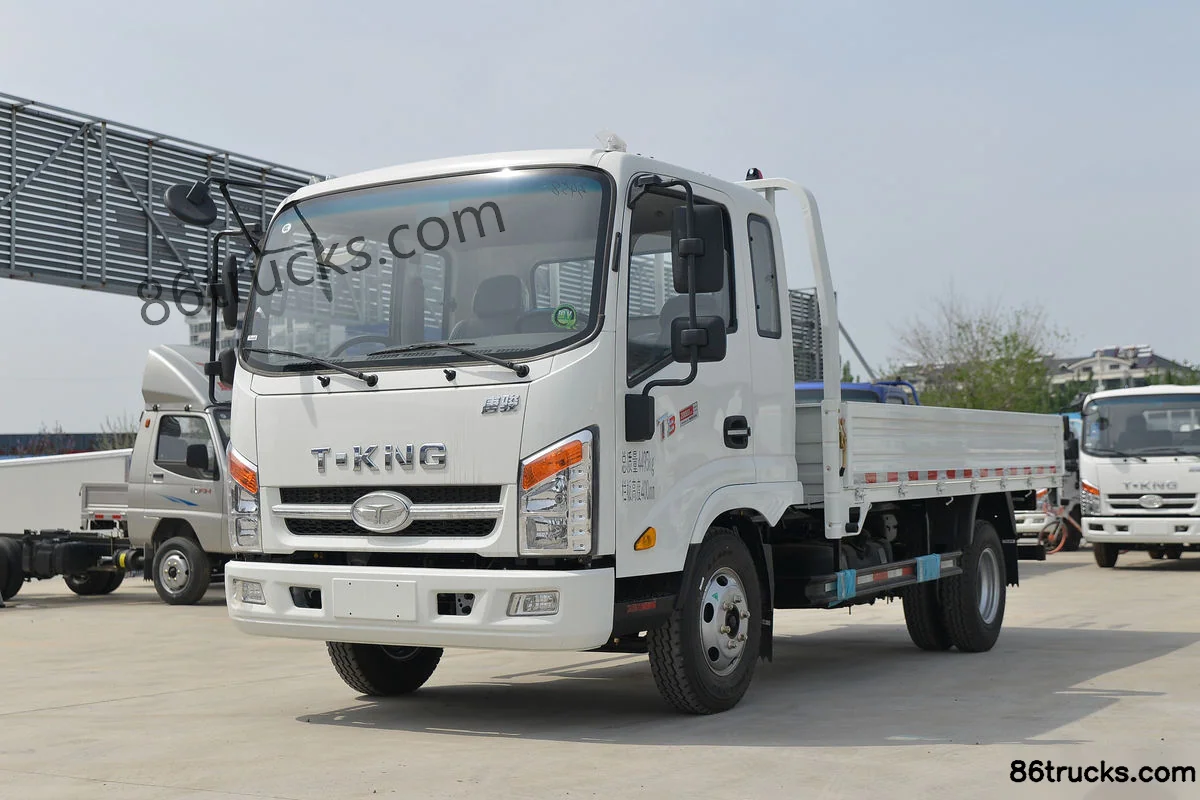

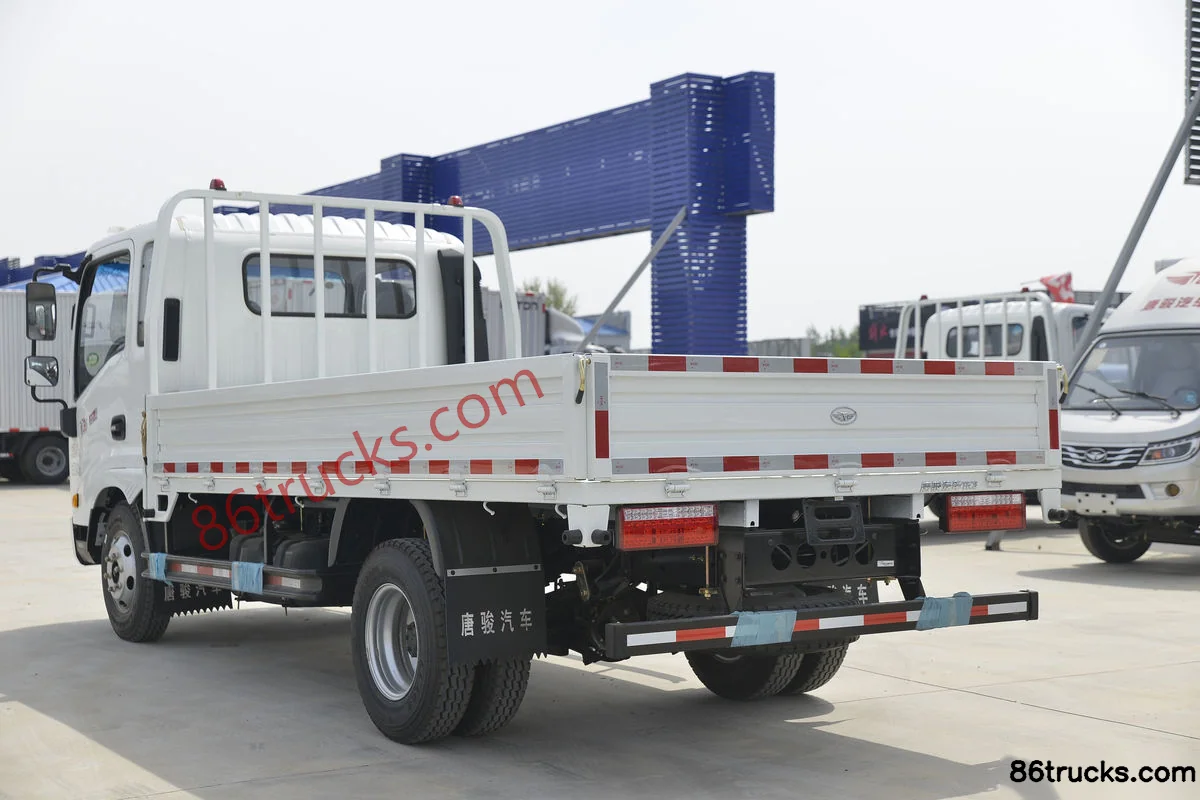

Exterior3

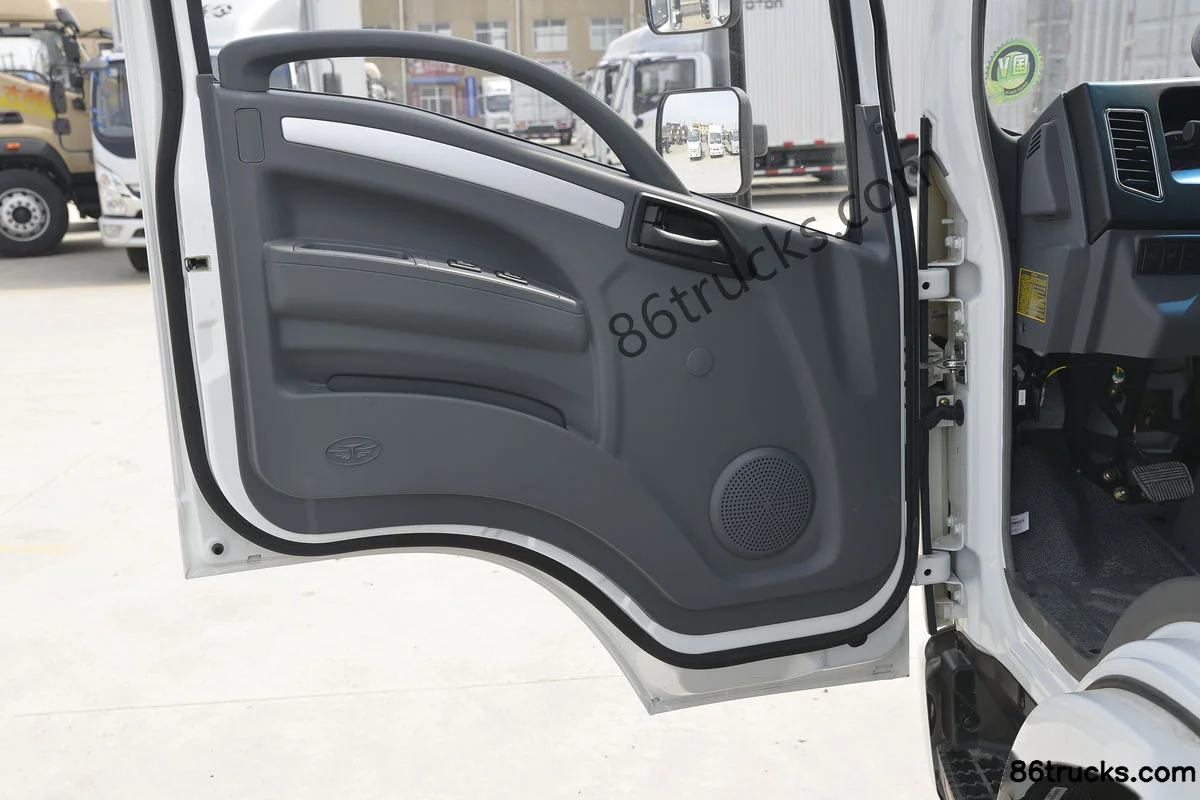

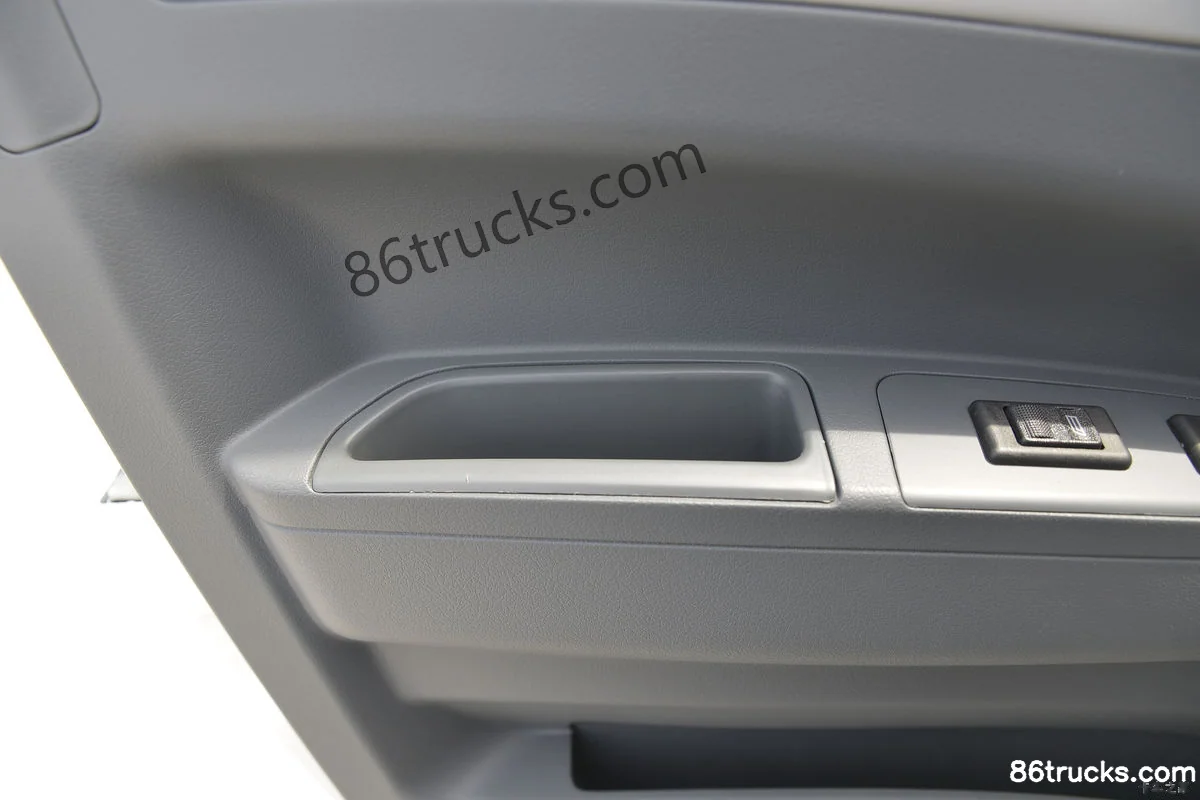

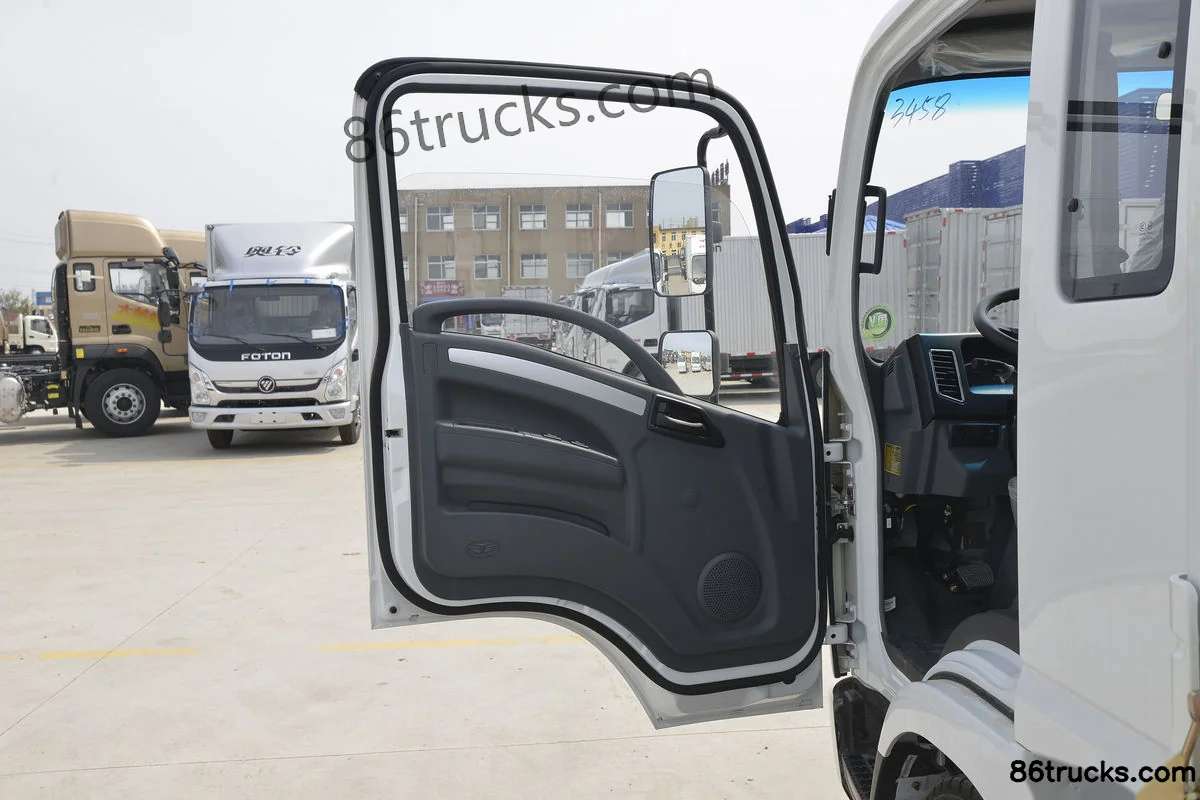

Cab3

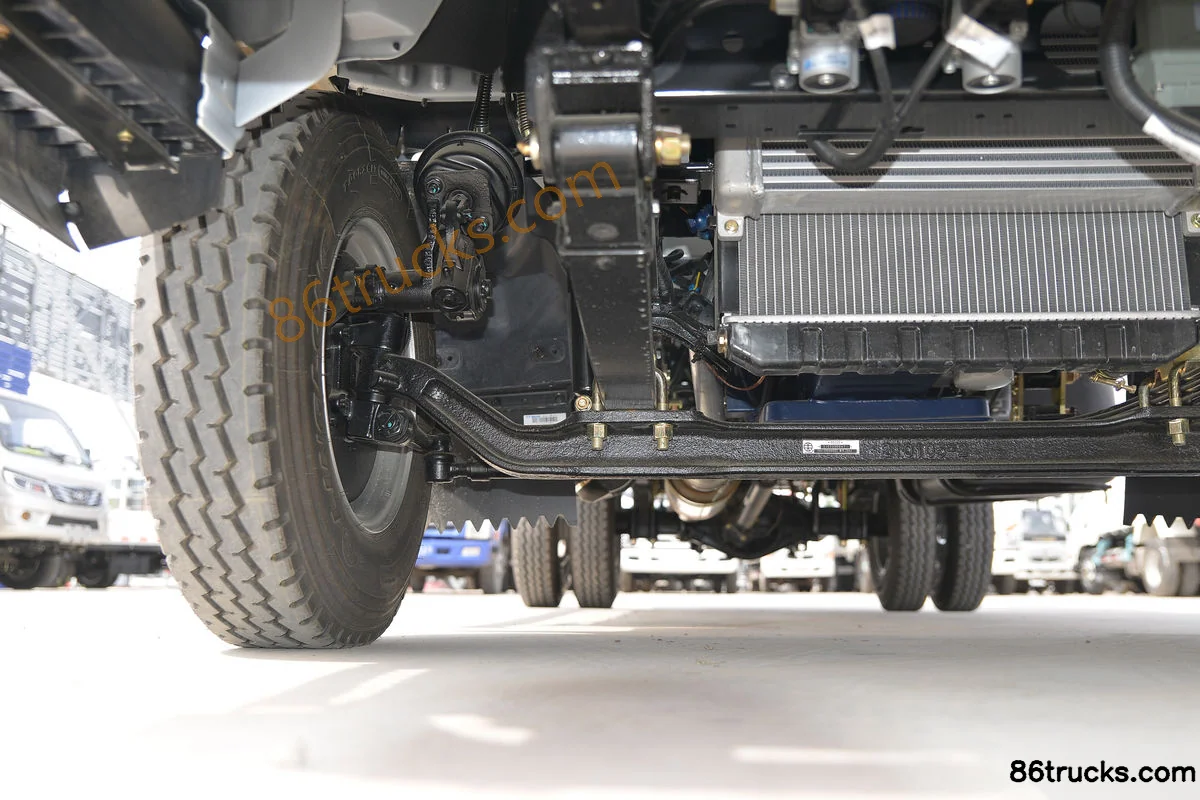

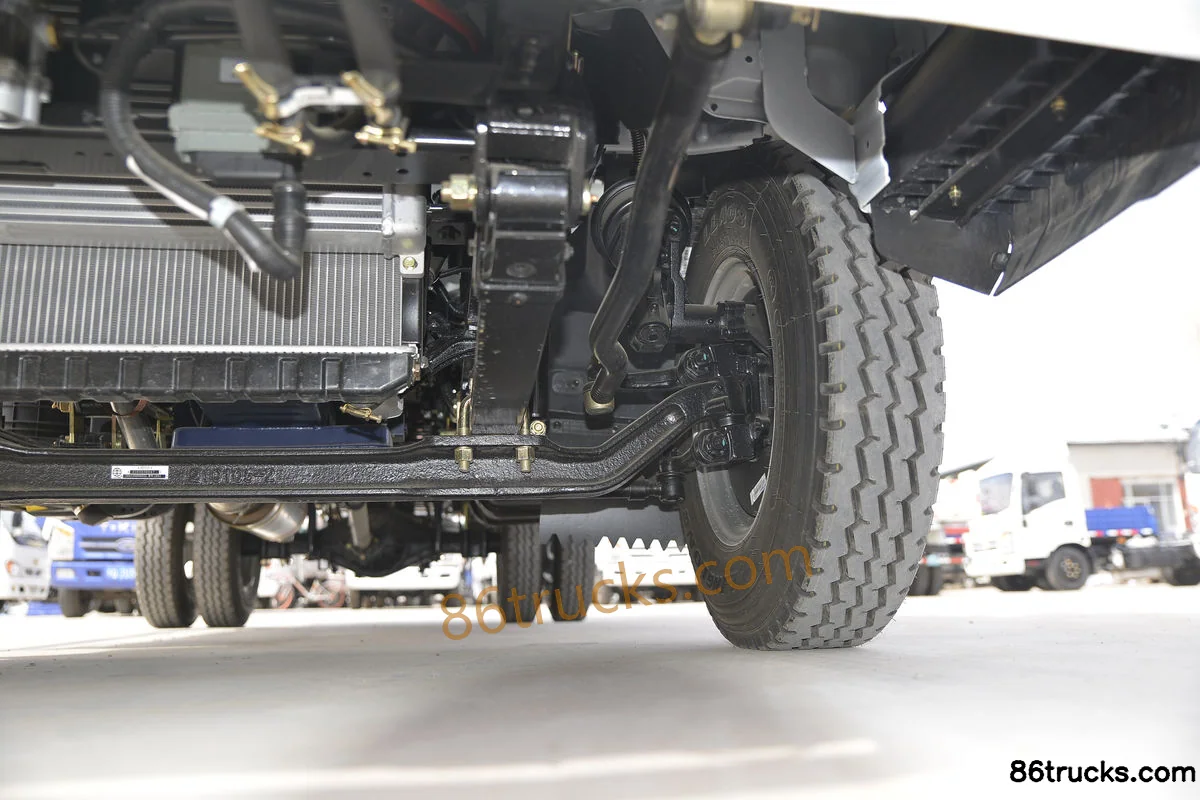

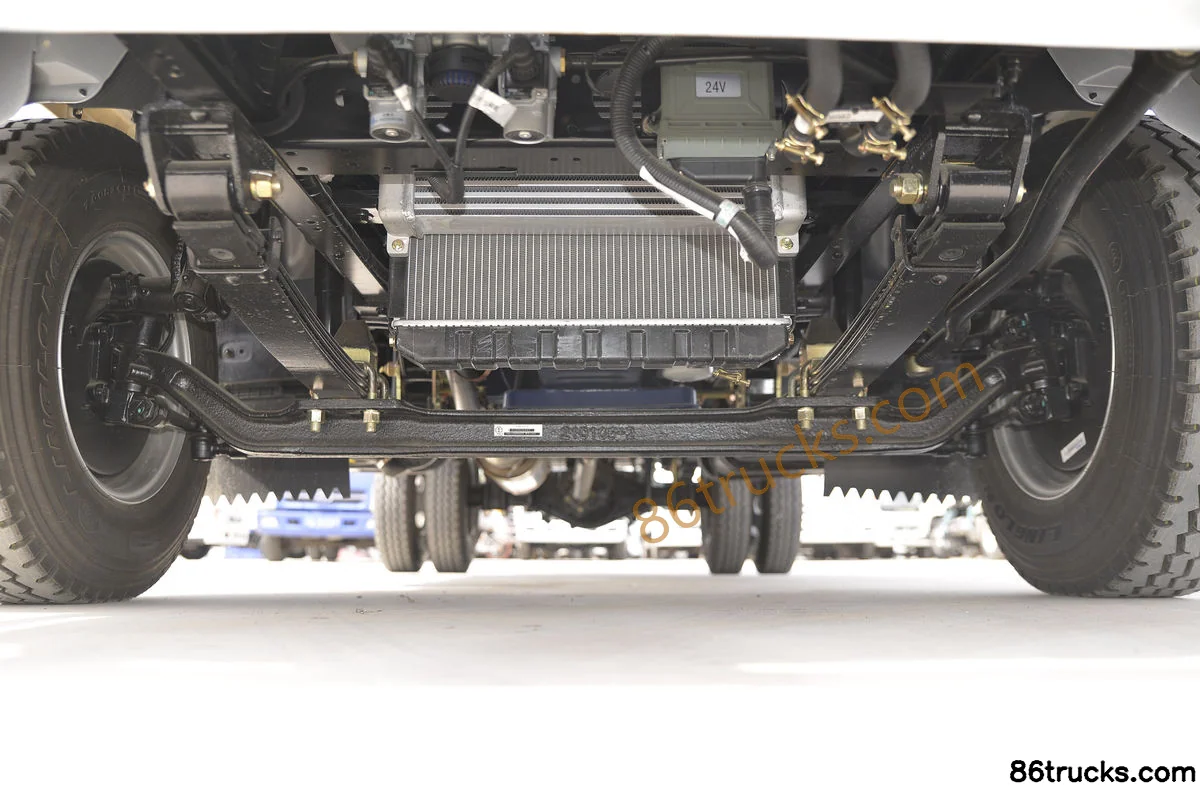

Chassis3

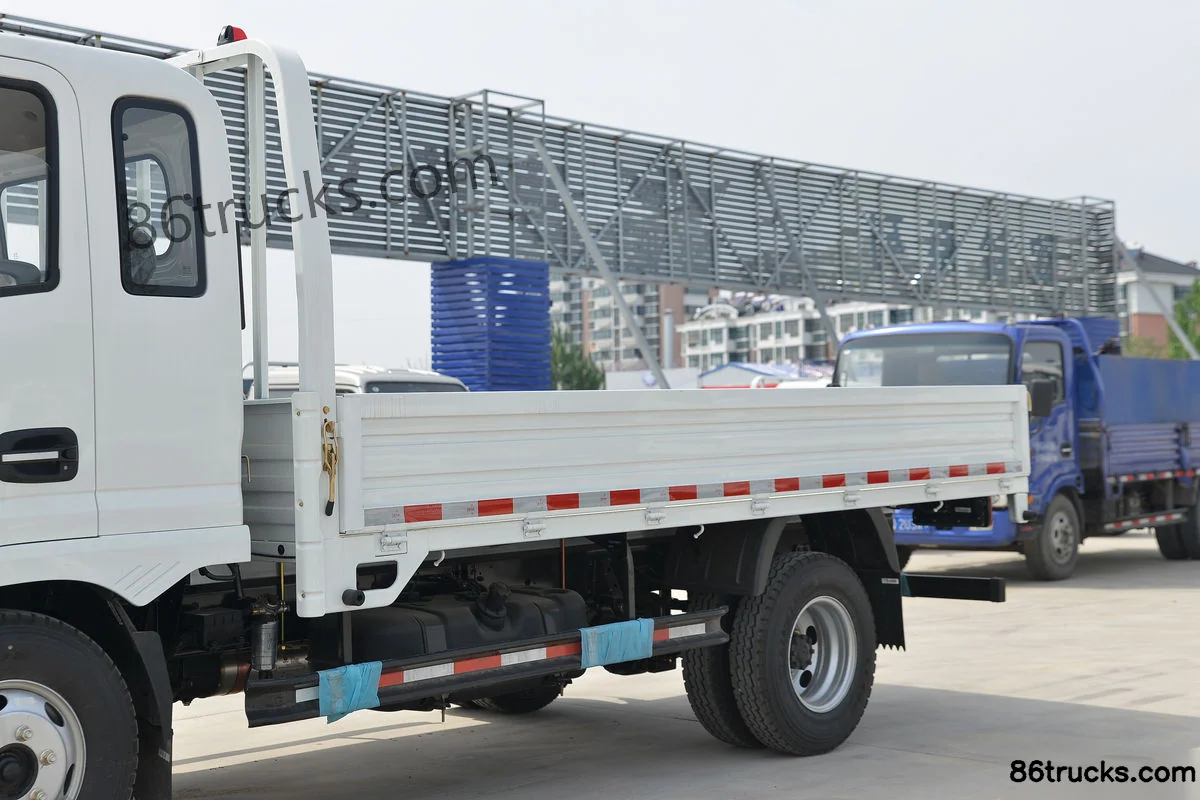

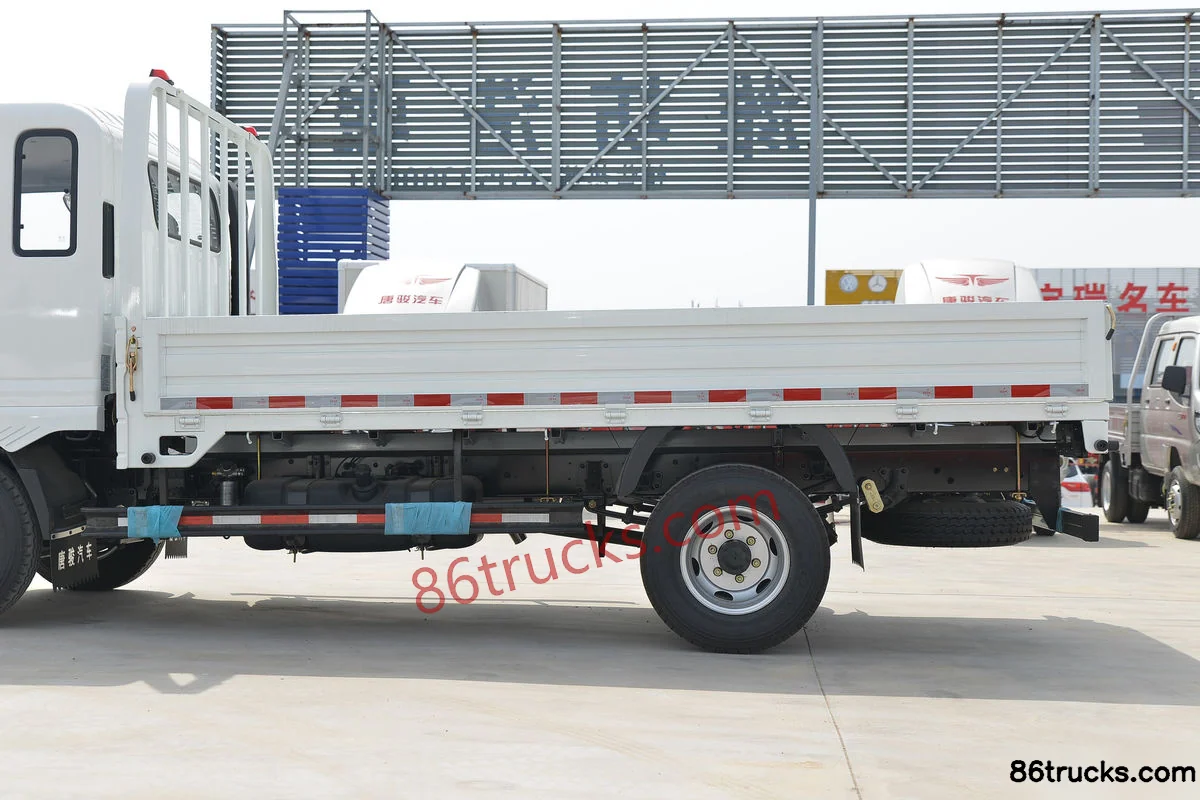

Body3

12 photos

FAQ

What emission standard does Tangjun Ouling T3 Series 110hp 4X2(6 wheels) 3.88m Half Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling T3 Series 110hp 4X2(6 wheels) 3.88m Half Row Flatbed Light Truck?

Key specs of Tangjun Ouling T3 Series 110hp 4X2(6 wheels) 3.88m Half Row Flatbed Light Truck: Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP2.3. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling T3 Series 110hp 4X2(6 wheels) 3.88m Half Row Flatbed Light Truck suited for?

Tangjun Ouling T3 Series 110hp 4X2(6 wheels) 3.88m Half Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling T3 Series 110hp 4X2(6 wheels) 3.88m Half Row Flatbed Light Truck differ from other variants in the same series?

Tangjun Ouling T3 Series 110hp 4X2(6 wheels) 3.88m Half Row Flatbed Light Truck belongs to T3 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling T3 Series 110hp 4X2(6 wheels) 3.88m Half Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling T3 Series 110hp 4X2(6 wheels) 3.88m Half Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
