Hyundai Commercial Vehicle New Generation Chuanghu 460 hp 6X4(10 wheels) LNG Tractor Truck (China VI)

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 3900+1350mm
Tire Size:: 295/80R22.5 18PR,12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 12.939L
Drive 6X4 (10 wheels)
Horsepower 460
Emission China VI
Transmission ZF

Overview

The Hyundai Commercial Vehicle New Generation Chuanghu 460 hp 6X4(10 wheels) LNG Tractor Truck (China VI) is a Heavy truck featuring 6X4 (10 wheels) drive, 460 hp, 25t GVW and China VI emissions. Its segment focus covers Iron powder and steel material transport and sand and gravel transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai6K1346N-60 engine, ZF transmission and LNG (liquefied natural gas) fuel.

China VI 460 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CHM4250KPQ52NT
Drive type: 6X4
Wheelbase: 3900+1350mm
engine: Yuchai6K1346N-60
transmission: ZF16-speed
Rear Axle Ratio: 3.417
Cab length: 7.84m
Cab width: 2.55m
Cab height: 3.89m
Front track width: 2045mm
rear track: 1828/1828mm
Gross Trailer Weight: 40ton
Curb Weight: 8.87ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Ziyang, Sichuan
tonnage class: Heavy truck
market segment: Iron powder and steel material transport, sand and gravel transport
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: United Power
Engine Model: Yuchai6K1346N-60
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 12.939L
Emission standard: China VI
Max output power: 339kW
Max hp: 460Horsepower
Max torque: 2100N·m
Max torque speed: 1050-1500rpm
Rated speed: 1700rpm
Transmission Parameters
Transmission Model: ZF16-speed
Transmission Brand: ZF
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 950L
Chassis Specs
Fifth wheel: 90#
Front axle allowable load: 7000kg
rear axle description: Tandis rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.417
Leaf spring count: 3/4,3/12
Tire
Tire Size: 295/80R22.5 18PR,12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Service brake
hydraulic retarder:
smart configuration
Forward Collision Warning (FCW):

Photos

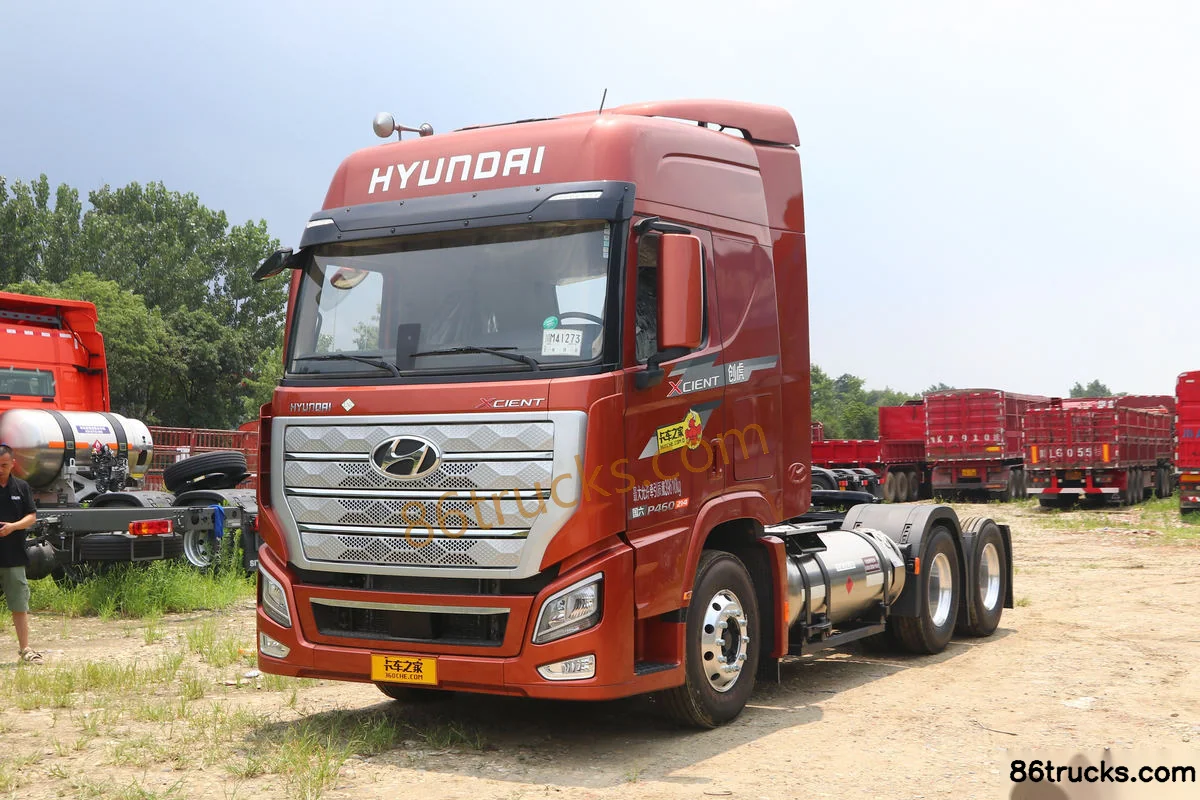

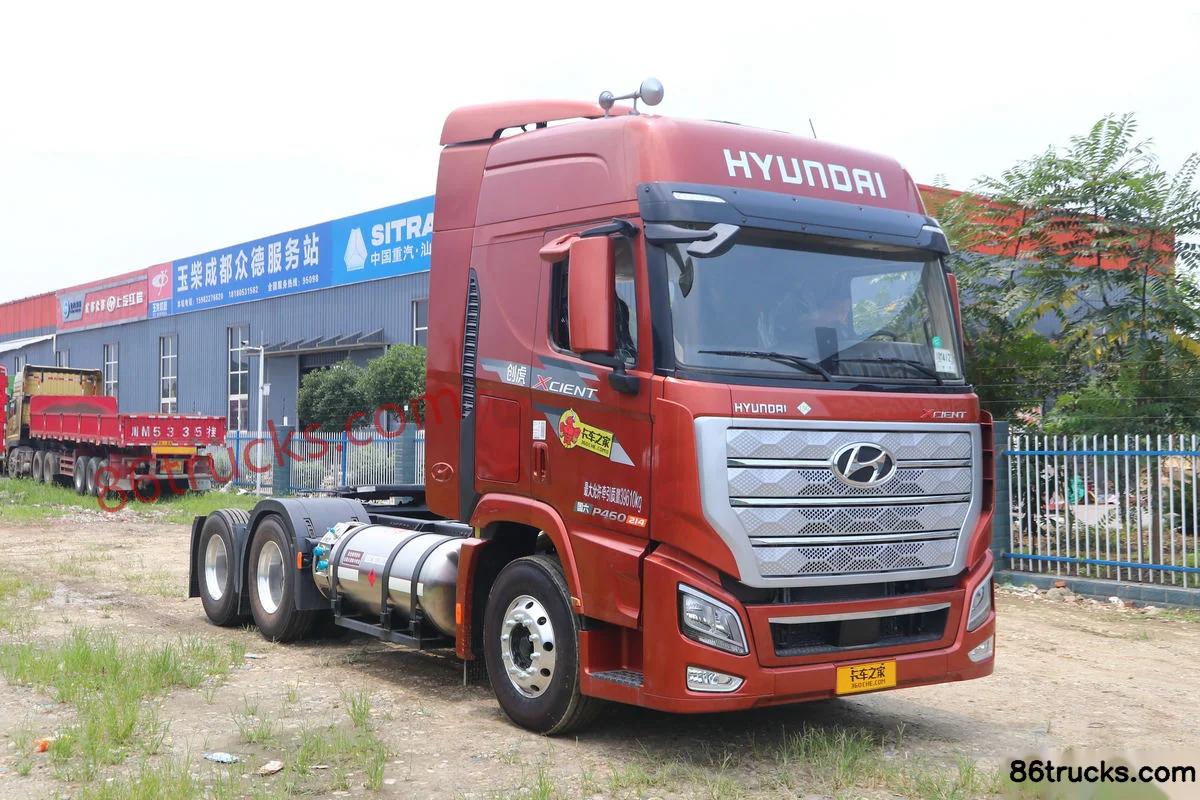

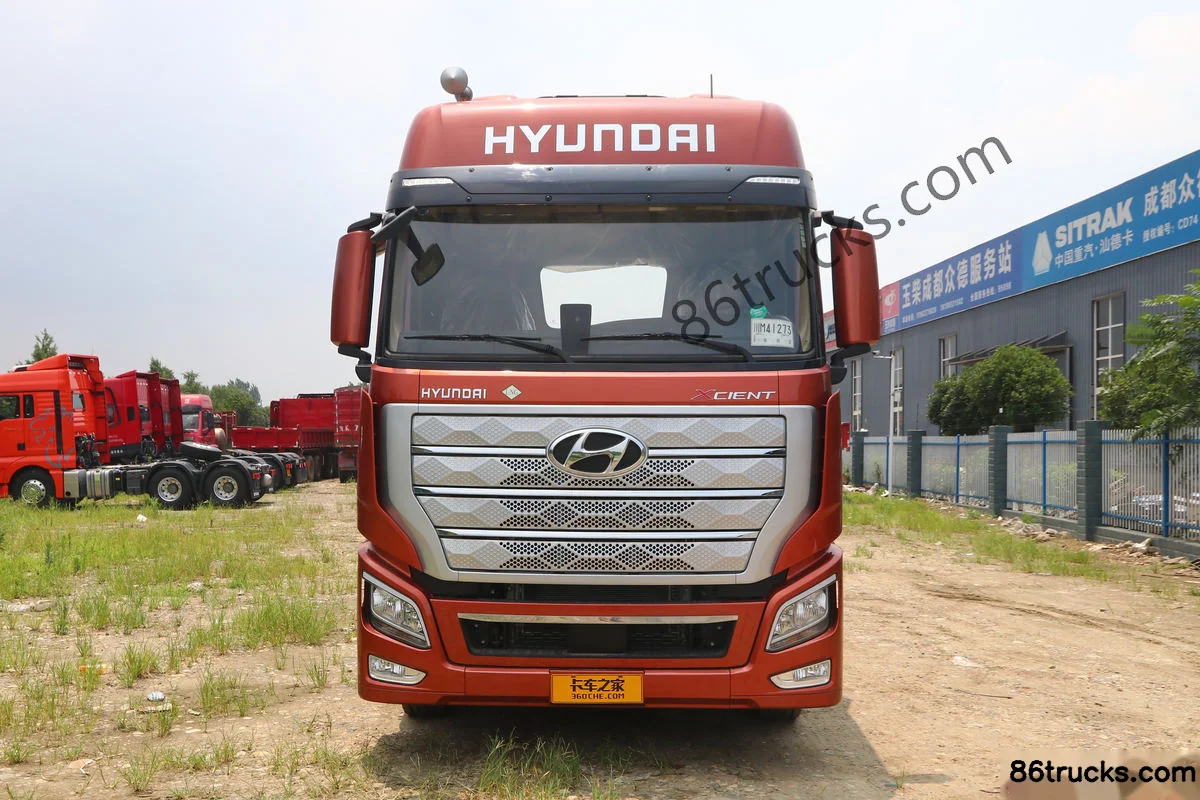

Exterior3

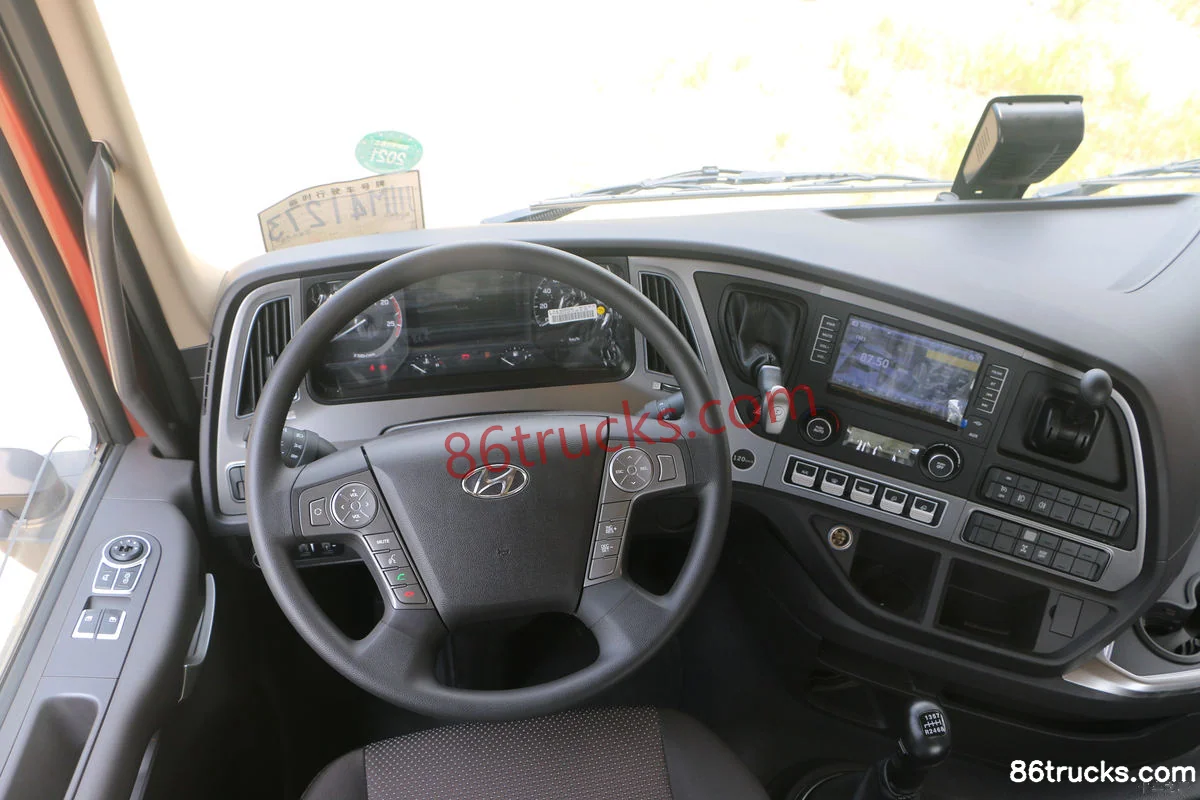

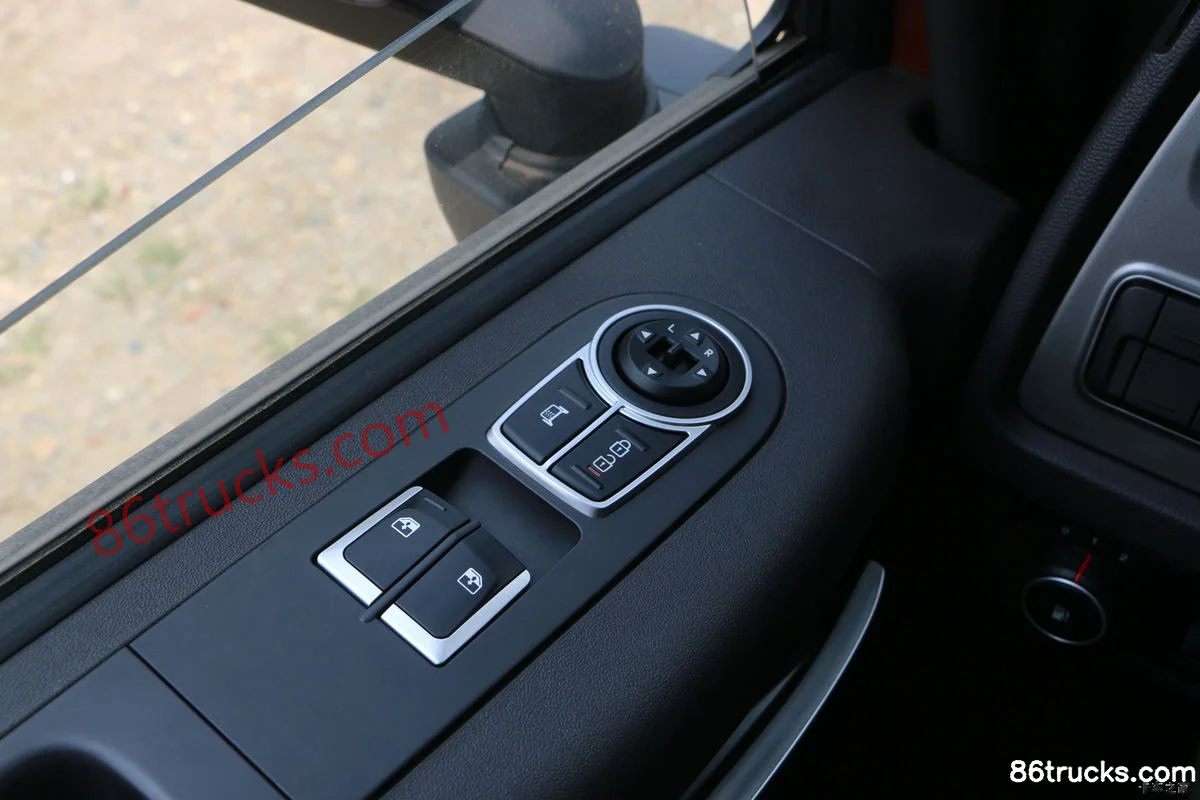

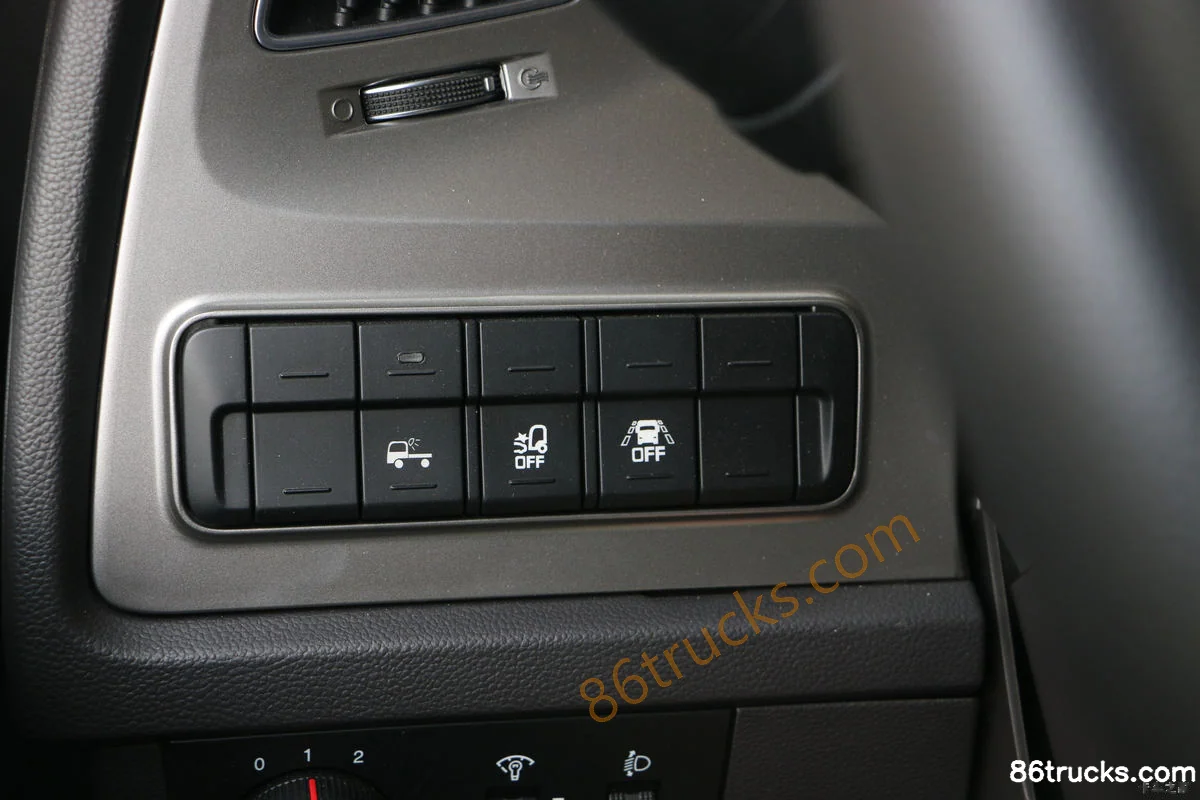

Cab3

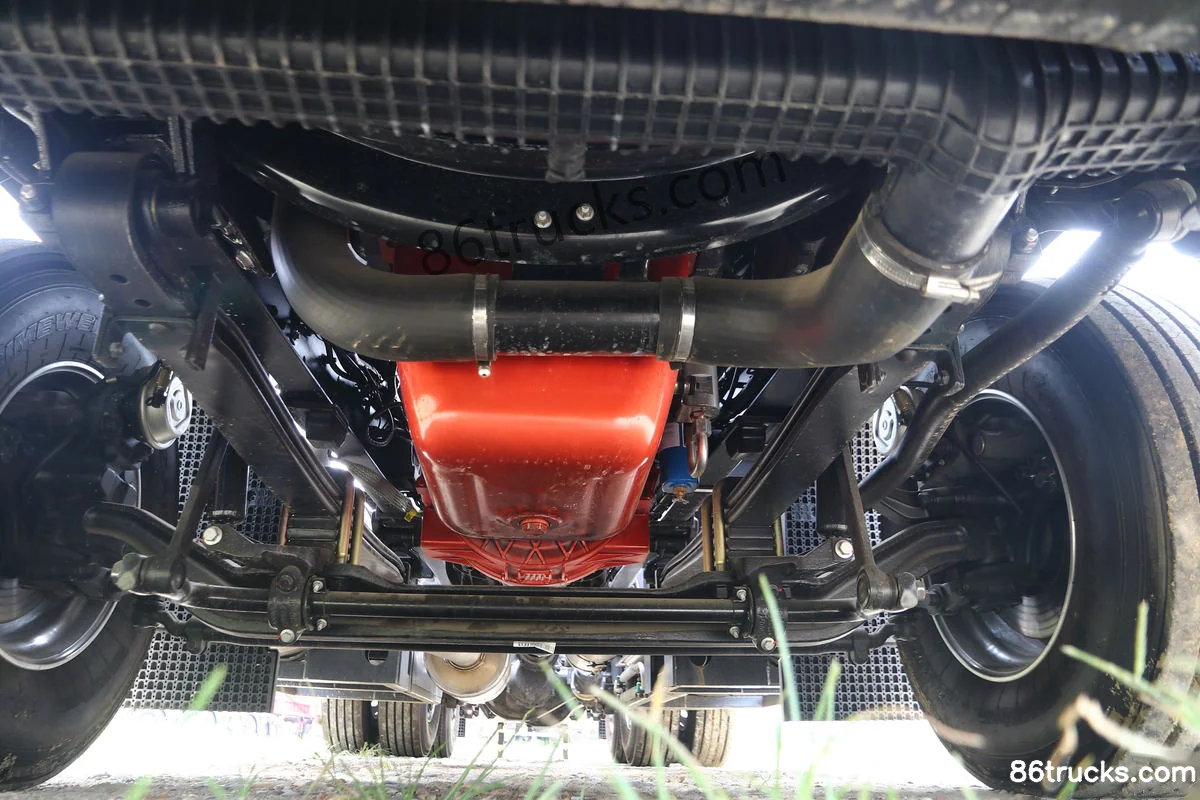

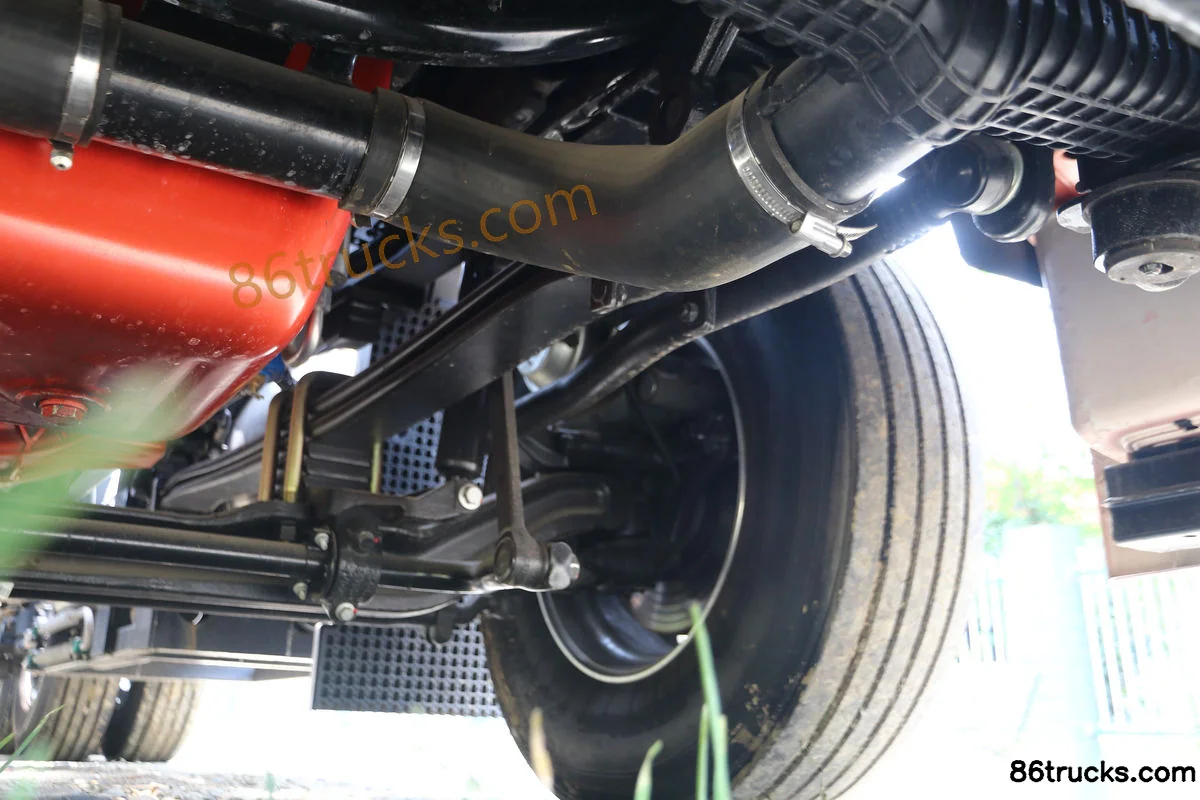

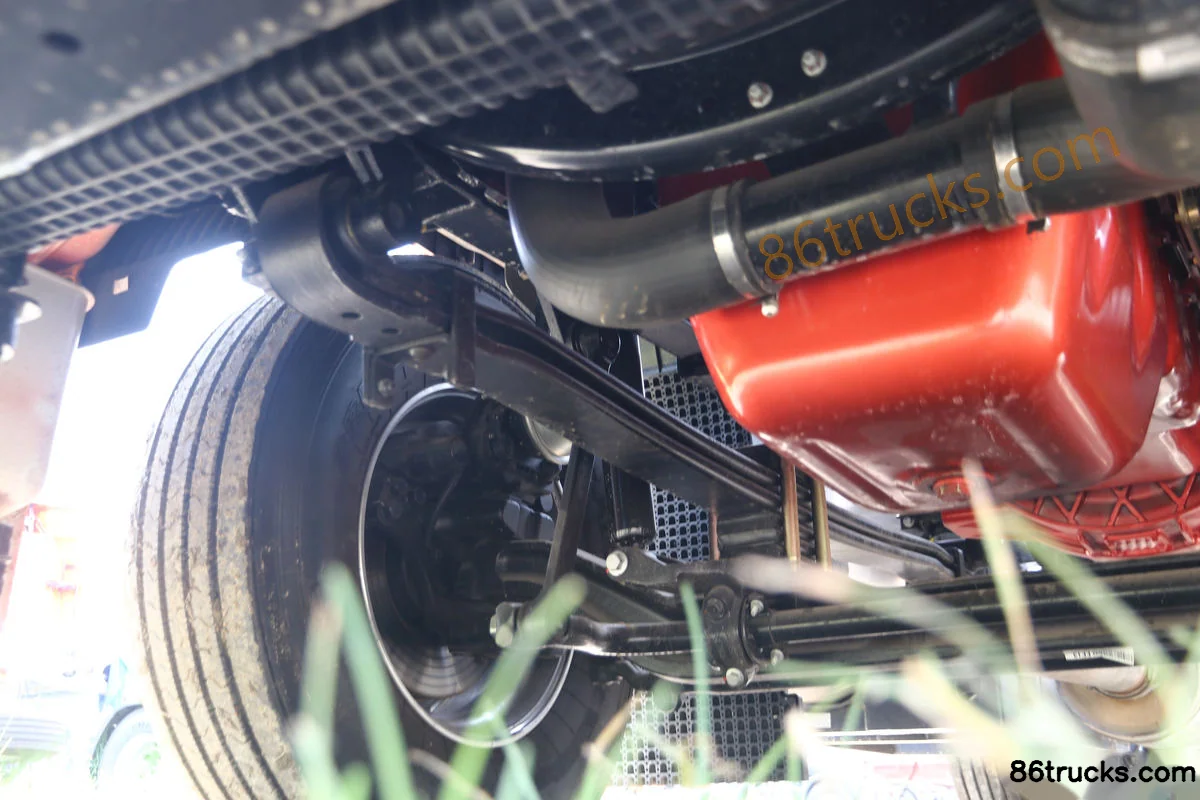

Chassis3

9 photos

FAQ

What emission standard does Hyundai Commercial Vehicle New Generation Chuanghu 460 hp 6X4(10 wheels) LNG Tractor Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hyundai Commercial Vehicle New Generation Chuanghu 460 hp 6X4(10 wheels) LNG Tractor Truck (China VI)?

Key specs of Hyundai Commercial Vehicle New Generation Chuanghu 460 hp 6X4(10 wheels) LNG Tractor Truck (China VI): Drive: 6x4; Horsepower: 460 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hyundai Commercial Vehicle New Generation Chuanghu 460 hp 6X4(10 wheels) LNG Tractor Truck (China VI) suited for?

Hyundai Commercial Vehicle New Generation Chuanghu 460 hp 6X4(10 wheels) LNG Tractor Truck (China VI) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Hyundai Commercial Vehicle New Generation Chuanghu 460 hp 6X4(10 wheels) LNG Tractor Truck (China VI) differ from other variants in the same series?

Hyundai Commercial Vehicle New Generation Chuanghu 460 hp 6X4(10 wheels) LNG Tractor Truck (China VI) belongs to Hyundai New Generation Chuanghu Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hyundai Commercial Vehicle New Generation Chuanghu 460 hp 6X4(10 wheels) LNG Tractor Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hyundai Commercial Vehicle New Generation Chuanghu 460 hp 6X4(10 wheels) LNG Tractor Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
