FAW Jiefang J7 Chuangling Edition 13.2L Diesel 640 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3450+1350mm
Tire brand:: Michelin
Front axle allowable load:: 7000kg
Displacement:: 13.2L
Drive 6X4 (10 wheels)
Horsepower 640
Emission China VI
Transmission FAW Jiefang

Overview

The FAW Jiefang J7 Chuangling Edition 13.2L Diesel 640 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 640 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a XichaiCA6DV1-64E66 engine, FAW Jiefang transmission and Diesel fuel.

China VI 640 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4251P78K33T1E6
Drive type: 6X4
Wheelbase: 3450+1350mm
engine: XichaiCA6DV1-64E66
transmission: FAW Jiefang CA12TA300ART
Rear Axle Ratio: 2.563
Cab length: 7.33m
Cab width: 2.55m
Cab height: 4m
Front track width: 2100mm
rear track: 1850/1850mm
Gross Trailer Weight: 40ton
Curb Weight: 8.87ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Changchun, Jilin
tonnage class: Heavy truck
Version: Chuangling Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DV1-64E66
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 13.2L
Emission standard: China VI
Max output power: 474kW
Max hp: 640Horsepower
Transmission Parameters
Transmission Model: CA12TA300ART
Transmission Brand: FAW Jiefang
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
Rear window of cab: Yes
Cab: J7 high-roof large extended cab with flat floor
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank heating:
Chassis Specs
Front axle description: F7N-2050 front axle
Front axle allowable load: 7000kg
rear axle description: 440 Press-Welded Axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.563
Leaf spring count: 2/-
Aluminum wheels:
Tire
Tire brand: Michelin
Tire Size: 315/70R22.5 20PR
Tire Type: tubeless tire
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
Exterior features
integrated mudguard:
Air deflector:
side skirt:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
lighting configuration
LED headlight:
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Fatigue driving monitoring:
Lane Departure Warning System (LDWS):

Photos

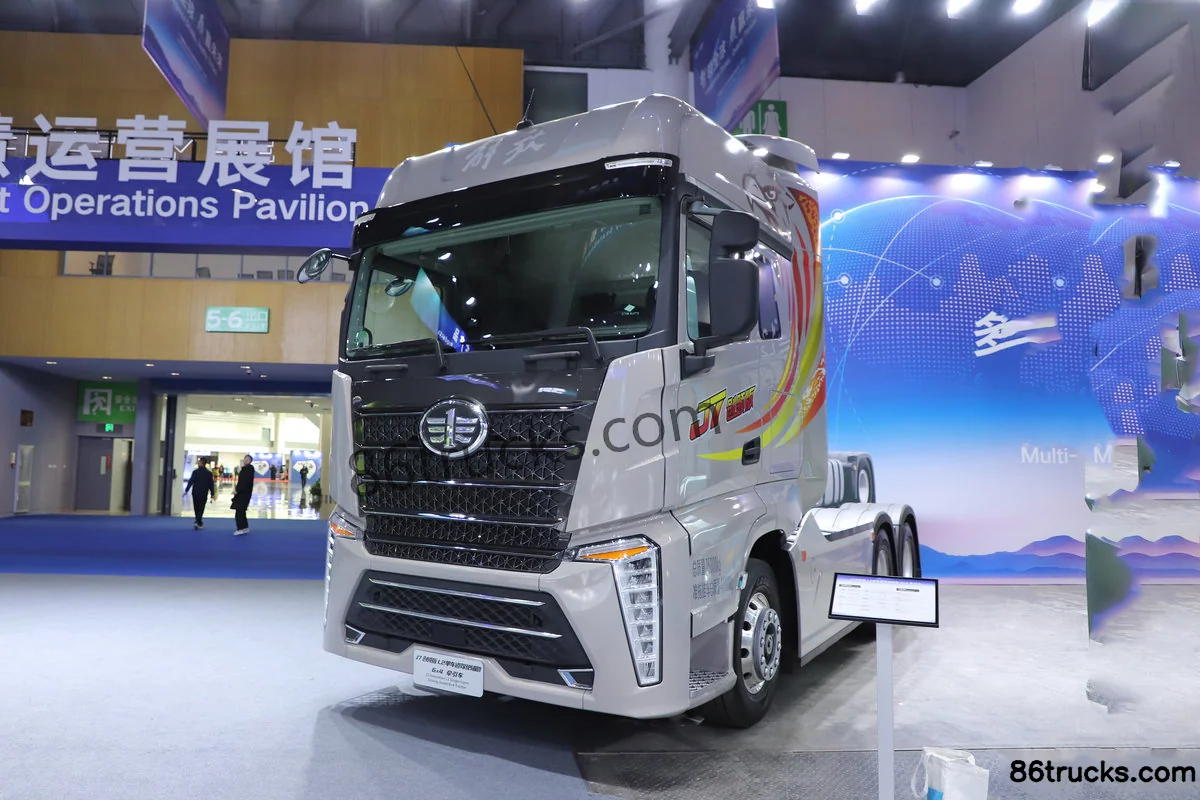

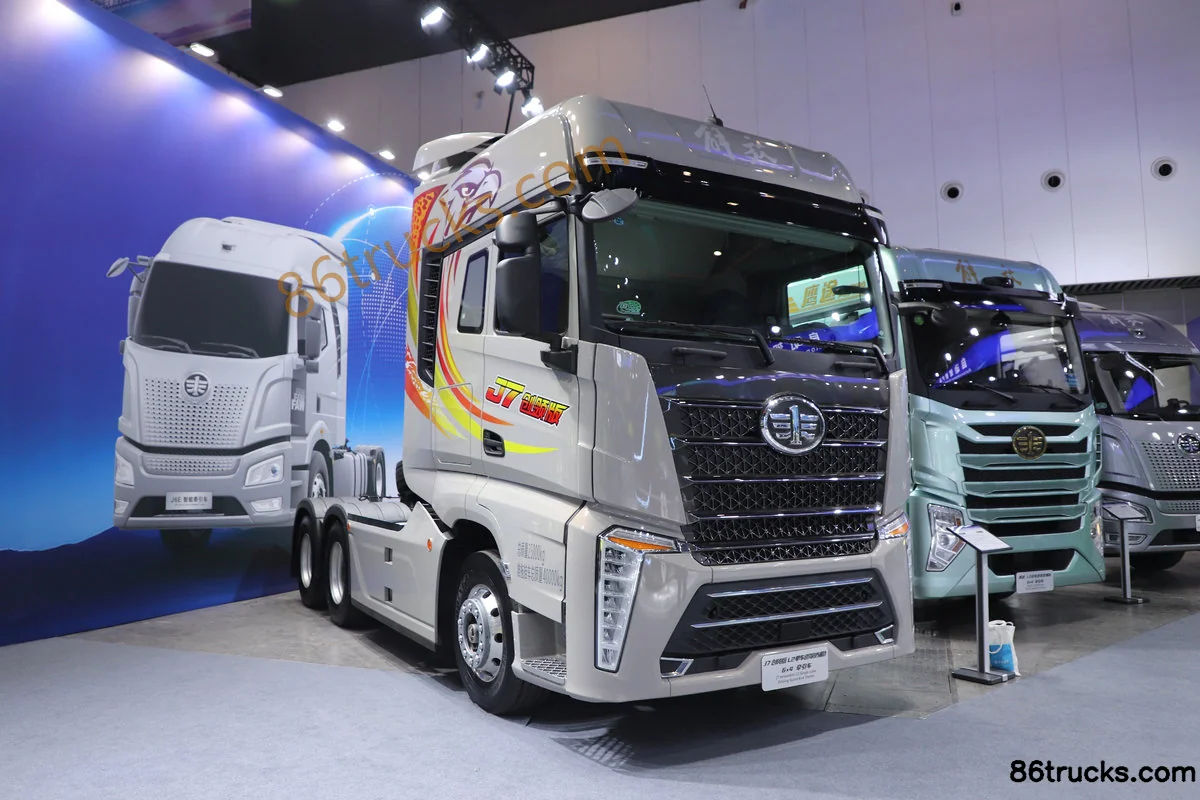

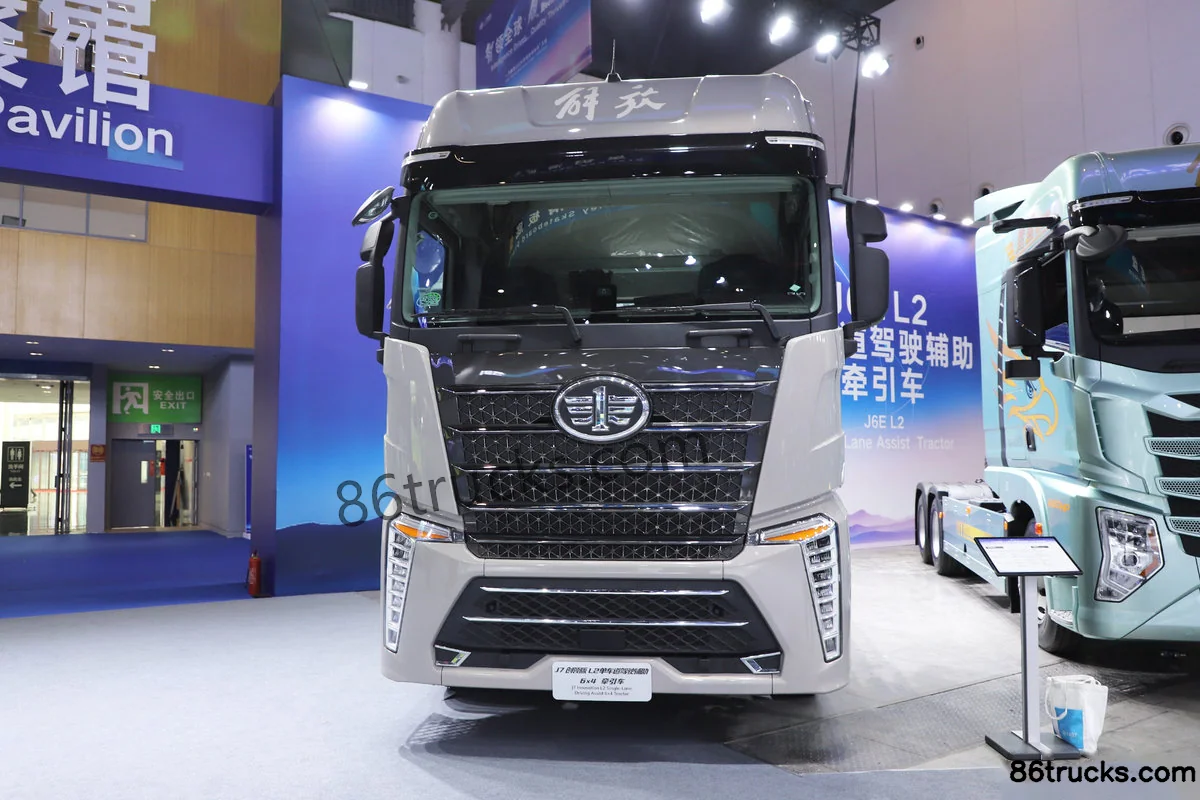

Exterior3

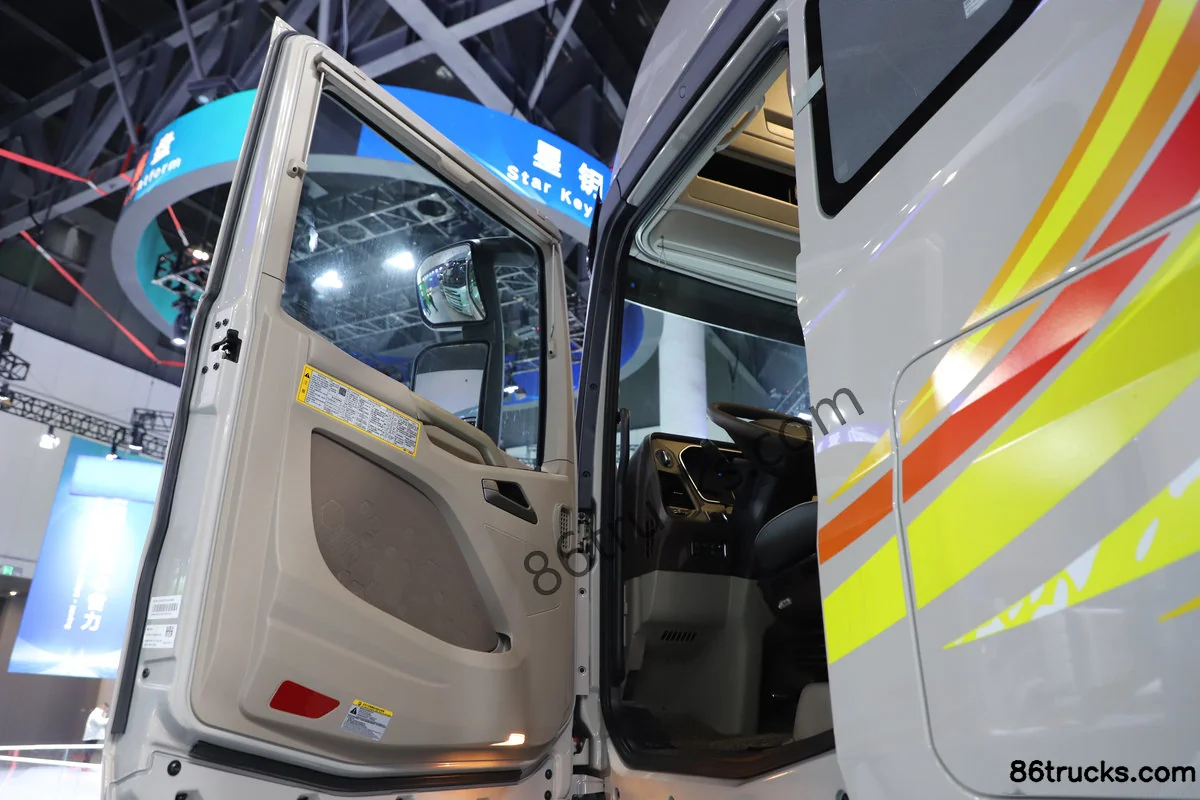

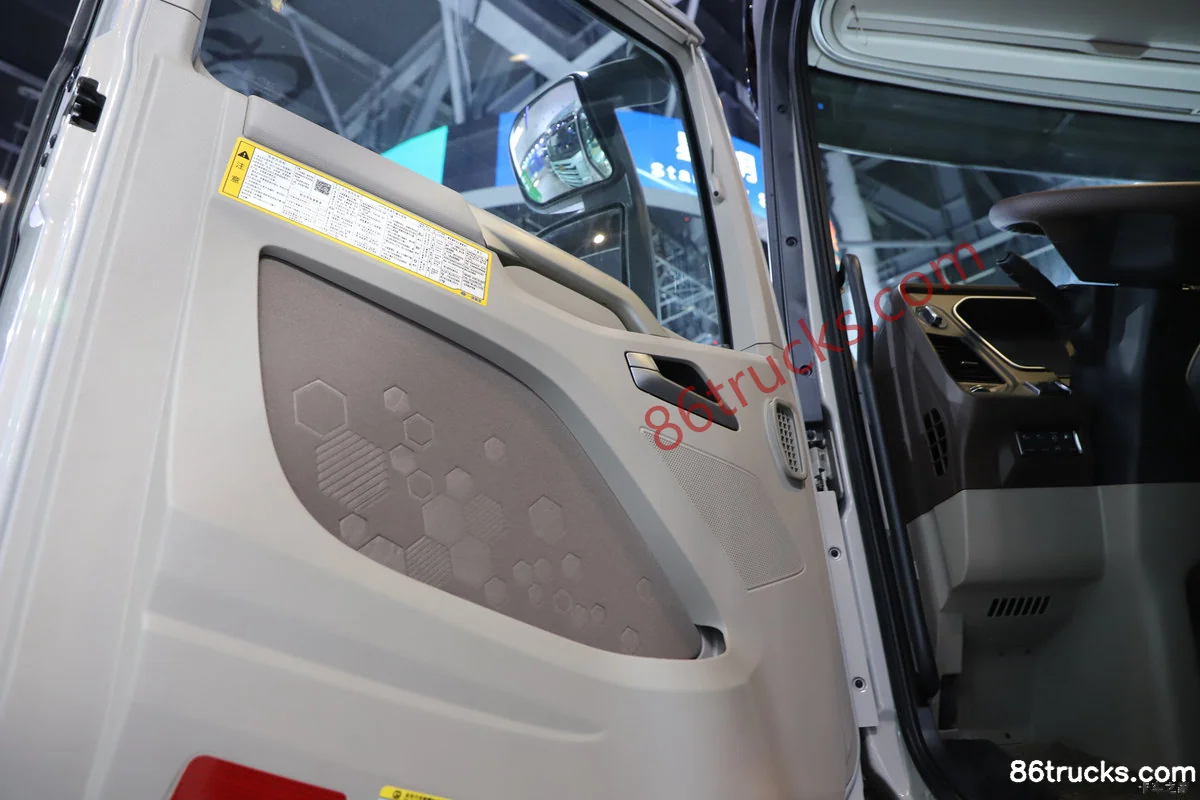

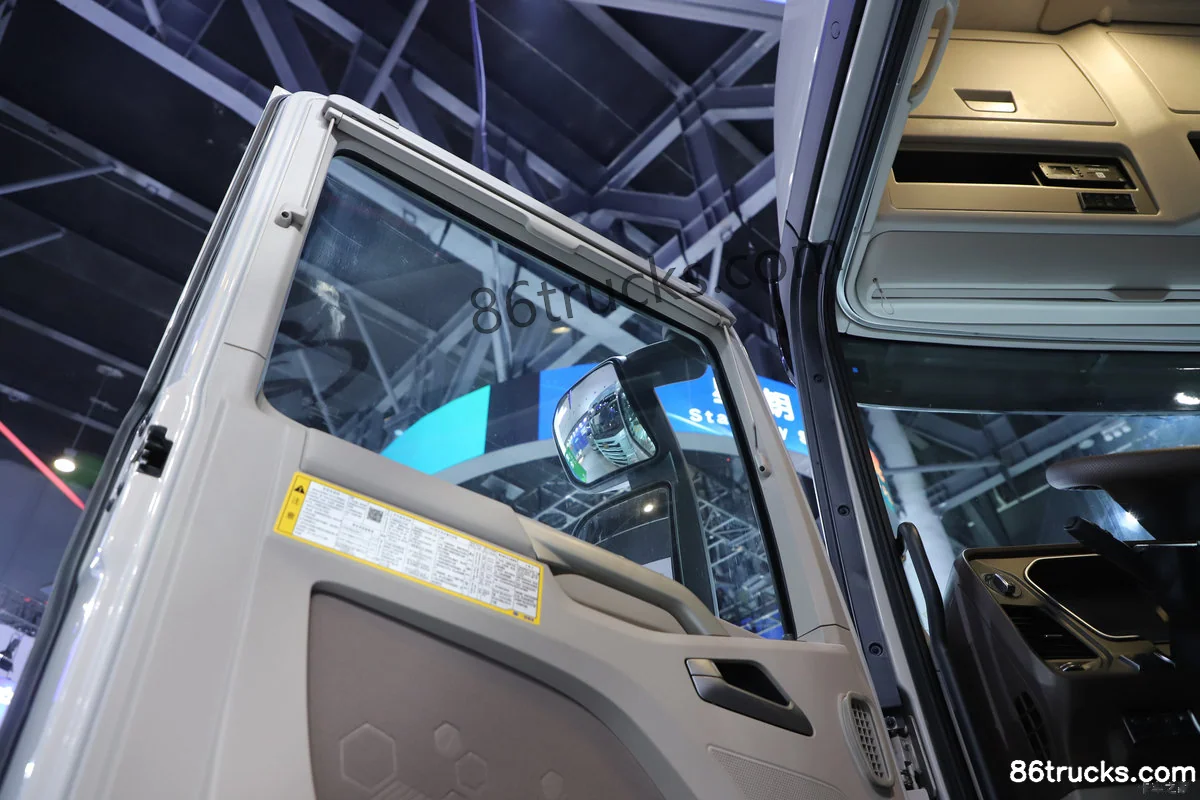

Cab3

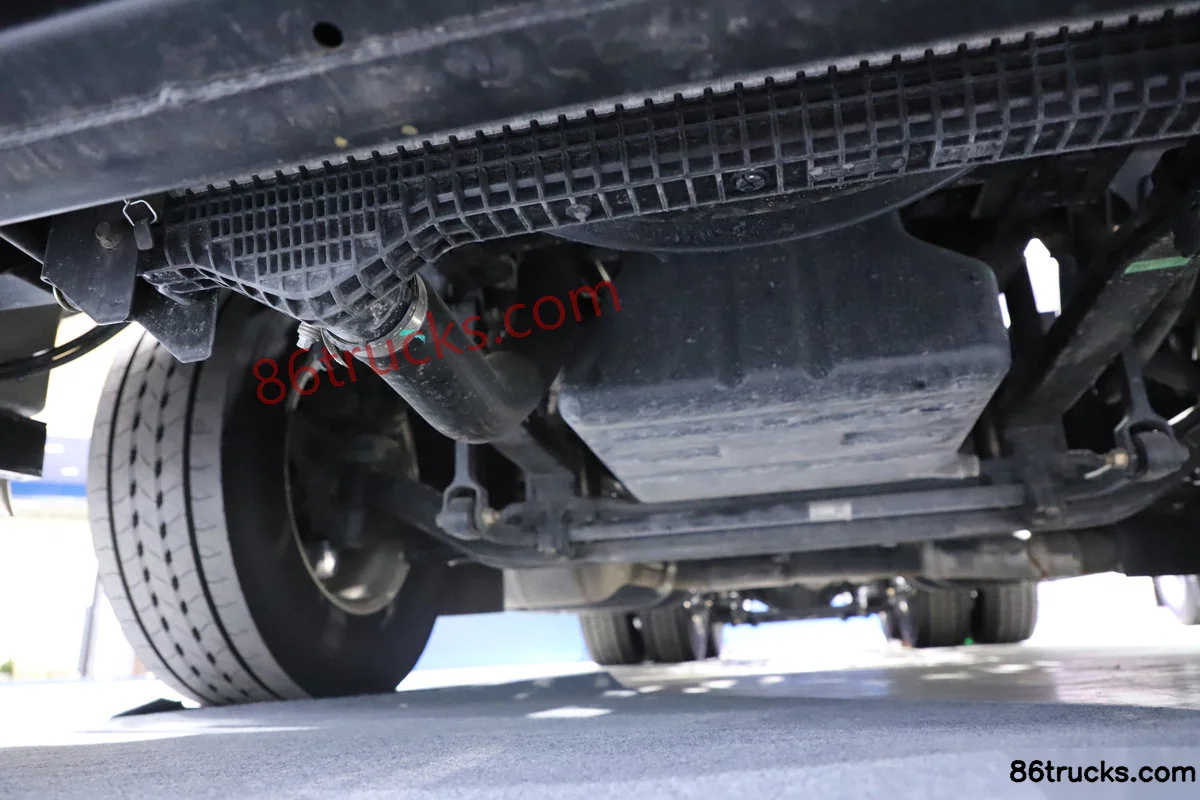

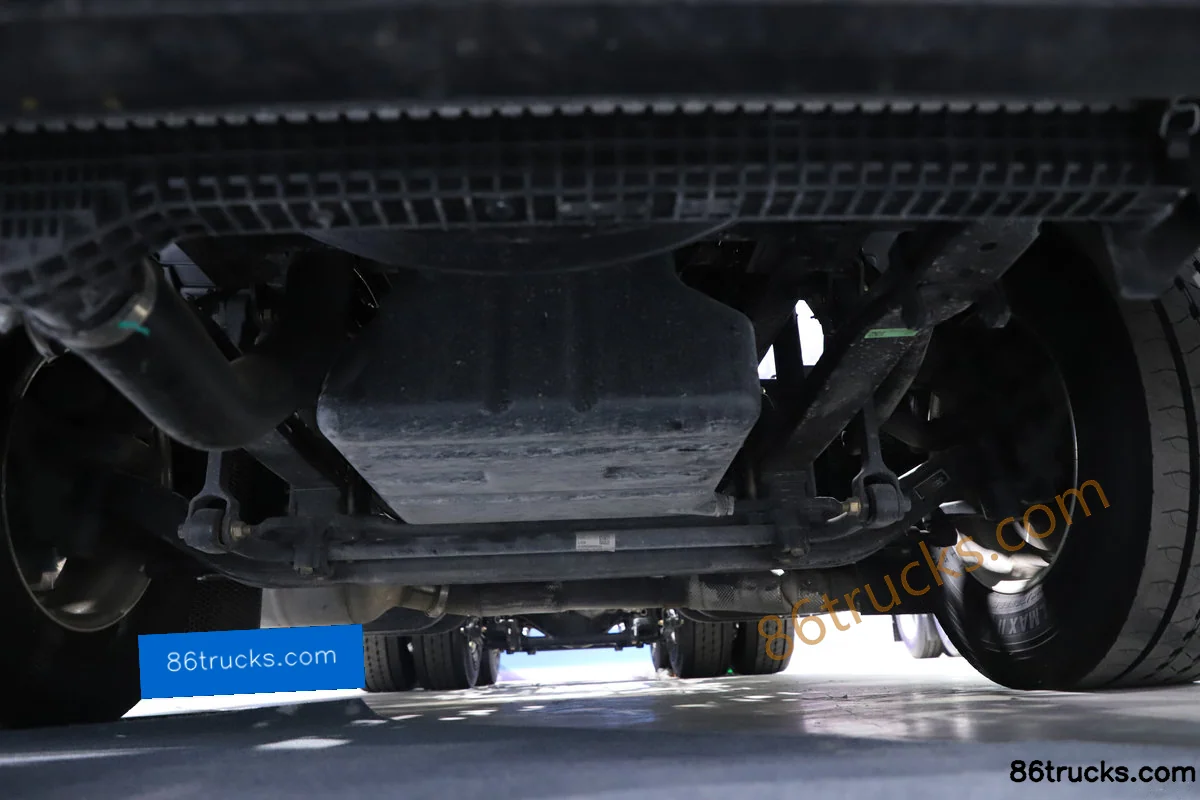

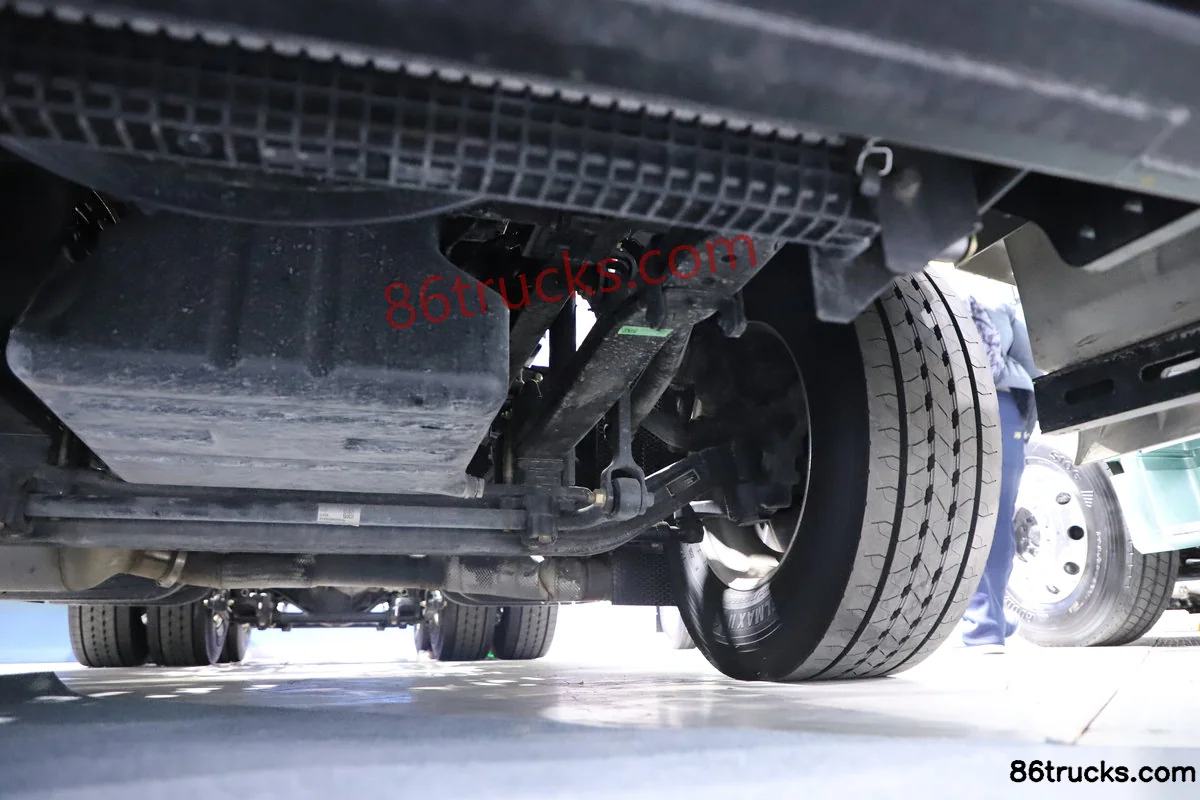

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang J7 Chuangling Edition 13.2L Diesel 640 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J7 Chuangling Edition 13.2L Diesel 640 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck?

Key specs of FAW Jiefang J7 Chuangling Edition 13.2L Diesel 640 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck: Drive: 6x4; Horsepower: 640 hp; Emission: China VI; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J7 Chuangling Edition 13.2L Diesel 640 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck suited for?

FAW Jiefang J7 Chuangling Edition 13.2L Diesel 640 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang J7 Chuangling Edition 13.2L Diesel 640 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck differ from other variants in the same series?

FAW Jiefang J7 Chuangling Edition 13.2L Diesel 640 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck belongs to FAW Jiefang J7 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J7 Chuangling Edition 13.2L Diesel 640 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J7 Chuangling Edition 13.2L Diesel 640 hp 6X4(10 wheels) FAW Jiefang 12-Speed AMT Automatic Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
