Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck

Export reference
From $11,944
MSRP ¥8.6M CNY
Horsepower: 60
Emission: China V
Fuel: gasoline
Engine: Liuji gasoline 1.1L
Transmission: Qingshan
Curb Weight:: 1.82ton
Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck exterior
View more photos (3)
seating capacity: 2Personnel
Rated payload: 1.045ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck is a mini truck featuring 3.2m cargo length, Van body cargo body, 2Personnel volume and 1.045t payload. On the powertrain side, it comes with a Liuji gasoline 1.1L engine, 60 hp, 4X2 (6 wheels) drive and China V emissions.

China V 60 gasoline 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HXW5030XXCGT
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2700mm
Box length class: 3.2m
engine: Wuling LiujiLJ465Q-2AE
transmission: QingshanMR513B
Rear Axle Ratio: 5.375
Cab length: 4.91m
Cab width: 1.595m
Cab height: 2.47m
Front track width: 1260mm
rear track: 1260mm
Curb Weight: 1.82ton
Rated payload: 1.045ton
GVWR: 2.995ton
Max. speed: 95km/h
Origin: Nanjing, Jiangsu
tonnage class: mini truck
Approach angle: 32°
departure angle: 20°
Remarks: Optional features: vehicle color optional; text spray location changeable; both sides can be equipped with LED screen or side display; both sides can be equipped with: color screen model optional P6, LED lift or non-lift screen, optional roller light box, strip screen, mobile stage; rear optional LED strip screen or light box or rear display, vents; front optional LED strip screen, left/right/rear optional flip-up sun visor, flip-down bar, also optional single or double door, or closed, optional top cap shape and rear step, power system optional battery pack, optional onboard industrial control all-in-one
Front/rear suspension: 0.91/1.3m
Energy Type: gasoline
Engine parameters
Engine Brand: Wuling Liuji
Engine Model: Wuling LiujiLJ465Q-2AE
Engine info: Liuji gasoline 1.1L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.051L
Emission standard: China V
Max output power: 45kW
Max hp: 60Horsepower
Max torque: 850N·m
Max torque speed: 3500-4000rpm
Rated speed: 5600rpm
Engine Type: 4-stroke, inline inclined, mechanically adjusted roller rocker arm, electronic fuel injection, electronic ignition
Transmission Parameters
Transmission Model: QingshanMR513B
Transmission Brand: Qingshan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.2m
Cargo box width: 1.59m
Cargo box height: 1.23m
*Cargo box interior width: 1.5900000333786
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1445kg
rear axle allowable load: 1550kg
Axle ratio: 5.375
Leaf spring count: 5/3+1,5/4
Tire
Tire Size: 175R14LT
Number of tires: 4pcs
Control configuration
ABS:

Photos

Exterior3

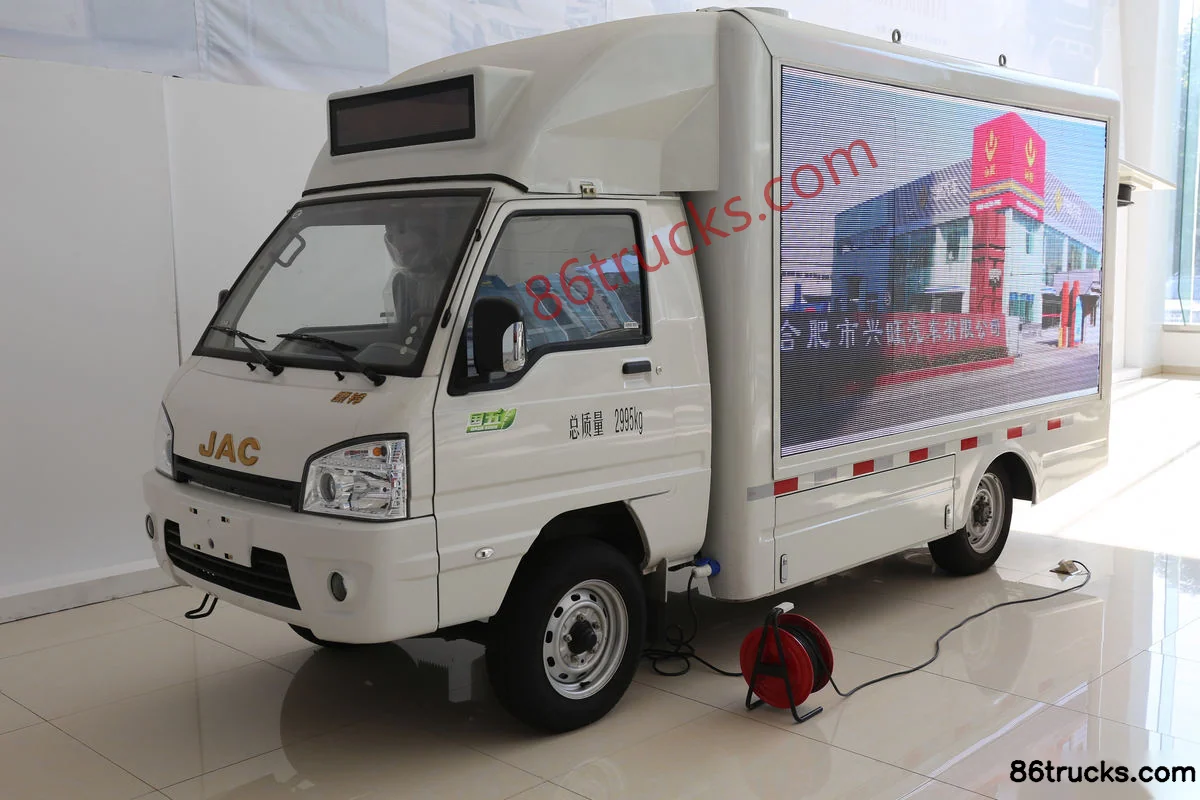

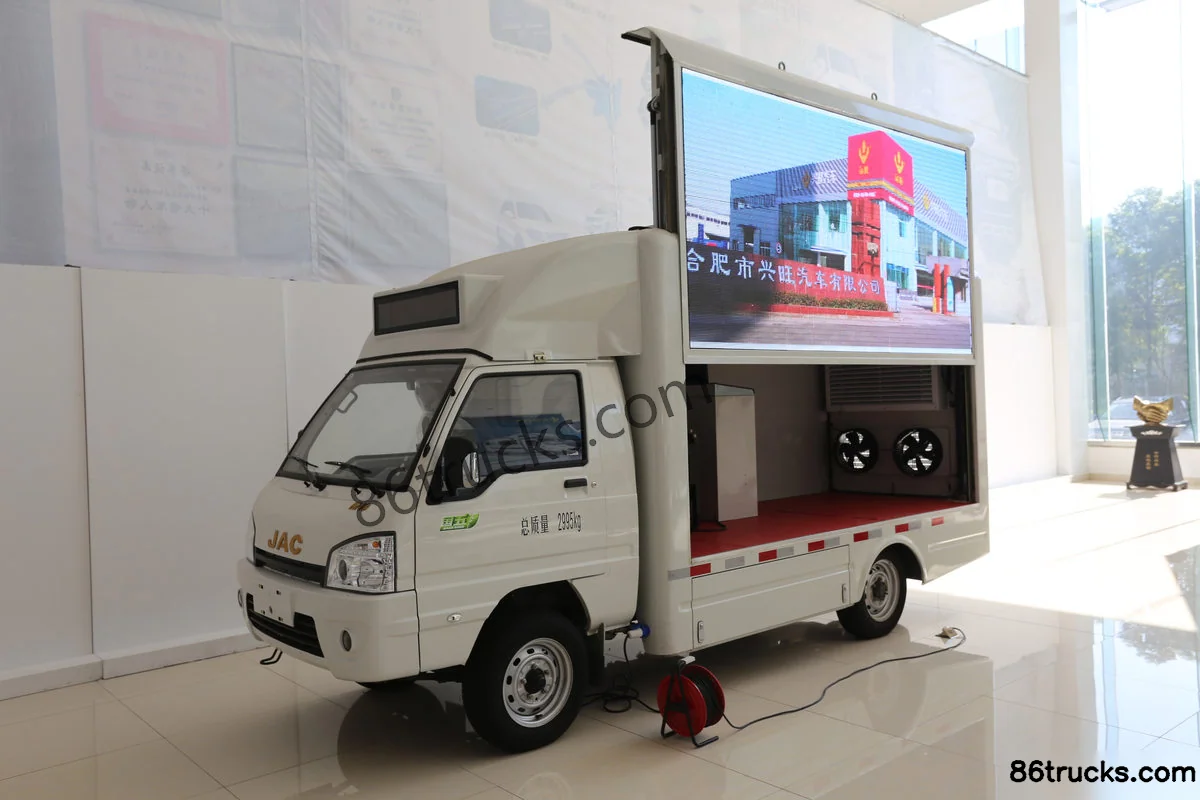

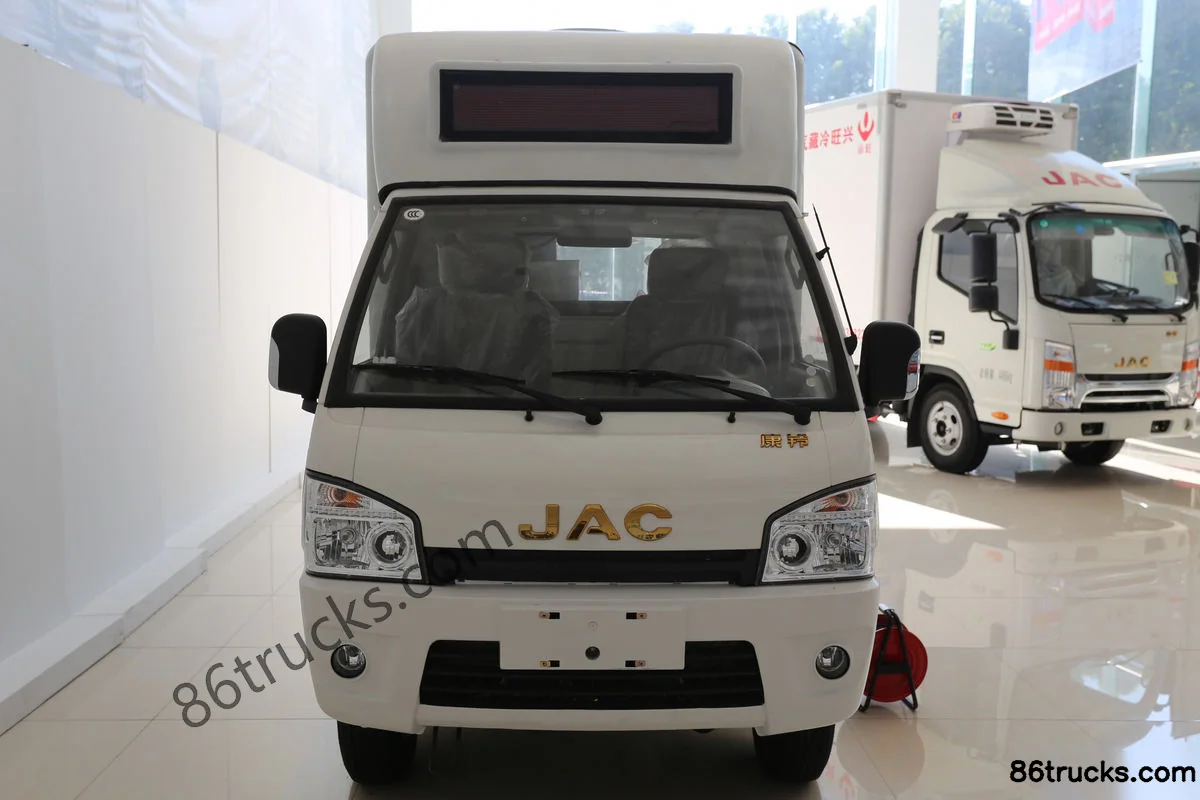

Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck Exterior (1) | 86Trucks Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck Exterior (2) | 86Trucks Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck Exterior (3) | 86Trucks

3 photos

FAQ

What is the export price of Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck, and what does it include?

Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck export reference is about From $11,944; MSRP is ¥8.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck?

Key specs of Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck: Drive: 4x2; Horsepower: 60 hp; Emission: China V; Fuel: gasoline; Engine: Liuji gasoline 1.1L; Transmission: Qingshan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck suited for?

Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck differ from other variants in the same series?

Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck belongs to Yuanwang JAC Chassis Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuanwang 60hp 4X2(6 wheels) 3.2m Small LED JAC Chassis Promotion Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
