Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck

Export reference
From $20,625
MSRP ¥14.85M CNY
Horsepower: 170
Emission: China VI
Fuel: Diesel
Engine: Fukang F3.8N
Transmission: Fast Gear
Curb Weight:: 4.4ton
seating capacity: 3Personnel
Rated payload: 4.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck is a Light Truck featuring 4.17m cargo length, stake body cargo body, 3Personnel volume and 4.495t payload. On the powertrain side, it comes with a Fukang F3.8N engine, 170 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1108VEJEA-AC1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3600mm
Box length class: 4.2m
engine: FotonF3.8NS6B170
transmission: Fast Gear8JS75TE
Rear Axle Ratio: 4.33
Cab length: 6.4m
Cab width: 2.37m
Cab height: 2.505m
Front track width: 1705mm
rear track: 1680mm
Curb Weight: 4.4ton
Rated payload: 4.495ton
GVWR: 9.59ton
Max. speed: 110km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 16°
departure angle: 11°
Front/rear suspension: 1.13/2.065m
Version: Bumblebee MINI Pro
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonF3.8NS6B170
Engine info: Fukang F3.8N
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.8L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Transmission Parameters
Transmission Model: Fast Gear8JS75TE
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.17m
Cargo box width: 2.2m
Cargo box height: 0.55m
*Cargo box interior width: 2.2
Cab parameters
Cab width: 2200mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 3350kg
rear axle description: 7T
rear axle allowable load: 6240kg
Axle ratio: 4.33
Leaf spring count: 9/8+6
Tire
Tire Size: 9.5R17.5
Number of tires: 6pcs
Control configuration
ABS:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

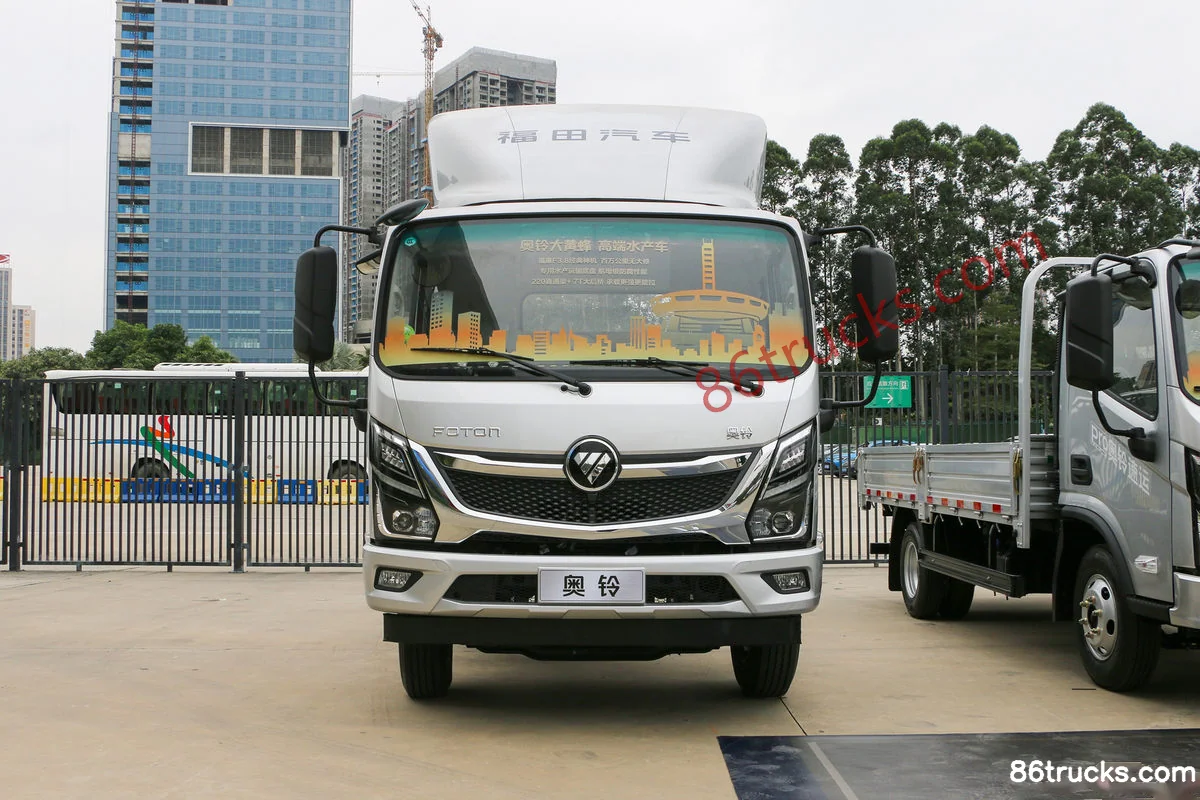

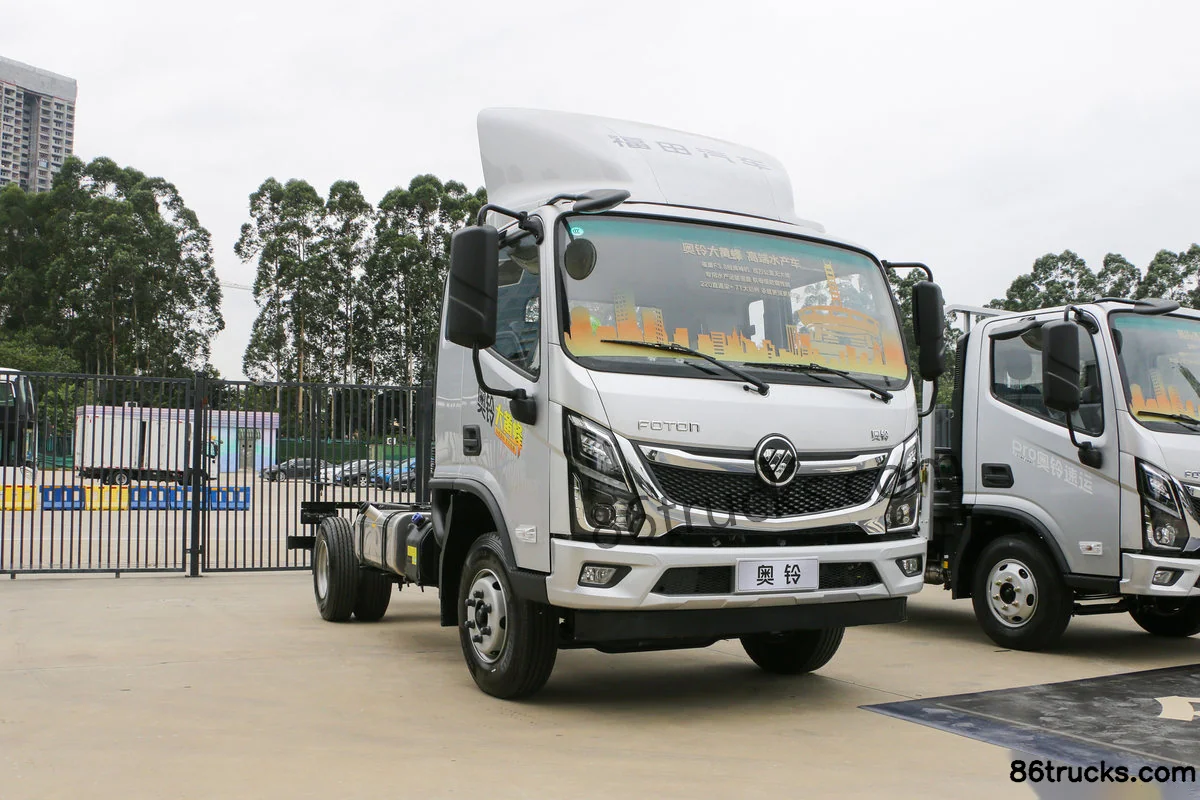

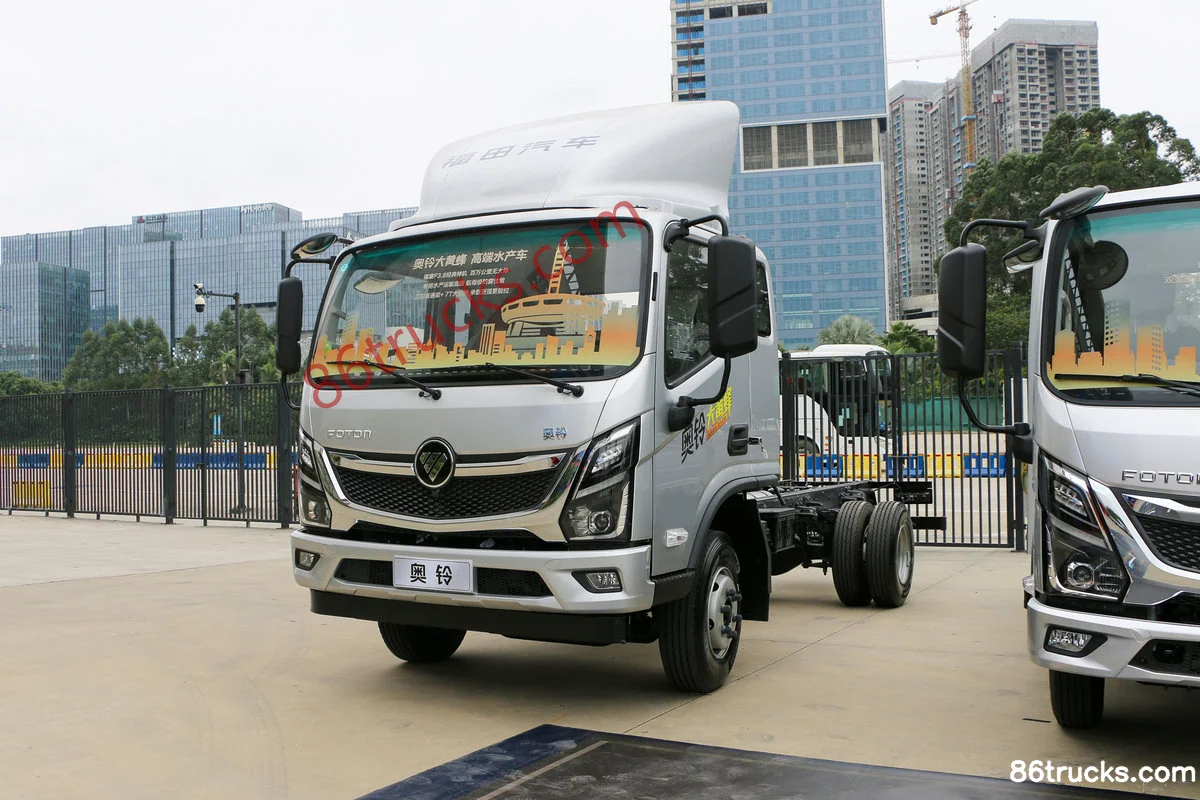

Exterior3

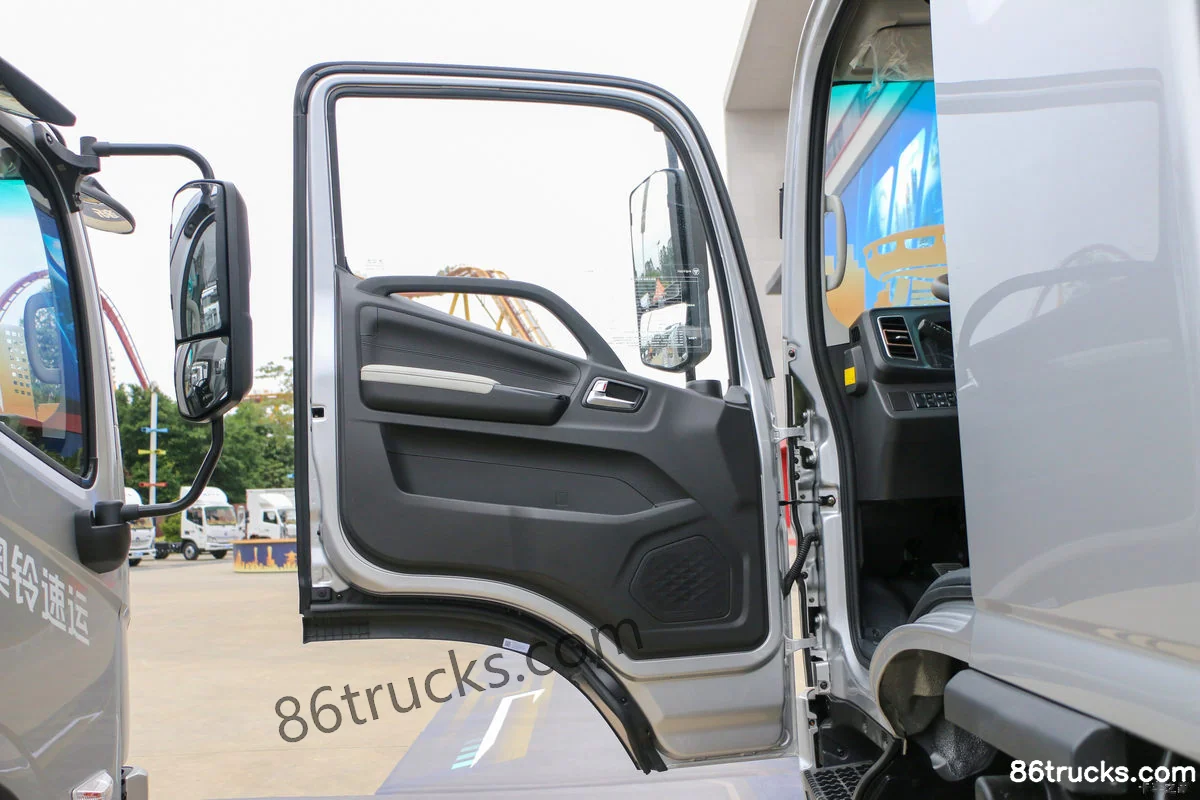

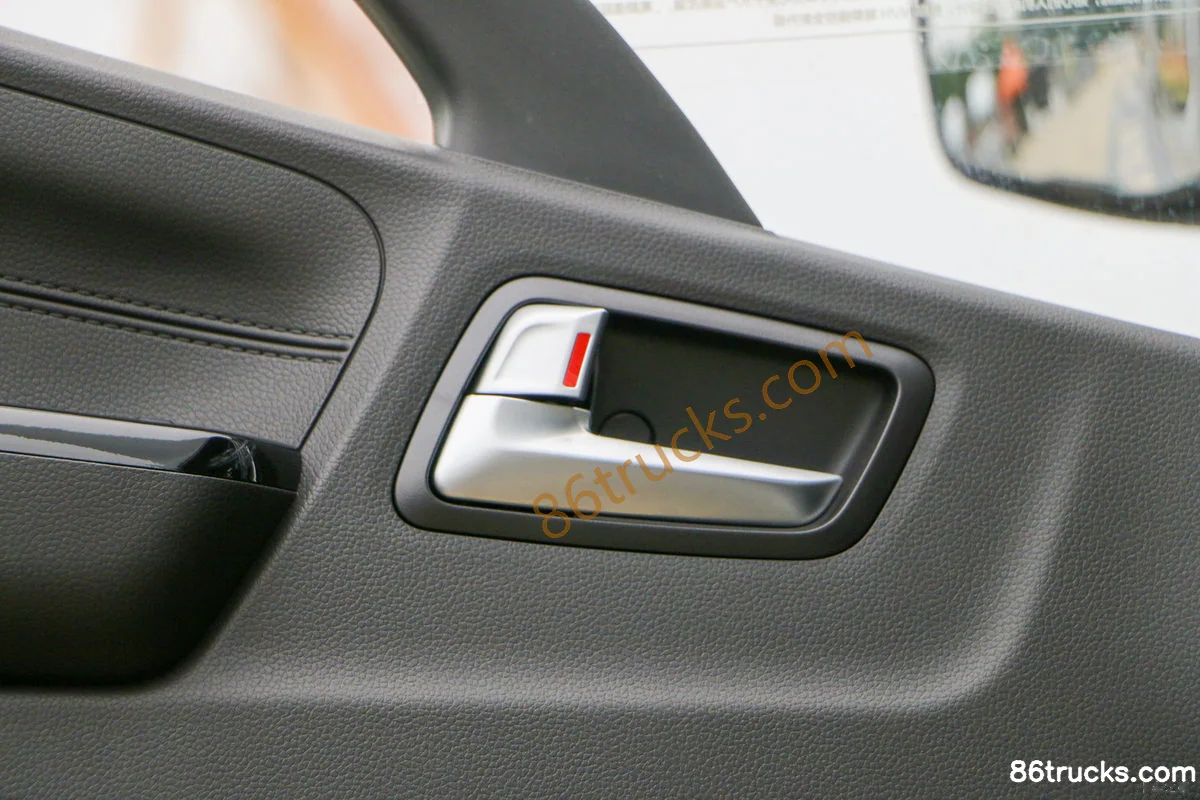

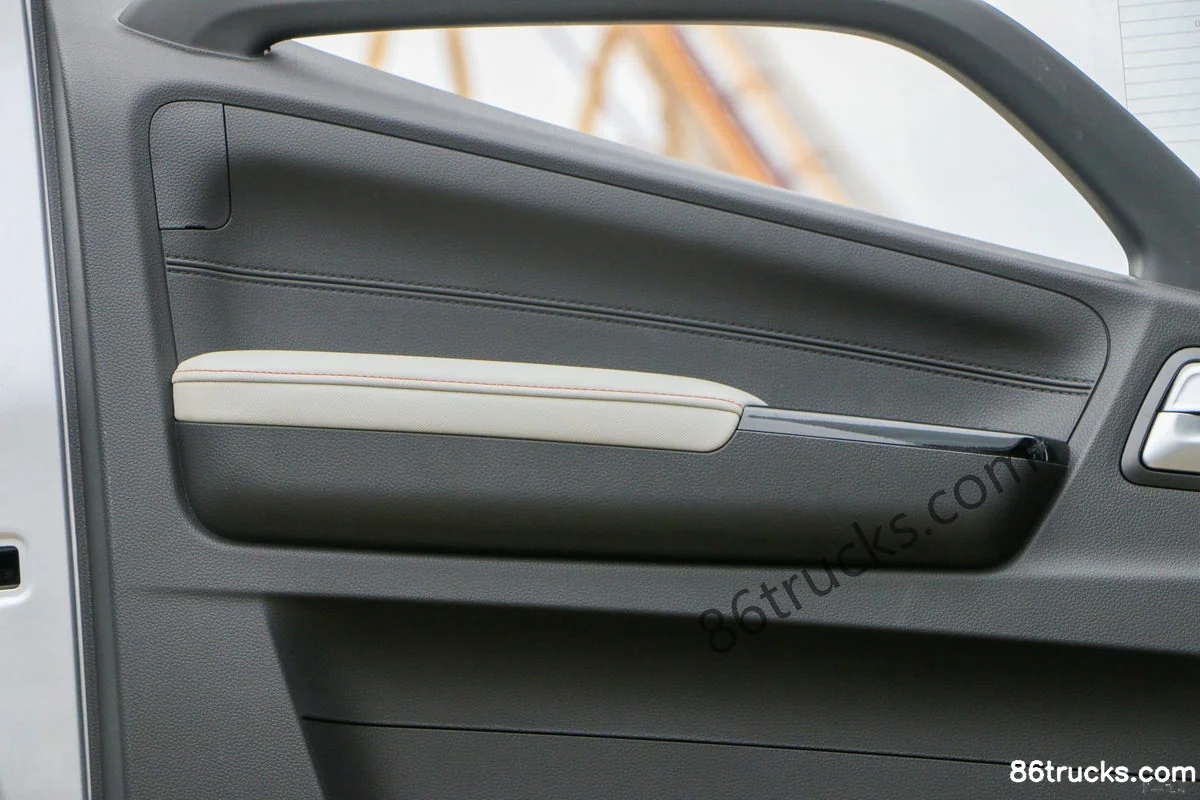

Cab3

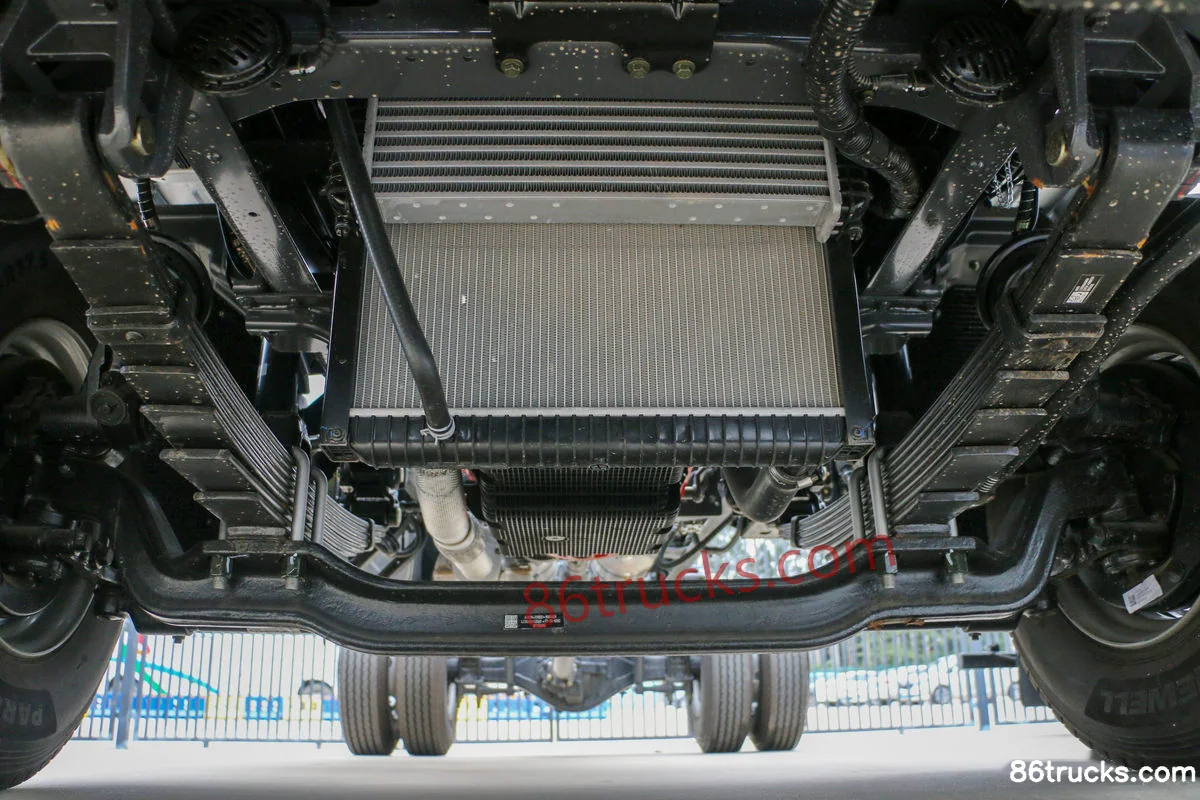

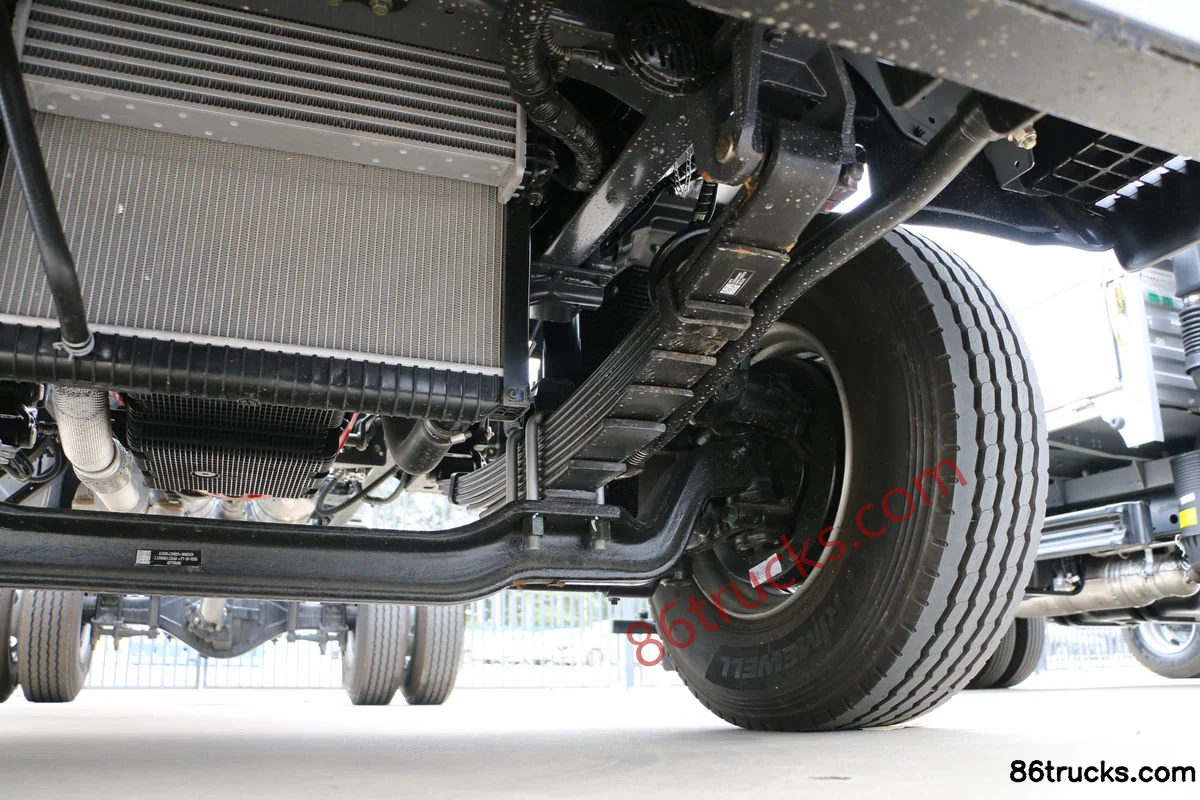

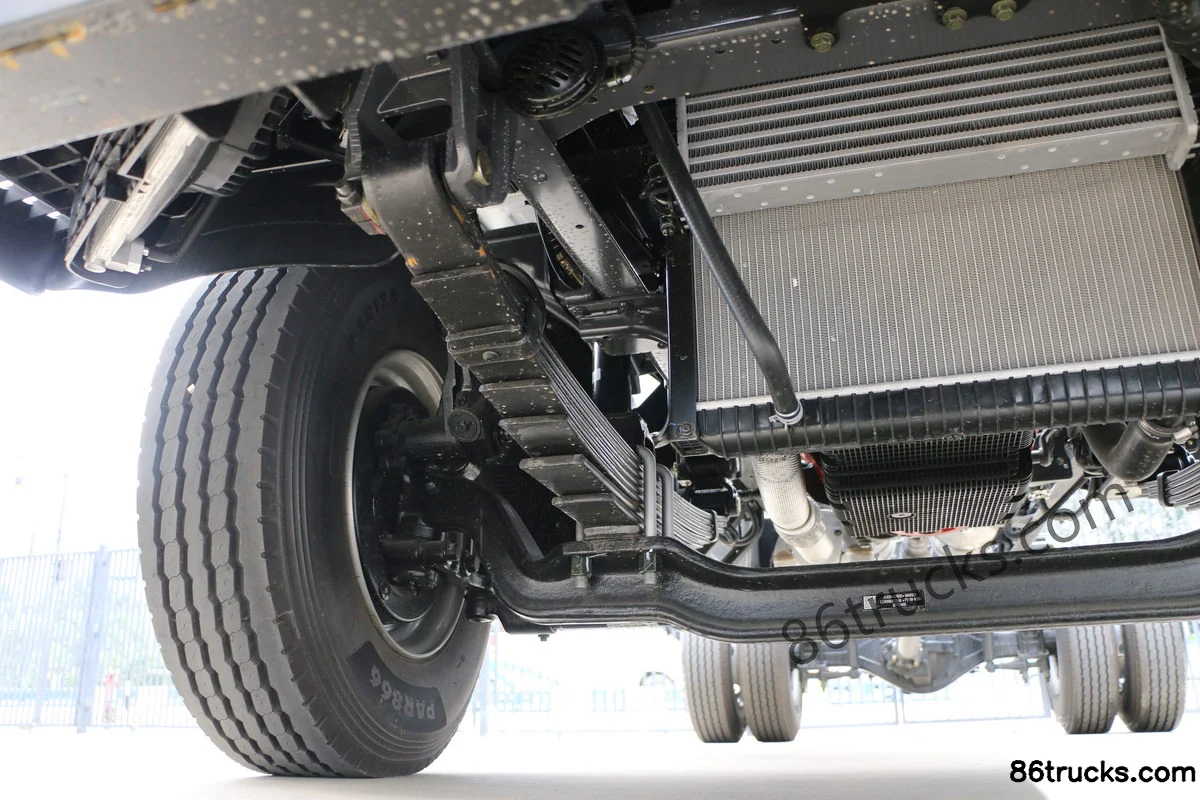

Chassis3

9 photos

FAQ

What is the export price of Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck, and what does it include?

Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck export reference is about From $20,625; MSRP is ¥14.85M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck?

Key specs of Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang F3.8N; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck suited for?

Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck differ from other variants in the same series?

Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck belongs to Foton Suyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin Big Bee Mini Pro 170hp 4X2(6 wheels) 4.17m half-cab flatbed cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
