Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand)

Export reference
From $22,472
MSRP ¥16.18M CNY
Curb Weight:: 3.665ton
Emission: China V
Fuel: Diesel
Wheelbase:: 3300mm
Cab dimensions:: 6.25×2.1×2.3m
Truck Type:: landscaping sprinkler truck
Tank Dimensions (L×W×H): 3.5×1.6×1.02m
Rated payload: 3.5ton
Drive 4X2 (6 wheels)
Horsepower 141

Overview

The Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand) is a water sprinkler truck featuring 3.5×1.6×1.02m tank capacity, 3.5t payload, 3.67m³ volume and 3.665ton GVW. On the powertrain side, it comes with 141 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 141 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.25×2.1×2.3m
Truck Type: landscaping sprinkler truck
Drive type: 4X2
Vehicle origin: Suizhou, Hubei
Wheelbase: 3300mm
Front track width: 1680mm
rear track: 1495mm
Curb Weight: 3.665ton
Rated payload: 3.5ton
Max. speed: 110km/h
Front/rear suspension: 1.125/1.825m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: FotonISF3.8s5141
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 105kW
Max hp: 141Horsepower
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Body Parameters
Tank Dimensions (L×W×H): 3.5×1.6×1.02m
Vehicle certification code: CLQ5070GPS5CH
Body Brand: Chufei Brand
Others: Medium: water, density: 1000 kg/m³; Others: factory A/C, power windows, power steering, full interior trim, doors (waterproof membrane + sound insulation), energy-absorbing steering wheel, 2.9-inch instrument cluster display, illuminated keyhole, ABS+EBD brake assist, engine self-check switch, multi-leaf springs + front stabilizer bar + heavy-duty multi-leaf springs, central locking, remote key, suspension seat, multi-torque fuel-saving switch, 7-inch LCD center display, USB, AUX, Bluetooth, reverse camera, heated mirrors, phone mirroring system.
Cargo box parameters
Box volume: 3.67m³
Chassis Specs
Chassis Brand: Hyundai Commercial Vehicle
Chassis Series: Shengtu H5
Chassis Model: CHM1071GDC33V
rear axle description: 5.1t Dongfeng DANA axle
Leaf spring count: 4/5+3
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY6GT55
Tire
Tire Size: 7.50R16 steel radial tire
Number of tires: 6pcs

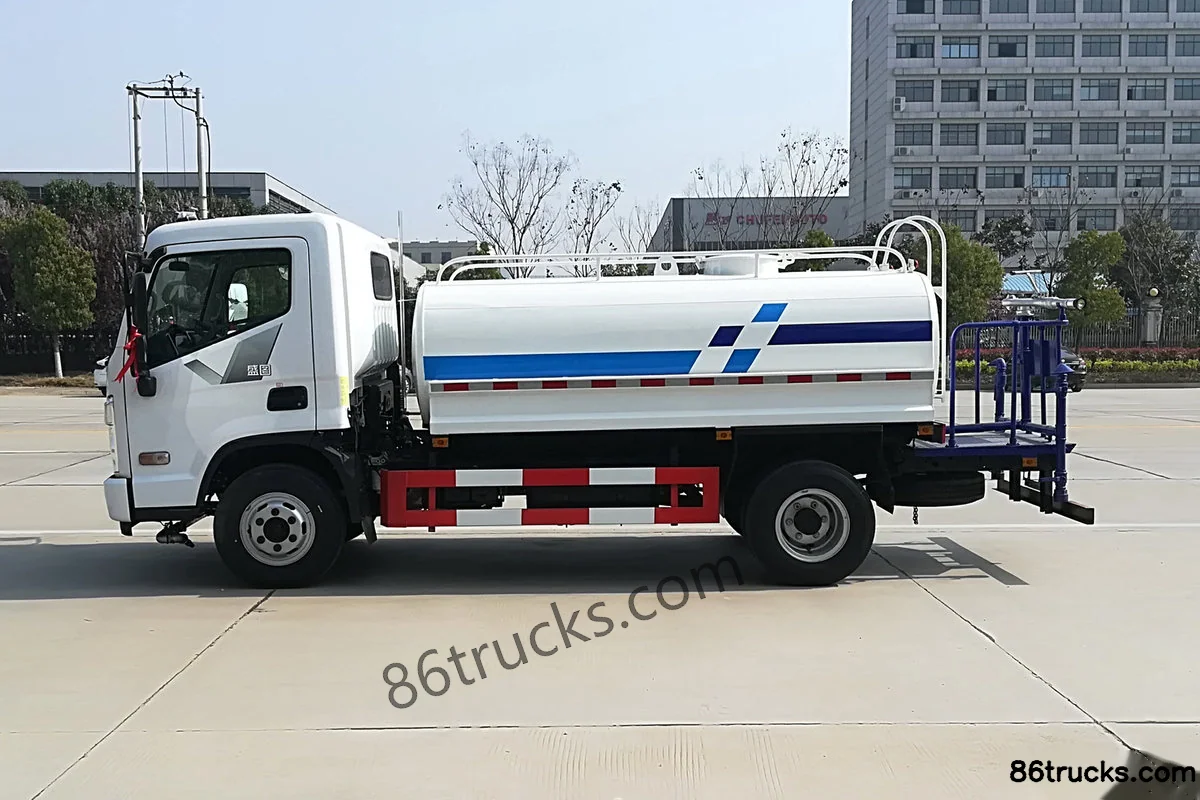

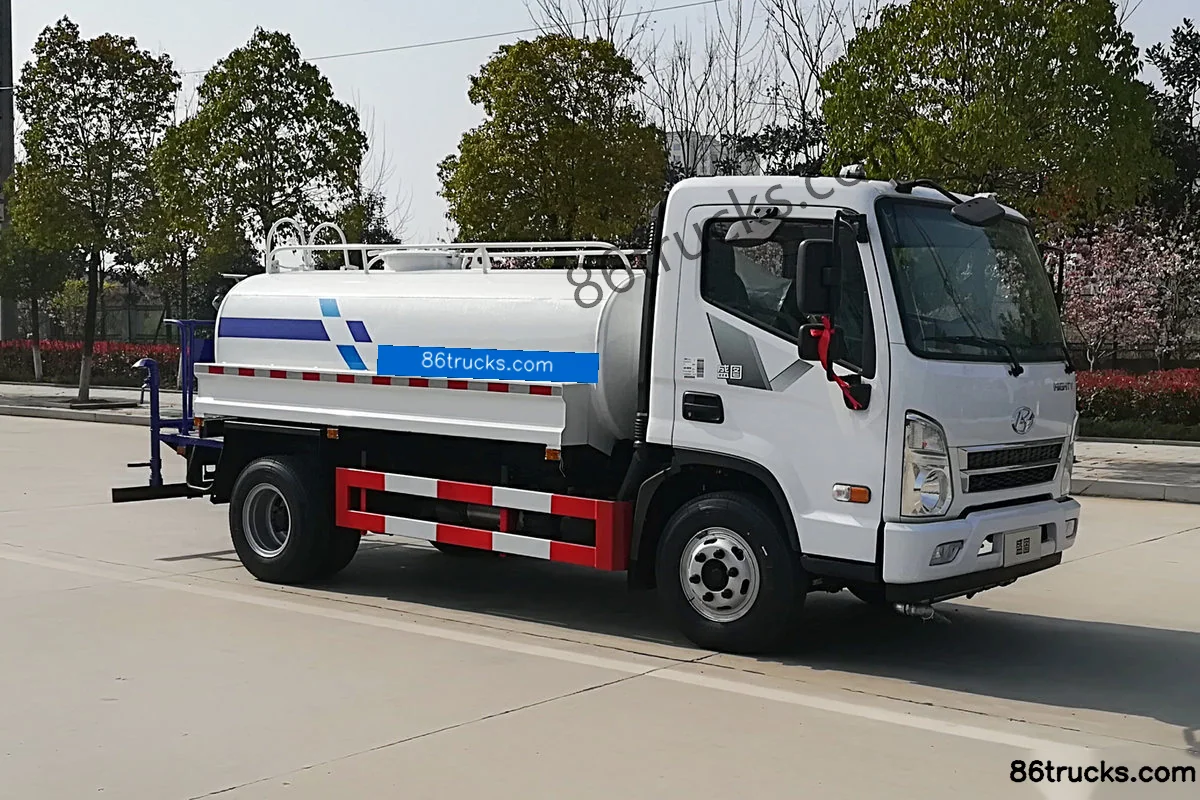

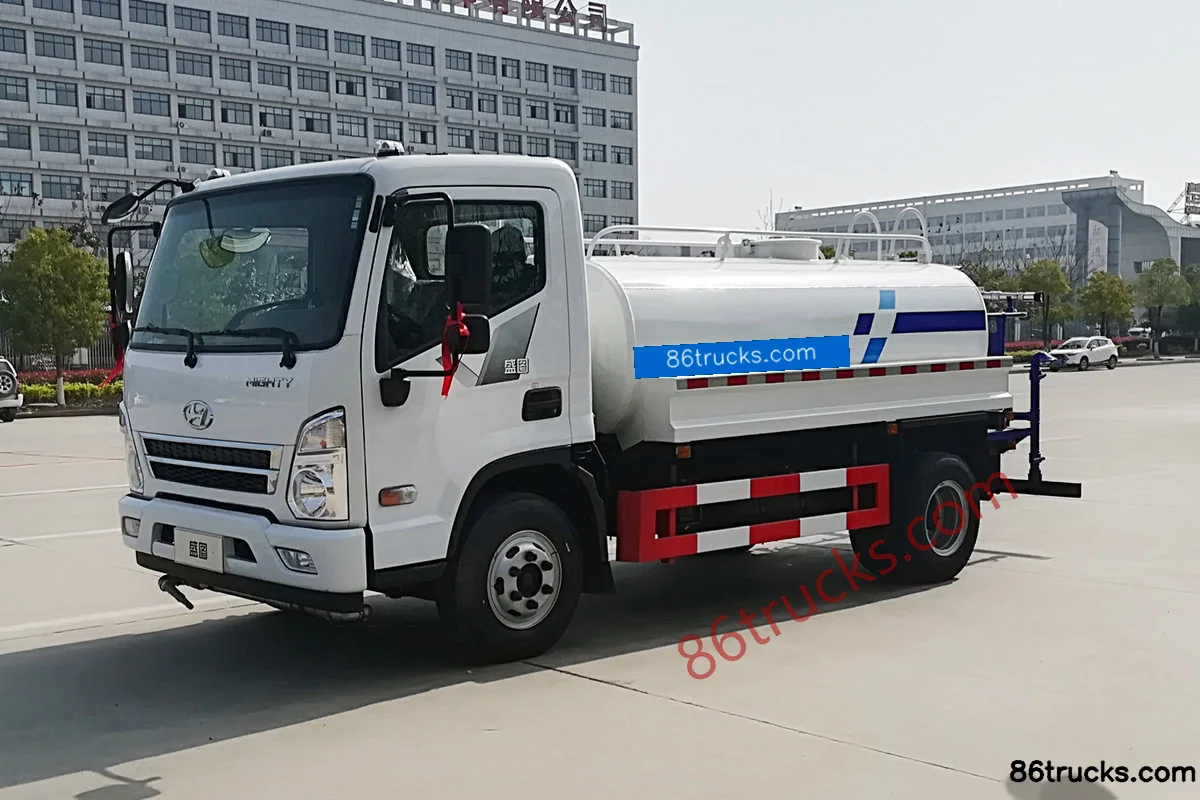

Photos

Exterior3

3 photos

FAQ

What is the export price of Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand), and what does it include?

Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand) export reference is about From $22,472; MSRP is ¥16.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand)?

Key specs of Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand): Drive: 4x2; Horsepower: 141 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand) suited for?

Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand) differ from other variants in the same series?

Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand) belongs to Chufei Hyundai Commercial Vehicle (formerly Sichuan Hyundai) chassis (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hyundai Commercial Vehicle (formerly Sichuan Hyundai) 141hp 4X2(6 wheels) green sprinkler truck (Chufei brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
