SRM Xinyuan T20EV Comfort 2.1T 2.64m Single Row Pure Electric Box Van Mini Truck (SRM Badge) 35.04kWh 4X2(6 wheels)

Export reference
From $15,250
MSRP ¥10.98M CNY
Rated payload:: 0.76ton
Wheelbase:: 2760mm
Cargo box volume:: 5.82m³
Model code (announced):: JKC5022XXY-DABEV
Type:: enclosed cargo truck
Box length class:: 2.6m
Drive 4X2 (6 wheels)
CLTC range: 300km
Motor 1 Brand: Dewos
Curb Weight: 1.21ton

Overview

The SRM Xinyuan T20EV Comfort 2.1T 2.64m Single Row Pure Electric Box Van Mini Truck (SRM Badge) 35.04kWh 4X2(6 wheels) is a mini truck featuring 300km battery/range, Dewos motor, 4X2 (6 wheels) drive and 0.76t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC5022XXY-DABEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2760mm
Box length class: 2.6m
Cab length: 4.6m
Cab width: 1.56m
Cab height: 2.3m
CLTC range: 300km
Curb Weight: 1.21ton
Rated payload: 0.76ton
GVWR: 2.1ton
Max. speed: 85km/h
Origin: Chongqing
tonnage class: mini truck
Version: Comfort Type
Energy Type: Electric
electric motor
Motor 1 Brand: Dewos
Motor 1 Model: DWS-TYC-320-18A
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 18kW
Peak power: 45kW
total peak torque: 170N·m
Battery/Charging
Battery Brand: Lishen
Charging method: DC fast charge / slow charge
Battery type: NMC lithium battery pack
Battery capacity: 35.04kWh
Energy Density: 135.47
Battery total voltage: 350.4V
Cargo box parameters
Cargo box volume: 5.82m³
Cargo box type: Van body
Cargo box length: 2.64m
Cargo box width: 1.46m
Cargo box height: 1.51m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 910kg
rear axle allowable load: 1190kg
Tire
Tire Size: 155R13LT 8PR
Number of tires: 4pcs
Control configuration
ABS:
Power steering: Electric Power Steering
lighting configuration
Front fog lamp:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

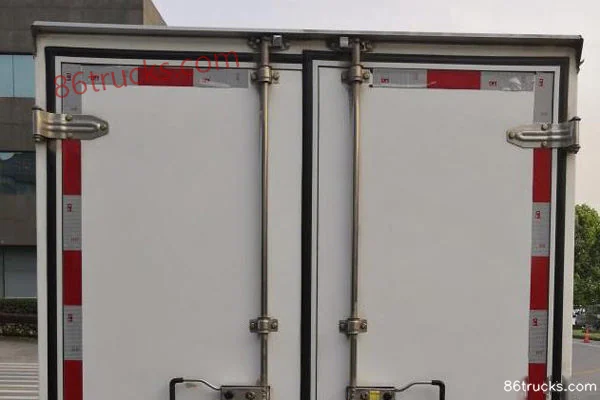

Exterior3

3 photos

FAQ

What is the export price of SRM Xinyuan T20EV Comfort 2.1T 2.64m Single Row Pure Electric Box Van Mini Truck (SRM Badge) 35.04kWh 4X2(6 wheels), and what does it include?

SRM Xinyuan T20EV Comfort 2.1T 2.64m Single Row Pure Electric Box Van Mini Truck (SRM Badge) 35.04kWh 4X2(6 wheels) export reference is about From $15,250; MSRP is ¥10.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of SRM Xinyuan T20EV Comfort 2.1T 2.64m Single Row Pure Electric Box Van Mini Truck (SRM Badge) 35.04kWh 4X2(6 wheels)?

Key specs of SRM Xinyuan T20EV Comfort 2.1T 2.64m Single Row Pure Electric Box Van Mini Truck (SRM Badge) 35.04kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SRM Xinyuan T20EV Comfort 2.1T 2.64m Single Row Pure Electric Box Van Mini Truck (SRM Badge) 35.04kWh 4X2(6 wheels) suited for?

SRM Xinyuan T20EV Comfort 2.1T 2.64m Single Row Pure Electric Box Van Mini Truck (SRM Badge) 35.04kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SRM Xinyuan T20EV Comfort 2.1T 2.64m Single Row Pure Electric Box Van Mini Truck (SRM Badge) 35.04kWh 4X2(6 wheels) differ from other variants in the same series?

SRM Xinyuan T20EV Comfort 2.1T 2.64m Single Row Pure Electric Box Van Mini Truck (SRM Badge) 35.04kWh 4X2(6 wheels) belongs to Huajin Xinyuan Jinbei T20 EV (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SRM Xinyuan T20EV Comfort 2.1T 2.64m Single Row Pure Electric Box Van Mini Truck (SRM Badge) 35.04kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SRM Xinyuan T20EV Comfort 2.1T 2.64m Single Row Pure Electric Box Van Mini Truck (SRM Badge) 35.04kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
