Sinotruk Sitrak C5H Medium Truck 240 hp 4X2(6 wheels) 7.9m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 240
Emission: China IV
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: ZF
Curb Weight:: 7.52ton
seating capacity: 3Personnel
Rated payload: 8.35ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk Sitrak C5H Medium Truck 240 hp 4X2(6 wheels) 7.9m Van Cargo Truck is a Medium-duty truck featuring 7.92m cargo length, Van body cargo body, 3Personnel volume and 8.35t payload. On the powertrain side, it comes with a SinotrukMAN7L engine, 240 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5166XXYK561GD1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5600mm
Box length class: 7.9m
engine: SinotrukMC07.24-40
transmission: ZFZF9T1280OD
Rear Axle Ratio: 5.29
Cab length: 10m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 1955mm
rear track: 1764mm
Curb Weight: 7.52ton
Rated payload: 8.35ton
GVWR: 16ton
Max. speed: 110km/h
Origin: Jinan, Shandong
tonnage class: Medium-duty truck
Approach angle: 16°
departure angle: 10°
Front/rear suspension: 1.43/2.97m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.24-40
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China IV
Max output power: 176kW
Max hp: 240Horsepower
Max torque: 925N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: ZFZF9T1280OD
Transmission Brand: ZF
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.92m
Cargo box width: 2.42m
Cargo box height: 2.5m
*Cargo box interior width: 2.4200000762939
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: air suspension seat
Sunroof: Manual sunroof
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: VPD060QB disc
Front axle allowable load: 6000kg
rear axle description: MCY11 single axle
rear axle allowable load: 10000kg
Axle ratio: 5.29
Leaf spring count: 3/3+2
clutch: Φ430
Tire
Tire Size: 9.00R20,10.00R20,275/80R22.5
Number of tires: 6pcs
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
smart configuration
Cruise control (CCS):

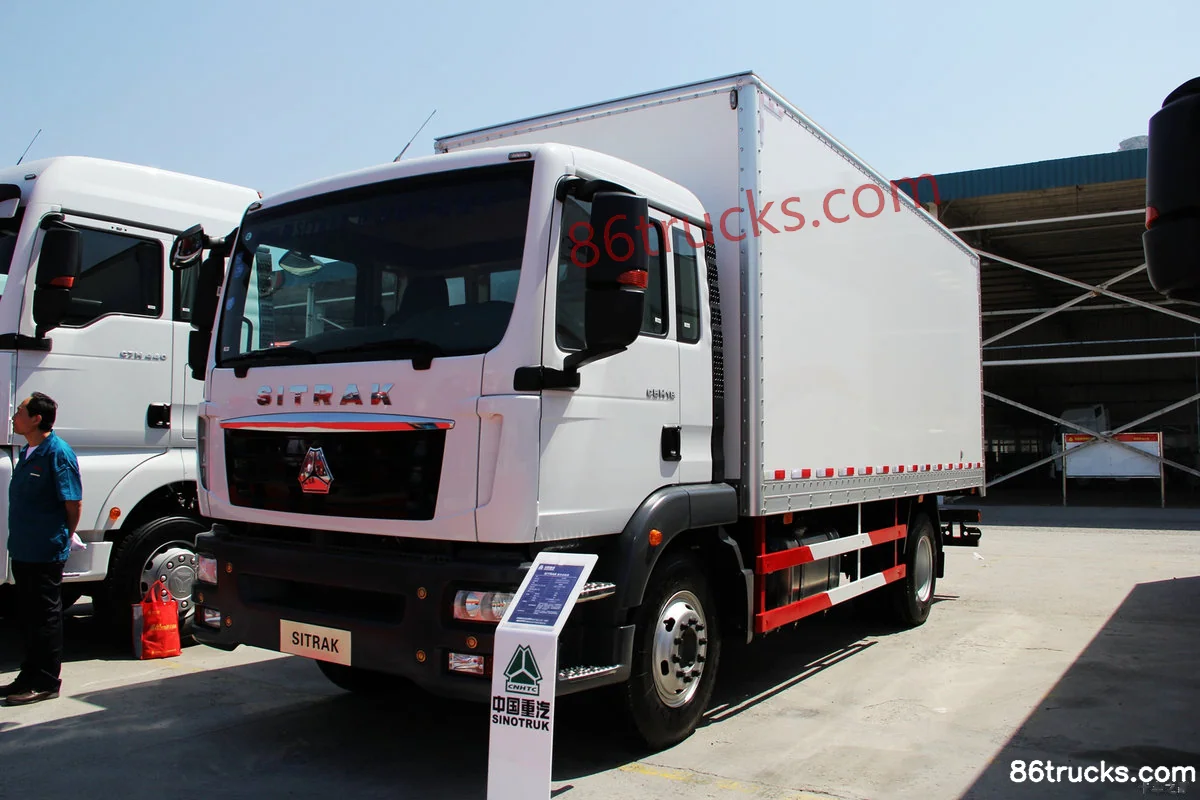

Photos

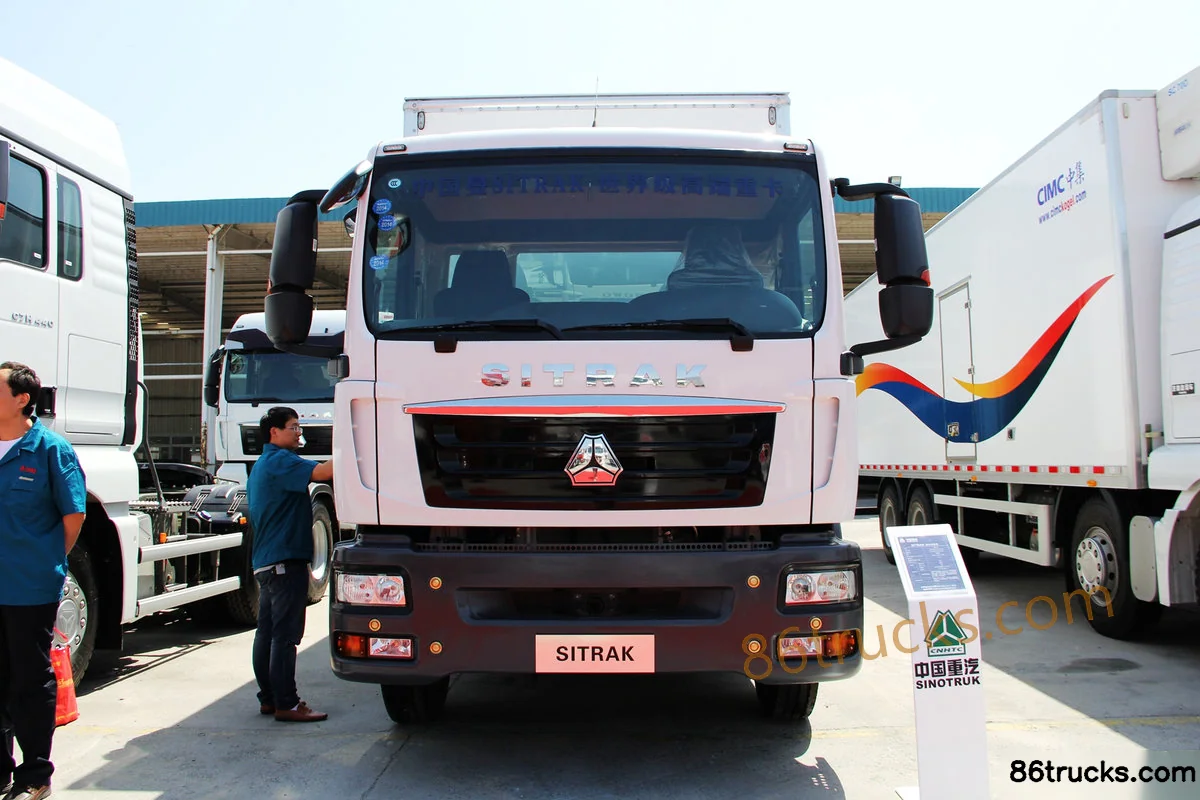

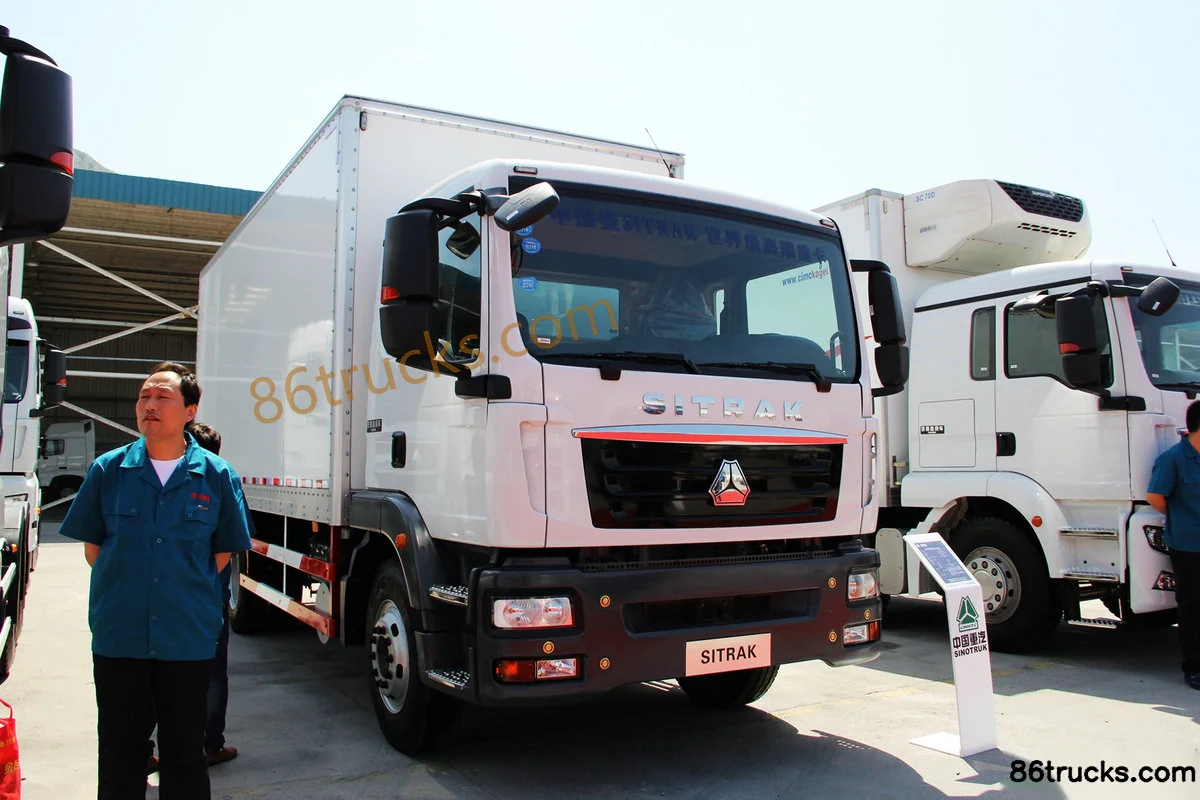

Exterior3

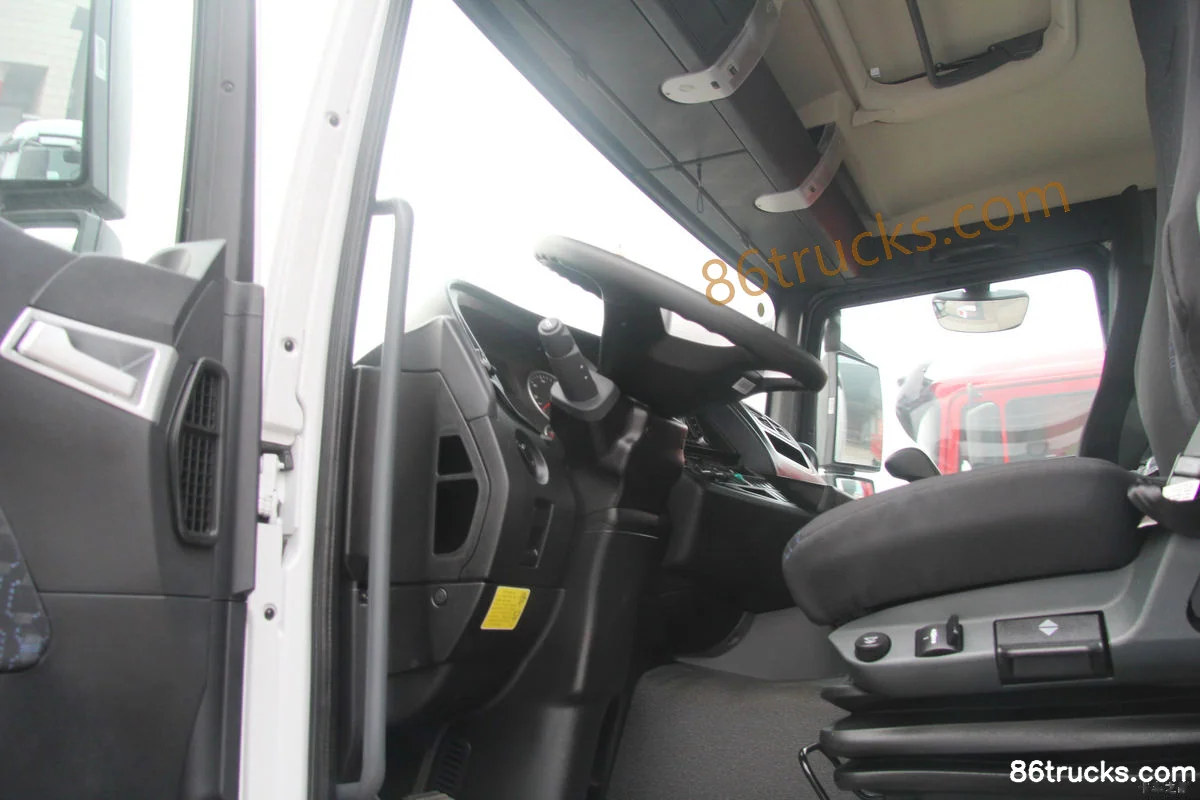

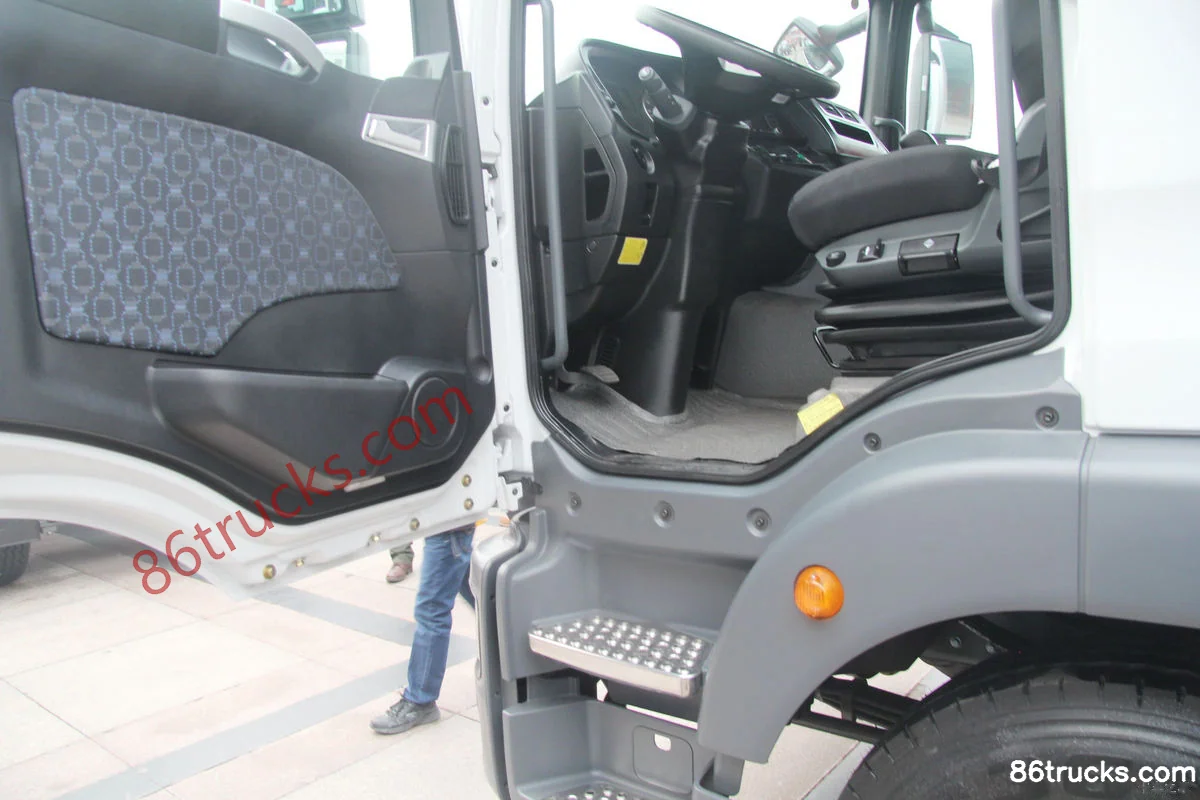

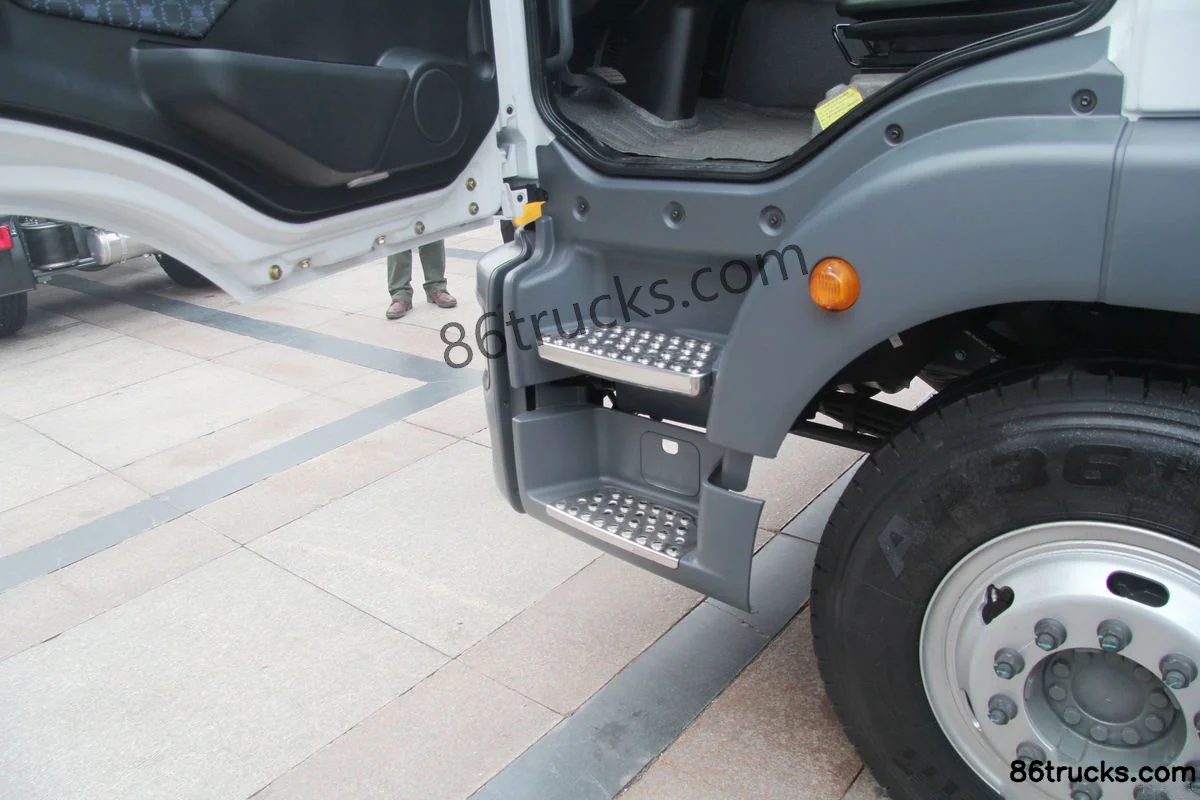

Cab3

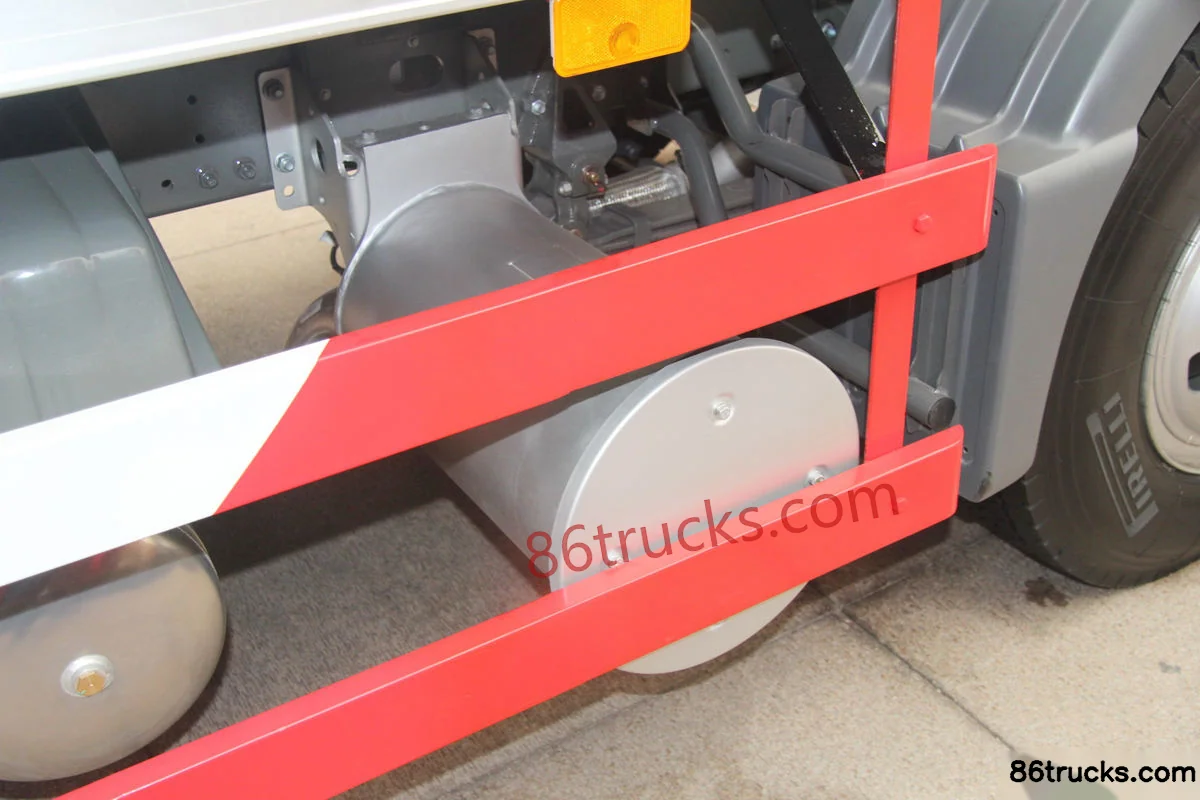

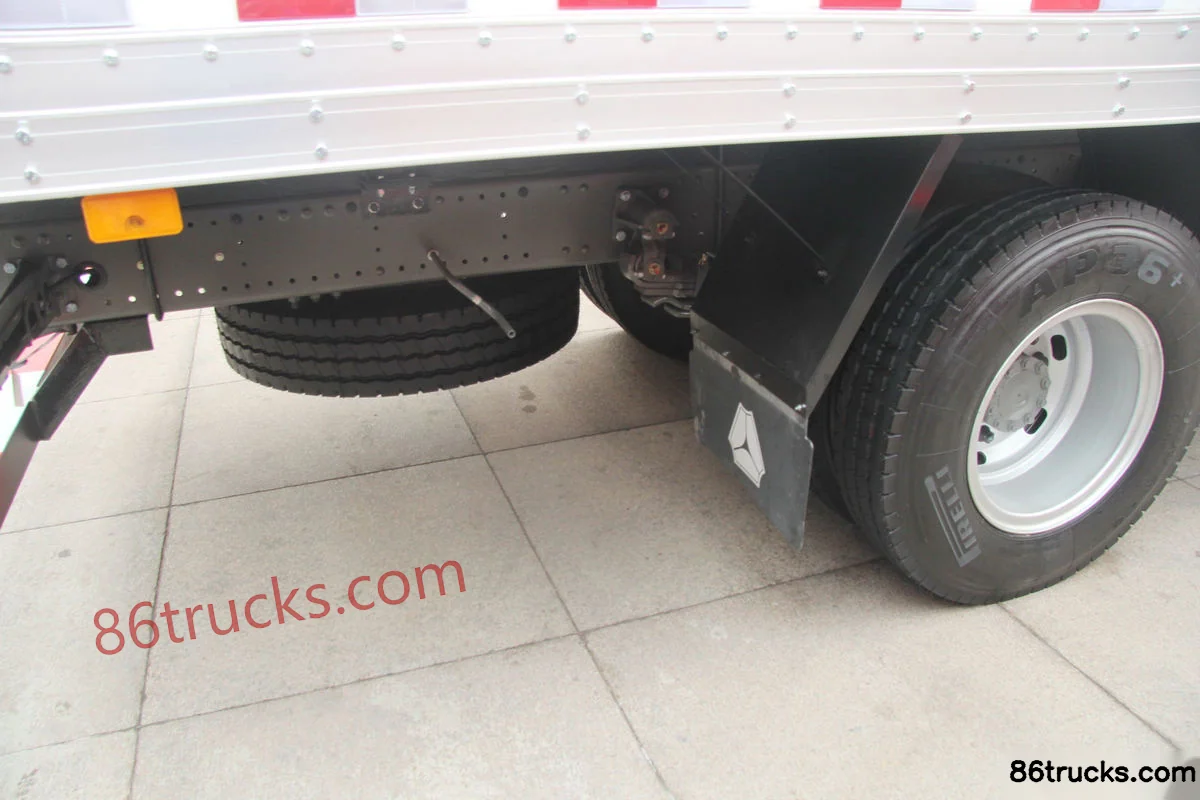

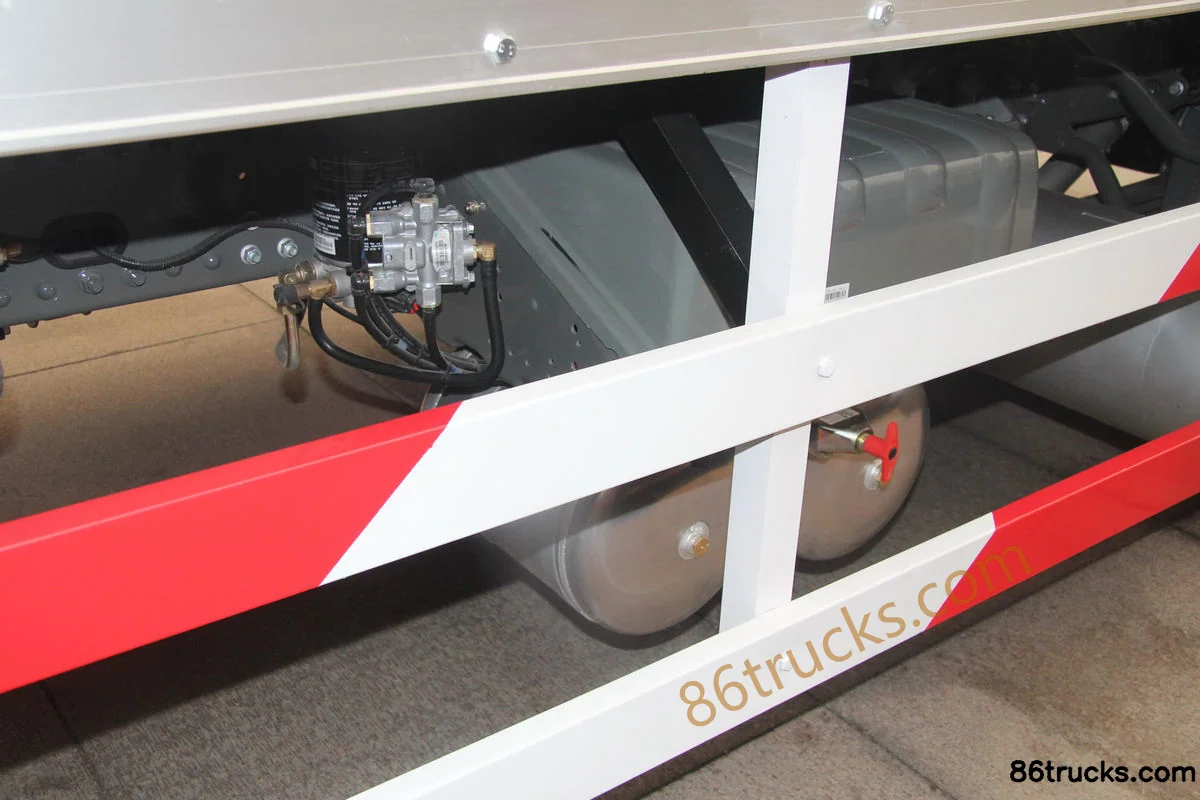

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Sitrak C5H Medium Truck 240 hp 4X2(6 wheels) 7.9m Van Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak C5H Medium Truck 240 hp 4X2(6 wheels) 7.9m Van Cargo Truck?

Key specs of Sinotruk Sitrak C5H Medium Truck 240 hp 4X2(6 wheels) 7.9m Van Cargo Truck: Drive: 4x2; Horsepower: 240 hp; Emission: China IV; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak C5H Medium Truck 240 hp 4X2(6 wheels) 7.9m Van Cargo Truck suited for?

Sinotruk Sitrak C5H Medium Truck 240 hp 4X2(6 wheels) 7.9m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak C5H Medium Truck 240 hp 4X2(6 wheels) 7.9m Van Cargo Truck differ from other variants in the same series?

Sinotruk Sitrak C5H Medium Truck 240 hp 4X2(6 wheels) 7.9m Van Cargo Truck belongs to Sitrak C5H heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak C5H Medium Truck 240 hp 4X2(6 wheels) 7.9m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak C5H Medium Truck 240 hp 4X2(6 wheels) 7.9m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
