Hualing HanmaH7 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Hanma
Curb Weight:: 12.3ton
Wheelbase:: 3900+1350mm
Tire Size:: 11.00R20
Rated payload: 12.57ton
Drive 6X4 (10 wheels)
Horsepower 345
Cargo box type: Dump type

Overview

The Hualing HanmaH7 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck is a Heavy truck featuring 12.57t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a Hanma CM6D18.345 50 engine, 345 hp, China V emissions and Hanma transmission.

China V 345 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN3250H35C9M5
Drive type: 6X4
Wheelbase: 3900+1350mm
engine: Hanma CM6D18.345 50
transmission: Hanma12SDCY1851A
Cab length: 8.6m
Cab width: 2.55m
Cab height: 3.6m
Front track width: 2065mm
rear track: 1860/1860mm
Curb Weight: 12.3ton
Rated payload: 12.57ton
GVWR: 25ton
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 19°
Energy Type: Diesel
Engine parameters
Engine Brand: Hanma
Engine Model: Hanma CM6D18.345 50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.84L
Emission standard: China V
Max output power: 254kW
Max hp: 345Horsepower
Max torque: 1660N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Model: Hanma12SDCY1851A
Transmission Brand: Hanma
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 380L
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 7000kg
Frame Dimensions: 310(8+8)mm
rear axle description: HL300A
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 9/12
Tire
Tire Size: 11.00R20
Number of tires: 10pcs
Control configuration
ABS:

Photos

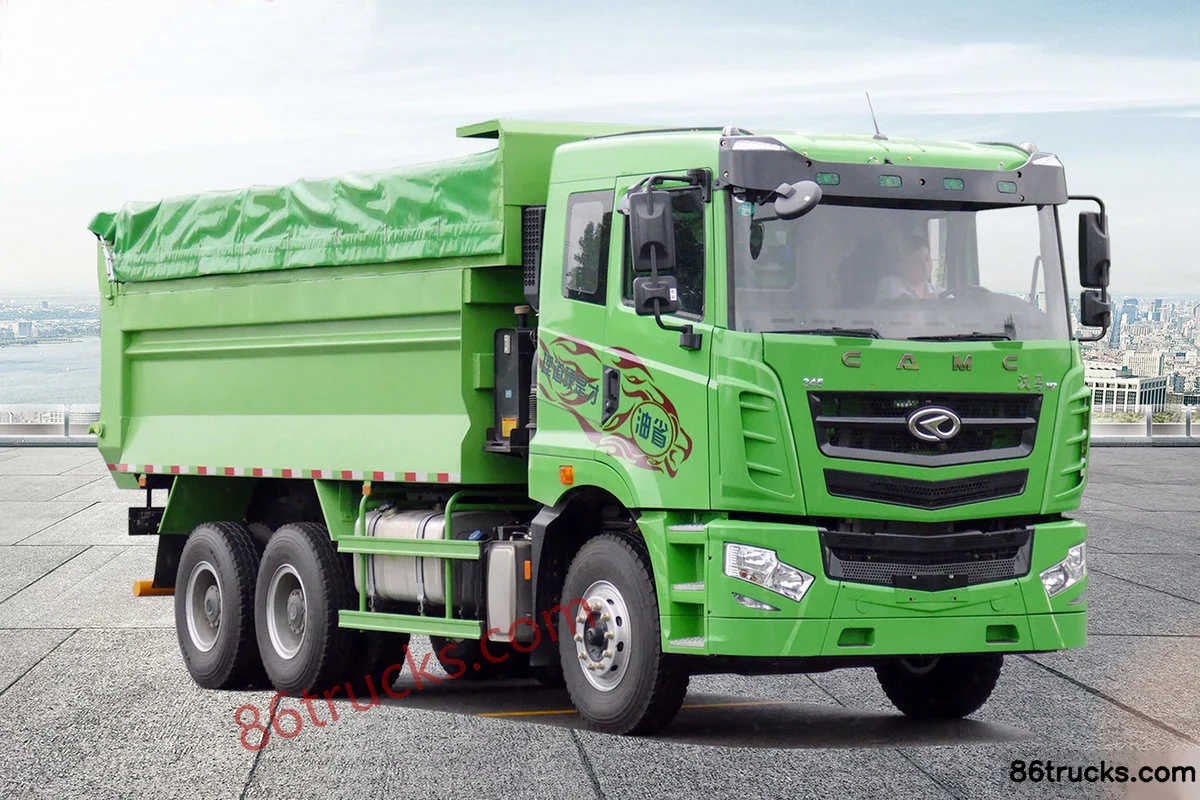

Exterior1

1 photos

FAQ

What emission standard does Hualing HanmaH7 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing HanmaH7 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck?

Key specs of Hualing HanmaH7 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck: Drive: 6x4; Horsepower: 345 hp; Emission: China V; Fuel: Diesel; Transmission: Hanma. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing HanmaH7 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck suited for?

Hualing HanmaH7 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing HanmaH7 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck differ from other variants in the same series?

Hualing HanmaH7 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck belongs to Hualing Hanma H7 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing HanmaH7 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing HanmaH7 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
