Sinotruk Haoman H3 170 hp 4X2(6 wheels) 5.5m Half Row Stake Truck

Export reference
MSRP N/A
Horsepower: 170
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei F40E
Transmission: Sinotruk
Curb Weight:: 6.02ton
seating capacity: 3Personnel
Rated payload: 9.785ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Sinotruk Haoman H3 170 hp 4X2(6 wheels) 5.5m Half Row Stake Truck is a Light Truck featuring 5.5m cargo length, Stake type cargo body, 3Personnel volume and 9.785t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei F40E engine, 170 hp, 4X2 (6 wheels) drive and China V emissions.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5168CCYF17EB1
Type: stake truck
Drive type: 4X2
Wheelbase: 4200mm
Box length class: 5.5m
engine: Yunnei PowerYNF40E1
transmission: SinotrukHW90510C
Rear Axle Ratio: 4.875
Cab length: 7.445m
Cab width: 2.548m
Cab height: 3.75m
Front track width: 1825mm
rear track: 1790mm
Curb Weight: 6.02ton
Rated payload: 9.785ton
GVWR: 16ton
Max. speed: 90km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 17°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.24/2.005m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYNF40E1
Engine info: Yunnei Dewei F40E
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.92L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 600N·m
Max torque speed: 1300-1900rpm
Rated speed: 2600rpm
Engine Type: 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train
Transmission Parameters
Transmission Model: SinotrukHW90510C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 5.5m
Cargo box width: 2.46m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 5600kg
rear axle allowable load: 10400kg
Axle ratio: 4.875
Leaf spring count: 9/12+9,11/9+7
Tire
Tire Size: 9.00R20 16PR,10R22.5 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

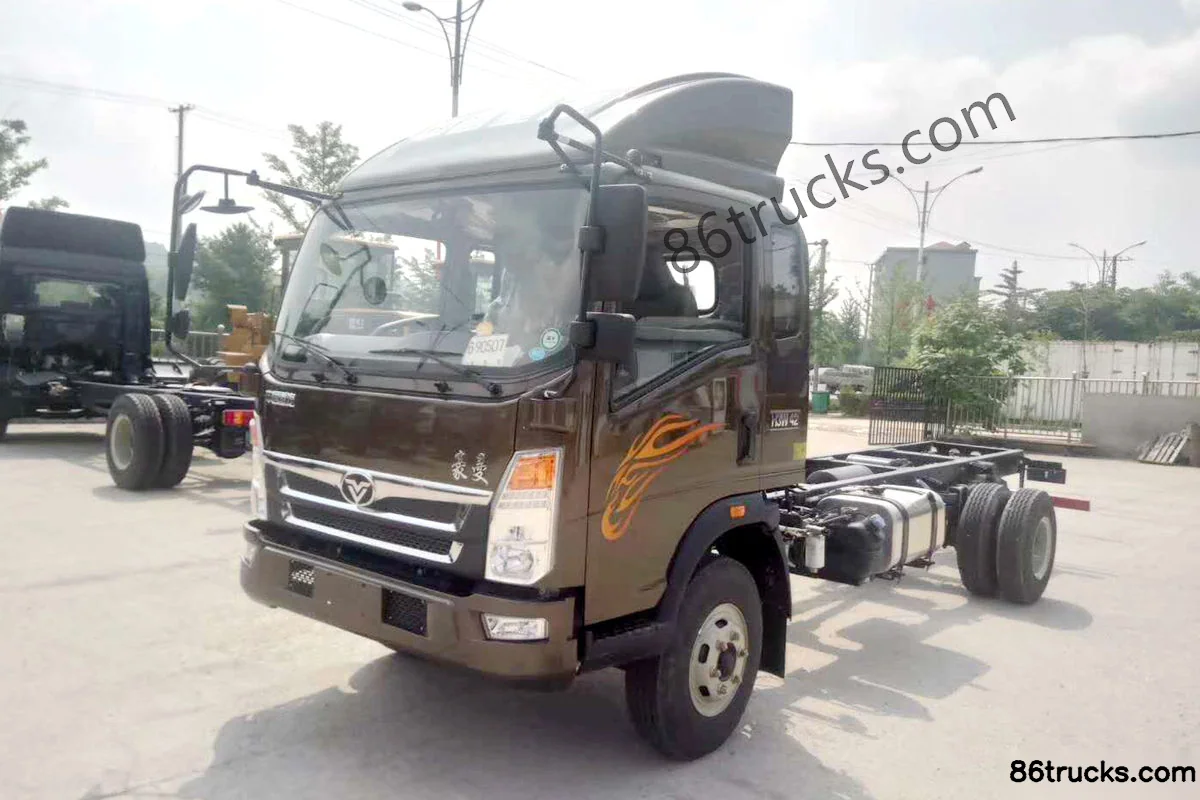

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Haoman H3 170 hp 4X2(6 wheels) 5.5m Half Row Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haoman H3 170 hp 4X2(6 wheels) 5.5m Half Row Stake Truck?

Key specs of Sinotruk Haoman H3 170 hp 4X2(6 wheels) 5.5m Half Row Stake Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei F40E; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haoman H3 170 hp 4X2(6 wheels) 5.5m Half Row Stake Truck suited for?

Sinotruk Haoman H3 170 hp 4X2(6 wheels) 5.5m Half Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Haoman H3 170 hp 4X2(6 wheels) 5.5m Half Row Stake Truck differ from other variants in the same series?

Sinotruk Haoman H3 170 hp 4X2(6 wheels) 5.5m Half Row Stake Truck belongs to Sinotruk Pioneer Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haoman H3 170 hp 4X2(6 wheels) 5.5m Half Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haoman H3 170 hp 4X2(6 wheels) 5.5m Half Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
