JAC Weiling K5 132 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck

Export reference
From $14,972
MSRP ¥10.78M CNY
Horsepower: 132
Emission: China VI
Fuel: Diesel
Engine: Quanchai2.3L
Transmission: Xingrui
Curb Weight:: 2.56ton
seating capacity: 3Personnel
Rated payload: 1.73ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Weiling K5 132 hp 4X2(6 wheels) 3.7m Single Row Flatbed Light Truck is a Light Truck featuring 3.7m cargo length, stake body cargo body, 3Personnel volume and 1.73t payload. Its segment focus covers Construction material transport and logistics distribution, matching those duty cycles. On the powertrain side, it comes with a Quanchai2.3L engine, 132 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 132 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1045P32K1C7NS
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2850mm
Box length class: 3.7m
engine: QuanchaiQ23-132E60
transmission: Xingrui ML532A
Rear Axle Ratio: 4.875
Cab length: 5.46m
Cab width: 2.005m
Cab height: 2.31m
Front track width: 1595mm
rear track: 1475mm
Curb Weight: 2.56ton
Rated payload: 1.73ton
GVWR: 4.485ton
Max. speed: 110km/h
Origin: Suining, Sichuan
tonnage class: Light Truck
Approach angle: 21°
departure angle: 14°
market segment: Construction material transport, logistics distribution
Remarks: Optional transmission ML540A. Optional ratios 5.375, 6.142
Front/rear suspension: 1.075/1.545m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-132E60
Engine info: Quanchai2.3L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 97kW
Max hp: 132Horsepower
Transmission Parameters
Transmission Model: Xingrui ML532A
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.7m
Cargo box width: 1.9m
Cargo box height: 0.37m
*Cargo box interior width: 1.9
Cab parameters
Cab width: 1835mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 80L
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1695kg
Frame Dimensions: 180×65×4.5(750)mm
rear axle description: 4T
rear axle allowable load: 2790kg
Axle ratio: 4.875
Leaf spring count: 4/5+6
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

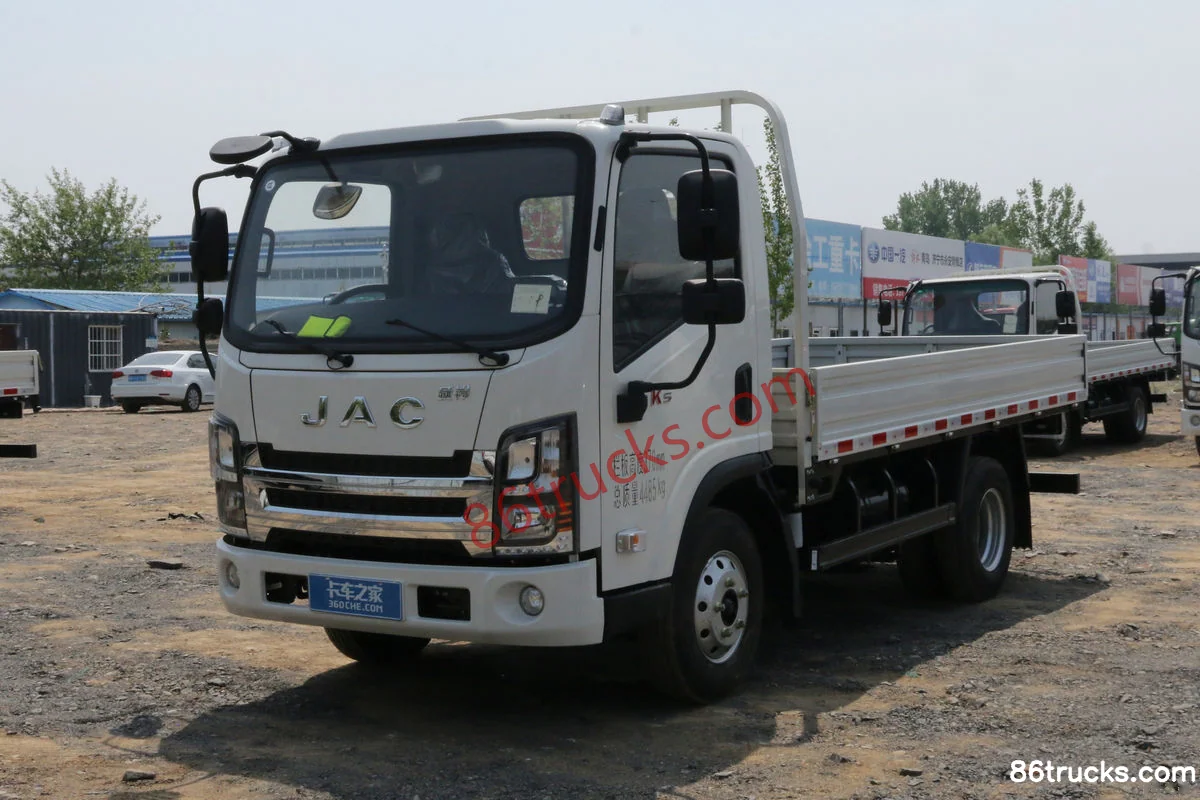

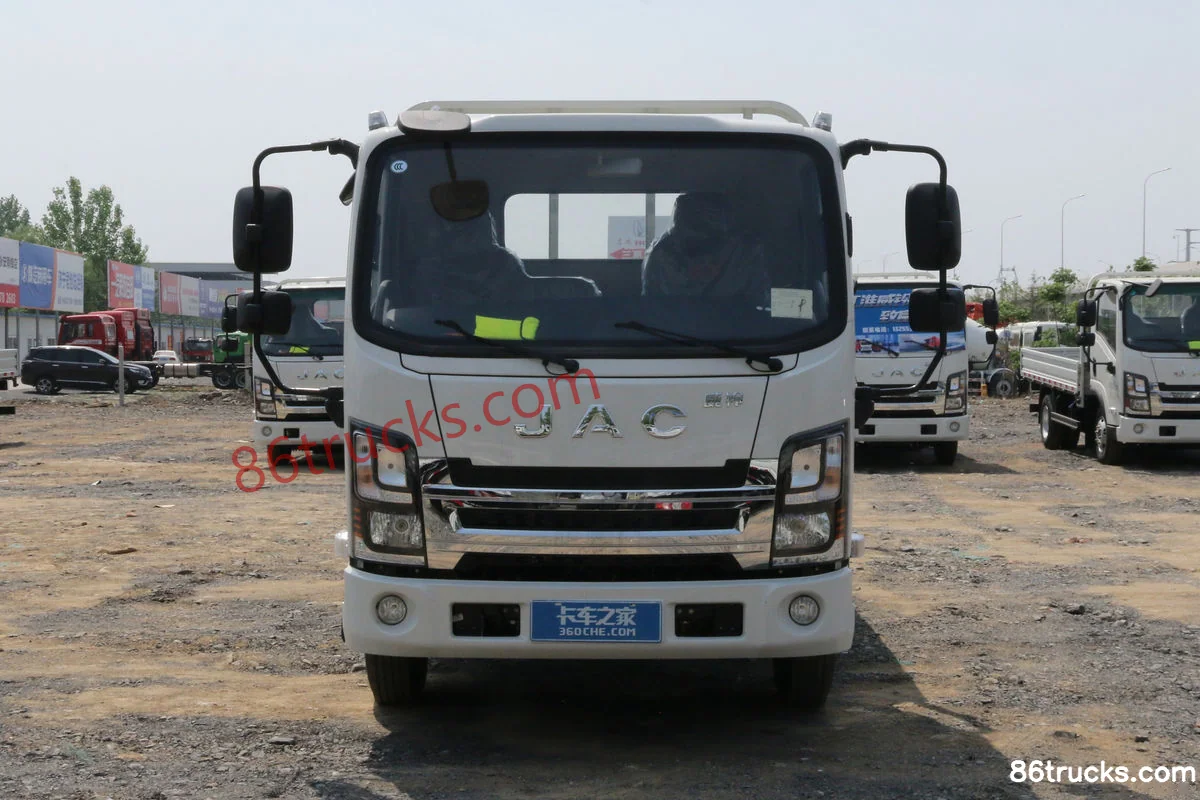

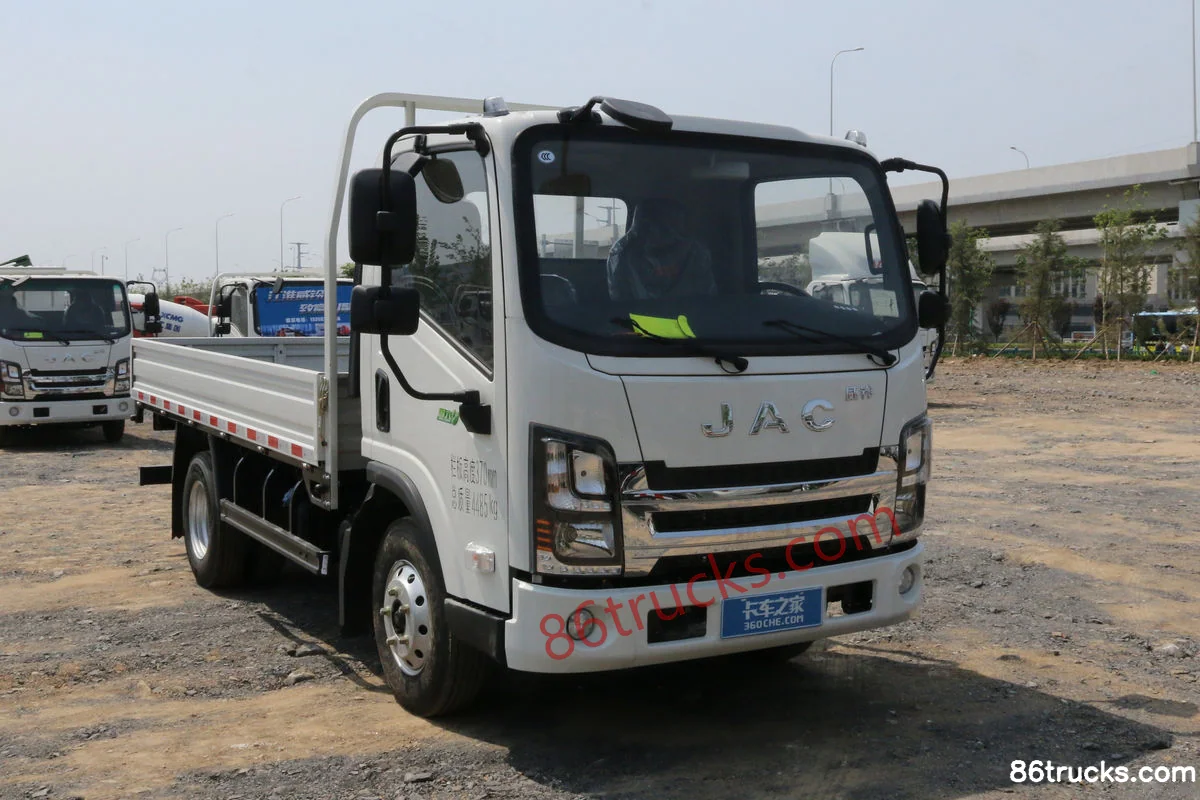

Exterior3

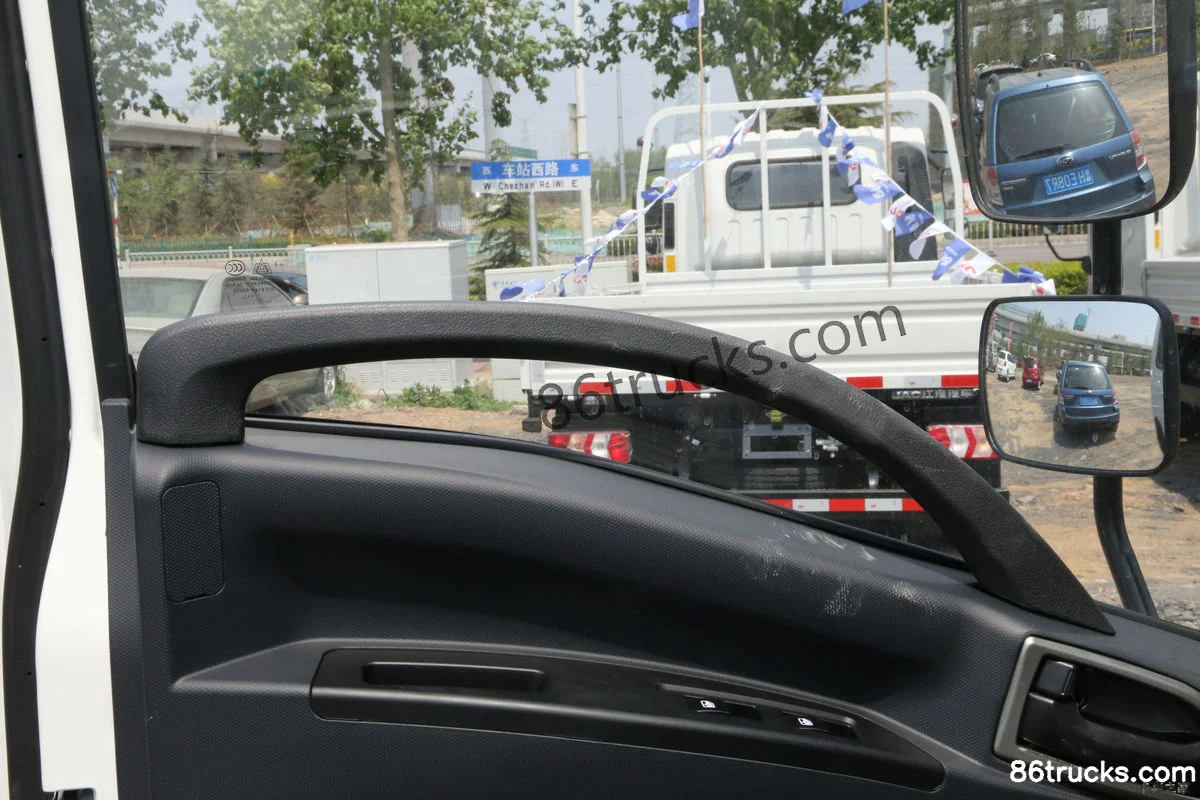

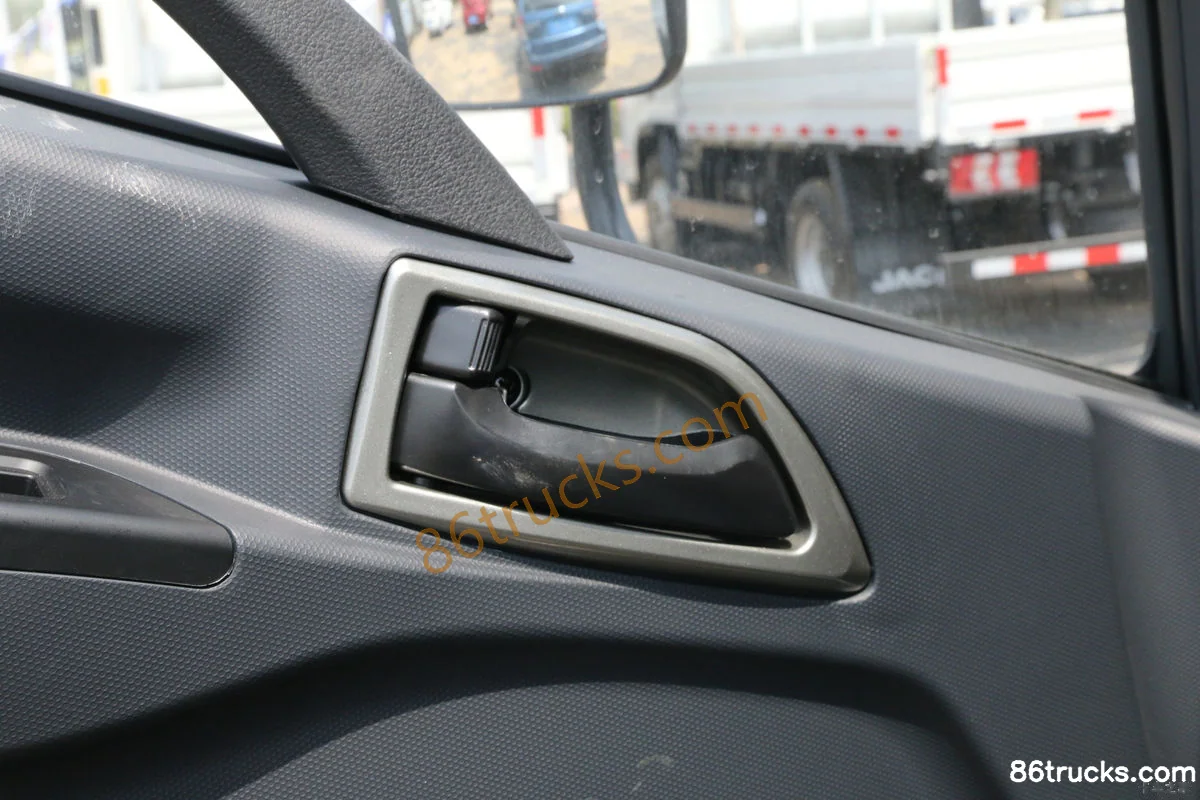

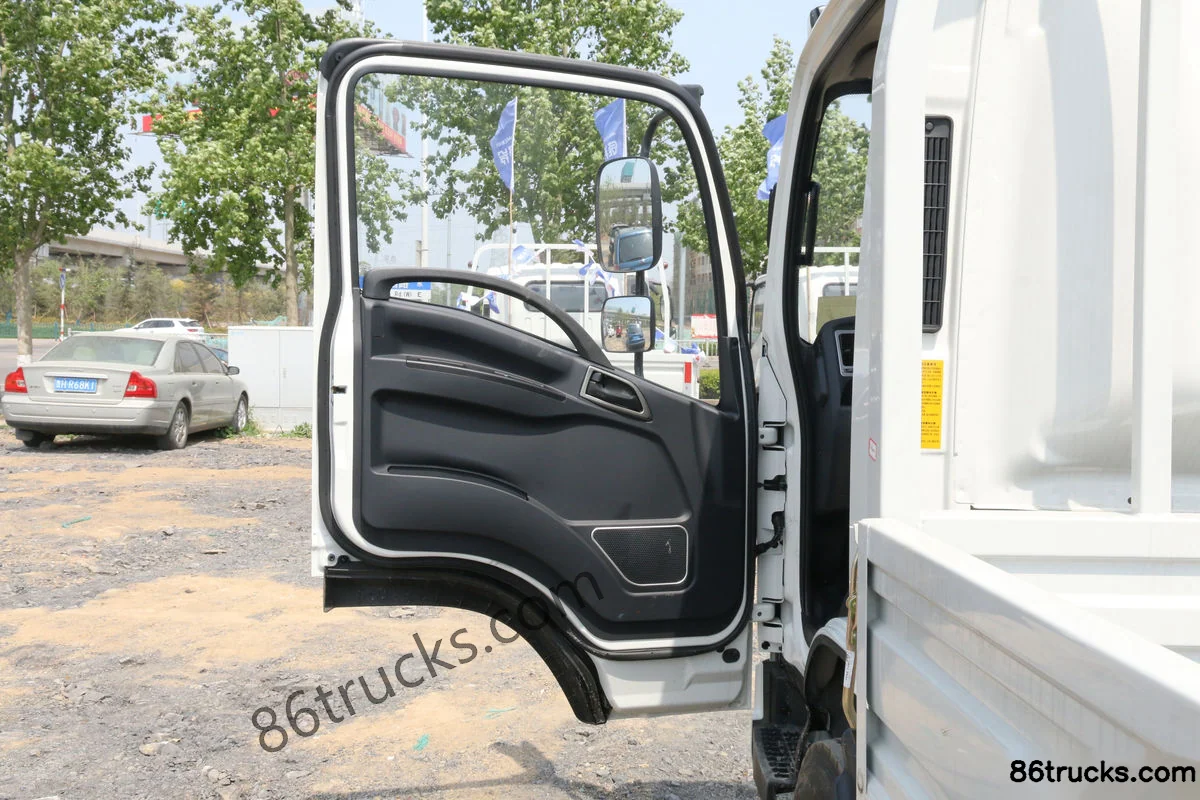

Cab3

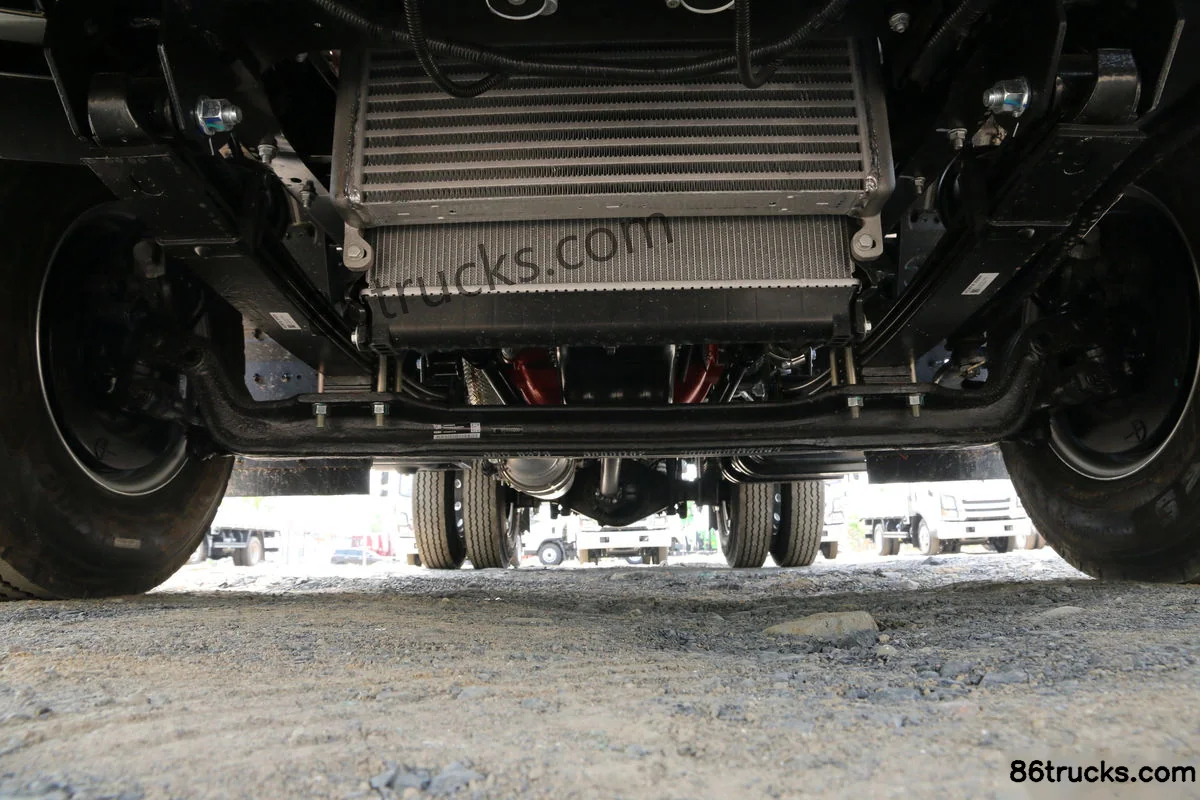

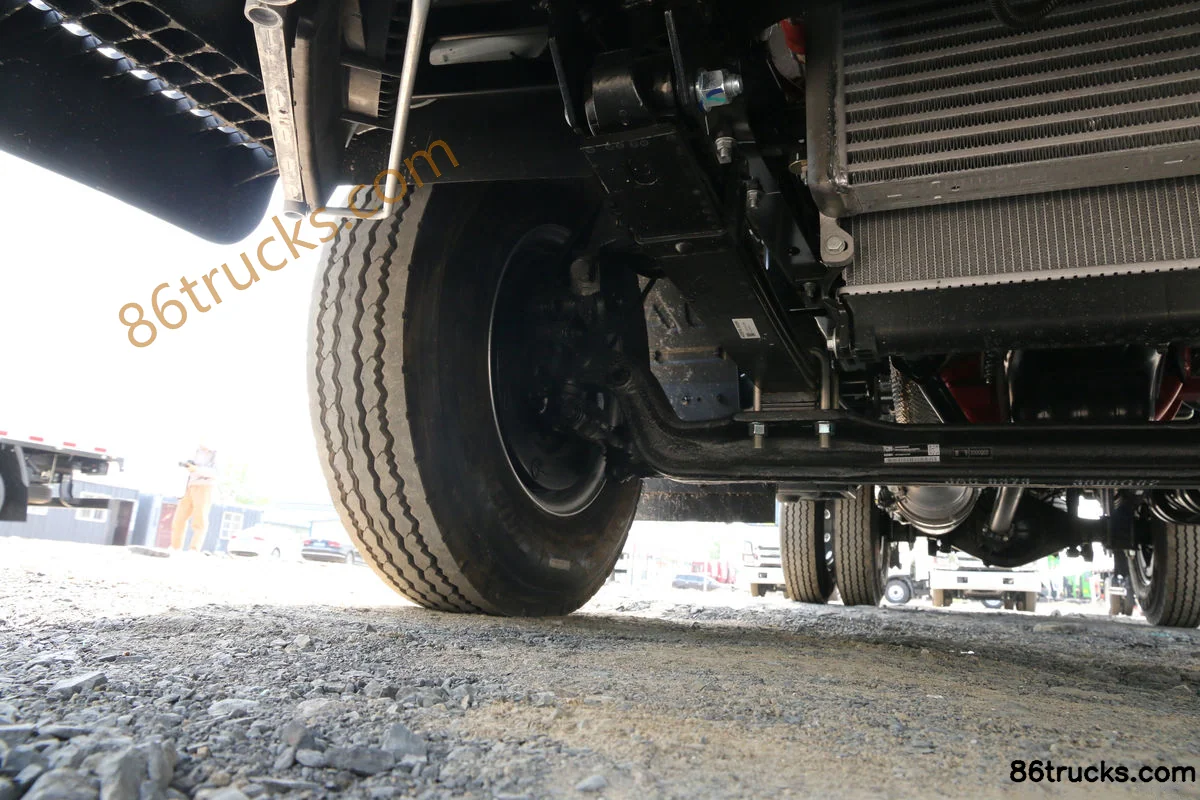

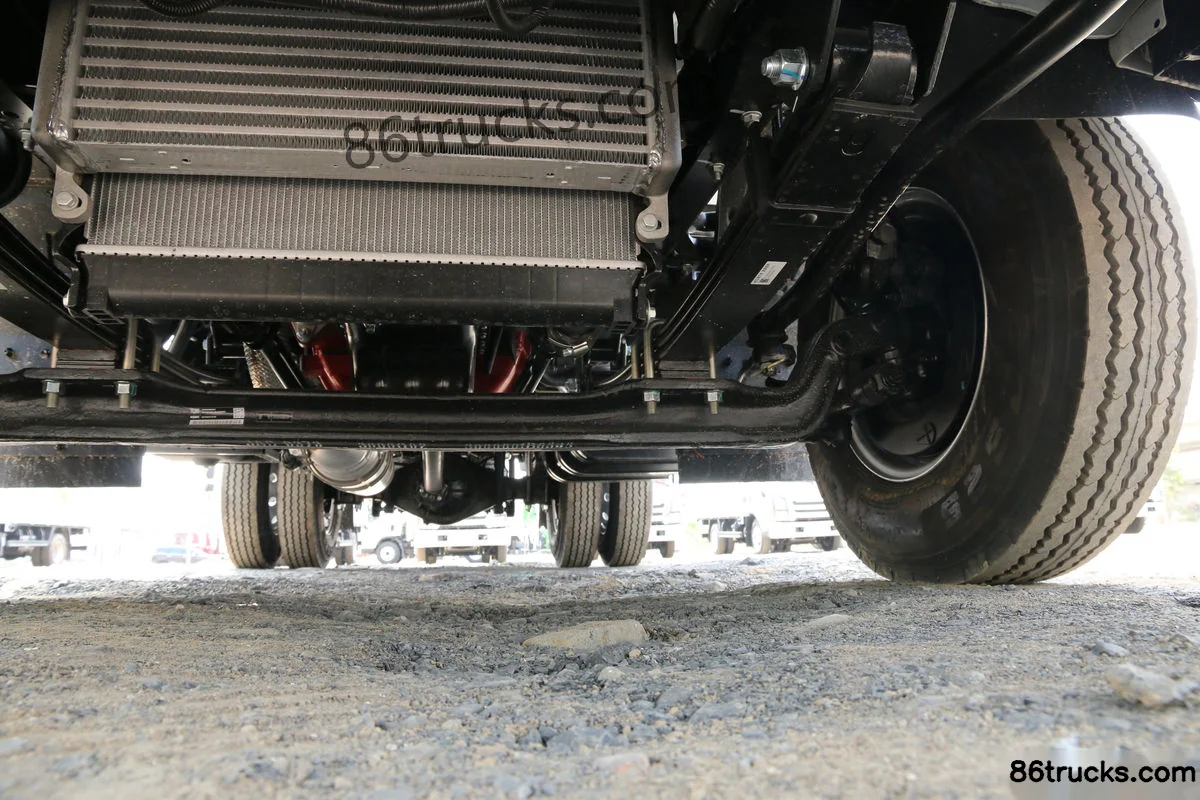

Chassis3

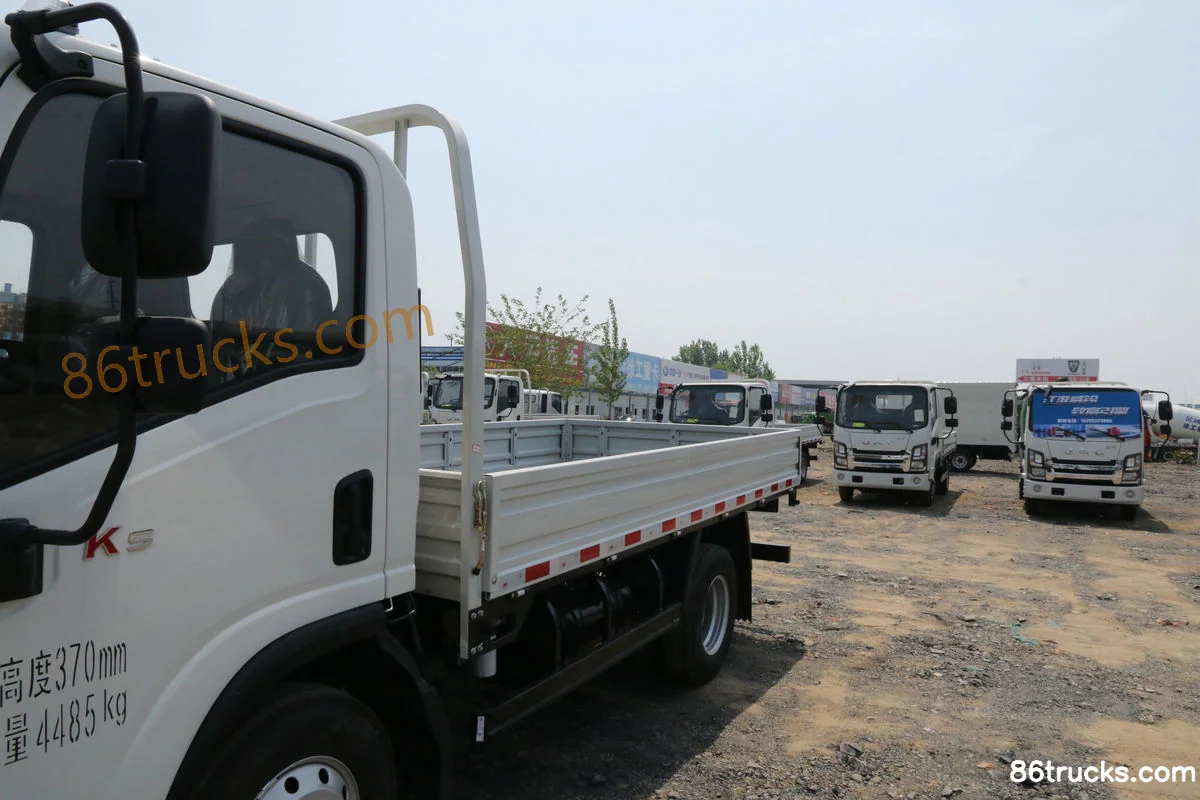

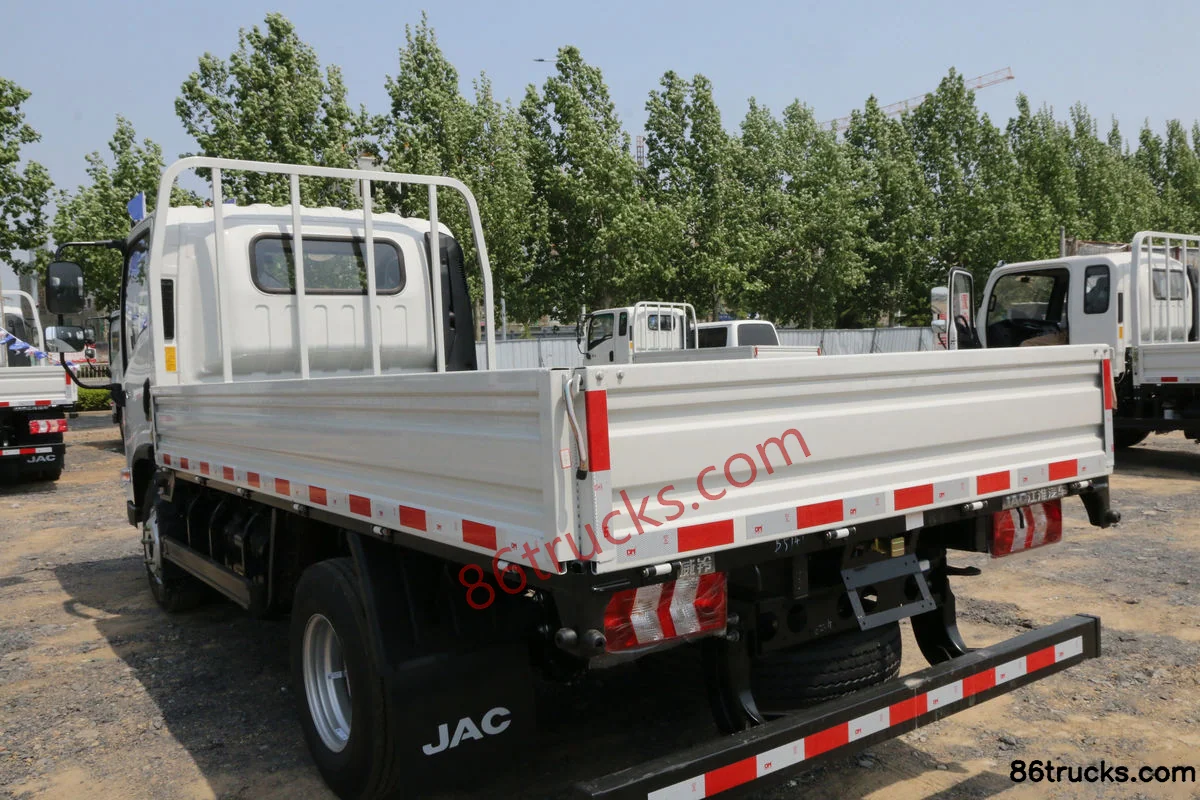

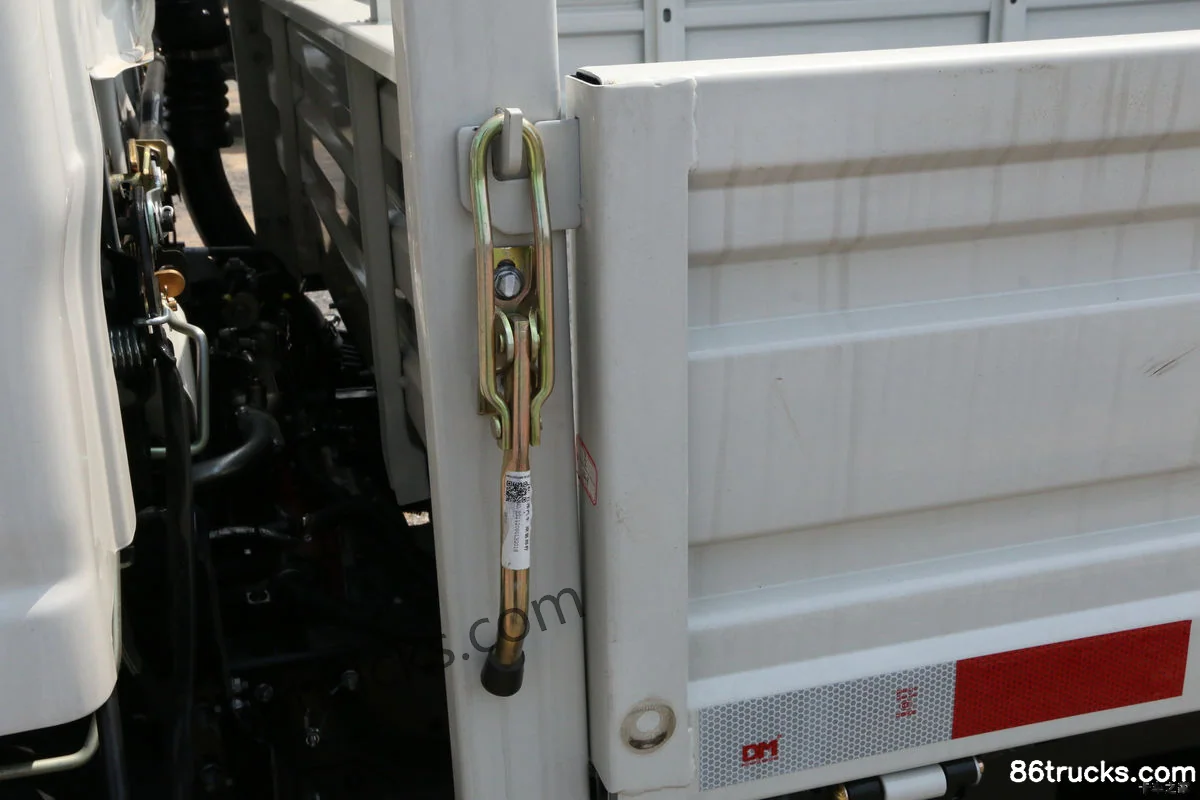

Body3

12 photos
