JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI)

Export reference
MSRP N/A
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: Ankang 4.5
Transmission: Fast Gear
Curb Weight:: 8.2ton

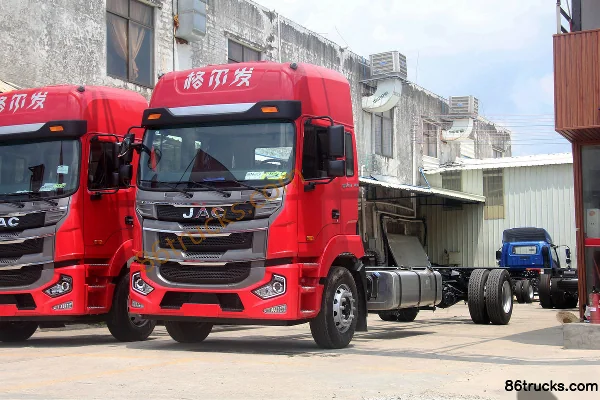

JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 8.87ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) is a Medium-duty truck featuring 9.8m cargo length, Van body cargo body, 3Personnel volume and 8.87t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Ankang 4.5 engine, 220 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5181XXYP2K3A70S
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7050mm
Box length class: 9.8m
engine: Anhui CumminsB4.5NS6B220
transmission: Fast Gear8JS85TC
Rear Axle Ratio: 4.333
Cab length: 12m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 2040mm
rear track: 1810mm
Curb Weight: 8.2ton
Rated payload: 8.87ton
GVWR: 18ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Urban Distribution
Remarks: Final drive ratio optional 4.875, brake lining wear alarm, right-turn alarm, front and rear stabilizer bars, lane departure warning, ESC, AEB, blind spot view, four-point air-suspended cab, parking heater, optional ventilated/heated seats, standard 5-inch color smart instrument cluster, telematics system, optional keyless start, driver behavior analysis system, in-vehicle WiFi, 10.4-inch HD large screen,
Front/rear suspension: 14.75/34.75m
Energy Type: Diesel

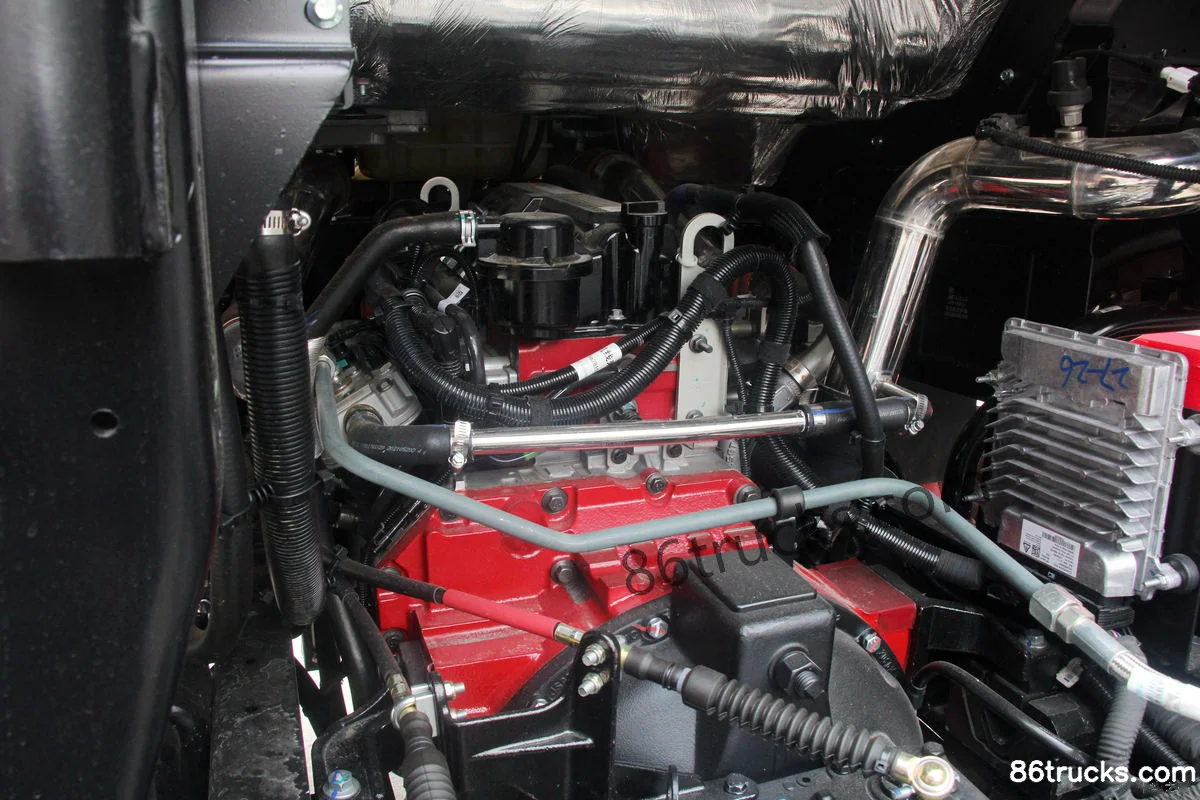

Engine parameters
Engine Brand: Anhui Cummins
Engine Model: Anhui CumminsB4.5NS6B220
Engine info: Ankang 4.5
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 820N·m
Max torque speed: 1300-1500rpm
Rated speed: 2300rpm
Engine Type: DOC+DPF+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.8m
Cargo box width: 2.5m
Cargo box height: 2.7m
*Cargo box interior width: 2.5
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: I-beam section
Front axle allowable load: 6500kg
rear axle description: Single-stage reduction
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 3/9+7
Maintenance-free wheel end:
Tire
Tire Size: 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights: none
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:

Photos

Exterior3

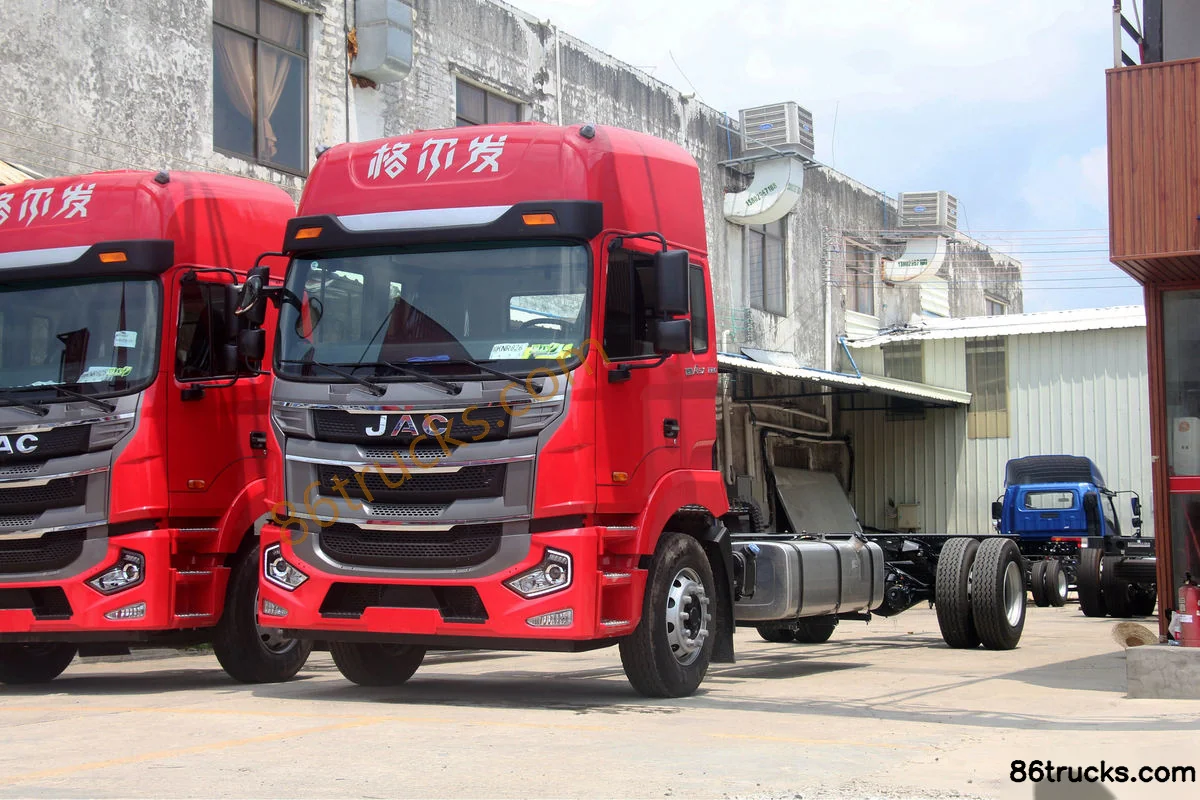

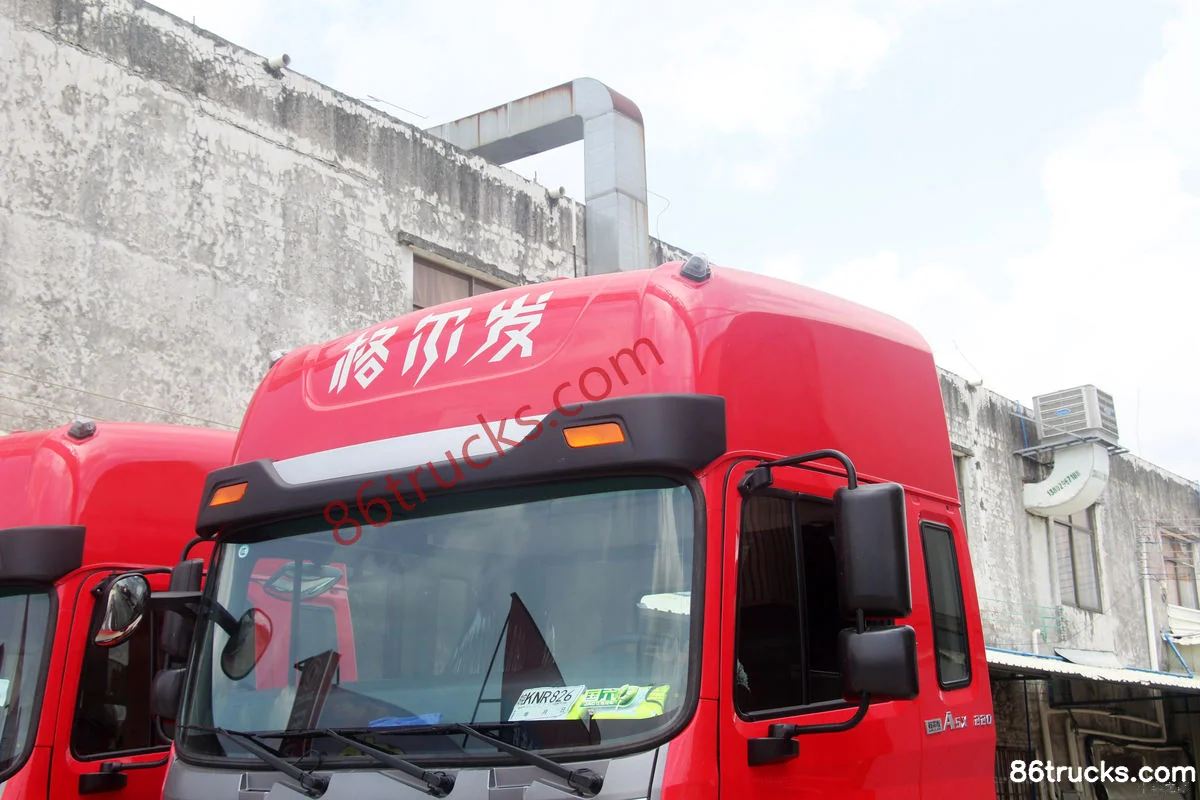

JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) Exterior (1) | 86Trucks JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) Exterior (2) | 86Trucks JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) Exterior (3) | 86Trucks

Cab3

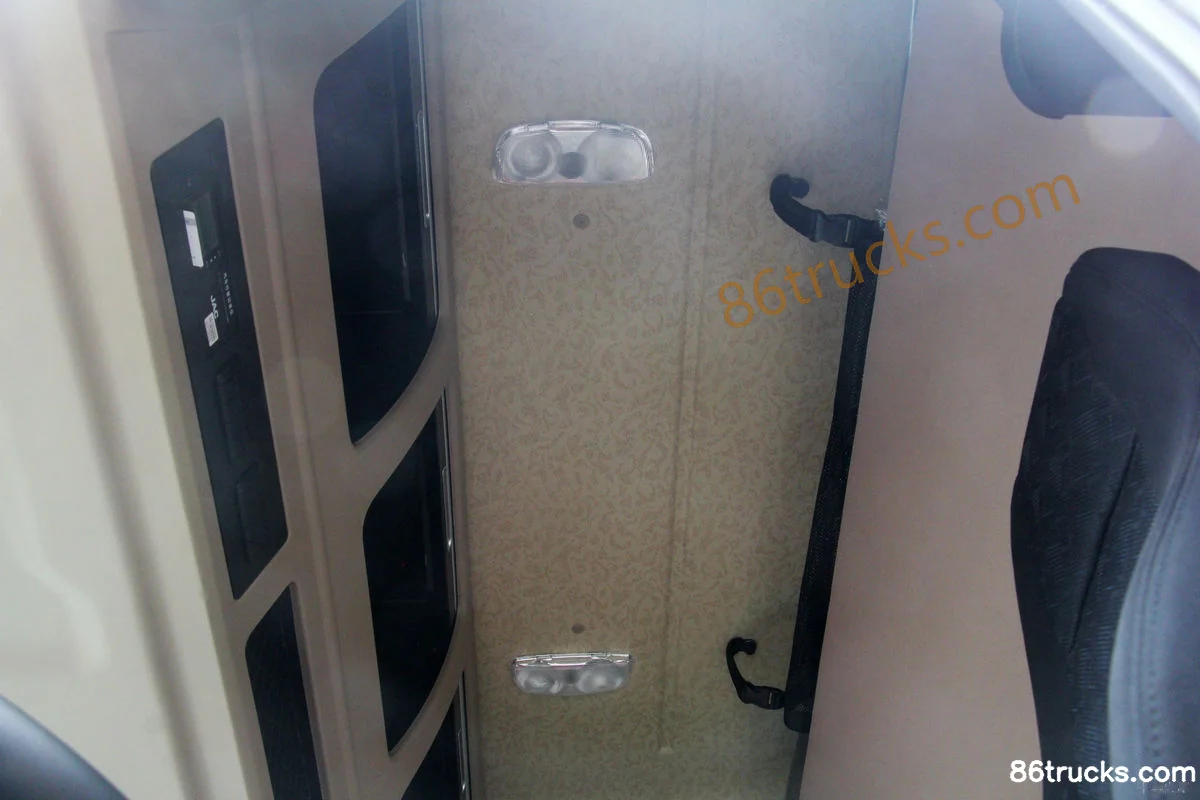

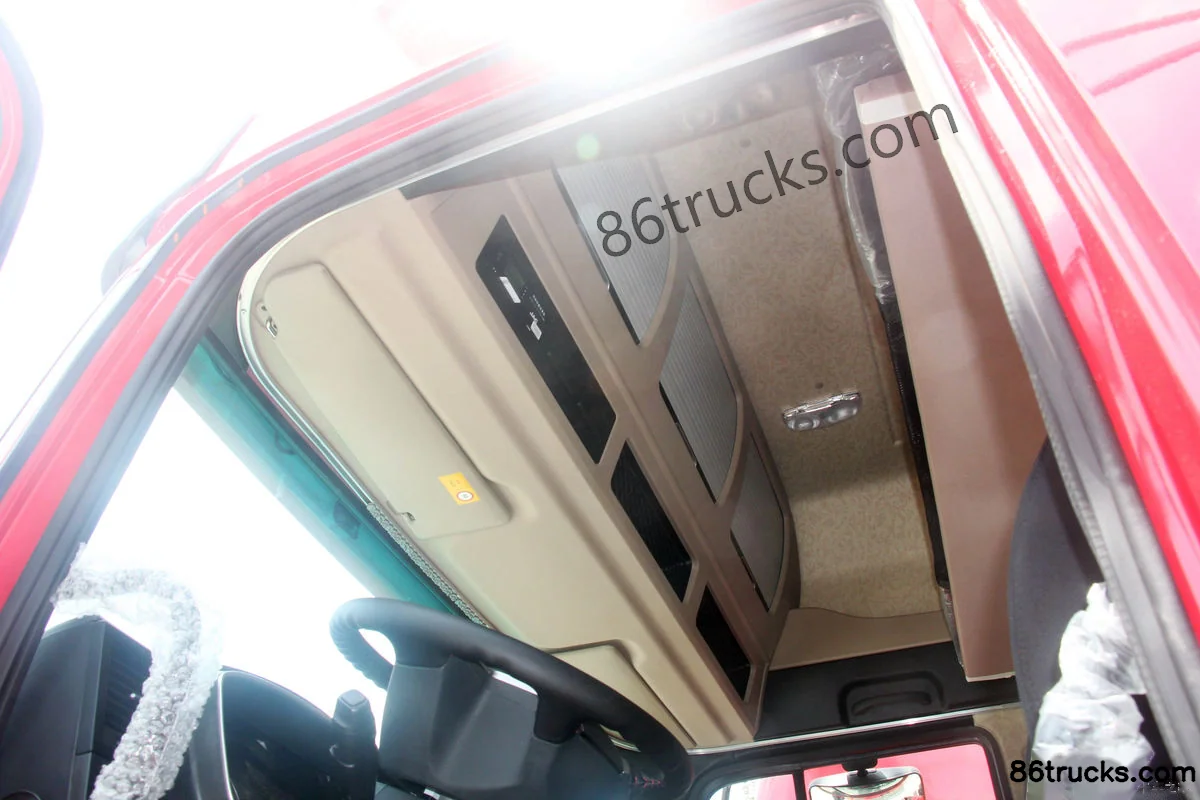

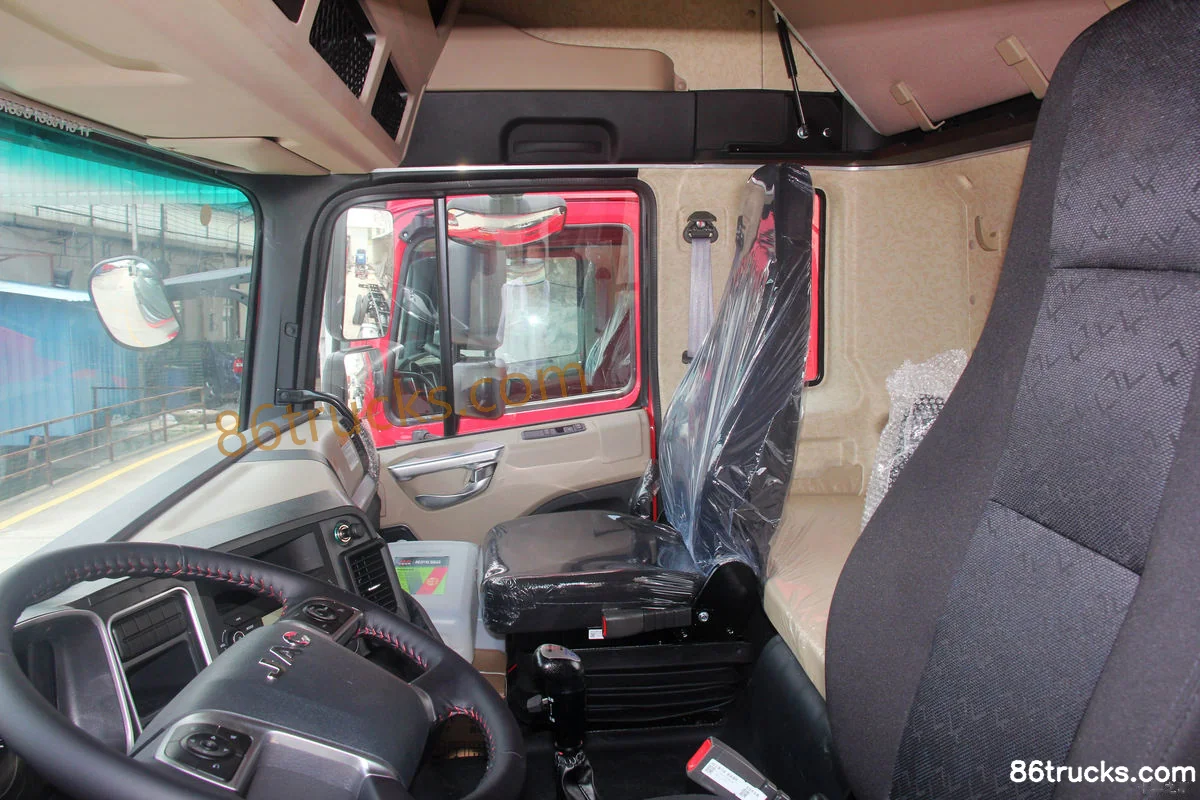

JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) Cab (1) | 86Trucks JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) Cab (2) | 86Trucks JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) Cab (3) | 86Trucks

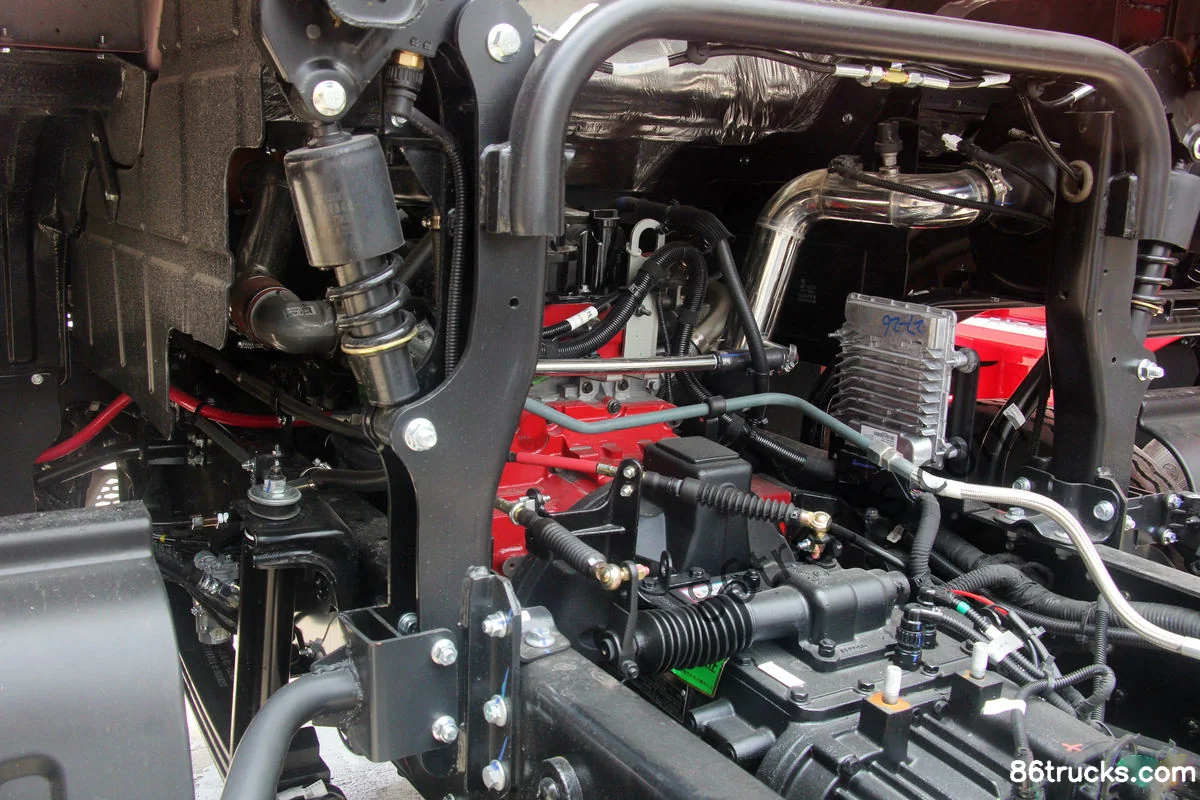

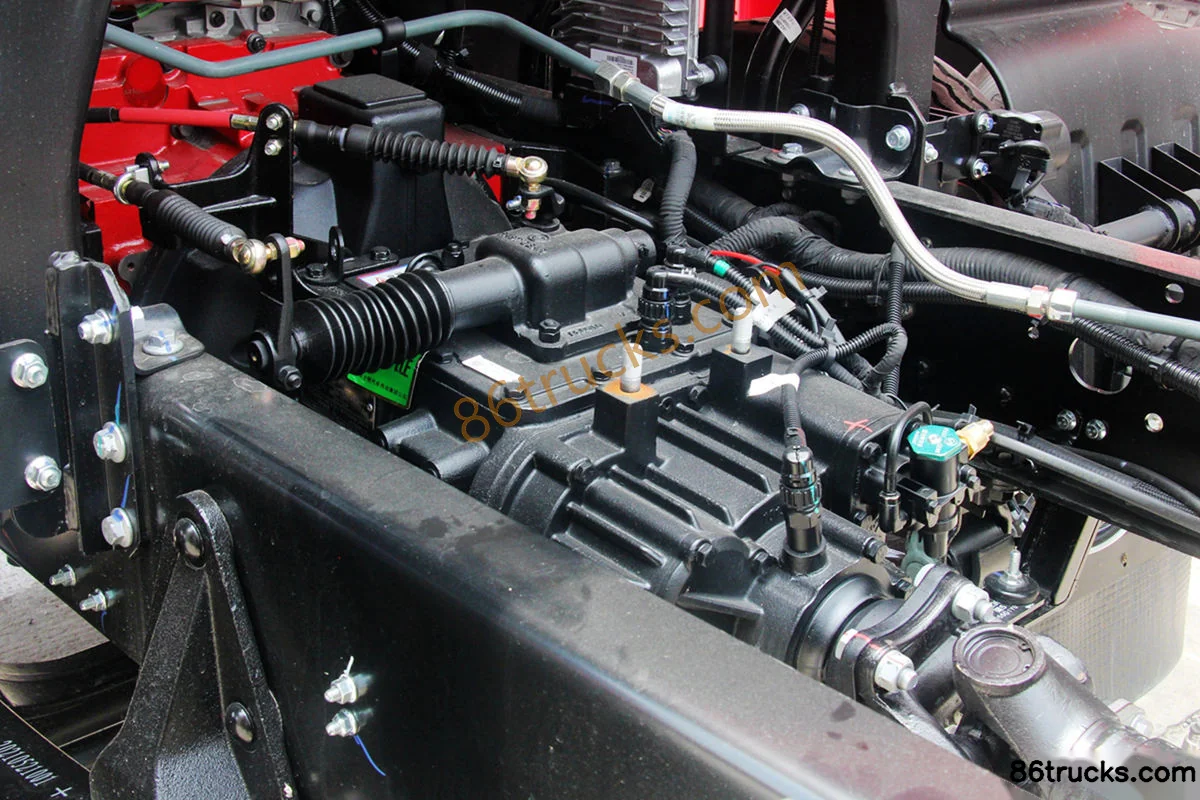

Chassis3

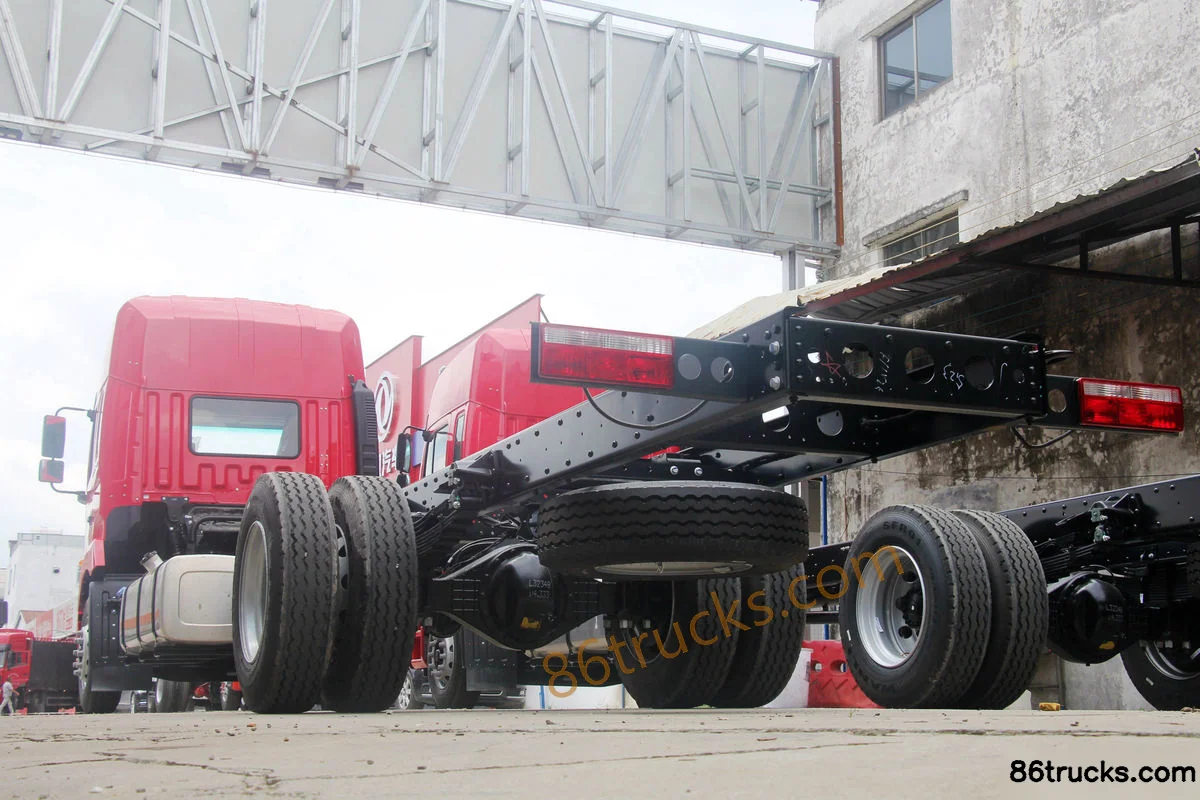

JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) Chassis (1) | 86Trucks JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) Chassis (2) | 86Trucks JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI)?

Key specs of JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI): Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: Ankang 4.5; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) suited for?

JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) differ from other variants in the same series?

JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI) belongs to JAC Gallop A5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5X Medium Truck 220 hp 4X2(6 wheels) 9.8m Box Cargo Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
